  1. QOD #64 • Describe what you notice in the following situations: • The drummers from the marching band are right by you and are playing loudly. • You are sitting right next the speakers playing loud music. • Someone drives by in their car with the bass turned up.

  2. Waves Students can draw and describe the difference between longitudinal and transfer waves. Students can label the crest, trough, rarefaction, compression, wavelength,

  3. Waves 2-3-14 Waves – a disturbance that transfers energy from one place to another without transferring matter.

  4. 1. Transverse Waves – waves that move up and down -Electromagnetic waves (including light waves) are transverse waves.

  5. Crest Wavelength Trough • Wavelength – the distance from one point on a wave to the same point on the next wave • Crest – the highest point on a transverse wave • Trough – the lowest point on a transverse wave

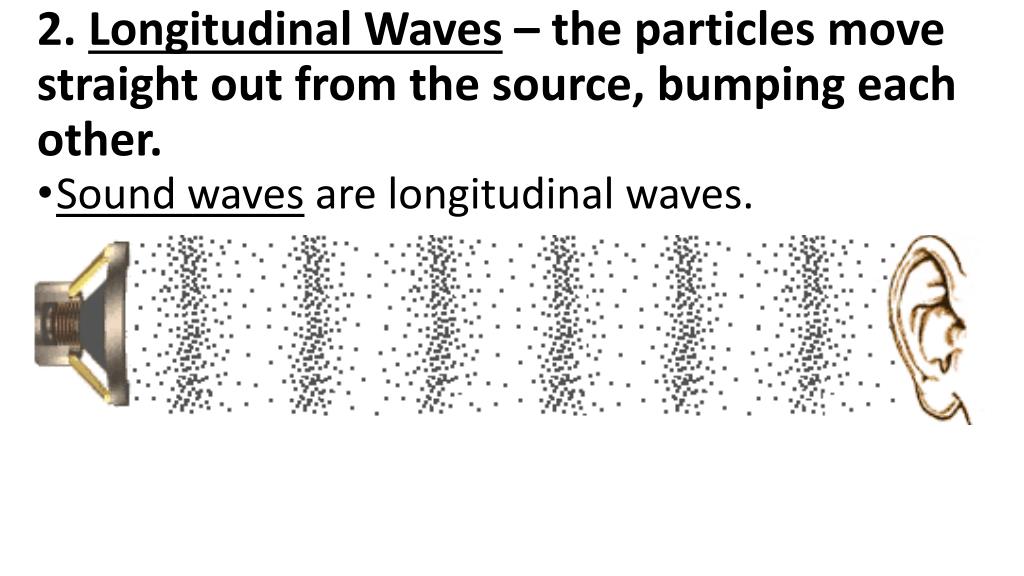

  6. 2. Longitudinal Waves – the particles move straight out from the source, bumping each other. • Sound waves are longitudinal waves.

  7. Compressions – the region of a sound wave where the particles are closest together • Rarefactions – the region of a sound wave where the particles are farthest apart Rarefactions Wavelength Compressions

  8. Sound/ Longitudinal Electro- Magnetic/ Transverse

  9. Yarn & Slinky Activity • Take the yarn and stretch it across the table between you and a partner. Move the yarn side to side on the table and observe how it moves. • Take the slinky between two people and one person sharply push one end of the slinky forward. Observe how the slinky moves. • Answer the questions in your notebook.

  10. Yarn & Slinky Questions • Which type of wave does the movement of the yarn represent? (Answer PQPA) • Draw the shape of the wave made from the yarn and label the crest, trough, and wavelength. • Which type of waves does the movement of the slinky represent? (Answer PQPA) • Draw the slinky coils and label a compression, rarefaction, and wavelength.

  11. QOD #65 • Draw and label where the compression, rarefaction, and wavelength are in this diagram. Name the type of wave.

  12. Sound Energy

  13. How sound travels Sound travels through longitudinal waves, also known as compression waves. They travel directly outward from the source of the vibration.

  14. Making waves • What is created after the object hits the water? • What happens when the wave in the water hits an object? • It reflects the wave • The reflected wave is an echo

  15. Mediums – substances that sound waves travel through. • Solids • Liquids • Gases

  16. In what type of medium does sound travel the fastest? Gas Liquid Solid

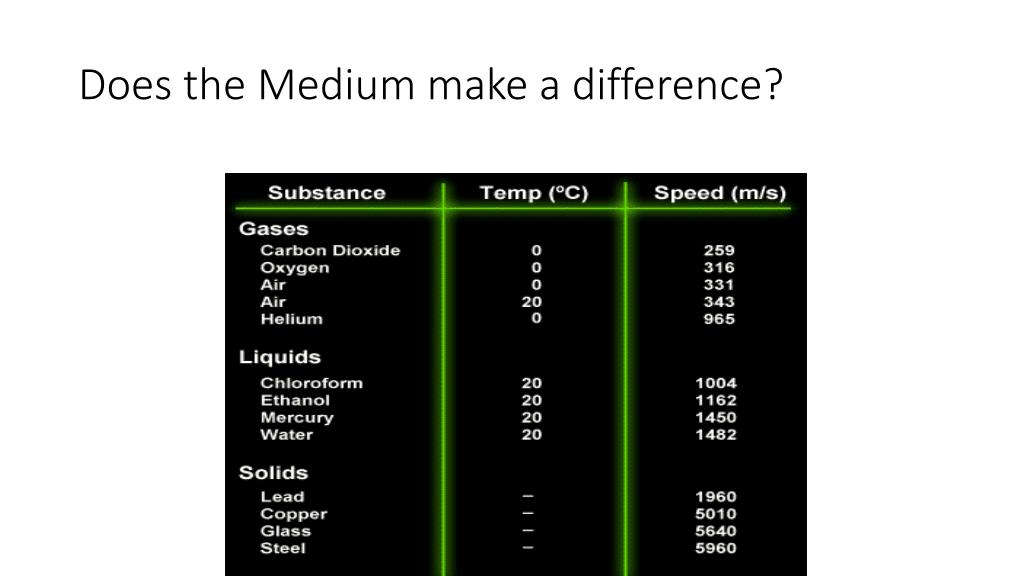

  17. Does the Medium make a difference?

  18. High and Low Pitched High Frequency Low Frequency

  19. Frequency – the number of wavelengths that pass by a point each second Unit for Frequency = Hertz (Hz)

  20. How do we measure frequency?

  21. Think about a fire truck • What happens as it passes by? • http://www.animations.physics.unsw.edu.au/jw/doppler.htm

  22. Doppler effect- change in pitch when a sound source is moving in relation to an observer

  23. QOD #66 • Define the term medium and give three examples.

  24. How the ear hears • http://www.youtube.com/watch?v=ahCbGjasm_E • Decibels- the pressure that sound waves exert

  25. How old are your ears? • http://www.youtube.com/watch?v=VxcbppCX6Rk

  26. Decibels/Loudness

  27. Damage of Decibels

  28. Sound Stations • Tuning forks – (Describe what happened when you struck different tuning forks) • String cup telephones – (Did they work? What was the secret to making them work?)

  29. QOD #67 • How does sound travel? Be specific!

  30. Sound Energy Recap Sound is the result of vibrations in matter. Sound energy is transferred by • waves (2) spreading away from the source (3) through particle-to-particle interaction. Show Video

  31. Pitch – the perception of how high or low a sound seems • Higher frequency = higher pitch • Lower frequency = lower pitch

  32. Loudness depends on the amplitude of a wave • Amplitude – the height of the wave

  33. Pitch vs. Loudness

  34. 2-6-13 Speed of Sound • Speed of sound (in air): 768 mph (343 m/s) Watch videos http://www.youtube.com/watch?v=6o0zmafxTmE&list=PLbjgX3AqxjQVQHo3VIC7JpYnTELDWxXe3&index=5 http://www.today.com/video/today/49414119#49414119

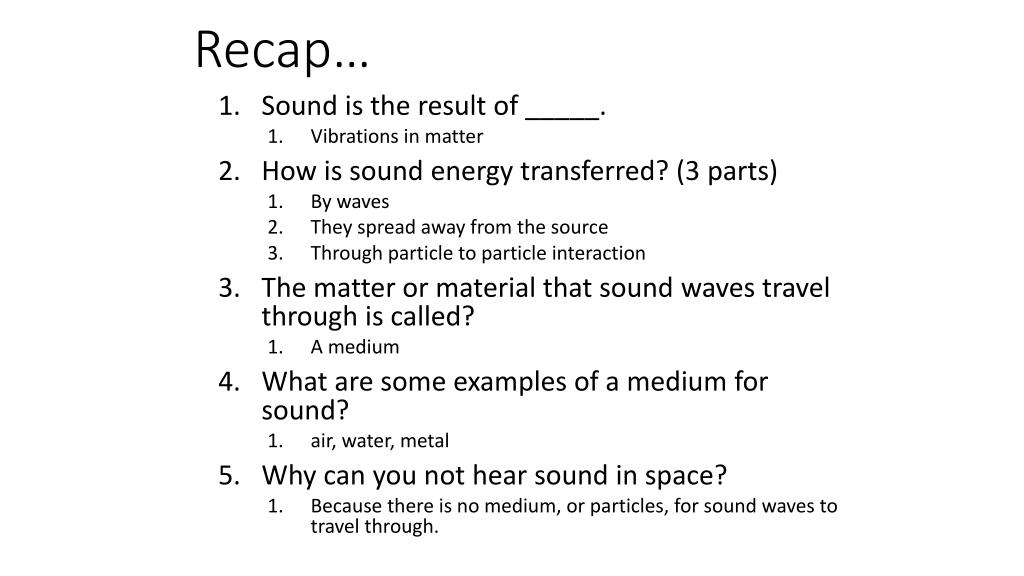

  35. Recap… • Sound is the result of _____. • Vibrations in matter • How is sound energy transferred? (3 parts) • By waves • They spread away from the source • Through particle to particle interaction • The matter or material that sound waves travel through is called? • A medium • What are some examples of a medium for sound? • air, water, metal • Why can you not hear sound in space? • Because there is no medium, or particles, for sound waves to travel through.

  36. Review… • What is the distance from one point on a wave to the same point on the next wave? • A wavelength • What is measured by the number of wavelengths that pass by a point per second? • Frequency • What is the unit for frequency? • Hertz (Hz) • What is the range of frequencies that humans can hear? • 20 Hz to 20,000 Hz

  37. Review… • Which has the highest frequency? • A • B • C • Fill in the blank… • The shorter the wavelength, the _______ the frequency. • The longer the wavelength, the _______ the frequency.

  38. Review… • The perception of how high or low a sound seems is the _______? • Pitch • Fill in the blanks… • The higher the frequency, the ______ the pitch. • The lower the frequency, the ______ the pitch. • Longitudinal vs. transverse wave? • Draw a wave and label the crest, trough, and wavelength.
