  1. Brent M. Baumhardt GEOG 596A – Capstone Project Proposal July 29-30 2014 Advisor: Prof Peter Guth Improving Situational Awareness on Instrument Approach Procedures: A GIS Approach to Charting Terrain

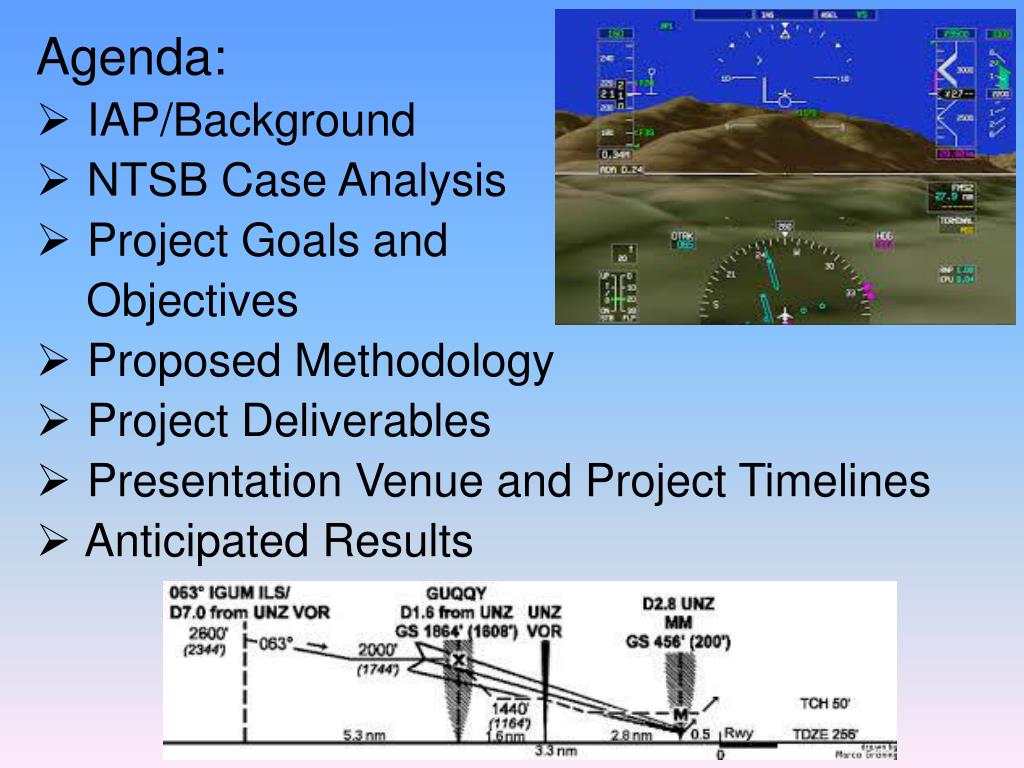

  2. Agenda: • IAP/Background • NTSB Case Analysis • Project Goals and Objectives • Proposed Methodology • Project Deliverables • Presentation Venue and Project Timelines • Anticipated Results

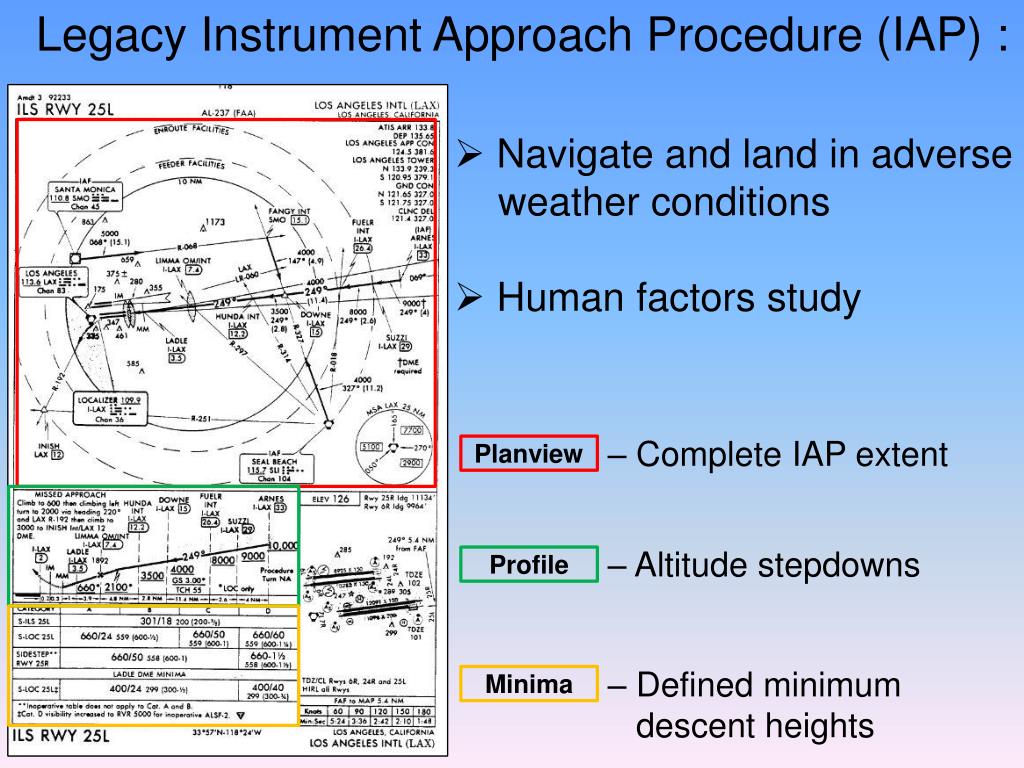

  3. Navigate and land in adverse • weather conditions • Human factors study Legacy Instrument Approach Procedure (IAP) : – Complete IAP extent Planview – Altitude stepdowns Profile – Defined minimum descent heights Minima

  4. Organizes information into • logical flow • Less time searching… • more time flying Volpe Instrument Approach Procedure (IAP) : – Notes/Comm Pilot Briefing Bar – Complete IAP extent Planview – Altitude stepdowns Profile – Defined minimum descent heights Minima

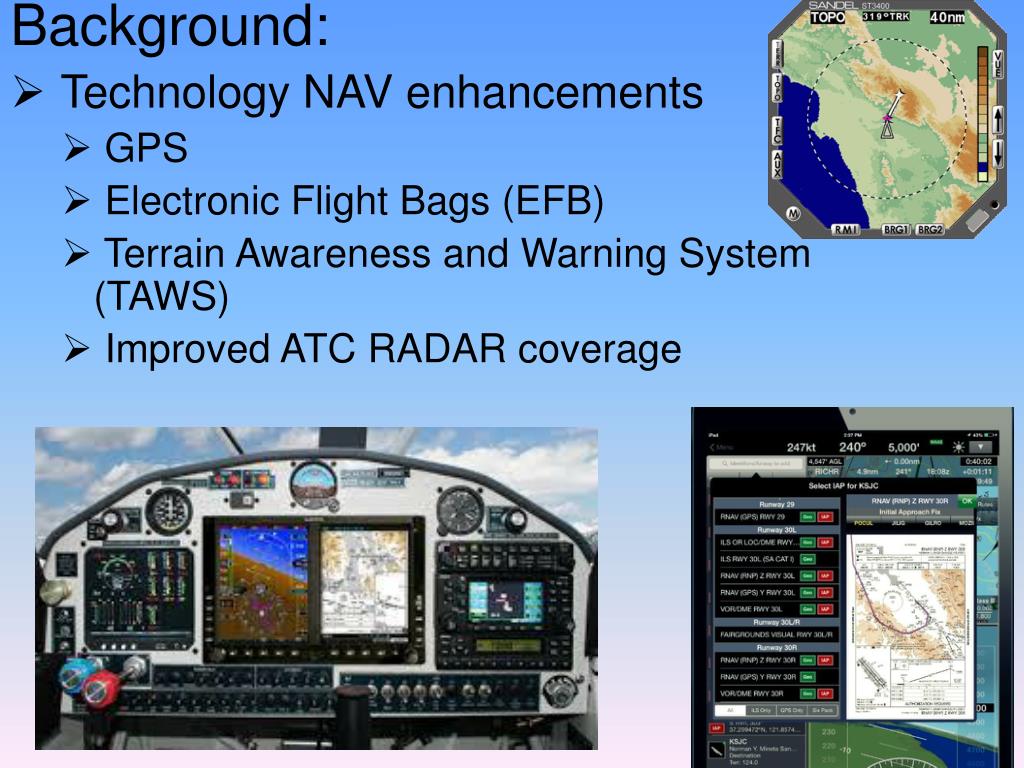

  5. Background: • Technology NAV enhancements • GPS • Electronic Flight Bags (EFB) • Terrain Awareness and Warning System (TAWS) • Improved ATC RADAR coverage

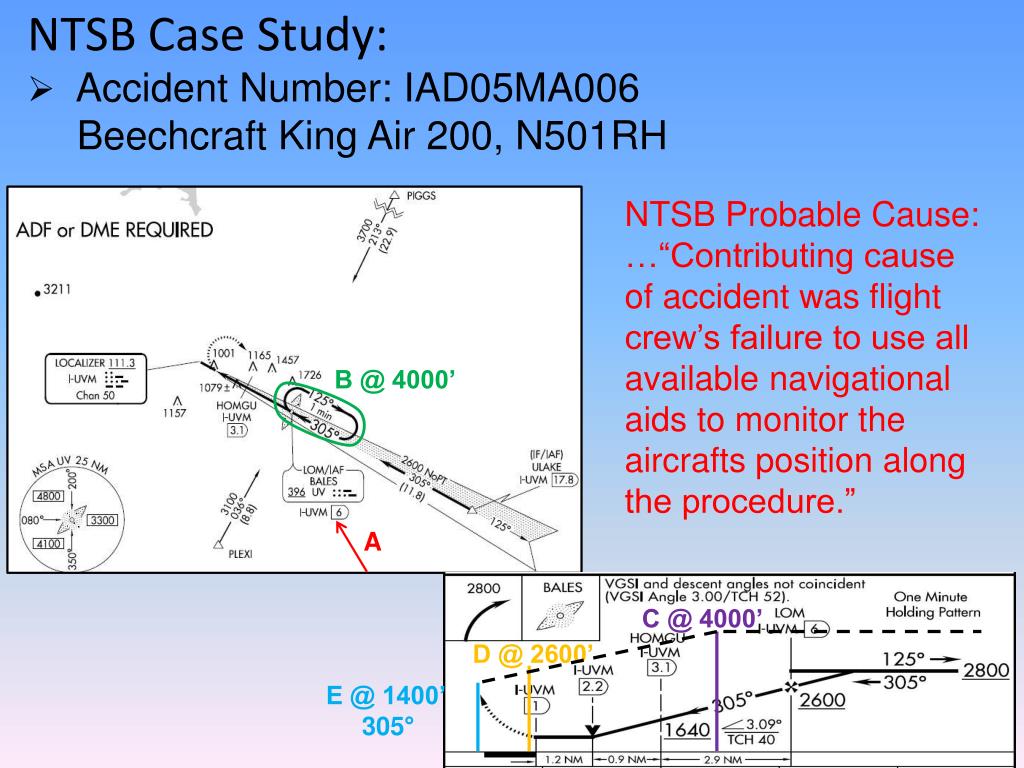

  6. NTSB Case Study: • Accident Number: IAD05MA006 Beechcraft King Air 200, N501RH NTSB Probable Cause: …“Contributing cause of accident was flight crew’s failure to use all available navigational aids to monitor the aircrafts position along the procedure.” B @ 4000’ A C @ 4000’ D @ 2600’ E @ 1400’ 305°

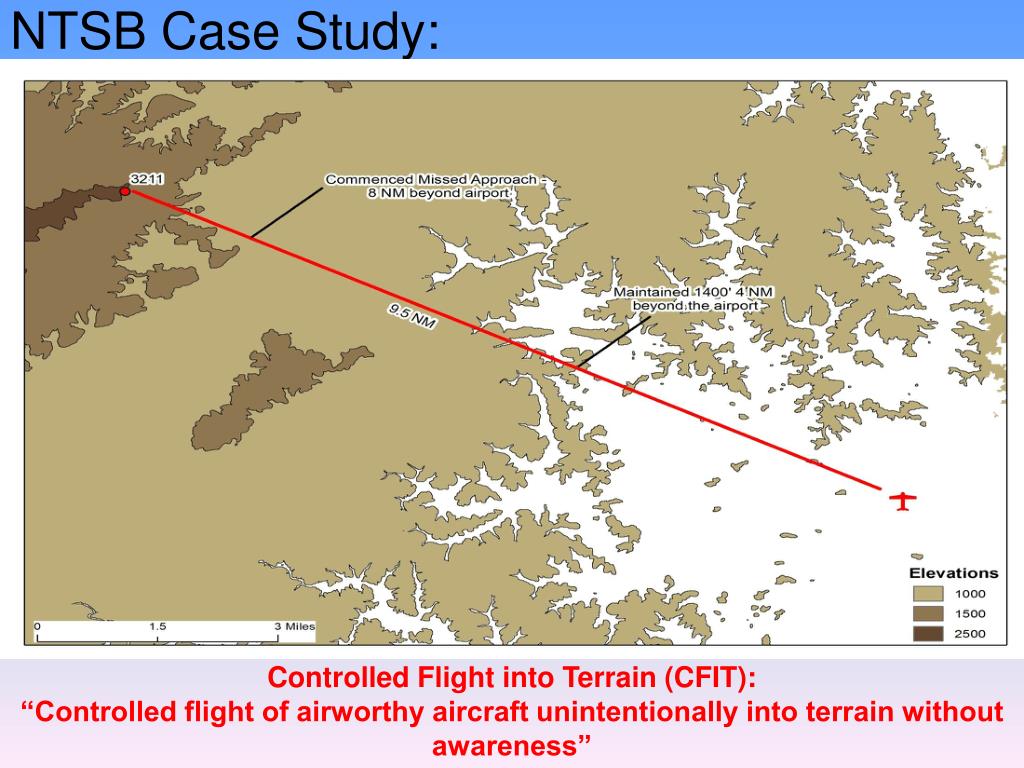

  7. NTSB Case Study: Controlled Flight into Terrain (CFIT): “Controlled flight of airworthy aircraft unintentionally into terrain without awareness”

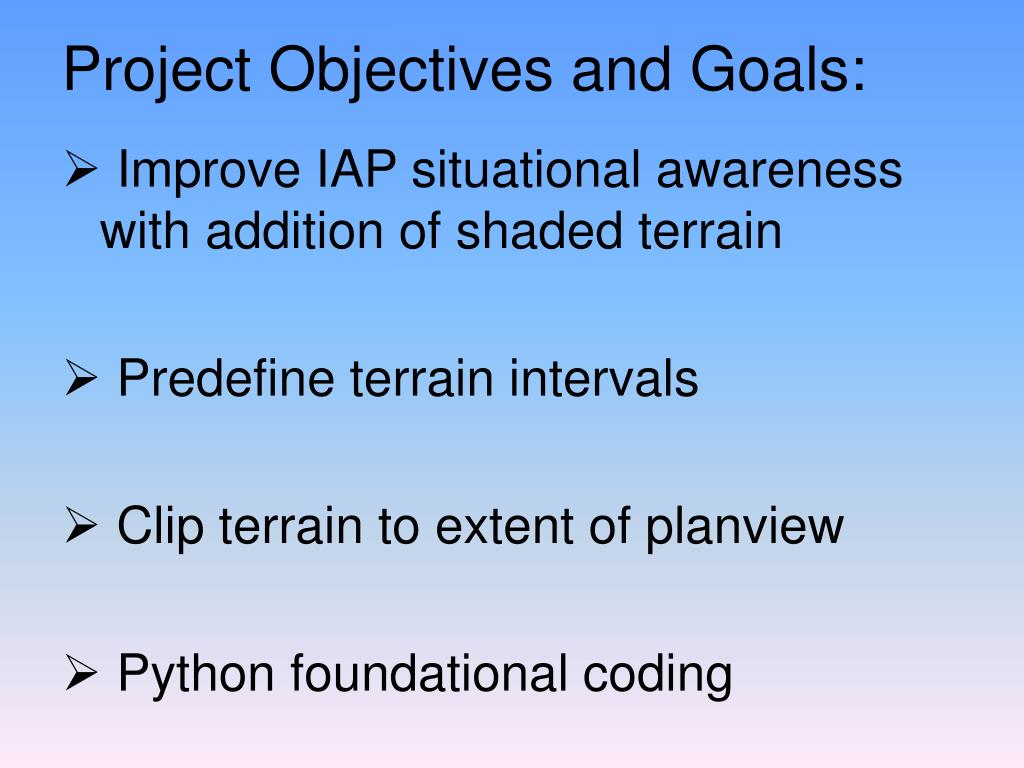

  8. Project Objectives and Goals: • Improve IAP situational awareness with addition of shaded terrain • Predefine terrain intervals • Clip terrain to extent of planview • Python foundational coding

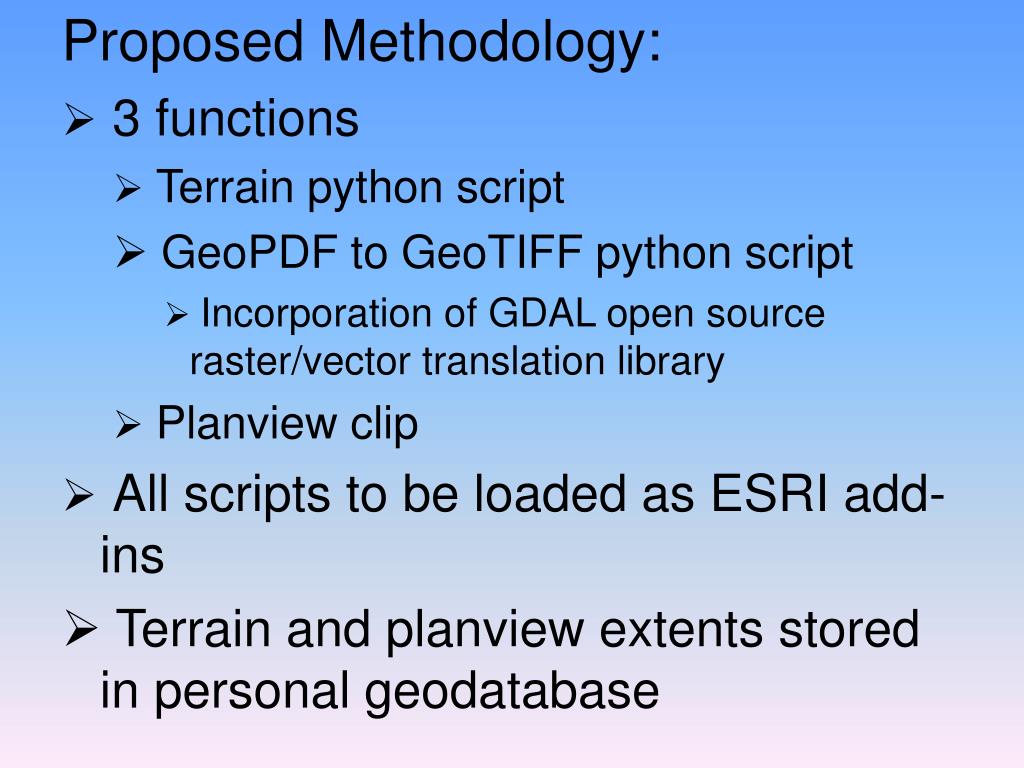

  9. Proposed Methodology: • 3 functions • Terrain python script • GeoPDF to GeoTIFF python script • Incorporation of GDAL open source raster/vector translation library • Planview clip • All scripts to be loaded as ESRI add-ins • Terrain and planview extents stored in personal geodatabase

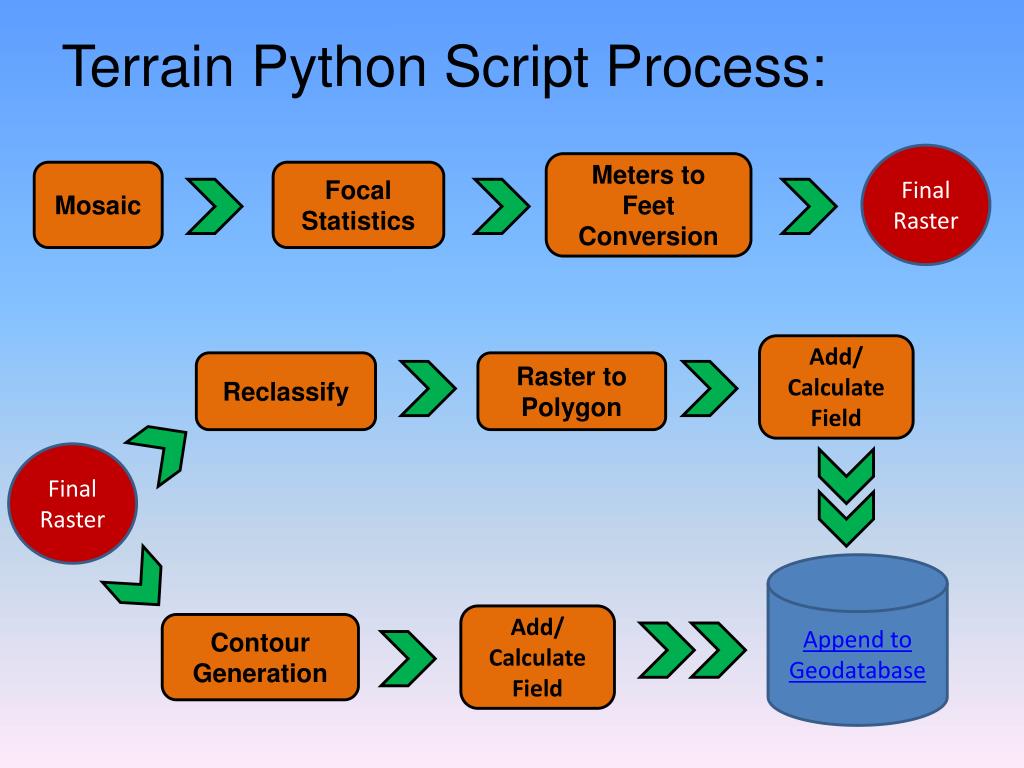

  10. Final Raster Meters to Feet Conversion Mosaic Focal Statistics Terrain Python Script Process: Add/ Calculate Field Reclassify Raster to Polygon Final Raster Append to Geodatabase Add/ Calculate Field Contour Generation

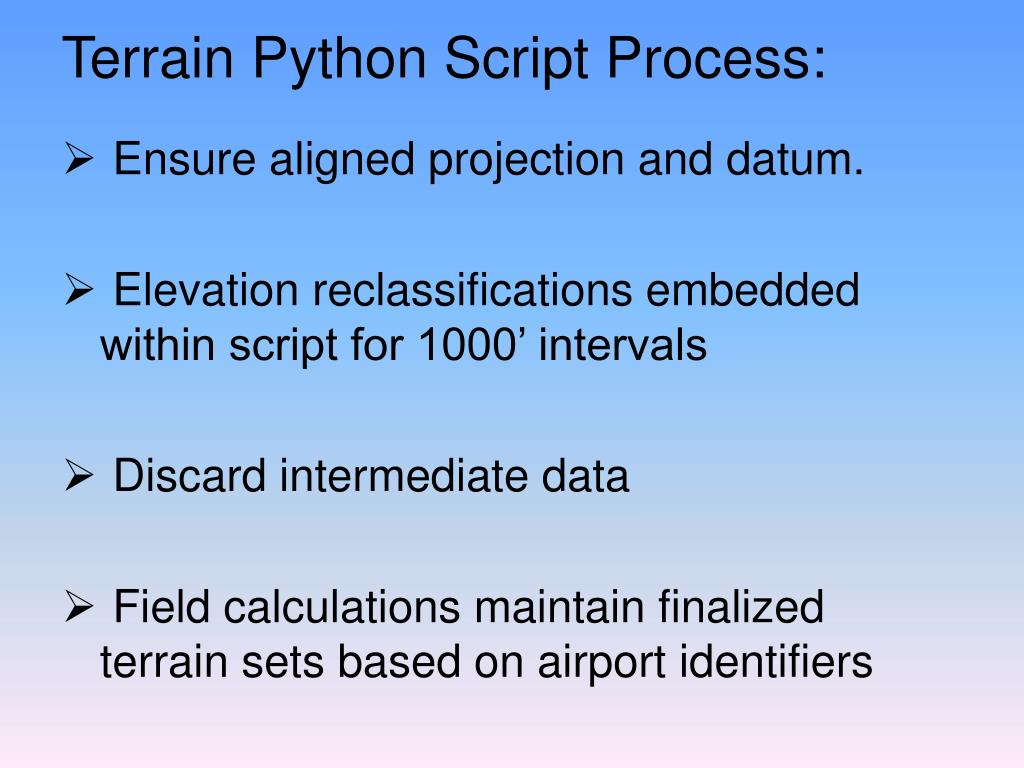

  11. Terrain Python Script Process: • Ensure aligned projection and datum. • Elevation reclassifications embedded within script for 1000’ intervals • Discard intermediate data • Field calculations maintain finalized terrain sets based on airport identifiers

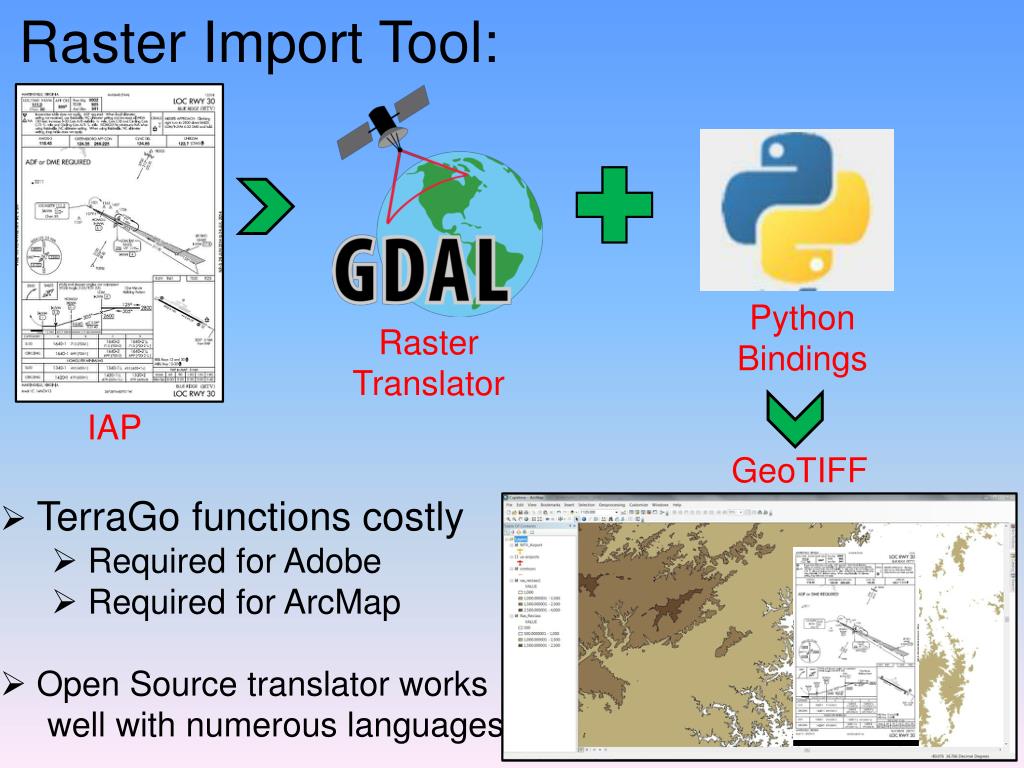

  12. Raster Import Tool: Python Bindings Raster Translator IAP GeoTIFF • TerraGo functions costly • Required for Adobe • Required for ArcMap • Open Source translator works • well with numerous languages

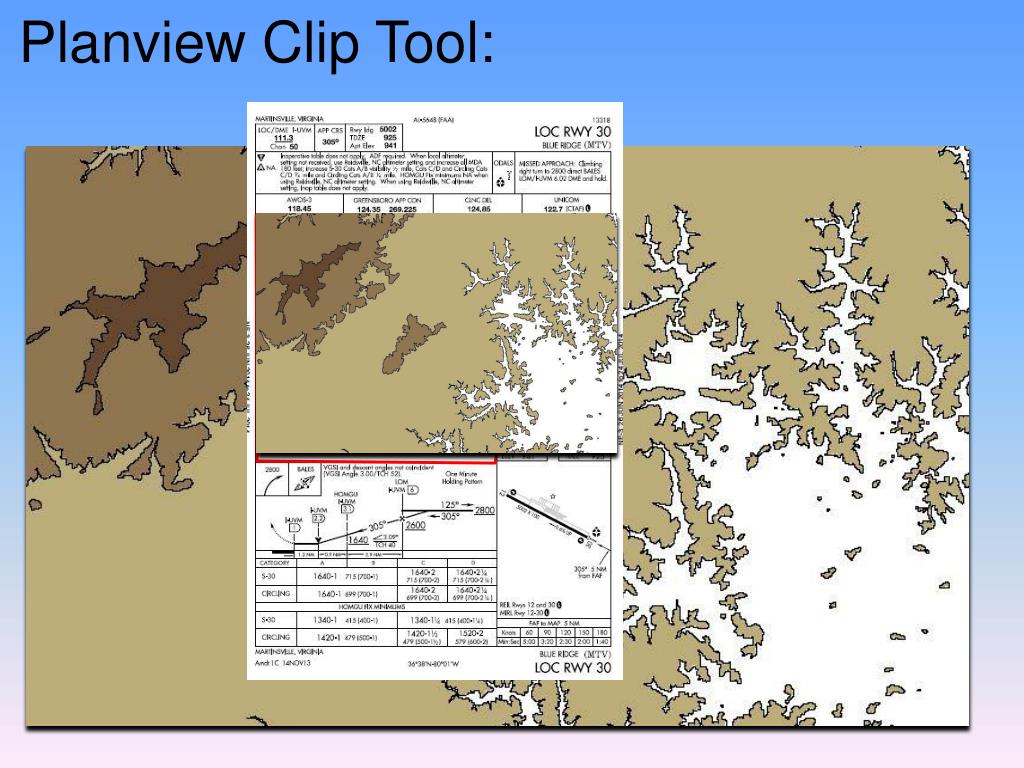

  13. Planview Clip Tool:

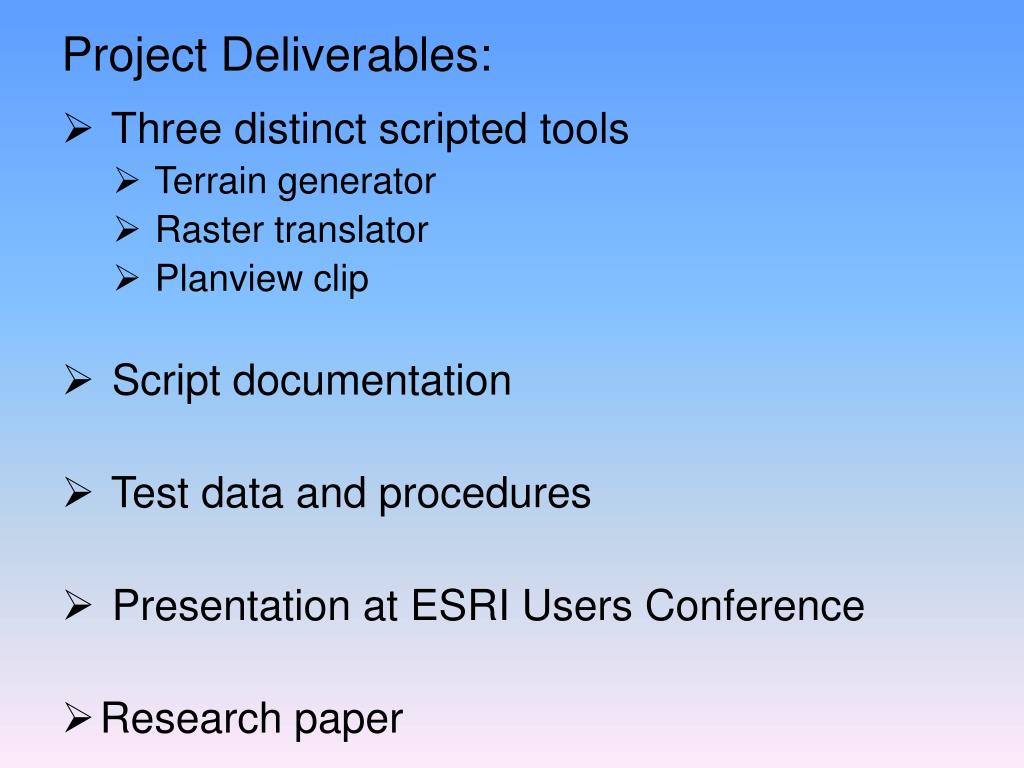

  14. Project Deliverables: • Three distinct scripted tools • Terrain generator • Raster translator • Planview clip • Script documentation • Test data and procedures • Presentation at ESRI Users Conference • Research paper

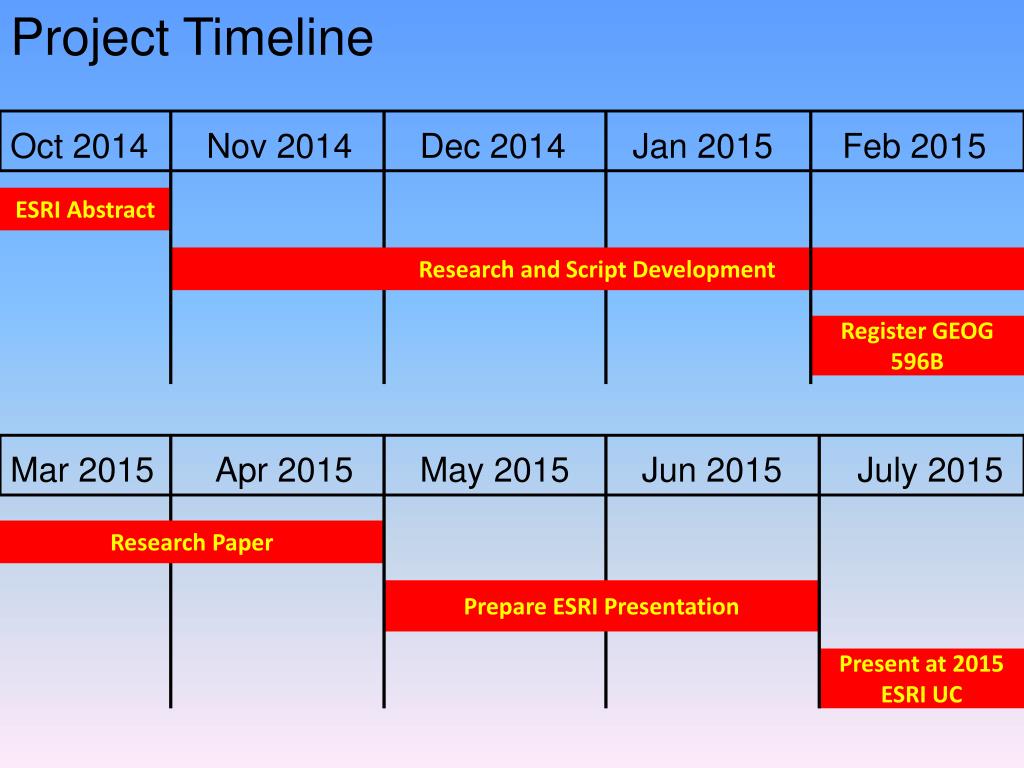

  15. Project Timeline Oct 2014 Nov 2014 Dec 2014 Jan 2015 Feb 2015 ESRI Abstract Research and Script Development Register GEOG 596B Mar 2015 Apr 2015 May 2015 Jun 2015 July 2015 Research Paper Prepare ESRI Presentation Present at 2015 ESRI UC

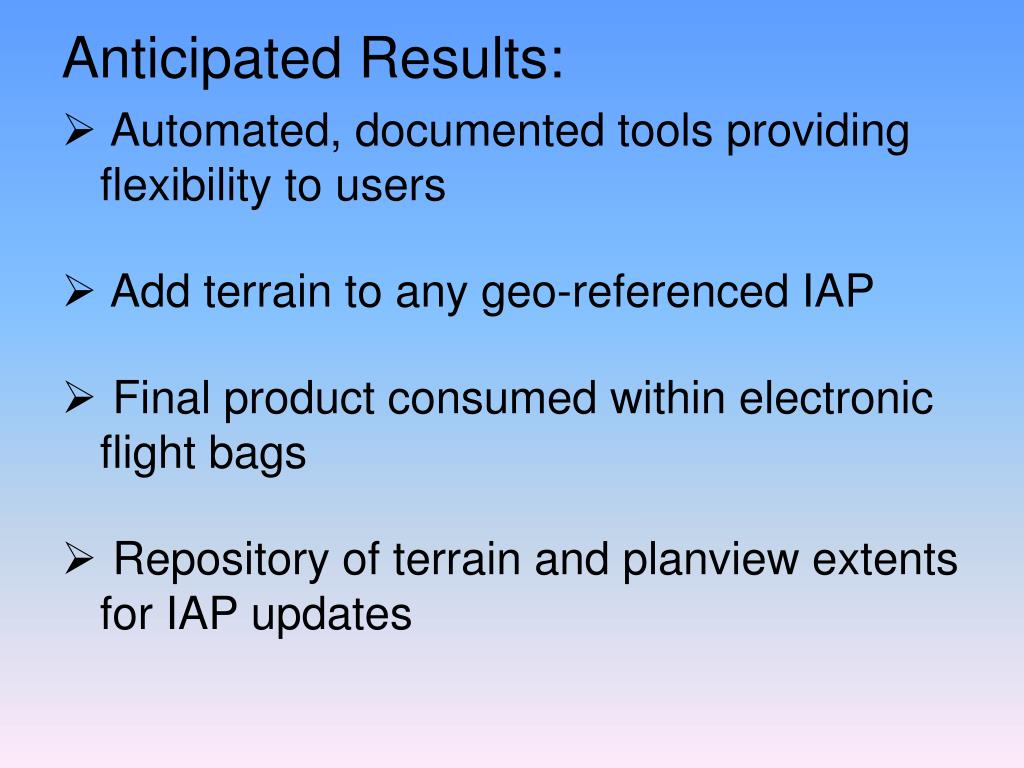

  16. Anticipated Results: • Automated, documented tools providing flexibility to users • Add terrain to any geo-referenced IAP • Final product consumed within electronic flight bags • Repository of terrain and planview extents for IAP updates

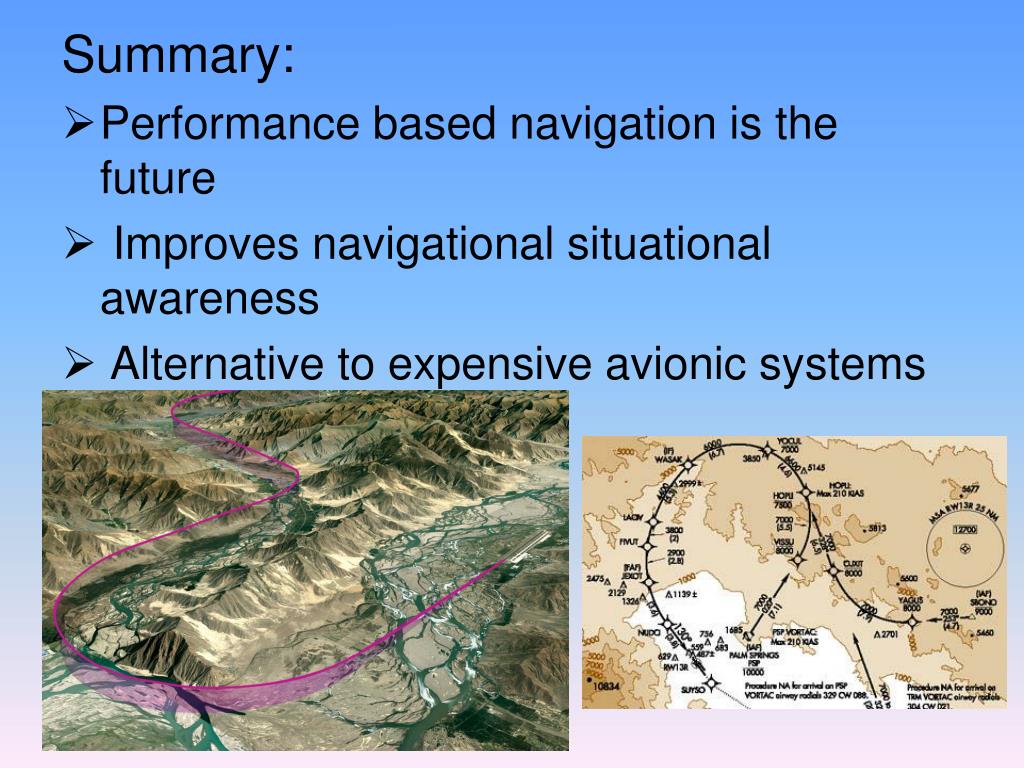

  17. Summary: • Performance based navigation is the future • Improves navigational situational awareness • Alternative to expensive avionic systems

  18. Supplemental Slides

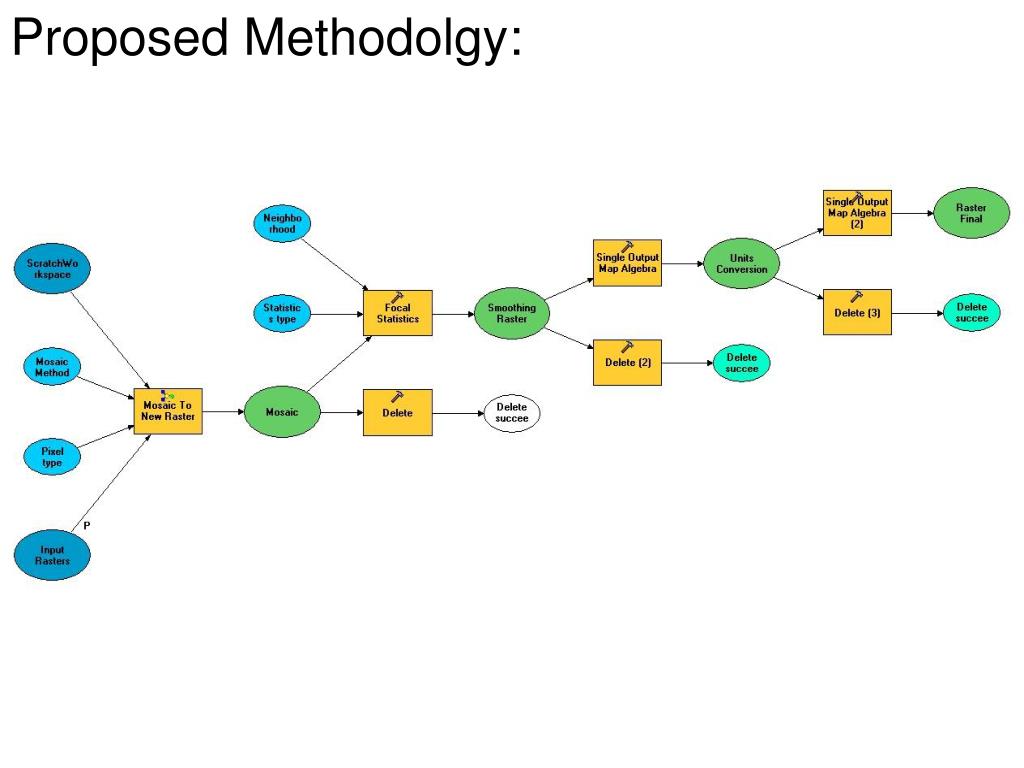

  19. Proposed Methodolgy:

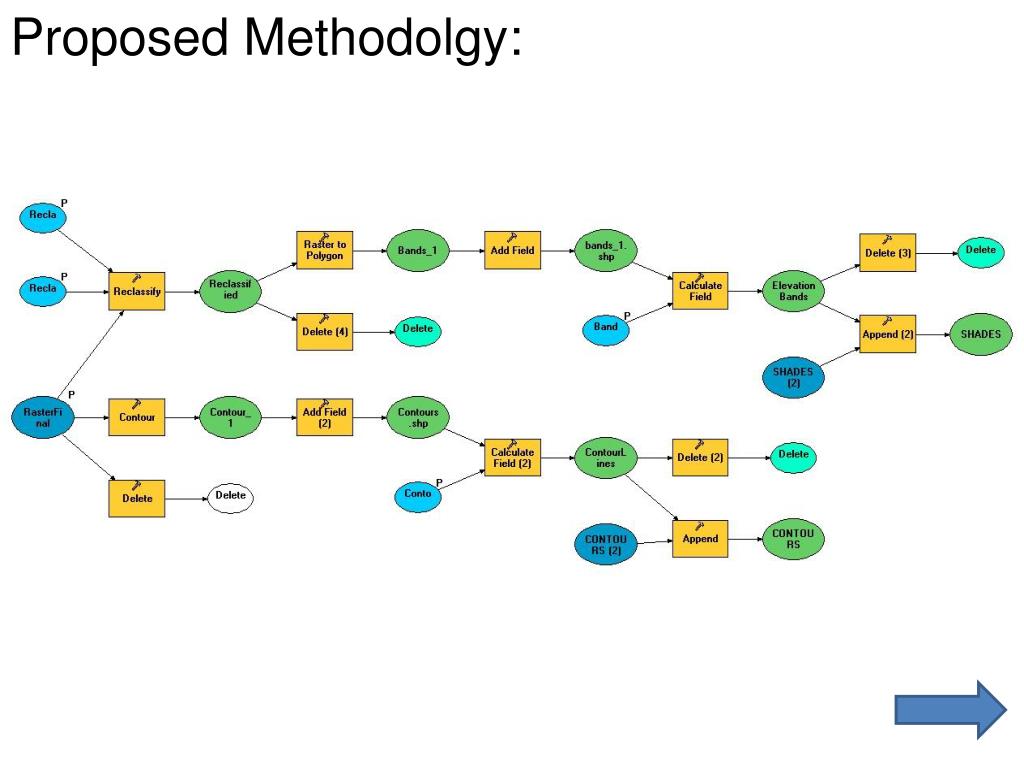

  20. Proposed Methodolgy:
