  1. Adversarial Machine Learning Daniel Lowd, University of Oregon Christopher Meek, Microsoft Research Pedro Domingos, University of Washington

  2. Motivation • Many adversarial problems • Spam filtering • Malware detection • Worm detection • New ones every year! • Want general-purpose solutions • We can gain much insight by modeling adversarial situations mathematically

  3. Example: Spam Filtering From: spammer@example.com Cheap mortgage now!!! 1. Feature Weights cheap = 1.0 mortgage = 1.5 2. 3. Total score = 2.5 > 1.0 (threshold) Spam

  4. Example: Spammers Adapt From: spammer@example.com Cheap mortgage now!!!Eugene Oregon 1. Feature Weights cheap = 1.0 mortgage = 1.5 Eugene = -1.0 Oregon = -1.0 2. 3. Total score = 0.5 < 1.0 (threshold) OK

  5. Example: Classifier Adapts From: spammer@example.com Cheap mortgage now!!!Eugene Oregon 1. Feature Weights cheap = 1.5 mortgage = 2.0 Eugene = -0.5 Oregon = -0.5 2. 3. Total score = 2.5 > 1.0 (threshold) Spam OK

  6. Outline • Problem definitions • Anticipating adversaries (Dalvi et al., 2004) • Goal: Defeat adaptive adversary • Assume: Perfect information, optimal short-term strategies • Results: Vastly better classifier accuracy • Reverse engineering classifiers (Lowd & Meek, 2005a,b) • Goal: Assess classifier vulnerability • Assume: Membership queries from adversary • Results: Theoretical bounds, practical attacks • Also: How to defeat a spam filter with 30 words or less! • Conclusion

  7. - + X2 X2 x x X1 X1 X2 X1 Definitions Adversarial cost function Instance space Classifier c(x): X {+,} c C, concept class (e.g., linear classifier) a(x): X R a  A (e.g., more legible spam is better) X = {X1, X2, …, Xn} Each Xi is a feature (e.g., a word) Instances, x X (e.g., emails)

  8. - + Adversarial scenario - + Defender’s Task:Choose new c’(x) minimize (cost-sensitive) error Adversary’s Task:Choose x to minimize a(x) subject to c(x) = 

  9. Cost-sensitive error:Not all errors are equal! “Better that ten guilty persons escape than that one innocent suffer.” -- William Blackstone, 1760 False Positive Rate (FP): Fraction of “good” instances misclassified as “bad” (e.g., good email blocked by filter) False Negative Rate (FN):Fraction of “bad” instances misclassified as “good” (e.g., spam that gets through) Classifier Utility: UC = 1 – cFP FP – cFN FN

  10. This is a game! • Adversary’s actions: {x X} • Defender’s actions: {c C} • Assume perfect information • Finding a Nash equilibrium is triply exponential (at best)! • Instead, we’ll look at optimal myopic strategies:Best action assuming nothing else changes

  11. Initial classifier • Set weights using cost-sensitive naïve Bayes • Assume: training data is untainted Learned weights: cheap = 1.0 mortgage = 1.5 Eugene = -1.0 Oregon = -1.0

  12. Adversary’s strategy From: spammer@ example.com Cheap mortgage now!!!Eugene Oregon From: spammer@ example.com Cheap mortgage now!!! • Use cost: a(x) = Σi w(xi, bi) • Solve knapsack-like problem with dynamic programming • Assume: that the classifier will not modify c(x) cheap = 1.0 mortgage = 1.5 Eugene = -1.0 Oregon = -1.0

  13. Classifier’s strategy • For given x, compute probability it was modified by adversary • Assume: the adversary is using the optimal strategy Learned weights: cheap = 1.0 mortgage = 1.5 Eugene = -1.0 Oregon = -1.0

  14. Classifier’s strategy • For given x, compute probability it was modified by adversary • Assume: the adversary is using the optimal strategy Learned weights: cheap = 1.5 mortgage = 2.0 Eugene = -0.5 Oregon = -0.5

  15. Evaluation: spam Good • Adversarial cost functions • Plain (PL) • Add Words (AW) • Synonyms (SYN) • Add Length (AL) • Classifier strategies • NB: Naïve Bayes (baseline) • AC: Adversarial Classifier • Similar results with one other dataset, ordifferent classifier costs Bad

  16. Repeated game: AC still wins • Adversary responds to new classifier; classifier predicts adversary’s revised response • Oscillations occur as adversaries switch strategiesback and forth.

  17. Outline • Problem definitions • Anticipating adversaries (Dalvi et al., 2004) • Goal: Defeat adaptive adversary • Assume: Perfect information, optimal short-term strategies • Results: Vastly better classifier accuracy • Reverse engineering classifiers (Lowd & Meek, 2005a,b) • Goal: Assess classifier vulnerability • Assume: Membership queries from adversary • Results: Theoretical bounds, practical attacks • Also: How to defeat a spam filter with 30 words or less! • Conclusion

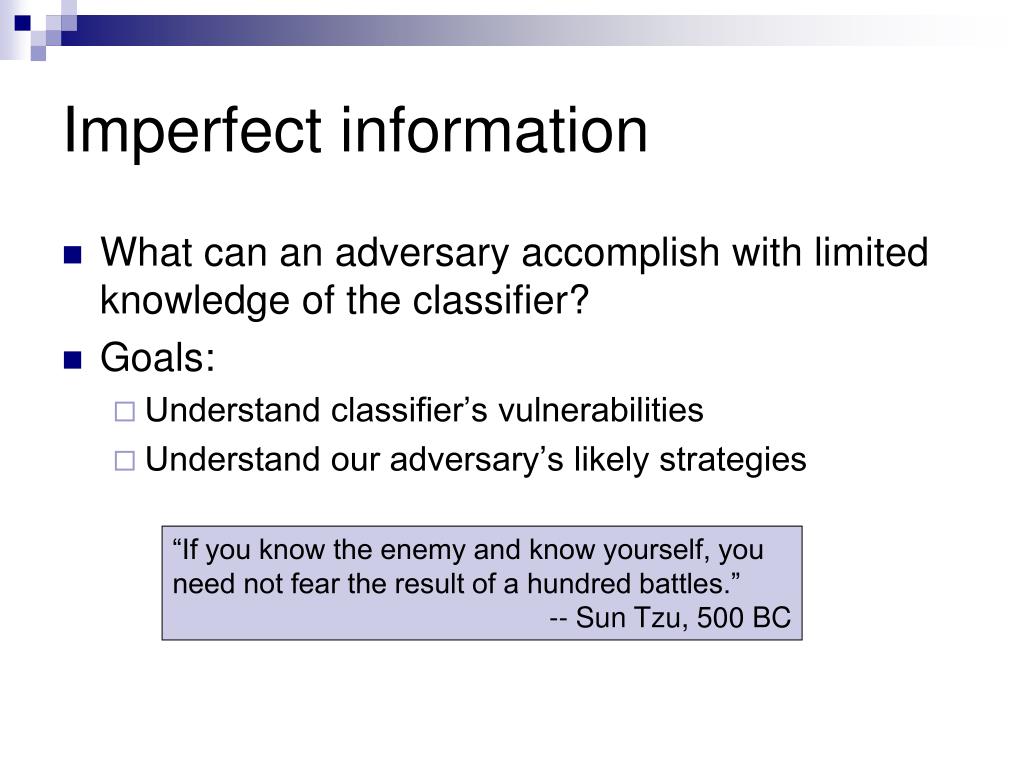

  18. Imperfect information • What can an adversary accomplish with limited knowledge of the classifier? • Goals: • Understand classifier’s vulnerabilities • Understand our adversary’s likely strategies “If you know the enemy and know yourself, you need not fear the result of a hundred battles.” -- Sun Tzu, 500 BC

  19. Adversarial Classification Reverse Engineering (ACRE) - + Adversary’s Task:Minimize a(x) subject to c(x) =  Problem: The adversary doesn’t know c(x)!

  20. ? ? ? ? X2 - ? + ? ? ? X1 Adversarial Classification Reverse Engineering (ACRE) • Task: Minimize a(x) subject to c(x) =  • Given: Within a factor of k • Full knowledge of a(x) • One positive and one negative instance, x+ and x • A polynomial number of membership queries

  21. Comparison to other theoretical learning methods • Probably Approximately Correct (PAC): accuracy over same distribution • Membership queries: exact classifier • ACRE: single low-cost, negative instance

  22. X2 X1 X2 xa X1 ACRE example Linear classifier: c(x) = +, iff(w x > T) Linear cost function:

  23. X2 xa X1 Linear classifiers withcontinuous features • ACRE learnable within a factor of (1+) under linear cost functions • Proof sketch • Only need to change the highest weight/cost feature • We can efficiently find this feature using line searches in each dimension

  24. x- xa c(x) wi wj wk wl wm Linear classifiers withBoolean features • Harder problem: can’t do line searches • ACRE learnable within a factor of 2if adversary has unit cost per change:

  25. c(x) y x- xa wi wm wj wk wl c(x) y’ xa wi wj wk wl wp Algorithm Iteratively reduce the cost in two ways: • Remove any unnecessary change: O(n) • Replace any two changes with one: O(n3)

  26. c(x) xa y wi wj wk wl wm x wp wr Proof sketch (Contradiction) • Suppose there is some negative instance x with less than half the cost of y: • x’s average change is twice as good as y’s • We can replace y’s two worst changes with x’s single best change • But we already tried every such replacement!

  27. Evaluation: Is O(n3) practical? • Classifiers: Naïve Bayes (NB), Maxent (ME) • Data: 500k Hotmail messages, 276k features • Adversary feature sets: • 23,000 words (Dict) • 1,000 random words (Rand) Answer: Yes

  28. Histogram of Feature Weights “good” “spammy”

  29. Finding features • We can find good features (words) instead of good instances (emails) • Active attacks: Test emails allowed • Passive attacks: No filter access

  30. Active Attacks • Learn which words are best by sending test messages (queries) through the filter • First-N: Find n good words using as few queries as possible • Best-N: Find the best n words

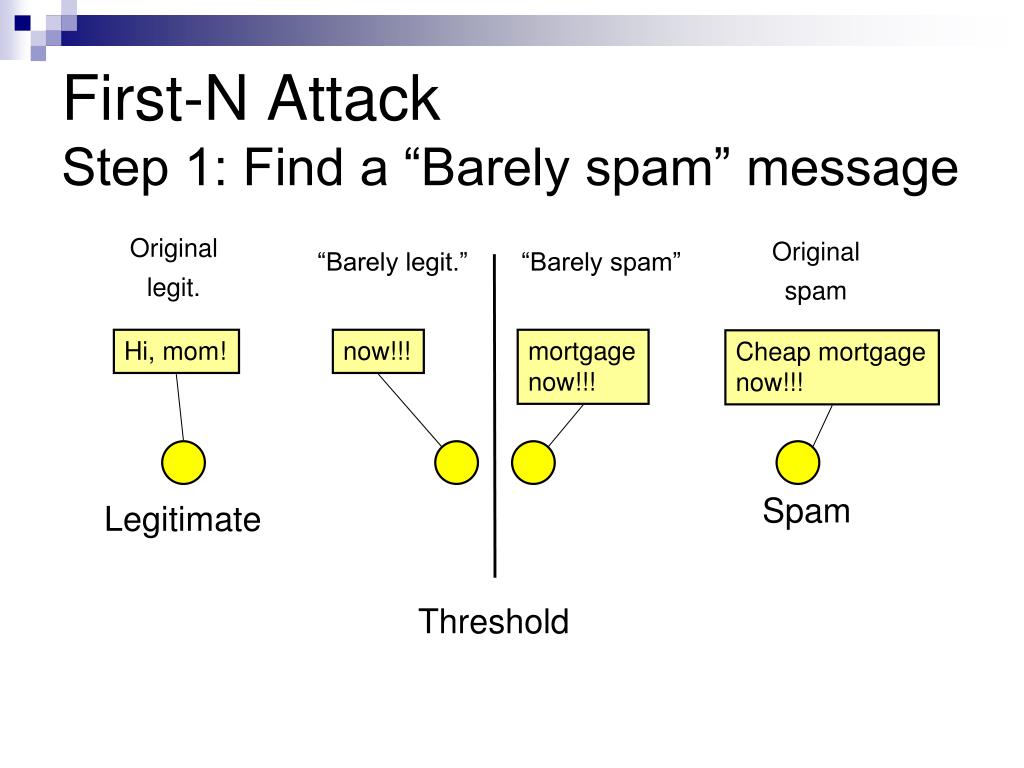

  31. First-N AttackStep 1: Find a “Barely spam” message Original legit. Originalspam “Barely legit.” “Barely spam” Hi, mom! now!!! mortgage now!!! Cheap mortgage now!!! Spam Legitimate Threshold

  32. First-N AttackStep 2: Test each word Good words “Barely spam” message Spam Legitimate Less good words Threshold

  33. Best-N Attack Key idea: use spammy words to sort the good words. Spam Legitimate Better Worse Threshold

  34. Results: Words/queries tradeoff * words added + words removed

  35. Passive Attacks • Heuristics • Select random dictionary words (Dictionary) • Select most frequent English words (Freq. Word) • Select highest ratio: English freq./spam freq. (Freq. Ratio) • Spam corpus: spamarchive.org • English corpora: • Reuters news articles • Written English • Spoken English • 1992 USENET

  36. Passive Attack Results

  37. Comparison of all attacks * words added + words removed

  38. Conclusion • Mathematical modeling is a powerful tool in adversarial situations • Game theory lets us make classifiers aware of and resistant to adversaries • Complexity arguments let us explore the vulnerabilities of our own systems • This is only the beginning… • Can we weaken our assumptions? • Can we expand our scenarios?

  39. X2 X2 xa xa X1 X1 Convex classifiers withcontinuous features? • ACRE learnable under linear cost function? • Proof ideas • For convex spam, only need to change a single feature • For convex non-spam, may need to iteratively approximate the non-spam set using cutting planes x-

  40. Conclusion • Mathematical modeling is a powerful tool in adversarial situations • Game theory lets us make classifiers aware of and resistant to adversaries • Complexity arguments let us explore the vulnerabilities of our own systems • This is only the beginning… • Can we weaken our assumptions? • Can we expand our scenarios?

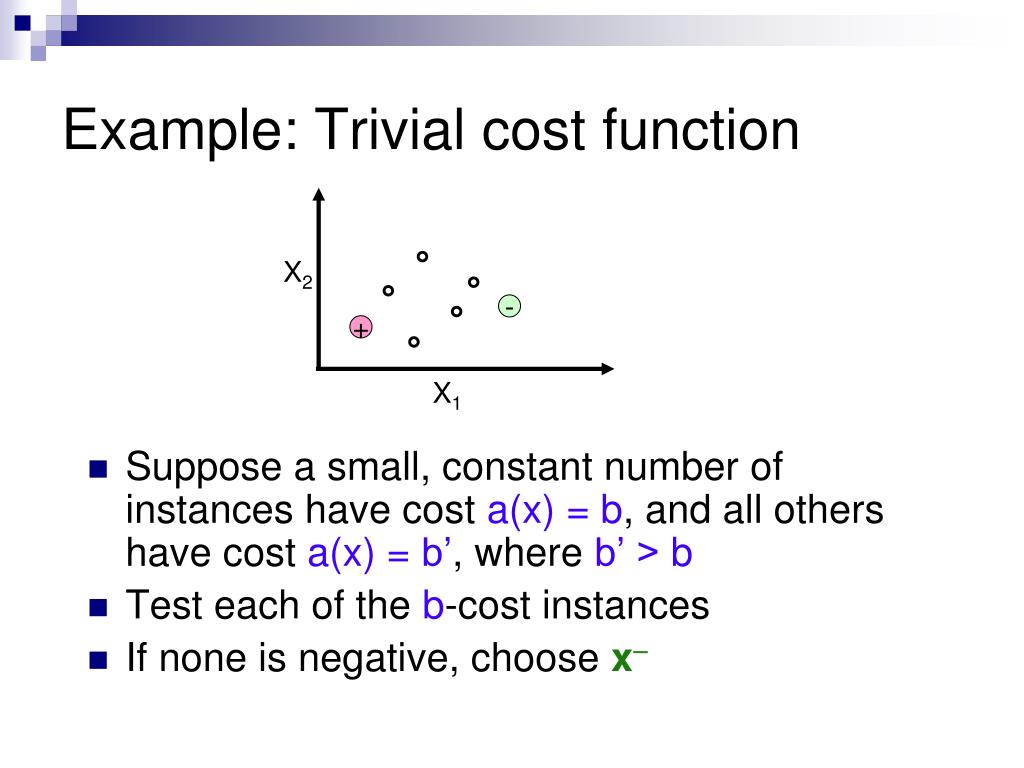

  41. X2 X1 Example: Trivial cost function • Suppose a small, constant number of instances have cost a(x) = b, and all others have cost a(x) =b’, where b’ >b • Test each of the b-cost instances • If none is negative, choose x - +

  42. Example: Boolean conjunctions • Suppose c is a conjunction of Boolean literals (e.g., x1x3) • Starting with x+, toggle each xi in turn: x+= (x1 = T,x2 = F, x3 = F, x4 = T) Guess: (x1x2x3 x4)

  43. Example: Boolean conjunctions • Suppose c is a conjunction of Boolean literals (e.g., x1x3) • Starting with x+, toggle each xi in turn: x+= (T,F, F, T) Guess: (x1x2x3 x4)

  44. Example: Boolean conjunctions • Suppose c is a conjunction of Boolean literals (e.g., x1x3) • Starting with x+, toggle each xi in turn: x+= (T, F, F, T) x’ = (F, F, F, T) c(x’) =  Guess: (x1x2x3 x4)

  45. Example: Boolean conjunctions • Suppose c is a conjunction of Boolean literals (e.g., x1x3) • Starting with x+, toggle each xi in turn: x+= (T, F, F, T) x’ = (T, T, F, T) c(x’) = + Guess: (x1x2x3 x4)

  46. Example: Boolean conjunctions • Suppose c is a conjunction of Boolean literals (e.g., x1x3) • Starting with x+, toggle each xi in turn: x+= (T, F, F, T) x’ = (T, F, T, T) c(x’) =  Guess: (x1x2x3 x4)

  47. Example: Boolean conjunctions • Suppose c is a conjunction of Boolean literals (e.g., x1x3) • Starting with x+, toggle each xi in turn: x+= (T, F, F, T) x’ = (T, F, F, F) c(x’) =  Guess: (x1x2x3 x4) Final Answer: (x1x3)

  48. Example: Boolean conjunctions • Suppose c is a conjunction of Boolean literals (e.g., x1x3) • Starting with x+, toggle each xi in turn • Exact conjunction is learnable in n queries. • Now we can optimize any cost function. • In general: concepts learnable with membership queries are ACRE 1-learnable
