SNMP vs. CMIP

SNMP vs. CMIP. By: Kamyar Partovi Ravneet Johal CS 158B. Agenda. Introduction What is SNMP? What is CMIP? SNMP vs. CMIP Conclusion. Introduction . Network management is essential for companies. Exchanging information become more efficient. Network management needs protocols.

azize
Download Presentation

SNMP vs. CMIP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

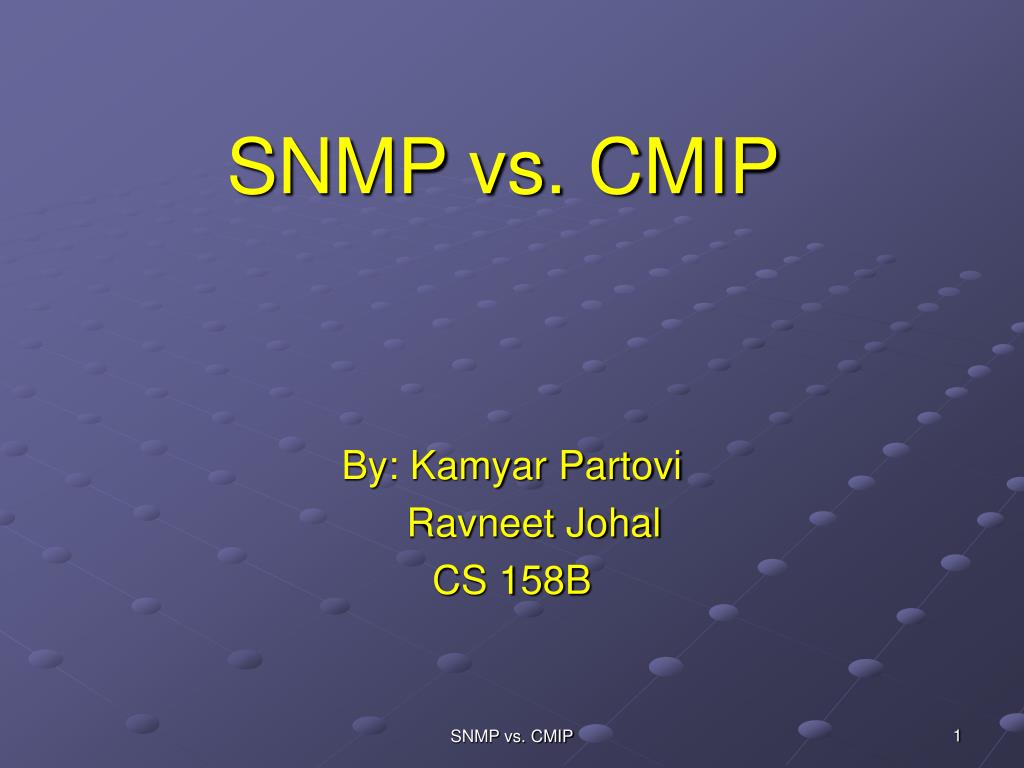

  1. SNMP vs. CMIP By: Kamyar Partovi Ravneet Johal CS 158B SNMP vs. CMIP

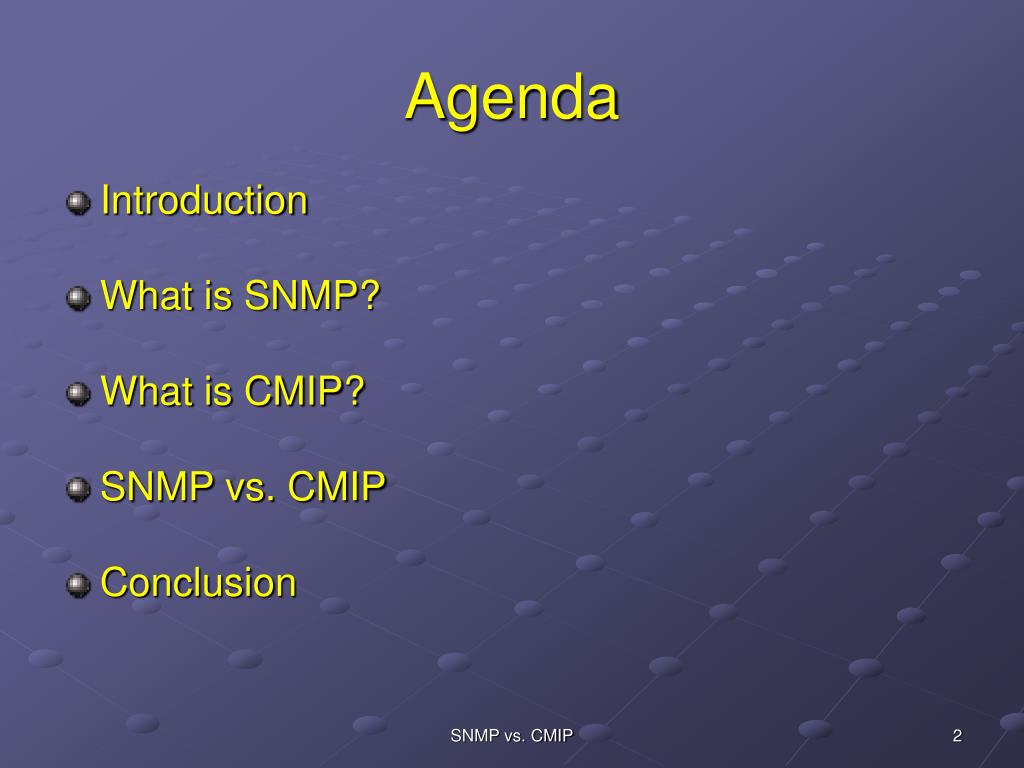

  2. Agenda • Introduction • What is SNMP? • What is CMIP? • SNMP vs. CMIP • Conclusion SNMP vs. CMIP

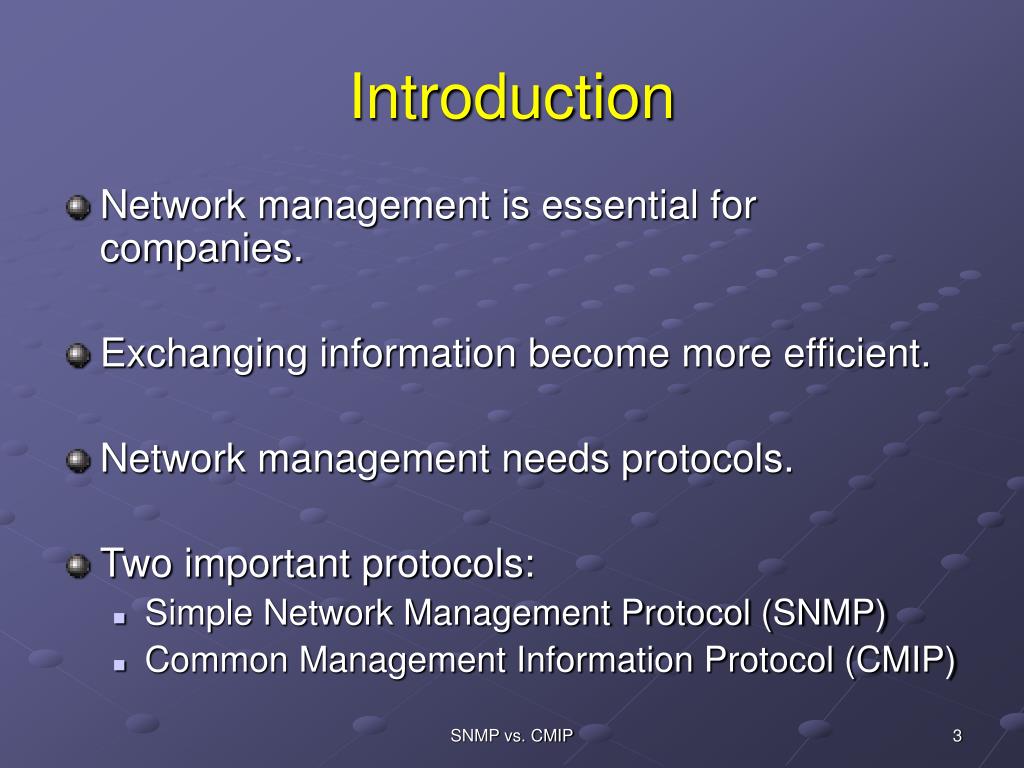

  3. Introduction • Network management is essential for companies. • Exchanging information become more efficient. • Network management needs protocols. • Two important protocols: • Simple Network Management Protocol (SNMP) • Common Management Information Protocol (CMIP) SNMP vs. CMIP

  4. SNMP • Why SNMP ? • SNMP is located in Application layer. • SNMP responsible for exchanging data between network devices. • SNMP has three mechanisms: • Managed devices: Collecting and sorting data. • Agents: Managing data. • Network management system (NMS): Implements the application SNMP vs. CMIP

  5. Advantages and Disadvantages • Advantages: • Easy to use • Expandability • Disadvantages: • Weak security • Too simple! SNMP vs. CMIP

  6. CMIP • Created in 1988 by Internet Activities Board (IAB). • Government and Corporations invested. • Common Management Information Services Element (CMISE). • Information exchange between management stations and management agents. • Remote Operations Service Element (ROSE). • Sends and receives Protocol Data Units (PDUs). SNMP vs. CMIP

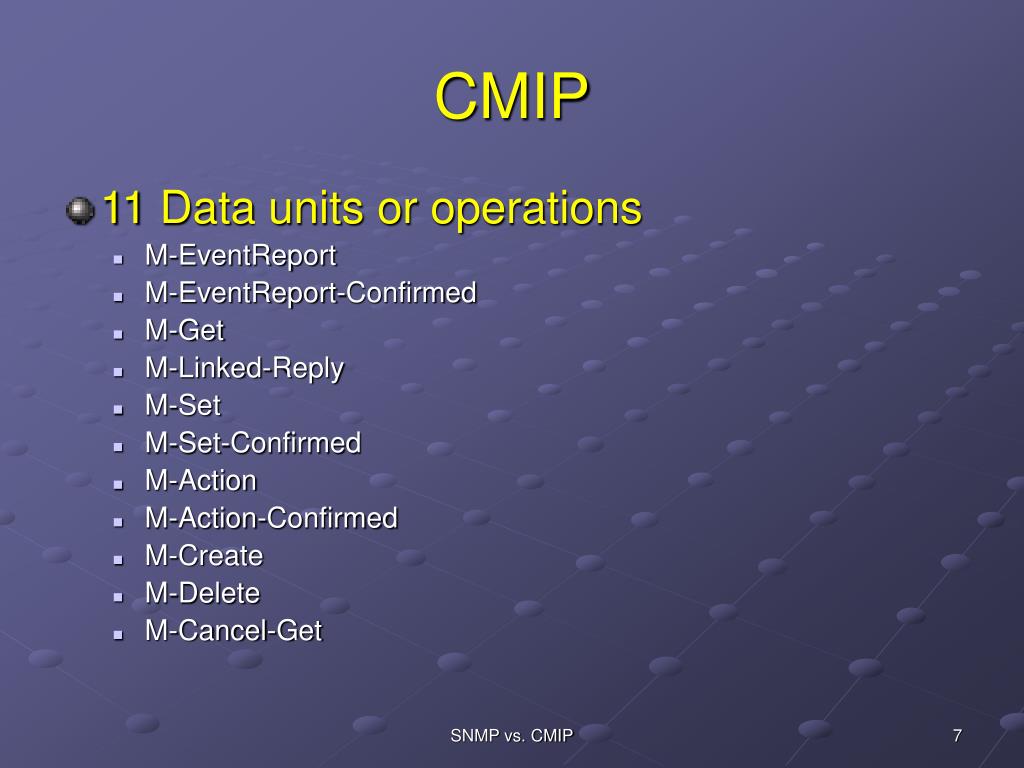

  7. CMIP • 11 Data units or operations • M-EventReport • M-EventReport-Confirmed • M-Get • M-Linked-Reply • M-Set • M-Set-Confirmed • M-Action • M-Action-Confirmed • M-Create • M-Delete • M-Cancel-Get SNMP vs. CMIP

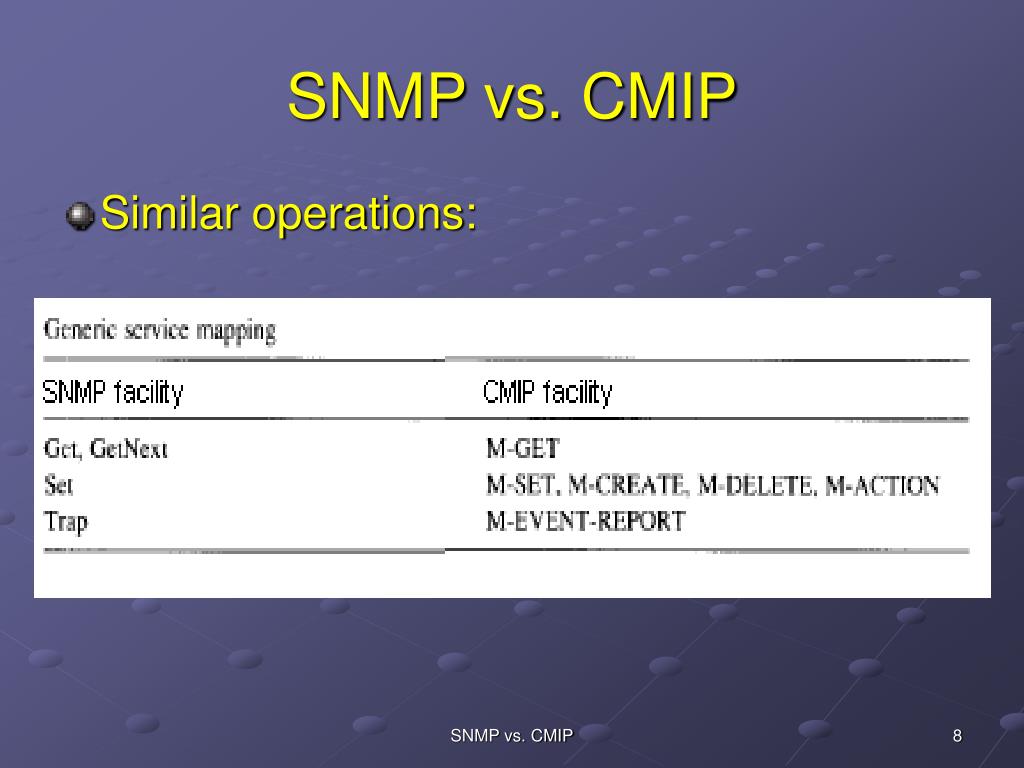

  8. SNMP vs. CMIP • Similar operations: SNMP vs. CMIP

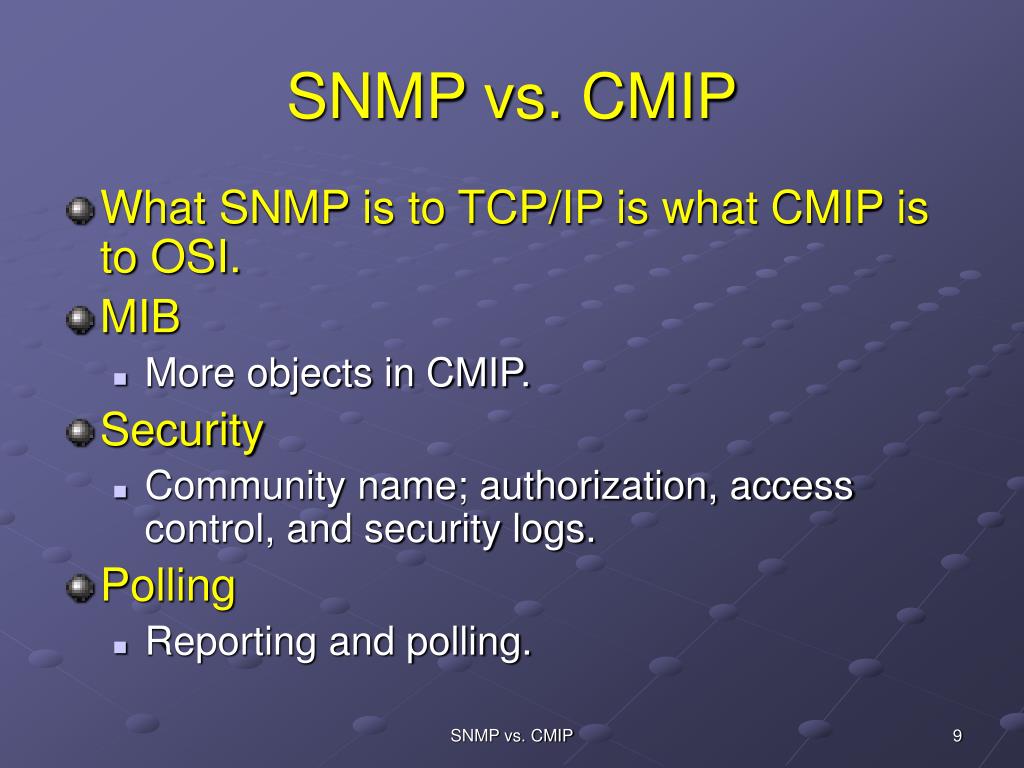

  9. SNMP vs. CMIP • What SNMP is to TCP/IP is what CMIP is to OSI. • MIB • More objects in CMIP. • Security • Community name; authorization, access control, and security logs. • Polling • Reporting and polling. SNMP vs. CMIP

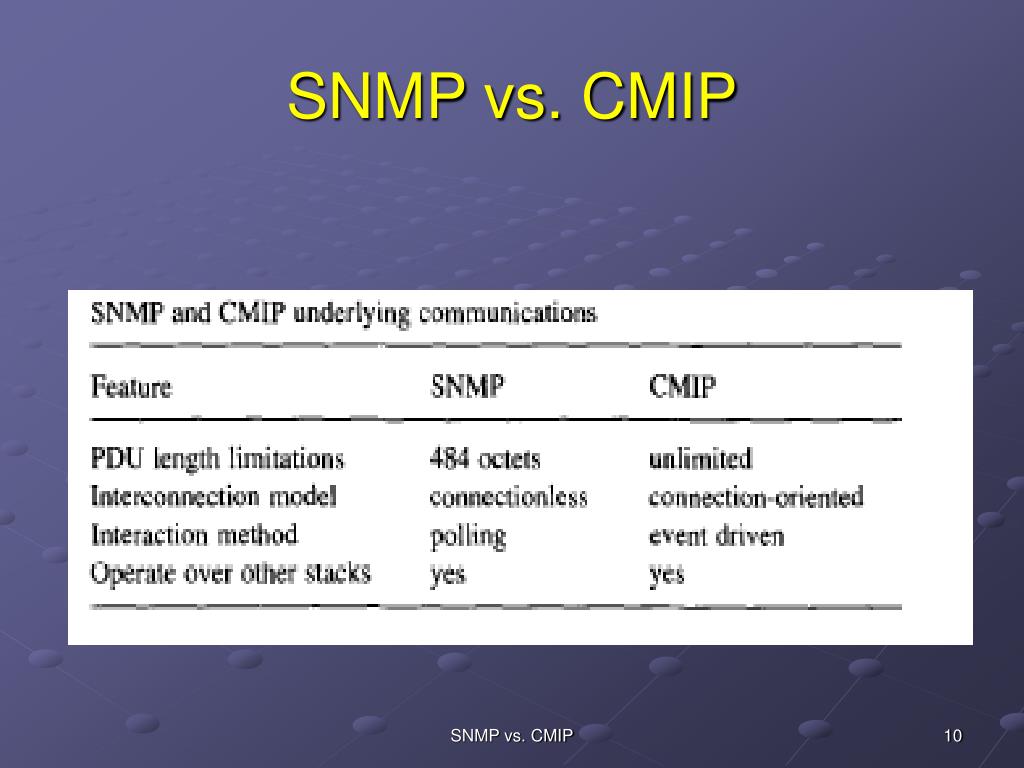

  10. SNMP vs. CMIP SNMP vs. CMIP

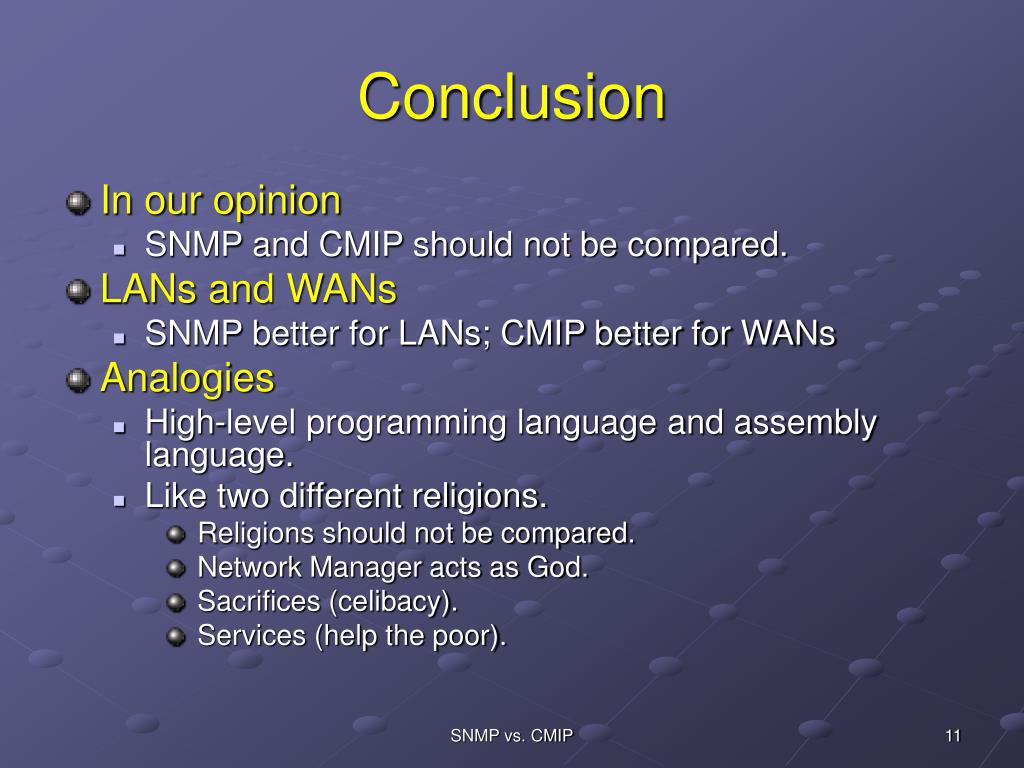

  11. Conclusion • In our opinion • SNMP and CMIP should not be compared. • LANs and WANs • SNMP better for LANs; CMIP better for WANs • Analogies • High-level programming language and assembly language. • Like two different religions. • Religions should not be compared. • Network Manager acts as God. • Sacrifices (celibacy). • Services (help the poor). SNMP vs. CMIP
