  1. Notes – Changes in States of Matter Chapter 6, Lesson 2

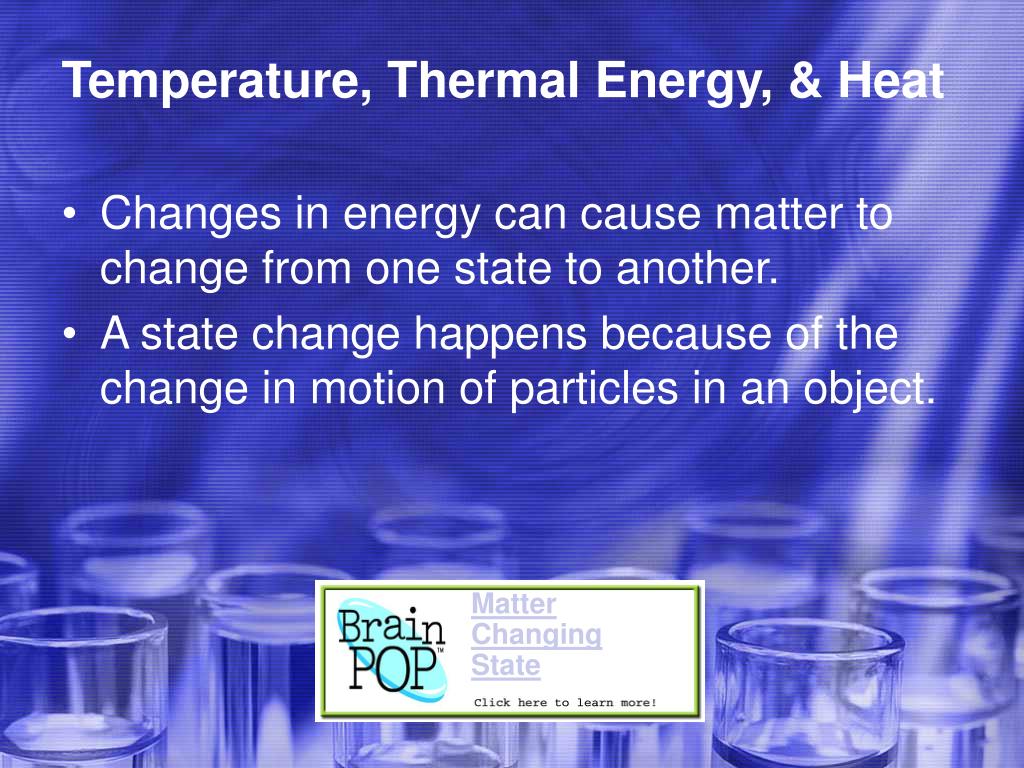

  2. Temperature, Thermal Energy, & Heat • Changes in energy can cause matter to change from one state to another. • A state change happens because of the change in motion of particles in an object. Matter Changing State

  3. Temperature, Thermal Energy, & Heat • Even when an object is not moving, the particles in the object are moving. • The particles have kinetic energy, which is energy of moving things. The gas particles inside the balloon have energy because they are moving.

  4. Temperature, Thermal Energy, & Heat

  5. lower temperature higher temperature Temperature, Thermal Energy, & Heat • Temperature is a measure of the average kinetic energy of the particles in a material. • Particles in matter move faster as the temperature increases.

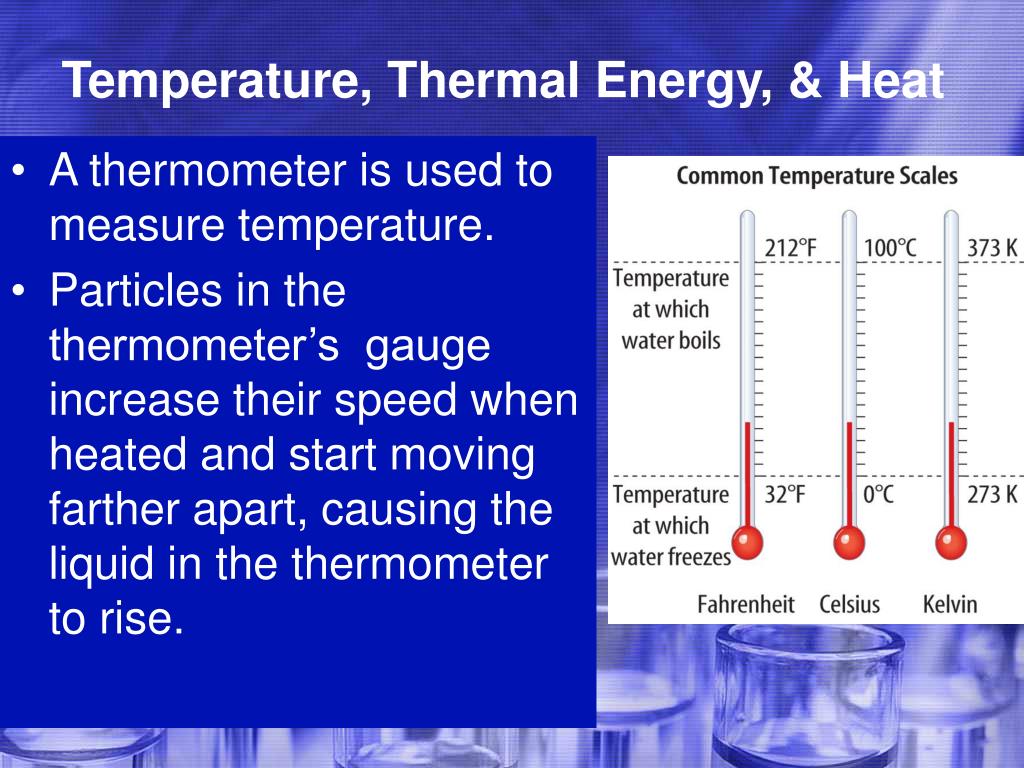

  6. Temperature, Thermal Energy, & Heat • A thermometer is used to measure temperature. • Particles in the thermometer’s gauge increase their speed when heated and start moving farther apart, causing the liquid in the thermometer to rise.

  7. Temperature, Thermal Energy, & Heat • Particles in a substance have potential energy. • Potential energy decreases as particles move closer together. • Potential energy increases as particles move farther apart.

  8. Temperature, Thermal Energy, & Heat

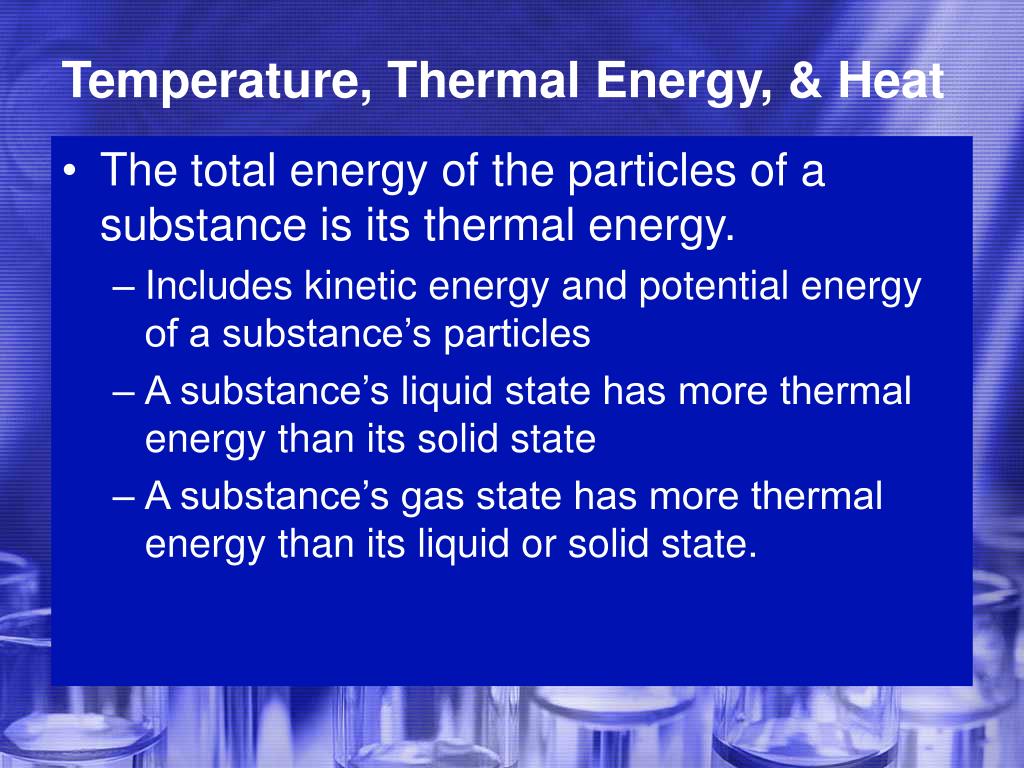

  9. Temperature, Thermal Energy, & Heat • The total energy of the particles of a substance is its thermal energy. • Includes kinetic energy and potential energy of a substance’s particles • A substance’s liquid state has more thermal energy than its solid state • A substance’s gas state has more thermal energy than its liquid or solid state.

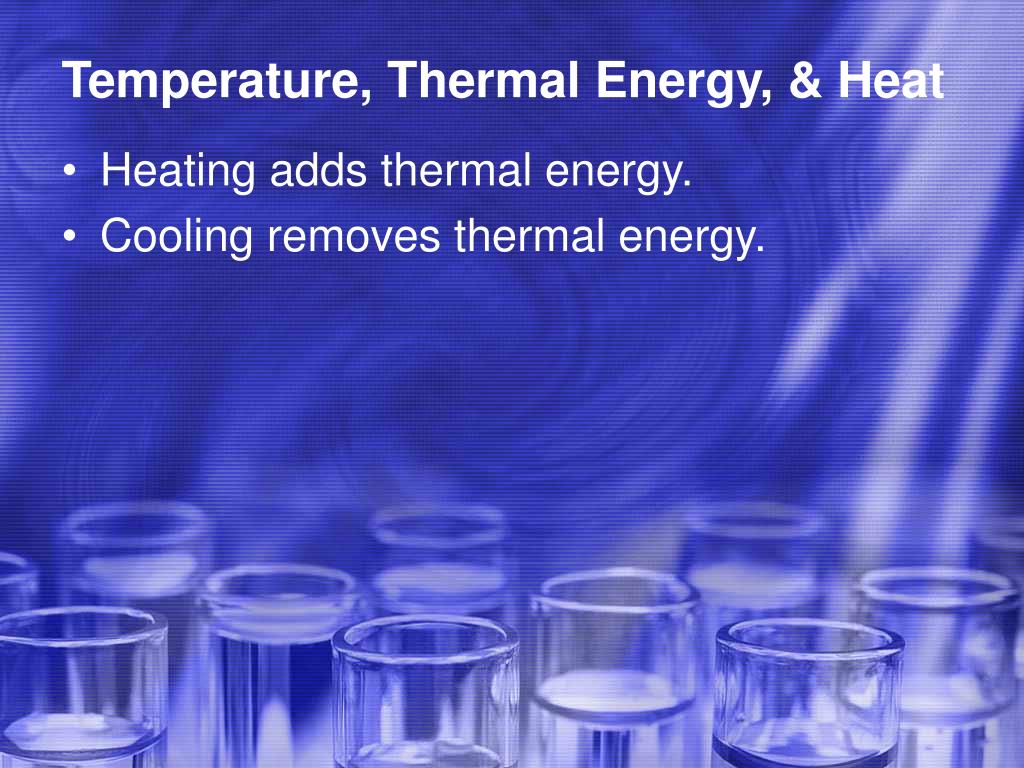

  10. Temperature, Thermal Energy, & Heat • Heating adds thermal energy. • Cooling removes thermal energy.

  11. Temperature, Thermal Energy, & Heat • When kinetic energy increases, the temperature of a substance increases. • When potential energy increases, the substance changes state.

  12. Melting • solid → liquid • Thermal energy is absorbed. • Potential energy increases. • Melting point is the temperature at which a material changes from solid to liquid.

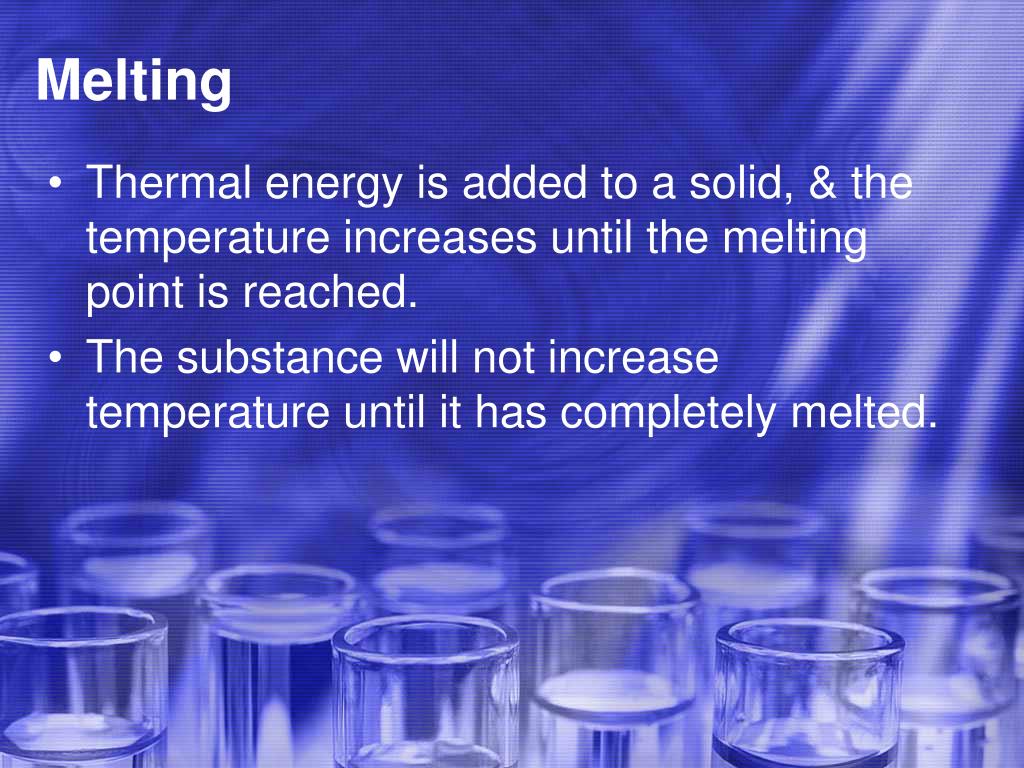

  13. Melting • Thermal energy is added to a solid, & the temperature increases until the melting point is reached. • The substance will not increase temperature until it has completely melted.

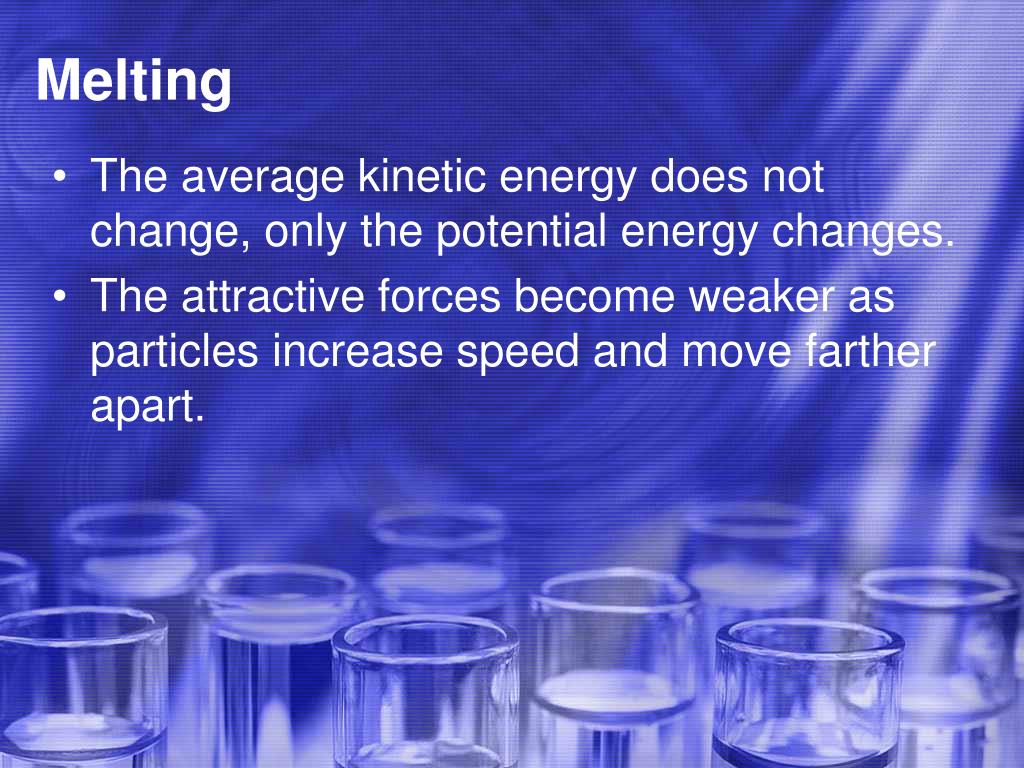

  14. Melting • The average kinetic energy does not change, only the potential energy changes. • The attractive forces become weaker as particles increase speed and move farther apart.

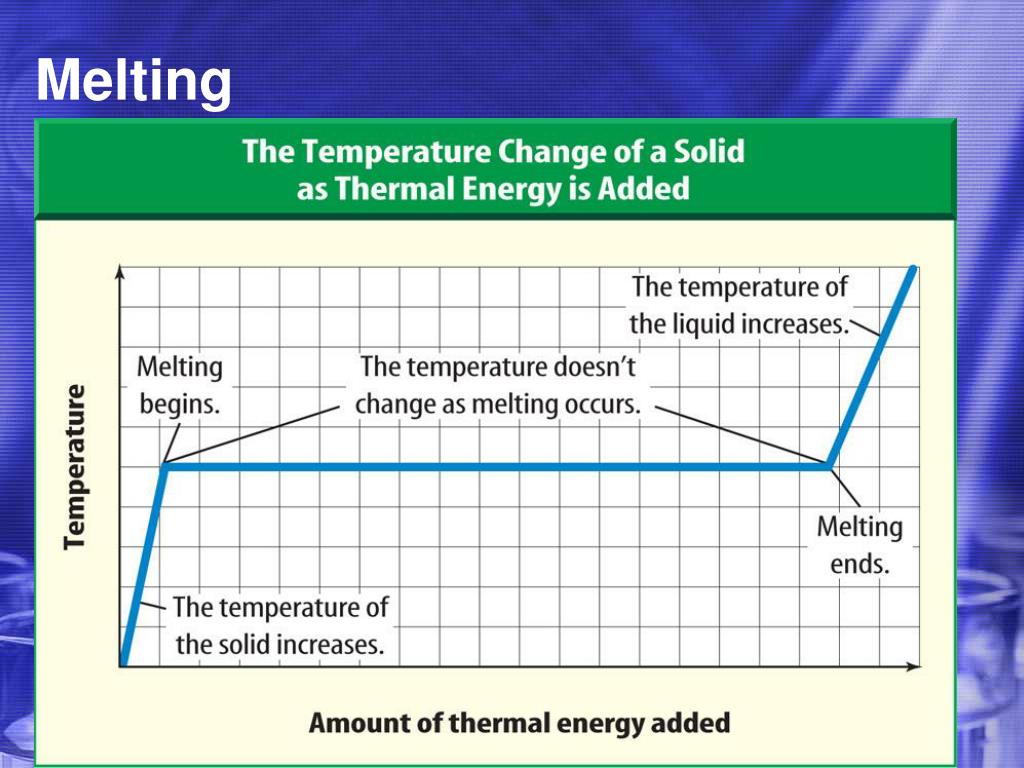

  15. Melting

  16. Freezing • liquid → solid • Thermal energy is released. • Potential energy decreases. • Freezing point is the temperature at which a liquid changes to a solid.

  17. Freezing

  18. Vaporization • liquid → gas • Thermal energy is absorbed. • Particles become too spread out and the attractive forces are too weak to keep the particles close together. • Vaporization can occur both at the surface and inside the liquid.

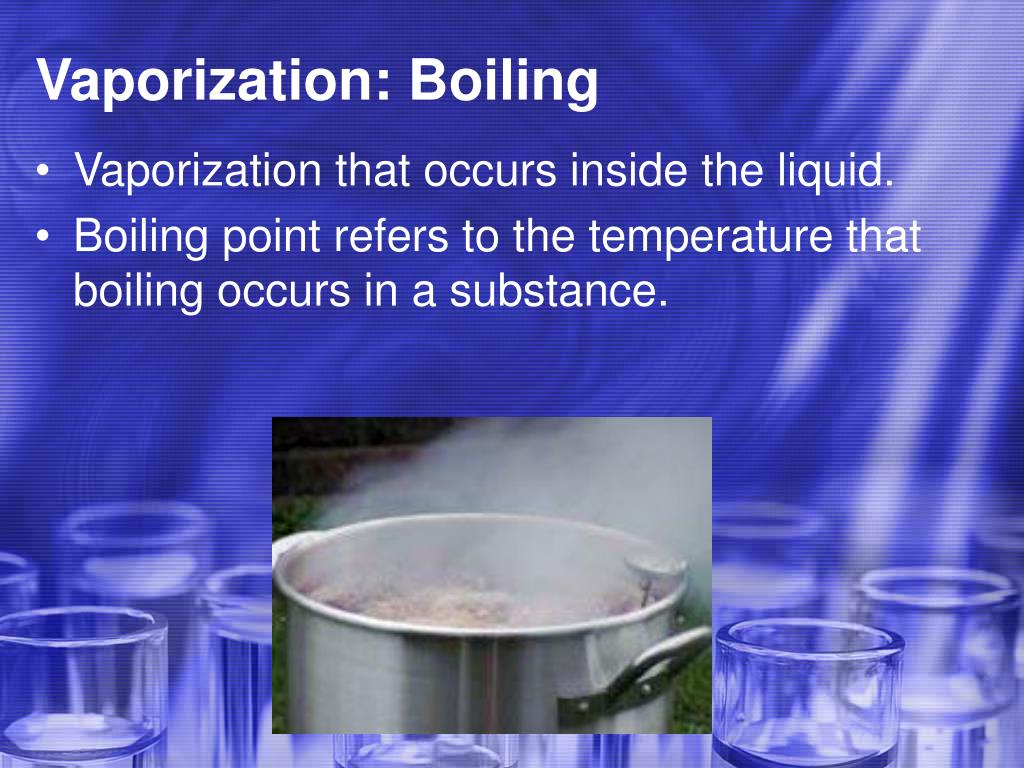

  19. Vaporization: Boiling • Vaporization that occurs inside the liquid. • Boiling point refers to the temperature that boiling occurs in a substance.

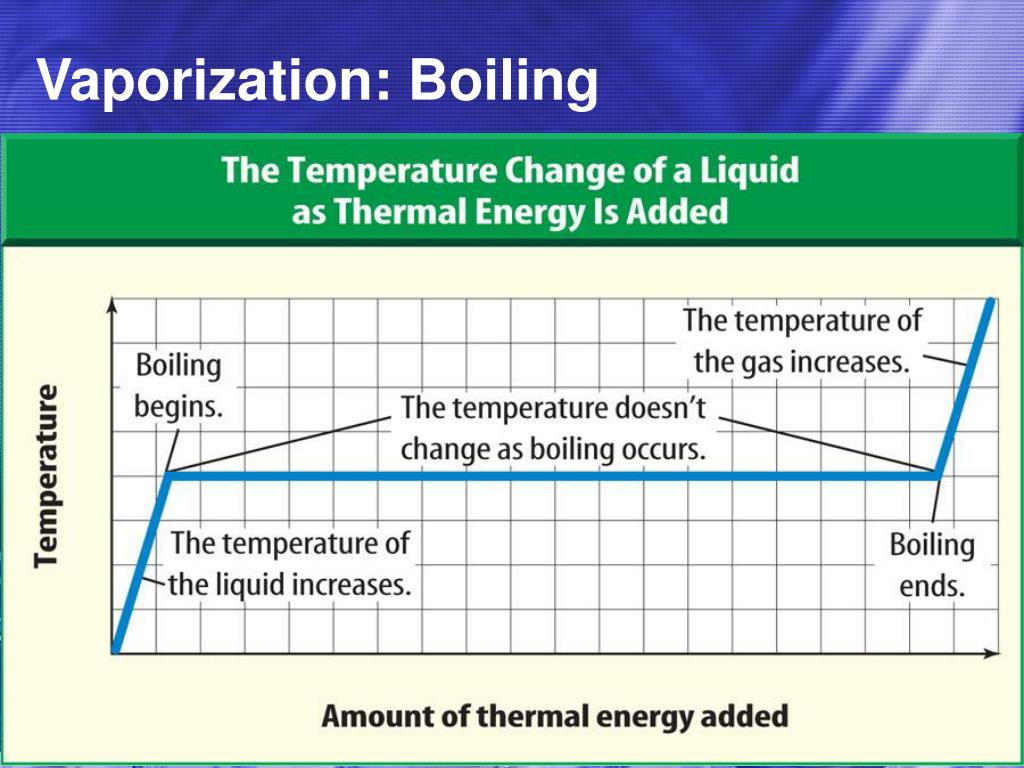

  20. Vaporization: Boiling

  21. Vaporization: Boiling • The boiling point depends on the pressure exerted on the liquid. • Bubbles in the liquid must form for boiling to occur. • As air pressure increases, it becomes harder for the bubbles to form. • The boiling point increases as air pressure increases.

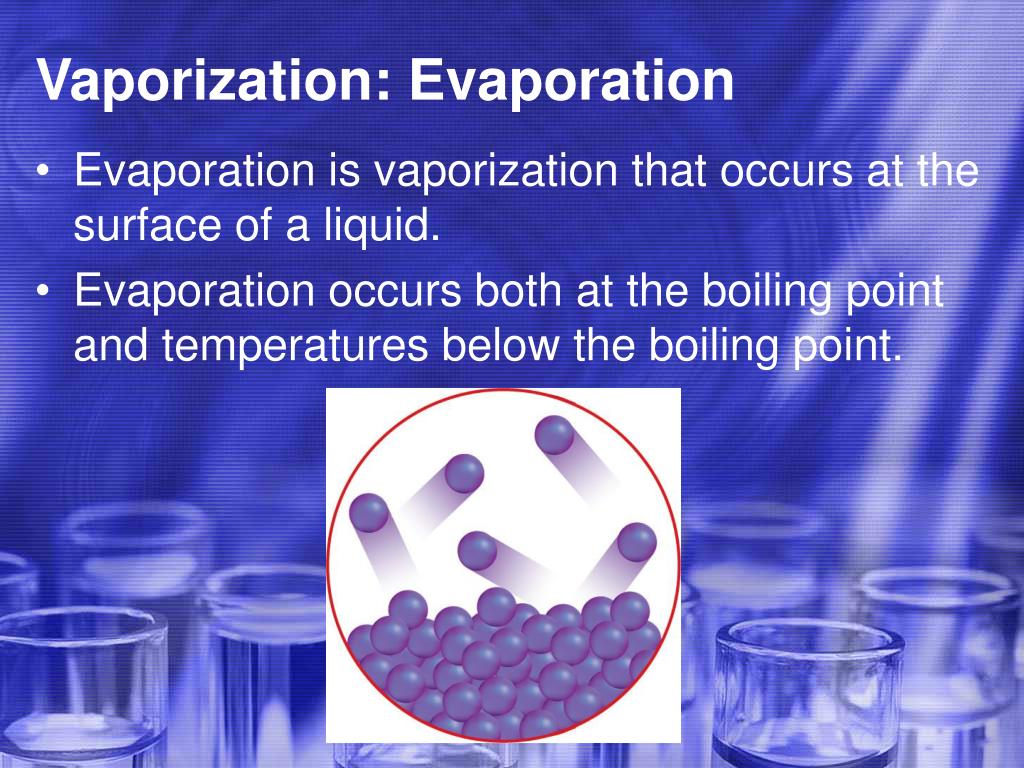

  22. Vaporization: Evaporation • Evaporation is vaporization that occurs at the surface of a liquid. • Evaporation occurs both at the boiling point and temperatures below the boiling point.

  23. Vaporization: Evaporation • The liquid gains thermal energy, and molecules on the surface gradually escape into the atmosphere • (i.e.) water cycle, a puddle after rain, sweating to cool you down

  24. Condensation • gas → liquid • Thermal energy is released. • The gas particles slow down and move closer together until the attractive forces hold them together and a liquid forms.

  25. Condensation

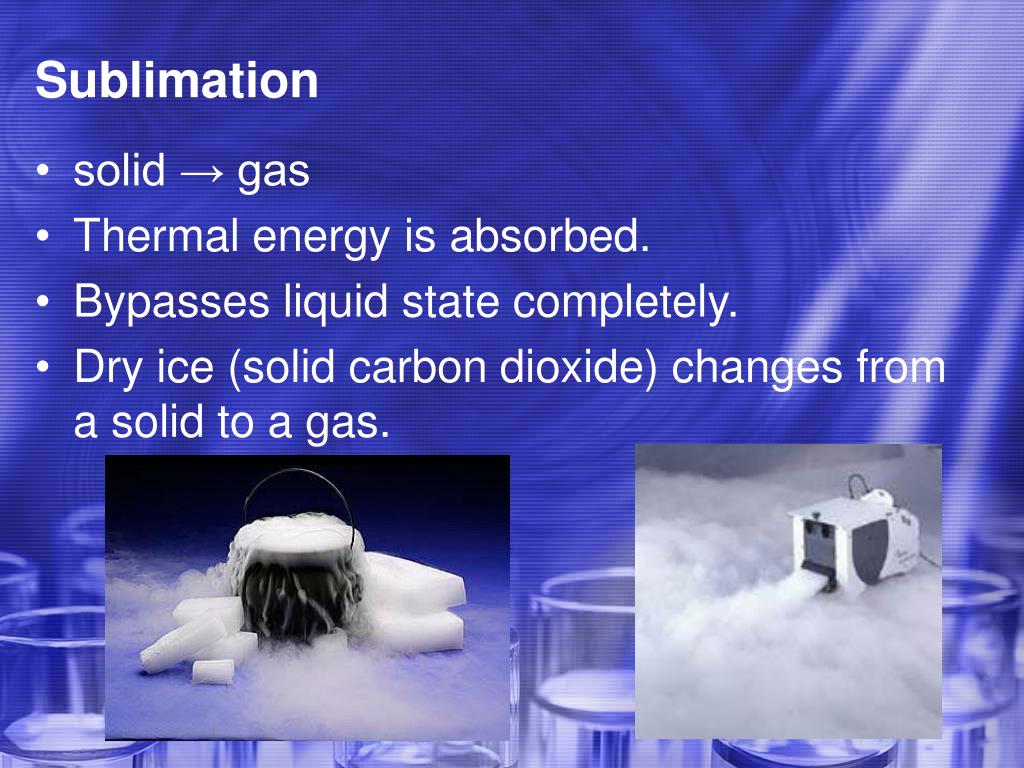

  26. Sublimation • solid → gas • Thermal energy is absorbed. • Bypasses liquid state completely. • Dry ice (solid carbon dioxide) changes from a solid to a gas.

  27. Deposition • gas → solid • Thermal energy is released. • Bypasses liquid state completely. • Water vapor changes directly to ice as frost on leaves.

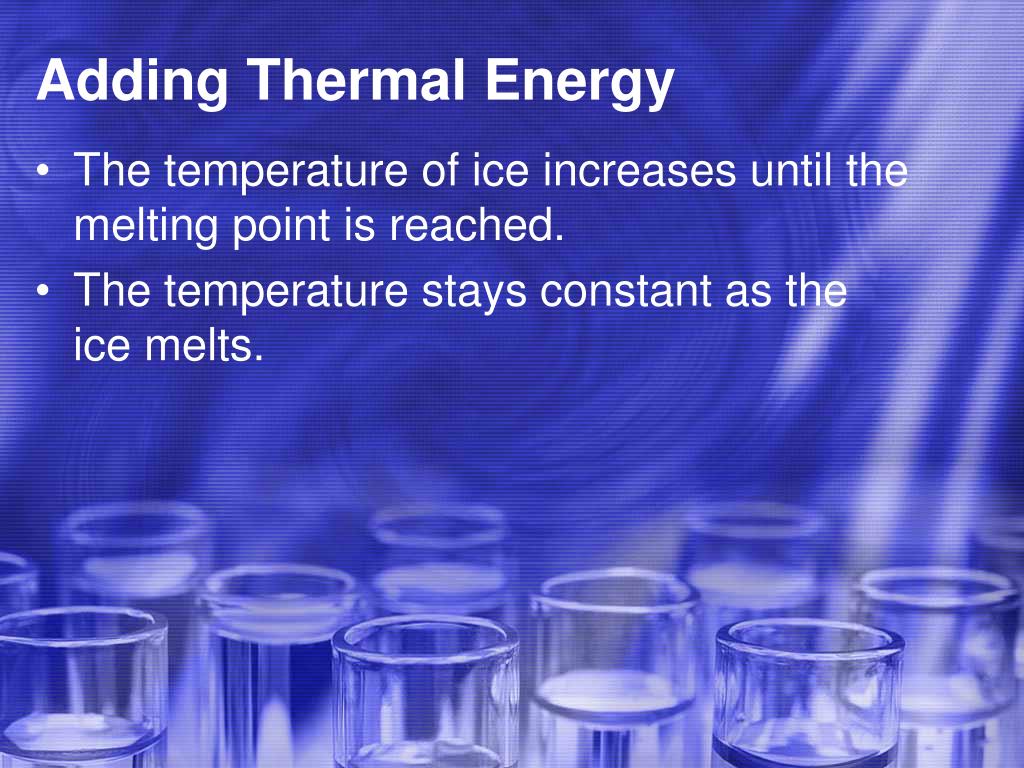

  28. Adding Thermal Energy • The temperature of ice increases until the melting point is reached. • The temperature stays constant as the ice melts.

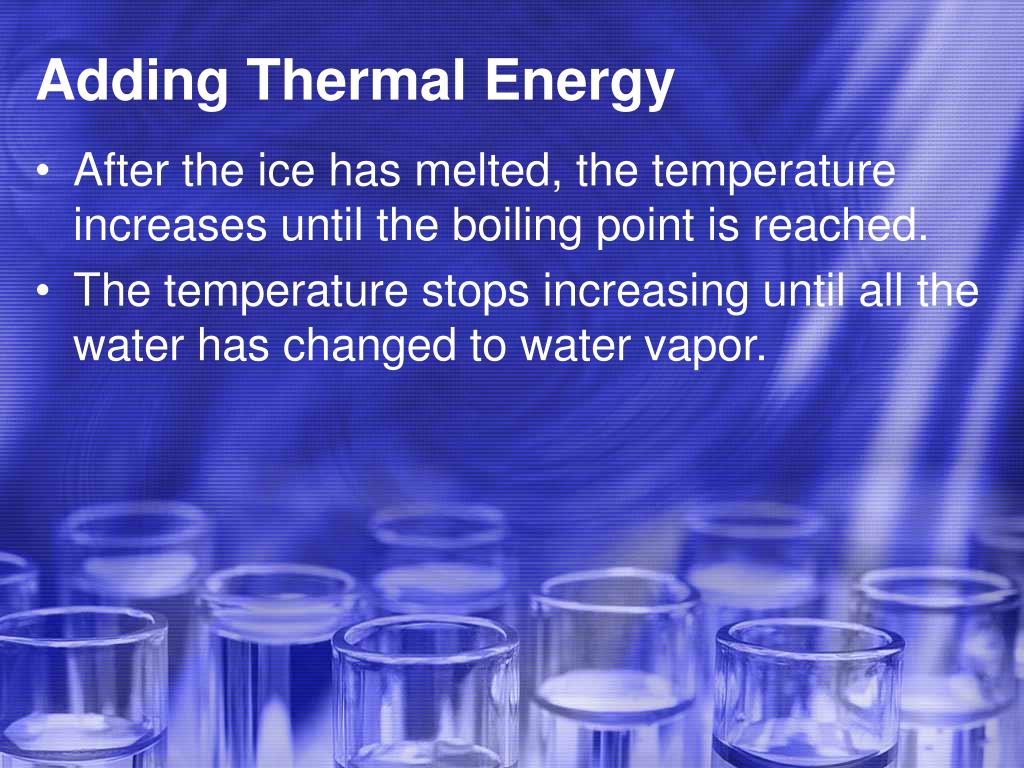

  29. Adding Thermal Energy • After the ice has melted, the temperature increases until the boiling point is reached. • The temperature stops increasing until all the water has changed to water vapor.

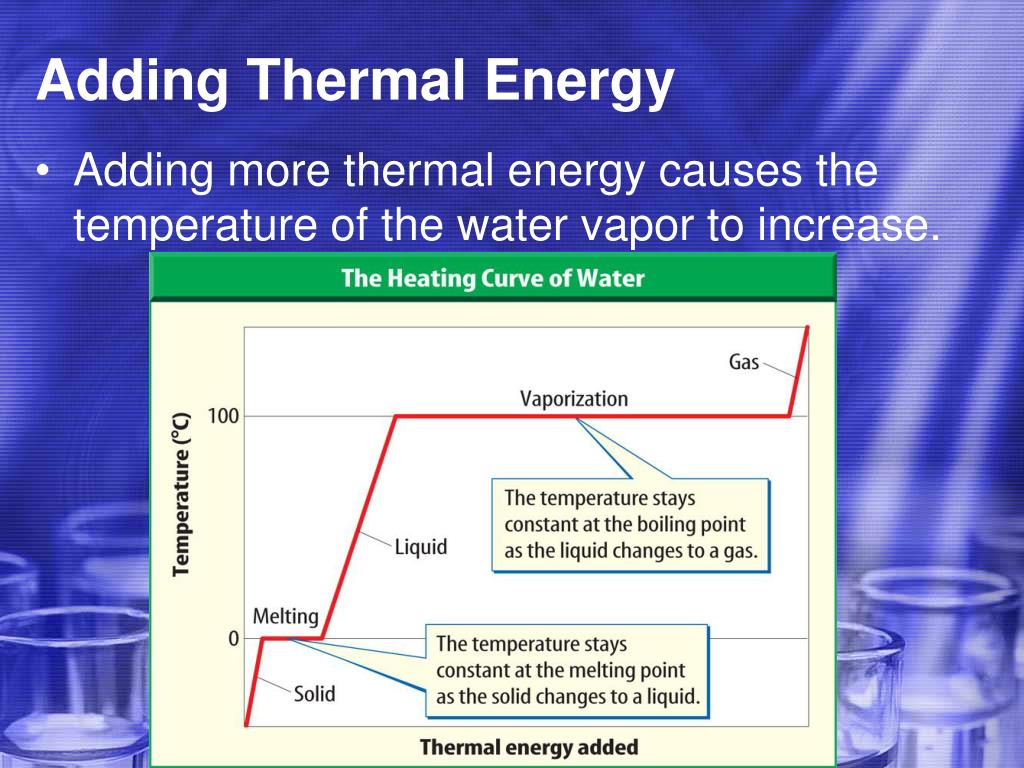

  30. Adding Thermal Energy • Adding more thermal energy causes the temperature of the water vapor to increase.

  31. Removing Thermal Energy • Water vapor changes back into ice by removing thermal energy.

  32. Changes in Energy Among States of Matter

  33. 6.2 Changes in States of Matter 1. The point at which a liquid changes to a gas is called ____. A melting point B freezing point C condensation point D boiling point

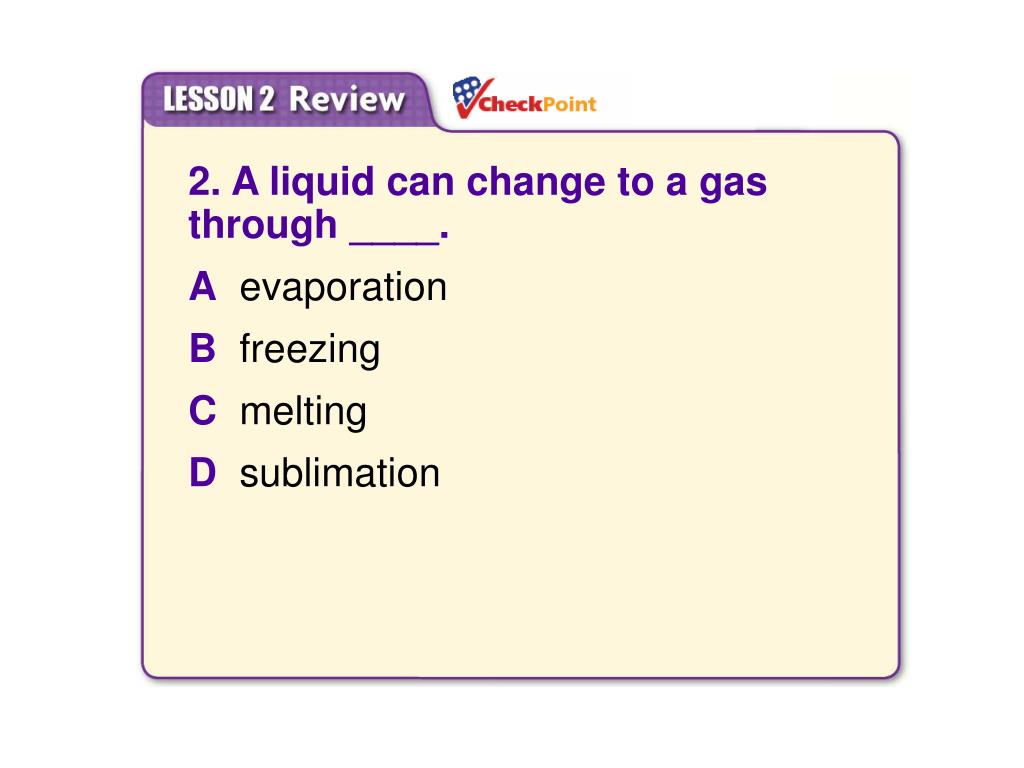

  34. 6.2 Changes in States of Matter 2. A liquid can change to a gas through ____. A evaporation B freezing C melting D sublimation

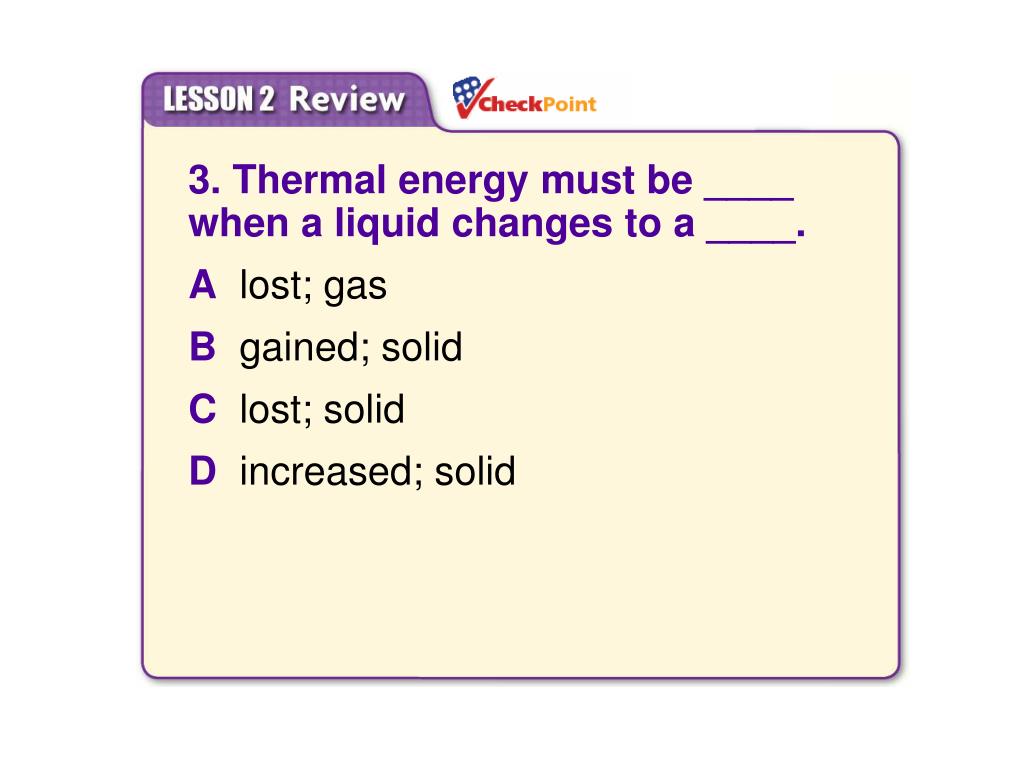

  35. 6.2 Changes in States of Matter 3. Thermal energy must be ____ when a liquid changes to a ____. A lost; gas B gained; solid C lost; solid D increased; solid

  36. 4. Sublimation occurs when a solid changes into a ____. A liquid B gas C plasma D steam

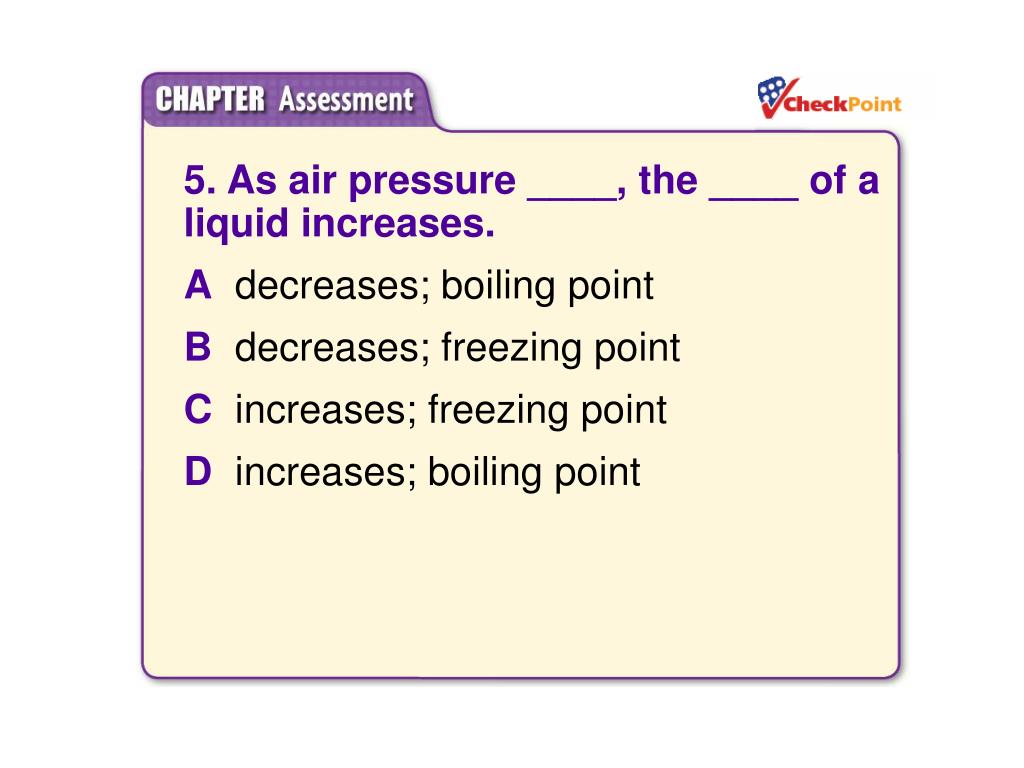

  37. 5. As air pressure ____, the ____ of a liquid increases. A decreases; boiling point B decreases; freezing point C increases; freezing point D increases; boiling point

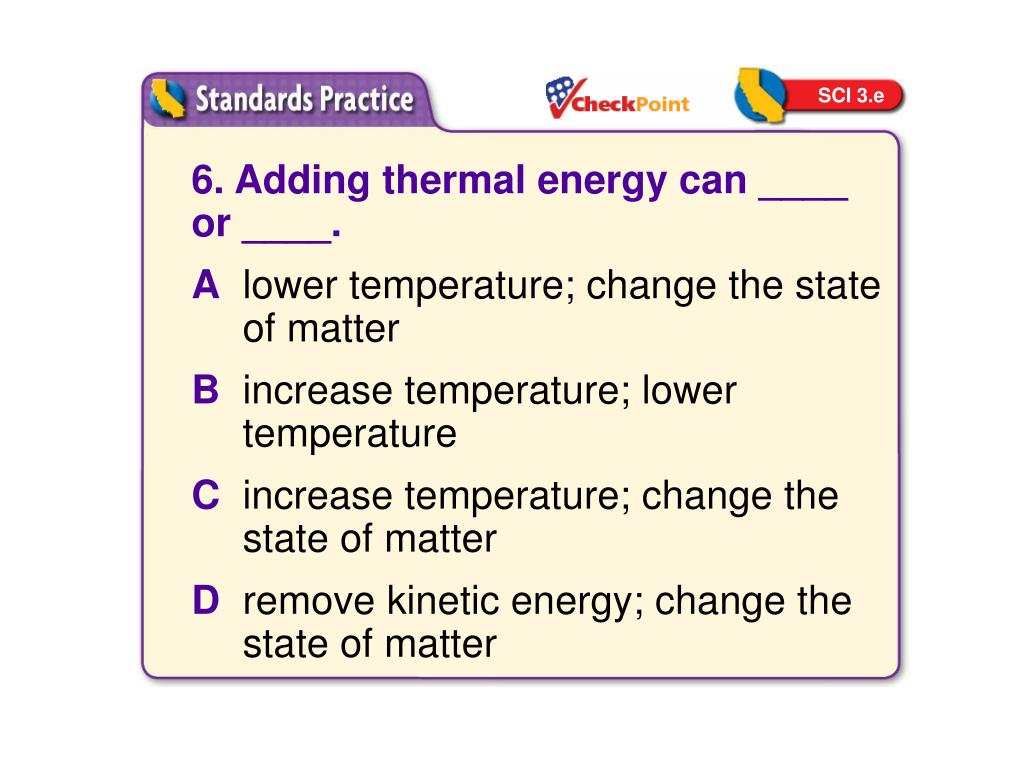

  38. SCI 3.e 6. Adding thermal energy can ____ or ____. A lower temperature; change the state of matter B increase temperature; lower temperature C increase temperature; change the state of matter D remove kinetic energy; change the state of matter

  39. SCI 3.e 7. One glass of water has a temperature of 30°C and another glass of water a temperature of 40°C. Which is true? AThe glass of water at 30°C has lower average kinetic energy. BThe glass of water at 40°C has lower average kinetic energy. CThe two glasses have equal average kinetic energy. D none of the above
