TOPIC 11 ORGANIC CHEMISTRY ( orgo )

TOPIC 11 ORGANIC CHEMISTRY ( orgo ) . AIM: What is organic chemistry? DO NOW: What does organic mean? Review Book pg. 193. What is organic chemistry?. Organic chemistry is the study of carbon and its compounds Carbon forms 4 covalent bonds (single, double or triple) (tetrahedral)

badrani
Download Presentation

TOPIC 11 ORGANIC CHEMISTRY ( orgo )

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. TOPIC 11ORGANIC CHEMISTRY(orgo) AIM: What is organic chemistry? DO NOW: What does organic mean? Review Book pg. 193

  2. What is organic chemistry? • Organic chemistry is the study of carbon and its compounds • Carbon forms 4 covalent bonds (single, double or triple) (tetrahedral) • Hydrocarbon – contains only H and C atoms (TABLE Q)

  3. 1. Nonpolar or weakly polar (like dissolves like) - Low mp & bp 2. millions of organic compounds most are biological processes 3. Nonelectrolytes 4. Reaction rates slow 5. Insoluble & immiscible in water PROPERTIES OF ORGANIC COMPOUNDS

  4. HYDROCARBONS Aliphatic (straight chain) Aromatic (closed chain) SATURATED UNSATURATED Benzene C6H6 CnH2n-6 Alkane (single) C-C CnH2n+2 -ane suffix Alkene (double) C=C CnH2n -ene suffix Alkyne (triple) C-C CnH2n-2 -yne suffix HOMOLOGOUS SERIES (for each additional carbon atom there will be 2 additional H atoms – TABLE Q

  5. How can we name hydrocarbons? -IUPAC Names of organic molecules are designed to describe a molecule in terms of: • How many C atoms are in the longest continuous chain – get prefix from Table P • What is attached to the longest continuous chain? (double or triple bond, functional group, branching) Molecular formula: CH4 Structural Formula -

  6. AIM: HOW CAN WE NAME HYDROCARBONS? DO NOWReview Book pg. 197 #1-6

  7. ALKANES SATURATED – ALL SINGLE BONDS

  8. ALKENES UNSATURATED – DOUBLE BOND

  9. ALKYNES UNSATURATED – TRIPLE BOND

  10. AIM: HOW CAN WE NAME SUBSTITUTED HYDROCARBONS? DO NOW: Review Book pg. 198 # 7-18

  11. WHAT IS A SUBSTITUTED HYDROCARBON? • Hydrocarbons can branch off in the middle (alkyl group) or have atoms other than H bonded to C • Common ones are halo carbons or alkyl halide

  12. HOW CAN WE NAME ORGANIC HYDROCARBON?- IUAP • Find longest continuous C chain (parent chain) and name it using Table P • Add name of any attached side groups • Organic side groups (alkyl groups) – alkanes with one less H (use prefix from table P and change ane – yl • Halide change ending to –o - cholro, bromo etc.

  13. HOW CAN WE NAME ORGANIC HYDROCARBON?- IUAP 3. 4 or more C in a chain indicate which C atom the side group is attached to - count # of C from the end that give you the lowest possible #’s 4. If more than 1 of the same type of group in the chain, indicate which C each group is attached to and how many groups are contained (di, tri, etc.)

  14. HOW CAN WE NAME ORGANIC HYDROCARBON?- IUAP PRACTICE

  15. AIM: What are aromatic compounds? DO NOW: Take out the following assignments:- Review Book pg. 200 #19-28-Review Packet

  16. WHAT IS AN AROMATIC HYDROCARBON? Cyclic hydrocarbons that possess a bonding phenomena called RESONANCE Double bonds don’t break because they are not stations (oscillate or vibrate moving rapidly)

  17. BENZENE is the basis of most aromatic compounds C6H6 • Alternating double bond • H can be replaced WHAT IS AN AROMATIC HYDROCARBON?

  18. Condensed way to represent a structural formula as a molecular formula WHAT IS A COLLAPSED FORMULA?

  19. Do Now: Review Book pg. 200 # 29-31 AIM:What are functional groups and how do we recognize them?

  20. Functional Groups – TABLE R 1.HALIDE – hydrocarbon containing a halogen (F, Cl, Br, or I) 2. ALCOHOLS – 1 or more H is replaced with -OH • To name: (not hydroxide!!!) • Drop “e” from parent compound add –ol • More than 1 hydroxyl – indicate # of C each is attached to and adjust name to reflect # of hydroxyls

  21. Functional Groups – TABLE R 2. Alcohols (OH) End in - ol Monohydroxy 1 - OH Trihydroxy 3 - OH dihydroxy 2 - OH

  22. Functional Groups – TABLE R Box the C that is attached to the OH – how many other C atoms are attached to it 2. Alcohol: MONOhydroxy primary Tertiary secondary Propanol 2-butanol 2-methyl 2- butanol

  23. Functional Groups – TABLE RALCOHOL DIHYDROXY TRIHYDROXY 1,2,3 - propanetriol 1,2 – ethanediol

  24. Organic acids  COOH drawn R- (attached hydrocarbon chain) - Suffix – oic acid - All primary carbons - H on end dissociates in water Ex) Draw the structures of the following methanoic acid (formic acid) Ethanoic acid (acetic acid) Functional Groups – TABLE R

  25. 4. Aldehydes • Parent name suffix –al (carbonyl group on primary carbon • Ex) Draw the following • Methanal (formaldehyde) • Ethanal (acetaldehyde) Functional Groups – TABLE R

  26. Ketones • - Secondary from of aldehyde • Secondary carbonyl group • Parent name suffix – one • Indicate positioning of carbonyl group on lowest # carbon • Ex) Draw the following • 2-Propanone (acetone) Functional Groups – TABLE R

  27. 6. Ester • Parent name suffix - oate • Formed by carboxyl group surrounded by 2 alkyl groups • Odors and flavors of plants, fruits & flowers • Can be synthesized to make artificial flavors and fragrances • Ex) Draw the following • 1. Methyl butanoate Functional Groups – TABLE R

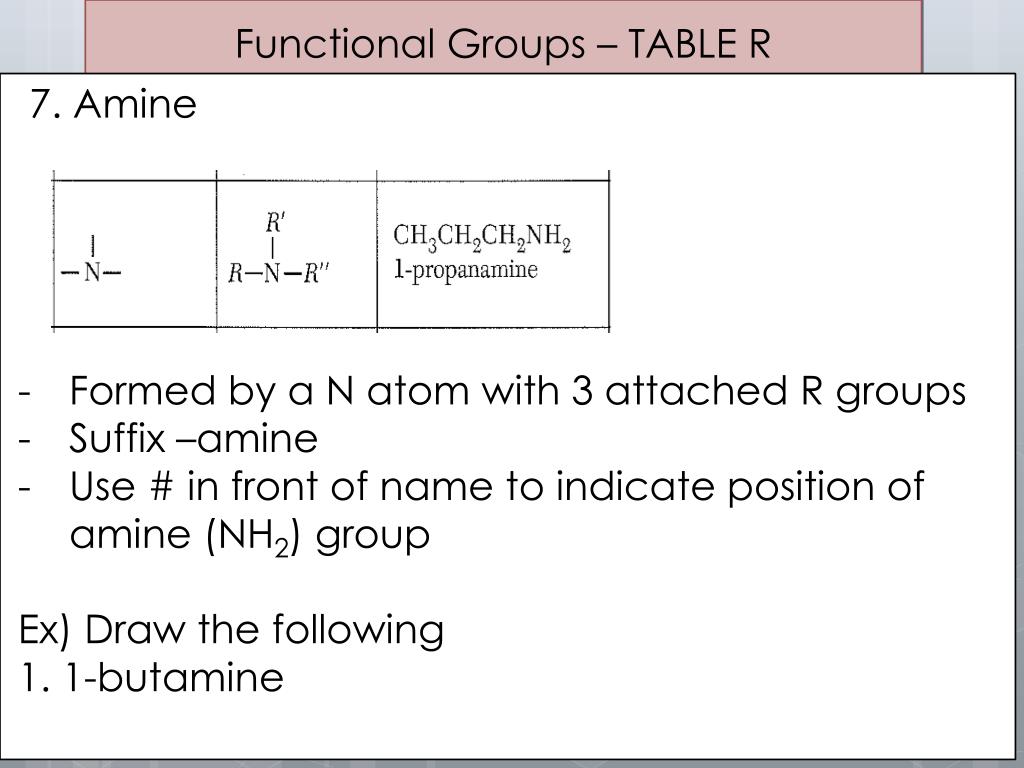

  28. 7. Amine • Formed by a N atom with 3 attached R groups • Suffix –amine • Use # in front of name to indicate position of amine (NH2) group • Ex) Draw the following • 1. 1-butamine Functional Groups – TABLE R

  29. 8. Amide • Primary C • Suffix –amide • Ex) Draw the following • 1- butamide Functional Groups – TABLE R

  30. 9. Ether Ex) Draw the following: 1. Methyl propyl ether Functional Groups – TABLE R

  31. ORGANIC REACTIONS COMBUSTION SUBSTITUTION a. Involves a saturated hydrocarbon b. One of more H gets replaced (substituted) by another atom or group (hint: compare the number of H on the reactant and product side Examples: a. In the presence of excess O2 a hydrocarbon produces CO2 & H2O b. In limited O2 hydrocarbon will produce CO and H2O Examples:

  32. ORGANIC REACTIONS ADDITION ESTERIFICATION a. An organic acid and an alcohol makes an ester and H2O b. Should recognize the acid group and the hydroxyl group in the reactants Hint: Table R to recognize the ester in the products Example: Review Book pg. 207 fig. 11-6 copy a. Involves an unsaturated hydrocarbon Hint: look for 2 reactants and one product Example:

  33. ORGANIC REACTIONS SAPONIFICATION FERMENTATION Glucose yields ethanol and CO2 Example: a. A fat reacts with a base to produce an alcohol (look for glycerol) and soap Example: Copy from Review book pg. 207 fig. 11-17

  34. ORGANIC REACTIONSPOLYMERIZATION:An unsaturated hydrocarbon called a monomer (one unit), bonds itself in long chains creating a polymer(many units) ADDITION CONDENSATION Creation of polymer plus water as a product Several monomers combine to make the polymer nC2H2(C2H2)n

  35. Topic 11 Test Tomorrow!Review • Finish Review Book pg. 204 34-48 • Copy topics from board when finished
