  1. Charging on! 1.2 & 1.3 Charging by Contact & Induction and Lightning

  2. TVO VIDEO SERIES: http://www.youtube.com/watch?v=OL9wcTBjDN0&list=PLdIVKwXe8Up9z0pJGe0oLY5-yLbsaz_b7 Electroscope: detects the presence of electric charges Pith ball electroscope Metal leaf electroscope

  3. Charging... • By Contact: • Generating a charge on a neutral object by touching it with a charged object • Neutral object will have the same charge as the object charging it

  4. Charging • By Induction: • Movement of electrons in a substance without direct contact with an object • The force is attractive

  5. Electric Fields • The space around a charged object • The effect of its charge can be felt by other objects • The greater the charge, the stronger (and bigger) the field • Electric forces are transmitted at the speed of light Attraction Repulsion

  6. Lightning!

  7. Lightning!

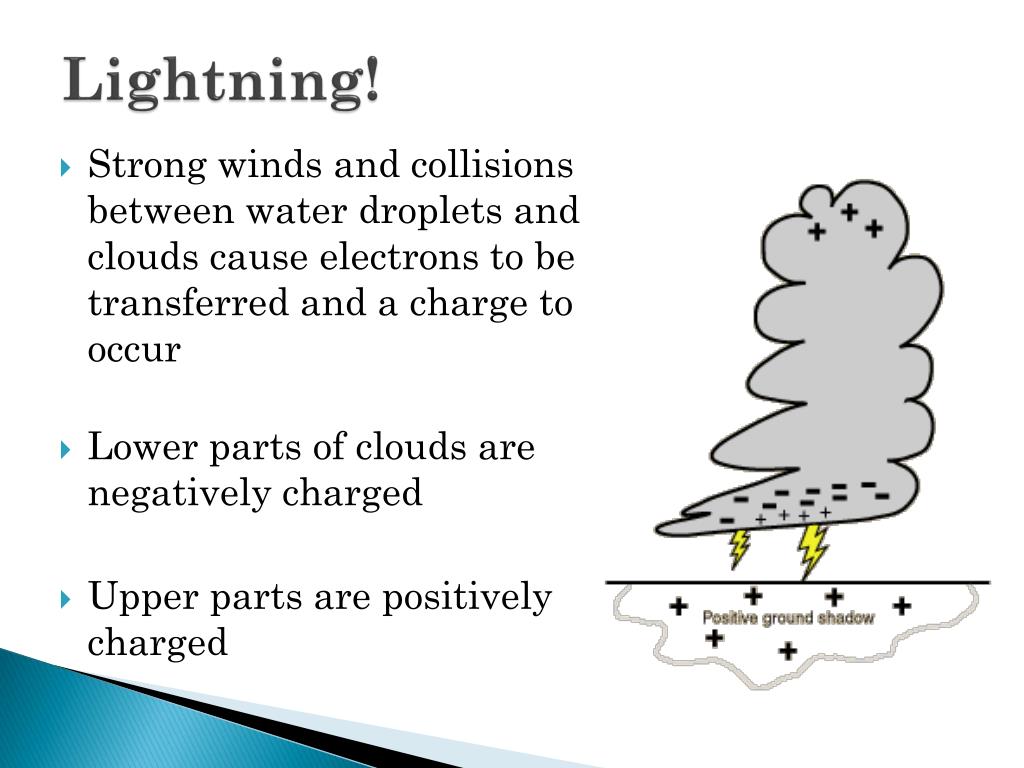

  8. Lightning! • Strong winds and collisions between water droplets and clouds cause electrons to be transferred and a charge to occur • Lower parts of clouds are negatively charged • Upper parts are positively charged

  9. Lightning! • The large negative charge pushes away negative charges in the earth = Positive charge • Giant discharge = Lightning • heats air to 33000 degrees Celsius (hotter than sun) • Air molecules collide and produce thunder

  10. Lightning Rods • A rod attached to a house that is connected to a buried cable or rod • If lightning strikes it will drain off into the ground without creating a fire in the house • Invented by Ben Franklin
