  1. Mairon Melo Machado melo.machado@ufrgs.br Diffractive heavy quark production at the LHC

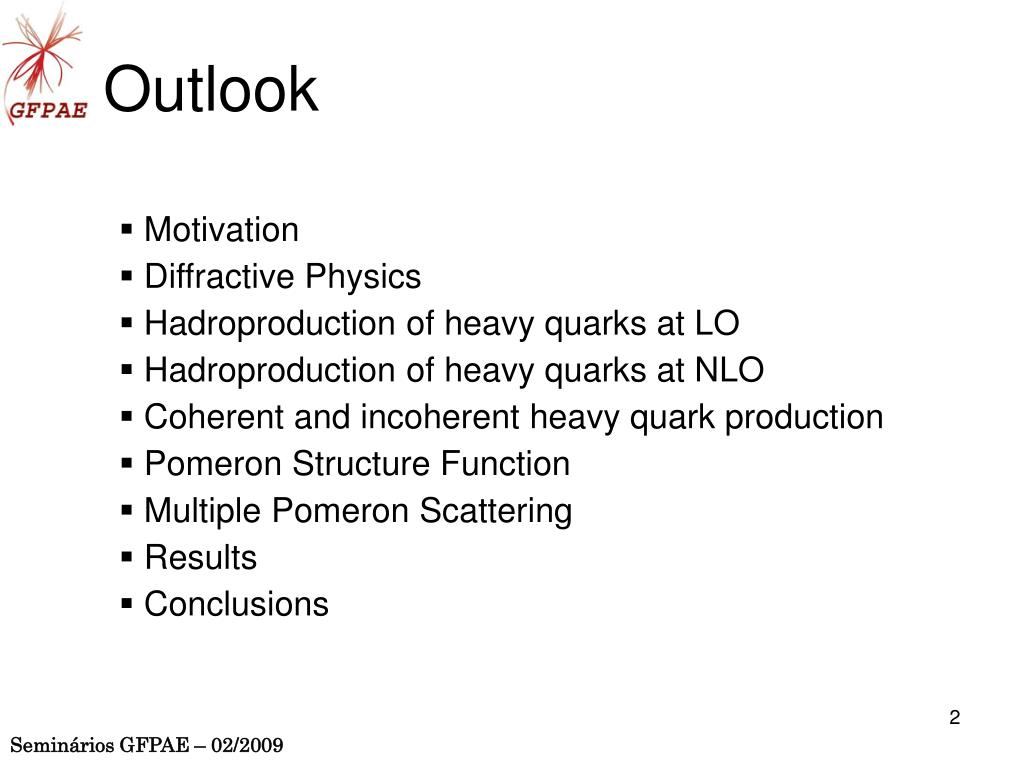

  2. Motivation Diffractive Physics Hadroproduction of heavy quarks at LO Hadroproduction of heavy quarks at NLO Coherent and incoherent heavy quark production Pomeron Structure Function Multiple Pomeron Scattering Results Conclusions Outlook

  3. Motivation • Cross section for heavy quark production allows to probe the gluon densities • Pomeron with substructure Ingelman-Schlein • Ingelman-Schlein predictions • Absorptive corrections multiple Pomeron Scattering • Gap survival probability to AA single diffractive collisions • Coherent and incoherent diffraction is a powerful tool for studying the low-x processes (gluon saturation) • HQ are important signals of possible new physics signal background

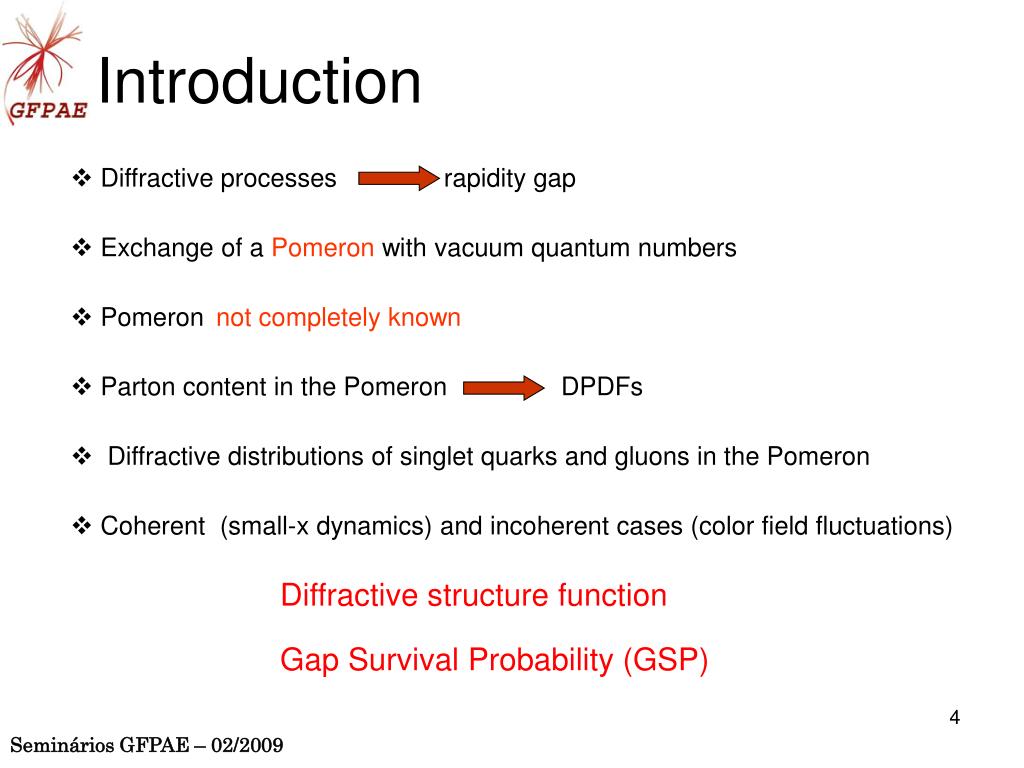

  4. Diffractive processes rapidity gap Exchange of a Pomeron with vacuum quantum numbers Pomeron not completely known Parton content in the Pomeron DPDFs Diffractive distributions of singlet quarks and gluons in the Pomeron Coherent (small-x dynamics) and incoherent cases (color field fluctuations) Introduction Diffractive structure function Gap Survival Probability (GSP)

  5. Single diffraction in hadronic collisions One of the colliding hadrons emits Pomeron Partons in the the Pomeron interact with partons from the another hadron Absence of hadronic energy in angular regions Φof the final state phase space Diffractive events Ingelman-Schlein Model Rapidity gaps

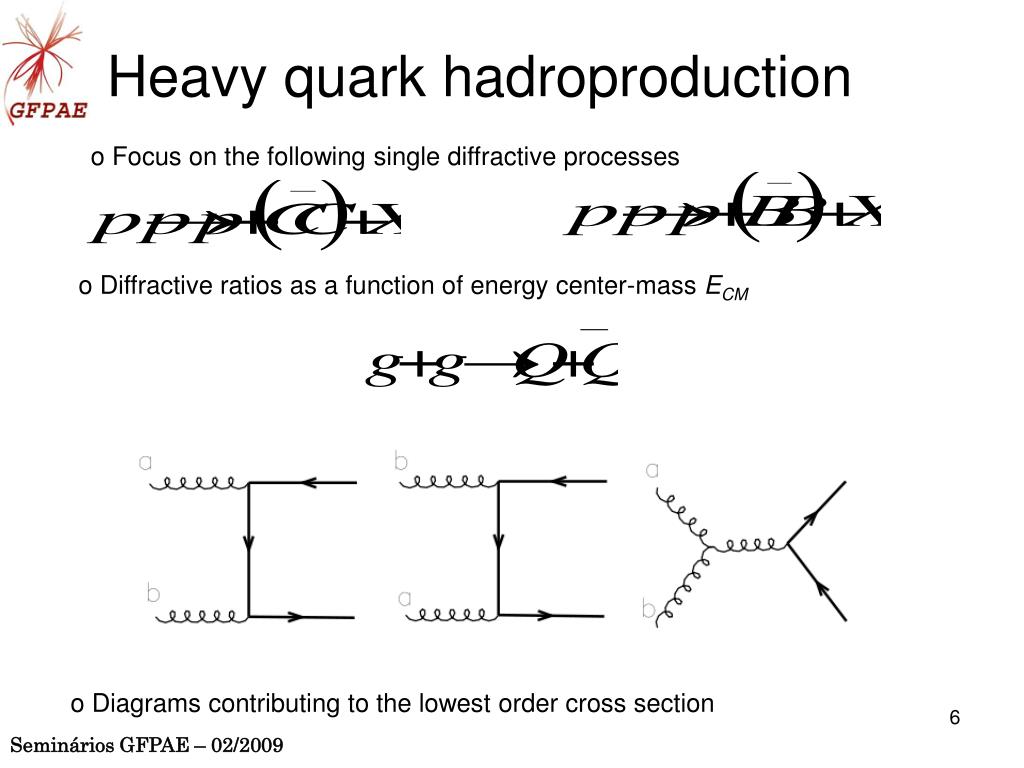

  6. Diffractive ratios as a function of energy center-mass ECM Heavy quark hadroproduction • Focus on the following single diffractive processes • Diagrams contributing to the lowest order cross section

  7. LO hadroproduction Total cross section are the parton distributions inner the hadron i=1 and j=2 Partonical cross section factorisation (renormalisation) scale

  8. Partonic cross section is the coupling constant m is the heavy quark mass p1,2 are the parton momenta Dimension of the SU(N) gauge group (number of gluons) N = 3 (4) to charm (bottom)

  9. NLO Production Running of the coupling constant n1f = 3 (4) charm (bottom)

  10. NLO functions • Using a physical motivation fit to the numerically integrated result • Error of 1%

  11. NLO Production Auxiliary functions

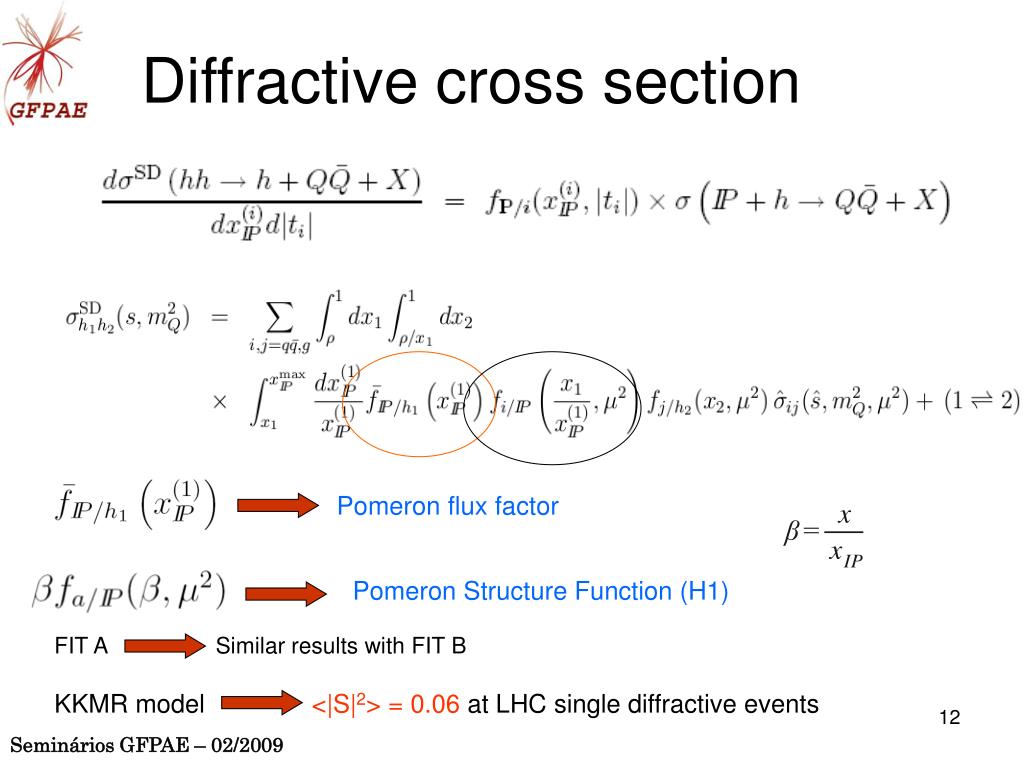

  12. Diffractive cross section Pomeron flux factor Pomeron Structure Function (H1) FIT A Similar results with FIT B KKMR model <|S|2> = 0.06 at LHC single diffractive events

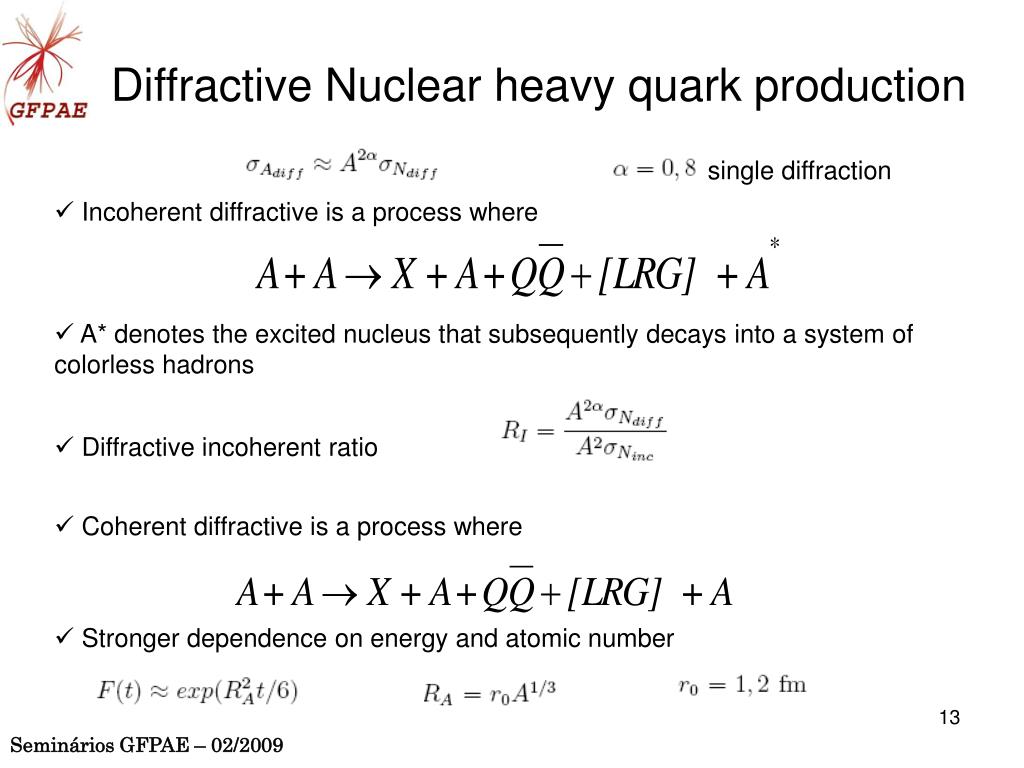

  13. Diffractive Nuclear heavy quark production single diffraction • Incoherent diffractive is a process where • A* denotes the excited nucleus that subsequently decays into a system of colorless hadrons • Diffractive incoherent ratio • Coherent diffractive is a process where • Stronger dependence on energy and atomic number

  14. qq vs. gg • Inclusive cross section and diffractive cross section • Charm-anticharm hadroproduction • Contribution of qq anihillation at high energies not important • Diffractive cross section without GSP • Mc = 1.5 GeV Inclusive quarks/gluons Inclusive gluons Diffractive

  15. Diffractive comparison Inclusive Diffractive wt/GSP Diffractive wh/GSP • Diffractive cross sections to bottom-antibottom hadroproduction • Relevant contribution of GSP value in the total diffractive cross section • <|S|2> = 0.06 • Mb = 4.7 GeV

  16. Comparison LO and NLO • Predictions for inclusive cross sections in pp collisions (LHC) • NLO cross section is 1.5 higher than LO cross section at high energies

  17. Results for heavy quark production Cross sections in NLO for heavy quarks hadroproduction GSP value decreases the diffractive rate <|S|2> = 0.06 Cross sections in NLO to inclusive nuclear cross section ACa = 40 APb = 208

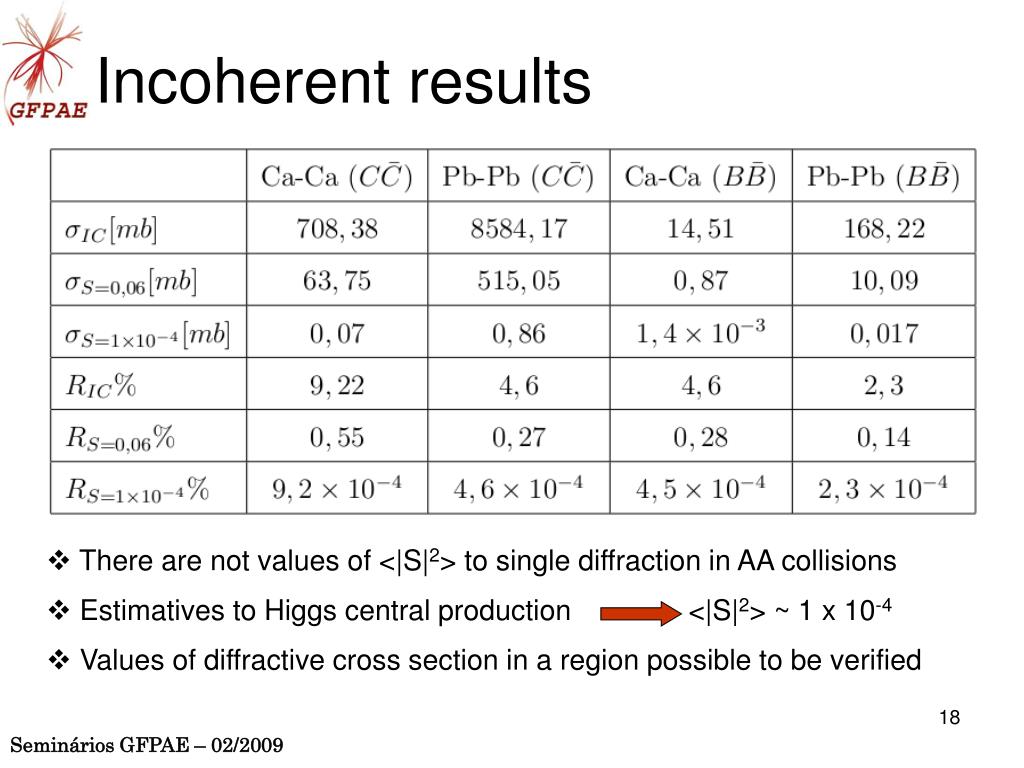

  18. Incoherent results • There are not values of <|S|2> to single diffraction in AA collisions • Estimatives to Higgs central production <|S|2> ~ 1 x 10-4 • Values of diffractive cross section in a region possible to be verified

  19. Coherent results • Predictions to diffractive cross section in a region possible to be verified • Diffractive cross section without GSP is consistent with the literature • Very small single diffractive ratio

  20. Conclusions • Theoretical predictions for inclusive and single diffractive heavy quarks production at LHC energies in pp and AA collisions • Estimates for cross sections as a function of energy center mass ECM • Diffractive ratio is computed using hard diffractive factorization and absorptive corrections (NLO) • There are not predictions to <|S|2> in AA collisions • Important contribution of the absolute value of absorptive corrections • Diffractive cross section for AA collisions in a region that is possible to be verified • Evaluation of the gap survival probability for single diffraction in AA collisions

  21. References M. B. Gay Ducati, M. M. Machado, M. V. T. Machado, arXiv:0908.0507 [hep-ph] (2009) M. B. Gay Ducati, M. M. Machado, M. V. T. Machado, PRD 75, 114013 (2007) P. D. Collins, An Introduction to Regge Theory and High Energy Physics (1977) G. Ingelman and P. Schlein, Phys. Lett. B 152 (1985) 256. P. Nason, S. Dawson, R. K. Ellis Nucl. Phys. B303 (1988) 607 M. L. Mangano, P. Nason, G. Ridolfi Nucl. Phys. B373 (1992) 295 M. L. Mangano arXiv:hep-ph/9711337v1 (1997) V. A. Khoze, A. D. Martin, M. G. Ryskin, Eur. Phys. J. C18, 167 (2000) H1 Coll. A. Aktas et al, Eur. J. Phys. J. C48 (2006) 715 N. M. Agababyan et al Phys. Atom. Nucl. 62, 1572 (1999) K. Tuchin, arXiv:0812.1519v2 [hep-ph] (2009) E. Levin; J. Miller arXiv:0801.3593v1 [hep-ph] (2008)
