  1. Confined spaces Controlling hazards and minimizing risks

  2. Ways to control hazards and make confined spaces safer • Barriers and signage • Equipment upgrades or engineered controls • Contract out confined space work 2

  3. Signage • Sign tells workers to keep out • Worker training — need to respect signage 3

  4. Signage must be: • Clearly visible • Well maintained 4

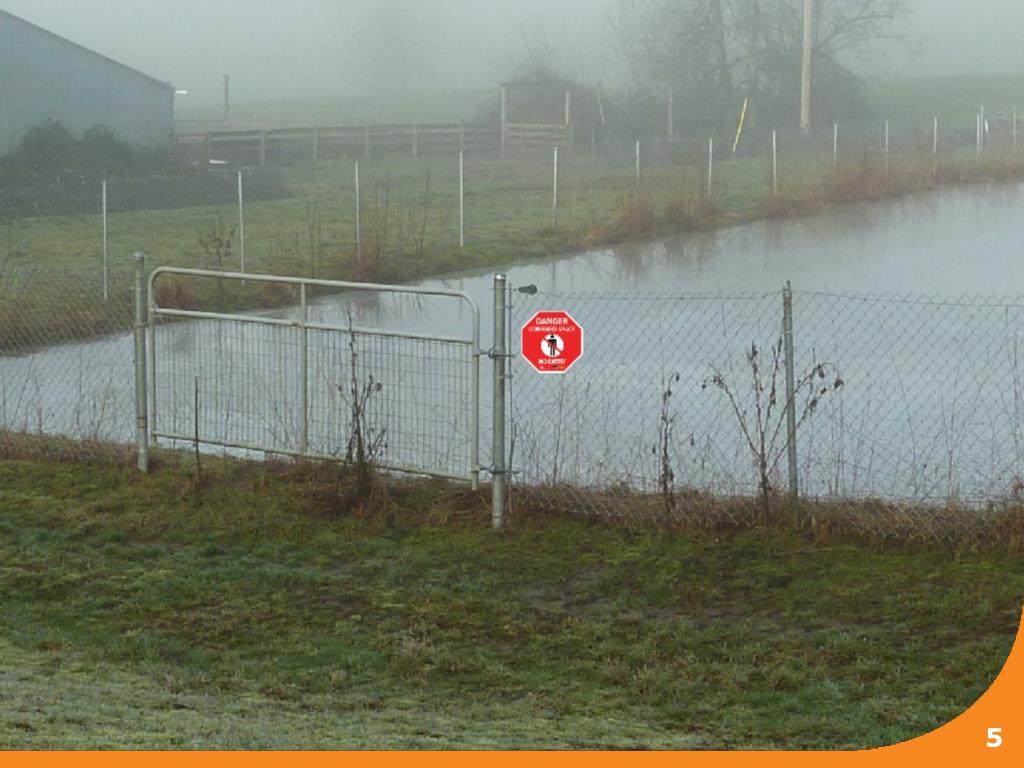

  5. 5

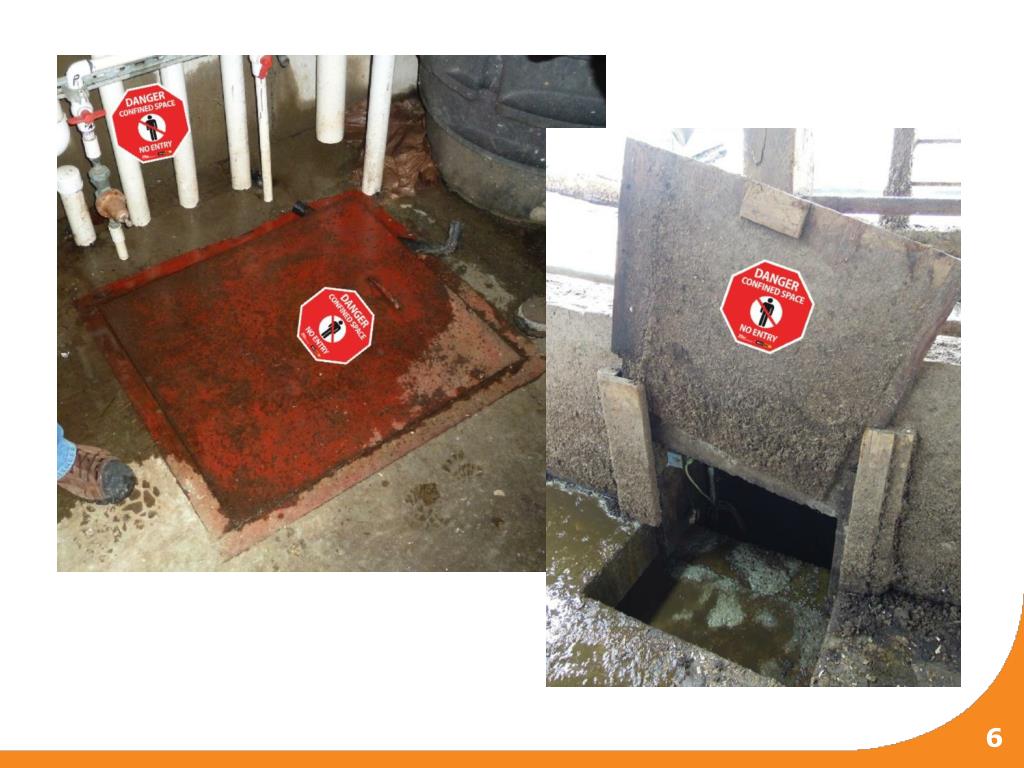

  6. 6

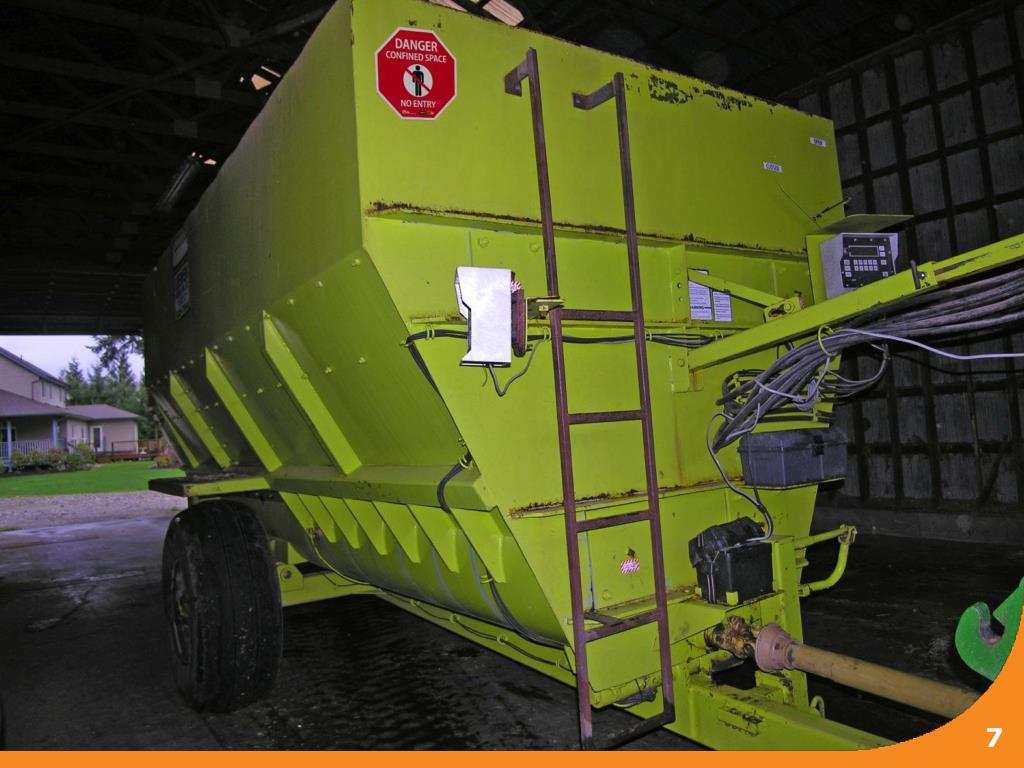

  7. 7

  8. 8

  9. Barrier – tanks • Install barriers in hatchways to prevent entry 9

  10. Equipment upgrades and engineered controls • Move equipment outside of the space or install a system that removes equipment (e.g., pumps, agitators) for servicing or repair • Install clean-in-place systems • Install augers to break up bridges in bins • Relocate openings (e.g., on the side, rather than the top) and make the openings larger • Install removable stairways into vaults or pits 10

  11. Manure pit 11 11

  12. Pump shed • Install ventilation fans • Move valves, pumps, and controls to outside panels so workers do not have to enter the shed 12 12

  13. Milk tank • Install clean-in-place automated washing system so workers do not have to enter • Contract out internal maintenance and repair 13

  14. Water treatment plant • Install stairways for easier access 14

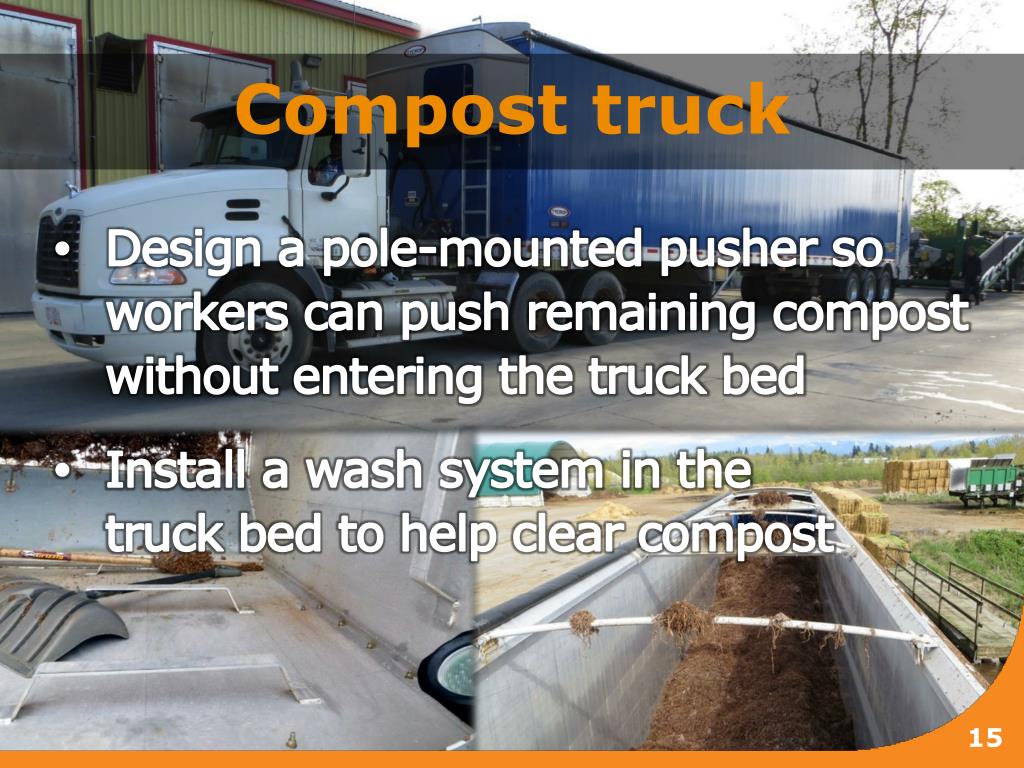

  15. Compost truck • Design a pole-mounted pusher so workers can push remaining compost without entering the truck bed • Install a wash system in the truck bed to help clear compost 15

  16. Bins and silos • Install an in-place system to remove grain or feed blockages — workers do not have to enter the space 16

  17. Contracting out • Contracting out delegates work to people with specialized training and equipment • Contractors must have their own confined space entry program • Employers must ensure contractors are competent to work in confined spaces and are following safe work procedures 17
