  1. OfficeServ 7070 2008 . 11 M M C

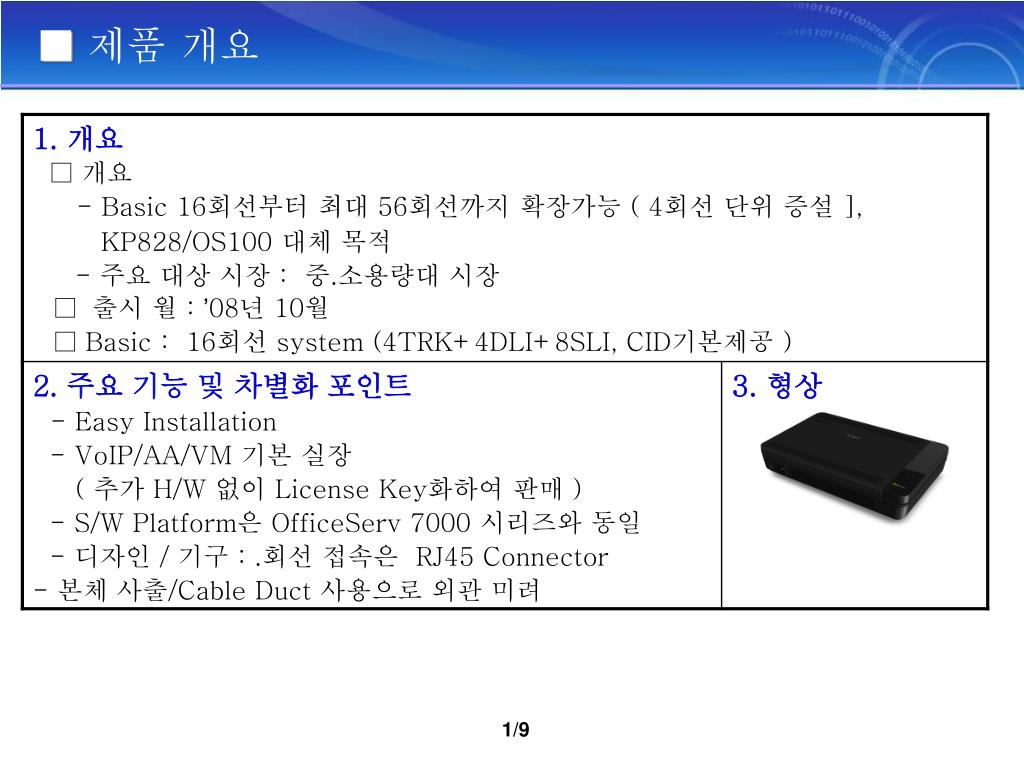

  2. ■제품 개요

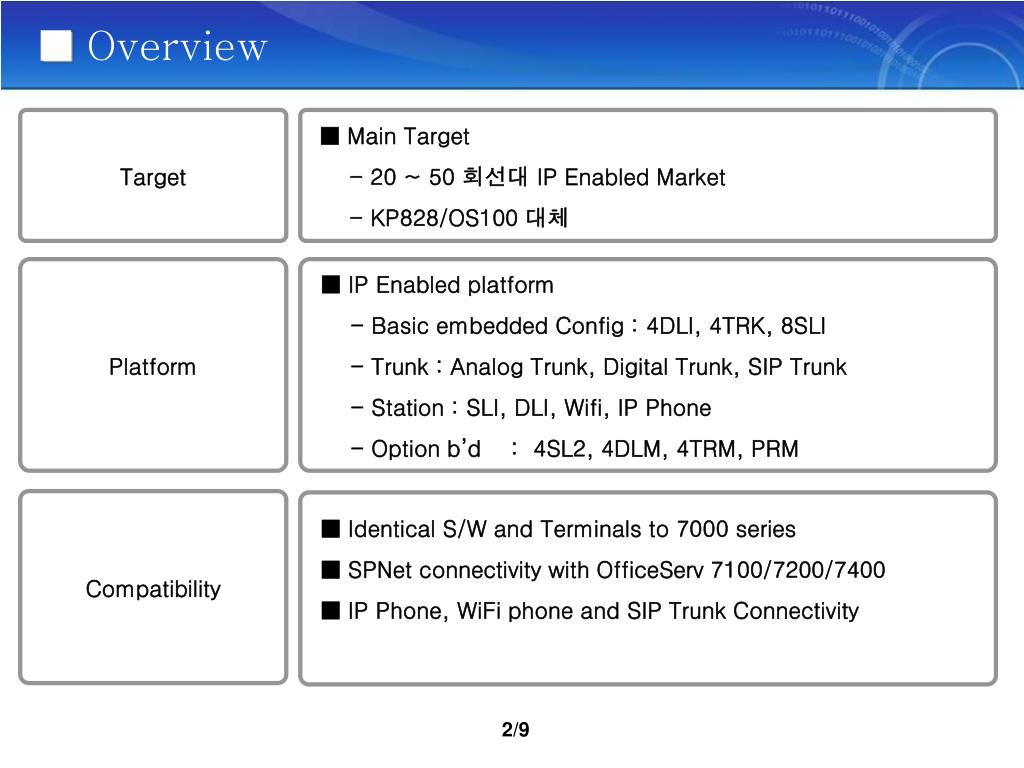

  3. ■ Overview Target ■ Main Target - 20 ~ 50 회선대 IP Enabled Market - KP828/OS100 대체 Platform ■ IP Enabled platform - Basic embedded Config : 4DLI, 4TRK, 8SLI - Trunk : Analog Trunk, Digital Trunk, SIP Trunk - Station : SLI, DLI, Wifi, IP Phone - Option b’d : 4SL2, 4DLM, 4TRM, PRM Compatibility ■ Identical S/W and Terminals to 7000 series ■ SPNet connectivity with OfficeServ 7100/7200/7400 ■ IP Phone, WiFi phone and SIP Trunk Connectivity

  4. ■외형 Design rendering

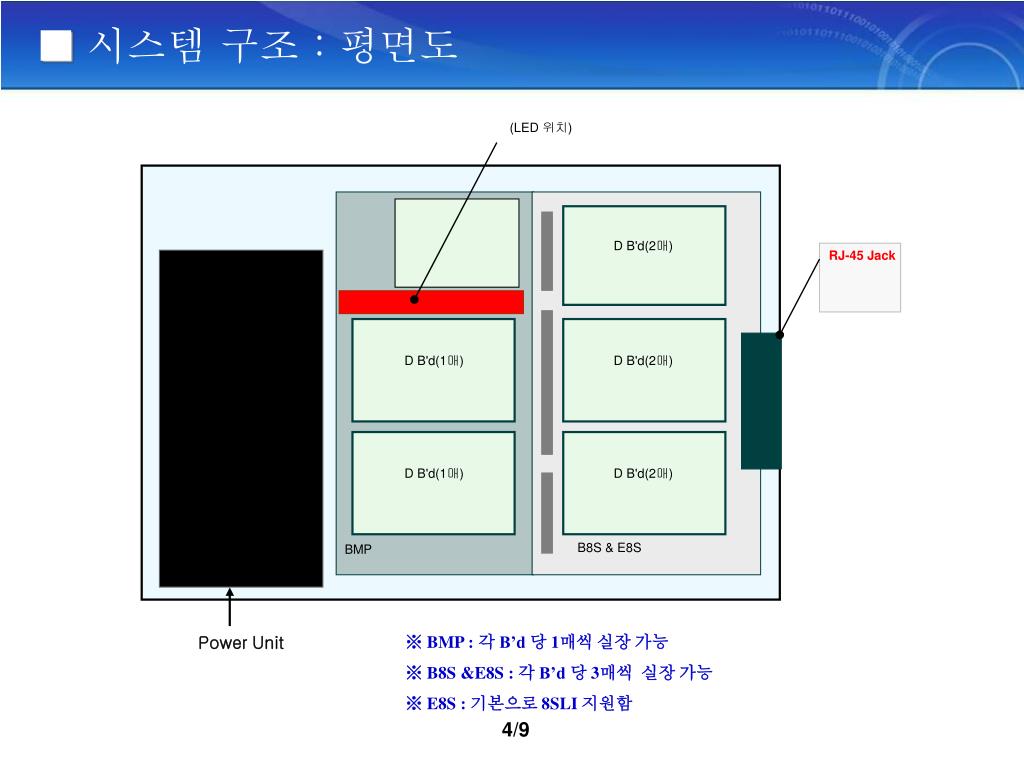

  5. (LED 위치) ■시스템 구조 : 평면도 D B'd(2매) RJ-45 Jack D B'd(1매) D B'd(2매) D B'd(1매) D B'd(2매) B8S & E8S BMP PSU Power Unit ※ BMP : 각 B’d 당 1매씩 실장 가능 ※ B8S &E8S : 각 B’d 당 3매씩 실장 가능 ※ E8S : 기본으로 8SLI 지원함

  6. ■시스템 구조 : 우측면도 회선 접속부 (RJ45 Connector 접속) 결선도 (Label화)

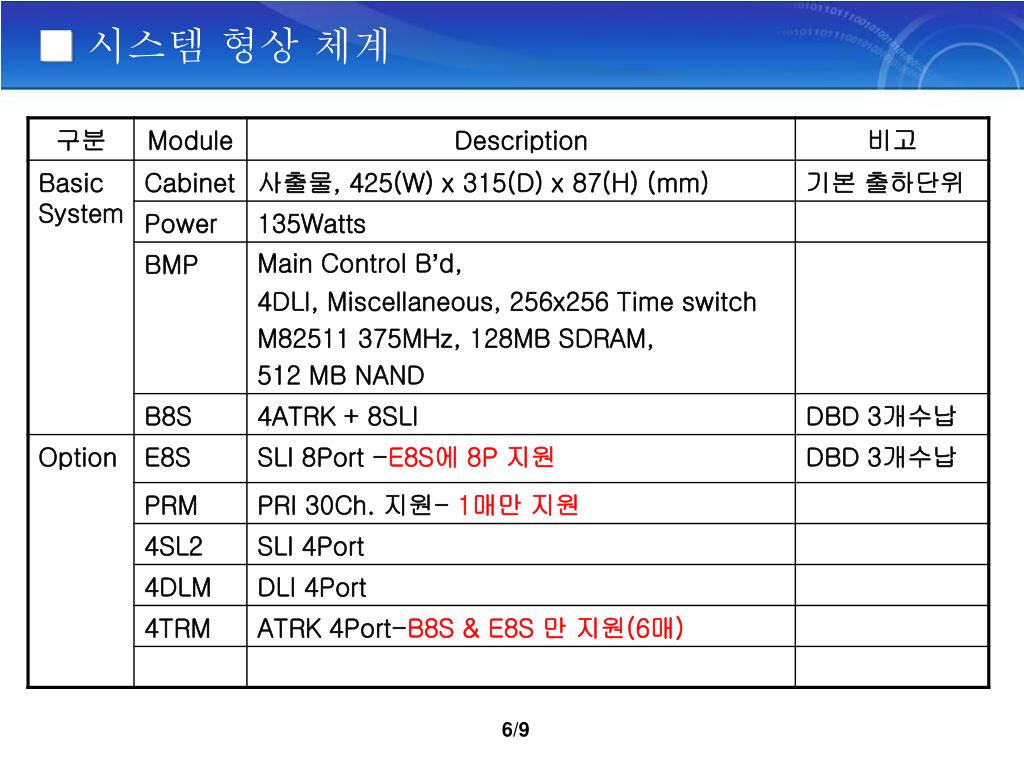

  7. ■시스템 형상 체계

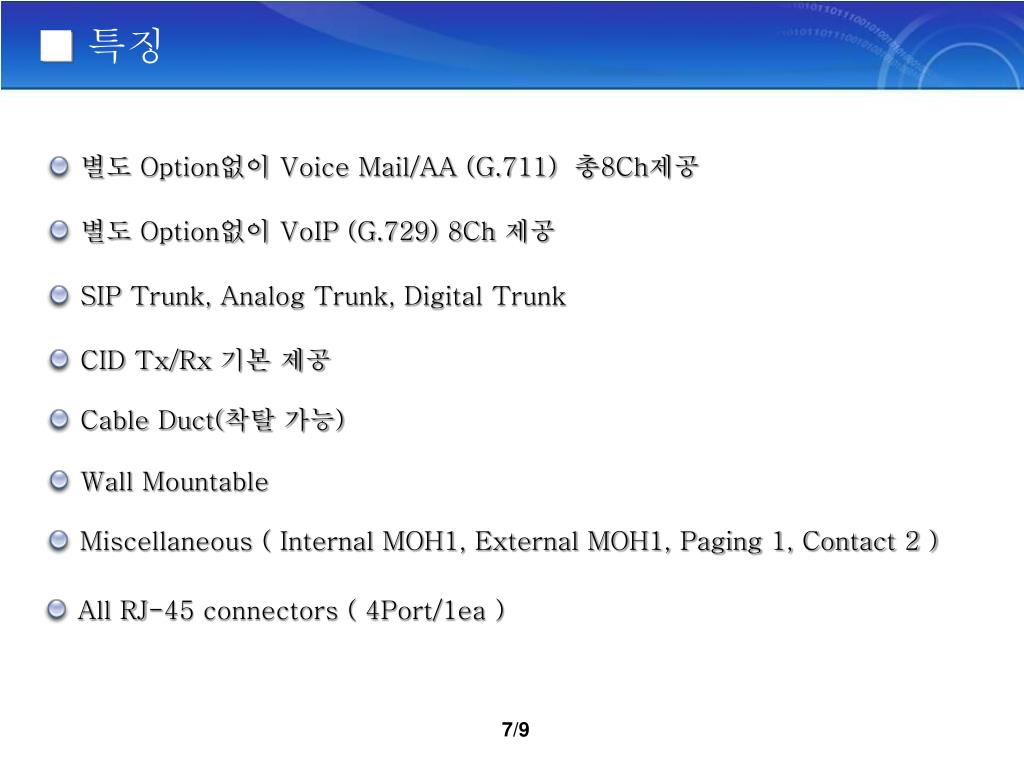

  8. ■특징 별도 Option없이 VoIP (G.729) 8Ch 제공 SIP Trunk, Analog Trunk, Digital Trunk CID Tx/Rx 기본 제공 Wall Mountable All RJ-45 connectors ( 4Port/1ea ) Cable Duct(착탈 가능) 별도 Option없이 Voice Mail/AA (G.711) 총8Ch제공 Miscellaneous ( Internal MOH1, External MOH1, Paging 1, Contact 2 )

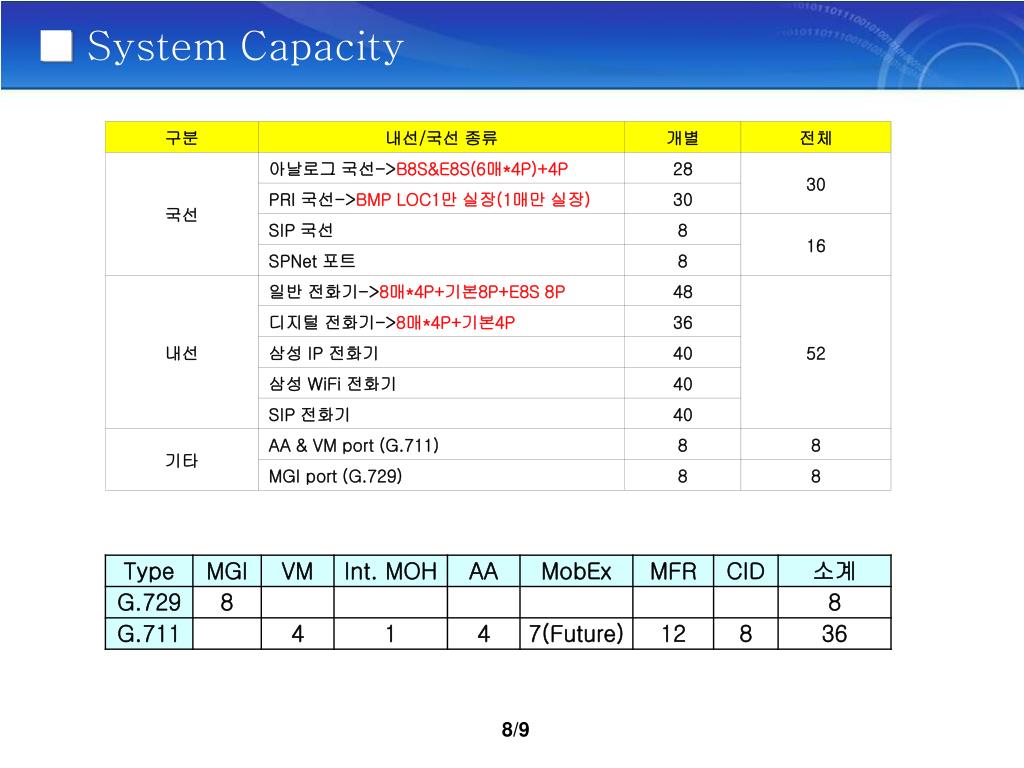

  9. ■ System Capacity

  10. ■카드 실장 형상
