  1. ASMi-52 phase 2.5Product overview Meira Erez Product Manager meira_e@rad.com

  2. Advanced performance & lower price on ASMi-52 phase 2 New features : • Several management options • DTS , ETH out of band port, SNMP,ConfiguRAD • Both AC and DC (48v) on the same power supply • Saving inventory • Alarm relay for major and minor alarms • Optional port • Repeaters • Long distance for 2w option PBX E1 SHDSL V35 • Answering market need : • Matching features with our competitors • cost effective solution LAN

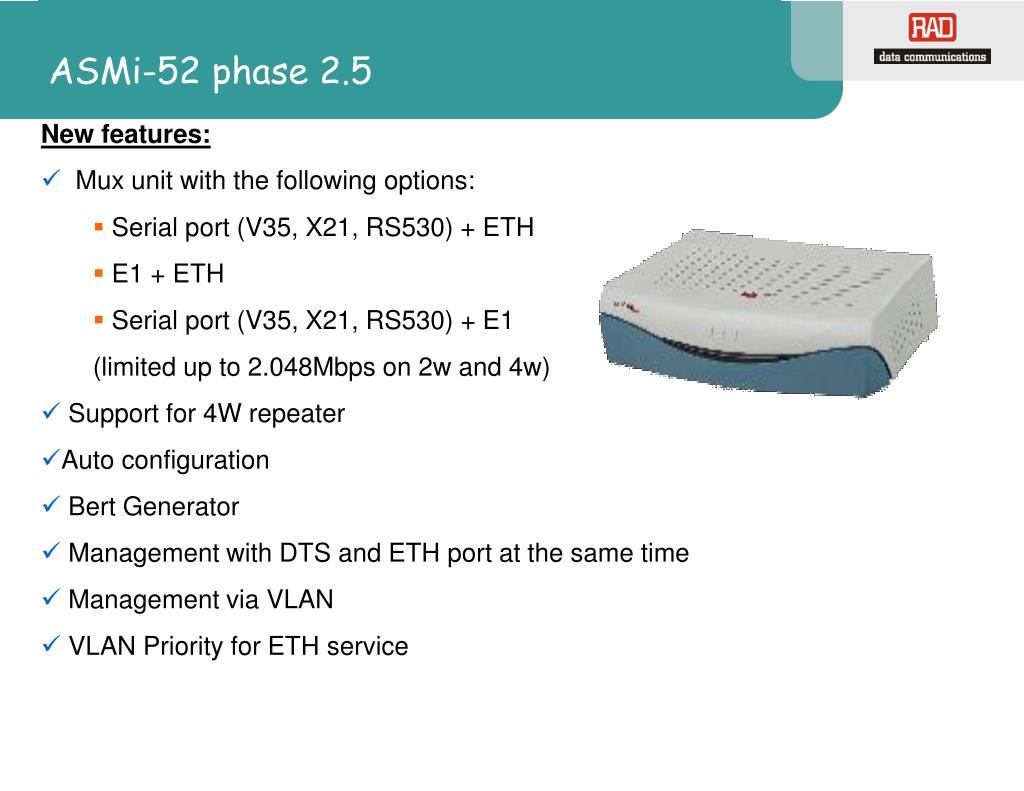

  3. ASMi-52 phase 2.5 New features: • Mux unit with the following options: • Serial port (V35, X21, RS530) + ETH • E1 + ETH • Serial port (V35, X21, RS530) + E1 (limited up to 2.048Mbps on 2w and 4w) • Support for 4W repeater • Auto configuration • Bert Generator • Management with DTS and ETH port at the same time • Management via VLAN • VLAN Priority for ETH service

  4. ASMi-52 Phase 2.5 LAN ASMi-52 phase 2.5 : Compatibility V35 ASMi-52 Phase 2 ASMi-52 Phase 2.5 PBX E1/T1 SHDSL LAN PBX E1/T1 PBX E1 ASMi-52 Phase 2.5 ASMi-52 Phase 2.5 LAN LAN SHDSL PBX E1 DXC-30 E1 SDH/SONETNetwork SHDSL

  5. ASMi-52 Phase 2.5– new applications • Target Market • PTTs • New and alternative carriers • Municipal area, corporates PBX E1 ASMi-52 V35 SHDSL DXC E1 1 SDH/SonetNetwork 72 PBX E1 SHDSL ASMi-52 • Benefits • Enable more services on the same SHDSL line • Saves space, cost and simplifies operation • Reduces number of ports used in backbone equipment • All services under same management platform LAN

  6. More features…..version 2.5 • Auto-Configuration • The following functionality is available for Auto-Configuration: • UPLOAD current configuration from data base to PC/Flash • DOWNLOAD configuration from file to the current configuration  • This feature available in MUX unit and can be upgraded also in phase 2.0 (E1, V.35 and LAN) BERT generator in FPGA • Enable Bert test/diagnostics with several pattern options • This feature available only for Mux unit

  7. ASMi-52 Phase 2.5 LAN More features…..version 2.5 • 4w repeaters • New status parameters and alarms per each line of repeater 4wire will be added • This feature available in MUX unit and can be upgraded also in phase 2.0 (E1, V.35 and LAN) PBX E1 PBX E1 ASMi-52 Phase 2.5 S-RPT/4W SHDSL LAN SHDSL

  8. More features…..version 2.5 Management with DTS and ETH port at the same time  DXC ASMi-52 NMS 1 DTS E1 DSL Line NMS 2 ETH • This feature available in MUX unit and can be upgraded also in phase 2.0 (E1, V.35 and LAN) • Management via VLAN • Enable VLAN only for management (VLAN ID: 1 – 4094) Only in Bridge mode, Priority: 1 - 7 • This feature will be support in Mux unit and can be upgraded also in H/W phase 2.0 (E1, V.35 and LAN) • Enable Management with VLAN or without VLAN (not both)

  9. More features…..version 2.5 • VLAN Priority • For unit with LAN interface (as Data) • Enable up to 4 levels of priority on the transmitsion to DSL line, according to these priorities • The user can configure : - Enable/Disable VLAN priority (QoS) - Each VLAN priority (0-7) can be configure between 1 to 4 classes of priority level • This feature will be support in Mux unit and also can be upgraded in phase 2.0 (with LAN interface)

  10. Thank you for your attention. • Meira Erez • Product Manager • meira_e@rad.com
