  1. RPIThe Relative Performance IndexWhat is it? Mark Simmons, B.Sc(Hons), DIS, MBCS Chief Systems Architect Fujitsu Computer Systems

  2. Contents • Definition of RPI and Standard Benchmarks • RPI and OLTP TPM • Standard benchmark results • Standard benchmark relevance • Benchmark activities in Linux • RPI Load Categorization • Benchmark Profiles • Application Profiles • RPI Values • What is being Benchmarked on a Benchmark • Benchmark Categories • Testing Ranges • Fujitsu’s TPM Number vs. TPC-C • RPI Tool Demonstration • Application Services • AS Tool Demonstration

  3. RPI and Standard Benchmarks • RPI and OLTP TPM are :- • Internal use only • Attempting to level set the server “playing field” • Designed for system positioning and accurate system sizing • First based on estimates, later adjustments are made if necessary • Also provided for competitive/competitors products, though these are harder to verify fully

  4. RPI and Standard Benchmarks • Standard benchmark results are usually for:- • Sales and marketing, and for public awareness • Analysts, press and media • Designed for customer confidence • Values are available on public domain web pages • Underlines validity of internal sizing figures • Referenced under diverse Web Pages such as those at:-http://www.spec.org and http://www.tpc.org • and diverse web pages of the analyst community

  5. Testing Focus SAP SD/ATO/etc Oracle’s OASB APPL SPEC jApps2002 SPECjbb2000 J2EE DB TPC-C TPC-H SPECweb99 OS SPECfp _rate2000 SPECint _rate2000 HW Basic Performance Relevance Commercial Business Relevance Standard Benchmarks - Relevance and test focus

  6. Benchmark Activities of major vendors( >=8 CPU Cores; Jan 03=>Feb04) Quantity

  7. What is being Benchmarked when performing a Benchmark? Testing Range Application and Benchmark Kit Operating system, Compiler, Libraries CPU Cache Memory Multi- CPU Disk- IO DBMS LAN CPU SPEC int/fp 2000 CPUs SPEC int/fp 2000 Rate Java VM SPECjbb2000 Benchmark Category SPECweb99 Webserver OLTP TPC-C DSS TPC-H, TPC-R ERP SAP ERP Oracle Applications

  8. RPI - Load Categorization RPI MEAN RPI CPU RPI TP+I/O Benchmark Profile SPEC TPC-C/H OLTP Application Profile • simple - medium transactions • high number of operations • simple- medium operations • short response time • heavy use of physical I/O no system calls little disk I/O one/few processes well-balanced system load Work Type CPU Centric I/O Centric tpsA SAP tpsB Oracle Apps tpmC SPECint92/95/2000 SPECrate_int92/95/2000 RPI Tool Category to use for sizing

  9. Fujitsu’s Transactions Per MinuteRPI TPM vs. TPC-C / tpmC • Fujitsu‘s measurement for OLTP performance (throughput of transactions per minute) in commercial environments is:- • based on an Oracle 9i(not RAC) database profile • available for all vendors current systems and all configurations • provides similar load characteristics as TPC-C and its tpmC results • is not standardized, other competitors use similar absolutes or relative (e.g. mvalues (Sun) / rPERF (IBM) ) figures and the related database is not defined • TPC’s rules strongly restrict the usage of those proprietary values: • only with signed Non Disclosure Agreement(NDA) • not in public disclosures • no comparisons with published tpmC figures

  10. RPI Tool Demonstration

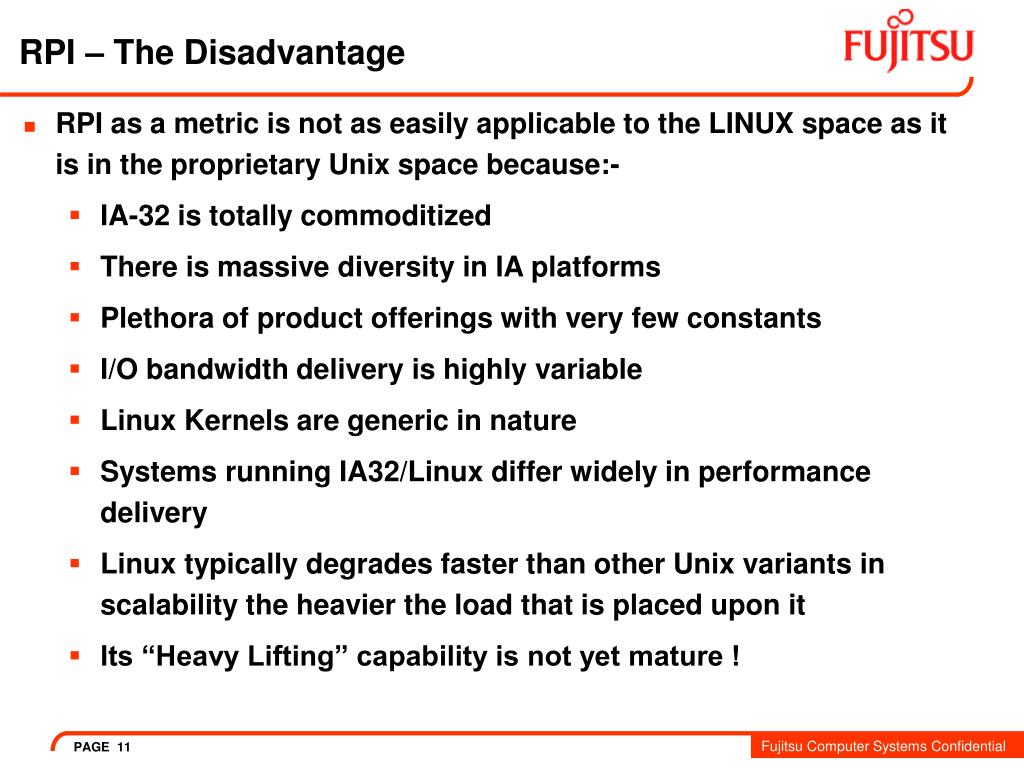

  11. RPI – The Disadvantage • RPI as a metric is not as easily applicable to the LINUX space as it is in the proprietary Unix space because:- • IA-32 is totally commoditized • There is massive diversity in IA platforms • Plethora of product offerings with very few constants • I/O bandwidth delivery is highly variable • Linux Kernels are generic in nature • Systems running IA32/Linux differ widely in performance delivery • Linux typically degrades faster than other Unix variants in scalability the heavier the load that is placed upon it • Its “Heavy Lifting” capability is not yet mature !

  12. The Solution is an “Application Level Service” • Application Service is an abstract concept of an “Application Unit of Work” that must:- • Concurrently support multiple Linux application processes: • Oracle • SAP • Directory Services • Web Services • Monitor the quality of each application service and automatically adjusts capacity to meet business’s service level goals. • Operate autonomously, with little or no intervention • Make Linux based hard- and software resources shift automatically to meet changing demand. • Allow dynamic capacity scaling – mitigating impact of disparate hardware • Offer users a self-management capability to assist in the administration of dramatically varying environments.

  13. Application Services:Administrative Features • Users must be able to specify application service priorities. • Administrators should be able to change priorities dynamically, redirecting a higher service level toward other applications as business requirements change. • Users must be able to • Set min-max ranges or high/low water marks • Directly influence the number of instances of an application that are available for use. • Users can define Quality of Service (QoS) metrics based upon: • CPU load • Network load. • Application Services must automatically distribute the load using user-selected algorithms. • Provide load balancing algorithms • Balance servers for a given application • Balance across all servers in total.

  14. Application Services:Operational Features • Dynamically provisions servers with the resources necessary to support applications such as: • Dynamically adjusting the number of online application instances. • Meeting defined Quality of Service (QoS) service levels. • Provision applications and operating systems or both • Automatically bring servers online for extra application support • Re-provision servers used by lower-priority applications. • Provision net-new servers that are added to the pool • Takes excess systems offline if service levels are being met. • Reduce license charges (must be negotiated with ISV!) • Leaves offline servers in “warm” state • Reduce the time to re-provision the server for same applications • Reduce the time to re-provision for same operating system

  15. Application Services:Customer Benefits • Lowers total cost of ownership • Server consolidation alone can reduce hardware and software costs • Reduces the need to over-spec server capacity • Improved utilization decreases costs and increases ROI • Improves productivity • Automated solution reduces manual administration • Time spent in training • Correcting human errors. • Load balancing can optimize QoS • Service level monitoring and capacity provisioning to meet needs as workloads change. • Improved application response times • Improves application availability • Continuous availability of application services avoids costly downtime

  16. Application Services Tool Demonstration
