  1. The Rh System Immunohematology

  2. Objectives • Compare the three theories of inheritance of the Rh antigens. • List the antigens and antibodies of the system using both Wiener and Fisher-Race nomenclature. • Convert haplotype from Fisher-Race nomenclature into Wiener, and vice versa.

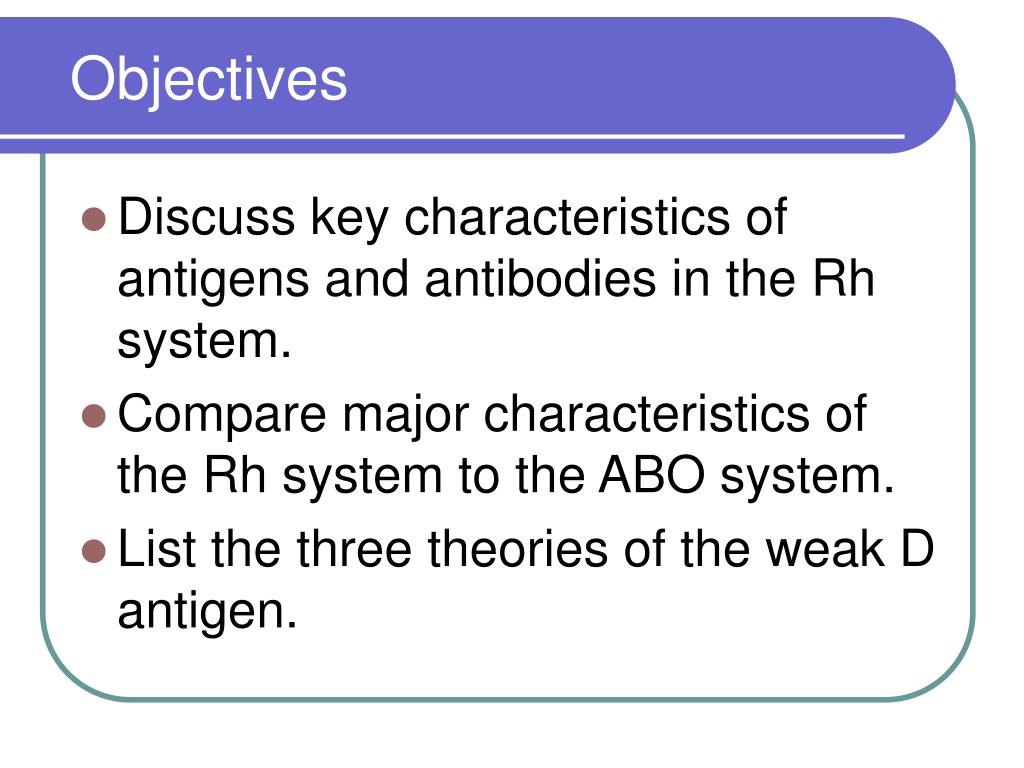

  3. Objectives • Discuss key characteristics of antigens and antibodies in the Rh system. • Compare major characteristics of the Rh system to the ABO system. • List the three theories of the weak D antigen.

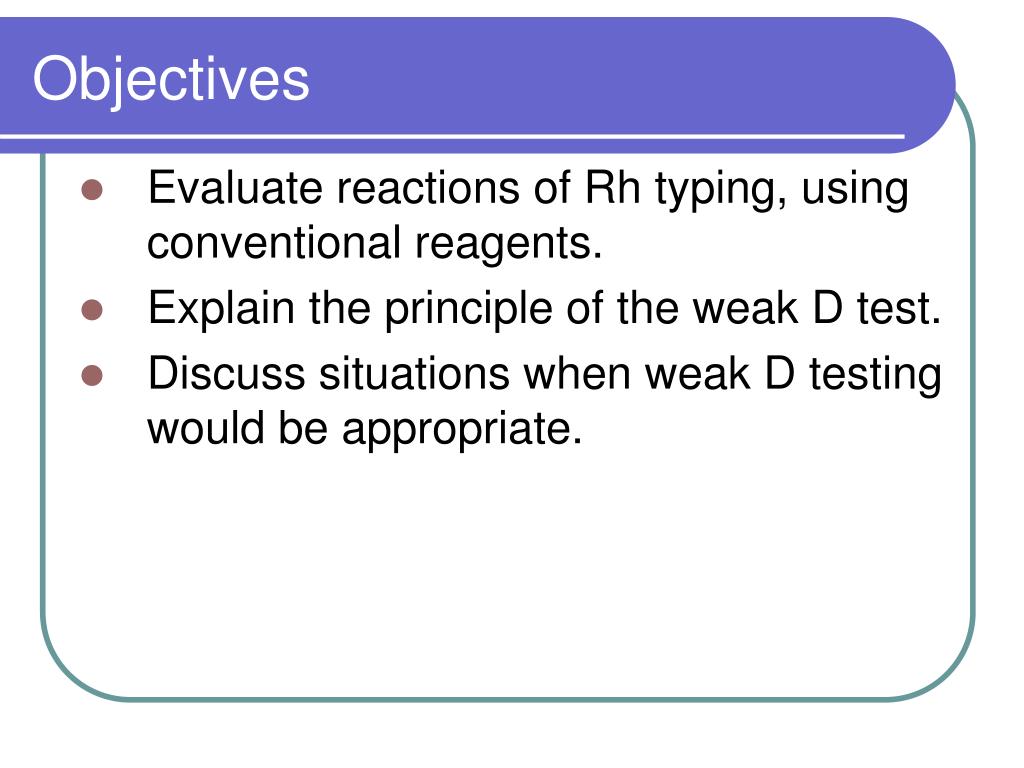

  4. Objectives • Evaluate reactions of Rh typing, using conventional reagents. • Explain the principle of the weak D test. • Discuss situations when weak D testing would be appropriate.

  5. DISCOVERY • 1939 – Levine and Stetson working with a woman with a fetus was suffering from Hemolytic Disease of the Fetus and Newborn (HDFN). • 1940 – Landsteiner and Wiener working with guinea pigs and rabbits that had been injected with red cell from Rhesus monkeys. • Source of term “Rh factor”. • 85% of human red cells were agglutinated by this antibody.

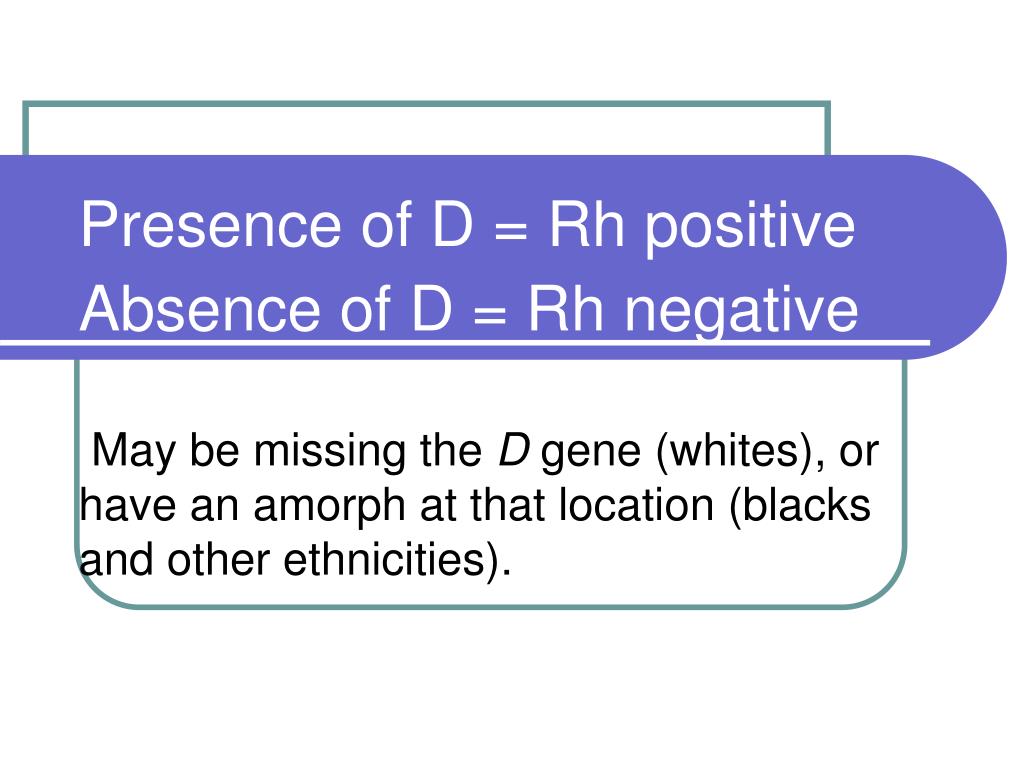

  6. Presence of D = Rh positive Absence of D = Rh negative May be missing the D gene (whites), or have an amorph at that location (blacks and other ethnicities).

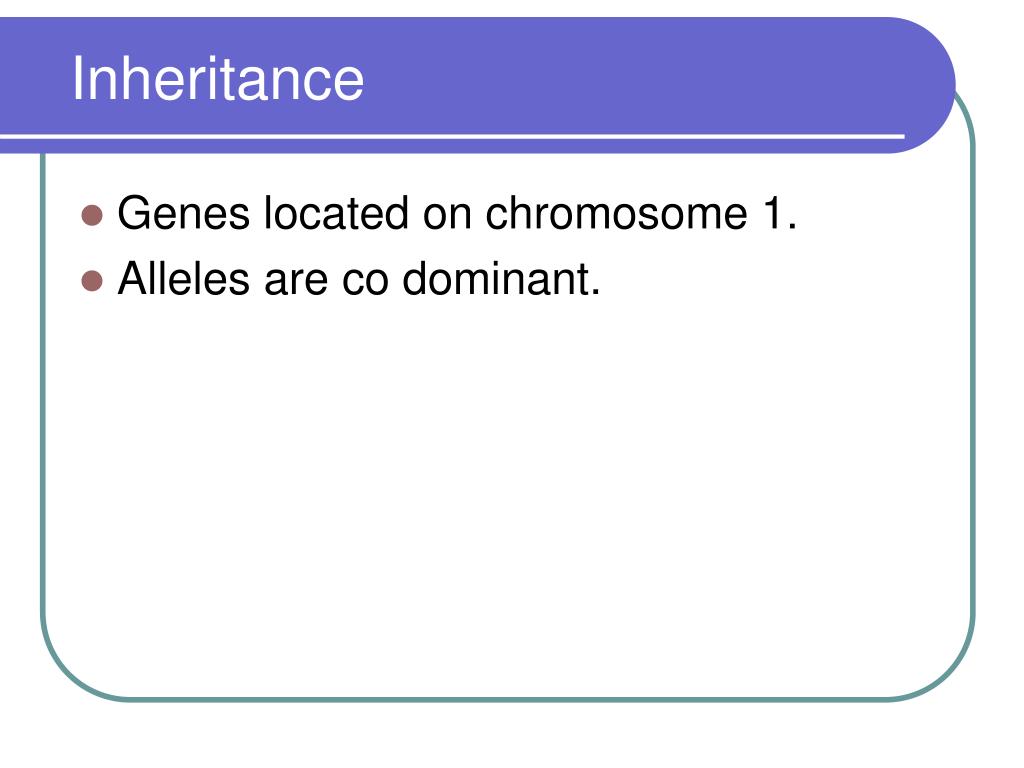

  7. Inheritance • Genes located on chromosome 1. • Alleles are co dominant.

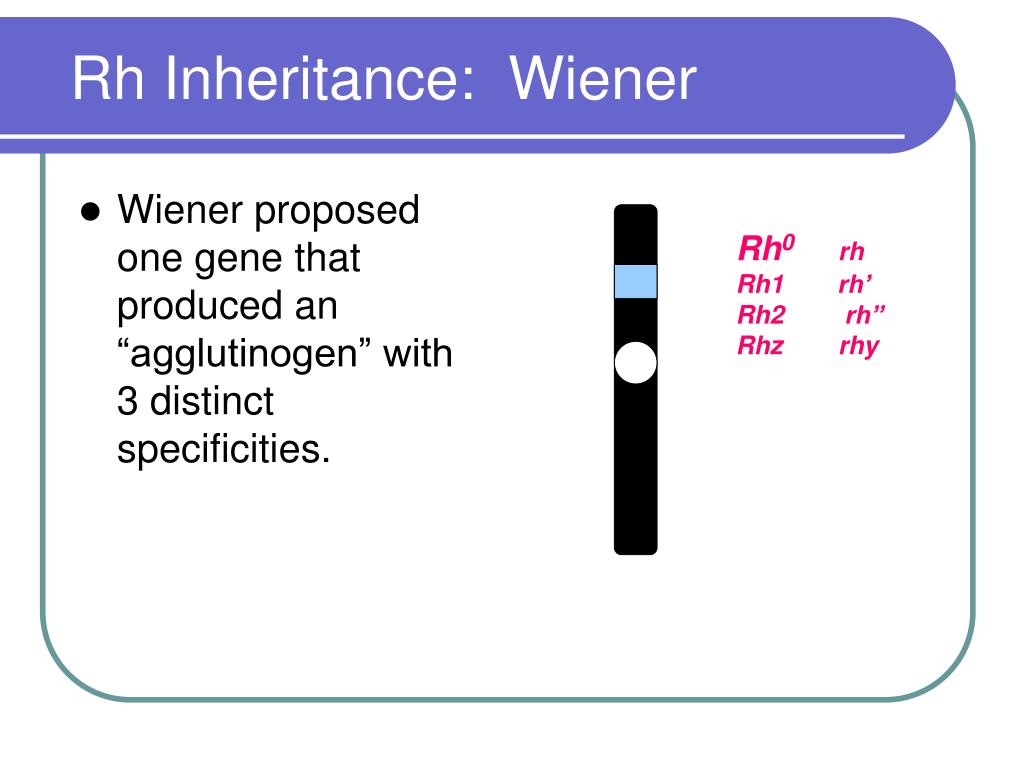

  8. Rh Inheritance: Wiener • Wiener proposed one gene that produced an “agglutinogen” with 3 distinct specificities. Rh0 rh Rh1 rh’ Rh2 rh” Rhz rhy

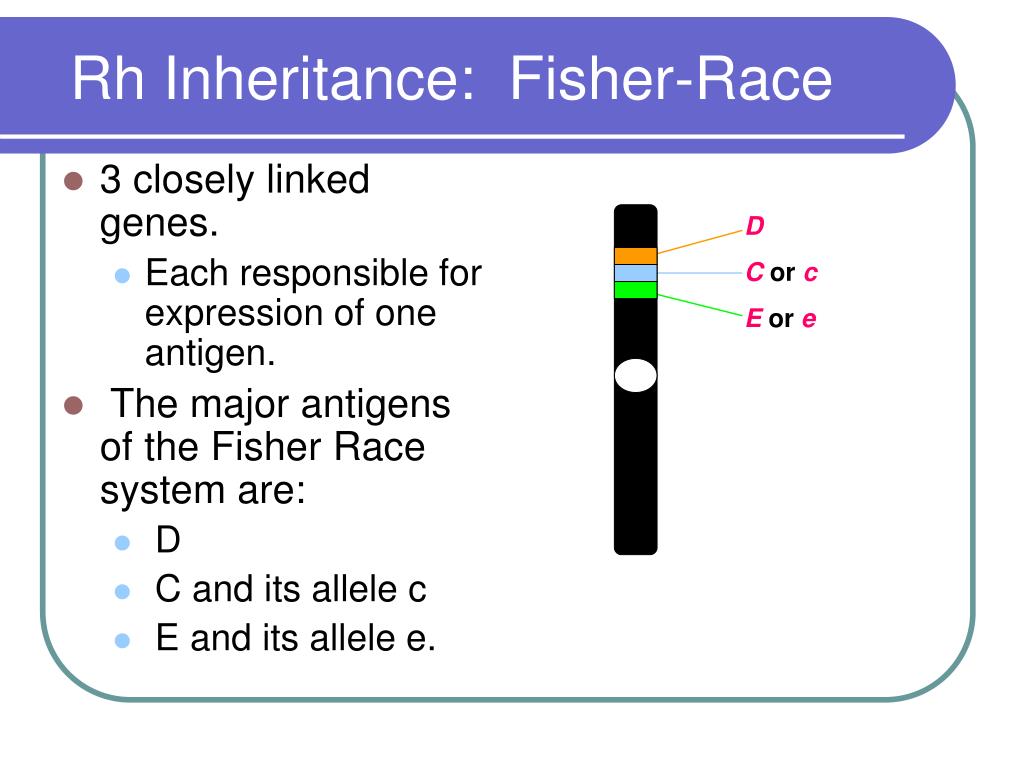

  9. Rh Inheritance: Fisher-Race • 3 closely linked genes. • Each responsible for expression of one antigen. • The major antigens of the Fisher Race system are: • D • C and its allele c • E and its allele e. D C or c E or e

  10. NOTE:There is no d antigen! d is used to denote the absence of D antigen.

  11. Rh Inheritance: Tippett • Using molecular techniques, Tippett showed in 1993 that Rh inheritance comes from 2 genes. • One gene controls production of the D antigen (RHD). • The second gene controls production of C/E antigen combinations (RHCE). RHD RHCE

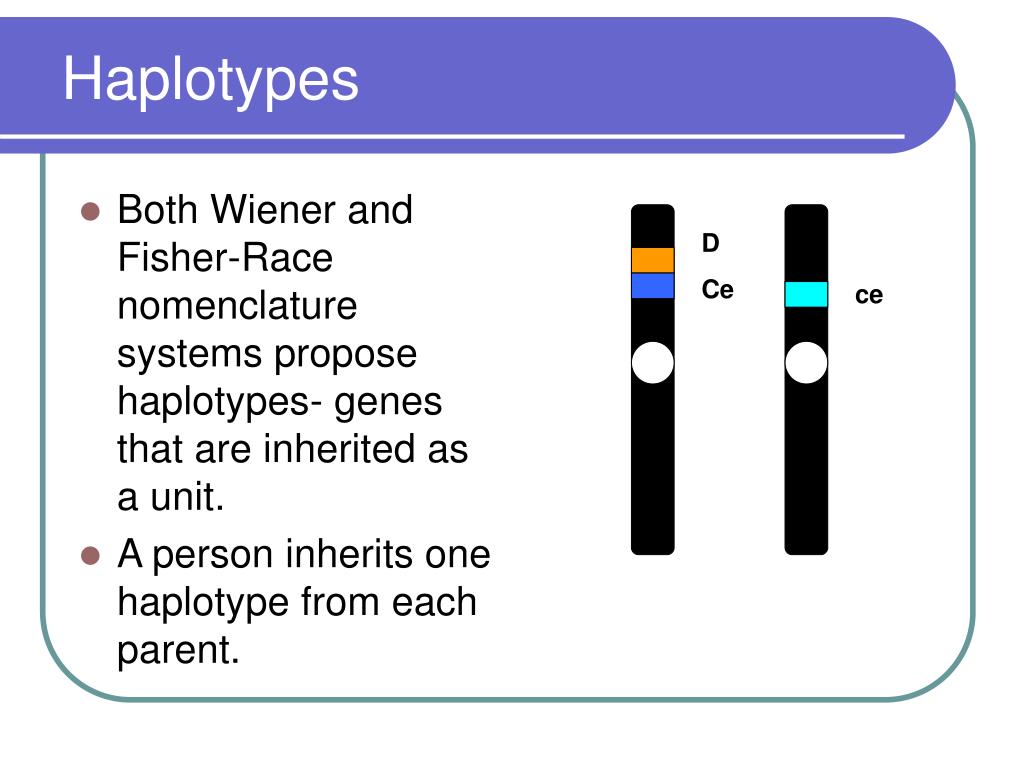

  12. Haplotypes • Both Wiener and Fisher-Race nomenclature systems propose haplotypes- genes that are inherited as a unit. • A person inherits one haplotype from each parent. D Ce ce

  13. Antigens

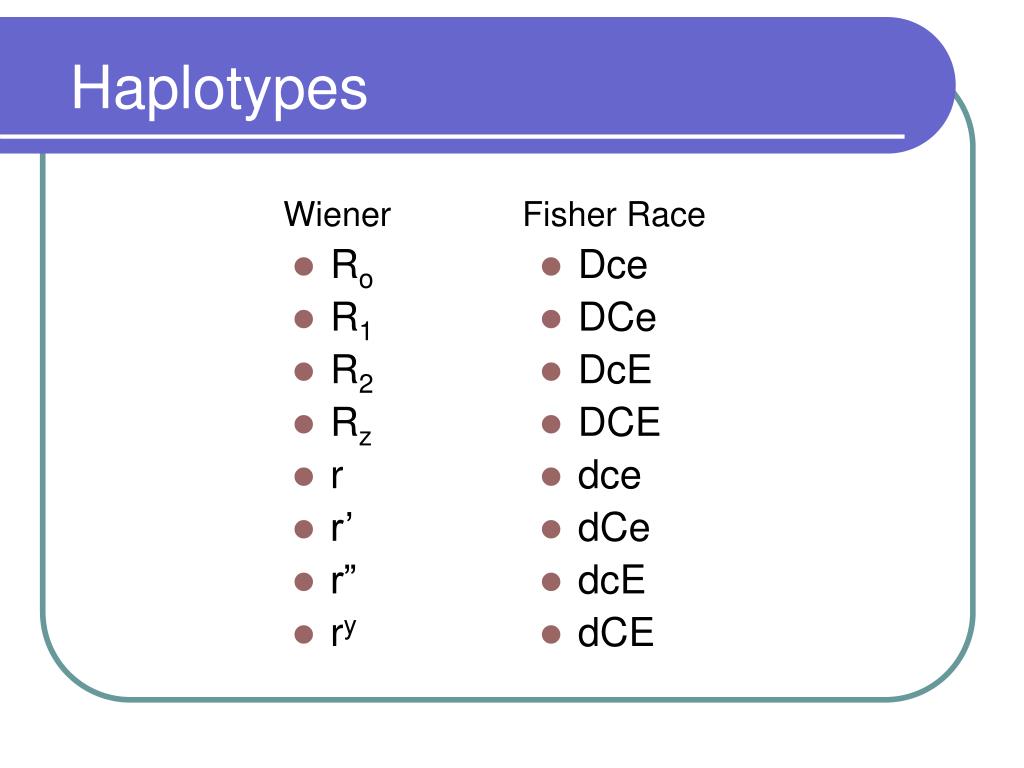

  14. Ro R1 R2 Rz r r’ r” ry Dce DCe DcE DCE dce dCe dcE dCE Haplotypes Wiener Fisher Race

  15. Antigens • Integral transmembrane proteins. • Found only on red cells. • Expression is enhanced with enzyme treatment. • May show variability of expression. • Well developed at birth. • D is highly immunogenic.

  16. Weakened expression of the D antigen. Detected only when using an indirect antiglobulin test. May stimulate production of anti-D. 3 main causes of weak D: Inheritance Gene interaction Partial D (aka mosaic) Weak D

  17. Weak D - Inheritance • Associated with inheritance of Ro. • More commonly seen in Blacks. • The D antigen is normal, but decreased amounts of D antigen is found on the RBCs.

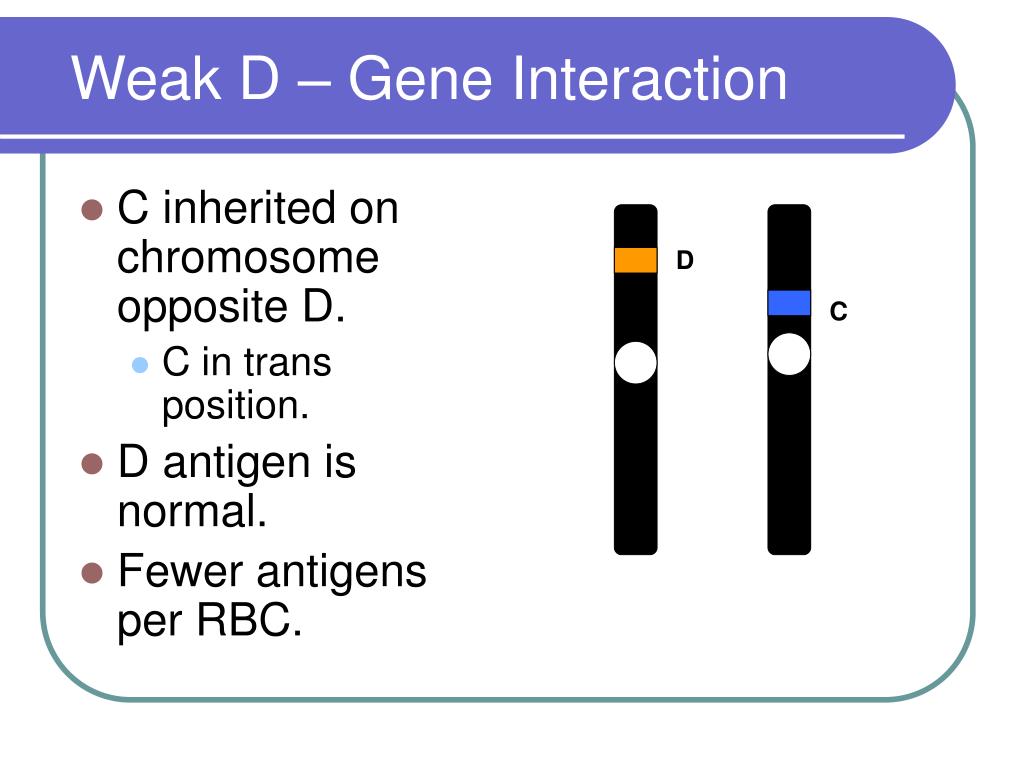

  18. Weak D – Gene Interaction • C inherited on chromosome opposite D. • C in trans position. • D antigen is normal. • Fewer antigens per RBC. D C

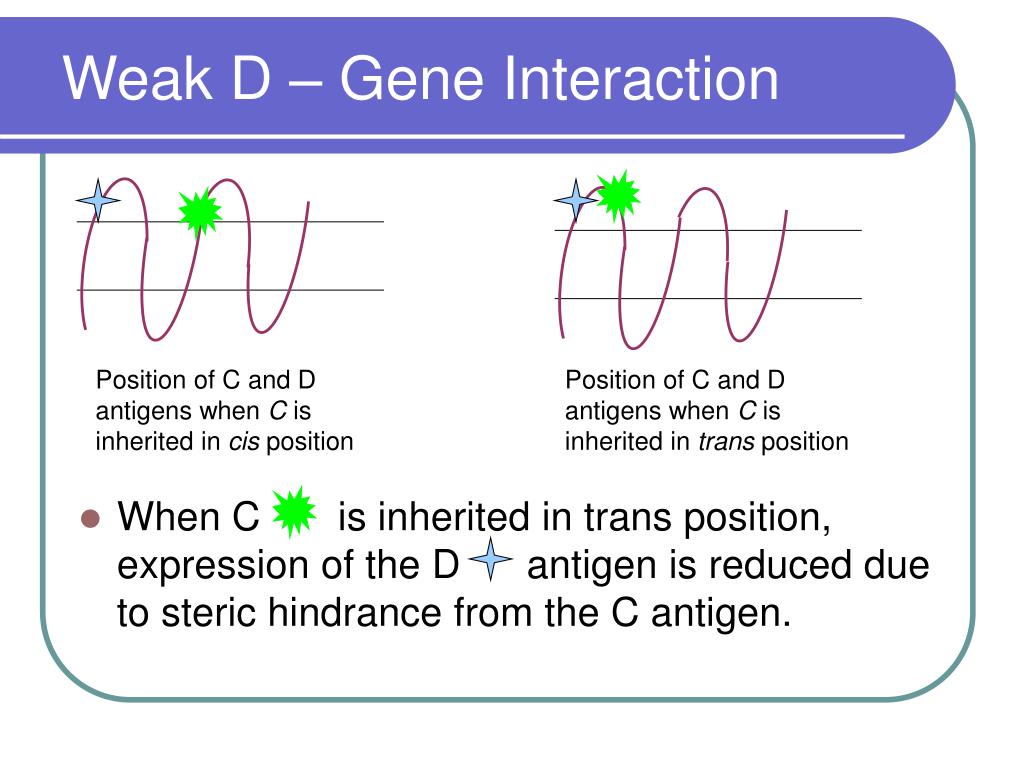

  19. Weak D – Gene Interaction Position of C and D antigens when C is inherited in cis position Position of C and D antigens when C is inherited in trans position • When C is inherited in trans position, expression of the D antigen is reduced due to steric hindrance from the C antigen.

  20. Weak D – Partial D • Formerly known as the mosaic model. • Portion of D antigen is missing. • Patient can make anti-D directed at portion of antigen that is missing.

  21. Other Rh Antigens • Cw – Low frequency antigen related to C/c. • G – Found on cells that are positive for either C or D. • Anti-G reacts as if it were anti-D plus anti-C. • ce – Compound antigen. • Formed when c and e are inherited on the same chromosome. • Reacts with anti-f.

  22. Deletions • Deletions – missing all or part of the RHCE gene • E/e “disappears” more frequently (DC -) • C/c “disappears” next (D- -)

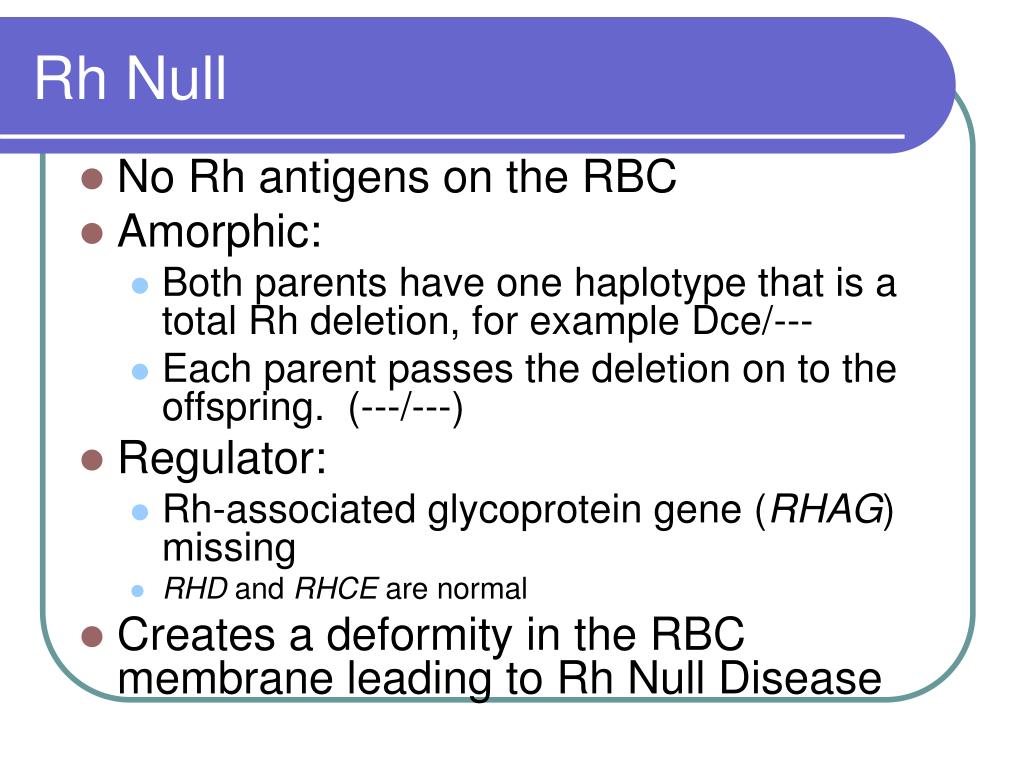

  23. Rh Null • No Rh antigens on the RBC • Amorphic: • Both parents have one haplotype that is a total Rh deletion, for example Dce/--- • Each parent passes the deletion on to the offspring. (---/---) • Regulator: • Rh-associated glycoprotein gene (RHAG) missing • RHD and RHCE are normal • Creates a deformity in the RBC membrane leading to Rh Null Disease

  24. Rh Null Disease • Compensated Hemolytic Anemia • Stomatocytes • Increased reticulocytes • Increased HGB F • Can only receive red blood cells products from other Rh Null individuals.

  25. Antibodies • Immune • May react at 37oC • React best in antiglobulin phase • Clinically significant

  26. Antibodies • Do not activate complement • May show dosage • Enhanced by enzymes • Often appear in combinations

  27. ABO vs. Rh

  28. ABO vs. Rh

  29. Rh Typing

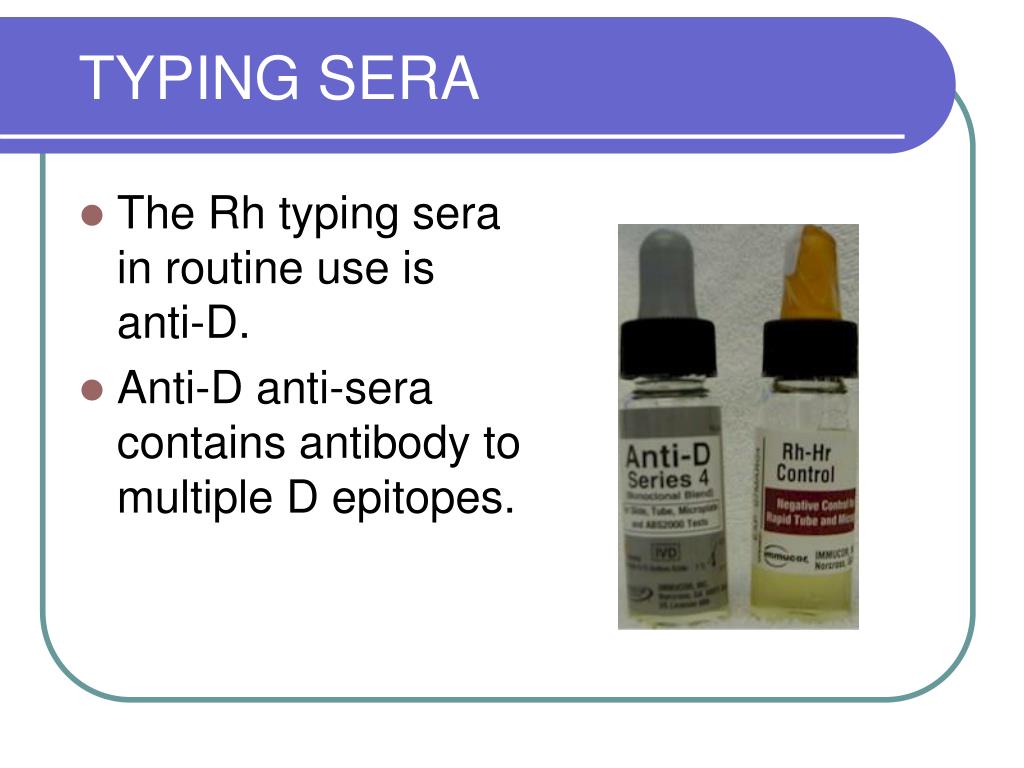

  30. TYPING SERA • The Rh typing sera in routine use is anti-D. • Anti-D anti-sera contains antibody to multiple D epitopes.

  31. TYPING SERA • Originally, anti-D was in a high protein medium that would cause spontaneous agglutination in patients whose cells were coated with antibody (Positive DAT). • A protein control (Rh-hr control) was run in parallel on the patient’s cells.

  32. TYPING SERA • More commonly used today is an anti-D in a low protein medium, which does not cause spontaneous agglutination, and therefore does not routinely require a protein control. • Saline based anti-D has also been used to avoid problems with spontaneous agglutination.

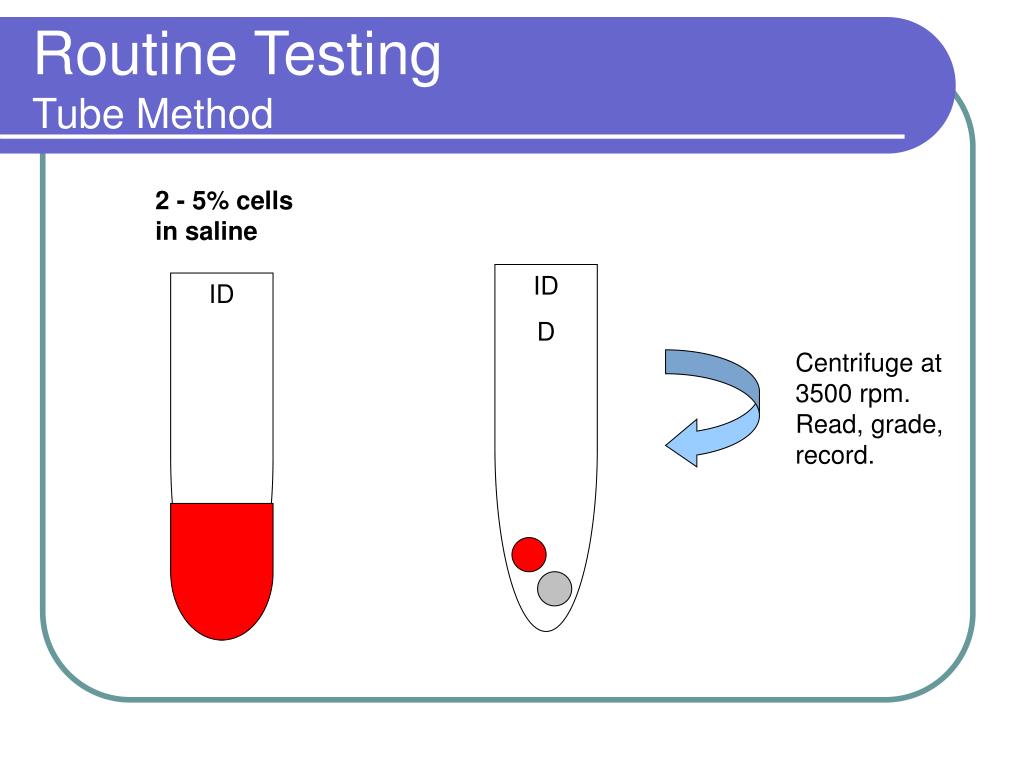

  33. Routine TestingTube Method 2 - 5% cells in saline ID D ID Centrifuge at 3500 rpm. Read, grade, record.

  34. Weak D D determination may include a test for weak D. • Incubate at 37oC for 15 to 30 minutes. • Wash with saline (x3) to remove unbound antibody. • Add 2 drops of AHG reagent. • Centrifuge, then read for agglutination. ID D

  35. Populations Requiring the Weak D Test • Donors. • Rh negative infants born to Rh negative mothers. • Any one who historically was typed as Rh positive, but currently is typing as Rh negative.

  36. TYPING SERA • Other Rh typing serum includes anti-C, anti-E, anti-c and anti-e. • These may be high protein reagents (requiring a protein control) or monoclonal reagents.

  37. Phenotype/Genotype • Phenotype: Type for presence of D, C, c, E and e antigens. • Determine most probable genotype based on phenotype results. • Example: A patient’s phenotype is D+, C+, c 0, E 0, e+ Determine the possible genotypes.

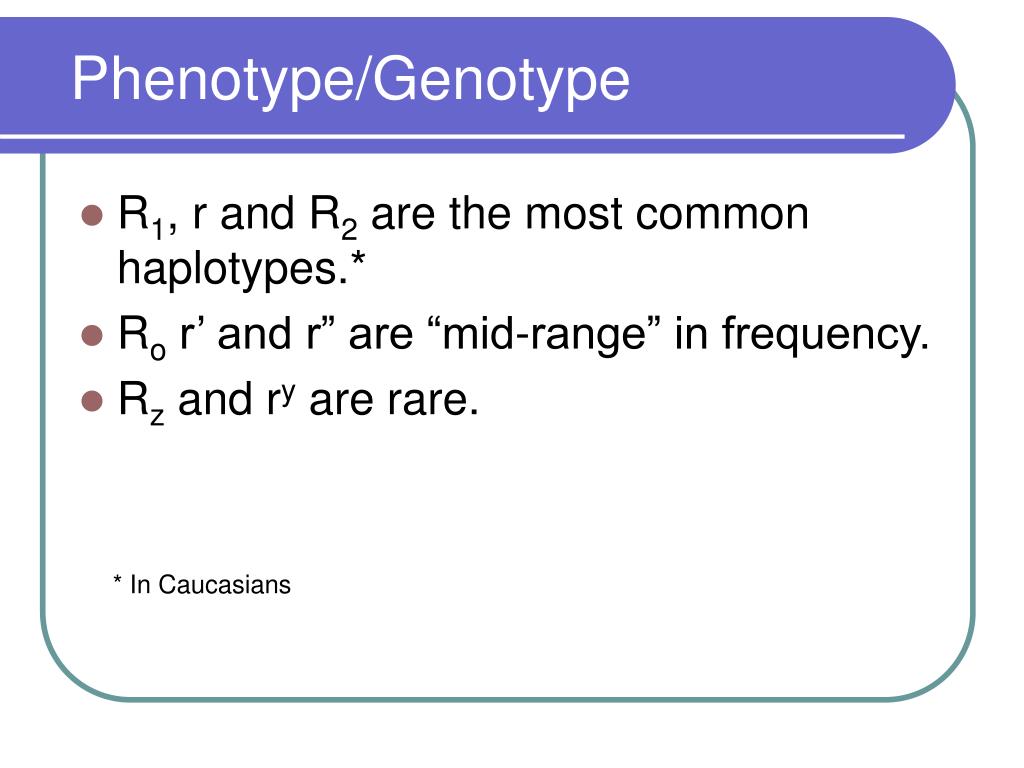

  38. Phenotype/Genotype • R1, r and R2 are the most common haplotypes.* • Ro r’ and r” are “mid-range” in frequency. • Rz and ry are rare. * In Caucasians

  39. ABO & Rh TestingGel Method • For the forward grouping, a 3-5% suspension of red cells is made in a diluent. • 10-12.5 uL of the cell suspension is added to the microtubes containing >A, >B, >D, and a control. • For the reverse grouping, 50 uL of a 0.8% suspension of A1 and B cells is added to the buffered gel microtubes, along with 50 uL of patient’s serum or plasma. • The reaction card with the microtubes is centrifuged for 10 minutes. • Read the card for agglutination. Courtesy Ortho-Clinical Diagnostics Raritan, NJ

  40. You are ready to perform ABO and Rh determinations in the lab!
