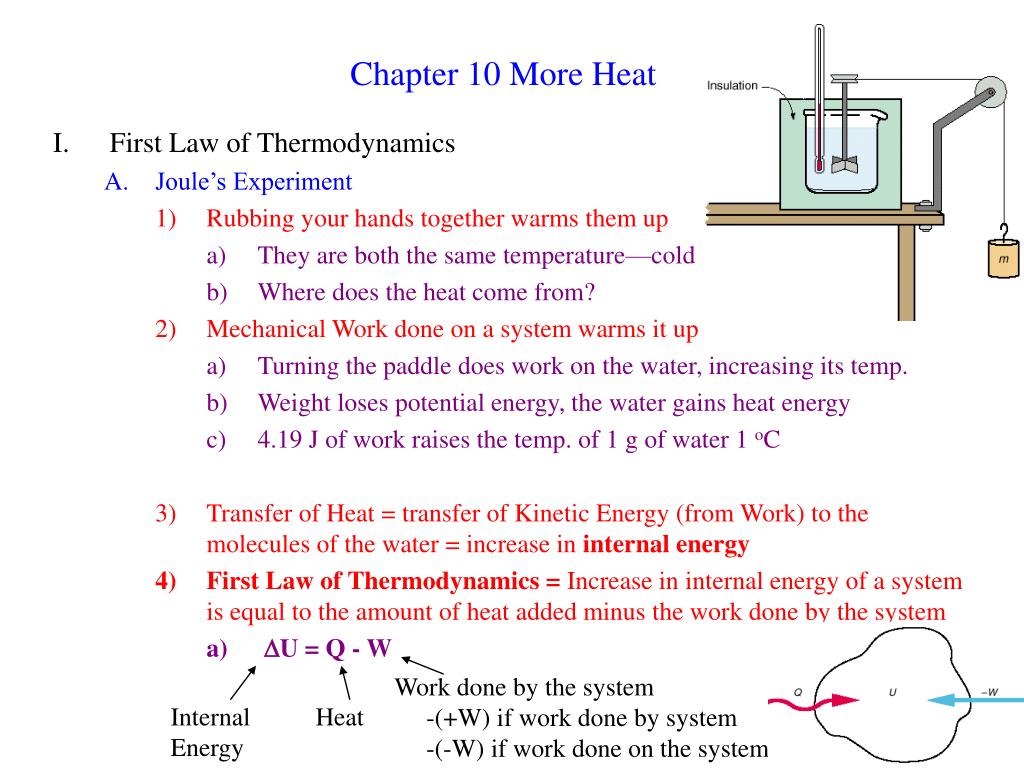

  1. Chapter 10 More Heat • First Law of Thermodynamics • Joule’s Experiment • Rubbing your hands together warms them up • They are both the same temperature—cold • Where does the heat come from? • Mechanical Work done on a system warms it up • Turning the paddle does work on the water, increasing its temp. • Weight loses potential energy, the water gains heat energy • 4.19 J of work raises the temp. of 1 g of water 1 oC • Transfer of Heat = transfer of Kinetic Energy (from Work) to the molecules of the water = increase in internal energy • First Law of Thermodynamics = Increase in internal energy of a system is equal to the amount of heat added minus the work done by the system • DU = Q - W Work done by the system -(+W) if work done by system -(-W) if work done on the system Internal Energy Heat

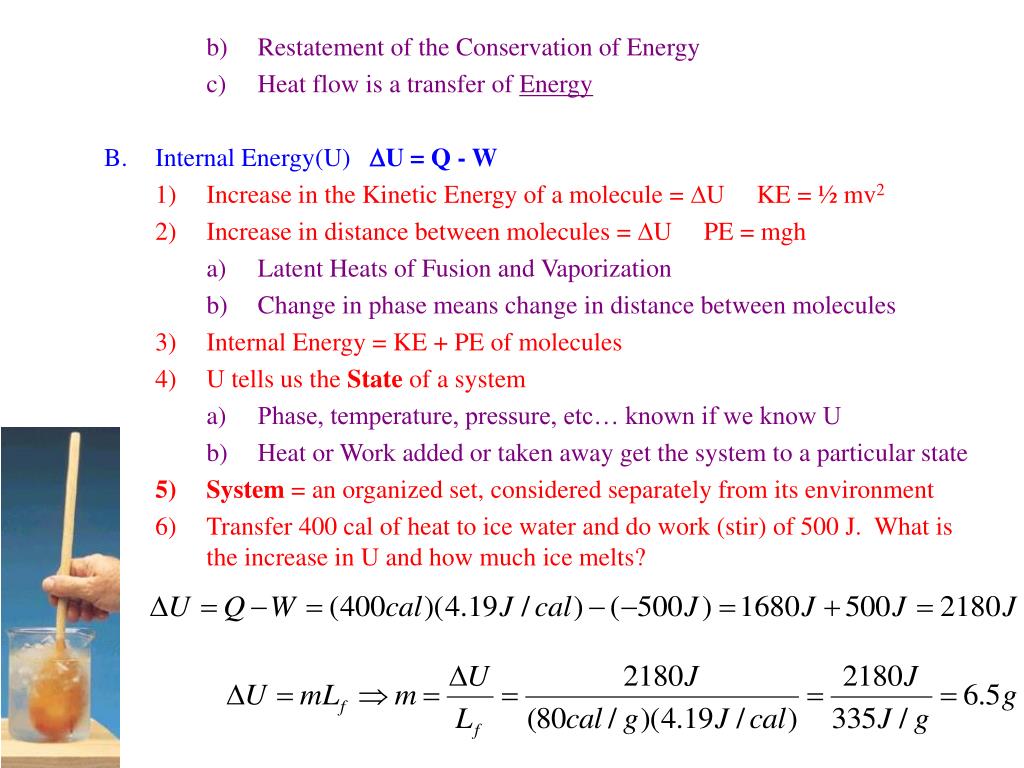

  2. Restatement of the Conservation of Energy • Heat flow is a transfer of Energy • Internal Energy(U) DU = Q - W • Increase in the Kinetic Energy of a molecule = DU KE = ½ mv2 • Increase in distance between molecules = DU PE = mgh • Latent Heats of Fusion and Vaporization • Change in phase means change in distance between molecules • Internal Energy = KE + PE of molecules • U tells us the State of a system • Phase, temperature, pressure, etc… known if we know U • Heat or Work added or taken away get the system to a particular state • System = an organized set, considered separately from its environment • Transfer 400 cal of heat to ice water and do work (stir) of 500 J. What is the increase in U and how much ice melts?

  3. Food Calories • 1 Food Calorie = 1 kilocalorie = 1000 calories = 4,190 J • This energy comes from chemical energy released by breaking down food molecules • Energy input (Calories) > Energy output(muscular work) Energy stored (as fats), increase mass • Gas Behavior • Compressing a Gas • Work is done on the gas: -W DU = Q – (-W) = Q + W = increases • Wgas = PAd (W = Fd F = PA) • Ad = change in volume = DV • W = PDV Work done on/by gas = pressure times change in volume • Gas is compressed, work done on gas, DV = (-), -W • Gas expands, work done by gas, DV = (+), +W DU = Q – (+W) = Q - W = decreases

  4. Internal Energy and Temperature • Adiabatic Process = no heat flows in or out of the system • Ideal Gas = no forces between the molecules (PE) • U = KE for ideal gas • Absolute temperature only depends on KE of the gas molecules • Adiabatically compress an ideal gas • Q = 0 • DU = 0 –(-W) = +W • Temperature goes up • Adiabatically expand an ideal gas • Q = 0 • DU = 0 –(+W) = -W • Temperature goes down • A refrigerator works this way. It expands a compressed gas to cool. • Gases at Constant Temperature 1) Isothermic Process = no change in temperature

  5. DU = 0 for isothermal process for an ideal gas 0 = Q – W Q = W • If heat is added to the gas, work will be done by the gas • We compress a gas isothermally • Normally, if we compress a gas, temperature goes up • To keep temperature the same, we must remove heat (-Q) • Q = W -Q = -W • We are removing heat that came from the work we did on the gas • Expand a gas isothermally • Add Q to expand • Work must be done by the gas as it expands (+W) • As long as Q = W, the temperature won’t change • Hot air balloon • Isobaric process = no change in Pressure • Flexible balloon with a certain amount of gas in it • Add Q, Temperature increases. To keep pressure same (1 atm), volume must increase as well • Balloon expands, density decreases (d = m/V) and the balloon floats

  6. The Flow of Heat • Conduction = Heat flow through a material • Rate depends on Thermal Conductivity • Different for each compound • Metals are very could heat conductors • Wood and air are “insulators” • Hold a metal block and a wood block • Body temp > metal = wood = room temp • Heat flows by conduction from hands to blocks • Metal feels colder because it removes heat from hand faster • Fiberglass insulation: air pockets that really prevent loss of heat • Convection = Transfer of heat due to motion of a fluid • Boiling water: hottest water rises and the coolest sinks • Flow of air in a heated room transfers heat • Warm air/water is less dense than cold air/water • Warm fluid rises • Cold fluid sinks

  7. Radiation = Heat flow by electromagnetic radiation • Electromagnetic radiation is a wavelike form of energy • Light, microwave, radio waves are all forms of E. M. • Infrared waves (IR) is the form that heat travels in Shorter than radio and longer than visible • Radiation requires no medium, it can travel through a vacuum • Thermos bottle won’t keep liquid hot forever • Sunlight reaches us through space • Greenhouse Effect • Light can get in, IR can’t get out • Increase in Global Temperature Burning Coal Or Petroleum
