  1. Design of High Speed Craft – The human factor Dominic A. Hudson School of Engineering Sciences, Ship Science, University of Southampton, Southampton, UK. 17th Annual Engineering Conference, Malta 17th April 2008

  2. High Speed Craft Applications • Planing craft (up to ~80 kts) – now often RIBs • Life-saving (e.g. RNLI in UK) • Leisure • Excursions, dive boats • Personal • Racing powerboats • Military and para-military • Offshore industry – variety of roles

  3. What is the Problem?

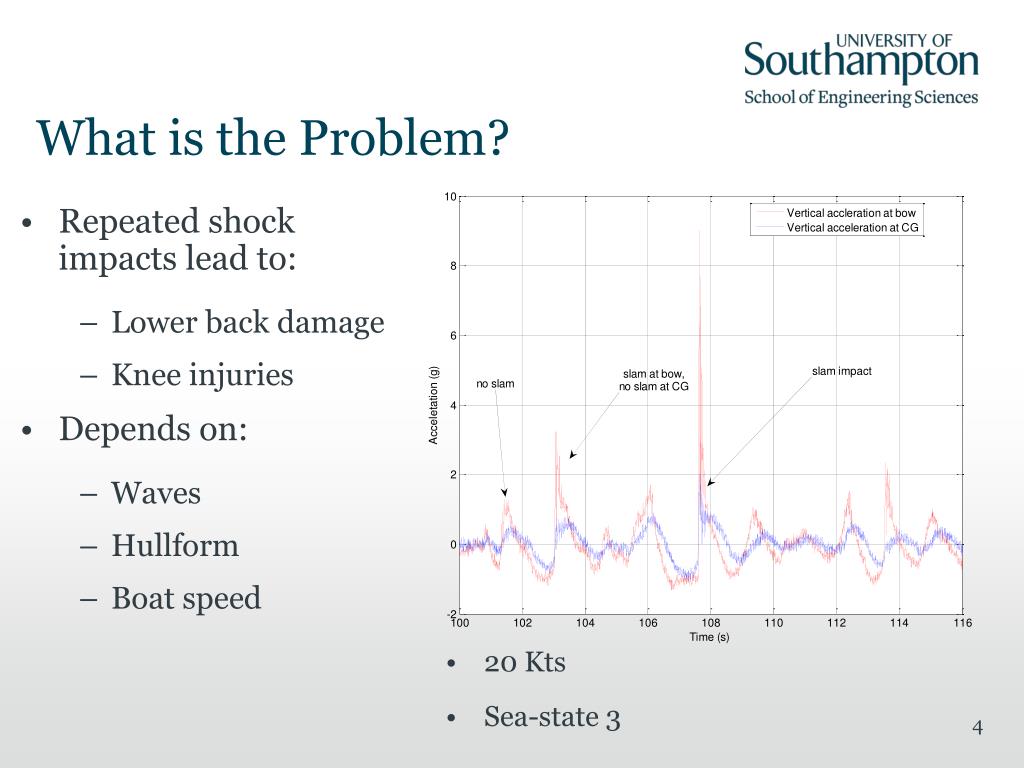

  4. What is the Problem? • Repeated shock impacts lead to: • Lower back damage • Knee injuries • Depends on: • Waves • Hullform • Boat speed • 20 Kts • Sea-state 3

  5. What is the Problem? • Crew effectiveness reduced: • Physical performance • Cognitive ability • Factors: • Day/night • Temperature • Sound • Smell • Everyone is different! • 12 subjects • 8.5m RIB, 40 kts, 1hr 40 min • Sea-state 0-1

  6. Solutions? • Currently design boats for: • Speed, strength, range, weight, cost, etc. • Consider people later……… • EU Physical Agents Directive enforced 2010 • Can we design for people from the start? • Or mitigate problems by • Structural design? • Seat design?

  7. Research Effort • ~₤1 million EPSRC grant • Univ. of Southampton – SES (Ship design) • Prof. R. Shenoi, Prof. J. Xing, Dr. D. Hudson, Dr. S. Turnock, Dr. D. Taunton, Dr. J. Blake, S. Lewis, T. Coe. • Univ. of Southampton – ISVR (Signal Processing) • Prof. R. Allen, Dr. D. Allen • Univ. of Chichester (Sports Science) • Dr. R. Dyson, Prof. T. McMorris, Dr. T. Dobbins, S. Myers • Additional funding: Royal Academy of Engineering, School of Engineering Sciences

  8. Full-scale Tests • Measurement techniques • Quantify/characterise • Motions • Vibration dose values • Physiological data • Person in ‘real’ situation Very difficult

  9. Full-Scale Results

  10. ~10 mins Results – VDV ‘action levels’

  11. Results – Spinal health risk (ISO 2631-5)

  12. Full-scale Results

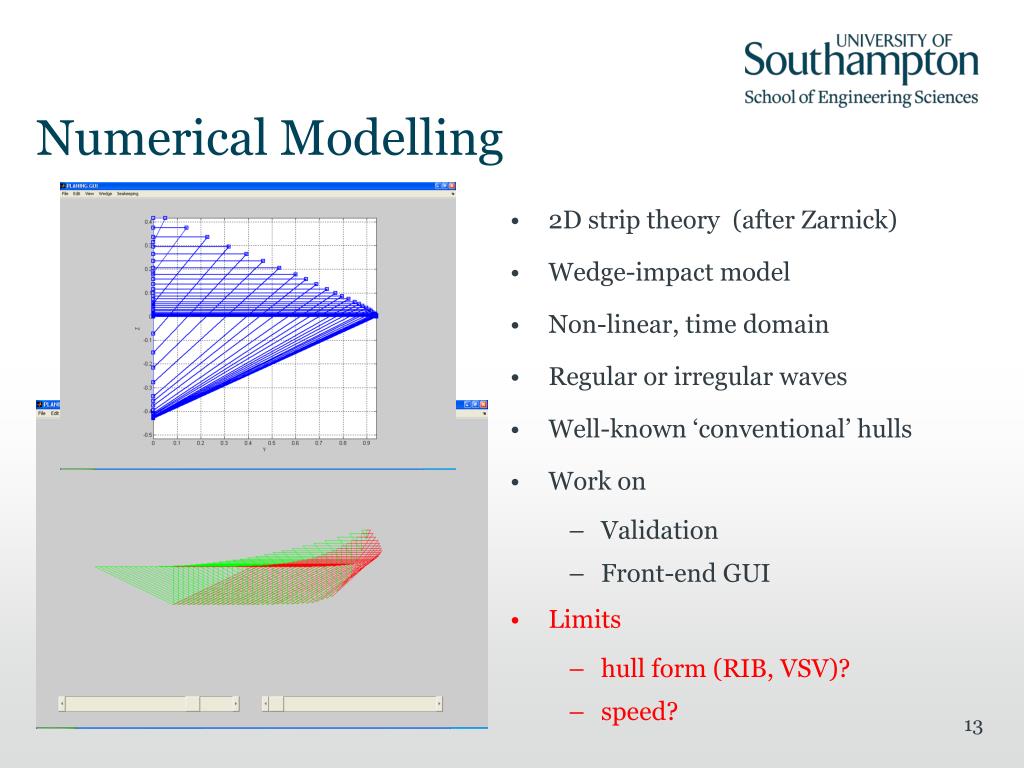

  13. 2D strip theory (after Zarnick) Wedge-impact model Non-linear, time domain Regular or irregular waves Well-known ‘conventional’ hulls Work on Validation Front-end GUI Limits hull form (RIB, VSV)? speed? Numerical Modelling

  14. Model Tests • Validate numerical code • 2 models tested • Wave-piercing RIB ‘Kali’ • RNLI Atlantic 21 RIB • Limitations • Only head seas • V. short run time (~3 sec)

  15. Results - comparison

  16. Current Work Human spine model Flow simulation + Design optimisation, ongoing model, full-scale testing

  17. See the Posters!

  18. Future Aims • Design boat to comply with EU directive • Test boat = 21 mins • ‘best’ planing hull = ~1 hour • Target = 8 hours • Co-operate with designers, builders, operators, MCA • Understand human – boat interface • Trusted design and simulation tools • Tailor solutions to applications
