  1. Approximate Queries on Very Large Data Sameer Agarwal Joint work with Ariel Kleiner, Henry Milner, BarzanMozafari, AmeetTalwalkar, Michael Jordan, Samuel Madden, Ion Stoica UC Berkeley

  2. Our Goal Support interactiveSQL-like aggregate queries over massive sets of data

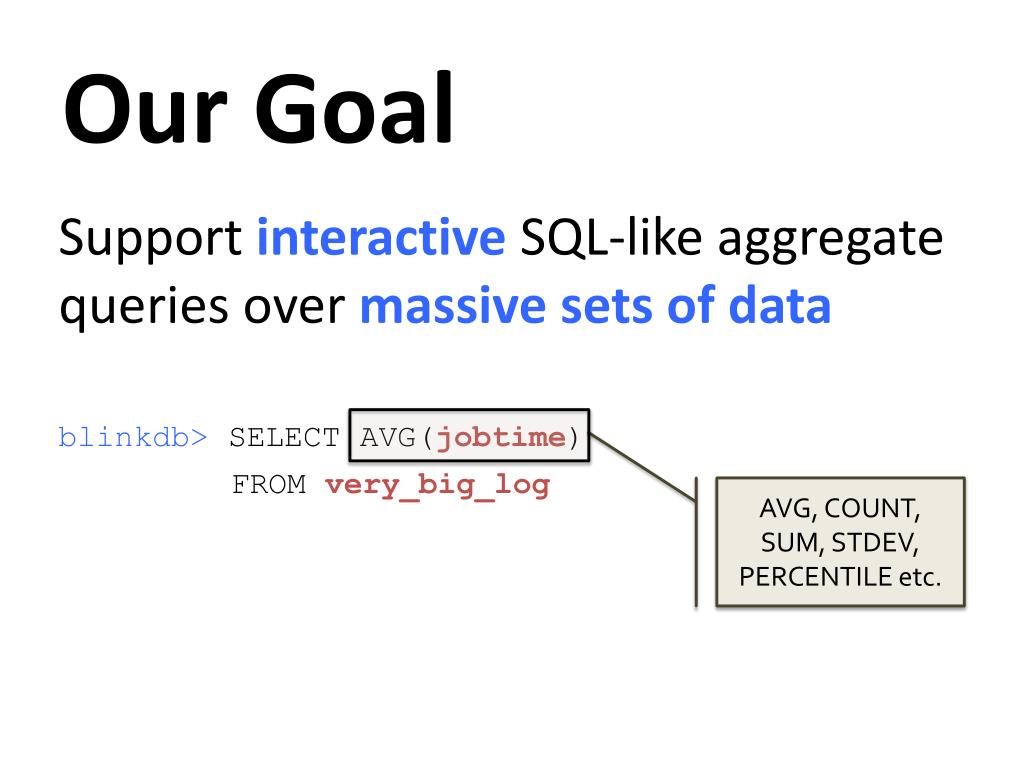

  3. Our Goal Support interactiveSQL-like aggregate queries over massive sets of data • blinkdb> SELECT AVG(jobtime) • FROM very_big_log AVG, COUNT, SUM, STDEV, PERCENTILE etc.

  4. Our Goal Support interactiveSQL-like aggregate queries over massive sets of data • blinkdb> SELECT AVG(jobtime) • FROM very_big_log • WHERE src= ‘hadoop’ FILTERS, GROUP BY clauses

  5. Our Goal Support interactive SQL-like aggregate queries over massive sets of data • blinkdb> SELECT AVG(jobtime) • FROM very_big_log • WHERE src= ‘hadoop’ • LEFT OUTER JOIN logs2 • ON very_big_log.id= logs.id JOINS, Nested Queries etc.

  6. Our Goal Support interactive SQL-like aggregate queries over massive sets of data • blinkdb> SELECT my_function(jobtime) • FROM very_big_log • WHERE src= ‘hadoop’ • LEFT OUTER JOIN logs2 • ON very_big_log.id= logs.id ML Primitives, User Defined Functions

  7. 100 TB on 1000 machines ½ - 1 Hour 1 - 5 Minutes 1 second ? Hard Disks Memory Query Execution on Samples

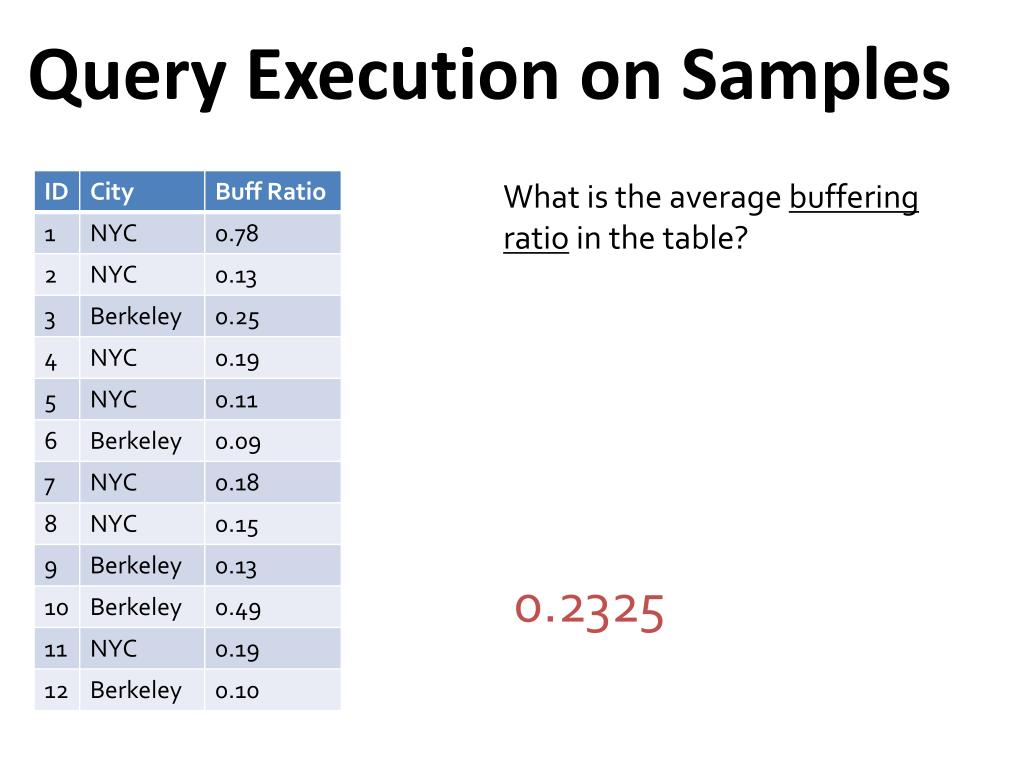

  8. Query Execution on Samples What is the average buffering ratio in the table? 0.2325

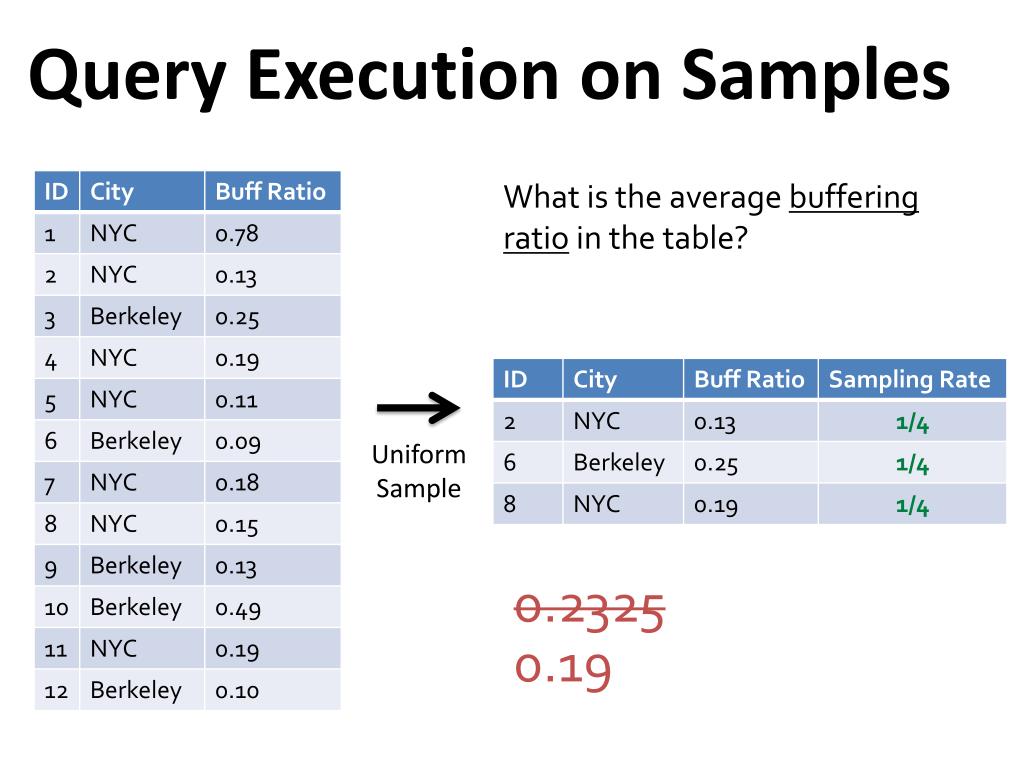

  9. Query Execution on Samples What is the average buffering ratioin the table? Uniform Sample 0.2325 0.19

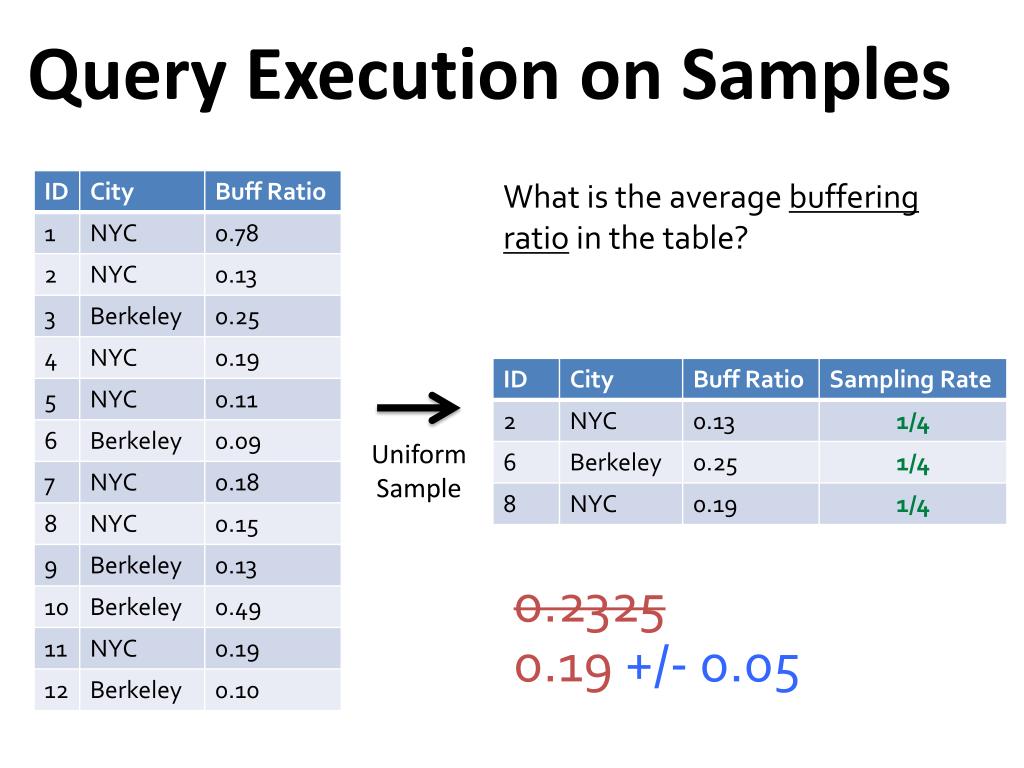

  10. Query Execution on Samples What is the average buffering ratioin the table? Uniform Sample 0.2325 0.19 +/- 0.05

  11. Query Execution on Samples What is the average buffering ratio in the table? Uniform Sample 0.2325 0.19 +/- 0.05 $0.22 +/- 0.02

  12. Speed/Accuracy Trade-off Interactive Queries Error Time to Execute on Entire Dataset 2 sec 30 mins Execution Time (Sample Size)

  13. Speed/Accuracy Trade-off Interactive Queries Time to Execute on Entire Dataset Error 2 sec 30 mins Pre-Existing Noise Execution Time (Sample Size)

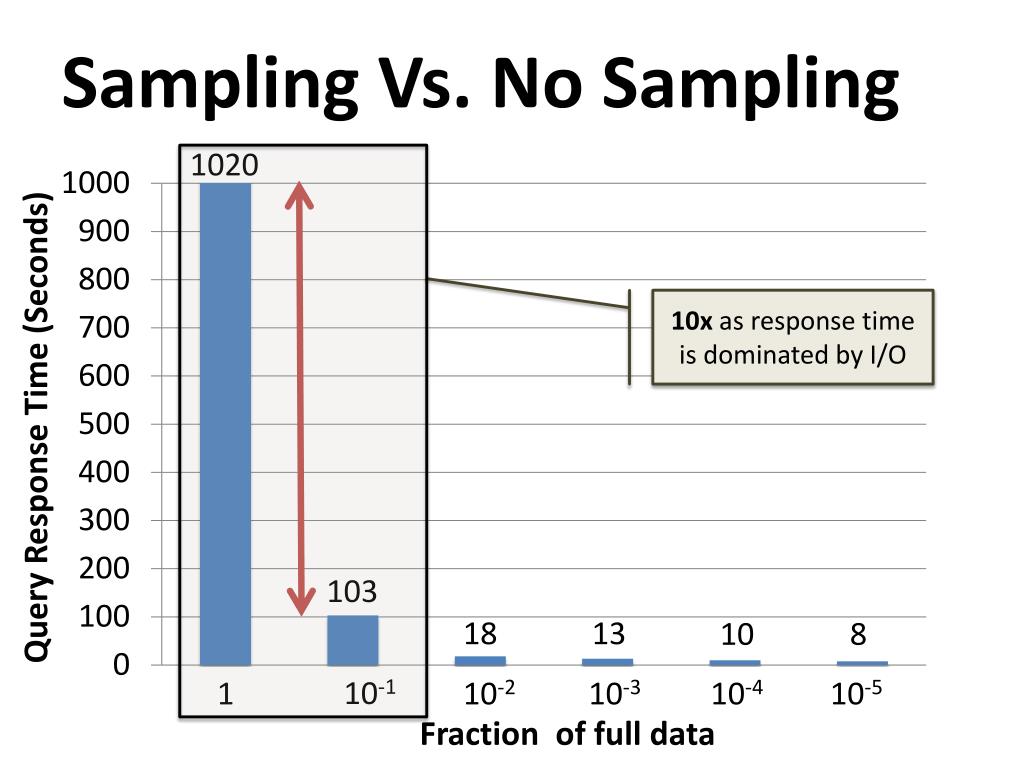

  14. Sampling Vs. No Sampling 1020 10x as response time is dominated by I/O Query Response Time (Seconds) 103 18 13 10 8 10-1 1 10-2 10-3 10-4 10-5 Fraction of full data

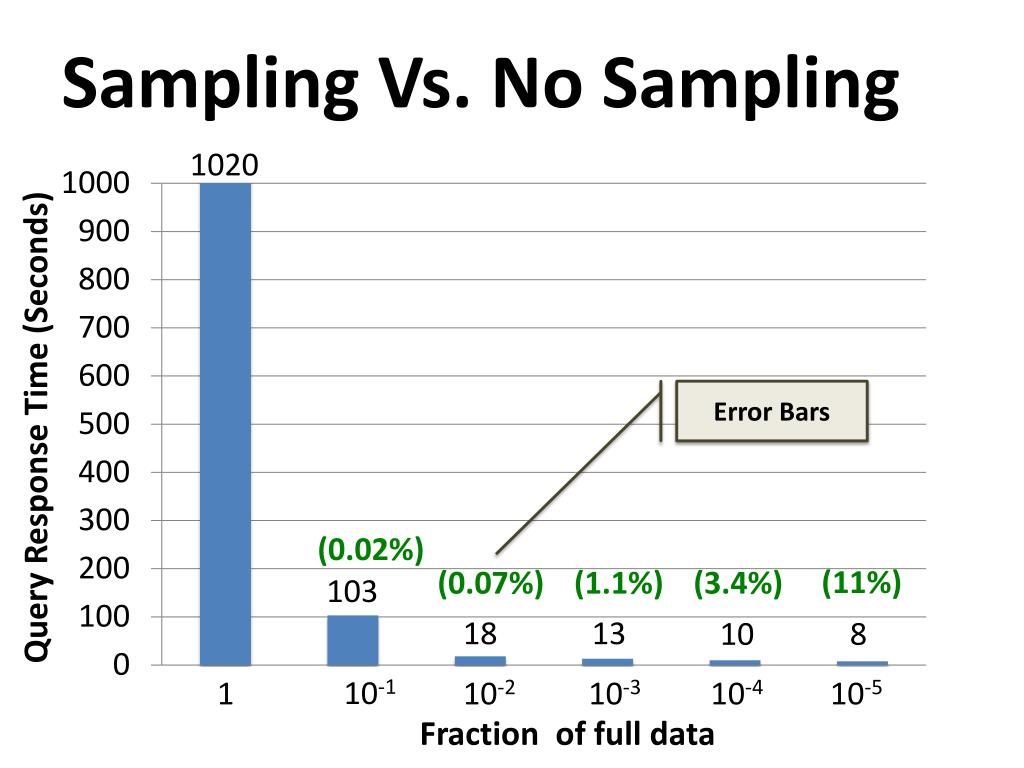

  15. Sampling Vs. No Sampling 1020 Error Bars Query Response Time (Seconds) (0.02%) 103 (11%) (0.07%) (1.1%) (3.4%) 18 13 10 8 10-1 1 10-2 10-3 10-4 10-5 Fraction of full data

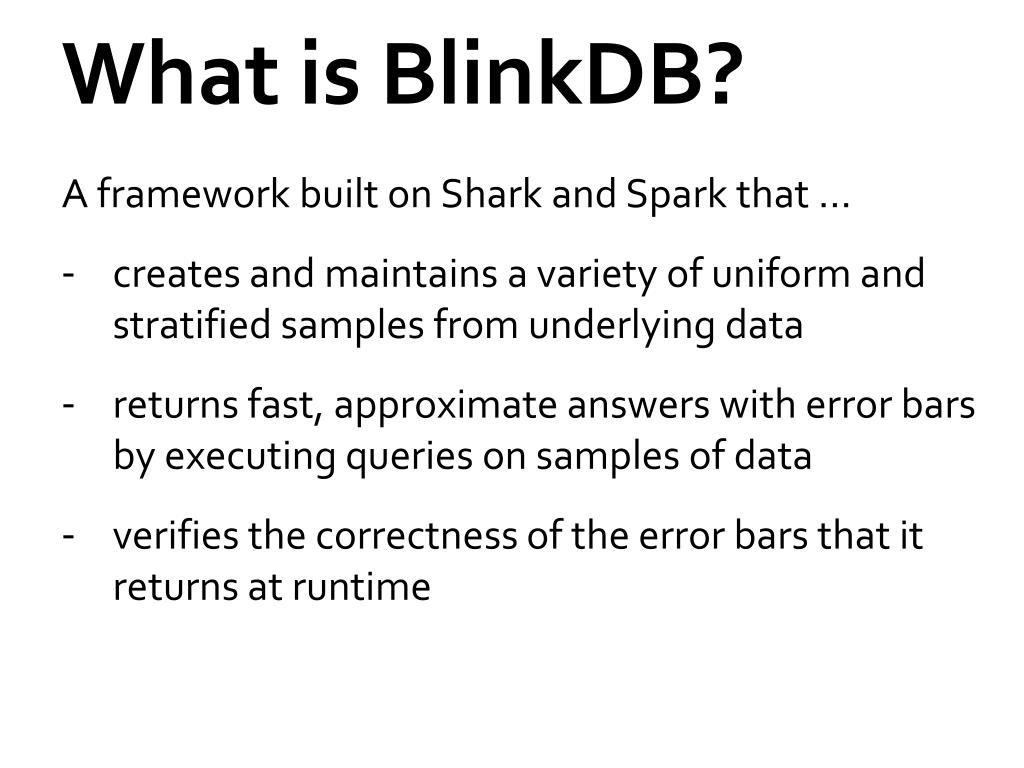

  16. What is BlinkDB? • Aframework built on Shark and Spark that … • creates and maintains a variety of uniform and stratified samples from underlying data • returns fast, approximate answers with error bars by executing queries on samples of data • verifies the correctness of the error bars that it returns at runtime

  17. What is BlinkDB? • Aframework built on Shark and Spark that … • creates and maintains a variety of uniform and stratified samples from underlying data • returns fast, approximate answers with error bars by executing queries on samples of data • verifies the correctness of the error bars that it returns at runtime

  18. Uniform Samples 4 3 1 2

  19. Uniform Samples 4 U 3 1 2

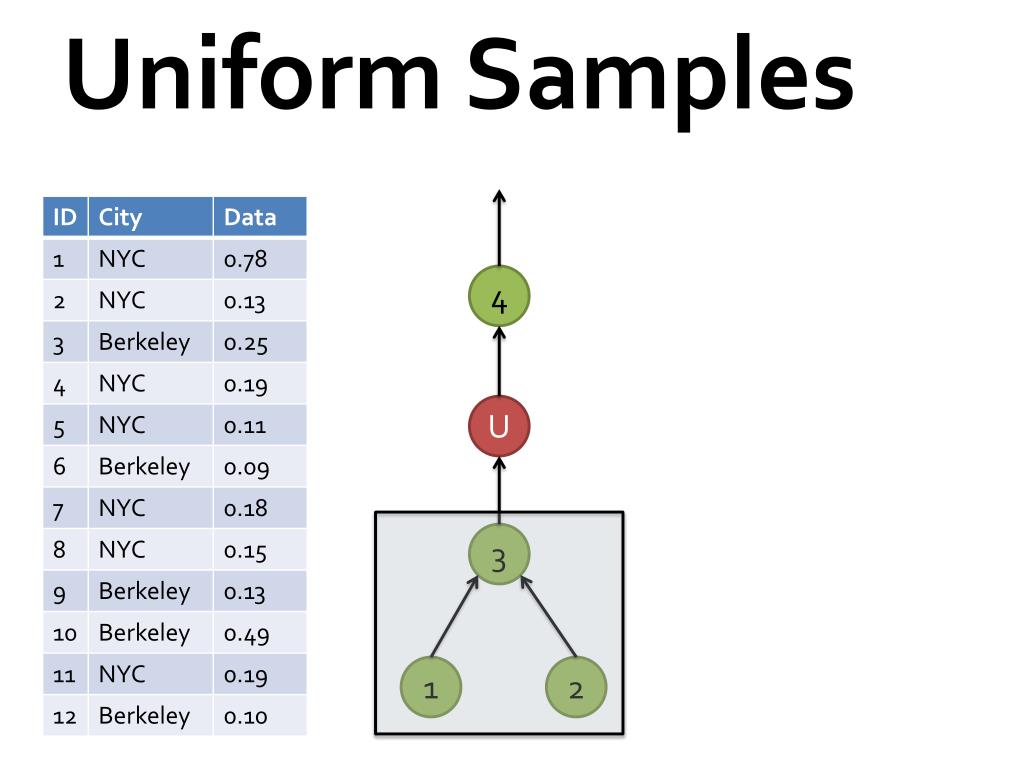

  20. Uniform Samples 4 U 3 1 2

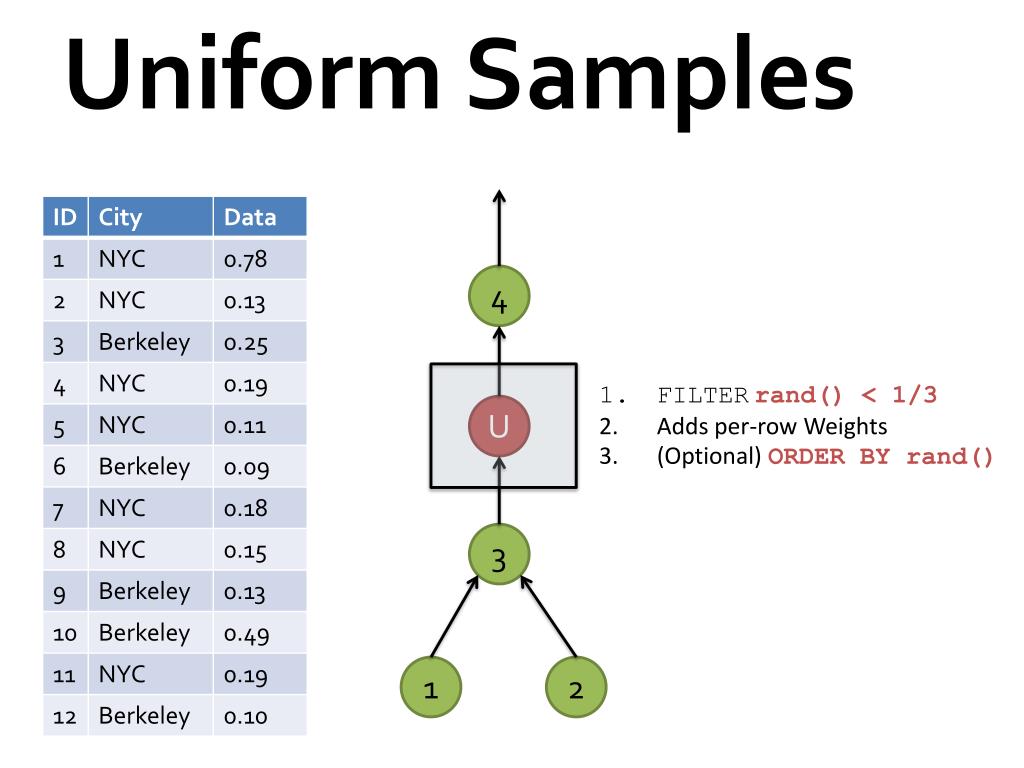

  21. Uniform Samples 4 FILTERrand() < 1/3 Adds per-row Weights (Optional) ORDER BY rand() U 3 1 2

  22. Uniform Samples 4 U Doesn’t change Shark RDD Semantics 3 1 2

  23. Stratified Samples 4 3 1 2

  24. Stratified Samples 4 S 3 1 2

  25. Stratified Samples 4 S 3 1 2

  26. Stratified Samples 4 S1 SPLIT 3 1 2

  27. Stratified Samples 4 S2 S1 GROUP 3 1 2

  28. Stratified Samples 4 S2 S1 GROUP 3 1 2

  29. Stratified Samples 4 S2 JOIN S2 S1 3 1 2

  30. Stratified Samples 4 U S2 S2 S1 Doesn’t change Shark RDD Semantics 3 1 2

  31. What is BlinkDB? • Aframework built on Shark and Spark that … • creates and maintains a variety of uniform and stratified samples from underlying data • returns fast, approximate answers with error bars by executing queries on samples of data • verifies the correctness of the error bars that it returns at runtime

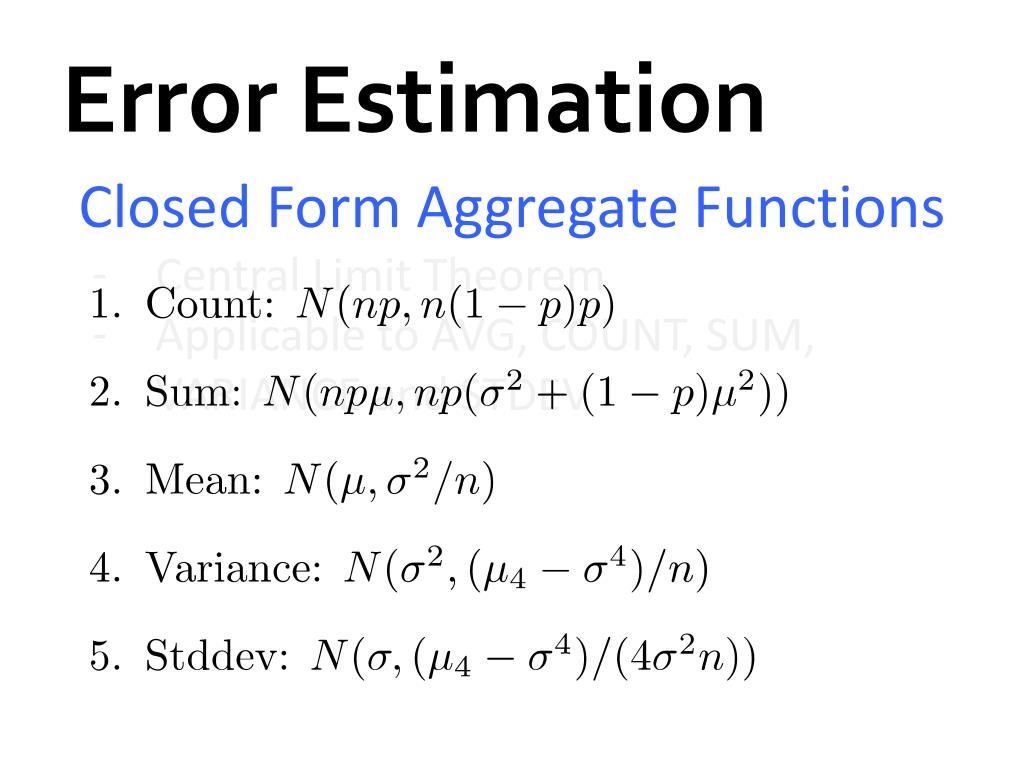

  32. Error Estimation • Closed Form Aggregate Functions • Central Limit Theorem • Applicable to AVG, COUNT, SUM, VARIANCE and STDEV

  33. Error Estimation • Closed Form Aggregate Functions • Central Limit Theorem • Applicable to AVG, COUNT, SUM, VARIANCE and STDEV

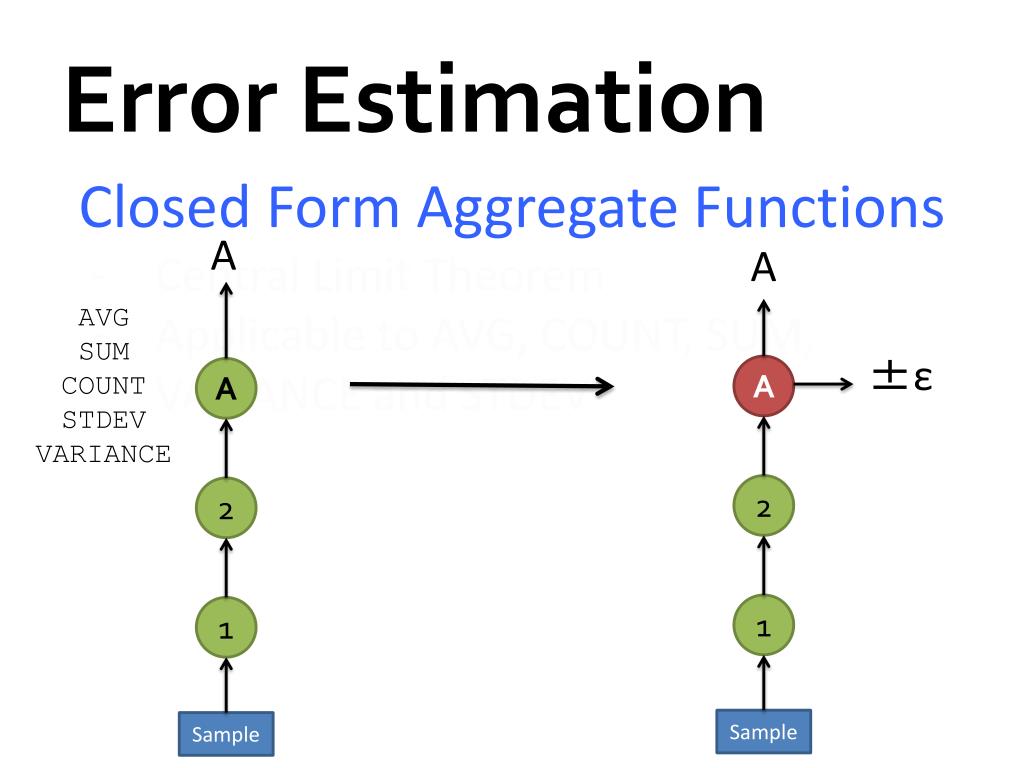

  34. Error Estimation • Closed Form Aggregate Functions • Central Limit Theorem • Applicable to AVG, COUNT, SUM, VARIANCE and STDEV A A AVG SUM COUNT STDEV VARIANCE ±ε A A 2 2 1 1 Sample Sample

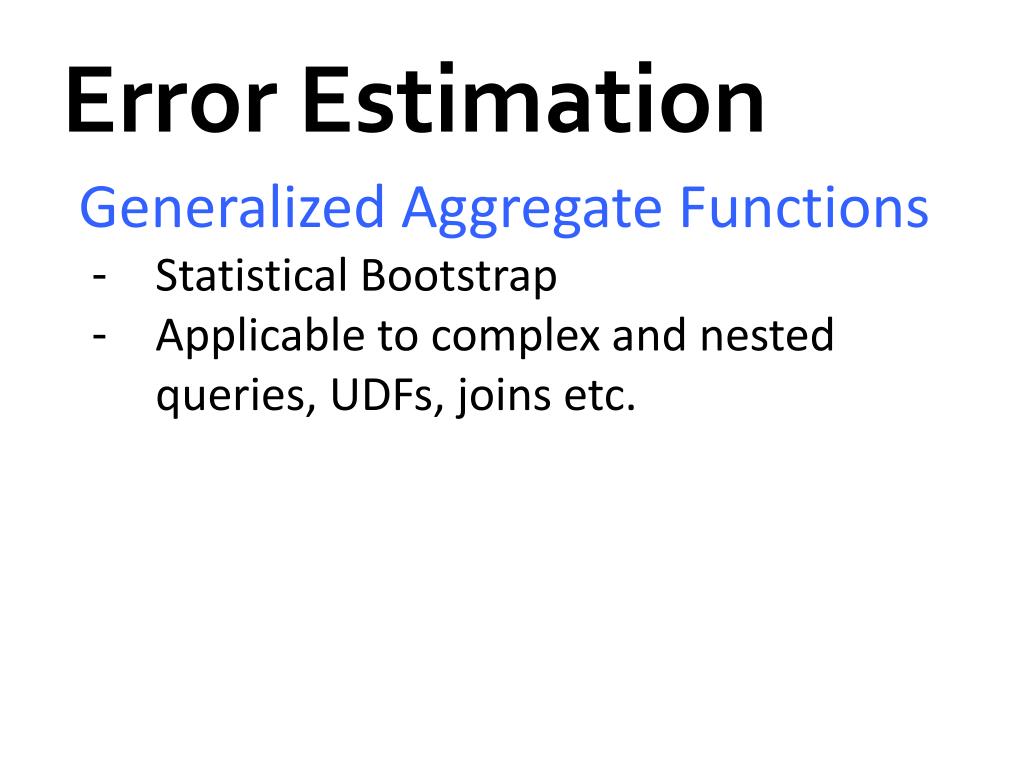

  35. Error Estimation • Generalized Aggregate Functions • Statistical Bootstrap • Applicable to complex and nested queries, UDFs, joins etc.

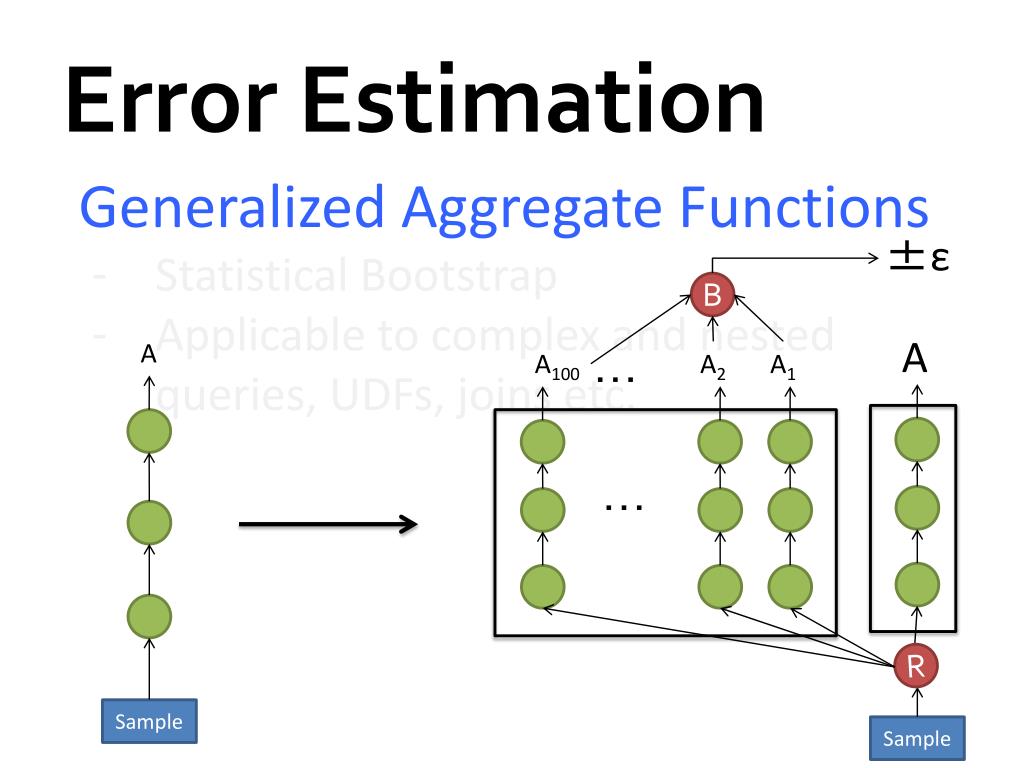

  36. Error Estimation • Generalized Aggregate Functions • Statistical Bootstrap • Applicable to complex and nested queries, UDFs, joins etc. ±ε B A A A100 A2 A1 … … R Sample Sample

  37. What is BlinkDB? • Aframework built on Shark and Spark that … • creates and maintains a variety of random and stratified samples from underlying data • returns fast, approximate answers with error bars by executing queries on samples of data • verifies the correctness of the error bars that it returns at runtime

  38. Kleiner’s Diagnostics More Data  Higher Accuracy 300 Data Points  97% Accuracy [KDD 13] Error Sample Size

  39. What is BlinkDB? • Aframework built on Shark and Spark that … • creates and maintains a variety of random and stratified samples from underlying data • returns fast, approximate answers with error bars by executing queries on samples of data • verifies the correctness of the error bars that it returns at runtime

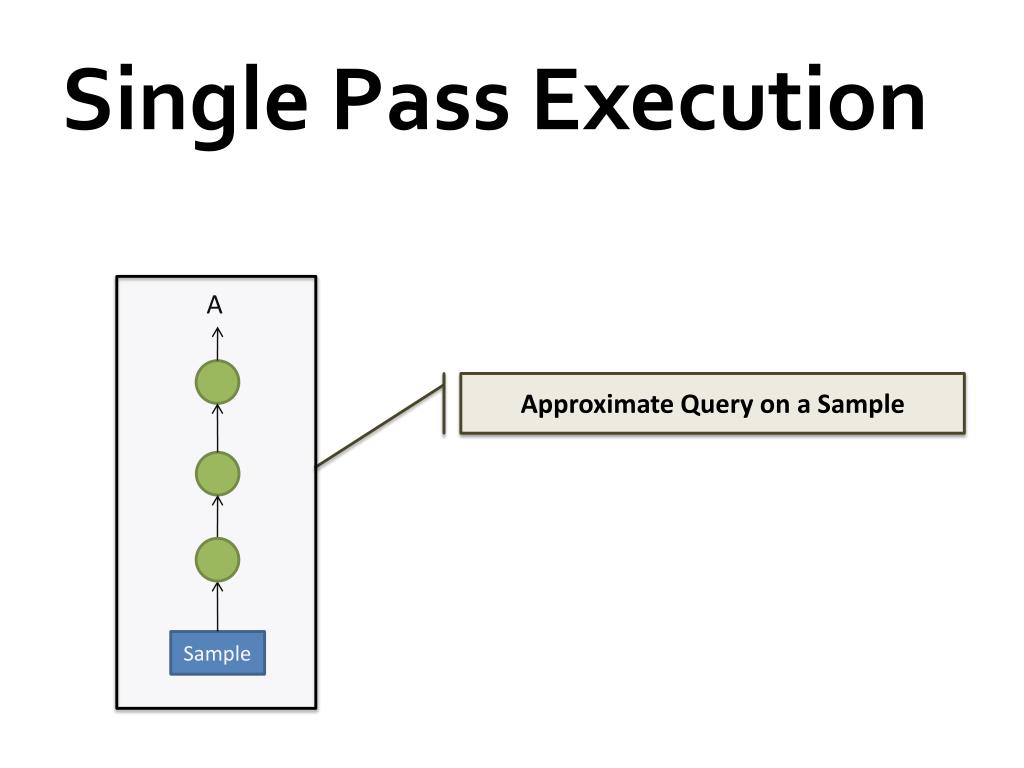

  40. Single Pass Execution A Approximate Query on a Sample Sample

  41. Single Pass Execution A Sample

  42. Single Pass Execution A Resampling Operator R Sample

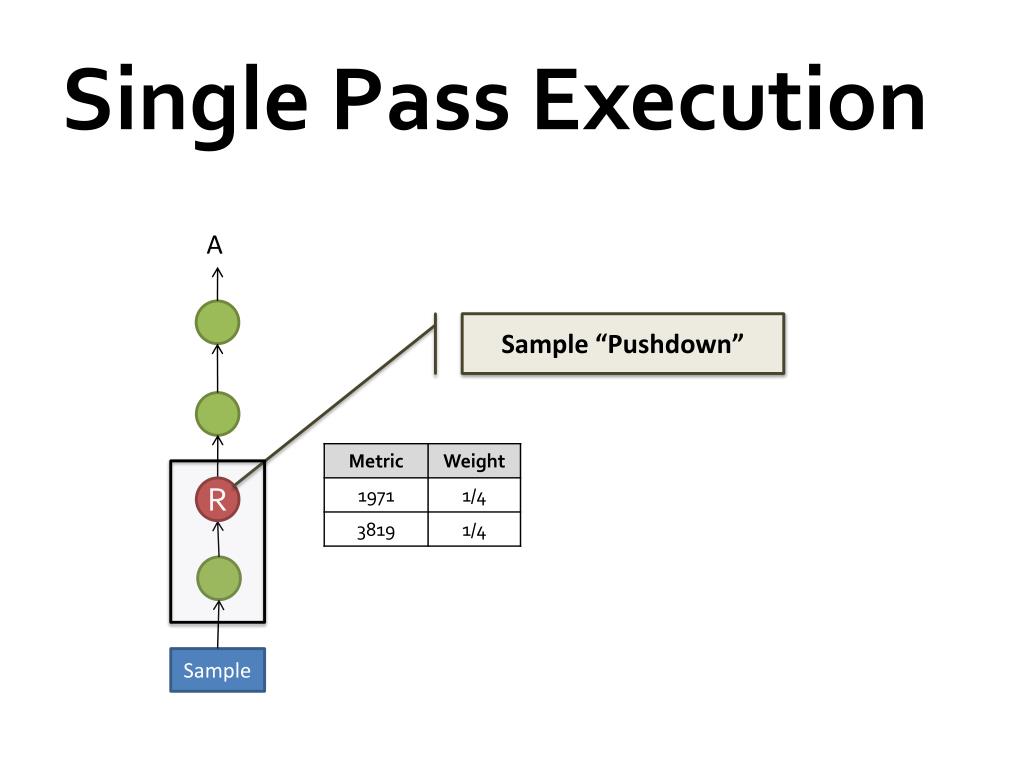

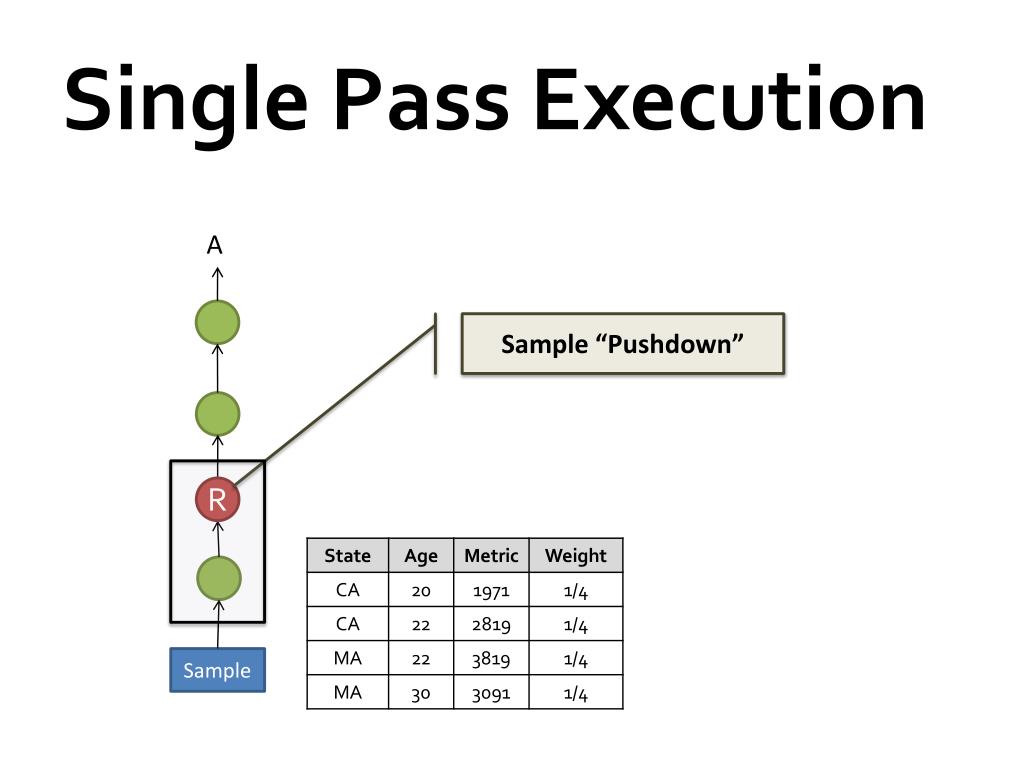

  43. Single Pass Execution A Sample “Pushdown” R Sample

  44. Single Pass Execution A Sample “Pushdown” R Sample

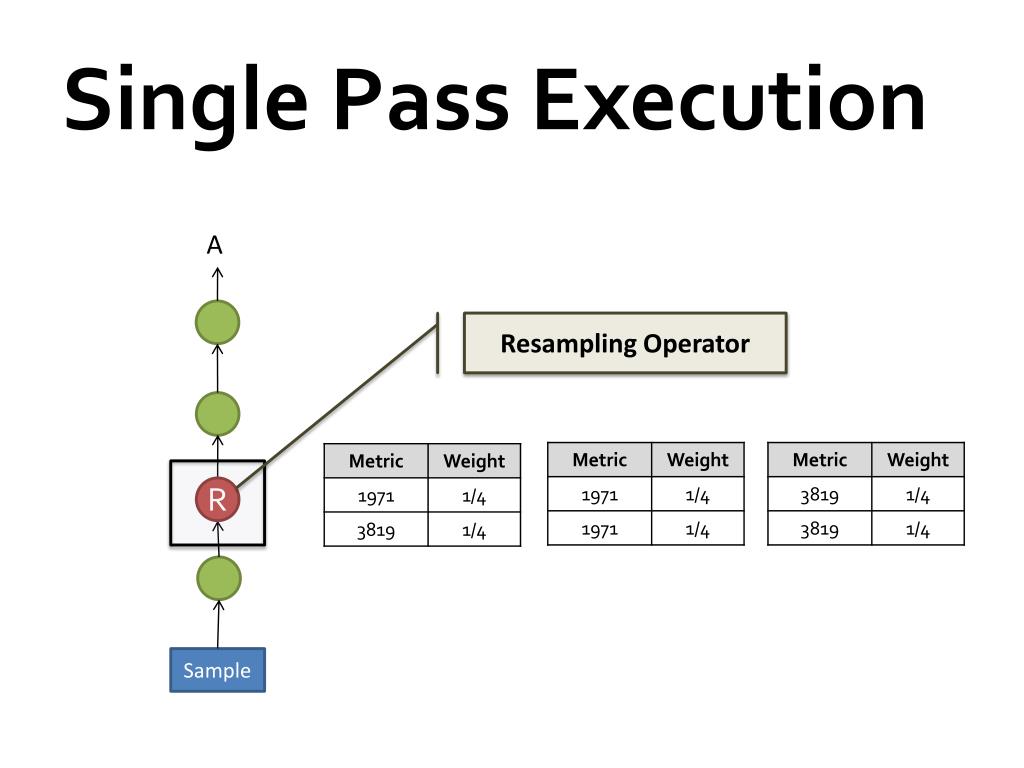

  45. Single Pass Execution A Resampling Operator R Sample

  46. Single Pass Execution A Resampling Operator R Sample

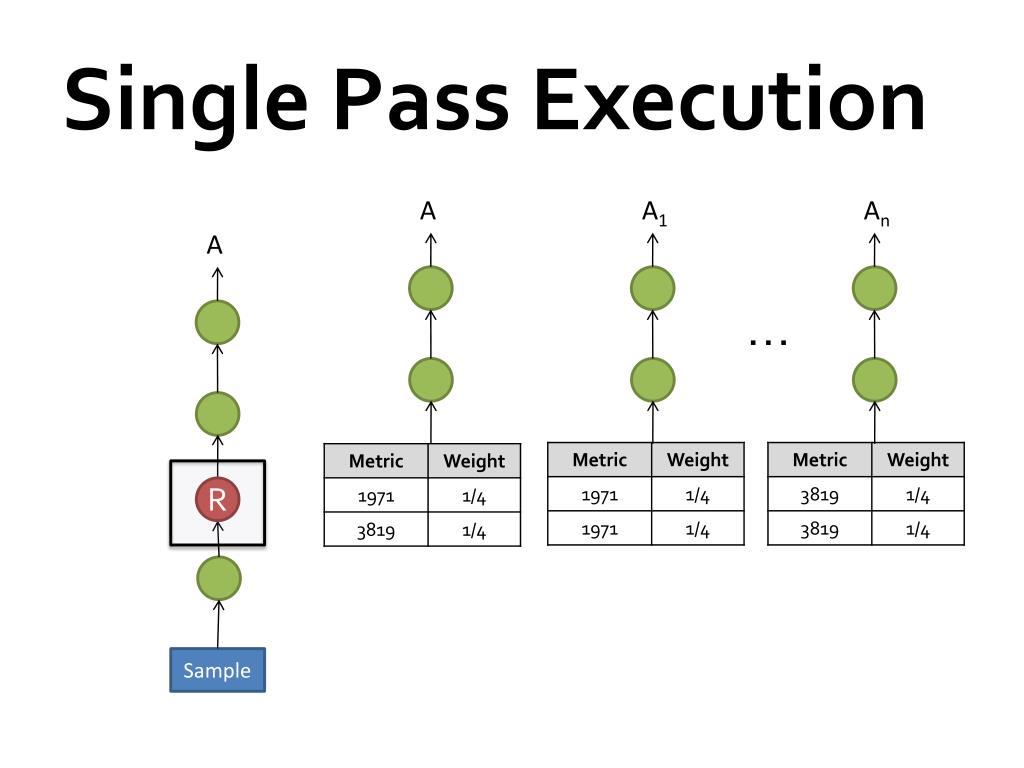

  47. Single Pass Execution A A1 An A … R Sample

  48. Single Pass Execution A A1 An A … R Sample

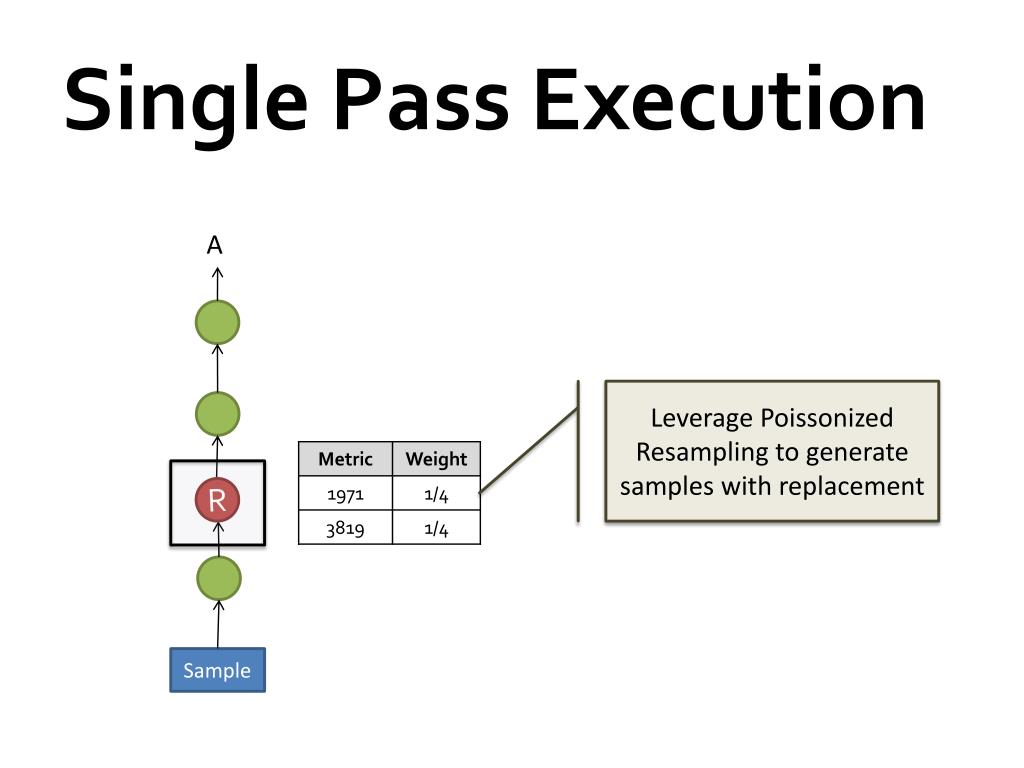

  49. Single Pass Execution A Leverage Poissonized Resampling to generate samples with replacement R Sample

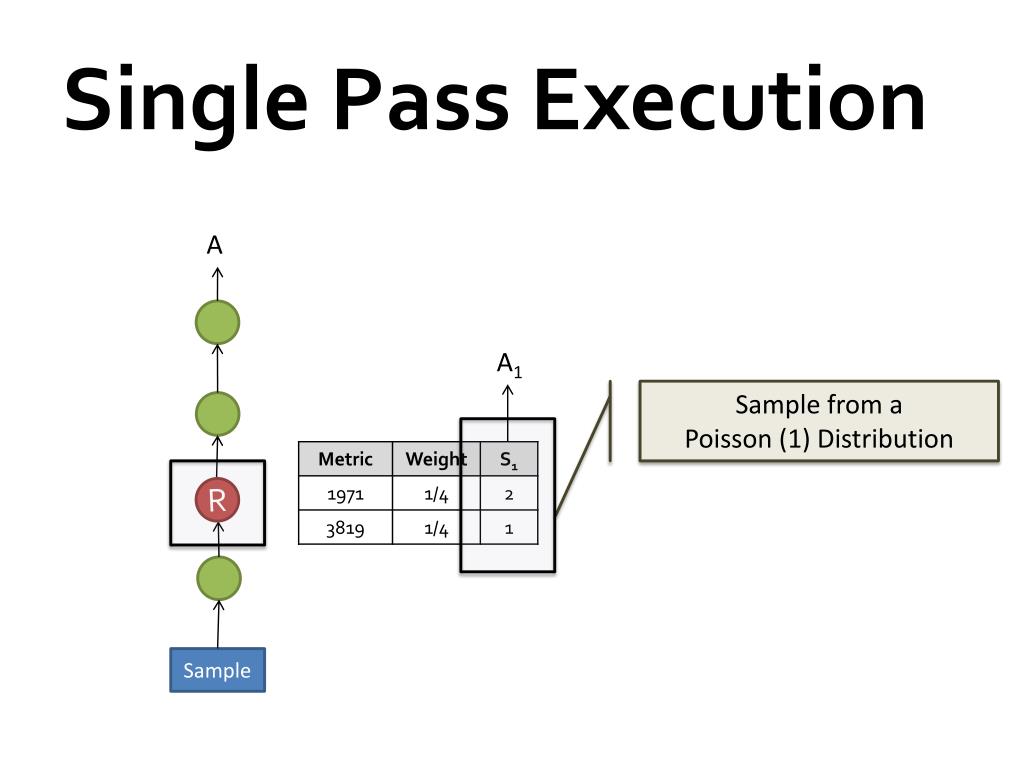

  50. Single Pass Execution A A1 Sample from a Poisson (1) Distribution R Sample
