  1. Fundamental Physics at ESA J. Clavel ESA Science Directorate

  2. Overview • Two dedicated missions in the Science Directorate • LISA Pathfinder • LISA • Missions with aspects of FP in the Science Directorate • Gaia • Planck • Mission concepts under assessment • Fundamental Physics Explorer • Minor contributions to nationally led missions • Microscope (CNES) • Missions in other Directorates but supported through Science Directorate • ACES (led by Human Spaceflight)

  3. ACES

  4. ACES mission • ESA mission conducted by Human Spaceflight • To be installed on the ISS (Columbus module) • Payload • Cs fountain clock (PHARAO) • Hydrogen maser (SHM) • Microwave link • Mission goals: • Test of a new generation of space clocks • Precise and accurate time and frequency transfer • Fundamental physics tests • Status: payload development • Launch: 2010

  5. Microscope • CNES-led mission to investigate the equivalence principle • Target sensitivity 10-15 • Room-temperature experiment • Measurement principle: • compare the effect of gravity on two masses of different material • 2 differential accelerometers in free-fall (PtRh/PtRh and Ti/PtRh)

  6. Microscope • ESA contributes μN thrusters (FEEP) • ONERA: inertial sensor development • Development status • Satellite PDR February 2006 • Launch • May 2010

  7. Planck • Measuring the CMB with unprecedented accuracy • T/T = 2 × 10-6 (about 10 times better than WMAP) • Angular resolution 5 arcmin (about 3 times better than WMAP) • Wide frequency coverage (30–857 GHz). • Payload • Low Frequency Instrument (LFI) • Intensity and polarization at 33 GHz, 44 GHz and 70 GHz • Cryogenic detectors (20 K) • High Frequency Instrument (HFI) • Bolometric measurements (intensity and polarisation) at 6 frequencies at 100 – 857 GHz • Detector temperature 0.1 K

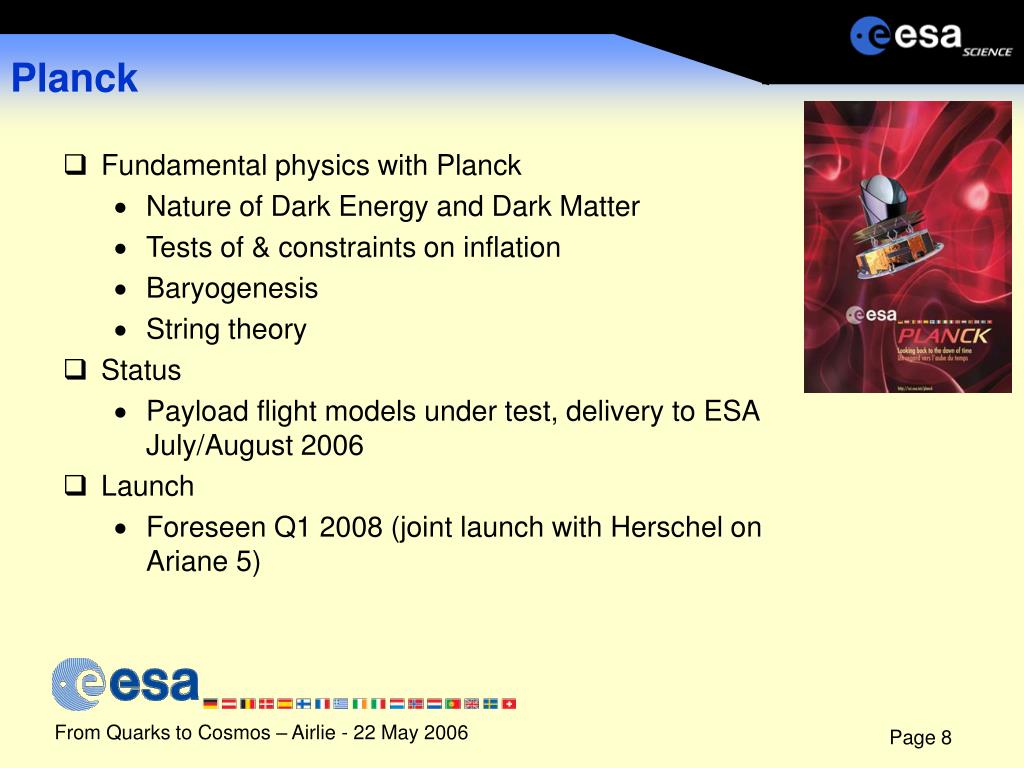

  8. Planck • Fundamental physics with Planck • Nature of Dark Energy and Dark Matter • Tests of & constraints on inflation • Baryogenesis • String theory • Status • Payload flight models under test, delivery to ESA July/August 2006 • Launch • Foreseen Q1 2008 (joint launch with Herschel on Ariane 5)

  9. Gaia – Taking a census of the galaxy • Astrometric mission to measure positions, distances, and space motions of stars in our galaxy • About a 109 stars up to magnitude 20 • median parallax errors: 7 μas at 10 mag; 20-25 μas at 15 mag; 200–300 μas at 20 mag • Distance accuracy: between 1% and 10% • Velocity accuracy: between 0.5 km/s and 10 km/s • Status • Implementation phase • Launch • December 2011

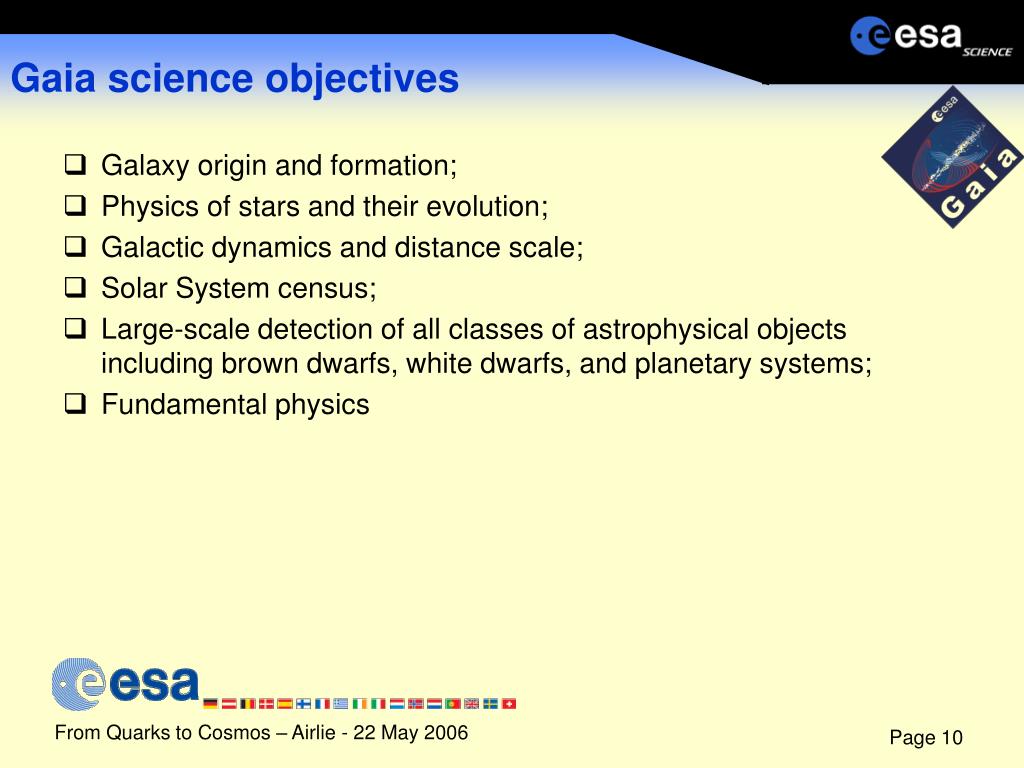

  10. Gaia science objectives • Galaxy origin and formation; • Physics of stars and their evolution; • Galactic dynamics and distance scale; • Solar System census; • Large-scale detection of all classes of astrophysical objects including brown dwarfs, white dwarfs, and planetary systems; • Fundamental physics

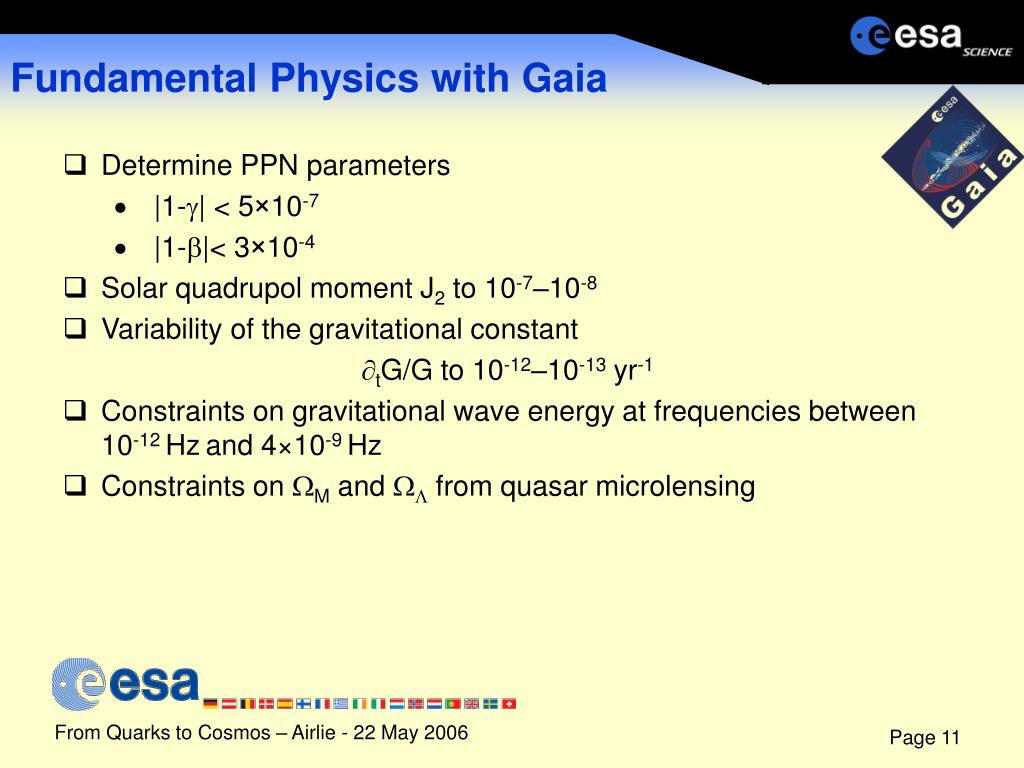

  11. Fundamental Physics with Gaia • Determine PPN parameters • |1-| < 5×10-7 • |1-|< 3×10-4 • Solar quadrupol moment J2 to 10-7–10-8 • Variability of the gravitational constant tG/G to 10-12–10-13 yr-1 • Constraints on gravitational wave energy at frequencies between 10-12 Hzand 4×10-9 Hz • Constraints on M and  from quasar microlensing

  12. LISA PF • Precursor to LISA • Demonstrating critical technologies for LISA • Drag-free • Micro-Newton Thrusters • Interferometry • Single spacecraft in Lissajous type orbit around L1 • Mission duration 6 months • Mission status: • Mission PDR successful in February 2006 • Flight hardware delivery Summer 2007 • Launch in Q4 2009

  13. LISA PF • Payload • Payload consists of a European contribution • Two gravitational reference sensors • Interferometric measurement system • Drag free control system • μN thruster • US contribution • Disturbance reduction system – descoped! • Drag free control system and μN thruster

  14. LISA PF Inertial Sensor

  15. LISA PF IMS

  16. LISA • Mission to detect and observe gravitational waves and their sources • Joint ESA/NASA mission • Europe: Payload, Payload integration, propulsion module • NASA: Payload, Payload integration, Spacecraft, launcher, operations • Science operations will be conducted jointly • Technological challenges • Interferometric measurements to picometer accuracy • Drag-free technology • Low frequency stability • Definition/Development: 2010 after completion of LISA PF • Launch date ~2017 (present planning assumption)

  17. LISA mission concept • Cluster of 3 spacecraft in a heliocentric orbit • Spacecraft shield the test masses from external forces (solar wind, radiation pressure) • Allows measurement of amplitude and polarisation of GW

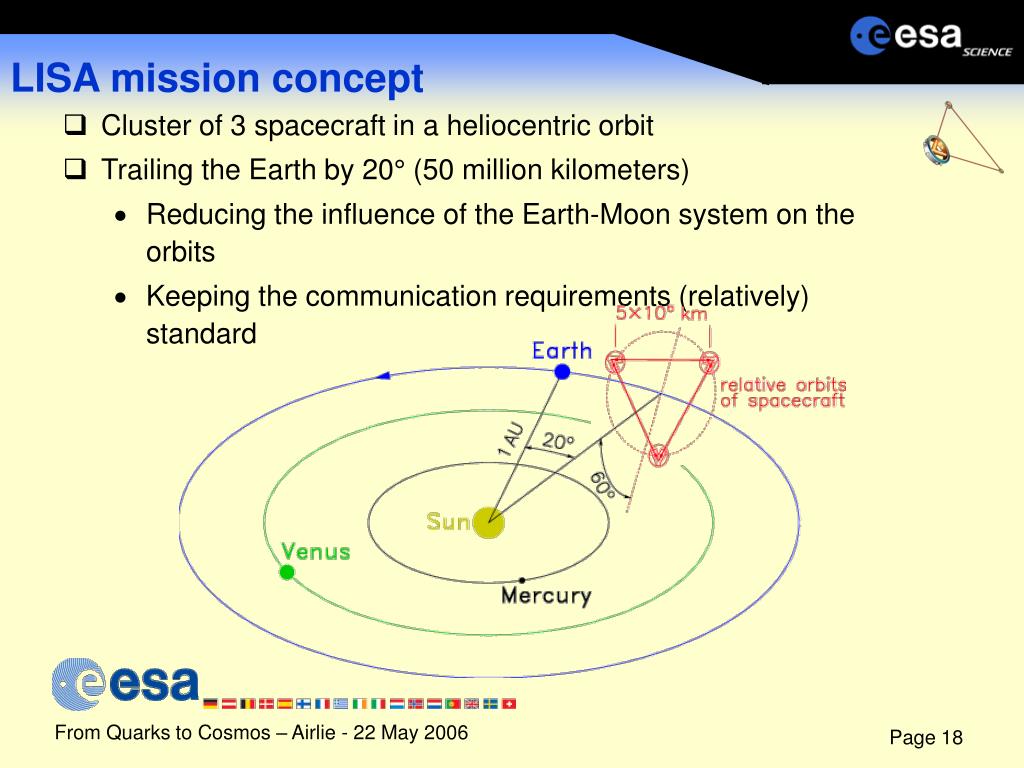

  18. LISA mission concept • Cluster of 3 spacecraft in a heliocentric orbit • Trailing the Earth by 20° (50 million kilometers) • Reducing the influence of the Earth-Moon system on the orbits • Keeping the communication requirements (relatively) standard

  19. LISA mission concept • Cluster of 3 spacecraft in a heliocentric orbit • Trailing the Earth by 20° (50 million kilometers) • Equilateral triangle with 5 million kilometers arm length • Results in easily measurable pathlength variations • Orbit is still stable enough to allow for mission duration larger than5 years

  20. K. Thorne (Caltech) NASA, Beyond Einstein LISA Science Goals • Determine the role of massive black holes in galaxy evolution • Make precision tests of Einstein’s Theory of Relativity • Determine the population of ultra-compact binaries in the Galaxy • Probe the physics of the early universe • Merging supermassive black holes • Merging intermediate-mass/seed black holes • Gravitational captures • Galactic and verification binaries • Cosmological backgrounds and bursts NASA/CXC/MPE/S. Komossa et al.

  21. Call for CV Mission Proposals (1) • First of 3 Calls (TBC) for implementation of CV2015-2025 • Available budget for a ~2016 launch: ~320 M€ (1 effective budget year) • The Call will nevertheless be fully open: • No a priori size restriction, but clear cost guidelines • Mission could be • a small/medium size S/M mission (≤320 M€ cost to ESA) • a large ESA alone L mission (≤650 M€ cost to ESA) • Selection of L mission will serve for long term technological development for mission launch in  2020 • Up to 2 S/M (depending on size) + 1 L missions will eventually be implemented

  22. Schedule of Call for proposals • Call for mission proposals released10 June 2006 • Letters of Intent due30 June 2006 • Briefing to proposers at ESTEC July 2006 • Mission proposals dueDecember 2006 • WG select 3 S-M & 3 L missions for study phaseFebruary 2007 All dates to be confirmed!

  23. LISA

  24. Backup slides

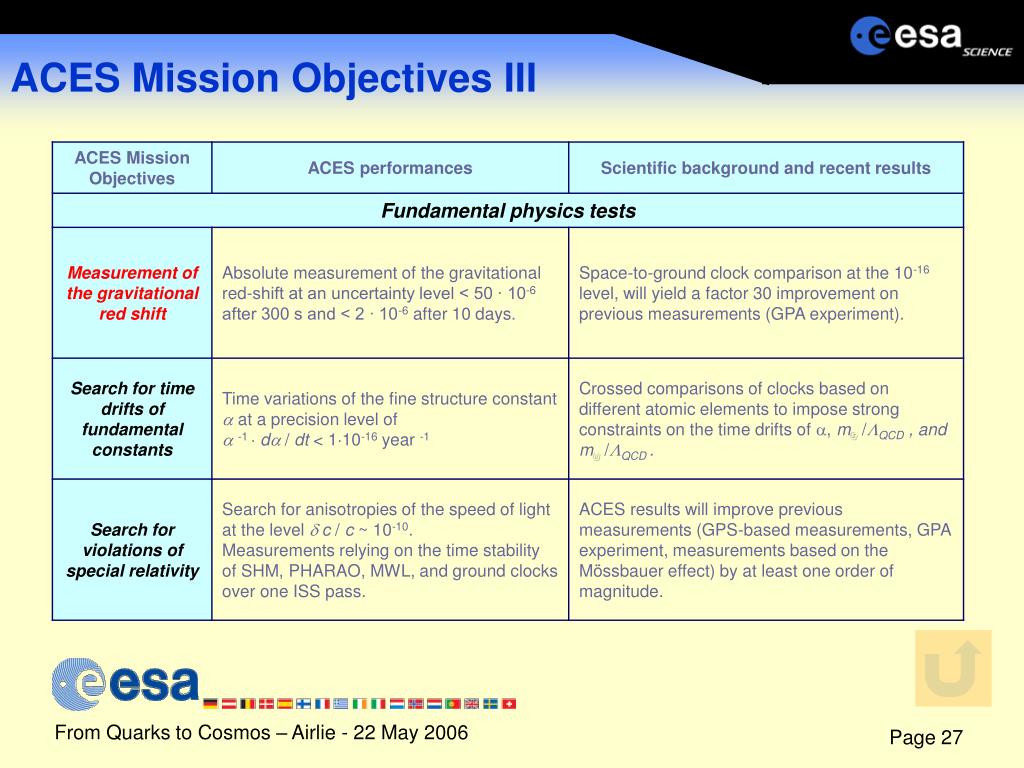

  25. ACES Mission Objectives I

  26. ACES Mission Objectives II

  27. ACES Mission Objectives III

  28. S-M Missions schedule Assessment phasesJan 2007 – Dec 2008 • Internal assessment phase in 2007 • Competitive industrial assessment in 2008 • Emphasis on payload, cost and risks Presentation to Working Groups for prioritisationApril 2009 SSAC recommendation for selectionApril 2009 Selection of 2 missionsMay 2009 Preparation & release of ITTJun-Dec 2009 Start of industrial Definition PhaseJan 2010 SPC approval for development phase 1 missionJun 2011 LaunchMid-end 2016

  29. L Missions schedule Study and Technology development phaseJan 2007 – Jun 2010 WG review and prioritisationSep 2010 SSAC recommendation for 1 L missionOct 2010 Start Technology consolidation PhaseApr 2011 Start Definition Phase Apr 2013 Start Implementation phase Apr 2015 L Mission Launch≥2020
