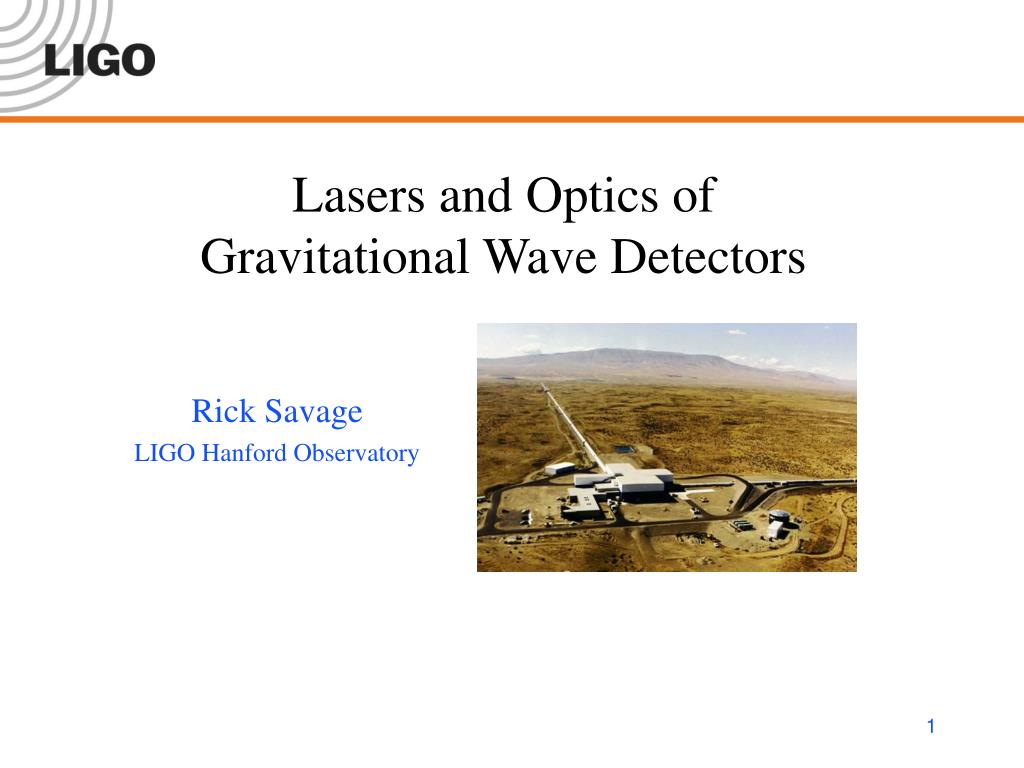

  1. Lasers and Optics ofGravitational Wave Detectors Rick Savage LIGO Hanford Observatory

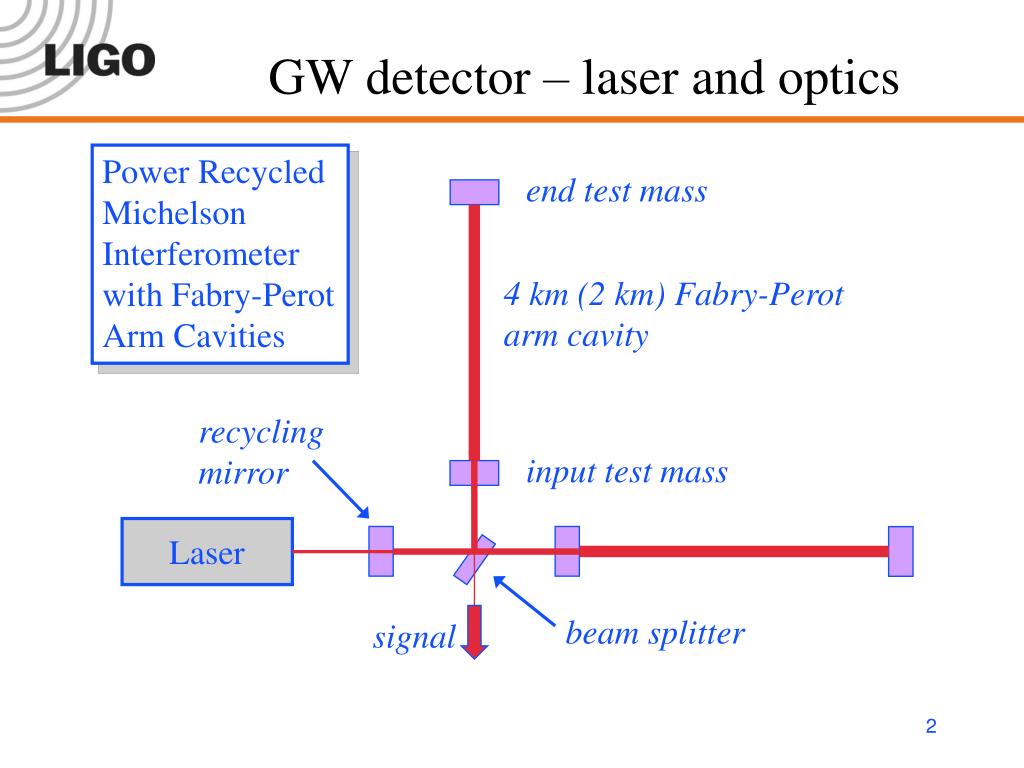

  2. Power Recycled Michelson Interferometer with Fabry-Perot Arm Cavities end test mass 4 km (2 km) Fabry-Perotarm cavity recycling mirror input test mass Laser beam splitter signal GW detector – laser and optics

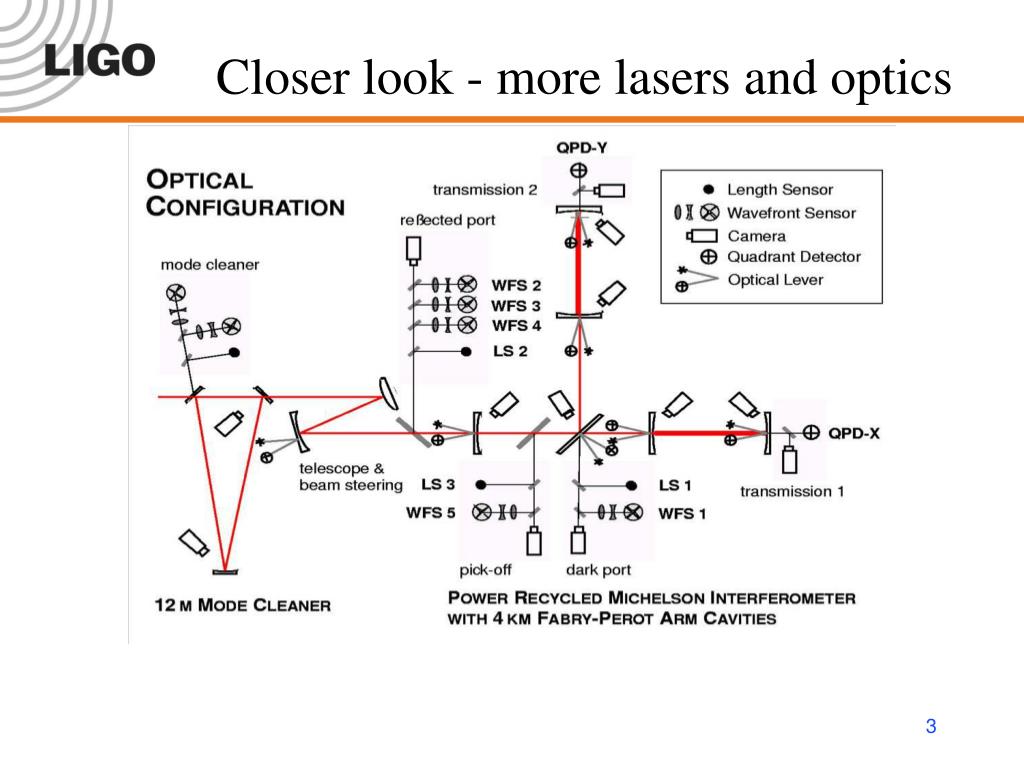

  3. Closer look - more lasers and optics

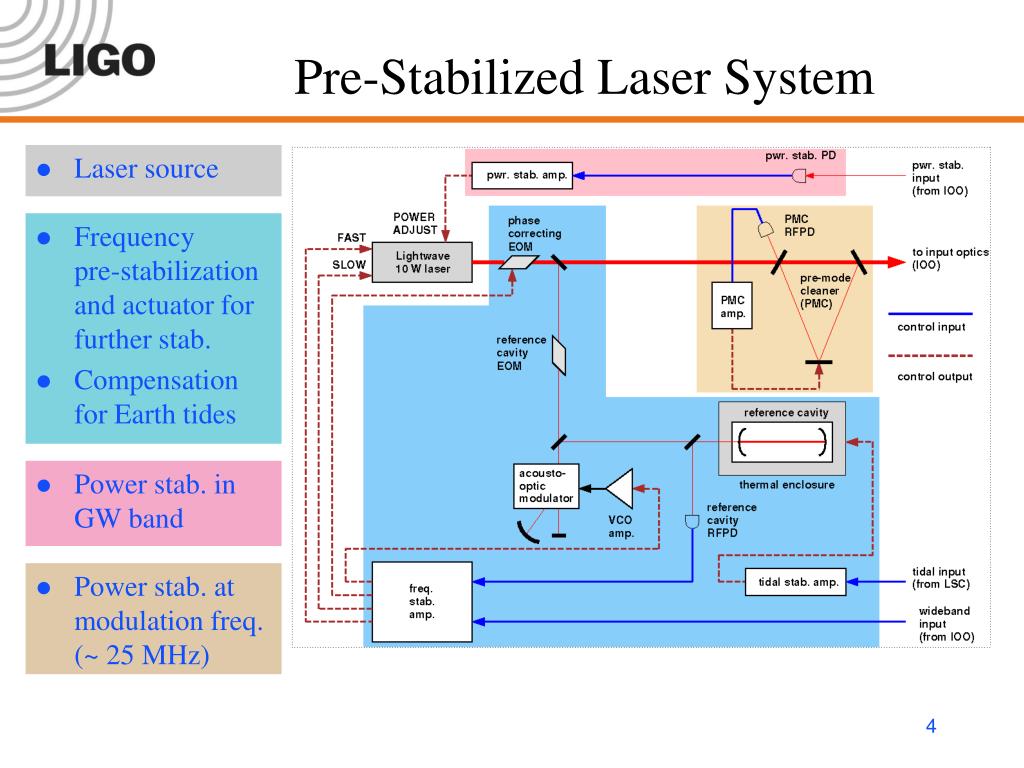

  4. Pre-Stabilized Laser System • Laser source • Frequencypre-stabilizationand actuator forfurther stab. • Compensation for Earth tides • Power stab. inGW band • Power stab. at modulation freq.(~ 25 MHz)

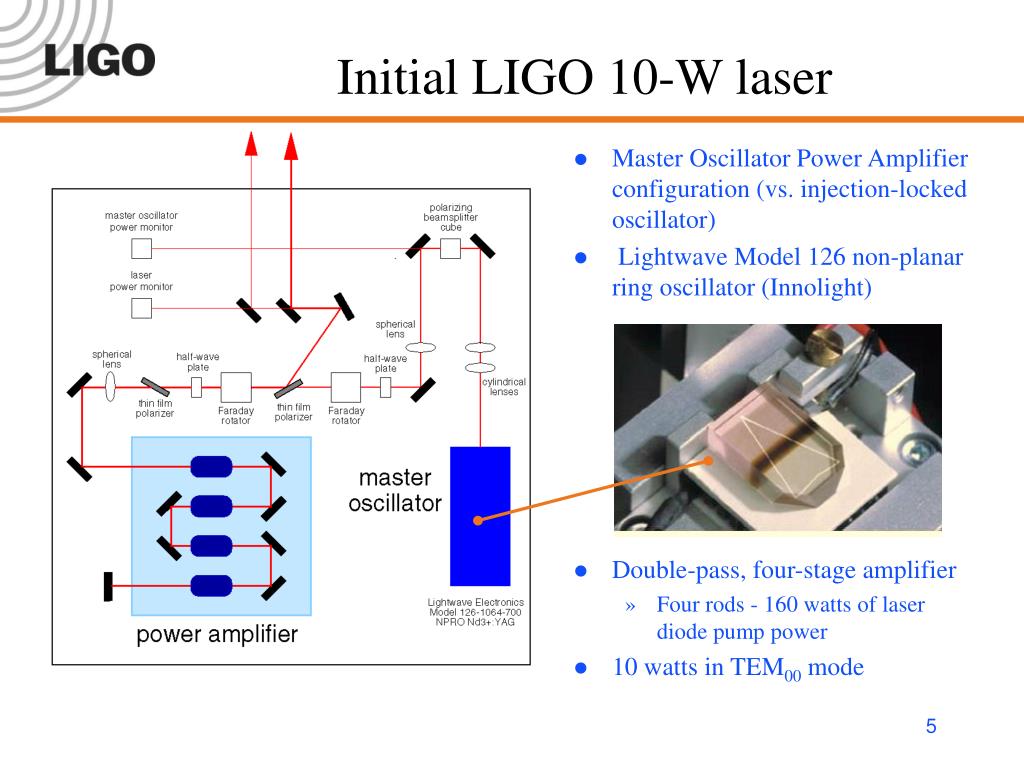

  5. Initial LIGO 10-W laser • Master Oscillator Power Amplifier configuration (vs. injection-locked oscillator) • Lightwave Model 126 non-planar ring oscillator (Innolight) • Double-pass, four-stage amplifier • Four rods - 160 watts of laser diode pump power • 10 watts in TEM00 mode

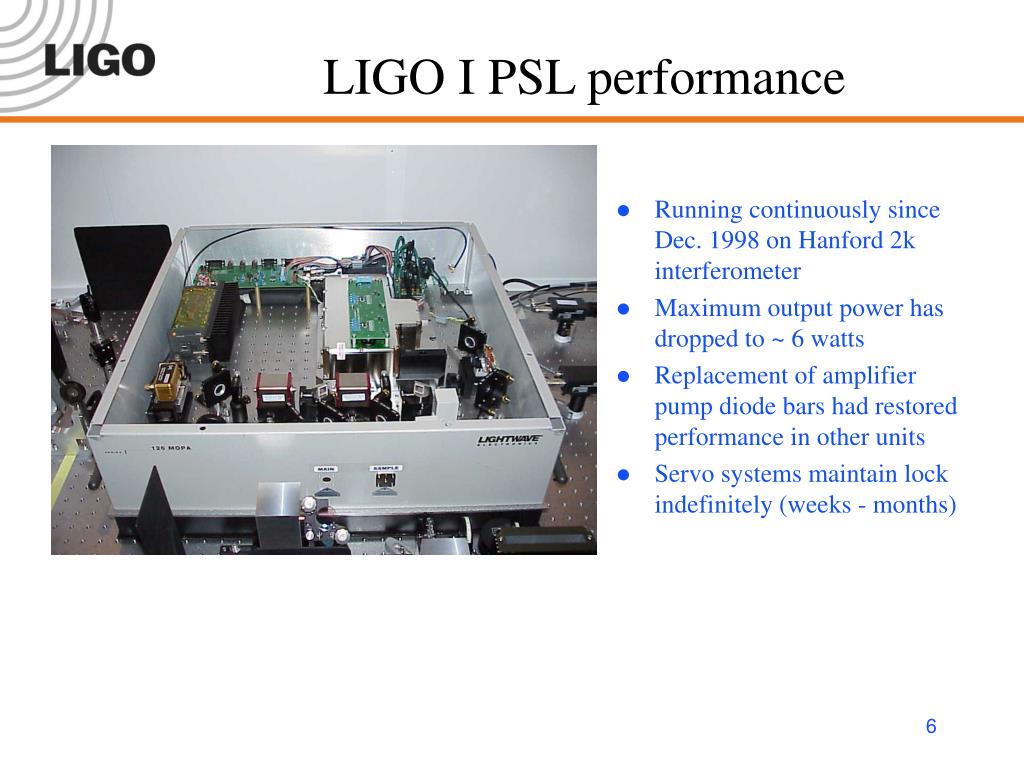

  6. Running continuously since Dec. 1998 on Hanford 2k interferometer Maximum output power has dropped to ~ 6 watts Replacement of amplifier pump diode bars had restored performance in other units Servo systems maintain lock indefinitely (weeks - months) LIGO I PSL performance

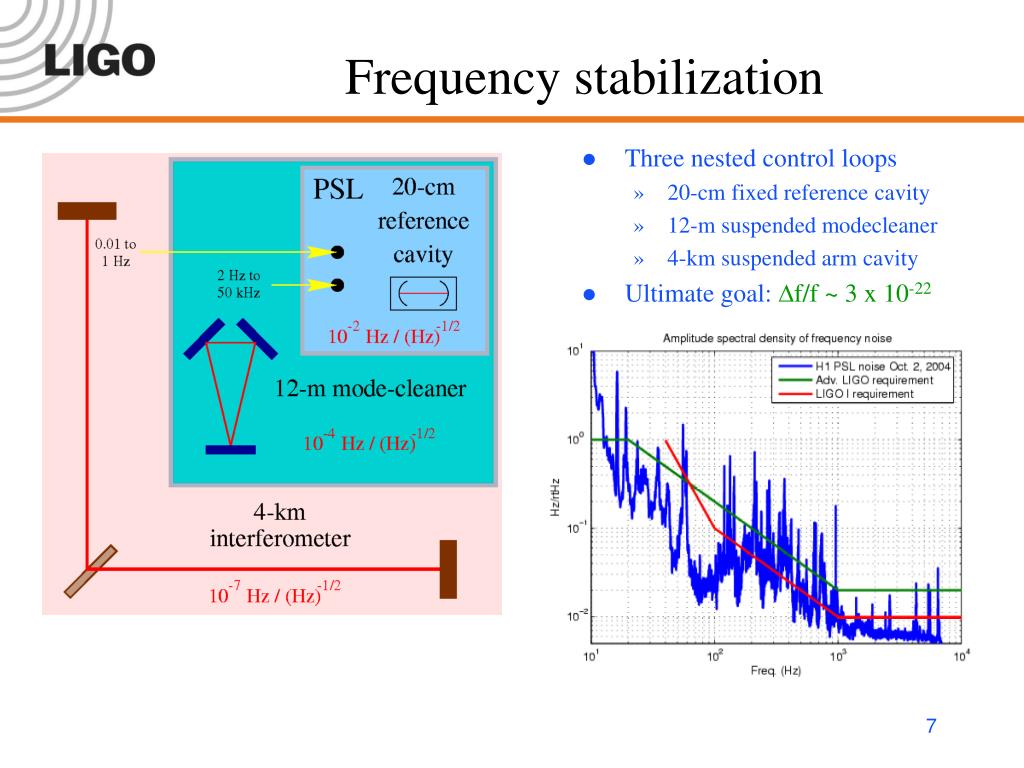

  7. Frequency stabilization • Three nested control loops • 20-cm fixed reference cavity • 12-m suspended modecleaner • 4-km suspended arm cavity • Ultimate goal: Df/f ~ 3 x 10-22

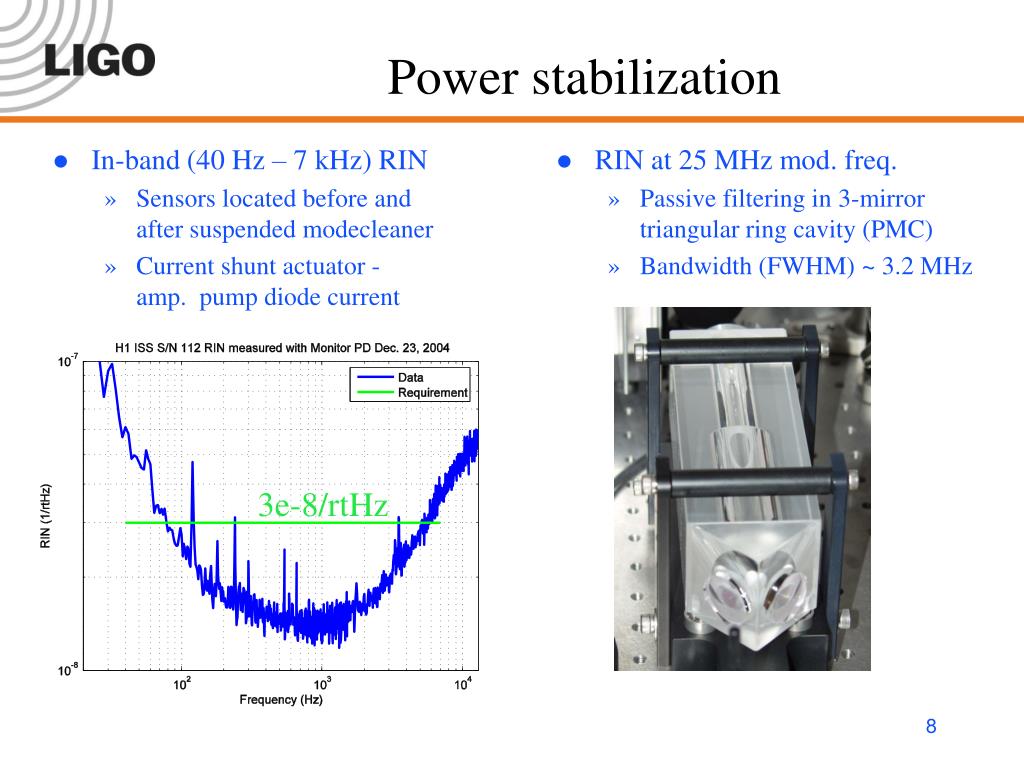

  8. Power stabilization • In-band (40 Hz – 7 kHz) RIN • Sensors located before and after suspended modecleaner • Current shunt actuator - amp. pump diode current • RIN at 25 MHz mod. freq. • Passive filtering in 3-mirror triangular ring cavity (PMC) • Bandwidth (FWHM) ~ 3.2 MHz 3e-8/rtHz

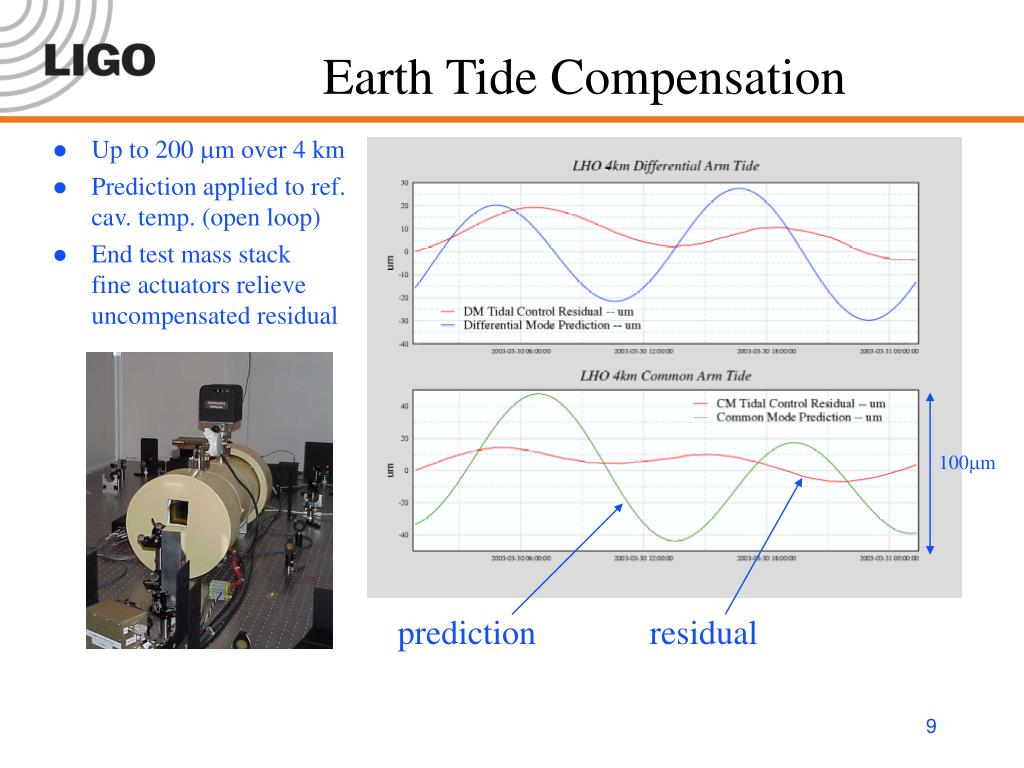

  9. Up to 200 mm over 4 km Prediction applied to ref. cav. temp. (open loop) End test mass stackfine actuators relieveuncompensated residual Earth Tide Compensation 100mm prediction residual

  10. Concept for Advanced LIGO laser • Being developed by GEO/LZH • Injection-locked, end-pumped slave lasers • 180 W output with 1200 W of pump light

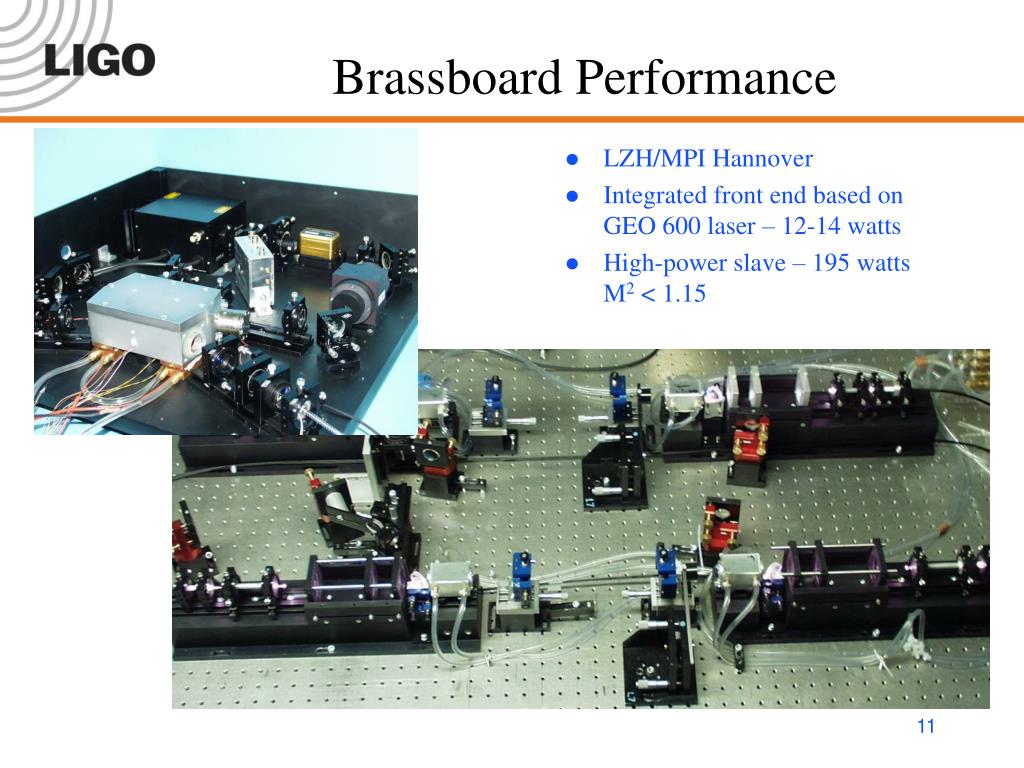

  11. LZH/MPI Hannover Integrated front end based onGEO 600 laser – 12-14 watts High-power slave – 195 wattsM2 < 1.15 Brassboard Performance

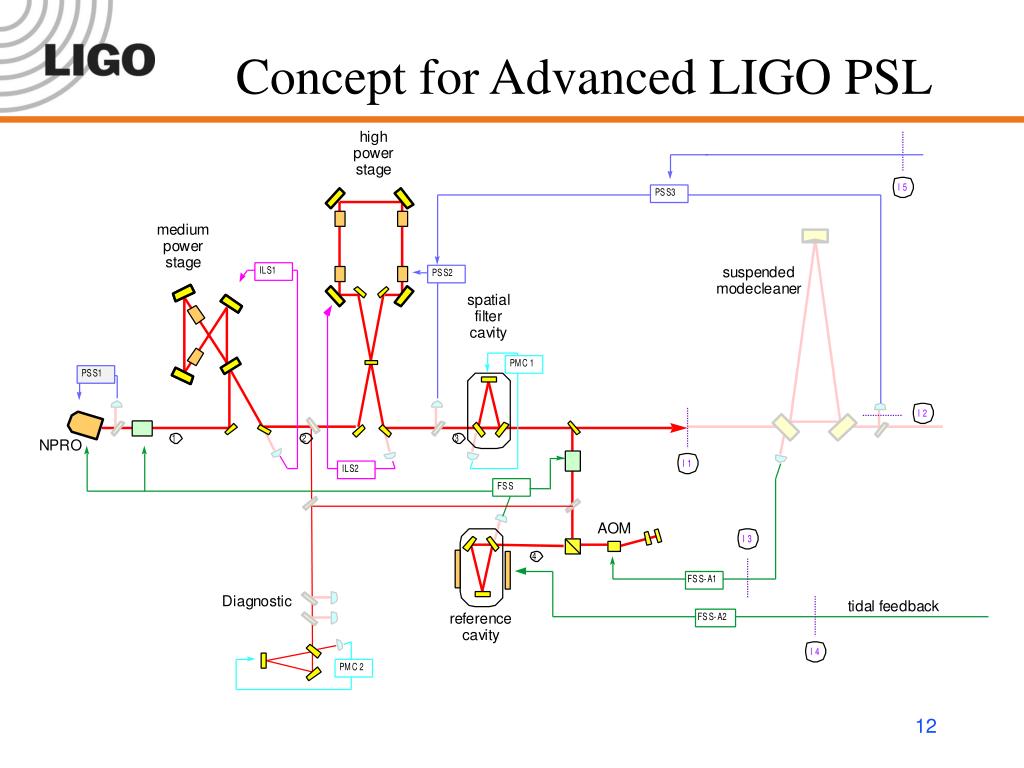

  12. Concept for Advanced LIGO PSL

  13. Core Optics – Test Masses • Low-absorption fused silica substrates • 25 cm dia. x 10 cm thick, 10 kg • Low-loss ion beam coatings • Suspended from single loop of music wire (0.3 mm) • Rare-earth magnets glued to face and side for orientation actuation • Internal mode Qs > 2e6

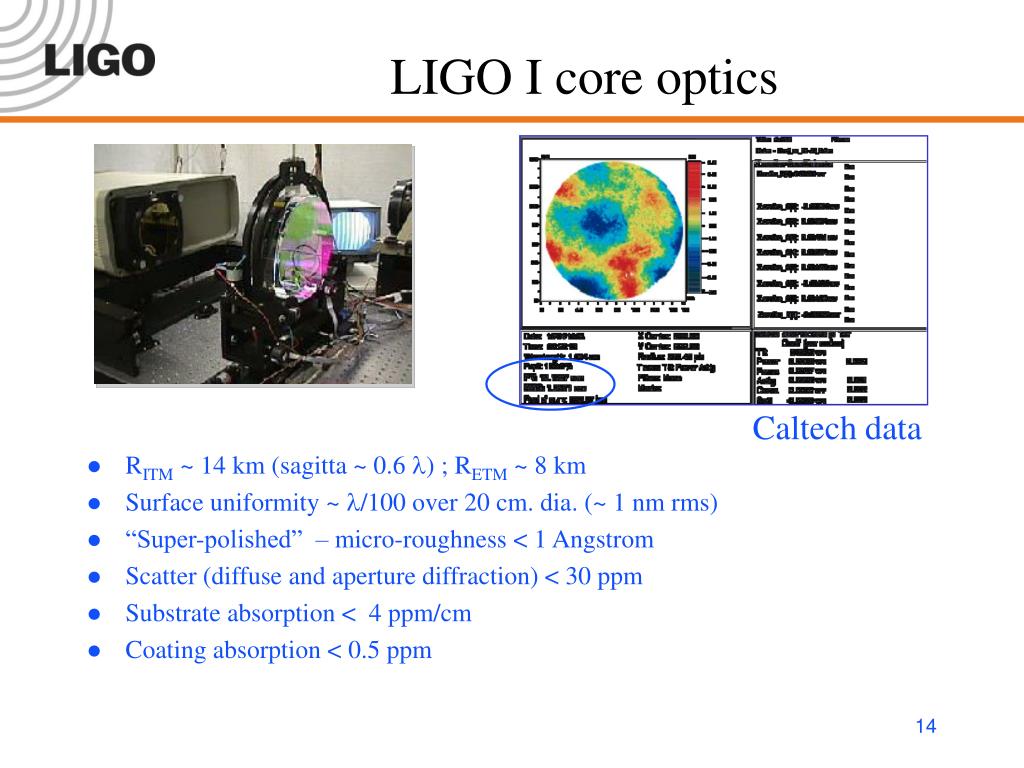

  14. RITM ~ 14 km (sagitta ~ 0.6 l) ; RETM ~ 8 km Surface uniformity ~ l/100 over 20 cm. dia. (~ 1 nm rms) “Super-polished” – micro-roughness < 1 Angstrom Scatter (diffuse and aperture diffraction) < 30 ppm Substrate absorption < 4 ppm/cm Coating absorption < 0.5 ppm LIGO I core optics Caltech data

  15. Adv. LIGO Core Optics • LIGO recently chose fused silica over sapphire • Familiarity and experience with polishing, coating, suspending, thermally compensating, etc. – less perceived risk • Other projects (e.g. LCGT) still pursuing sapphire test masses • Thermal noise in coatings expected to be greatest challenge fused silica sapphire 38 cm dia., 15.4 cm thick, 38 kg

  16. Processing, Installation and Alignment Experience indicatesthat processing andhandling may besource of optical loss gluingvacuum baking wet cleaning suspendingbalancing transporting

  17. Circulating power in arm cavities ~ 25 kW for initial LIGO ~ 600 kW for adv. LIGO Substrate bulk absorption ~ 4 ppm/cm for initial LIGO ~ 0.5 ppm/cm ($) for adv. LIGO Coating absorption ~ 0.5 ppm for initial & adv. LIGO Thermo-optic coefficient dn/dT ~ 8.7 ppm/degK Thermal expansion coefficient 0.55 ppm/degK “Cold” radius of curvature of optics adjusted for expected “hot” state Thermal Issues Surface absorption depth radius Bulk absorption

  18. ITM Compensation Plates PRM ITM SRM ? Thermal compensation system CO2 Laser ZnSe Viewport ITM Over-heat Correction Under-heat Correction Inhomogeneous Correction Adv. LIGOconcept

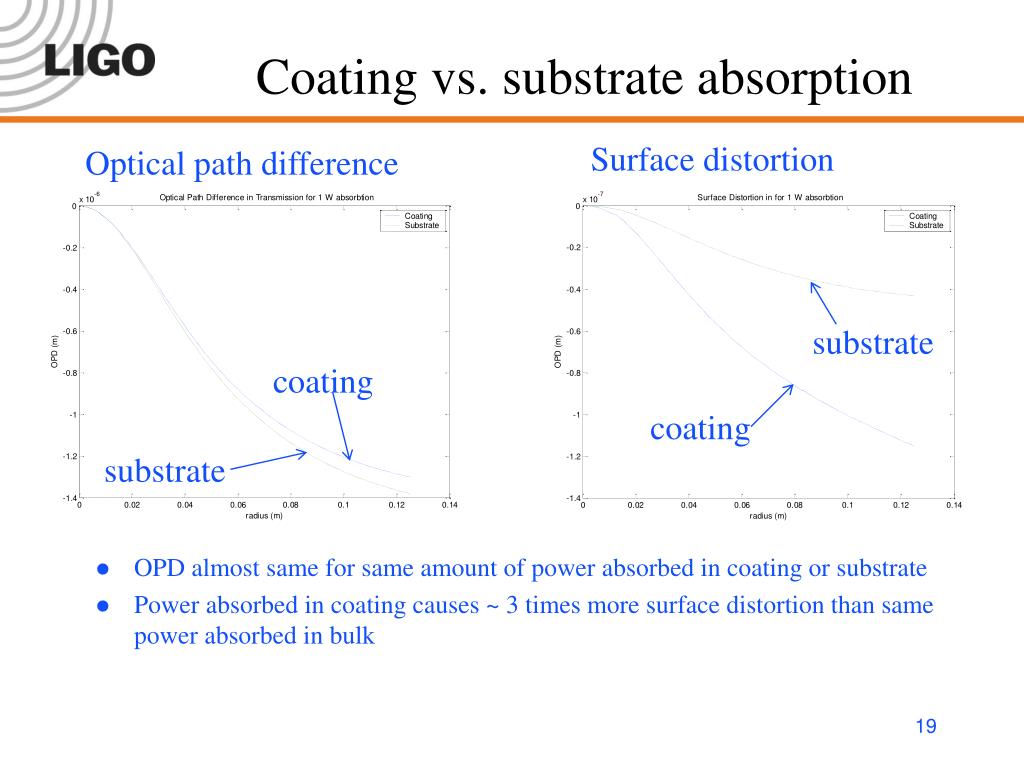

  19. Coating vs. substrate absorption Surface distortion Optical path difference substrate coating coating substrate • OPD almost same for same amount of power absorbed in coating or substrate • Power absorbed in coating causes ~ 3 times more surface distortion than same power absorbed in bulk

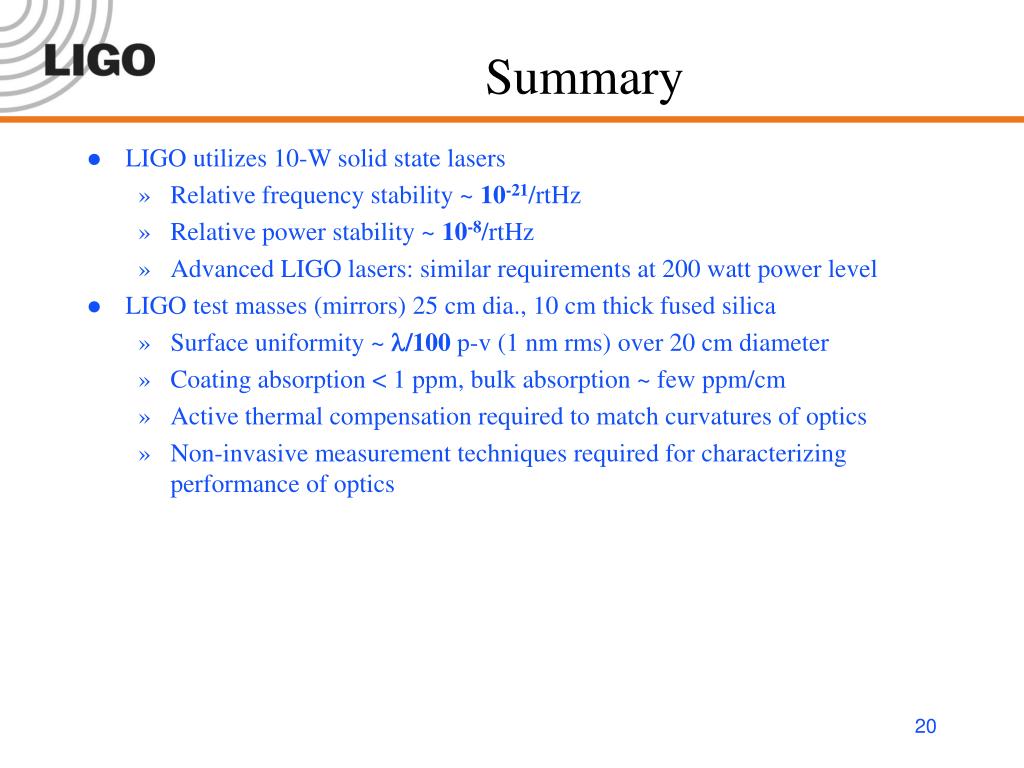

  20. Summary • LIGO utilizes 10-W solid state lasers • Relative frequency stability ~ 10-21/rtHz • Relative power stability ~ 10-8/rtHz • Advanced LIGO lasers: similar requirements at 200 watt power level • LIGO test masses (mirrors) 25 cm dia., 10 cm thick fused silica • Surface uniformity ~ l/100 p-v (1 nm rms) over 20 cm diameter • Coating absorption < 1 ppm, bulk absorption ~ few ppm/cm • Active thermal compensation required to match curvatures of optics • Non-invasive measurement techniques required for characterizing performance of optics

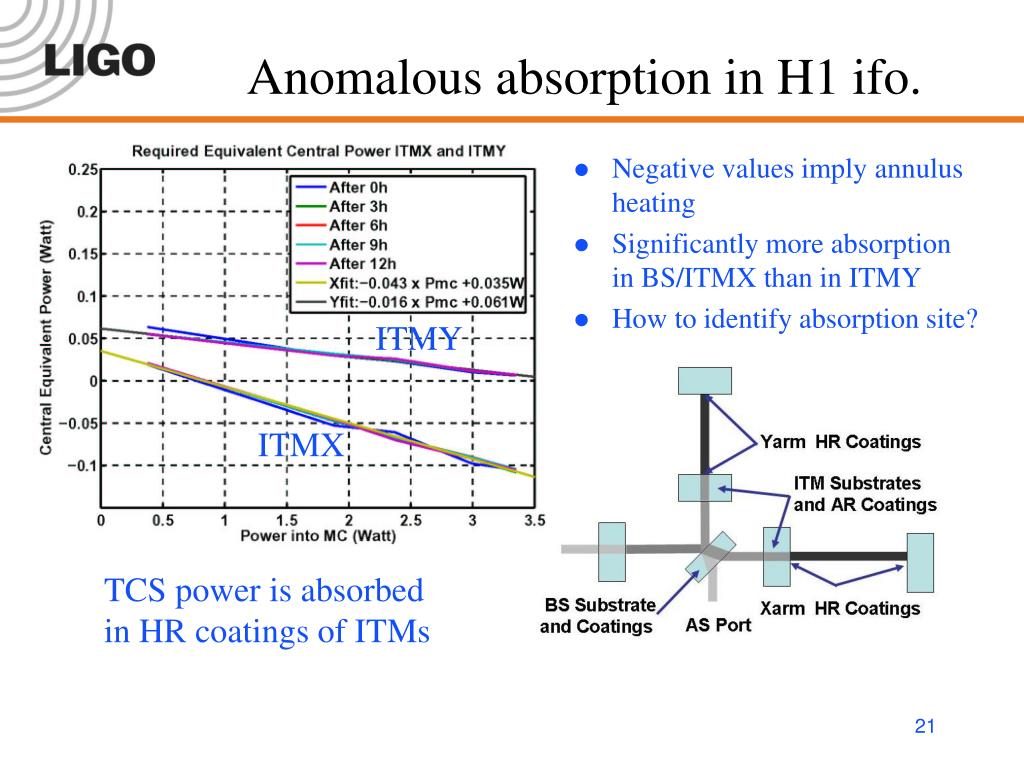

  21. ITMY ITMX Anomalous absorption in H1 ifo. • Negative values imply annulusheating • Significantly more absorption in BS/ITMX than in ITMY • How to identify absorption site? TCS power is absorbedin HR coatings of ITMs

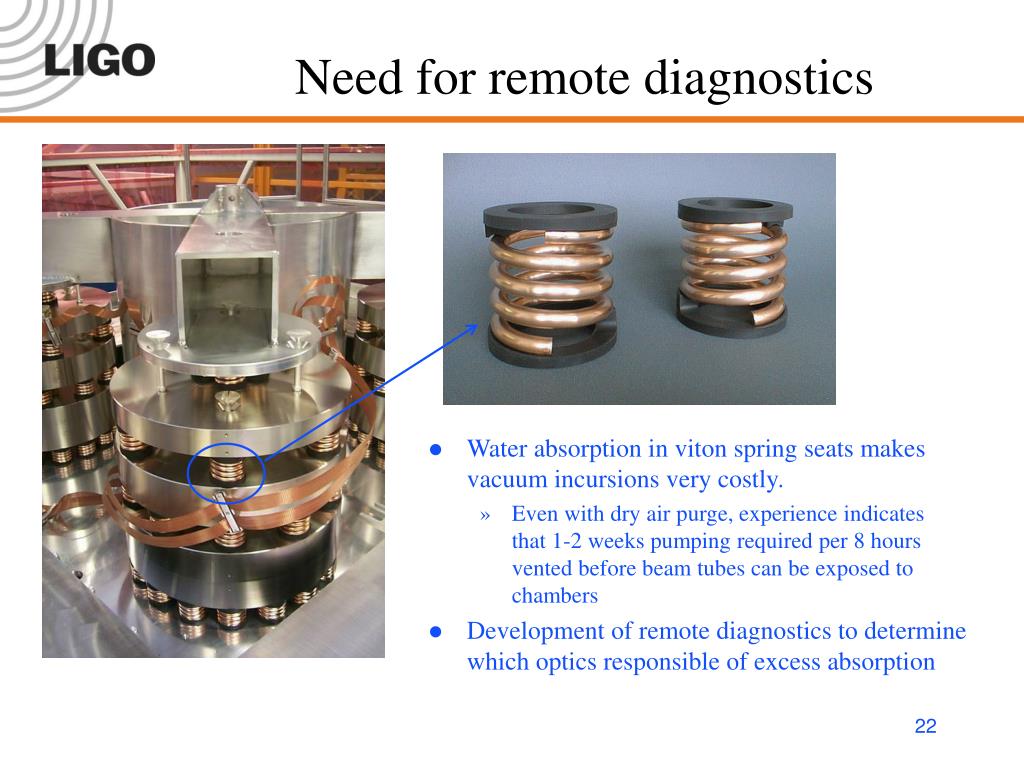

  22. Need for remote diagnostics • Water absorption in viton spring seats makes vacuum incursions very costly. • Even with dry air purge, experience indicatesthat 1-2 weeks pumping required per 8 hours vented before beam tubes can be exposed to chambers • Development of remote diagnostics to determine which optics responsible of excess absorption

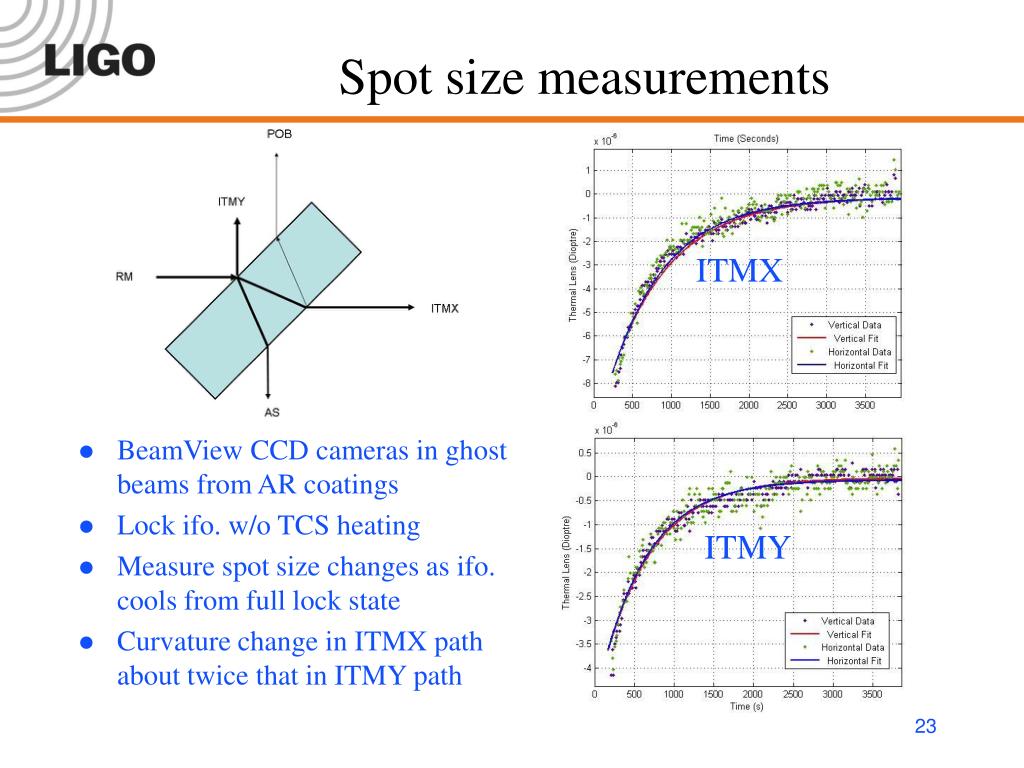

  23. Spot size measurements • BeamView CCD cameras in ghost beams from AR coatings • Lock ifo. w/o TCS heating • Measure spot size changes as ifo. cools from full lock state • Curvature change in ITMX path about twice that in ITMY path ITMX ITMY

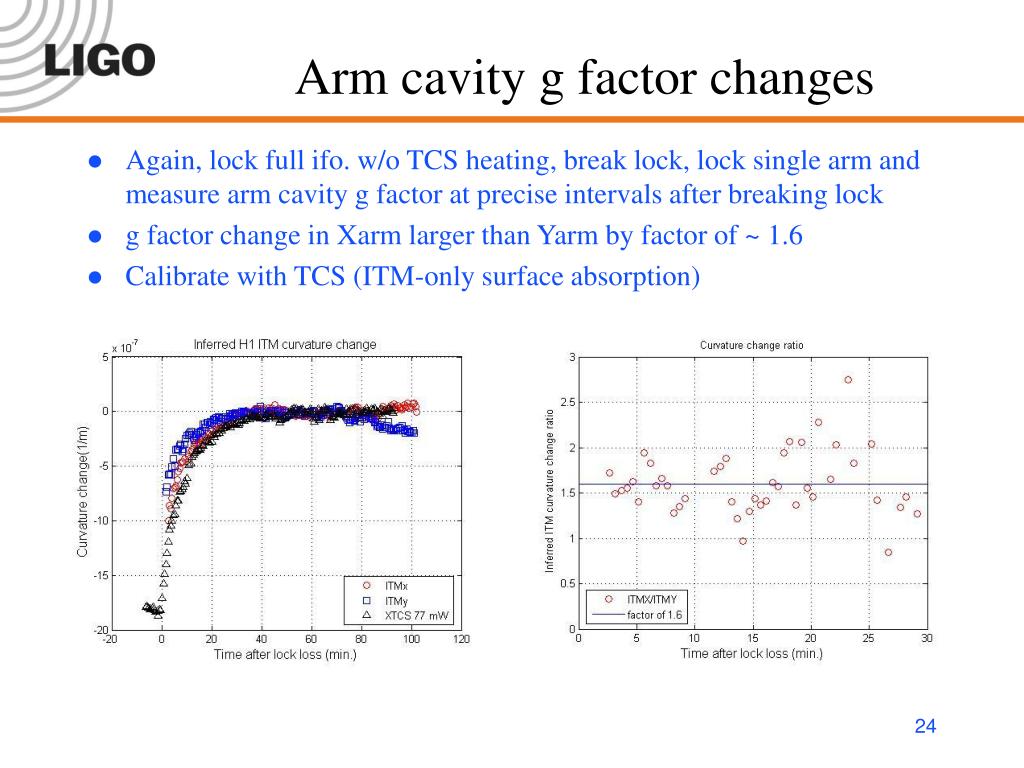

  24. Arm cavity g factor changes • Again, lock full ifo. w/o TCS heating, break lock, lock single arm and measure arm cavity g factor at precise intervals after breaking lock • g factor change in Xarm larger than Yarm by factor of ~ 1.6 • Calibrate with TCS (ITM-only surface absorption)

  25. Results and options • Beamsplitter not significant absorber • ITMX is a significant absorber~ 25 mW/watt incident • ITMY absorption also high~ 10 mW/watt incident • Factor of ~5 greater than absorption in H2 or L1 ITMs • Options • Try to clean ITMX in situ • Replace ITMX • Higher power TCS system • 30-watt TCS laser was tested • Eventually ITMX was replaced and ITMY was cleaned in-situ ETM surface ITM surface ITM bulk From analysis by K. Kawabe

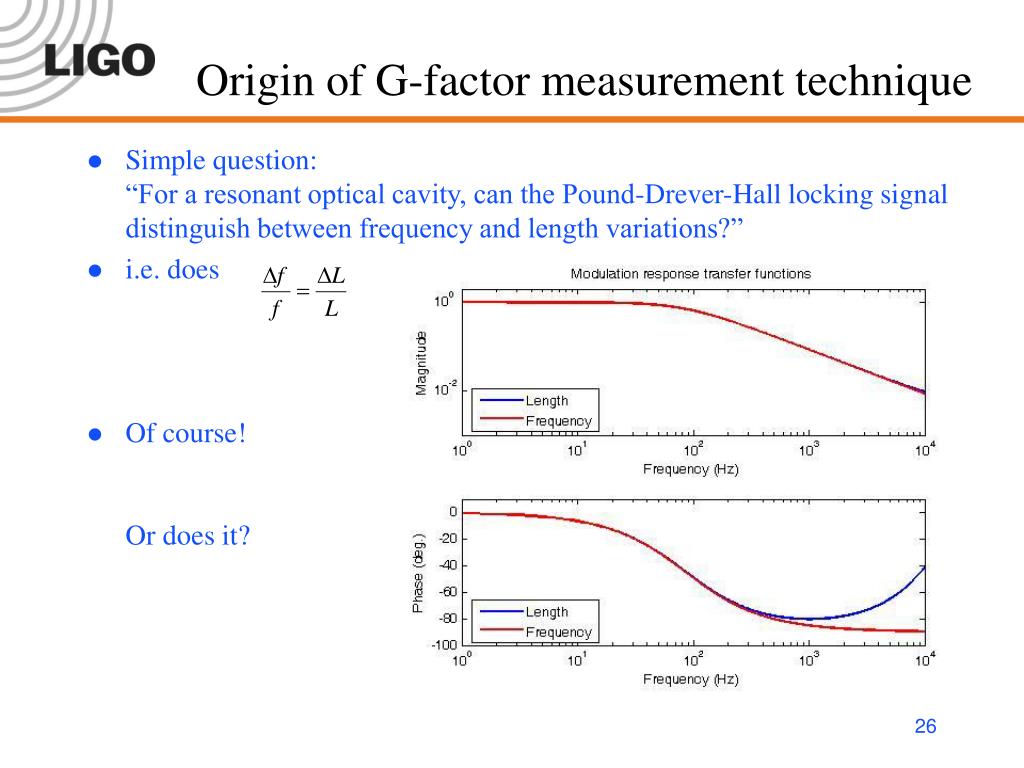

  26. Origin of G-factor measurement technique • Simple question:“For a resonant optical cavity, can the Pound-Drever-Hall locking signal distinguish between frequency and length variations?” • i.e. does • Of course!Or does it?

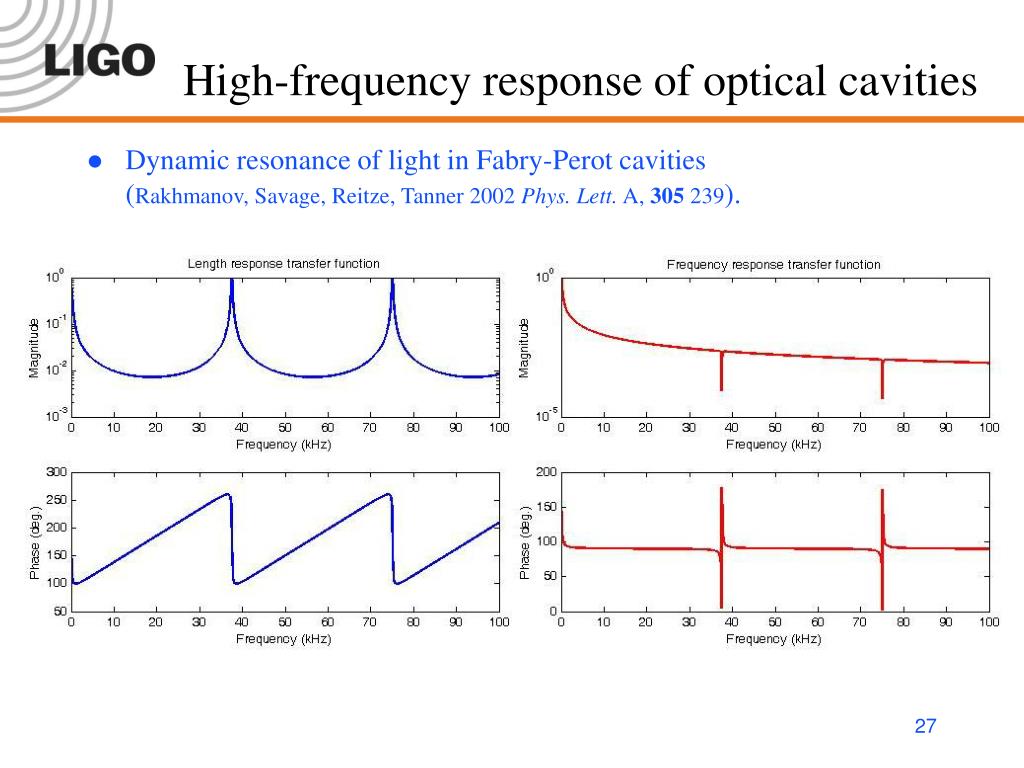

  27. High-frequency response of optical cavities • Dynamic resonance of light in Fabry-Perot cavities(Rakhmanov, Savage, Reitze, Tanner 2002 Phys. Lett. A, 305 239).

  28. LIGO band 1FSR 2FSR High frequency length response • Peaks in length response at multiples of FSR suggest searches for GWs at high frequencies. • HF response to GWs different than length response • Different antenna pattern, but still enhancement in sensitivity

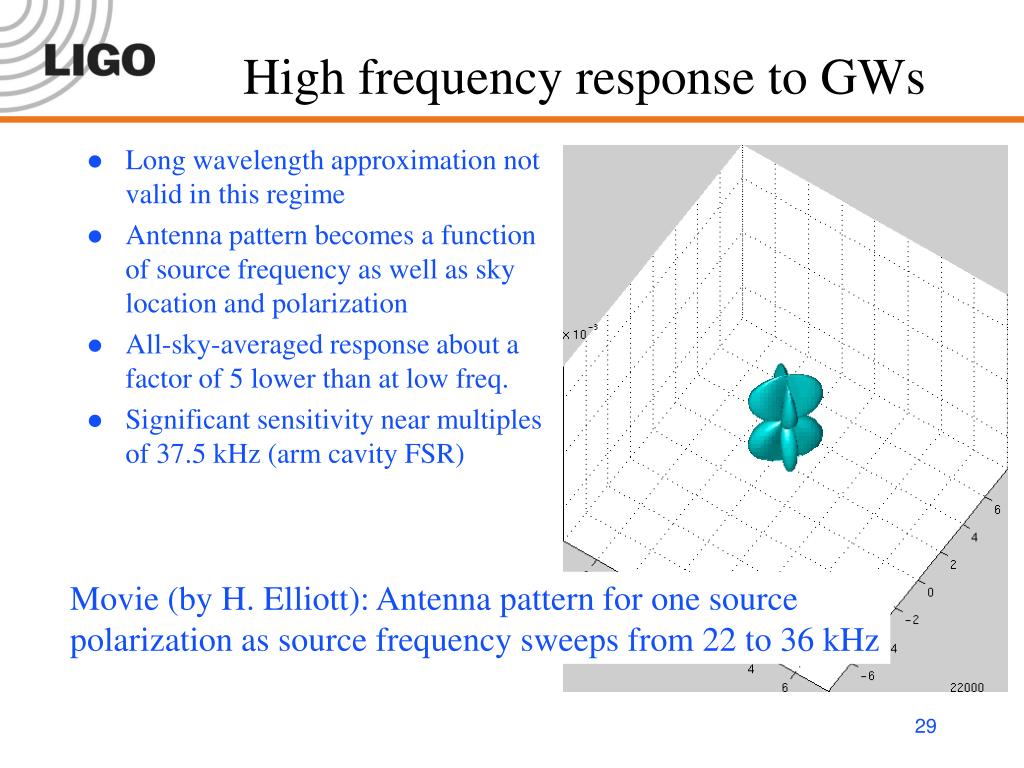

  29. High frequency response to GWs • Long wavelength approximation not valid in this regime • Antenna pattern becomes a function of source frequency as well as sky location and polarization • All-sky-averaged response about a factor of 5 lower than at low freq. • Significant sensitivity near multiples of 37.5 kHz (arm cavity FSR) Movie (by H. Elliott): Antenna pattern for one sourcepolarization as source frequency sweeps from 22 to 36 kHz

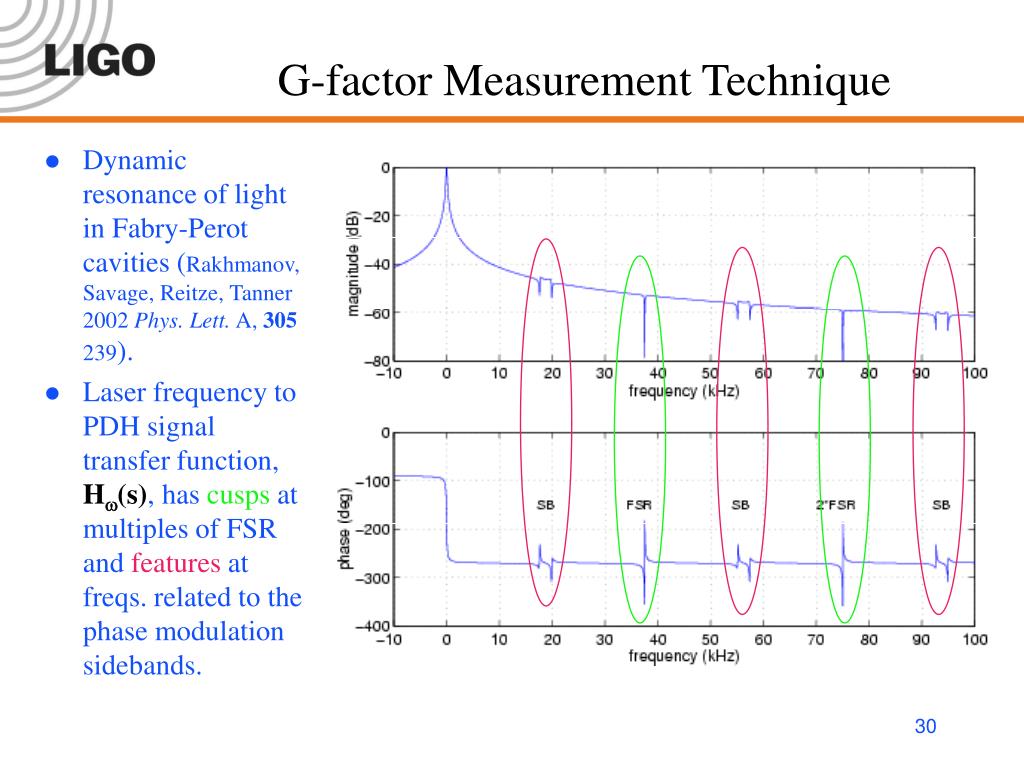

  30. G-factor Measurement Technique • Dynamic resonance of light in Fabry-Perot cavities (Rakhmanov, Savage, Reitze, Tanner 2002 Phys. Lett. A, 305 239). • Laser frequency to PDH signal transfer function, Hw(s), has cusps at multiples of FSR and features at freqs. related to the phase modulation sidebands.

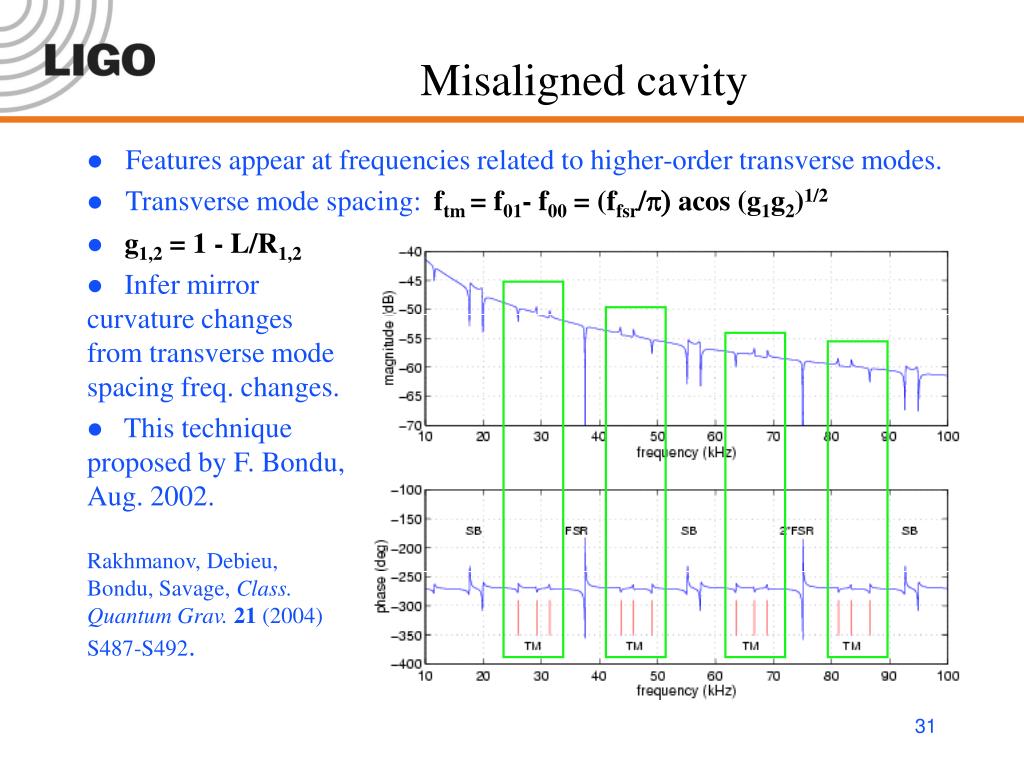

  31. Misaligned cavity • Features appear at frequencies related to higher-order transverse modes. • Transverse mode spacing:ftm = f01- f00 = (ffsr/p) acos (g1g2)1/2 • g1,2 = 1 - L/R1,2 • Infer mirror curvature changes from transverse mode spacing freq. changes. • This technique proposed by F. Bondu, Aug. 2002.Rakhmanov, Debieu, Bondu, Savage, Class. Quantum Grav.21 (2004) S487-S492.

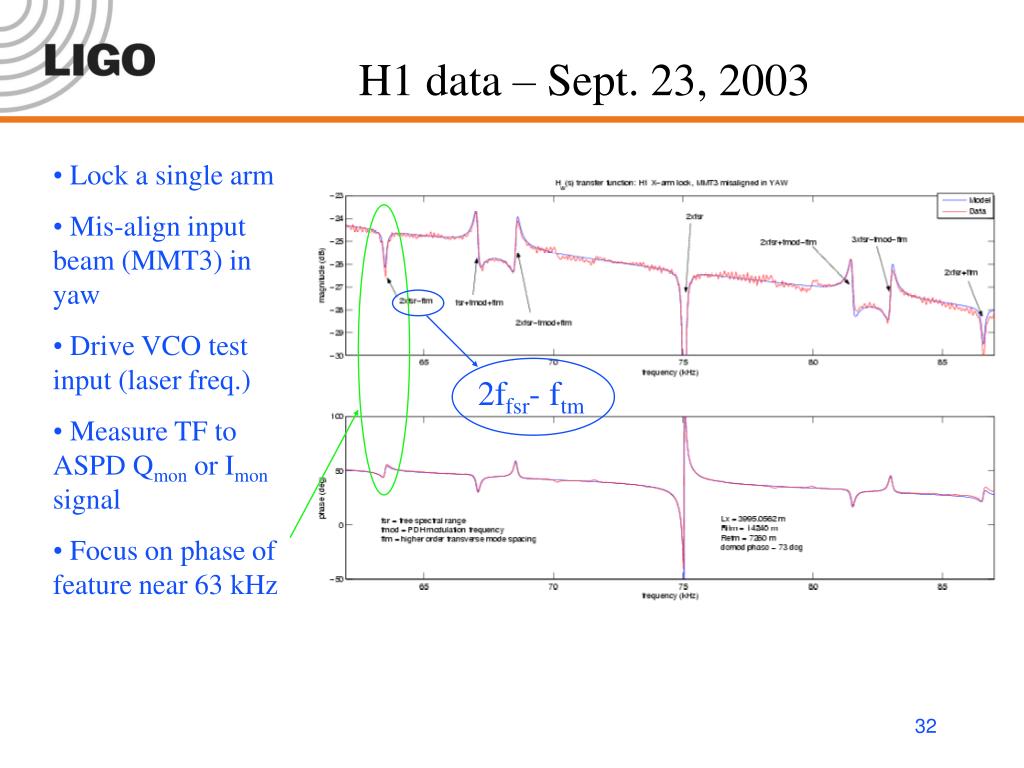

  32. H1 data – Sept. 23, 2003 • Lock a single arm • Mis-align input beam (MMT3) in yaw • Drive VCO test input (laser freq.) • Measure TF to ASPD Qmon or Imon signal • Focus on phase of feature near 63 kHz 2ffsr- ftm

  33. Data and (lsqcurvefit) fits. ITMx TCS annulus heating  decrease in ROC (increase in curvature) R = 14337 m R = 14096 m Assume metrology value for RETMx = 7260 m Metrology value for ITMx = 14240 m
