  1. The Milling Machine • Types • Parts • Cutters • Arbors • Health and safety issues • BS4163 • COSHH recommendations

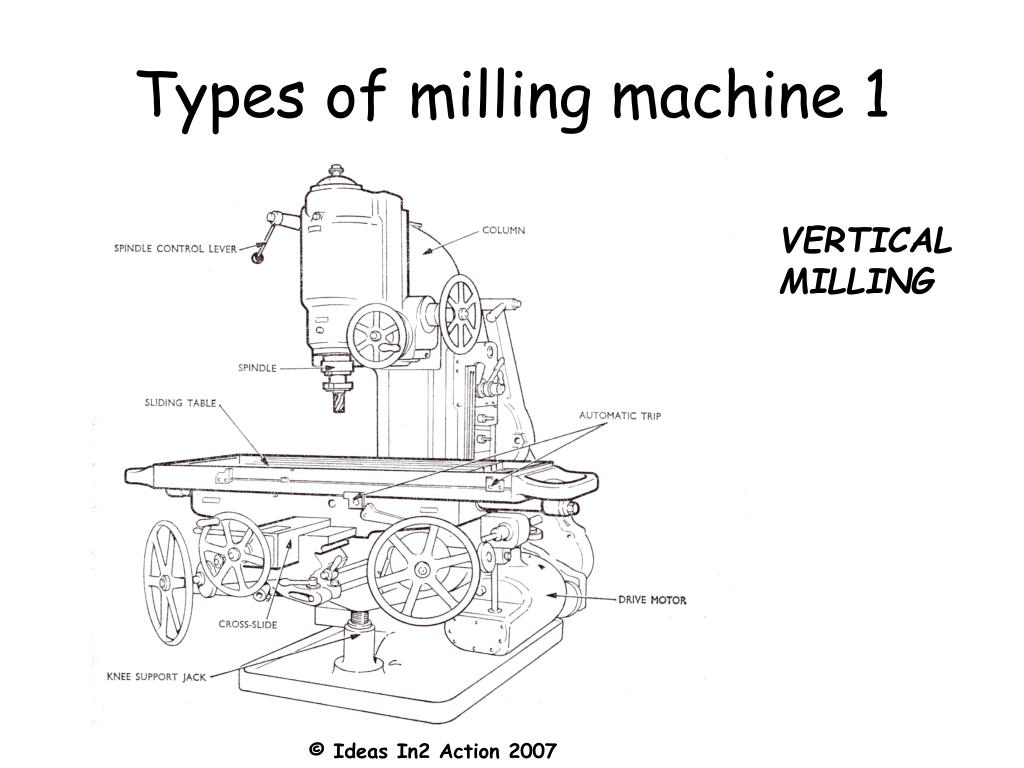

  2. Types of milling machine 1 • VERTICAL MILLING

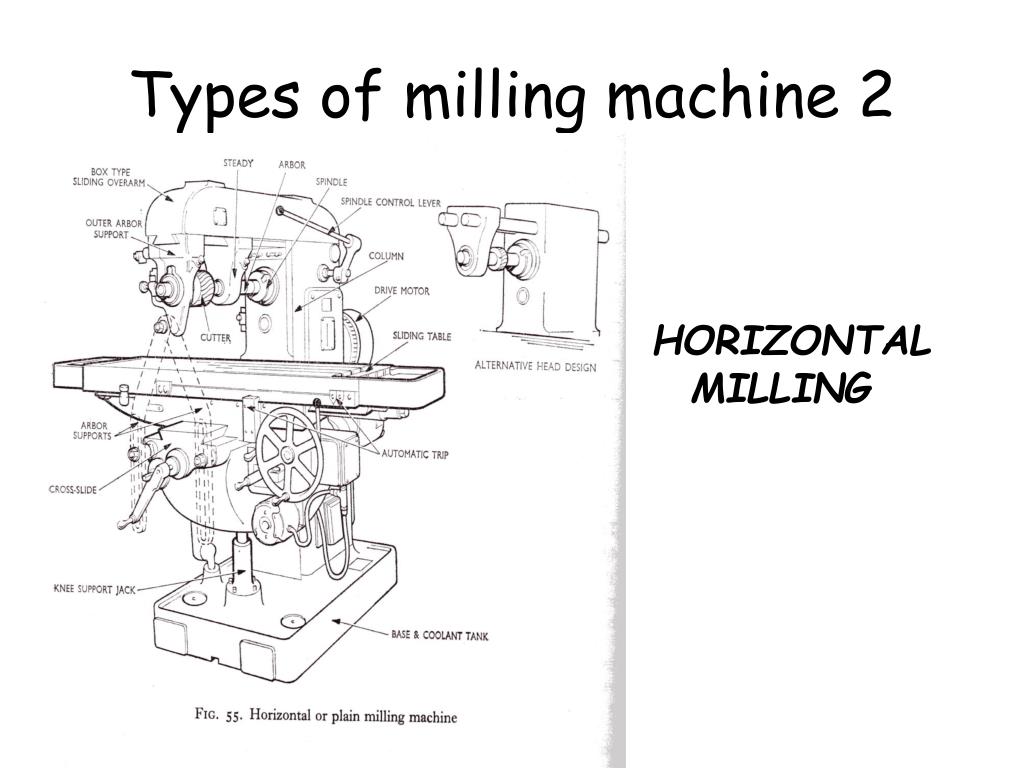

  3. Types of milling machine 2 HORIZONTAL MILLING

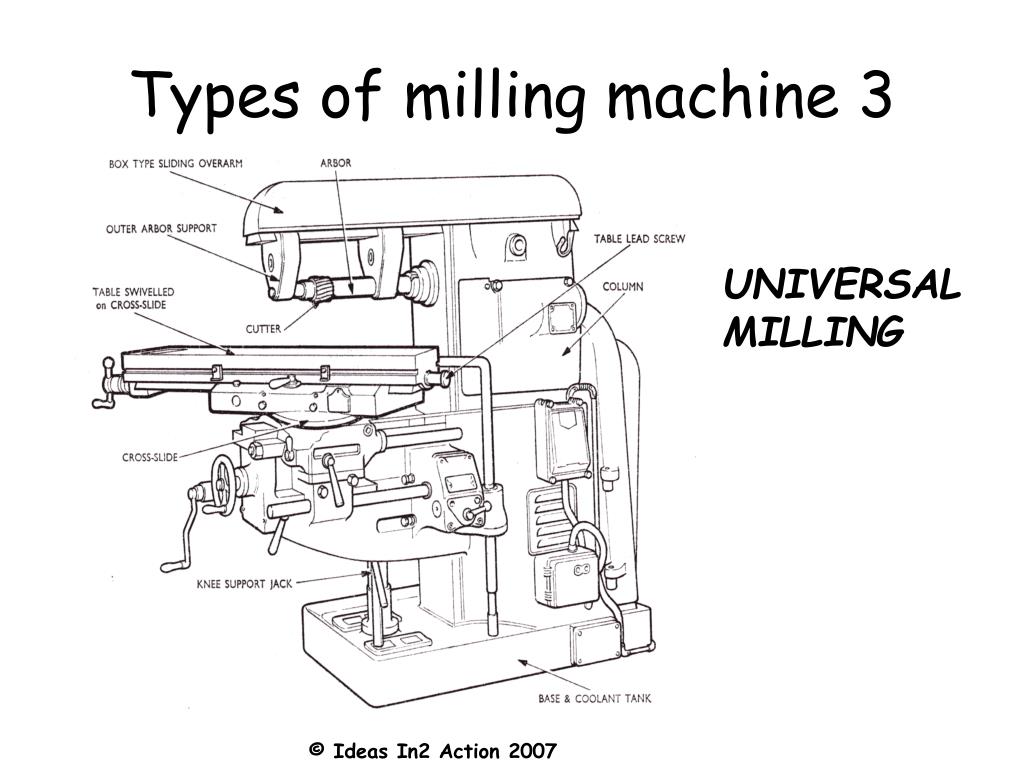

  4. Types of milling machine 3 • UNIVERSAL MILLING

  5. Different arbors • Horizontal arbor • Collet chuck arbor • Stub arbor

  6. Different milling cutters

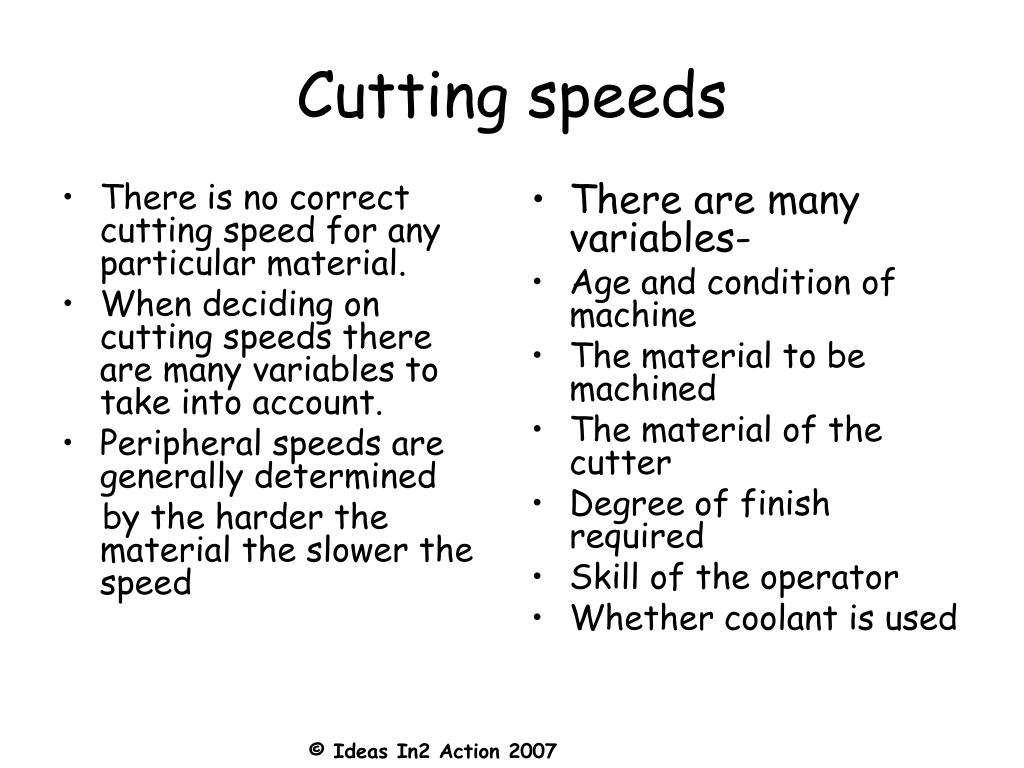

  7. There is no correct cutting speed for any particular material. When deciding on cutting speeds there are many variables to take into account. Peripheral speeds are generally determined by the harder the material the slower the speed There are many variables- Age and condition of machine The material to be machined The material of the cutter Degree of finish required Skill of the operator Whether coolant is used Cutting speeds

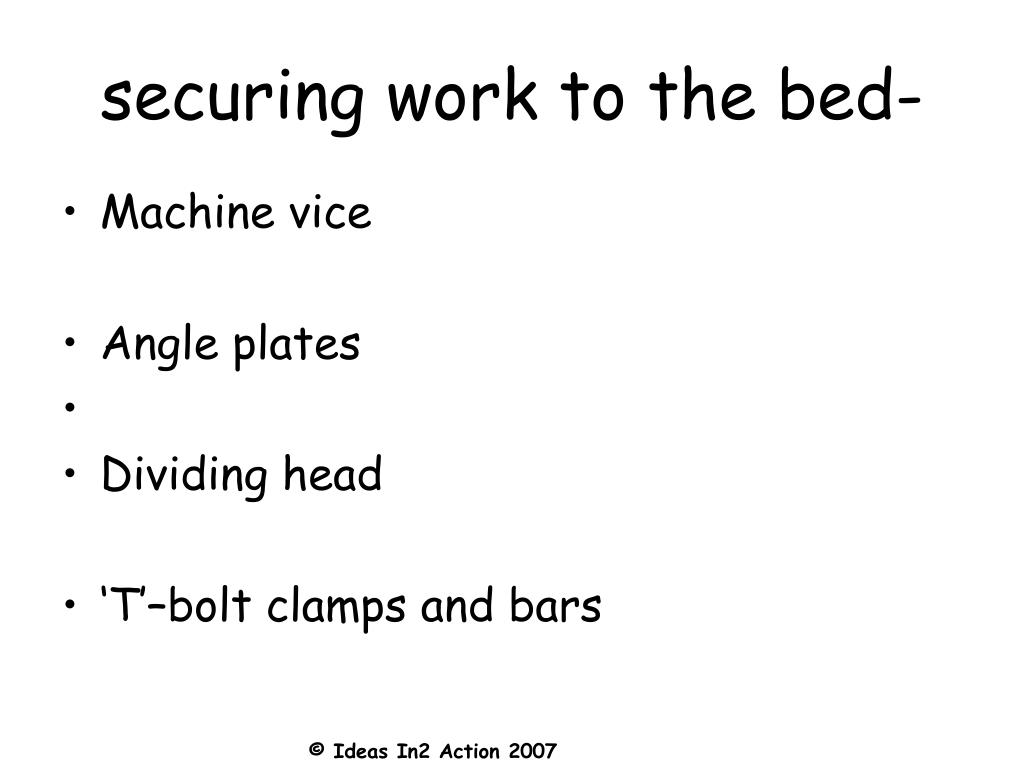

  8. securing work to the bed- • Machine vice • Angle plates • Dividing head • ‘T’–bolt clamps and bars

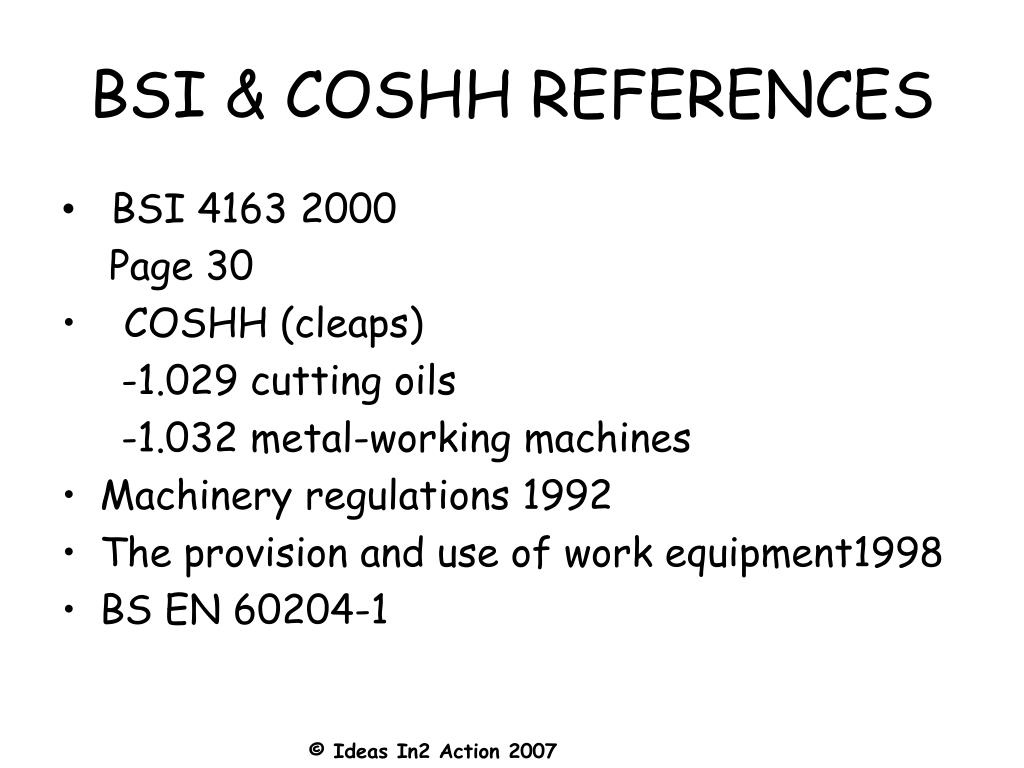

  9. BSI & COSHH REFERENCES • BSI 4163 2000 Page 30 • COSHH (cleaps) -1.029 cutting oils -1.032 metal-working machines • Machinery regulations 1992 • The provision and use of work equipment1998 • BS EN 60204-1
