CS 501: Software Engineering

1. CS 501: Software Engineering Lecture 8 Requirements I

2. Administration

3. Project Presentations Requirements Requirements Analysis System design Design Program design Implementation Coding Unit & Integration Testing System Testing Acceptance Testing Operation & Maintenance

4. Feedback in the Waterfall Model Requirements Analysis System design Program design Coding Unit & Integration Testing System Testing Acceptance Testing Operation & Maintenance

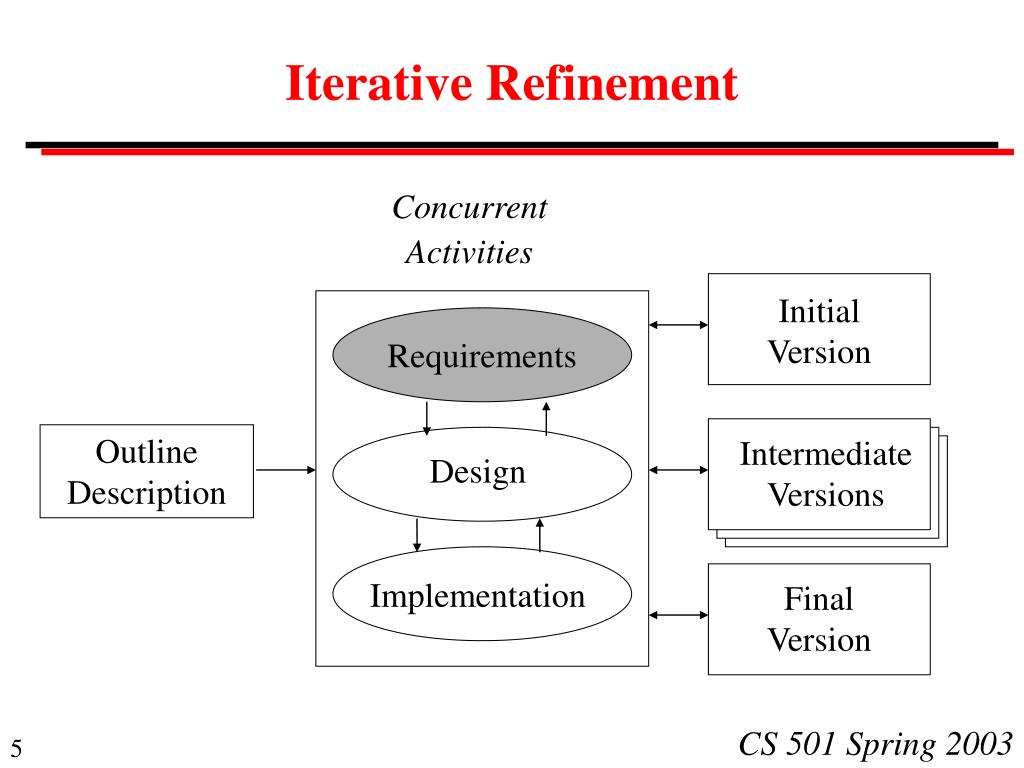

5. Iterative Refinement Concurrent Activities Initial Version Requirements Outline Description Intermediate Versions Design Implementation Final Version

6. From an Old Exam Question A computing system is likely to need some sort of database (i) At what stage in the waterfall process, would the decision be made to use a relational database? Give the reasons for your answer. (ii) At what stage in the waterfall process, would the decision be made to use an Oracle database? Give the reasons for your answer. (iii) At what stage in the waterfall process would the database schema be specified? Give the reasons for your answer.

7. From an Old Exam Question (Answer) A requirement is a statement of need as expressed by a client. The client's requirements are that the system collects certain data, saves it, and carries out specified processes, e.g., displaying it, performing calculations, etc. The decision of how to store and manipulate the data (e.g., using the relational database model) is usually not a requirement of the client. It comes later, as part of the design. However. During the feasibility study it is important to know about relational databases, such as Oracle, and to study their capabilities.

8. Why are Requirements Important? Causes of failed software projects (Standish Group study, 1994) Incomplete requirements 13.1% Lack of user involvement 12.4% Lack of resources 10.6% Unrealistic expectations 9.9% Lack of executive support 9.3% Changing requirements & specifications 8.8% Lack of planning 8.1% System no longer needed 7.5% The commonest mistake is to build the wrong system!

9. Evolution of Requirements • If the requirements definition is wrong, the system will be a failure. • With complex systems, understanding of requirements always continues to improve. Therefore... • The requirements definition must evolve. • Its documentation must be kept current (but clearly identify versions).

10. Goals During the Requirements Phase • Understand the requirements in detail (analysis) • Describe the requirements in a manner that is clear to the client • Ensure that the client understands the description of the requirements and their implications • Describe the requirements in a manner that is clear to the people who will design and implement the system

11. Requirements Analysis Requirements Specification Requirements Definition The Requirements Process Feasibility Study Feasibility Report System Models Definition of Requirements Specification of Requirements Requirements Document

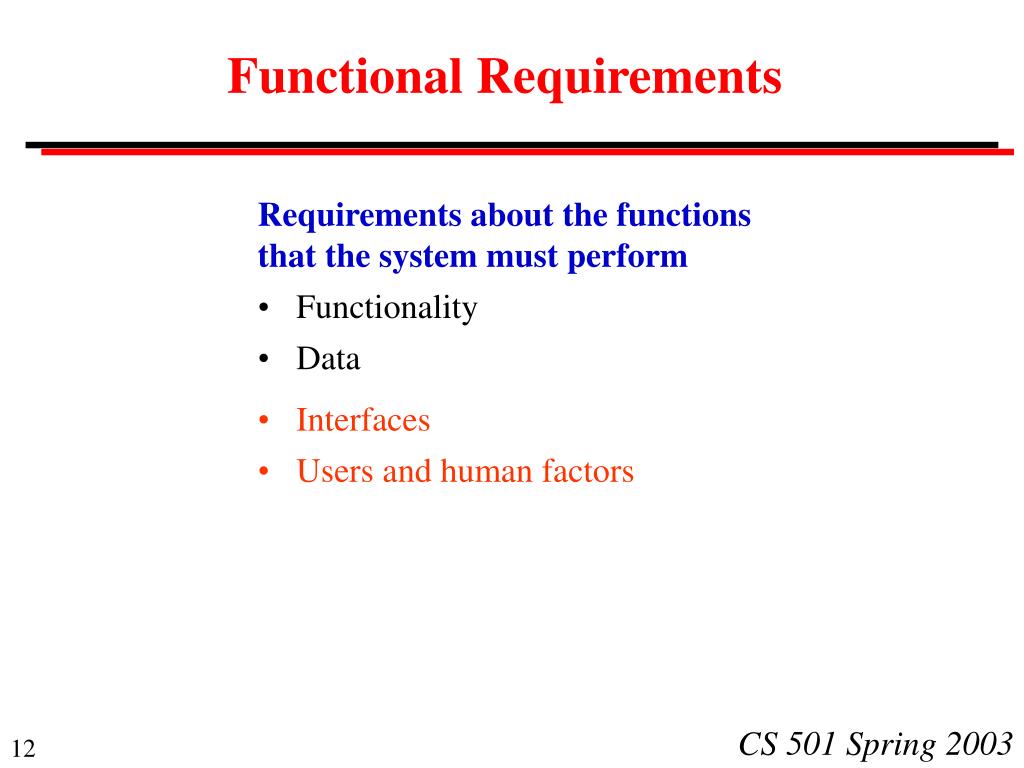

12. Functional Requirements • Requirements about the functions • that the system must perform • Functionality • Data • Interfaces • Users and human factors

13. Example of Functional Requirements Library of Congress Repository • Support for complex digital objects. (How many? What size?) • Access management. (What users? What objects? Policies?) • Identification. (Which identification system?) • Information hiding. (Where are the interfaces?) • Open protocols and formats. (How are these chosen?) • Integration with existing systems (What legacy systems must be accommodated?).

14. DRAFT OVERVIEW OF ITS SUPPORT FOR NDLP PRODUCTION AND DELIVERY OF AMERICAN MEMORY NDLP collections already released Coolidge collection (for repository test) NDLP collections in conversion Future NDLP collections Other applications and materials NDLP Workflow Tracking Support Current Storage Structure (in Unix files, by aggregate) Object Administration System ILS Repository Index Generation (including pre-processing) American Memory User Interface (retrieval, navigation, & display) AM user interface plus access management for objects/collections Other User Interfaces (e.g. RLG, OCLC, DLF partners) ILS OPAC Interface Supporting infrastructure Handle assignment & registration Handle resolution Handle-server NOW FUTURE

15. Non-Functional Requirements • Requirements about the context in • which the system is built • Documentation and training • Resources • Security • Physical environment • Quality assurance

16. Examples of Functional and Non-Functional Requirements Privacy (Mercury digital library) Functional requirement: Usage data for management of system Non-functional requirement: Usage data must not identify individuals Minimizing records (NeXT) Functional requirement: Retain all required records Non-functional requirement: Discard all other records

17. Non-Functional Requirements Product requirements performance, reliability, portability, etc... Organizational requirements delivery, training, standards, etc... External requirements legal, interoperability, etc... Marketing and public relations Example: In the NSDL, the NSF wanted a system that could be demonstrated by the end of 2002

18. Example of Non-Functional Requirements • Example: Library of Congress Repository • Hardware and software systems (IBM/Unix) • Database systems (Oracle) • Programming languages (C and C++) • Regulations covering government contracting • Importance of developing a system that will be respected by other major libraries

19. Unspoken Requirements • Example: • Resistance to change • Departmental friction • Management strengths and weaknesses

20. Requirements Analysis and Definition High-level abstract description of requirements: • Specifies external system behavior • Comprehensible by customer, management and users Should reflect accurately what the customer wants: • Services that the system will provide • Constraints under which it will operate Described in a Requirements Document that can be understood by the client.

21. Requirements Analysis 1. Identify the stakeholders: • Who is affected by this system? Client Senior management Production staff Computing staff Customers etc., etc., etc., Example: Andrew project (Carnegie Mellon and IBM?) • Who can disrupt this project?

22. Requirements Analysis 2. Understand the requirements in depth: • Domain understanding Examples: Philips light bulbs • Understanding of the real requirements of all stakeholders

23. Interviews with Clients Client interviews are the heart of requirements analysis and definition. Allow plenty of time. Clients may have only a vague concept of requirements. • Prepare before you meet with them • Keep full notes • If you don't understand, delve further • Repeat what you hear • Small group meetings are often most effective Clients often confuse the current system with the underlying requirement.

24. Viewpoint Analysis Example: University Admissions System • Applicants • University administration Admissions office Financial aid office Special offices (e.g., athletics, development) • Computing staff Operations Software development and maintenance • Academic departments

25. Requirements Analysis 3. Organize the requirements: • Classification into coherent clusters (e.g., legal requirements) • Recognize and resolve conflicts (e.g., functionality v. cost v. timeliness) Example: Dartmouth general ledger system
