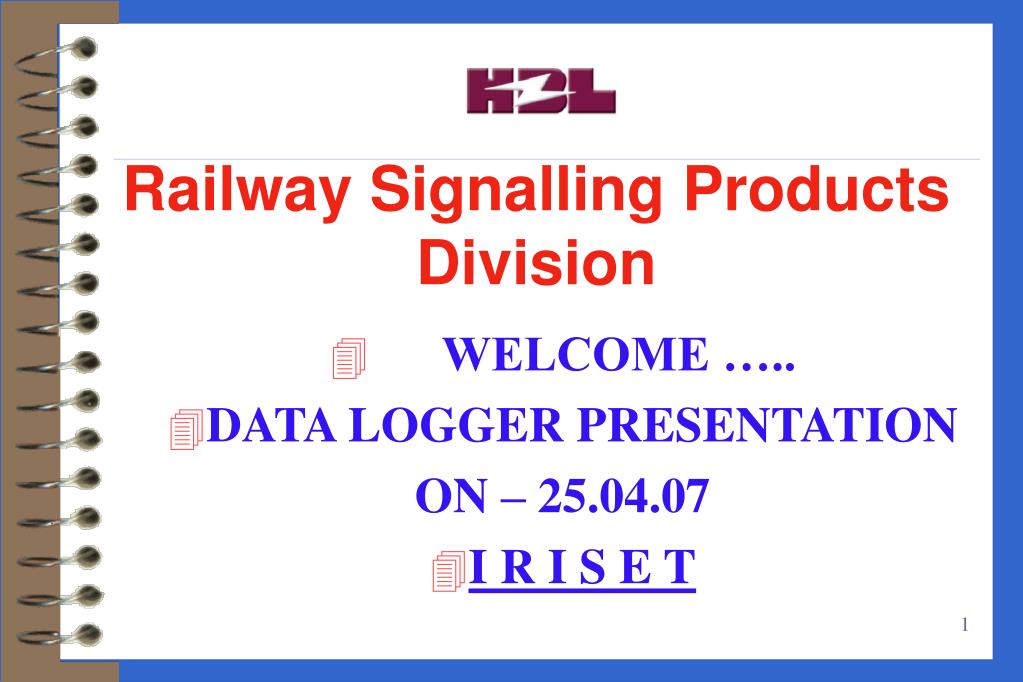

1. Railway Signalling Products Division • WELCOME ….. • DATA LOGGER PRESENTATION ON – 25.04.07 • I R I S E T

2. DATA LOGGERS MODES DATA LOGGERS ARE USED IN TWO DIFFERENT MODES: • AS STAND ALONE UNITS MOSTLY IN LARGE SIGNALLING INSTALLATIONS. • AS NETWORKED SYSTEMS WITH A CENTRAL MONITORING AND CONTROL FACILITY AT THE HEAD QUARTERS WITH MULTIPLE ACCESS AS DESIRED. IN BOTH CASES, EACH DATALOGGING EQUIPMENT CALLED YARD MASTER IS PROVIDED WITH A FAULT ANALYSIS APPLICATION SOFTWARE IN A MONITORING P.C. CALLED YARD VIEWER.

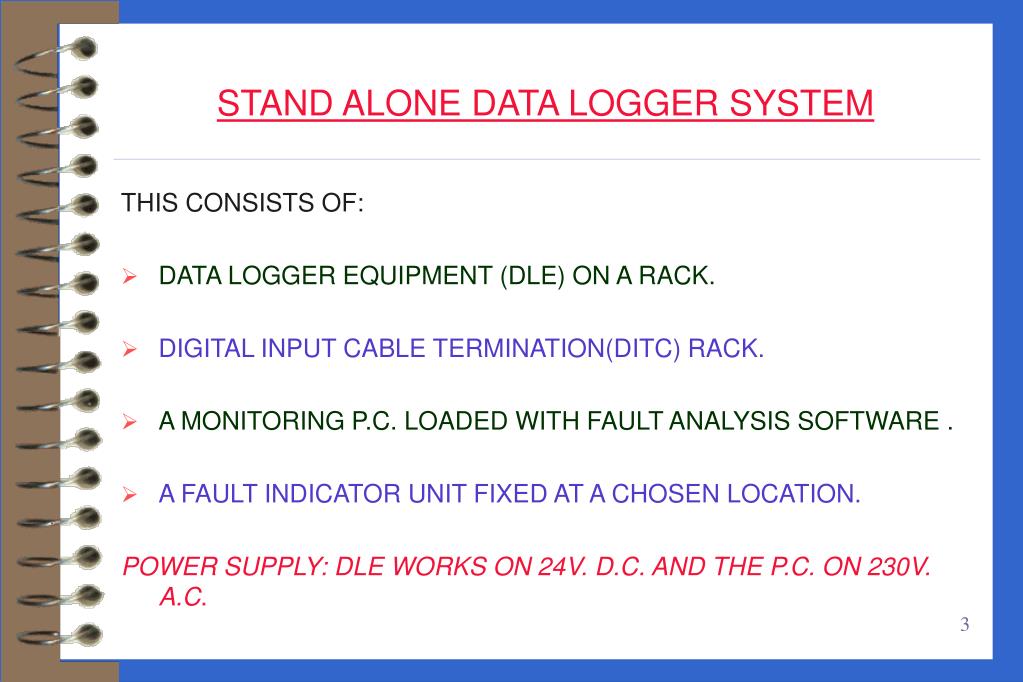

3. STAND ALONE DATA LOGGER SYSTEM THIS CONSISTS OF: • DATA LOGGER EQUIPMENT (DLE) ON A RACK. • DIGITAL INPUT CABLE TERMINATION(DITC) RACK. • A MONITORING P.C. LOADED WITH FAULT ANALYSIS SOFTWARE . • A FAULT INDICATOR UNIT FIXED AT A CHOSEN LOCATION. POWER SUPPLY: DLE WORKS ON 24V. D.C. AND THE P.C. ON 230V. A.C.

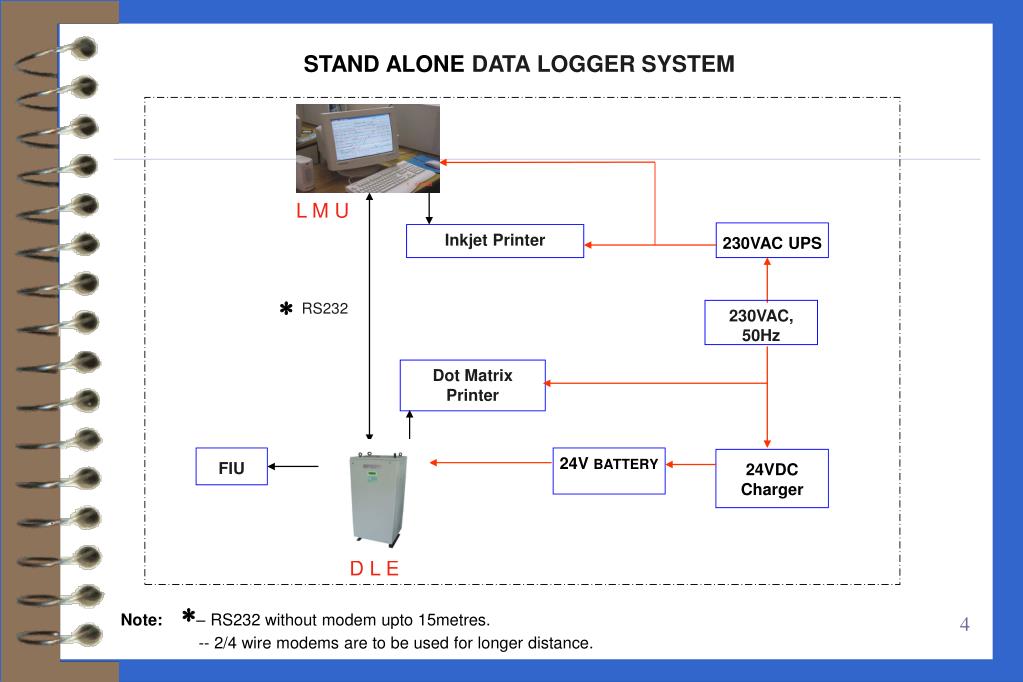

4. STAND ALONE DATA LOGGER SYSTEM Inkjet Printer 230VAC UPS L M U Note:– RS232 without modem upto 15metres. -- 2/4 wire modems are to be used for longer distance. 230VAC, 50Hz  RS232 Dot Matrix Printer 24V BATTERY 24VDC Charger FIU D L E

5. DATA LOGGER EQUIPMENT RACK Display Unit DLE Enclosure AI Enclosures Spike Suppressor (For ac modems) Modems

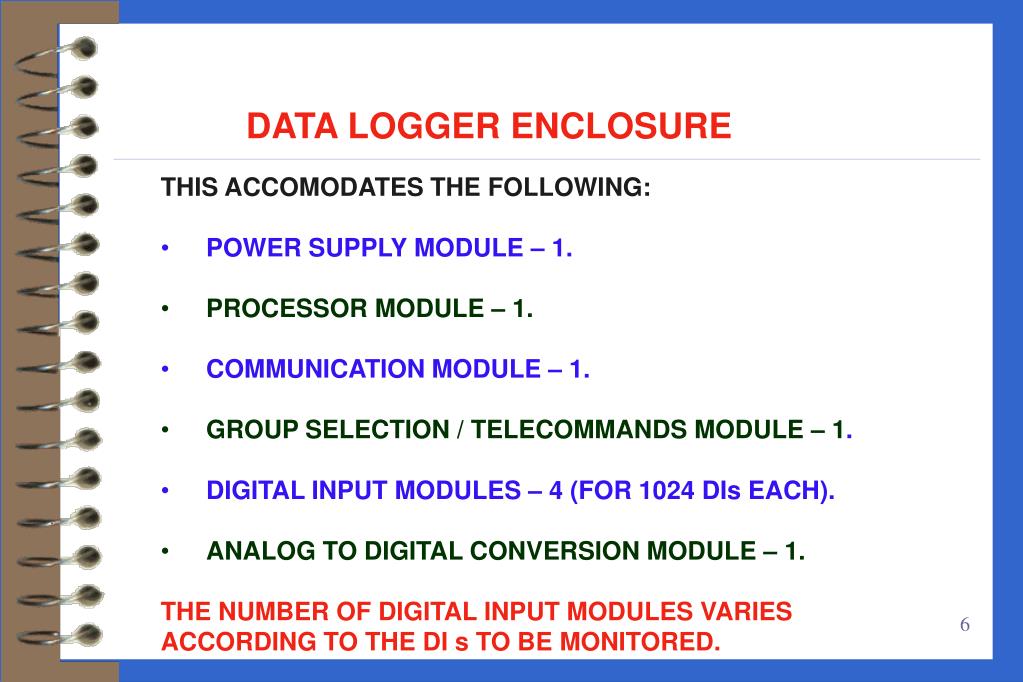

6. DATA LOGGER ENCLOSURE • THIS ACCOMODATES THE FOLLOWING: • POWER SUPPLY MODULE – 1. • PROCESSOR MODULE – 1. • COMMUNICATION MODULE – 1. • GROUP SELECTION / TELECOMMANDS MODULE – 1. • DIGITAL INPUT MODULES – 4 (FOR 1024 DIs EACH). • ANALOG TO DIGITAL CONVERSION MODULE – 1. • THE NUMBER OF DIGITAL INPUT MODULES VARIES • ACCORDING TO THE DI s TO BE MONITORED.

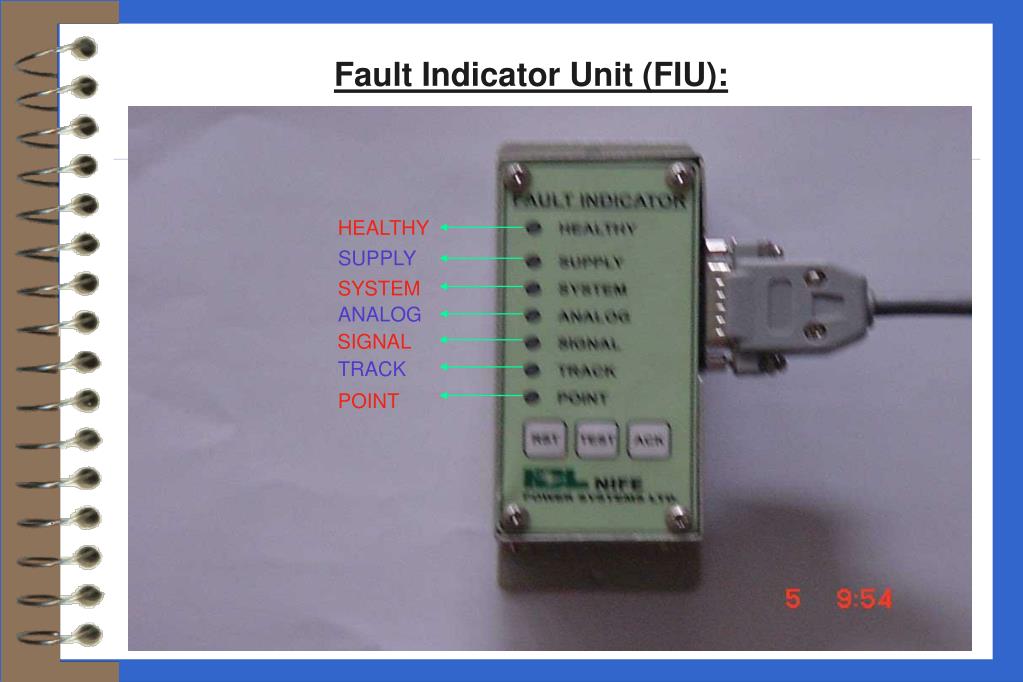

7. Fault Indicator Unit (FIU): HEALTHY SUPPLY SYSTEM ANALOG SIGNAL TRACK POINT

8. DATA LOGGER NETWORK THIS IS MADE UP OF: INDIVIDUAL DATA LOGGER UNITS, ONE AT EACH STATION, INTERCONNECTED THROUGH MODEMS AND LEASED LINES IN A DAISY CHAIN FASHION UP TO 32 NUMBERS. • A NETWORK MANAGER CALLED FRONT END PROCESSOR(FEP) AT THE CENTRAL LOCATION. • A CENTRAL MONITORING UNIT (CMU) AT THE FEP. • A FAULT INDICATOR UNIT(FIU). POWE SUPPLY: DLE AND FEP WORK ON 24V.DC, WHILE CMU WORKS ON 230V AC.

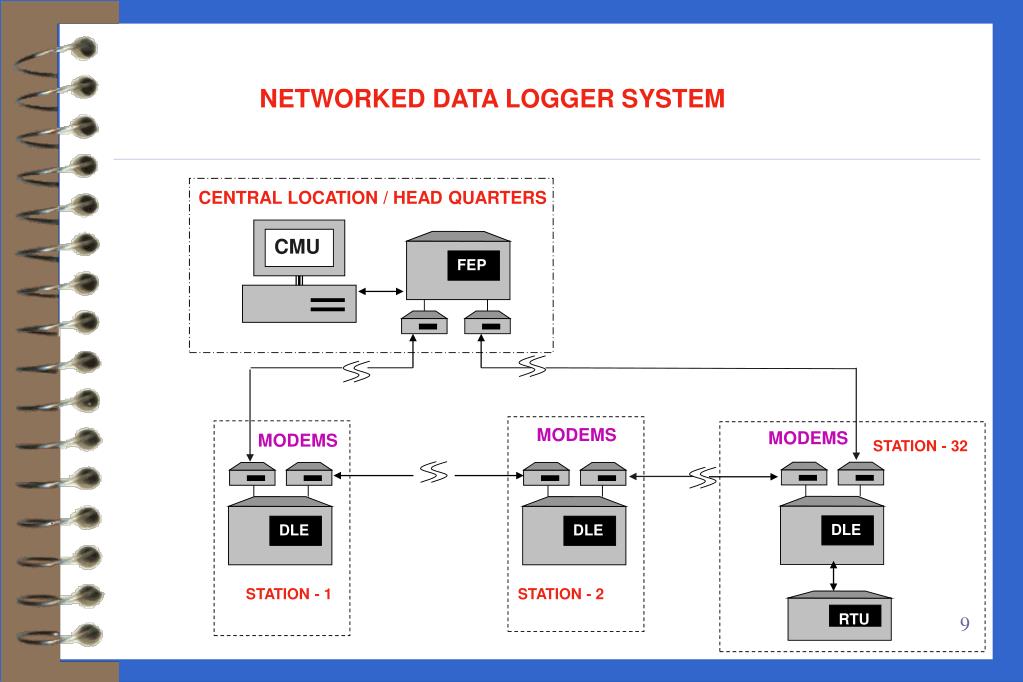

9. CMU FEP DLE DLE DLE RTU NETWORKED DATA LOGGER SYSTEM CENTRAL LOCATION / HEAD QUARTERS MODEMS MODEMS MODEMS STATION - 32 STATION - 1 STATION - 2

10. Front End Processor (FEP)

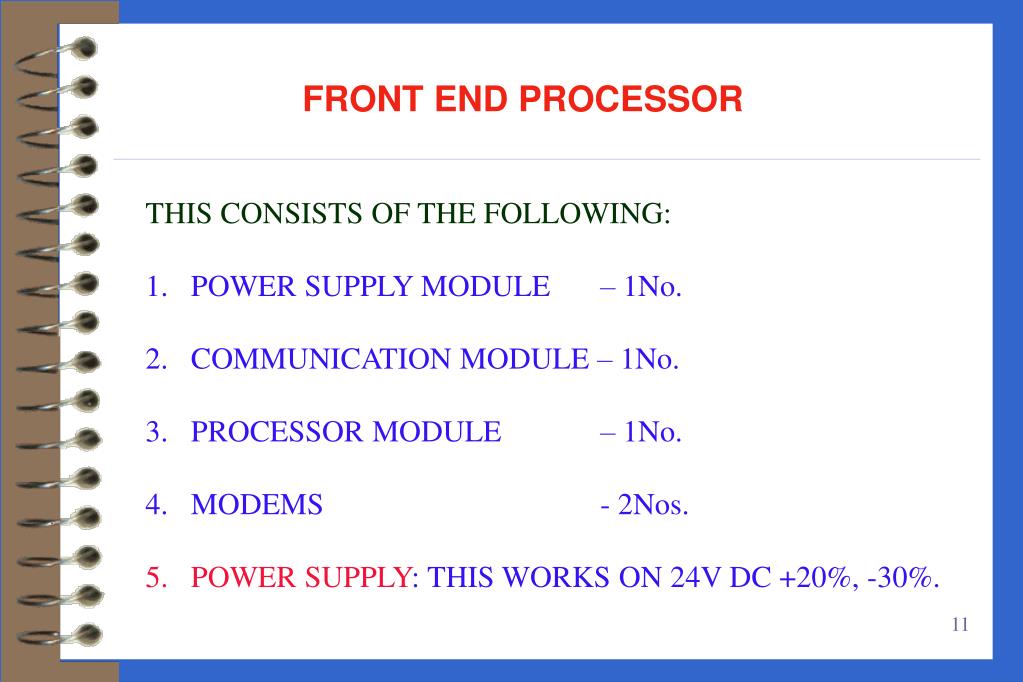

11. FRONT END PROCESSOR • THIS CONSISTS OF THE FOLLOWING: • POWER SUPPLY MODULE – 1No. • COMMUNICATION MODULE – 1No. • PROCESSOR MODULE – 1No. • MODEMS - 2Nos. • POWER SUPPLY: THIS WORKS ON 24V DC +20%, -30%.

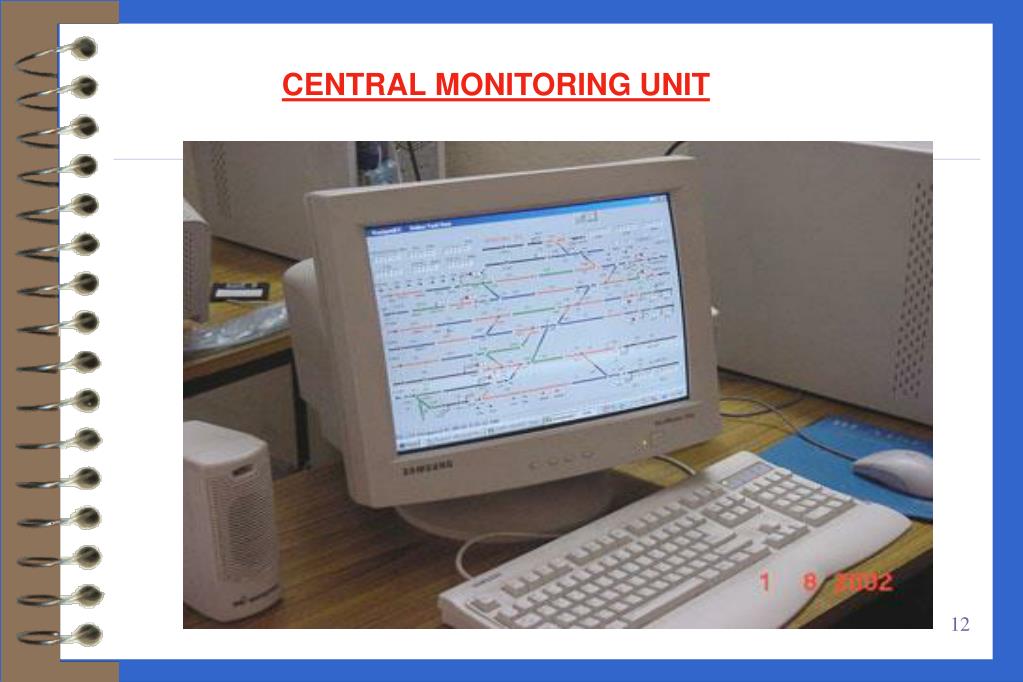

12. CENTRAL MONITORING UNIT

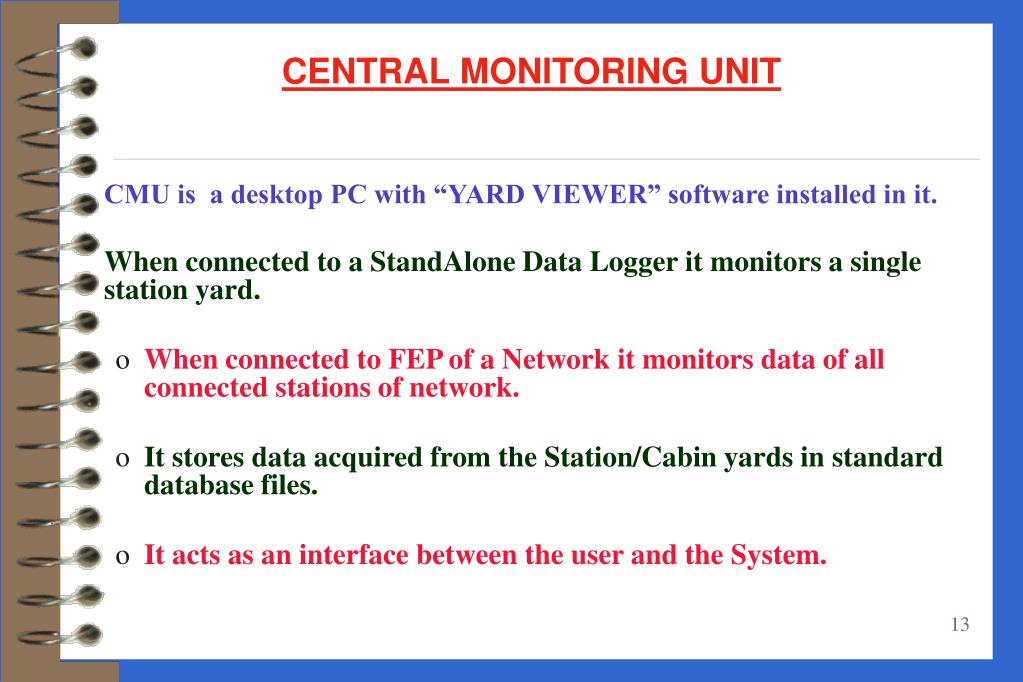

13. CENTRAL MONITORING UNIT CMU is a desktop PC with “YARD VIEWER” software installed in it. When connected to a StandAlone Data Logger it monitors a single station yard. • When connected to FEP of a Network it monitors data of all connected stations of network. • It stores data acquired from the Station/Cabin yards in standard database files. • It acts as an interface between the user and the System.

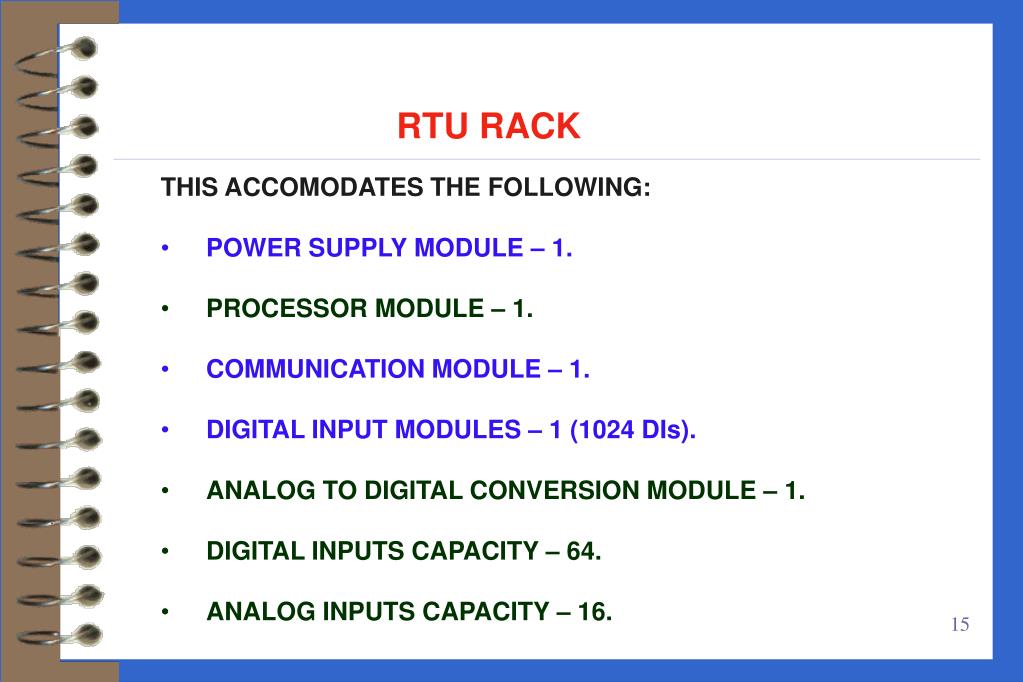

14. CURRENT LOOP RTU DATA LOGGER

15. RTU RACK • THIS ACCOMODATES THE FOLLOWING: • POWER SUPPLY MODULE – 1. • PROCESSOR MODULE – 1. • COMMUNICATION MODULE – 1. • DIGITAL INPUT MODULES – 1 (1024 DIs). • ANALOG TO DIGITAL CONVERSION MODULE – 1. • DIGITAL INPUTS CAPACITY – 64. • ANALOG INPUTS CAPACITY – 16.

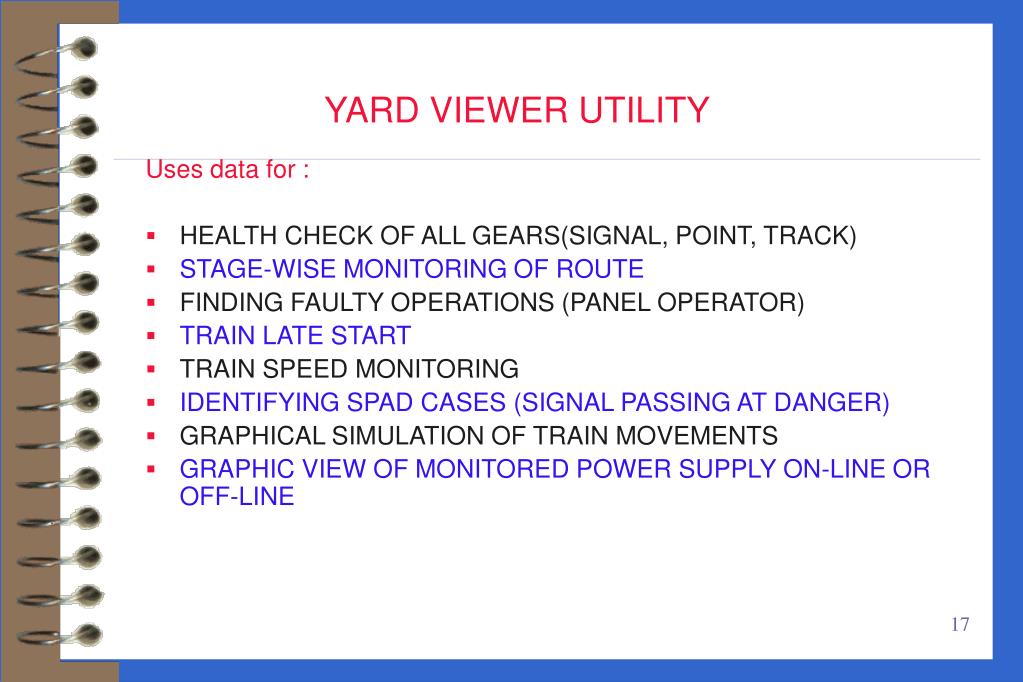

17. YARD VIEWER UTILITY Uses data for : • HEALTH CHECK OF ALL GEARS(SIGNAL, POINT, TRACK) • STAGE-WISE MONITORING OF ROUTE • FINDING FAULTY OPERATIONS (PANEL OPERATOR) • TRAIN LATE START • TRAIN SPEED MONITORING • IDENTIFYING SPAD CASES (SIGNAL PASSING AT DANGER) • GRAPHICAL SIMULATION OF TRAIN MOVEMENTS • GRAPHIC VIEW OF MONITORED POWER SUPPLY ON-LINE OR OFF-LINE

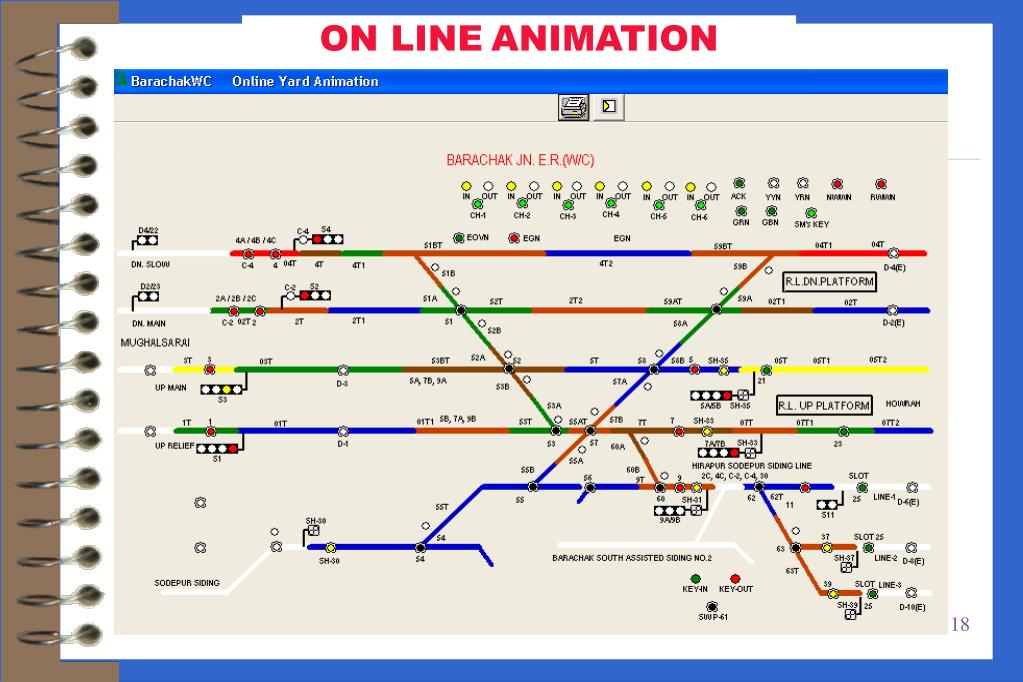

18. ON LINEANIMATION

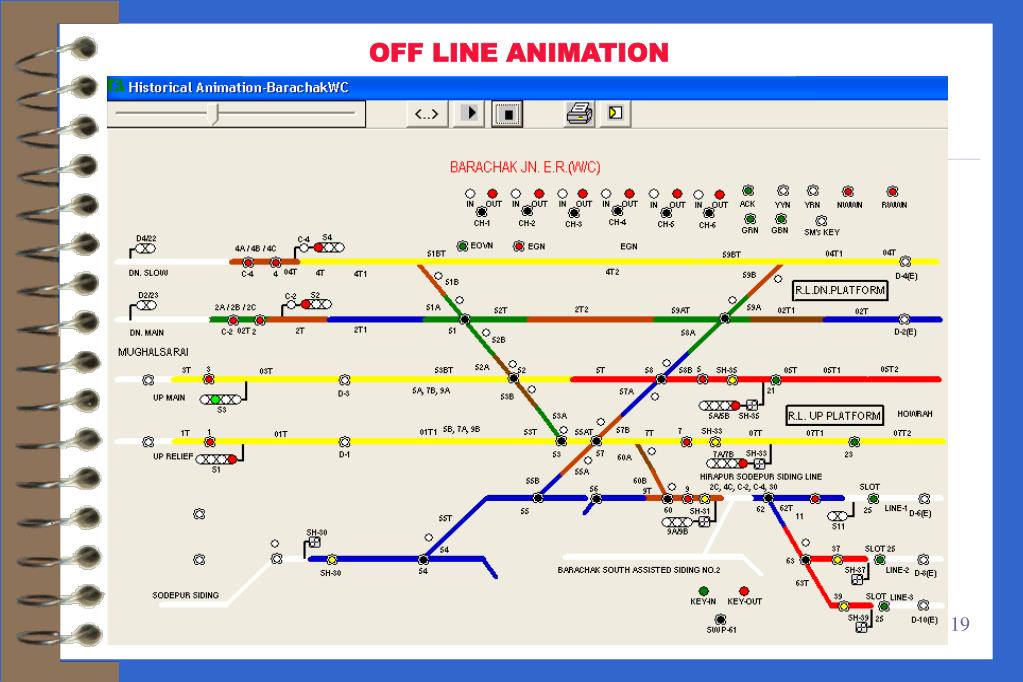

19. OFF LINE ANIMATION

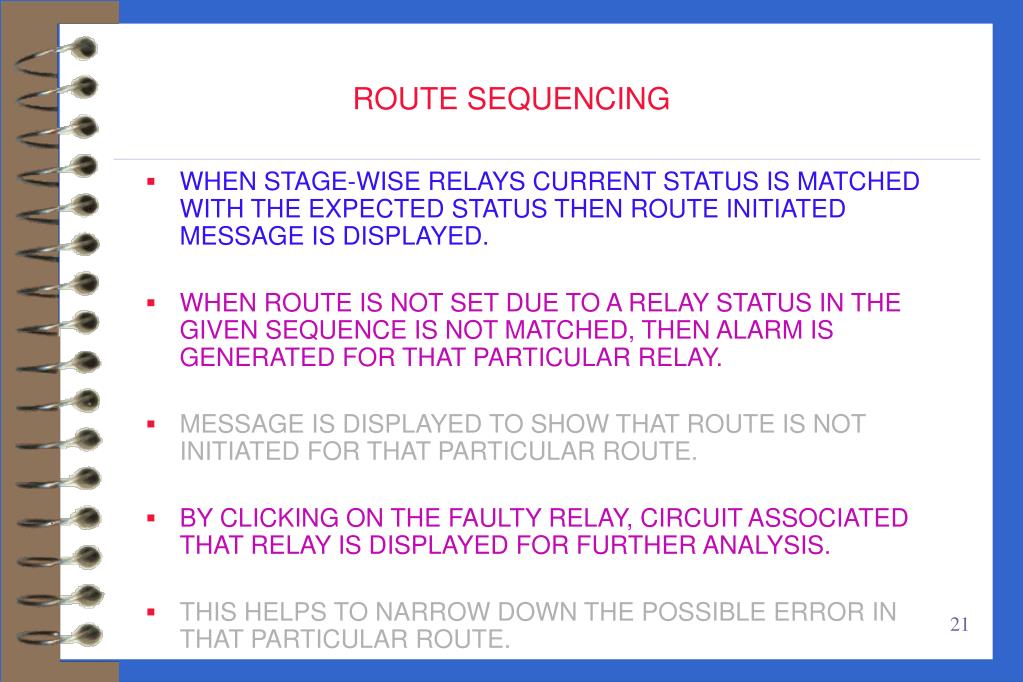

21. ROUTE SEQUENCING • WHEN STAGE-WISE RELAYS CURRENT STATUS IS MATCHED WITH THE EXPECTED STATUS THEN ROUTE INITIATED MESSAGE IS DISPLAYED. • WHEN ROUTE IS NOT SET DUE TO A RELAY STATUS IN THE GIVEN SEQUENCE IS NOT MATCHED, THEN ALARM IS GENERATED FOR THAT PARTICULAR RELAY. • MESSAGE IS DISPLAYED TO SHOW THAT ROUTE IS NOT INITIATED FOR THAT PARTICULAR ROUTE. • BY CLICKING ON THE FAULTY RELAY, CIRCUIT ASSOCIATED THAT RELAY IS DISPLAYED FOR FURTHER ANALYSIS. • THIS HELPS TO NARROW DOWN THE POSSIBLE ERROR IN THAT PARTICULAR ROUTE.

23. CIRCUIT ANALYSIS

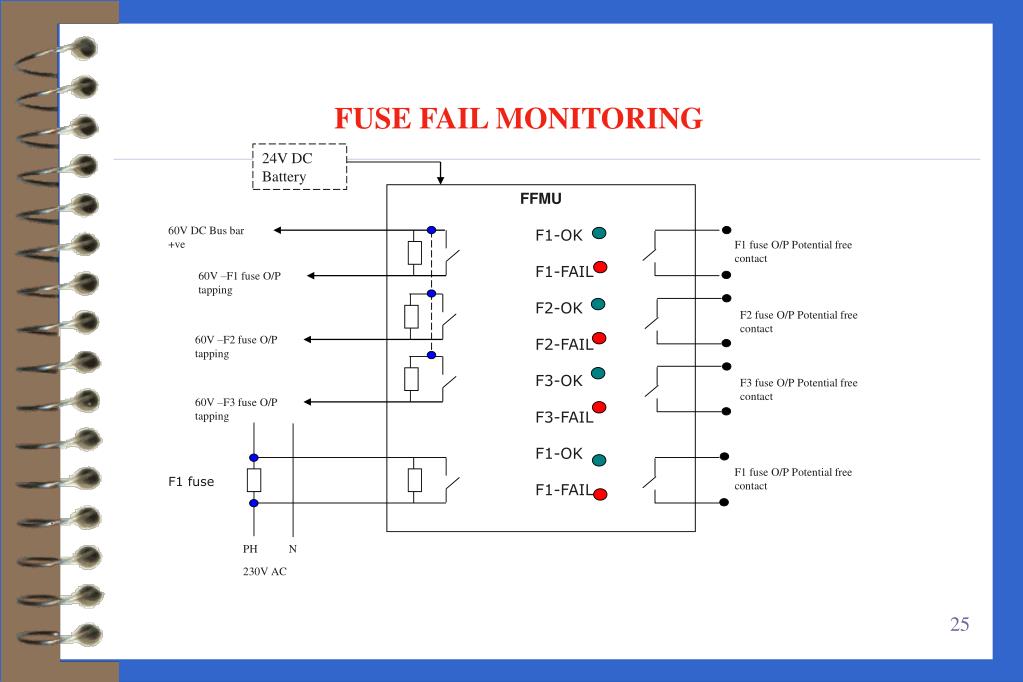

25. FUSE FAIL MONITORING 24V DC Battery FFMU F1-OK F1-FAIL F2-OK F2-FAIL F3-OK F3-FAIL F1-OK F1-FAIL 60V DC Bus bar +ve F1 fuse O/P Potential free contact 60V –F1 fuse O/P tapping F2 fuse O/P Potential free contact 60V –F2 fuse O/P tapping F3 fuse O/P Potential free contact 60V –F3 fuse O/P tapping F1 fuse O/P Potential free contact F1 fuse PH N 230V AC

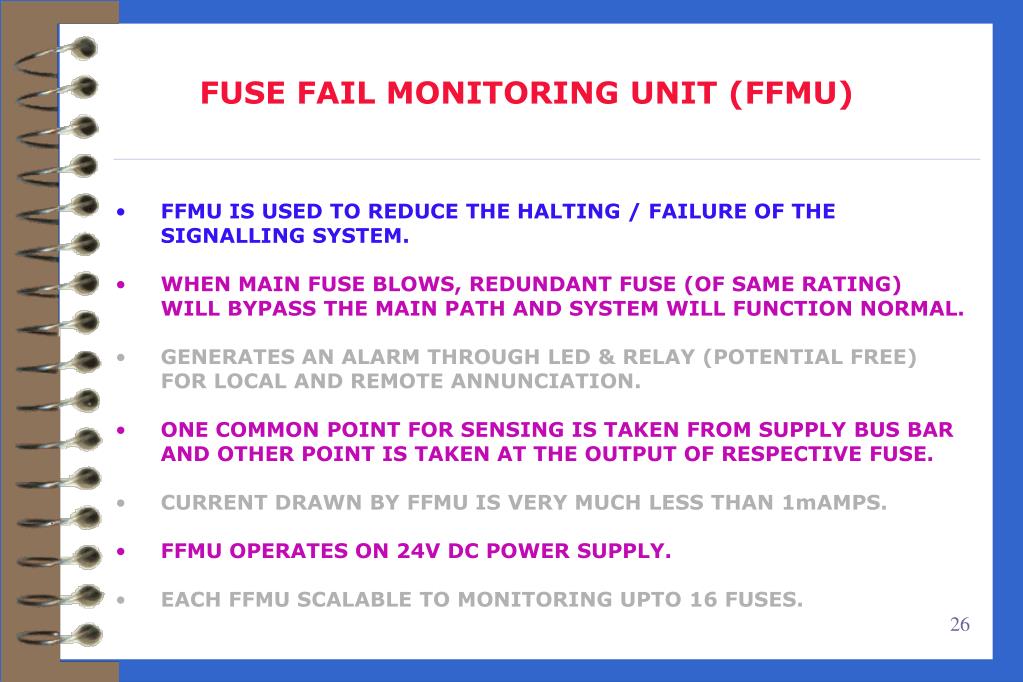

26. FUSE FAIL MONITORING UNIT (FFMU) • FFMU IS USED TO REDUCE THE HALTING / FAILURE OF THE • SIGNALLING SYSTEM. • WHEN MAIN FUSE BLOWS, REDUNDANT FUSE (OF SAME RATING) • WILL BYPASS THE MAIN PATH AND SYSTEM WILL FUNCTION NORMAL. • GENERATES AN ALARM THROUGH LED & RELAY (POTENTIAL FREE) • FOR LOCAL AND REMOTE ANNUNCIATION. • ONE COMMON POINT FOR SENSING IS TAKEN FROM SUPPLY BUS BAR • AND OTHER POINT IS TAKEN AT THE OUTPUT OF RESPECTIVE FUSE. • CURRENT DRAWN BY FFMU IS VERY MUCH LESS THAN 1mAMPS. • FFMU OPERATES ON 24V DC POWER SUPPLY. • EACH FFMU SCALABLE TO MONITORING UPTO 16 FUSES.

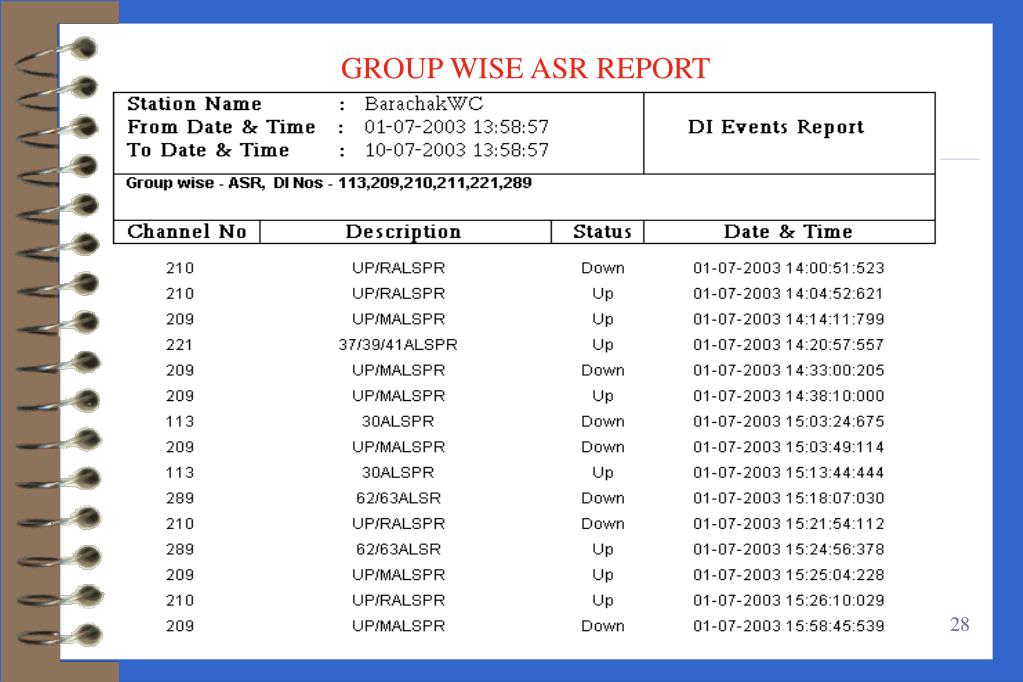

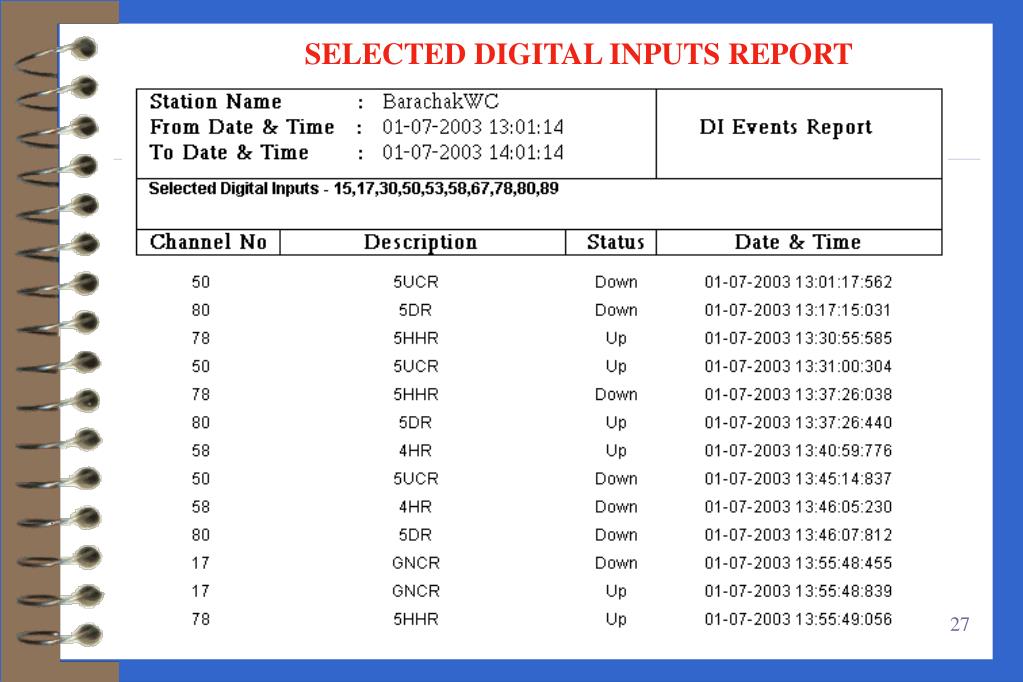

27. SELECTED DIGITAL INPUTS REPORT

28. GROUP WISE ASR REPORT

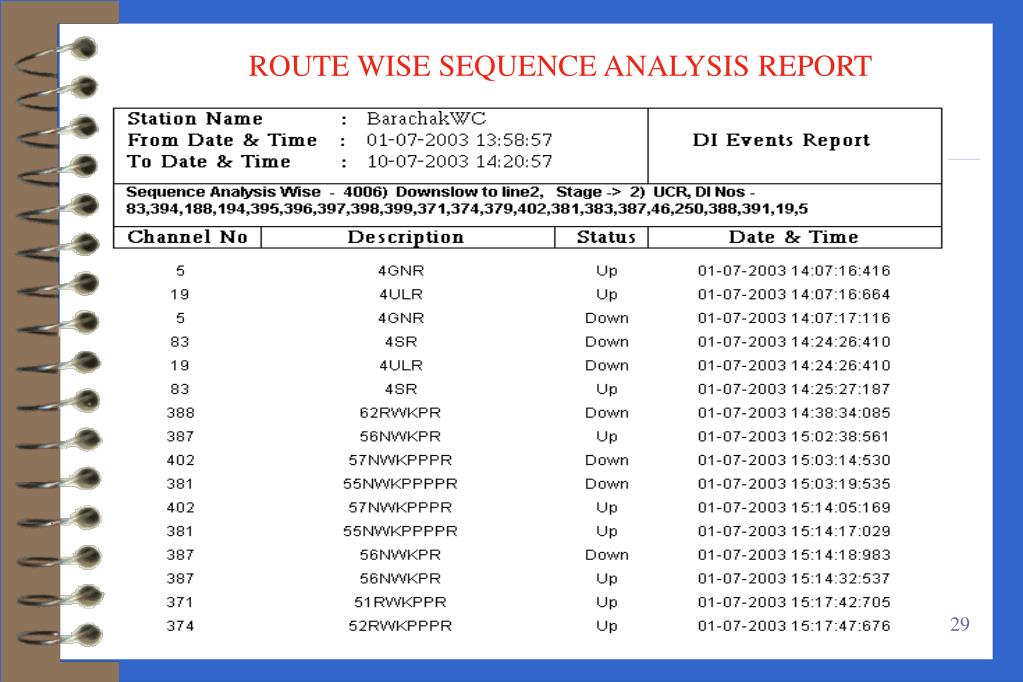

29. ROUTE WISE SEQUENCE ANALYSIS REPORT

30. ANALOG INPUTS REPORT

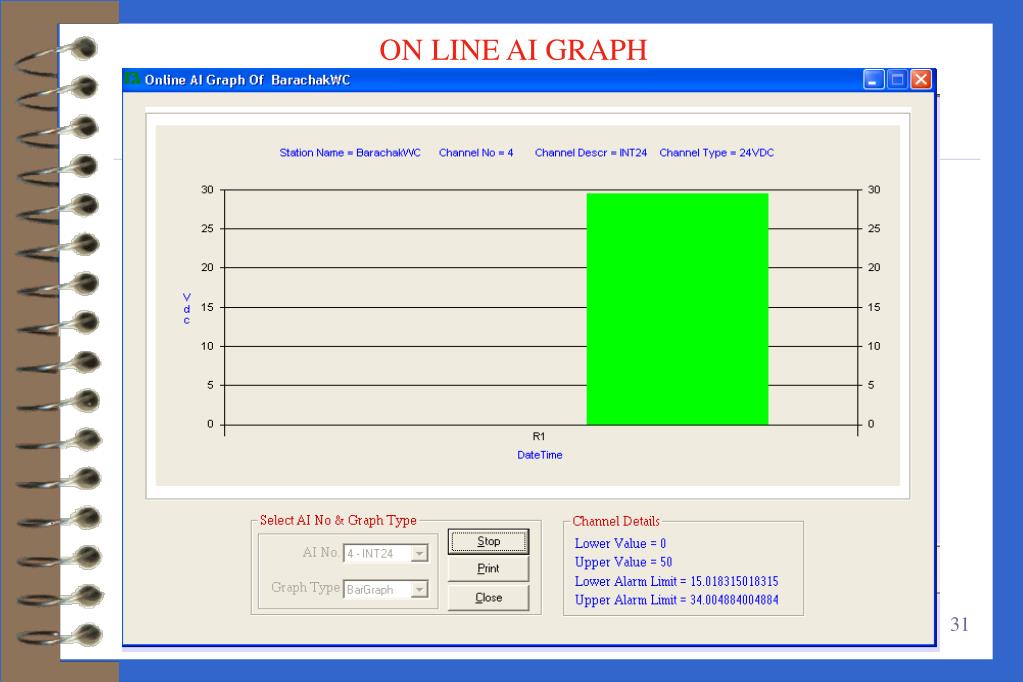

31. ON LINE AI GRAPH

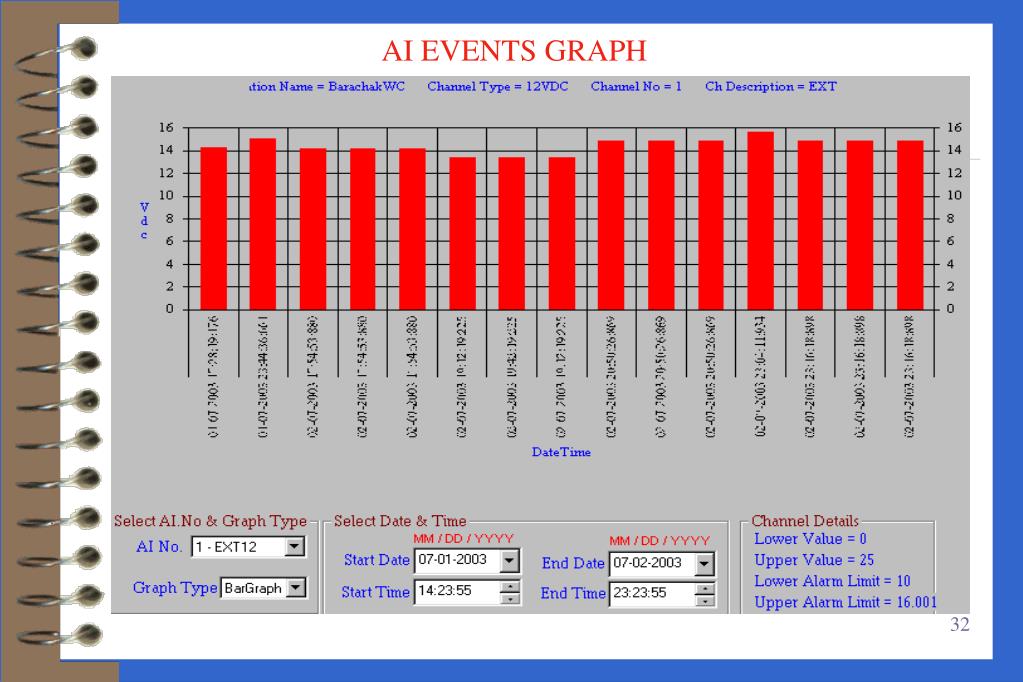

32. AI EVENTS GRAPH

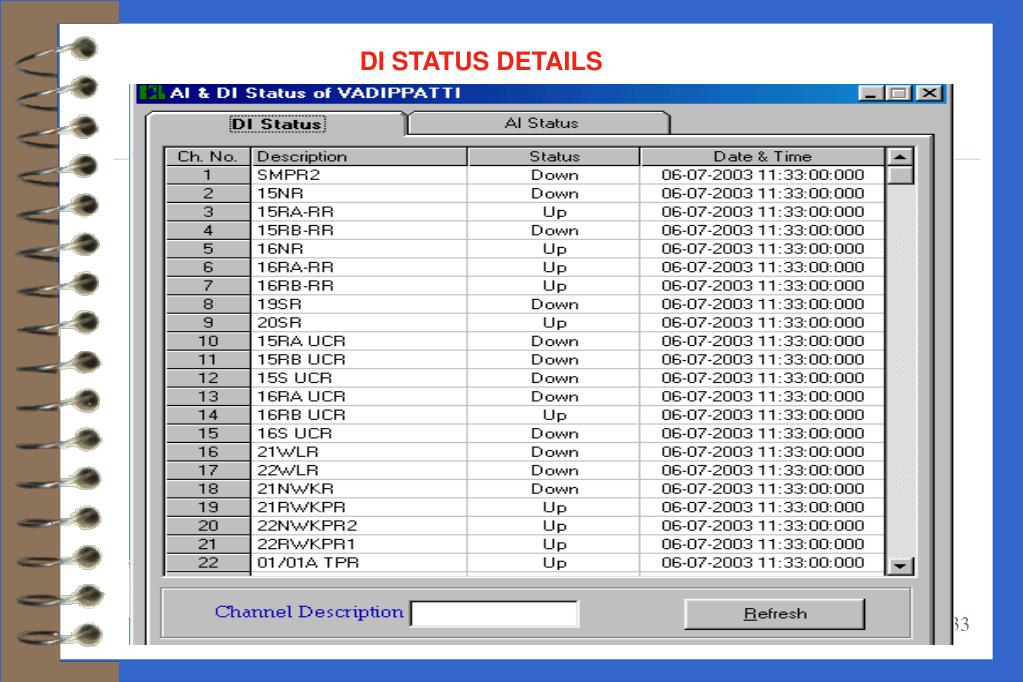

33. DI STATUS DETAILS

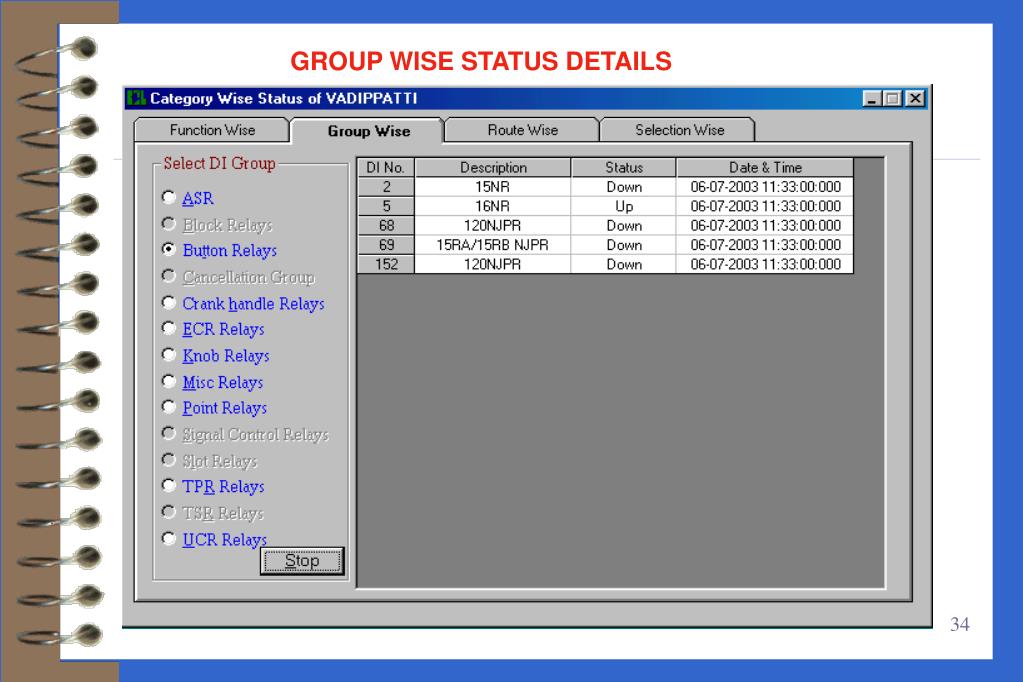

34. GROUP WISE STATUS DETAILS

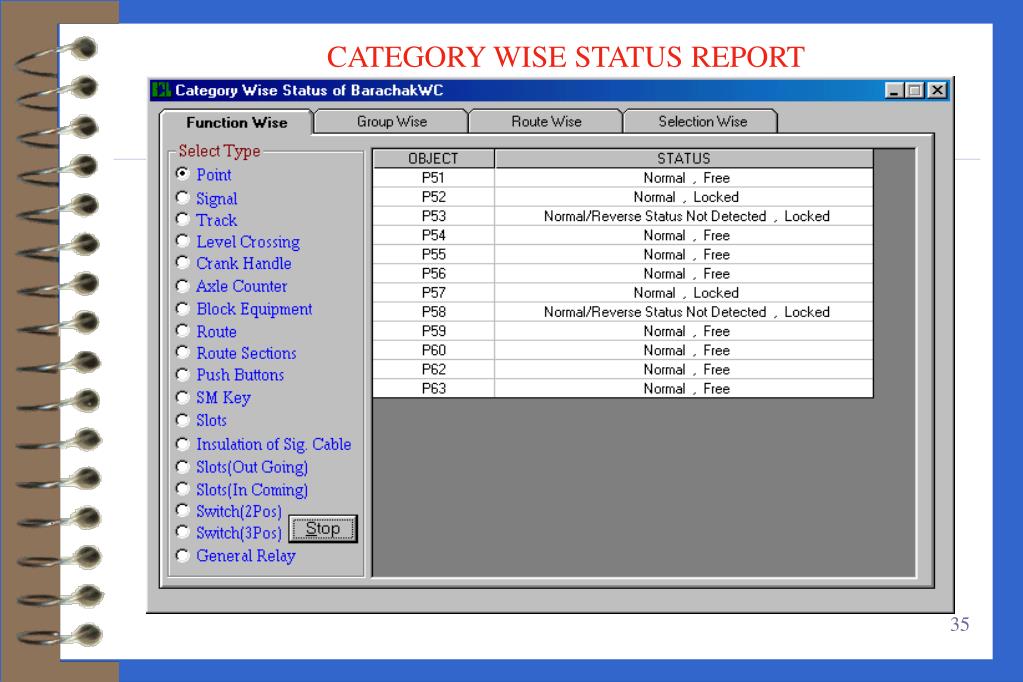

35. CATEGORY WISE STATUS REPORT

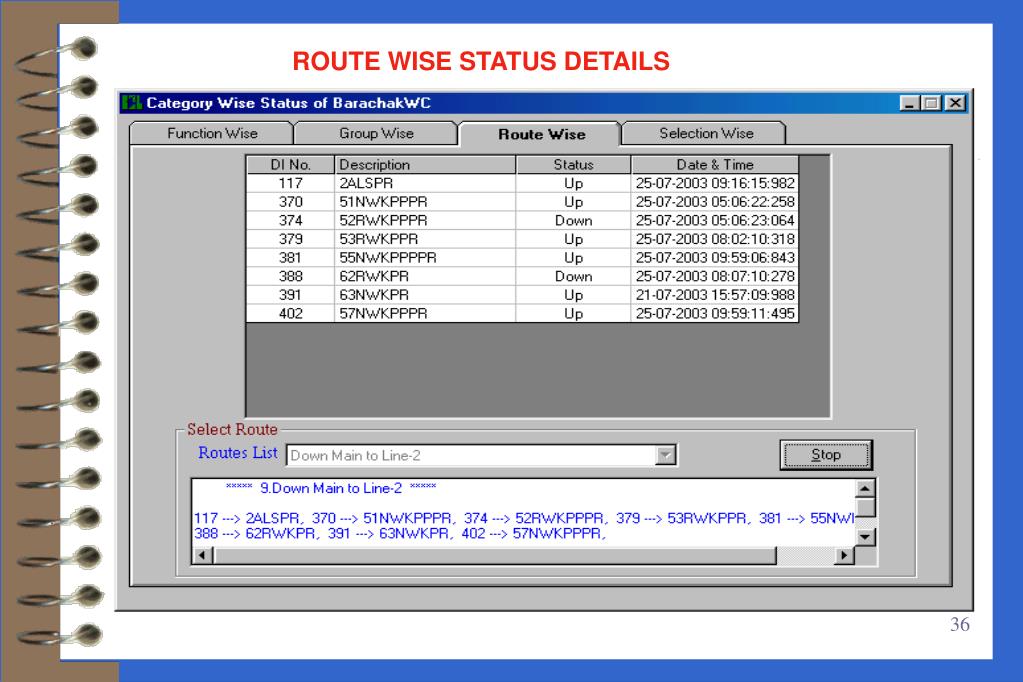

36. ROUTE WISE STATUS DETAILS

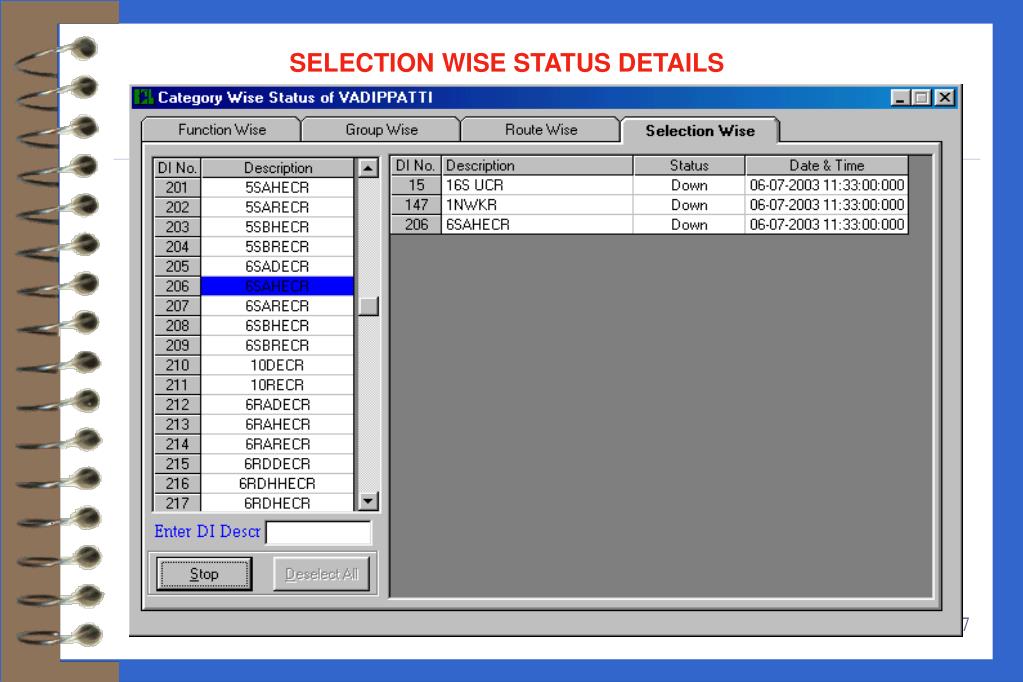

37. SELECTIONWISE STATUS DETAILS

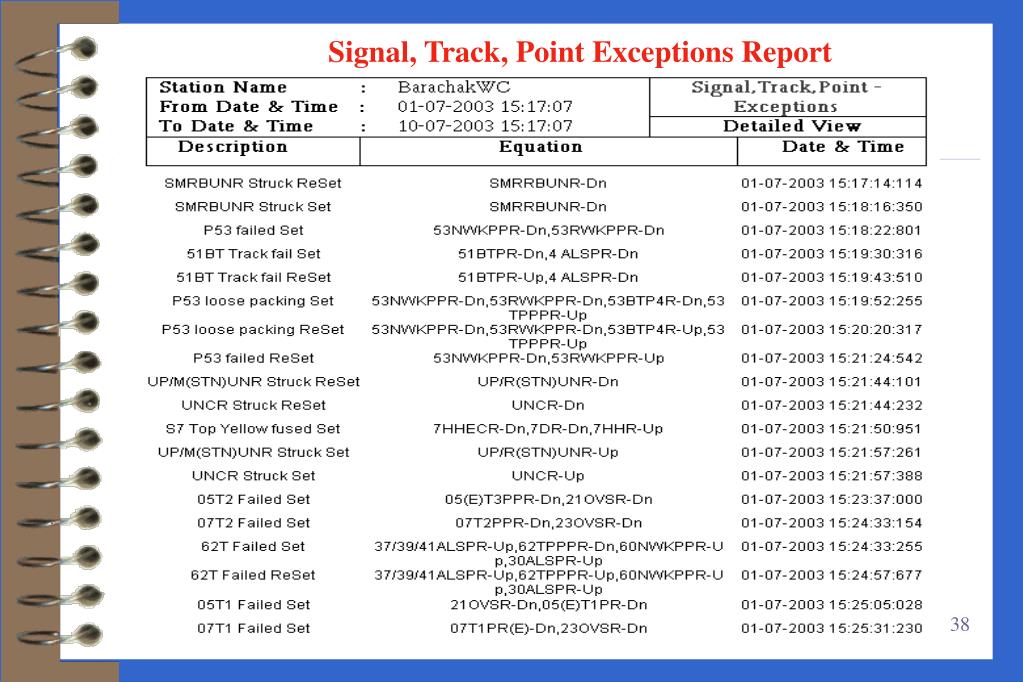

38. Signal, Track, Point Exceptions Report

39. ALARM LOGICS CONFIGURATION REPORT

40. NETWORK STATUS SCREEN
