Gas jet disruption mitigation of locked mode plasmas using DPCS real-time detection and response

Gas jet disruption mitigation of locked mode plasmas using DPCS real-time detection and response. R. Granetz, D. Whyte, S. Angelini, S. Wolfe. DPCS real-time detection of VDEs and subsequent firing of the gas jet worked well. DPCS: no false positives, no misses, fast response

bobby
Download Presentation

Gas jet disruption mitigation of locked mode plasmas using DPCS real-time detection and response

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

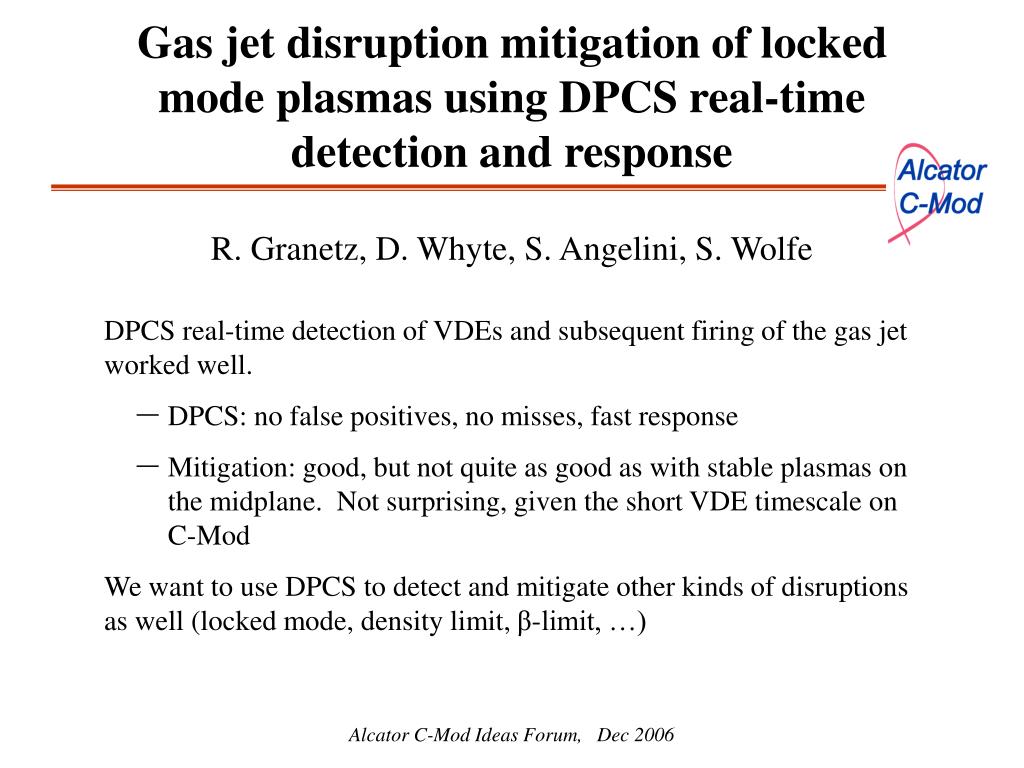

  1. Gas jet disruption mitigation of locked mode plasmas using DPCS real-time detection and response R. Granetz, D. Whyte, S. Angelini, S. Wolfe • DPCS real-time detection of VDEs and subsequent firing of the gas jet worked well. • DPCS: no false positives, no misses, fast response • Mitigation: good, but not quite as good as with stable plasmas on the midplane. Not surprising, given the short VDE timescale on C-Mod • We want to use DPCS to detect and mitigate other kinds of disruptions as well (locked mode, density limit, β-limit, …) Alcator C-Mod Ideas Forum, Dec 2006

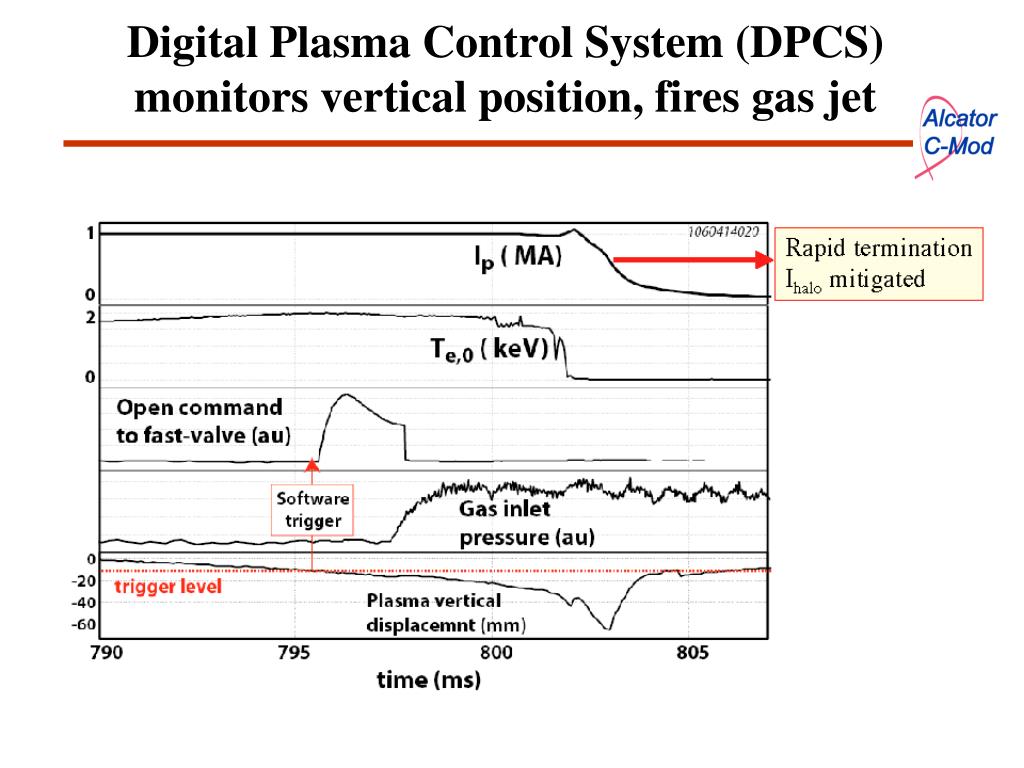

  2. Digital Plasma Control System (DPCS) monitors vertical position, fires gas jet

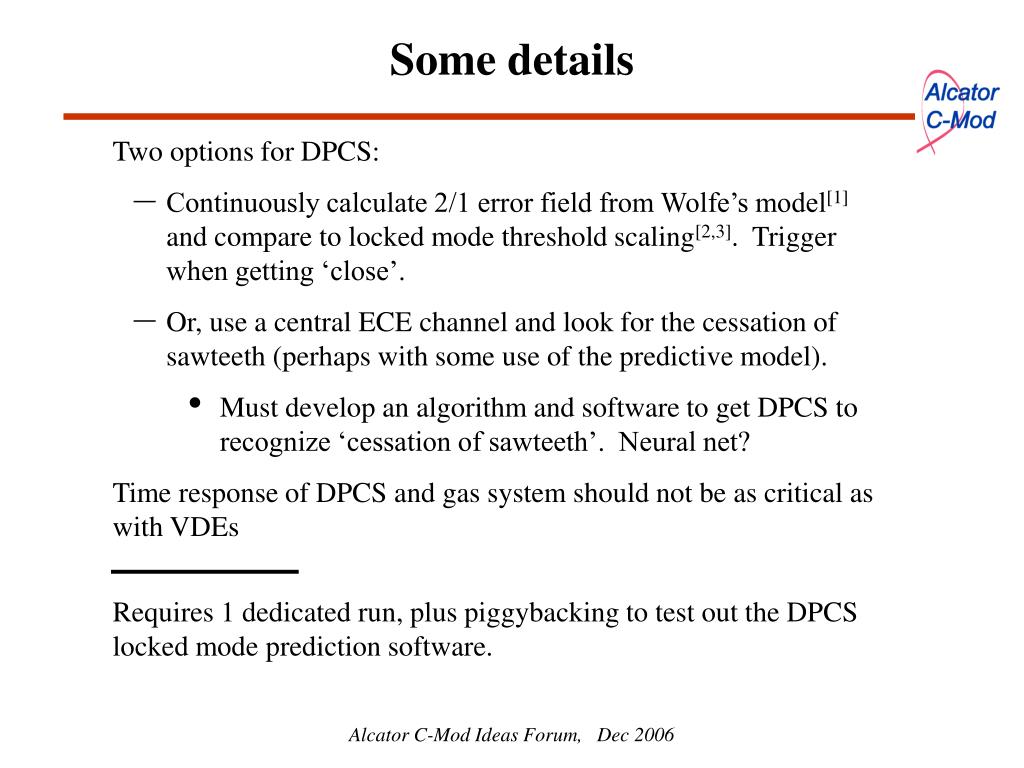

  3. Some details • Two options for DPCS: • Continuously calculate 2/1 error field from Wolfe’s model[1] and compare to locked mode threshold scaling[2,3]. Trigger when getting ‘close’. • Or, use a central ECE channel and look for the cessation of sawteeth (perhaps with some use of the predictive model). • Must develop an algorithm and software to get DPCS to recognize ‘cessation of sawteeth’. Neural net? • Time response of DPCS and gas system should not be as critical as with VDEs • Requires 1 dedicated run, plus piggybacking to test out the DPCS locked mode prediction software. Alcator C-Mod Ideas Forum, Dec 2006
