  1. Administration Business Enabled Communications

  2. Contents • Starting Web Service • User’s Guide • Station Program • Admin & Maintenance • ID & Password • Web Access Authorization • Admin Categories • Overview Menu • New Window • Related PGM Link • Numbering Plan Type • System Numbering Plan • Flexible Station Number • CO Group Access Code • Feature Code Numbering • Station Group Number • Networking Numbering

  3. WEB Admin Starting Web Service • Install iPECS-MG system • Default MPB IP address : 10.10.10.1 • Or, configure MPB IP using RS-232 port. • Connect to the system IP on web browser. • iPECS-MG web service homepage provides ; • User’s Guide • Station Program • Admin & Maintenance

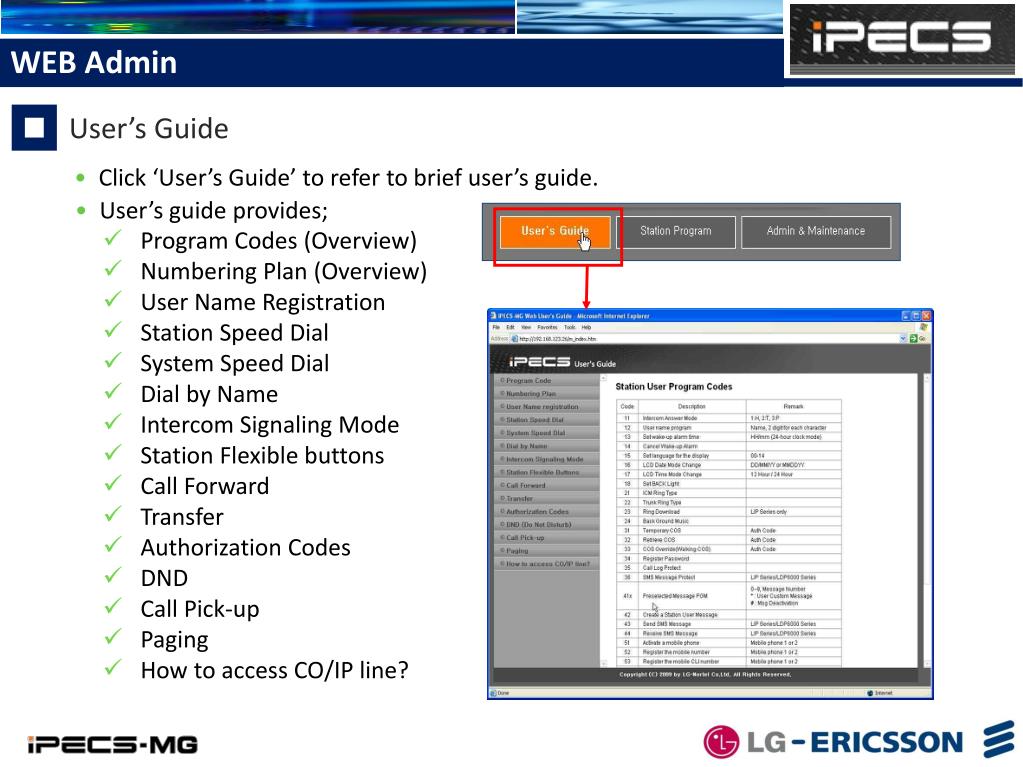

  4. WEB Admin User’s Guide • Click ‘User’s Guide’ to refer tobrief user’s guide. • User’s guide provides; • Program Codes (Overview) • Numbering Plan (Overview) • User Name Registration • Station Speed Dial • System Speed Dial • Dial by Name • Intercom Signaling Mode • Station Flexible buttons • Call Forward • Transfer • Authorization Codes • DND • Call Pick-up • Paging • How to access CO/IP line?

  5. WEB Admin Station Program • Click ‘Station Program’ menu and enter desired station number and password. • Password is mandatory for station program. • Station Program provides ; • Station Port Attributes • Station DN Attributes • Call Forward • Pre-Selected Message • Station Speed Dial • Station Flexible buttons • Station ICLID • Mobile Extension Attributes • Send Internal SMS • ACD Group Management • ACD Group Call Traffic • User Guide

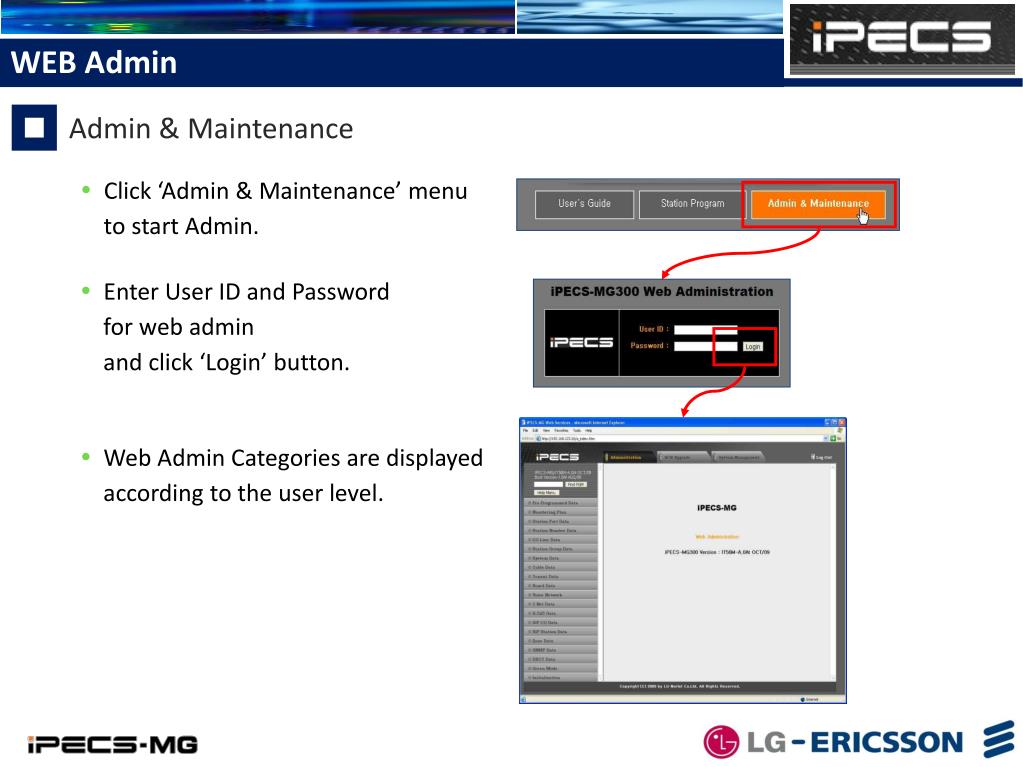

  6. WEB Admin Admin & Maintenance • Click ‘Admin & Maintenance’ menu to start Admin. • Enter User ID and Password for web admin and click ‘Login’ button. • Web Admin Categories are displayed according to the user level.

  7. WEB Admin ID & Password • Admin ID & Password at System Data • System Data > System Password (226) • Basic Password tab : ID & Password of User, Admin. and Maint. • Additional Password tab : ID & Password of User2, User3, Admin2 and Admin3.

  8. WEB Admin Web Access Authorization • User Access level control at System Data • Click System Data > Web Access Authorization • Accessibility of 3 Users & 3 Administers about every Admin fields. • Maint. ID has no restriction.

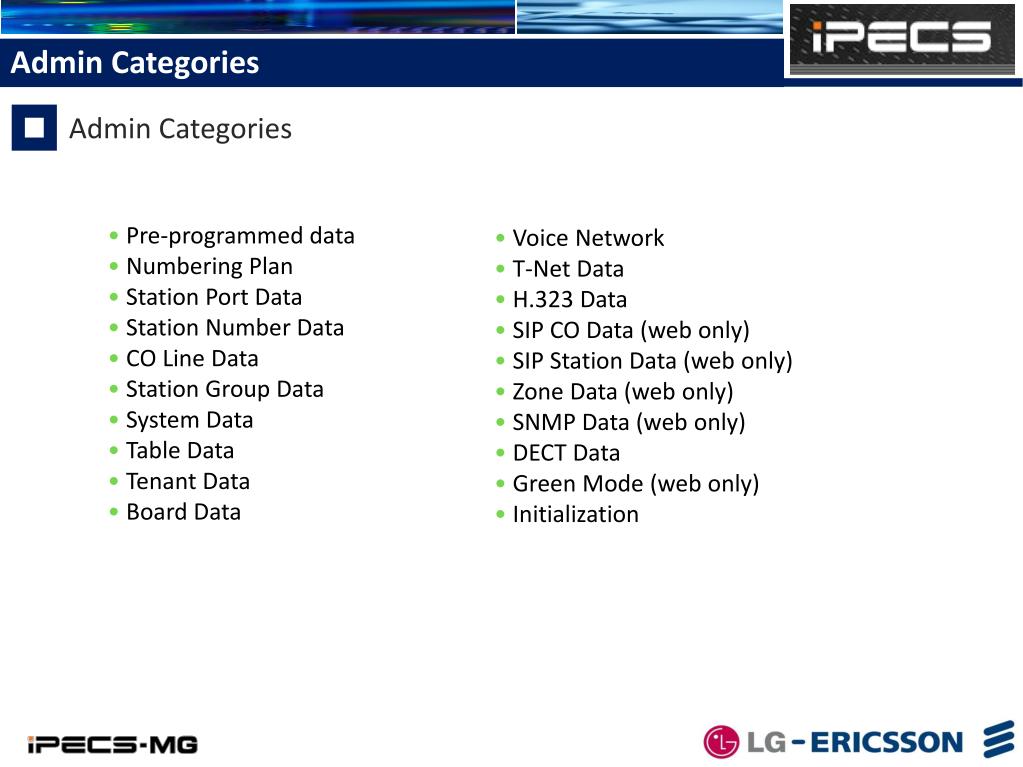

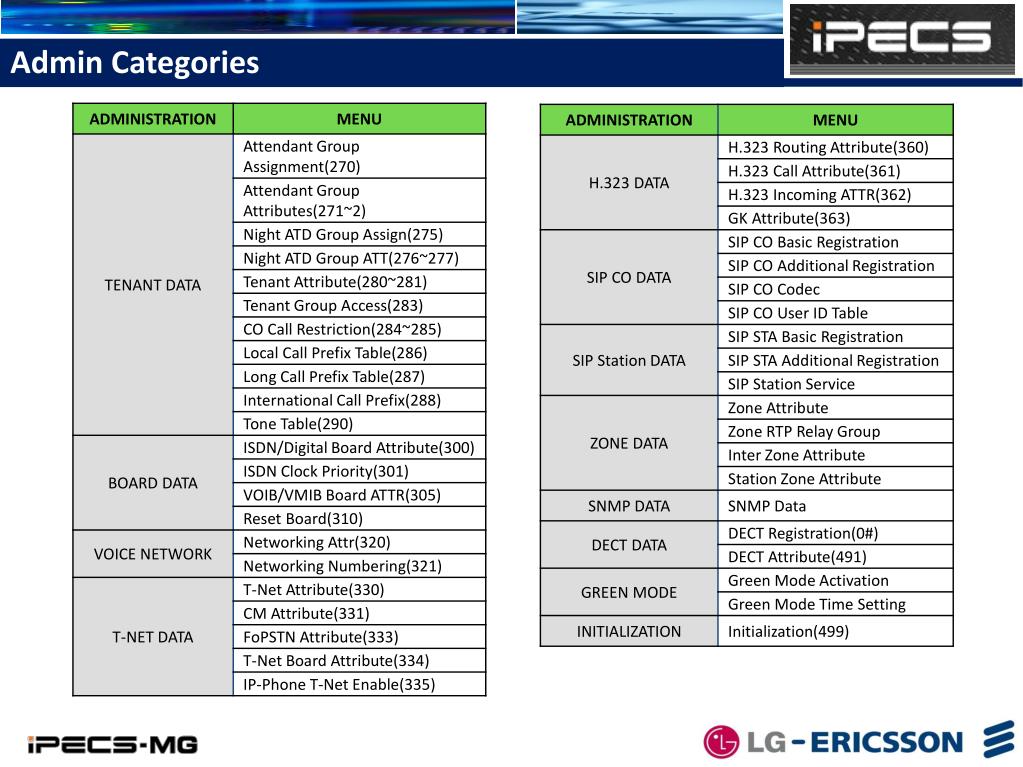

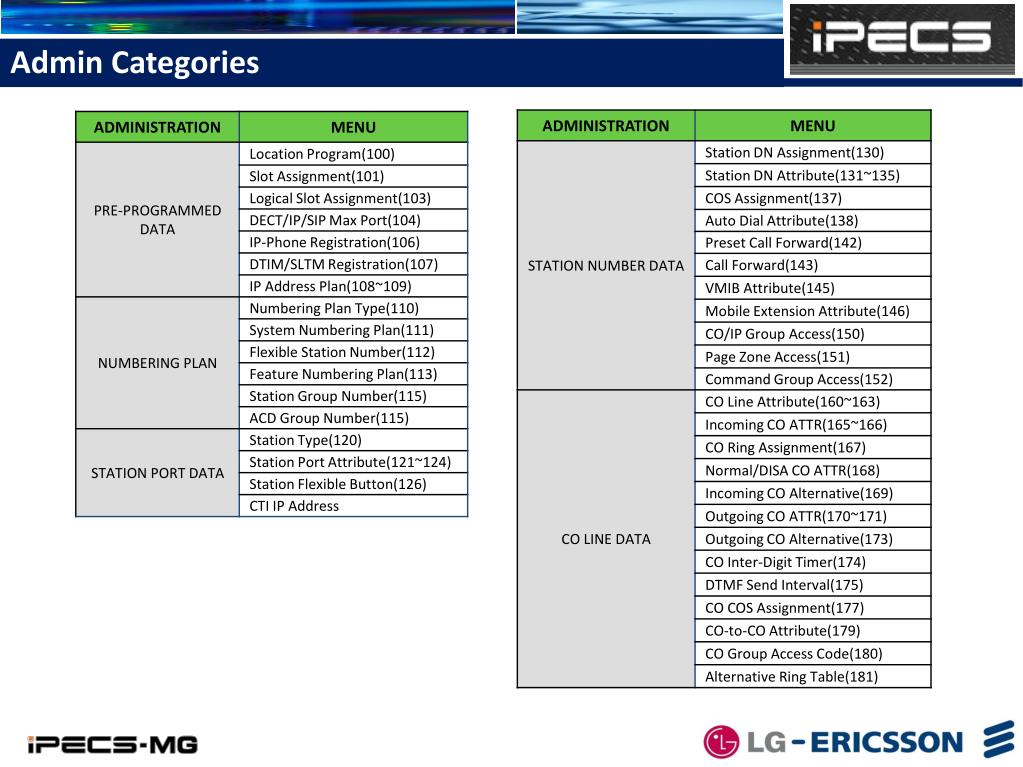

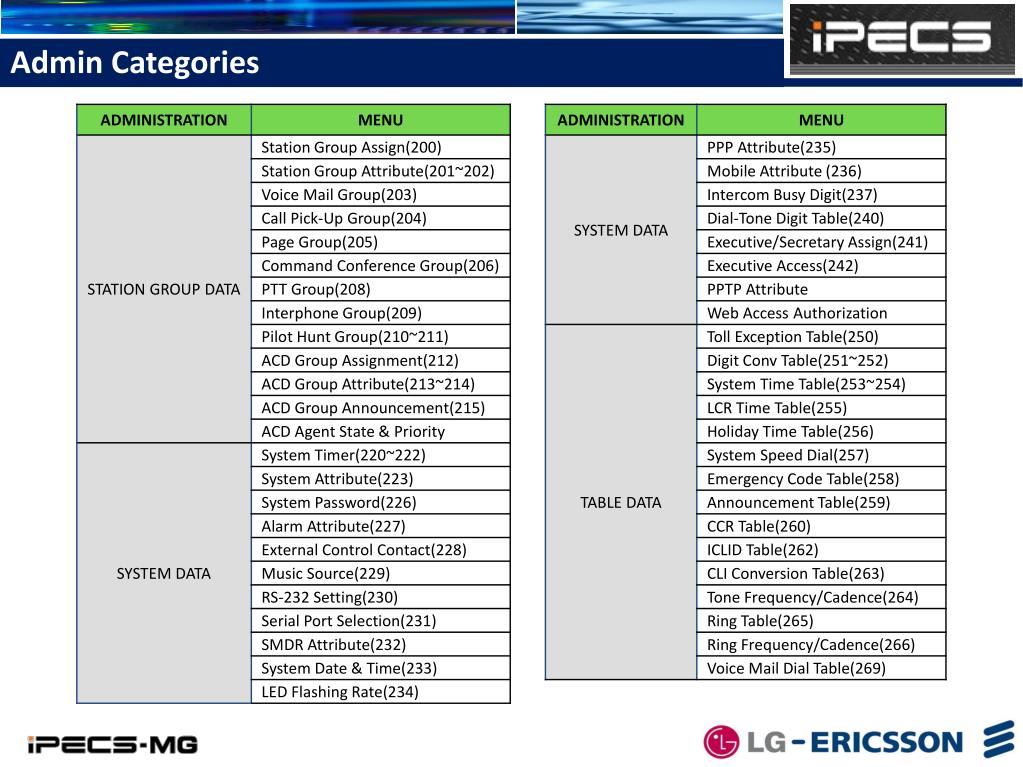

  9. Admin Categories Admin Categories • Pre-programmed data • Numbering Plan • Station Port Data • Station Number Data • CO Line Data • Station Group Data • System Data • Table Data • Tenant Data • Board Data • Voice Network • T-Net Data • H.323 Data • SIP CO Data (web only) • SIP Station Data (web only) • Zone Data (web only) • SNMP Data (web only) • DECT Data • Green Mode (web only) • Initialization

  10. Admin Categories

  11. Admin Categories

  12. Admin Categories

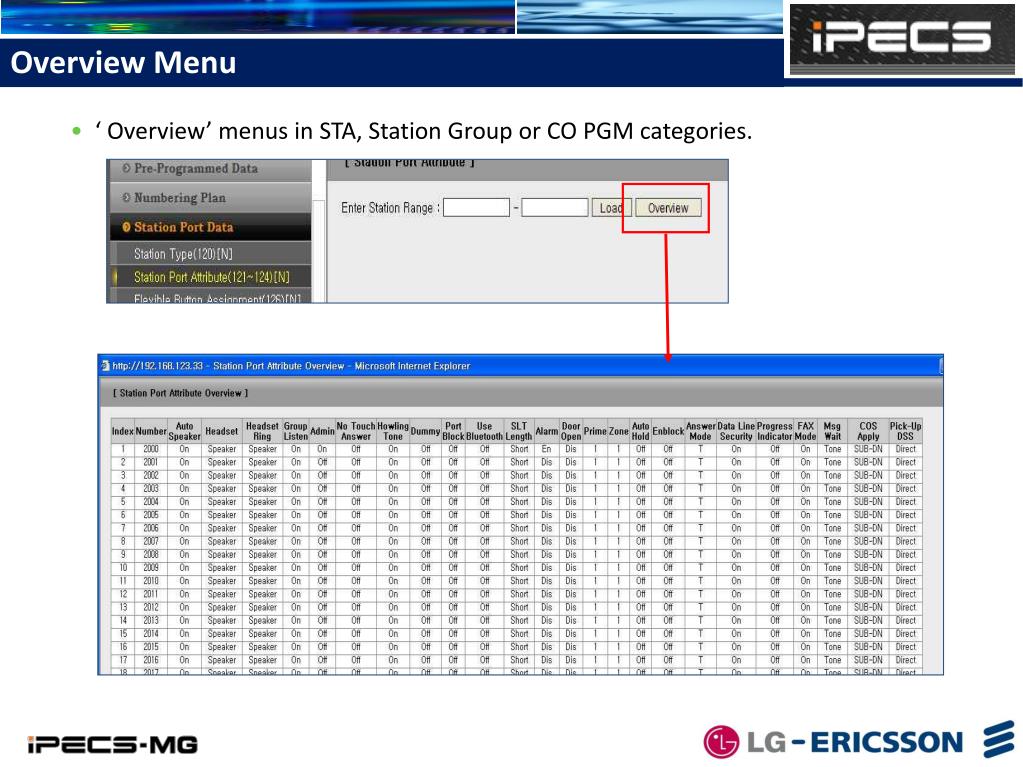

  13. Overview Menu • ‘ Overview’ menus in STA, Station Group or CO PGM categories.

  14. New Windows • Click [N] to open new window.

  15. Related PGM Link • Some PGM has link menu for other PGM

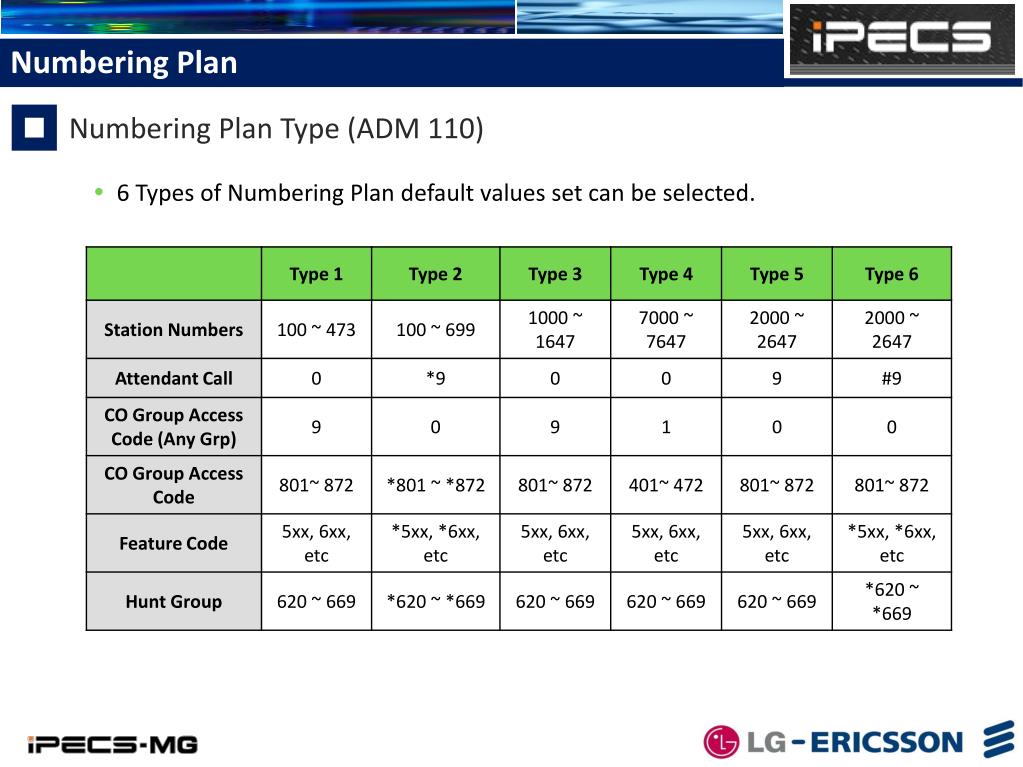

  16. Numbering Plan Numbering Plan Type (ADM 110) • 6 Types of Numbering Plan default values set can be selected.

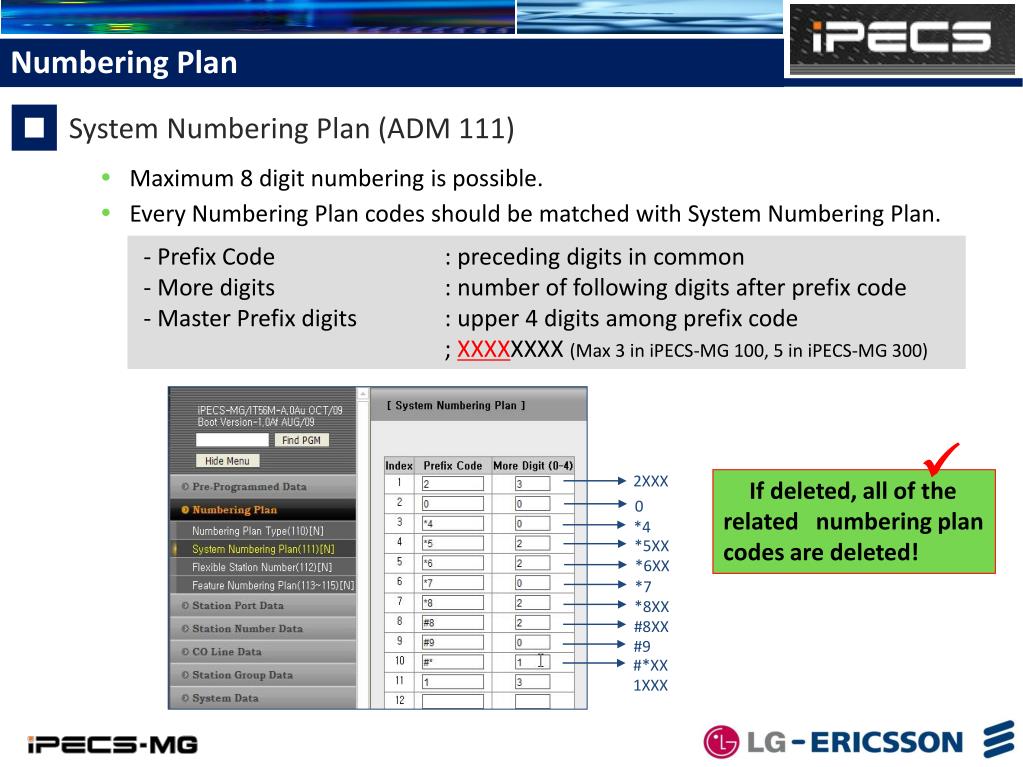

  17. Numbering Plan System Numbering Plan (ADM 111) • Maximum 8 digit numbering is possible. • Every Numbering Plan codes should be matched with System Numbering Plan. - Prefix Code : preceding digits in common - More digits : number of following digits after prefix code - Master Prefix digits : upper 4 digits among prefix code ; XXXXXXXX (Max 3 in iPECS-MG 100, 5 in iPECS-MG 300)  2XXX • If deleted, all of the related numbering plan codes are deleted! 0 *4 *5XX *6XX *7 *8XX #8XX #9 #*XX 1XXX

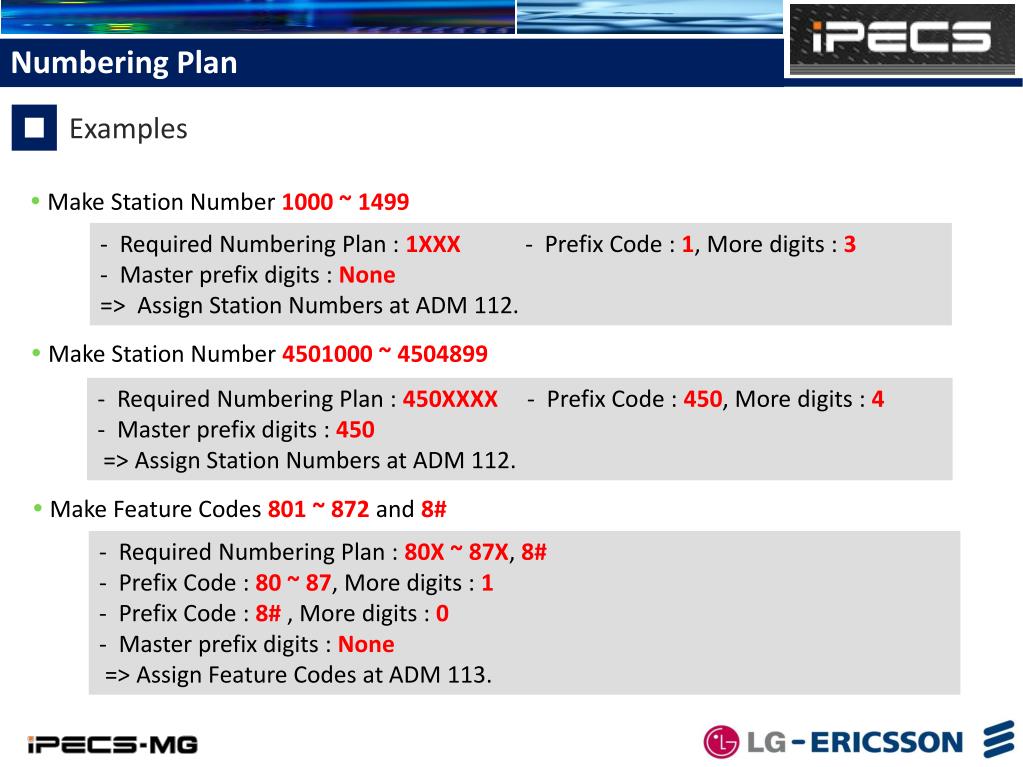

  18. Numbering Plan Examples • Make Station Number 1000 ~ 1499 • Required Numbering Plan : 1XXX - Prefix Code : 1, More digits : 3 • - Master prefix digits : None • => Assign Station Numbers at ADM 112. • Make Station Number 4501000~ 4504899 - Required Numbering Plan : 450XXXX - Prefix Code : 450, More digits : 4 - Master prefix digits : 450 => Assign Station Numbers at ADM 112. • Make Feature Codes 801~ 872 and 8# • - Required Numbering Plan : 80X~ 87X, 8# • Prefix Code : 80 ~ 87, More digits : 1 • Prefix Code : 8# , More digits : 0 • - Master prefix digits : None • => Assign Feature Codes at ADM 113.

  19. Numbering Plan Flexible Station Number (ADM 112) • Change Station Number • using order range • Check and edit Station Number one by one • Change Station Number • using station range  To Assign new numbering, proper System Numbering Plan should exist!! • Station Number search

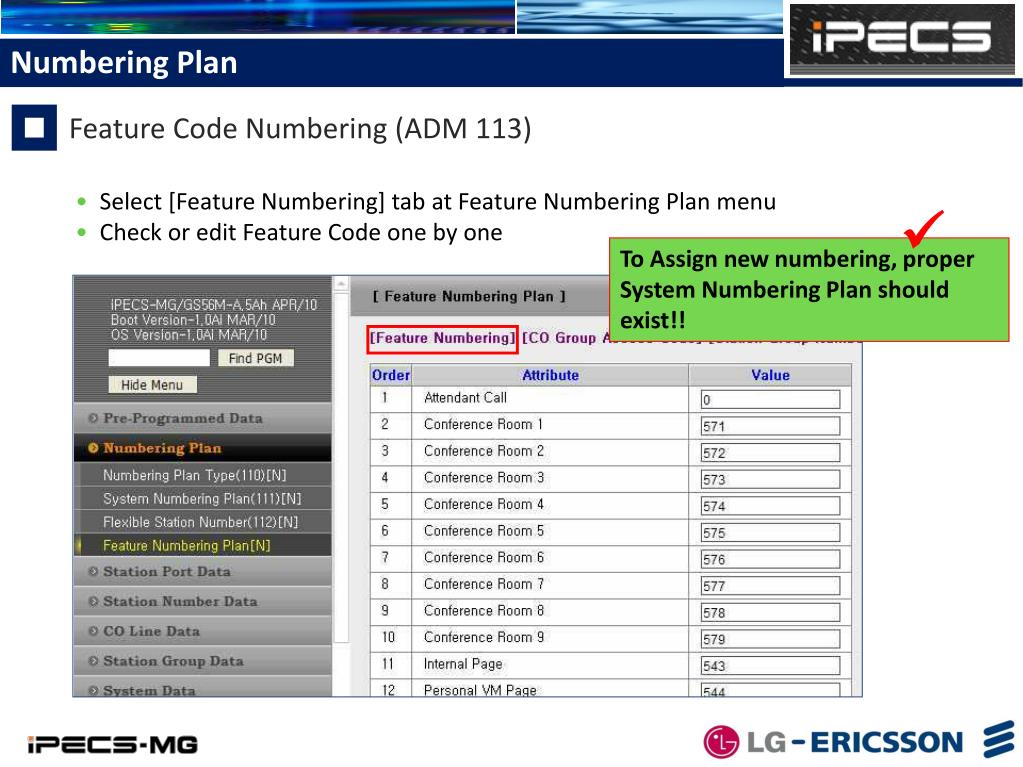

  20. Numbering Plan Feature Code Numbering (ADM 113) • Select [Feature Numbering] tab at Feature Numbering Plan menu • Check or edit Feature Code one by one  To Assign new numbering, proper System Numbering Plan should exist!!

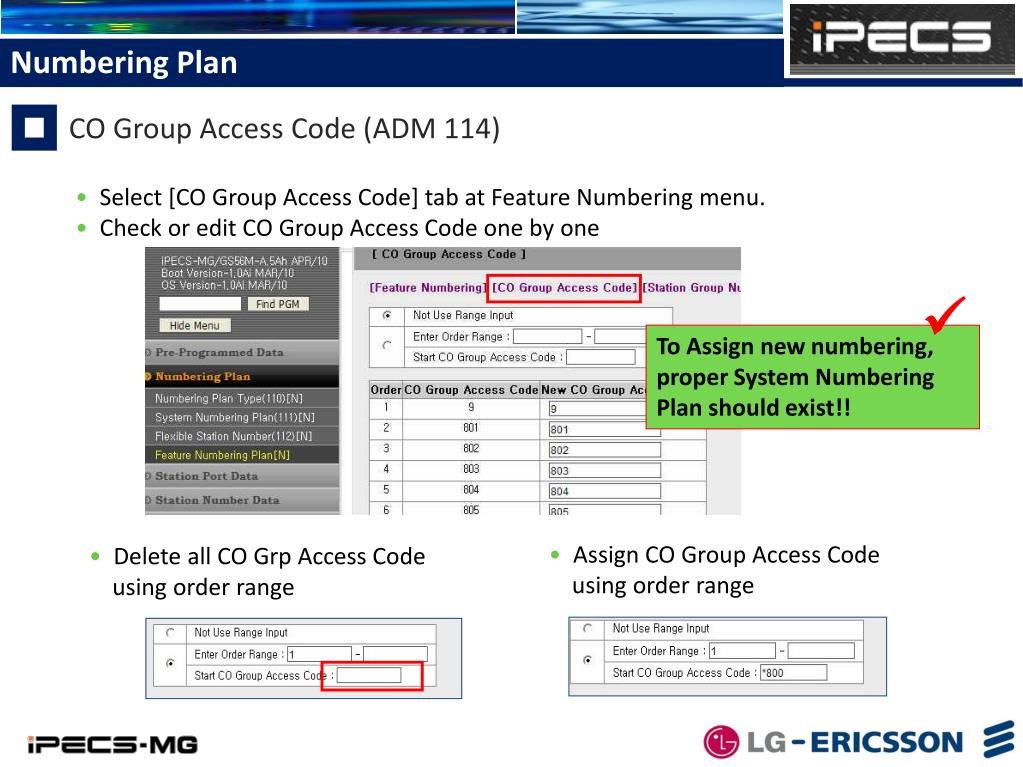

  21. Numbering Plan CO Group Access Code (ADM 114) • Select [CO Group Access Code] tab at Feature Numbering menu. • Check or edit CO Group Access Code one by one  To Assign new numbering, proper System Numbering Plan should exist!! • Assign CO Group Access Code • using order range • Delete all CO Grp Access Code • using order range

  22. Numbering Plan Station Group Number (ADM 115) • Select [Station Group Number] tab at Feature Numbering menu. • Check or edit Feature Code one by one  To Assign new numbering, proper System Numbering Plan should exist!! • Assign Station Group Number • by using order range • Delete all Station Group Number • by using range

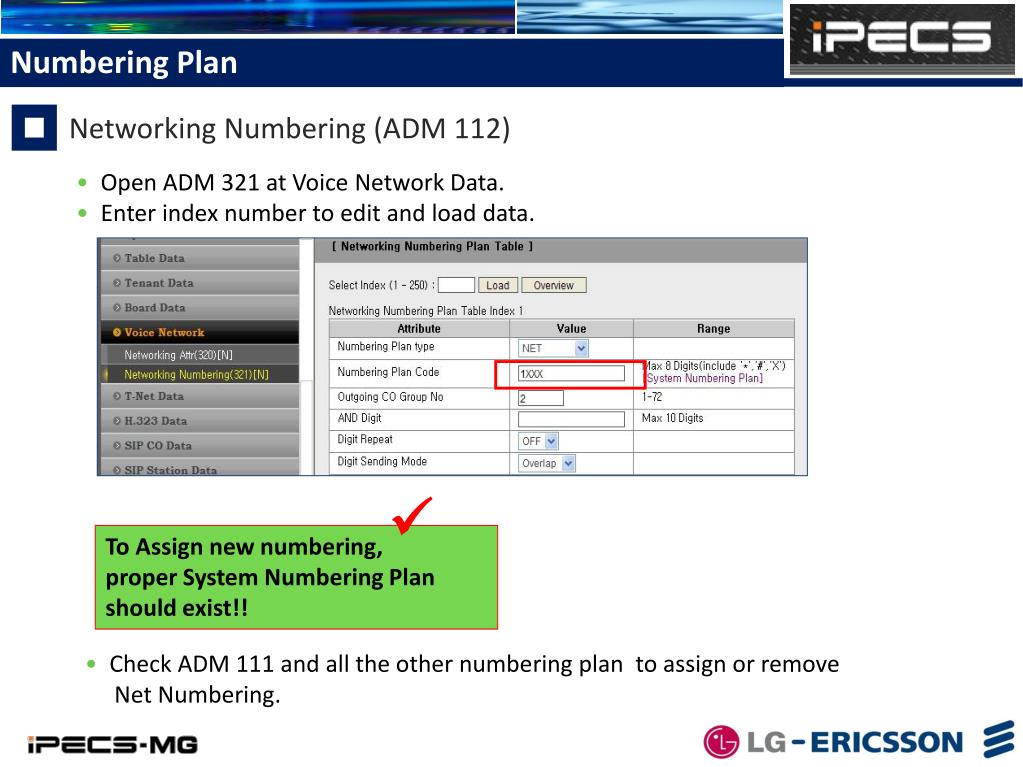

  23. Numbering Plan Networking Numbering (ADM 112) • Open ADM 321 at Voice Network Data. • Enter index number to edit and load data.  To Assign new numbering, proper System Numbering Plan should exist!! • Check ADM 111 and all the other numbering plan to assign or remove • Net Numbering.
