  1. OPNs & LDZ Demand Forecasts Chris Shanley & Nick Reeves

  2. OPNs/LDZ Demand Forecasts from DNs to NTS • Issue originally raised through SOMSA SC2004 work • Proposed that NG NTS pursue any identified issues with the DN demand forecasting processes via the Offtake Committee • OPN Accuracy and Timing – means data is not currently utilised in the NTS Demand Forecasting process • Removal of SC2004 will mean NG NTS will no longer have access to certain information • To assist in development of each DNs new systems, clarity is required on how best information can be provided at the right time • DNs are wary about redesigning systems/processes to meet any current SO incentives that may disappear in a couple of years • What are the problems impacting the OPN process and is this the best way forward to correct these inconsistencies • NTS to liaise internally to gain a greater understanding of the issues and potential options and report back to the Offtake Committee

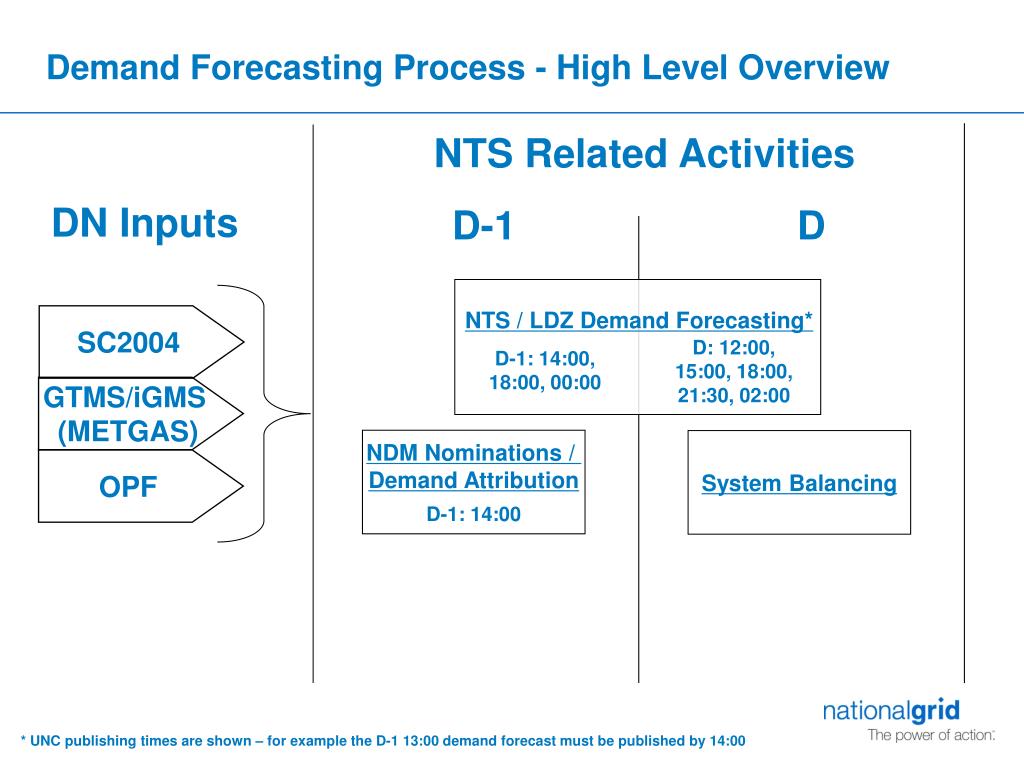

  3. NTS / LDZ Demand Forecasting* D: 12:00, 15:00, 18:00, 21:30, 02:00 D-1: 14:00, 18:00, 00:00 Demand Forecasting Process - High Level Overview NTS Related Activities DN Inputs D-1 D SC2004 GTMS/iGMS (METGAS) NDM Nominations / Demand Attribution D-1: 14:00 System Balancing OPF * UNC publishing times are shown – for example the D-1 13:00 demand forecast must be published by 14:00

  4. DN Inputs SC2004 METGAS OPF DN Inputs • Currently DNs submit information to National Grid NTS via 3 main routes • Forecast LDZ demand via SC2004 • Forecast NTS take via METGAS screens within GTMS • METGAS inputs provide NTS ‘take’ information from DNs • NTS ‘take’ = Demand Forecast + VLDMCs - (Interruption, LNG Boil Off, On Shore Fields) +/- Stock Change & Inter LDZ transfers • Offtake Profile Notifications (also provides forecast NTS take) • UNC Obligations on DNs to provide D-1 forecast info is stated as follows: • An “End of Day Demand Forecast Notice” for; • Any relevant DN System Exit Point by 12:00 • All LDZ/NTS offtakes by 13:00 • An OPN setting out rates of offtake throughout the Gas Flow Day by 18:00 • UNC Obligations on DNs to provide revised OPNs if there is an increase or decrease in rate of offtake

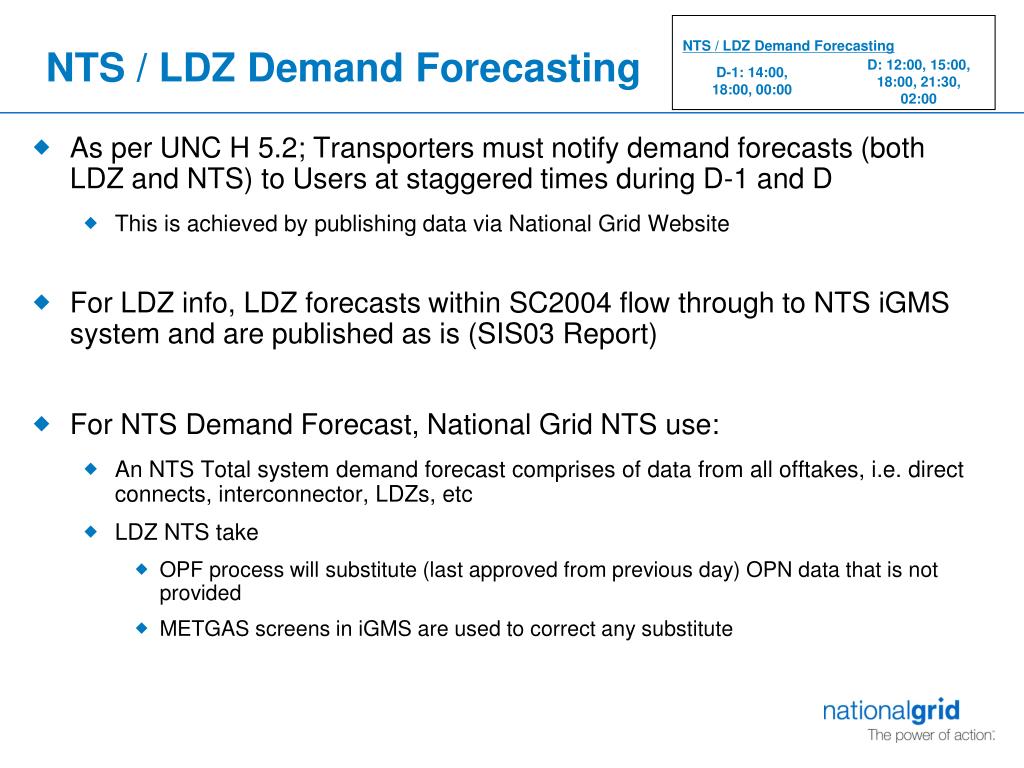

  5. NTS / LDZ Demand Forecasting D: 12:00, 15:00, 18:00, 21:30, 02:00 D-1: 14:00, 18:00, 00:00 NTS / LDZ Demand Forecasting • As per UNC H 5.2; Transporters must notify demand forecasts (both LDZ and NTS) to Users at staggered times during D-1 and D • This is achieved by publishing data via National Grid Website • For LDZ info, LDZ forecasts within SC2004 flow through to NTS iGMS system and are published as is (SIS03 Report) • For NTS Demand Forecast, National Grid NTS use: • An NTS Total system demand forecast comprises of data from all offtakes, i.e. direct connects, interconnector, LDZs, etc • LDZ NTS take • OPF process will substitute (last approved from previous day) OPN data that is not provided • METGAS screens in iGMS are used to correct any substitute

  6. SO Incentive Scheme • The D-1 14:00 total system forecast has an SO incentive for accuracy within 3% of actual demand (D+5) • Annual scheme • SO Incentives from April 2010 • National Grid leading on development of Initial Proposals • Initial views received are that current information/incentive is valuable to industry parties • Discussions being held on whether incentive should be extended to cover other times, for example D-1 16.00 • Some respondents highlighted that more accurate NDM forecasts would be useful

  7. NDM Nominations / Demand Attribution D-1: 14:00 NDM Nominations & Demand Attribution • D-1 NDM Noms are based on LDZ demand forecasts • SC2004 forecasts flow through to Gemini • NDM Noms calculated based on demand modelling • NDM Noms provided to Users via Gemini by 14:00 D-1 • Obligations are within UNC Section C 1.2 & 1.5 • Forecasts will need to be sent via new systems (SC2004 replacements)

  8. System Balancing System Balancing • National Grid NTS calculate Predicted Closing Line Pack (PCLP) and undertake balancing actions based on input and output information • Input Notifications from Delivery Facility Operators • Output Notifications provided to NTS by both Users (Direct Connects) & DNs respectively • For LDZ NTS take, NTS use the following (depending on timing of PCLP calculation) • METGAS information • Offtake Profile Notifications

  9. OPN Timing and Accuracy (1) • OPN timing and accuracy – D-1 Forecast? • DN OPN processes run later than NTS demand forecast round up times • No consistency between SC2004, METGAS & OPN info • Differences between LDZ demand & NTS Take • METGAS currently most timely source • The first OPN for Day Ahead usually arrives around 16.00 and is not used for the SO Incentive D-1 13.00 NTS Demand Forecast

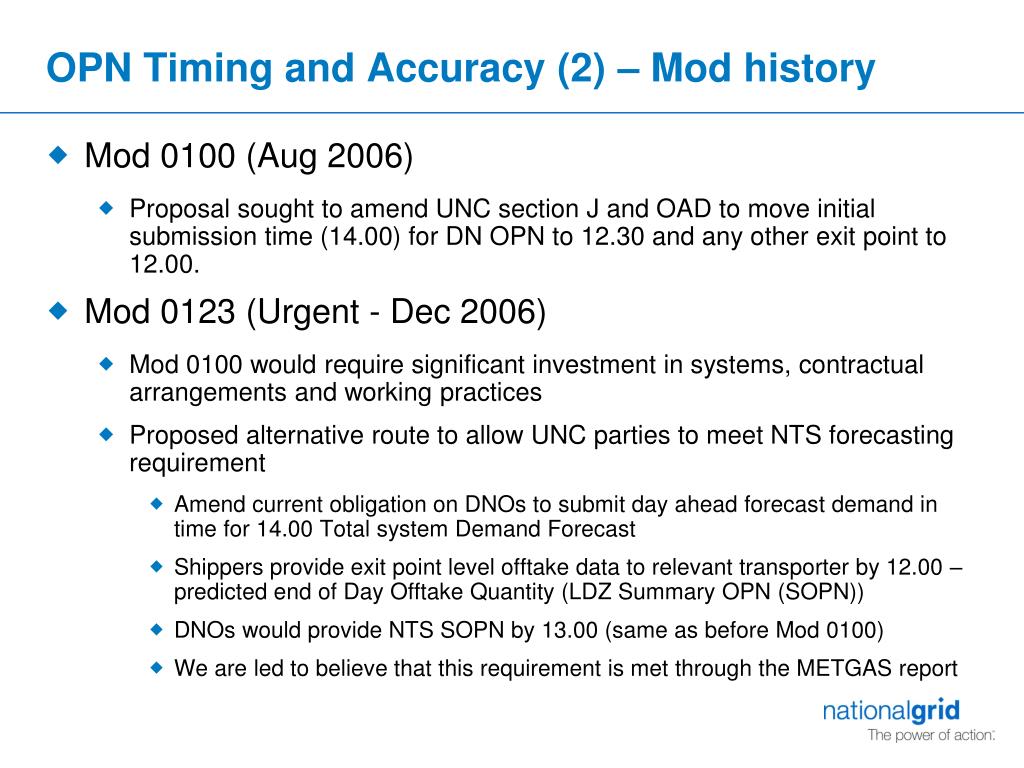

  10. OPN Timing and Accuracy (2) – Mod history • Mod 0100 (Aug 2006) • Proposal sought to amend UNC section J and OAD to move initial submission time (14.00) for DN OPN to 12.30 and any other exit point to 12.00. • Mod 0123 (Urgent - Dec 2006) • Mod 0100 would require significant investment in systems, contractual arrangements and working practices • Proposed alternative route to allow UNC parties to meet NTS forecasting requirement • Amend current obligation on DNOs to submit day ahead forecast demand in time for 14.00 Total system Demand Forecast • Shippers provide exit point level offtake data to relevant transporter by 12.00 – predicted end of Day Offtake Quantity (LDZ Summary OPN (SOPN)) • DNOs would provide NTS SOPN by 13.00 (same as before Mod 0100) • We are led to believe that this requirement is met through the METGAS report

  11. Current Requirements • To allow NG NTS to conduct their Demand Forecasting related activities ASIS: • NTS / LDZ Demand Forecasting • LDZ demand forecasts within SC2004* need to flow through to NTS iGMS system • DNs need to populate data that feeds into METGAS screens in iGMS to enable NTS to create their demand forecast • NDM Nominations & Demand Attribution • SC2004* LDZ Demand forecasts need to flow through to Gemini • System Balancing • LDZ NTS take - METGAS or OPN (depending on timing of PCLP calculation) • Offtake Profile Notifications • OPNs would be used more/exclusively if timing issues were overcome – METGAS preferred • Do we need to introduce governance arrangements (processes, audit, etc.) for METGAS? * SC2004 or replacement system

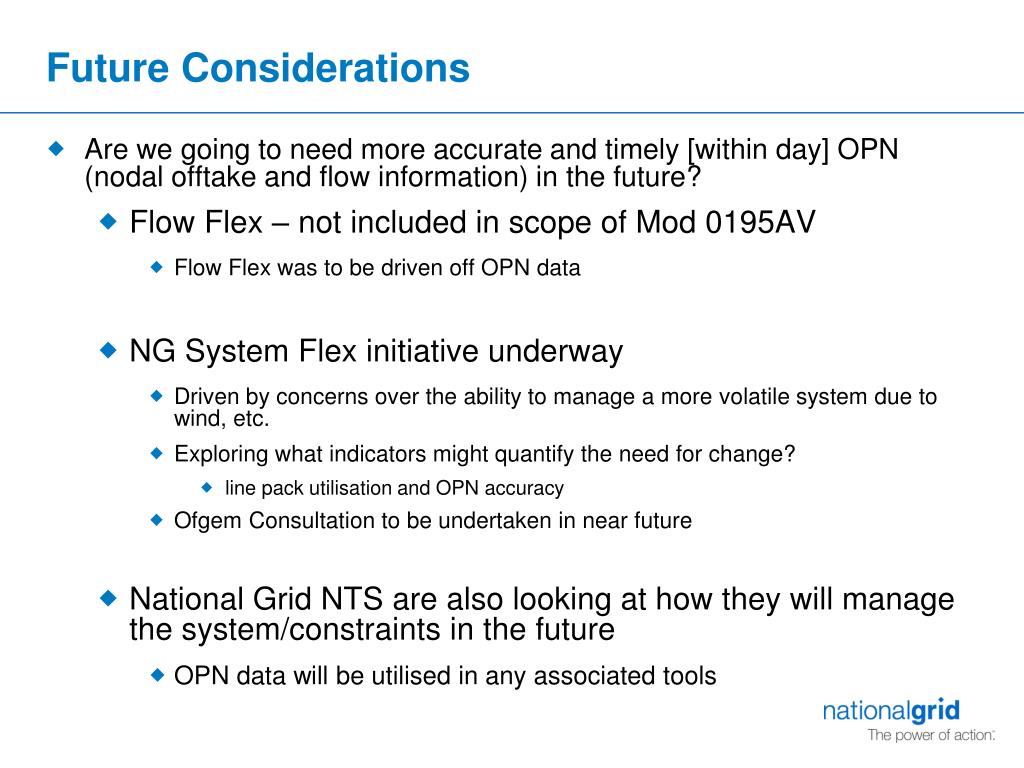

  12. Future Considerations • Are we going to need more accurate and timely [within day] OPN (nodal offtake and flow information) in the future? • Flow Flex – not included in scope of Mod 0195AV • Flow Flex was to be driven off OPN data • NG System Flex initiative underway • Driven by concerns over the ability to manage a more volatile system due to wind, etc. • Exploring what indicators might quantify the need for change? • line pack utilisation and OPN accuracy • Ofgem Consultation to be undertaken in near future • National Grid NTS are also looking at how they will manage the system/constraints in the future • OPN data will be utilised in any associated tools
