Module 2: Born Haber Cycles

Module 2: Born Haber Cycles. Find the standard enthalpy of formation of ethane. Given the following enthalpies of combustion; C(s) = -393 KJ mol -1 H 2 (g) = -286 KJ mol -1 C 2 H 6 (g) = -1560 KJ mol -1. Step 1: Write equations for the data provided. C(s) + O 2  CO 2 (g)

brandon-nixon
Download Presentation

Module 2: Born Haber Cycles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

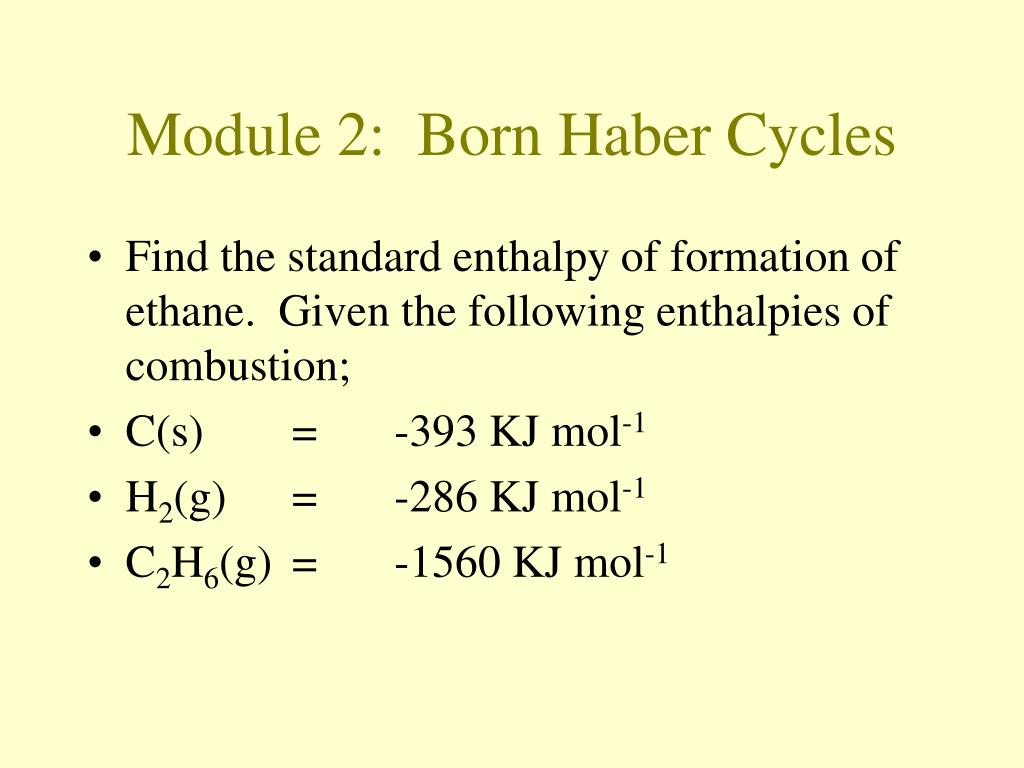

  1. Module 2: Born Haber Cycles • Find the standard enthalpy of formation of ethane. Given the following enthalpies of combustion; • C(s) = -393 KJ mol-1 • H2(g) = -286 KJ mol-1 • C2H6(g) = -1560 KJ mol-1

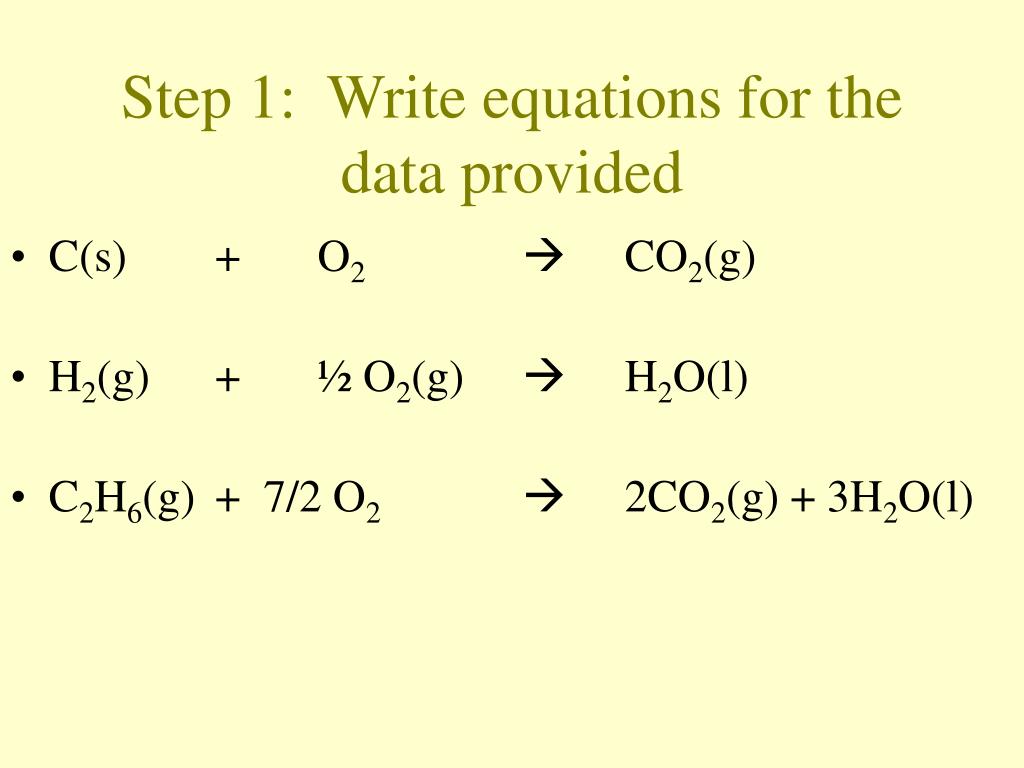

  2. Step 1: Write equations for the data provided • C(s) + O2 CO2(g) • H2(g) + ½ O2(g)  H2O(l) • C2H6(g) + 7/2 O2  2CO2(g) + 3H2O(l)

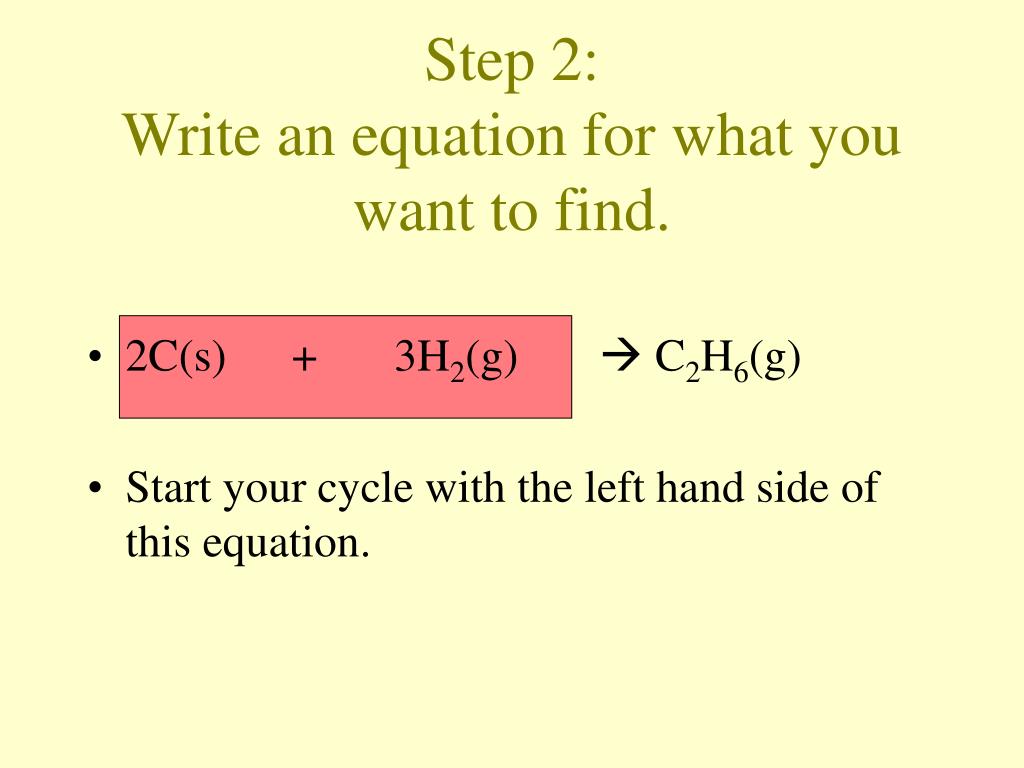

  3. Step 2: Write an equation for what you want to find. • 2C(s) + 3H2(g)  C2H6(g) • Start your cycle with the left hand side of this equation.

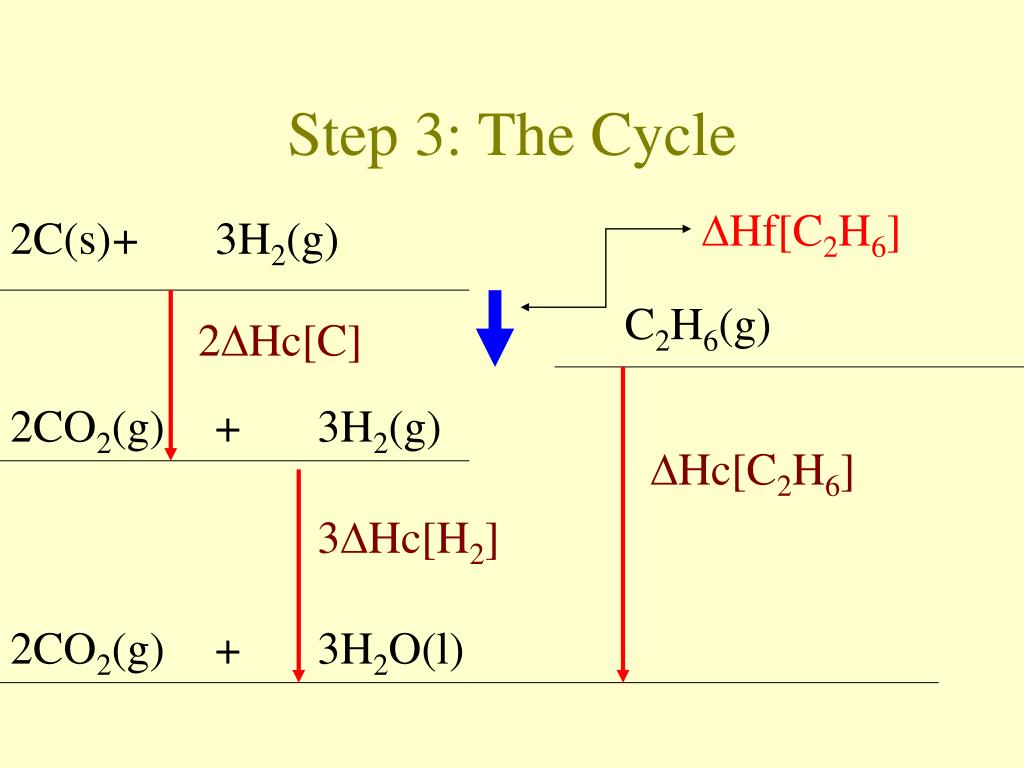

  4. Step 3: The Cycle Hf[C2H6] 2C(s) + 3H2(g) C2H6(g) 2Hc[C] 2CO2(g) + 3H2(g) Hc[C2H6] 3Hc[H2] 2CO2(g) + 3H2O(l)

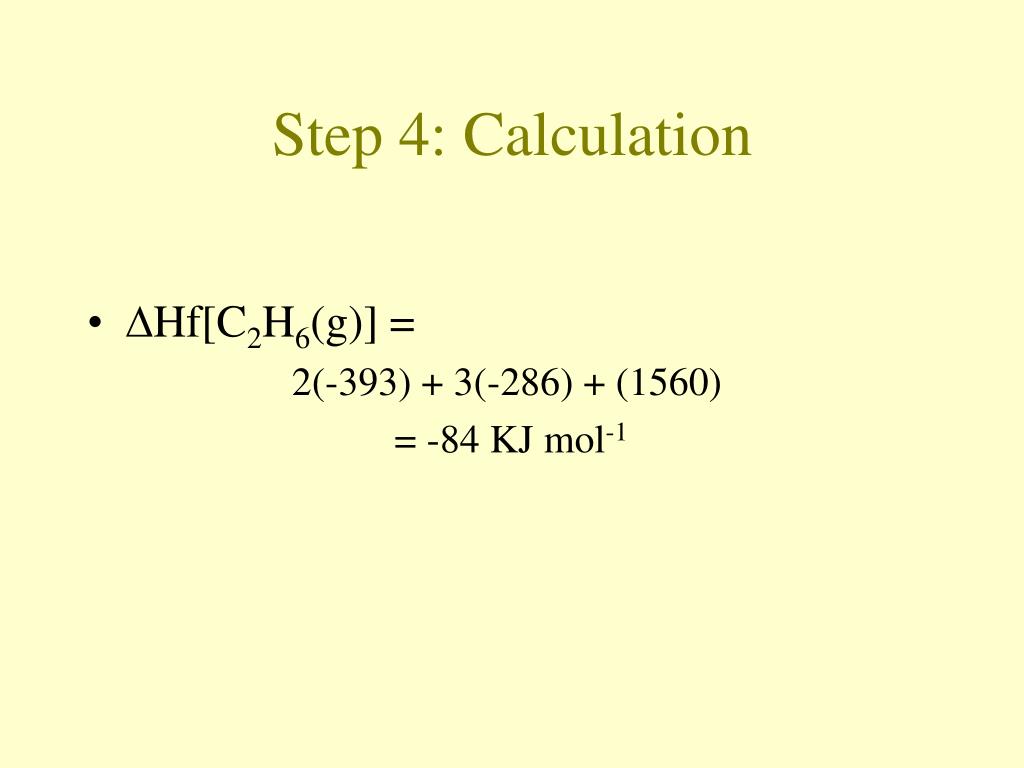

  5. Step 4: Calculation • Hf[C2H6(g)] = 2(-393) + 3(-286) + (1560) = -84 KJ mol-1
