  1. Digital Portraits - Close Ups Mr. Hardway Electronic Arts

  2. Basic Camera Parts and their uses for a Digital Still Camera

  3. Digital Camera Parts *Front Indicates parts you need to know for your assignment

  4. Digital Camera Parts *Front

  5. Shutter Button Releases the shutter to take the picture. This button must be pressed down completely and held until the word recording appears.

  6. Digital Camera Parts *Front

  7. T W Zoom Lever This lever slides left or right. Sliding it to the T (telephoto) will make the image appear larger or closer. Sliding it to the W (wide angle) will make it appear smaller or farther away Zoom Level Indicator

  8. Digital Camera Parts *Front Indicates parts you need to know for your assignment

  9. Focus Ring Turning this ring left or right will bring the image into clear focus when the camera is set to Manual Focus.

  10. Digital Camera Parts *Front Indicates parts you need to know for your assignment

  11. Lens The circular glass window in the front of the camera through which the light/image enters the camera.

  12. Digital Camera Parts *Front Indicates parts you need to know for your assignment

  13. DC In Jack The outlet or jack used to connect the power cord for operation or charging the battery.

  14. Digital Camera Parts *Front Indicates parts you need to know for your assignment

  15. Audio/Video Out The jack for connecting the cameras AV cable to allow connection to other Audio Video equipment such as a TV or monitor.

  16. Digital Camera Parts *Front Indicates parts you need to know for your assignment

  17. Focus Auto/Manual Switch Allows you to select the option of automatic or manual focusing.

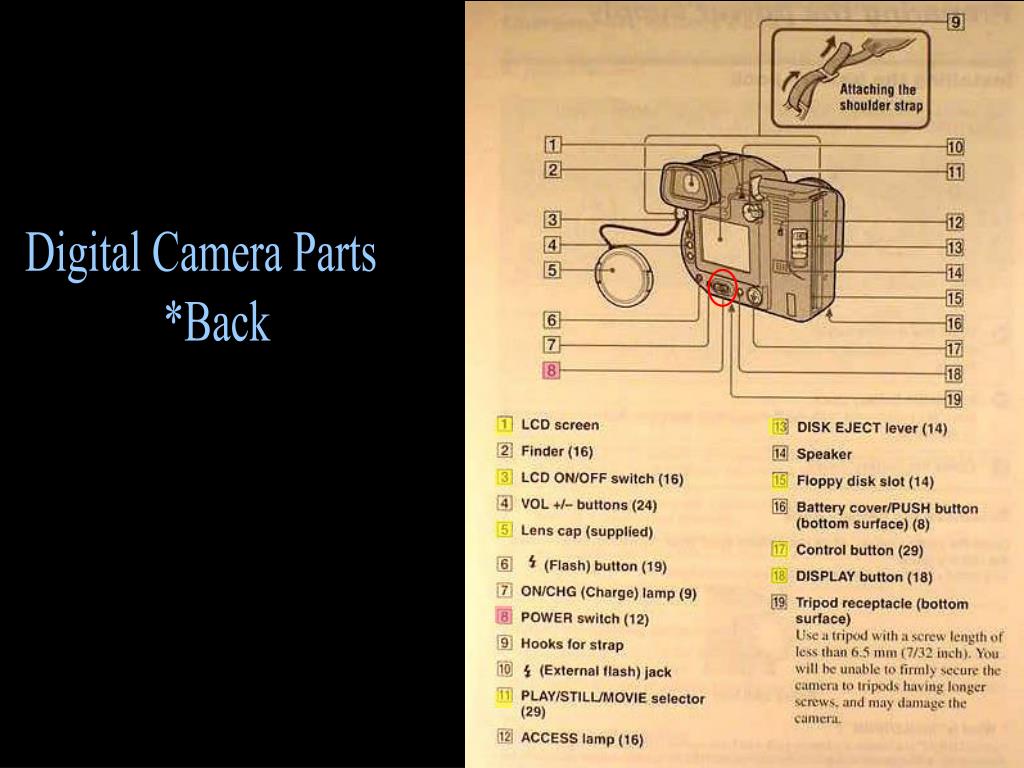

  18. Digital Camera Parts *Back

  19. Digital Camera Parts *Back

  20. LCD Screen Liquid Crystal Display Screen is the screen that previews the image that is about to be photographed, it must be turned on.

  21. Digital Camera Parts *Back

  22. LCD On/Off Switch The switch that turns on or off the Liquid Crystal Display screen.

  23. Digital Camera Parts *Back

  24. Lens Cap The protective cap for the lens. This cap needs to be placed over the lens when the camera is not in use.

  25. Digital Camera Parts *Back

  26. Power Switch The switch that turns on the camera. This switch powers the camera for use with either the battery or AC power.

  27. Digital Camera Parts *Back

  28. Play/Still/Movie Selector Allows you to select from: Play -play back of images Still –take a Still Picture Movie –take a movie clip Use Still or Play only

  29. Digital Camera Parts *Back

  30. Disk Eject Lever Lever that ejects the disk in the camera.

  31. Digital Camera Parts *Back

  32. Floppy Disk Slot Slot for inserting and ejecting floppy disks.

  33. Digital Camera Parts *Back

  34. Control Button This button allows you to make various selections to change settings on the camera, such as, viewing images by going forwards or backwards in the play mode.

  35. Digital Camera Parts *Back

  36. Display Button Turning this button on or off selects the option of displaying information about the camera settings on the LCD screen. Turning this off will give more uncluttered viewing space.

  37. Digital Camera Parts *Back Name the Parts 1. Lcd lens 3 lcd on /off 5lens cap 8 power switch 11 play still movie 12 Acess 15 floppy disk 17 control button 18 display button

  38. Digital Camera Parts *Front Name the Parts 4 volume button 5 leans cap 7on caging Power switch 9pwer play display 18power display 19play still movie Indicates parts you need to know for your assignment

  39. The Elements of a Photographic Portrait

  40. Composition Your goal as you arrange or compose your model in your photograph, usually in the “Portrait” or vertical format, is to make it an interesting image.

  41. Rule of Thirds The most attention getting part of an image or (center of interest) should fall approximately at the intersection of lines that divide the image into thirds

  42. Poor Composition The center of interest here does not follow the Rule of Thirds

  43. Lighting The way light hits your subject will effect the mood of the photograph. The Photographer must set the lights for the desired effect
