  1. Target Identification and Animal Models According to optimistic estimations, the human genome may contain 5000 to 10000 new drug targets. All applied medications that are or have been in use are aiming about 500 targets on the molecular level. Currently all marketed drugs are aiming only 120 targets. The top 100 of best selling medications are solely aiming 43 proteins. Is there only a small number of so-called valid targets ? Is there not enough information about so-calleddrugable targets ? Modern Methods in Drug Discovery WS06/07

  2. Drugs according to function Losec (omeprazole) ion channel ATPase inhibitor Viagra (sildenafil) enzyme PDE inhibitor Zocor (simvastatin) enzyme HMG-CoA inhibitor Lipitor (atorvastatin) enzyme HMG-CoA inhibitor Norvasc (amlodipine) ion channel (hypertension) Claritin (loratadine) GPCR (allergic rhinits) Celebrex (celecoxib) enzyme COX-2-inhibitor Prozac (fluoxetine) GPCR 5-HT transporter A selection of the best selling medications of the past few years Modern Methods in Drug Discovery WS06/07

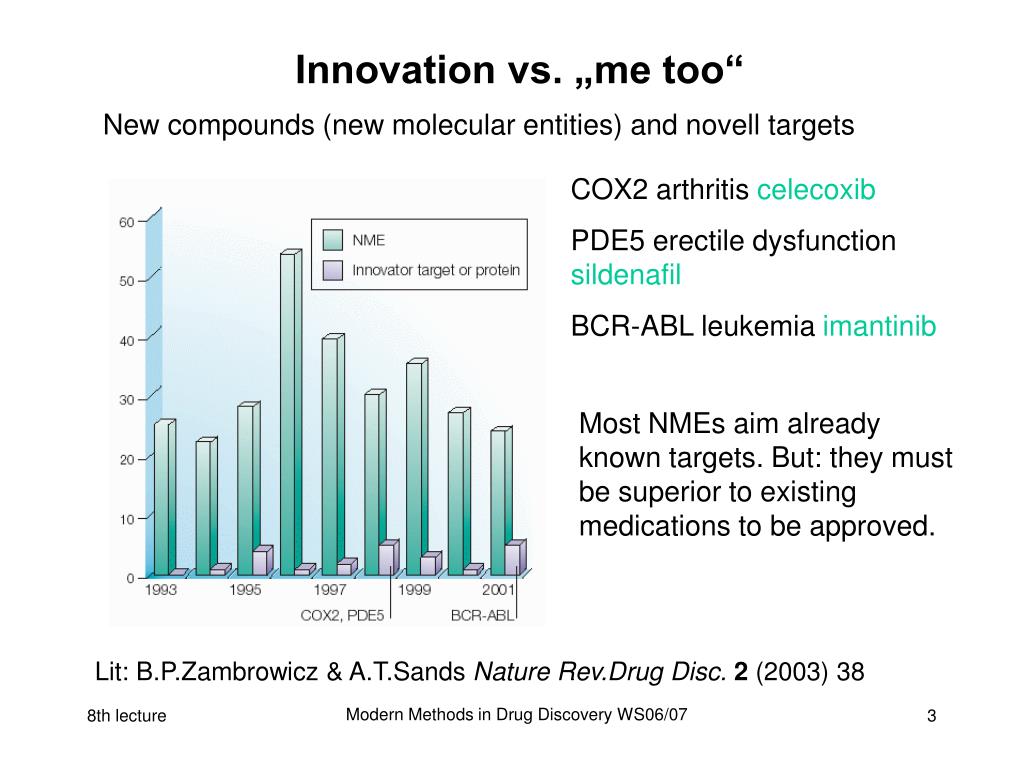

  3. Innovation vs. „me too“ New compounds (new molecular entities) and novell targets COX2 arthritis celecoxib PDE5 erectile dysfunction sildenafil BCR-ABL leukemia imantinib Most NMEs aim already known targets. But: they must be superior to existing medications to be approved. Lit: B.P.Zambrowicz & A.T.Sands Nature Rev.Drug Disc.2 (2003) 38 Modern Methods in Drug Discovery WS06/07

  4. Typical targets in the human genome Contribution to the human genome and marketed drugs. Around 500 proteins have been used so far as targets. An estimated 10000 potential targets in the genome. Modern Methods in Drug Discovery WS06/07

  5. typical targets (II) Fractional content of marketed drugs according to their biochemical targets data: Hopkins & Groom, Nat.Rev.Drug.Disc.1 (2002) 727 Modern Methods in Drug Discovery WS06/07

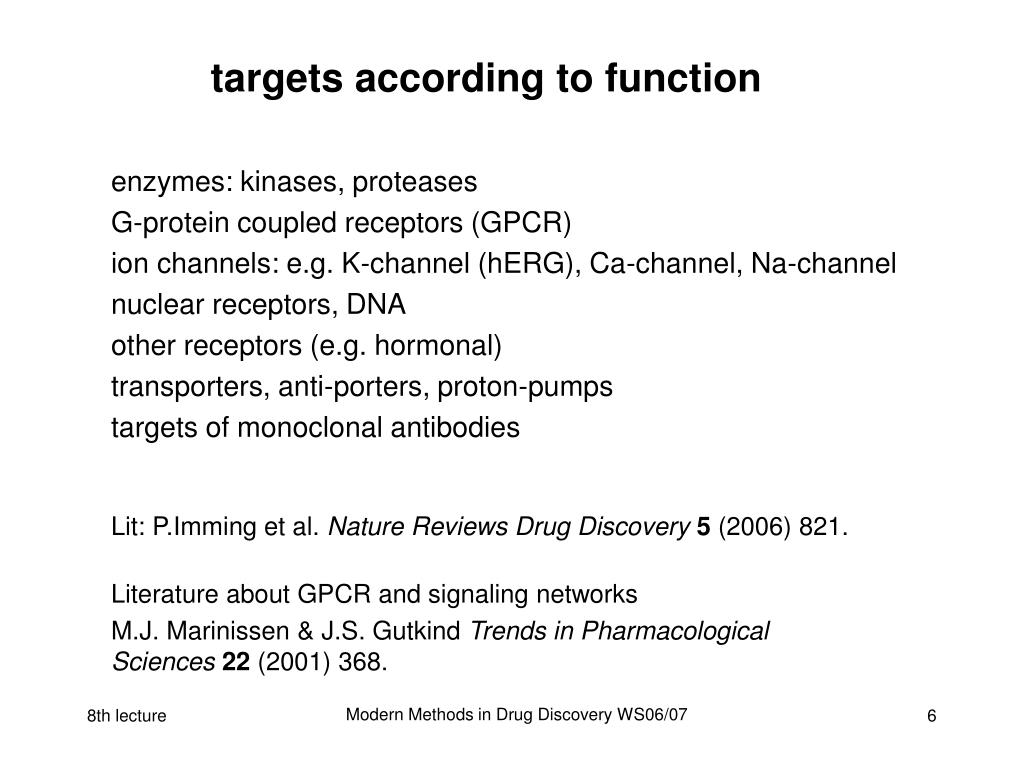

  6. targets according to function enzymes: kinases, proteases G-protein coupled receptors (GPCR) ion channels: e.g. K-channel (hERG), Ca-channel, Na-channel nuclear receptors, DNA other receptors (e.g. hormonal) transporters, anti-porters, proton-pumps targets of monoclonal antibodies Lit: P.Imming et al. Nature Reviews Drug Discovery5 (2006) 821. Literature about GPCR and signaling networks M.J. Marinissen & J.S. Gutkind Trends in Pharmacological Sciences22 (2001) 368. Modern Methods in Drug Discovery WS06/07

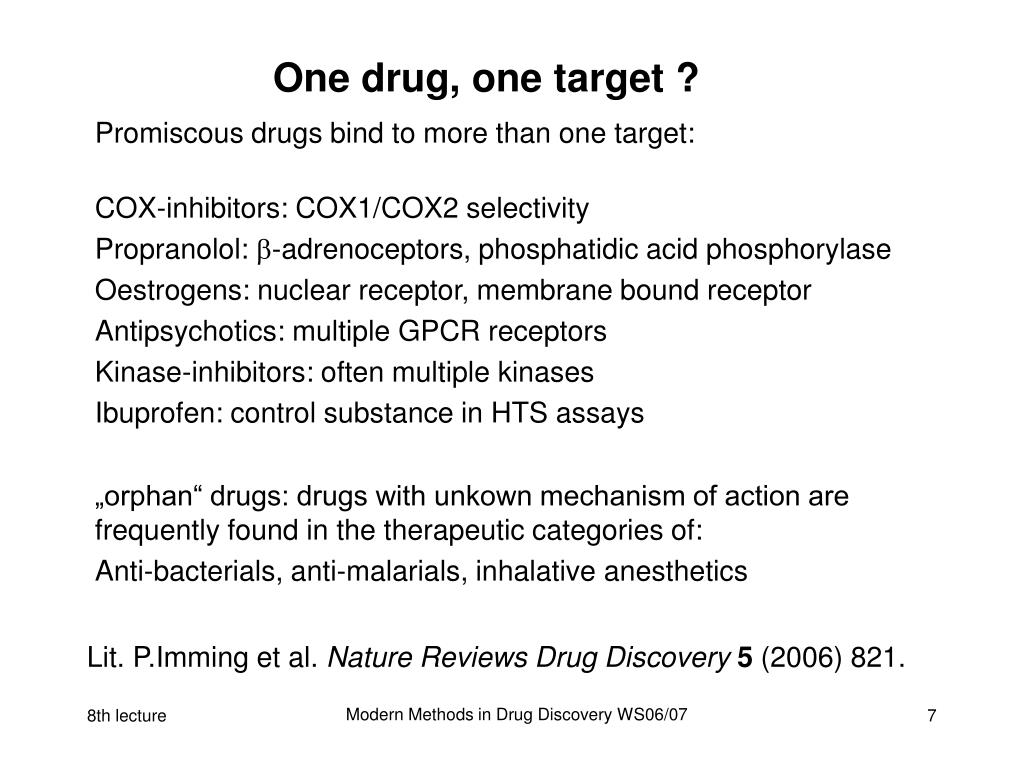

  7. One drug, one target ? Promiscous drugs bind to more than one target: COX-inhibitors: COX1/COX2 selectivity Propranolol: b-adrenoceptors, phosphatidic acid phosphorylase Oestrogens: nuclear receptor, membrane bound receptor Antipsychotics: multiple GPCR receptors Kinase-inhibitors: often multiple kinases Ibuprofen: control substance in HTS assays „orphan“ drugs: drugs with unkown mechanism of action are frequently found in the therapeutic categories of: Anti-bacterials, anti-malarials, inhalative anesthetics Lit. P.Imming et al. Nature Reviews Drug Discovery5 (2006) 821. Modern Methods in Drug Discovery WS06/07

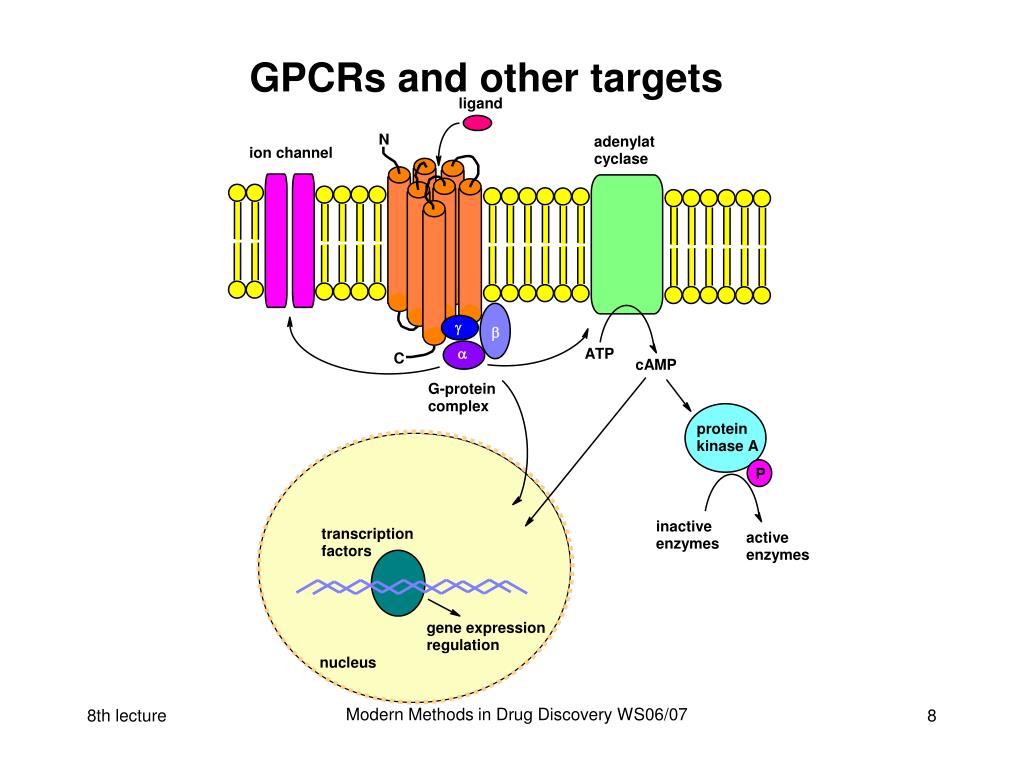

  8. GPCRs and other targets Modern Methods in Drug Discovery WS06/07

  9. Rhodopsin (I) cytoplasmic side extracellular side Lit: D.C. Teller et al. Biochemistry40 (2001) 77611HZX.pdb Modern Methods in Drug Discovery WS06/07

  10. Rhodopsin (II) G-protein binding sites ligand binding site 1HZX.pdb Modern Methods in Drug Discovery WS06/07

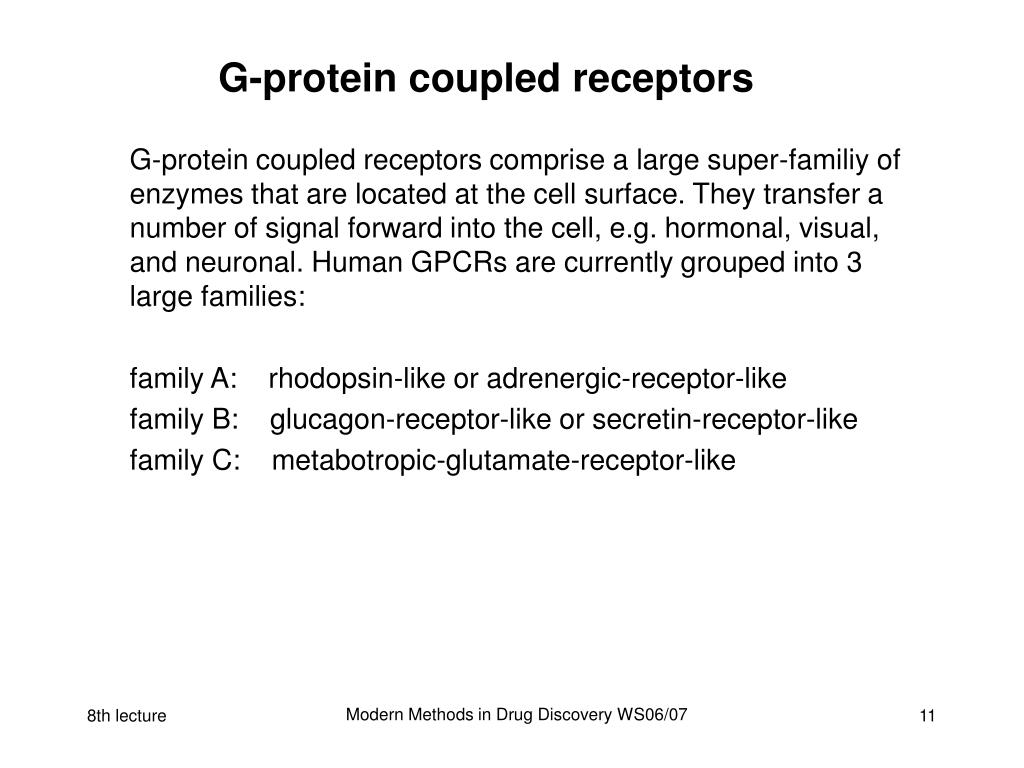

  11. G-protein coupled receptors G-protein coupled receptors comprise a large super-familiy of enzymes that are located at the cell surface. They transfer a number of signal forward into the cell, e.g. hormonal, visual, and neuronal. Human GPCRs are currently grouped into 3 large families: family A: rhodopsin-like or adrenergic-receptor-like family B: glucagon-receptor-like or secretin-receptor-like family C: metabotropic-glutamate-receptor-like Modern Methods in Drug Discovery WS06/07

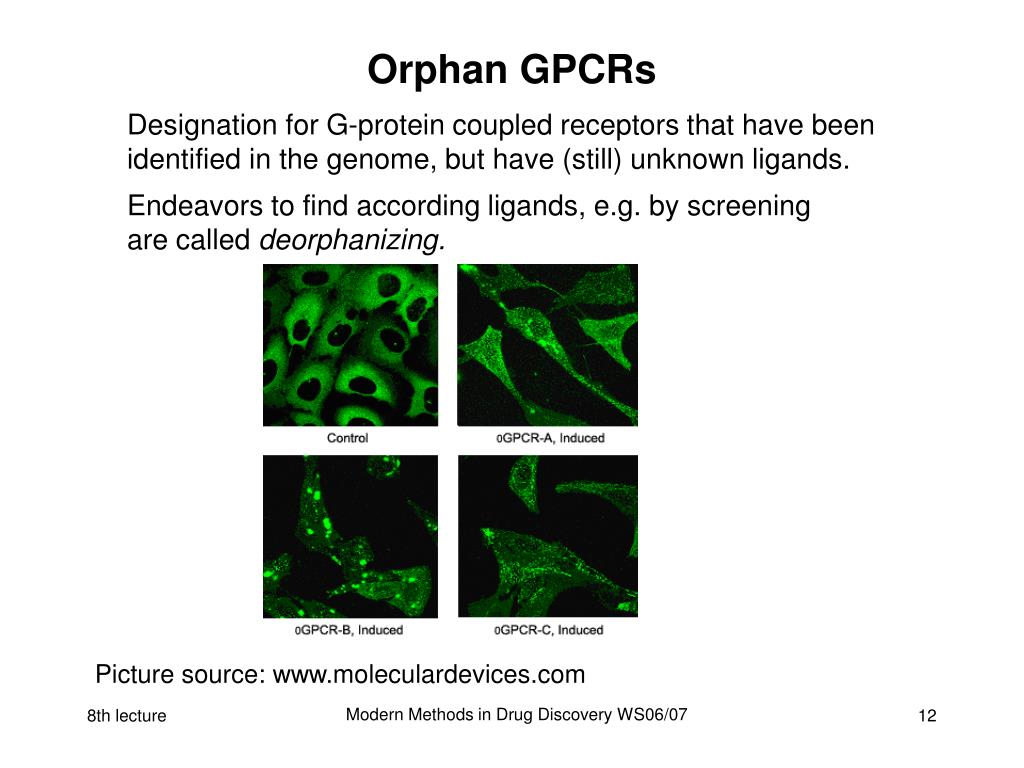

  12. Orphan GPCRs Designation for G-protein coupled receptors that have been identified in the genome, but have (still) unknown ligands. Endeavors to find according ligands, e.g. by screening are called deorphanizing. Picture source: www.moleculardevices.com Modern Methods in Drug Discovery WS06/07

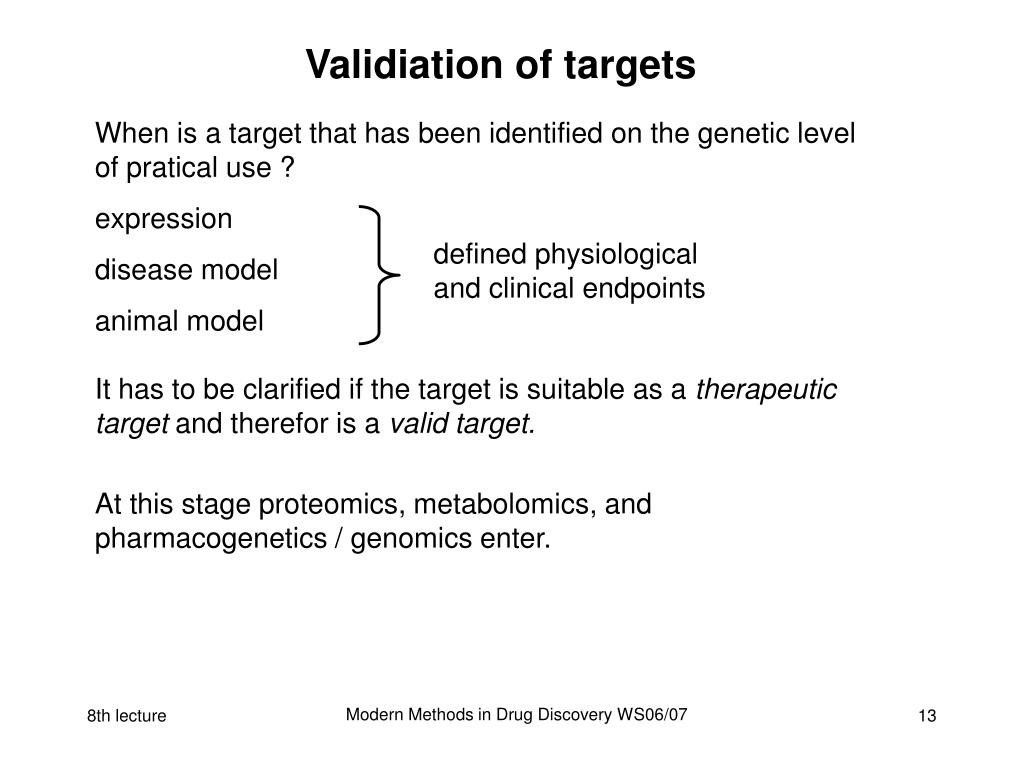

  13. Validiation of targets When is a target that has been identified on the genetic level of pratical use ? expression disease model animal model It has to be clarified if the target is suitable as a therapeutic target and therefor is a valid target. defined physiological and clinical endpoints At this stage proteomics, metabolomics, and pharmacogenetics / genomics enter. Modern Methods in Drug Discovery WS06/07

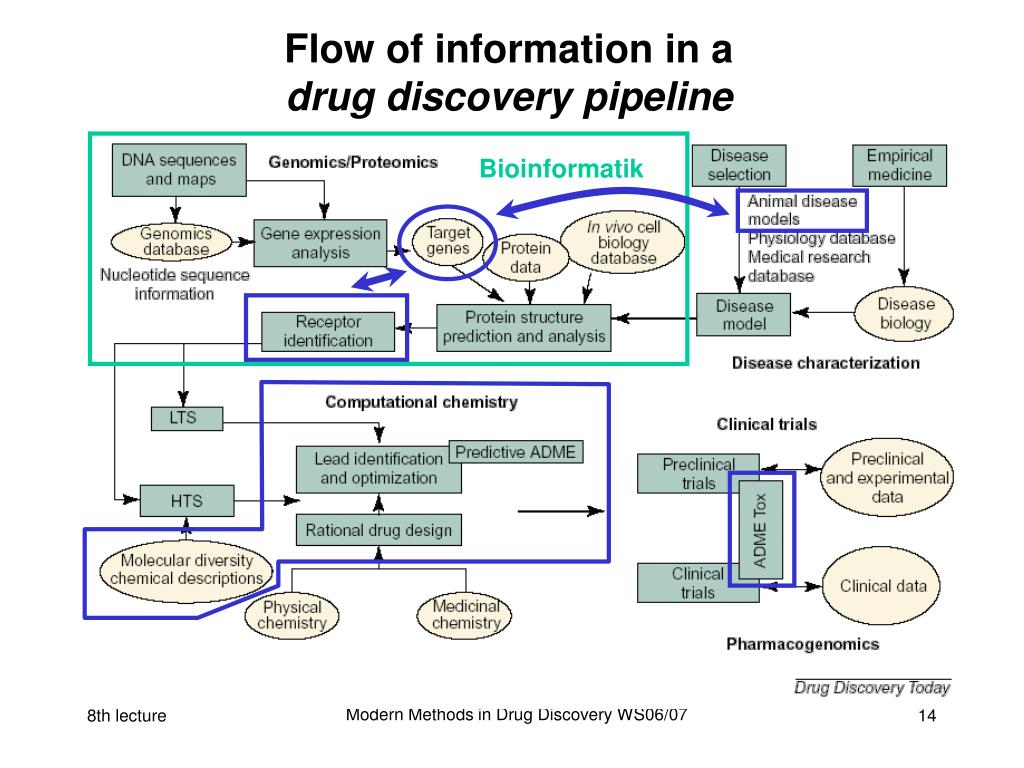

  14. Flow of information in adrug discovery pipeline Bioinformatik Modern Methods in Drug Discovery WS06/07

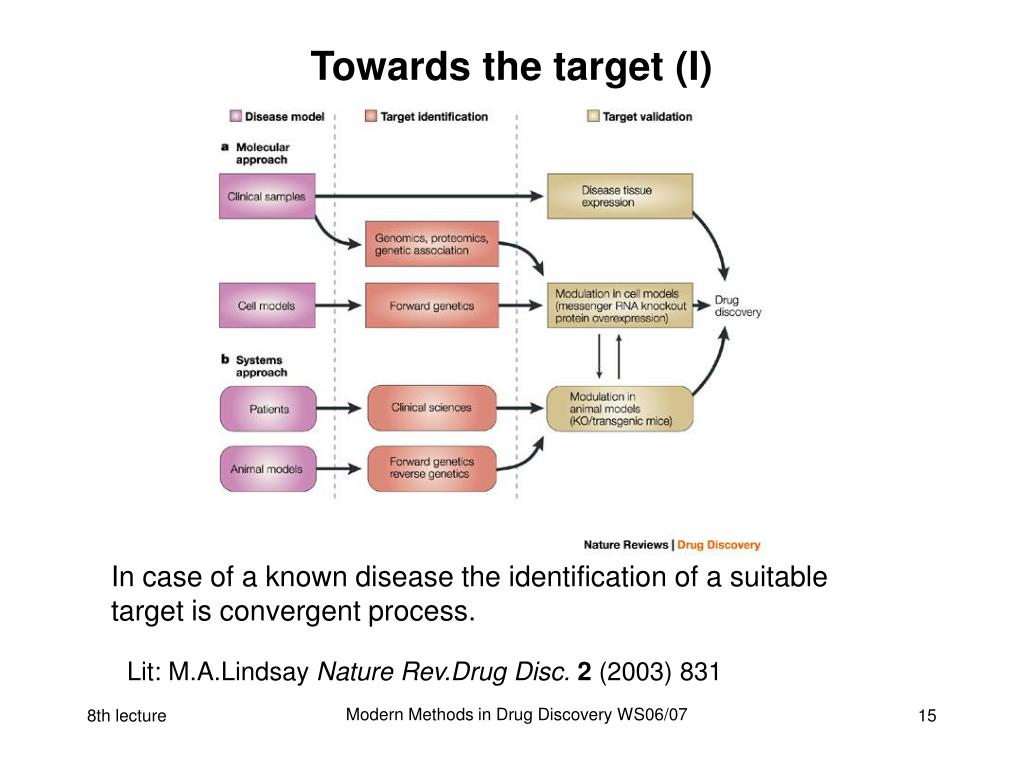

  15. Towards the target (I) In case of a known disease the identification of a suitable target is convergent process. Lit: M.A.Lindsay Nature Rev.Drug Disc.2 (2003) 831 Modern Methods in Drug Discovery WS06/07

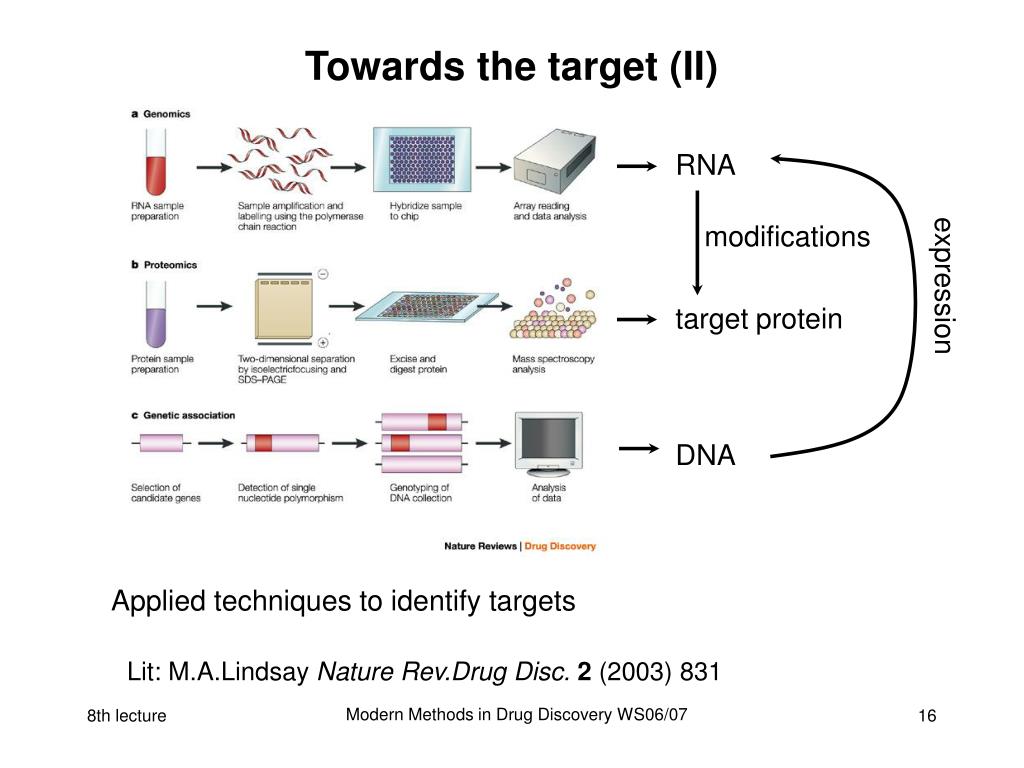

  16. Towards the target (II) RNA target protein DNA modifications expression Applied techniques to identify targets Lit: M.A.Lindsay Nature Rev.Drug Disc.2 (2003) 831 Modern Methods in Drug Discovery WS06/07

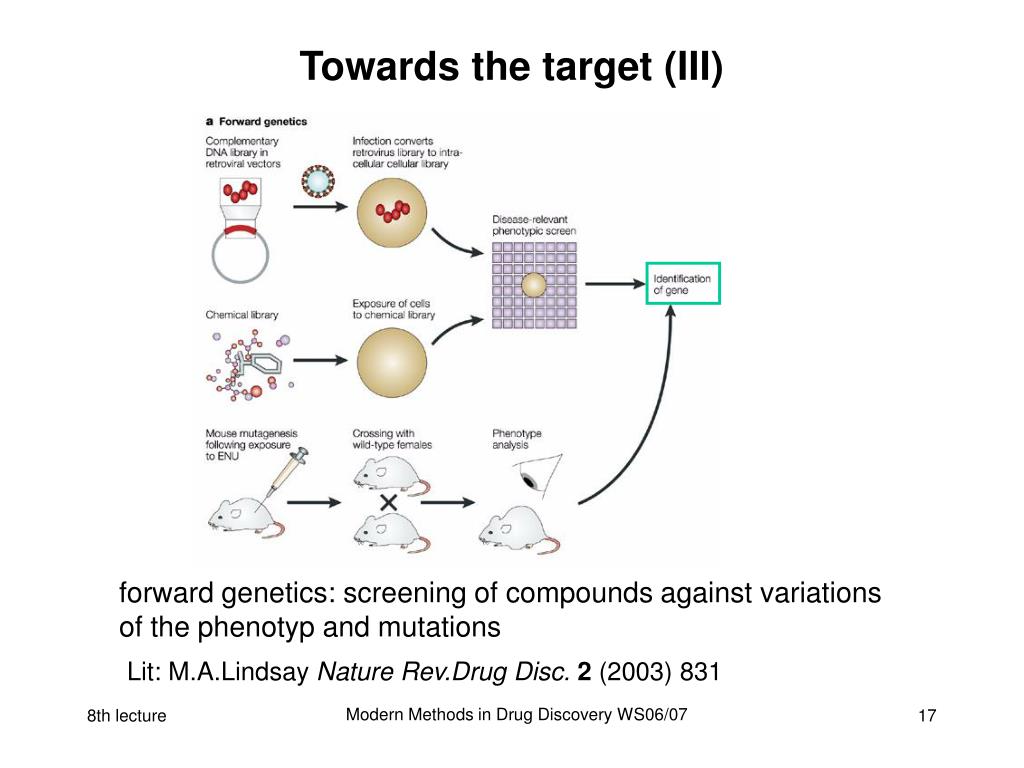

  17. Towards the target (III) forward genetics: screening of compounds against variations of the phenotyp and mutations Lit: M.A.Lindsay Nature Rev.Drug Disc.2 (2003) 831 Modern Methods in Drug Discovery WS06/07

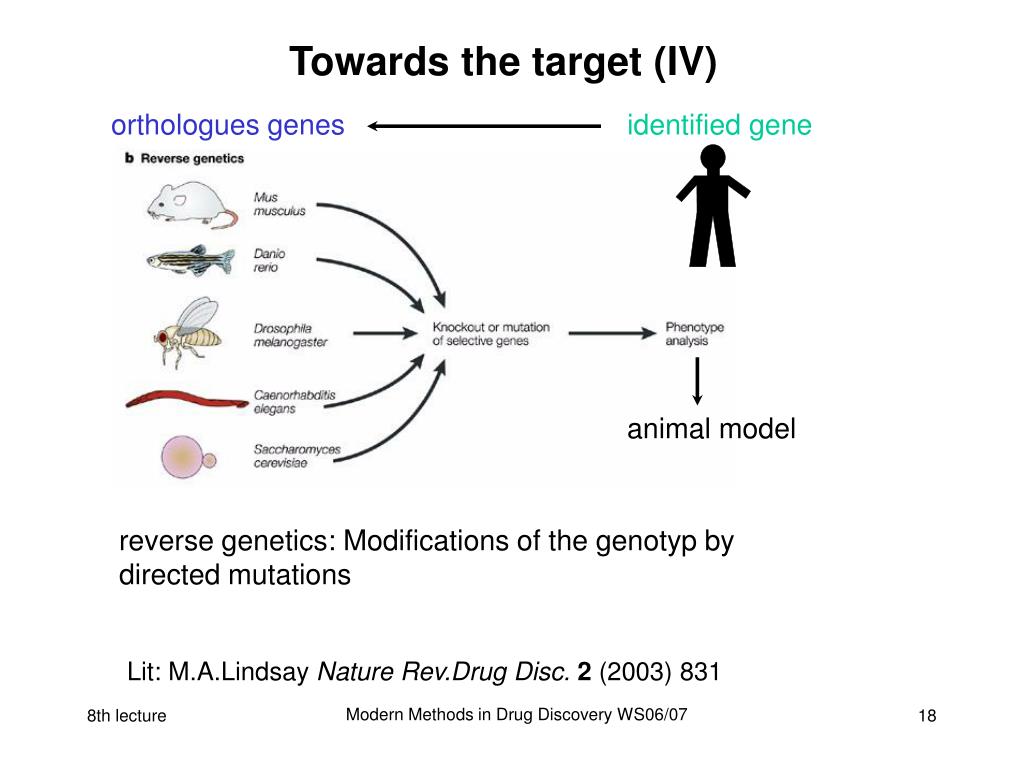

  18. Towards the target (IV) orthologues genes identified gene animal model reverse genetics: Modifications of the genotyp bydirected mutations Lit: M.A.Lindsay Nature Rev.Drug Disc.2 (2003) 831 Modern Methods in Drug Discovery WS06/07

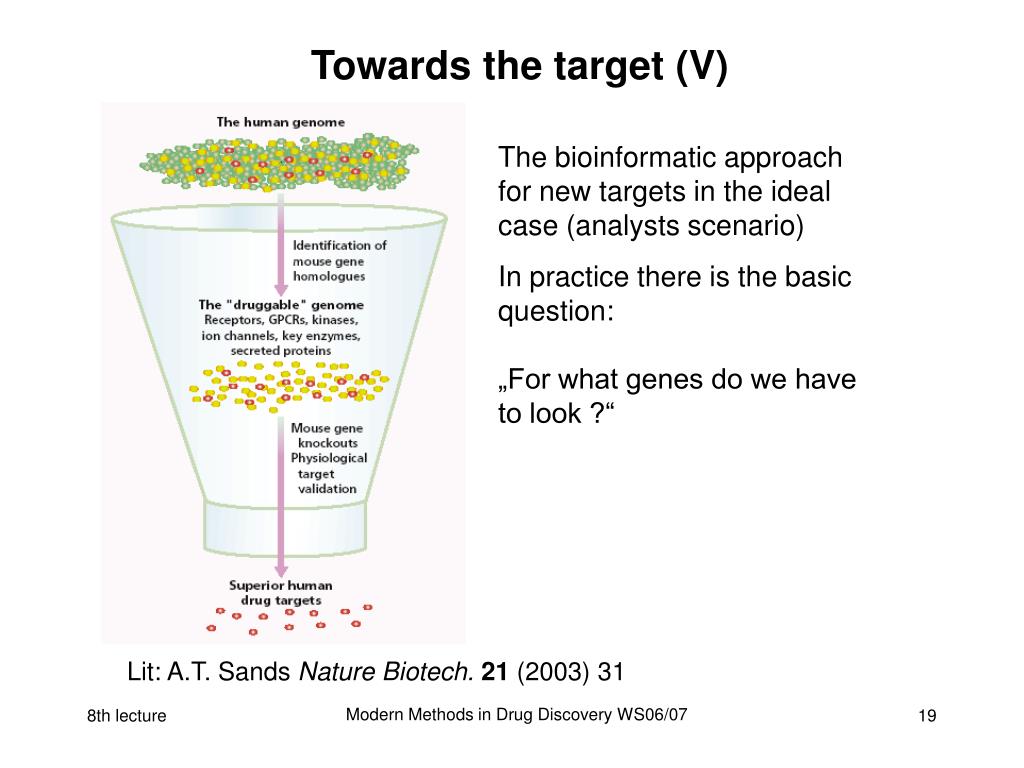

  19. Towards the target (V) The bioinformatic approach for new targets in the ideal case (analysts scenario) In practice there is the basic question:„For what genes do we have to look ?“ Lit: A.T. Sands Nature Biotech.21 (2003) 31 Modern Methods in Drug Discovery WS06/07

  20. What to look for in the genome ? → similarities to already exploited targets Searching for targets that are so far under-represented should give the chance to find innovative targets: kinases and proteases Transmembrane proteins (GPCRs, ion channels, transporters) DNA and RNA bindung sites nuclear receptors (for hormones)(esp. orphan nuclear receptors,so far only few new have been found) According to cautious estimations there should be around100-150 new and precious targets (valid, drugable). Modern Methods in Drug Discovery WS06/07

  21. Target validation When is a target suitable for therapeutic purposes ? • There must be sufficient and reasonable connectionswith the disease: • as enzyme, GPCR, ion channel, receptor, etc. Verification by screening with lead compound from focused libraries • as target on DNA, RNA, mRNA level itselfVerification by knockout mutations (see below),single point mutations (SNPs, see below),and gene silencing by RNA interference (RNAi)(see siRNA) Modern Methods in Drug Discovery WS06/07

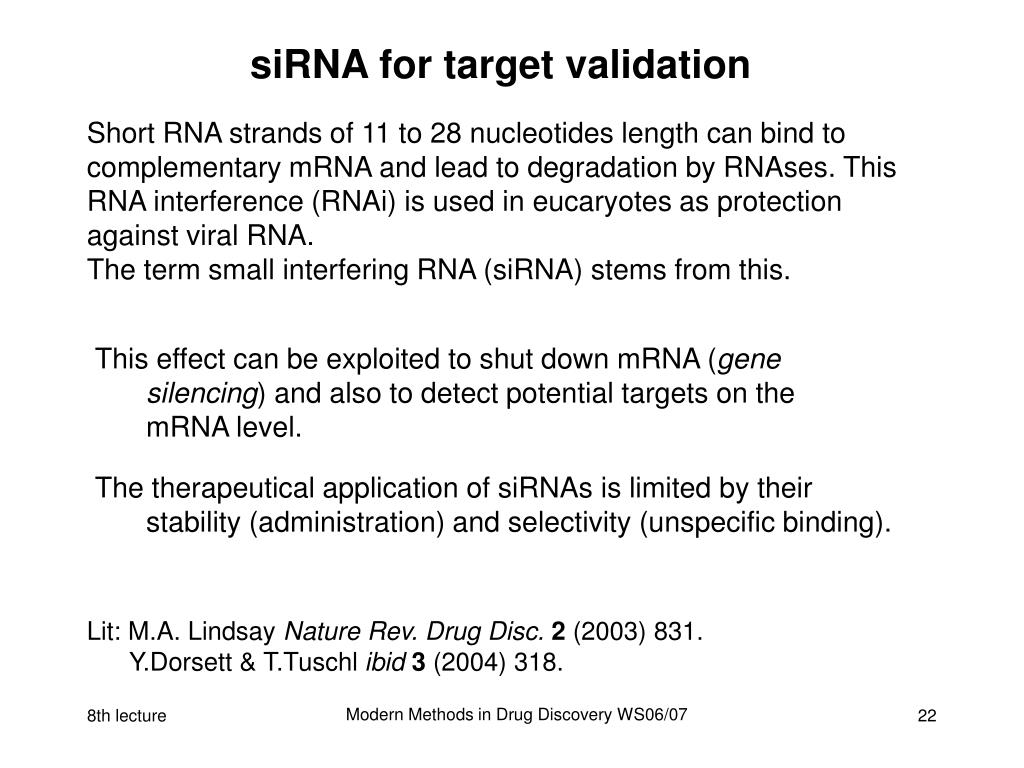

  22. siRNA for target validation Short RNA strands of 11 to 28 nucleotides length can bind to complementary mRNA and lead to degradation by RNAses. This RNA interference (RNAi) is used in eucaryotes as protection against viral RNA.The term small interfering RNA (siRNA) stems from this. This effect can be exploited to shut down mRNA (gene silencing) and also to detect potential targets on the mRNA level. The therapeutical application of siRNAs is limited by their stability (administration) and selectivity (unspecific binding). Lit: M.A. Lindsay Nature Rev. Drug Disc.2 (2003) 831. Y.Dorsett & T.Tuschl ibid3 (2004) 318. Modern Methods in Drug Discovery WS06/07

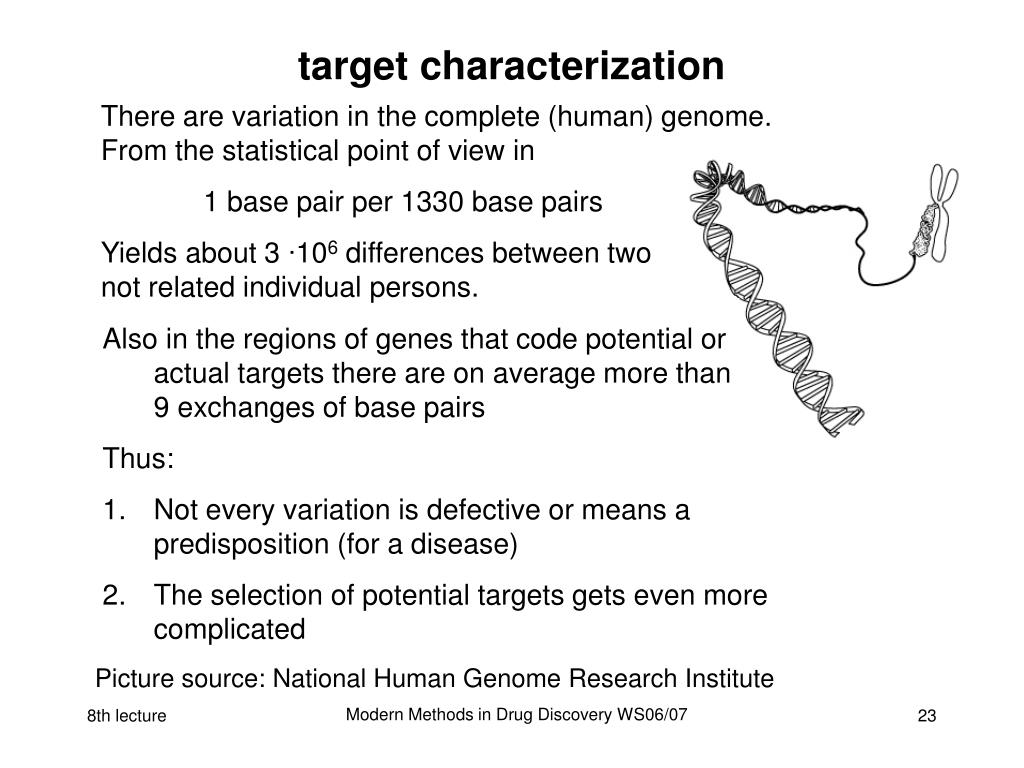

  23. target characterization There are variation in the complete (human) genome. From the statistical point of view in 1 base pair per 1330 base pairs Yields about 3 ∙106 differences between twonot related individual persons. • Also in the regions of genes that code potential oractual targets there are on average more than9 exchanges of base pairs • Thus: • Not every variation is defective or means a predisposition (for a disease) • The selection of potential targets gets even more complicated Picture source: National Human Genome Research Institute Modern Methods in Drug Discovery WS06/07

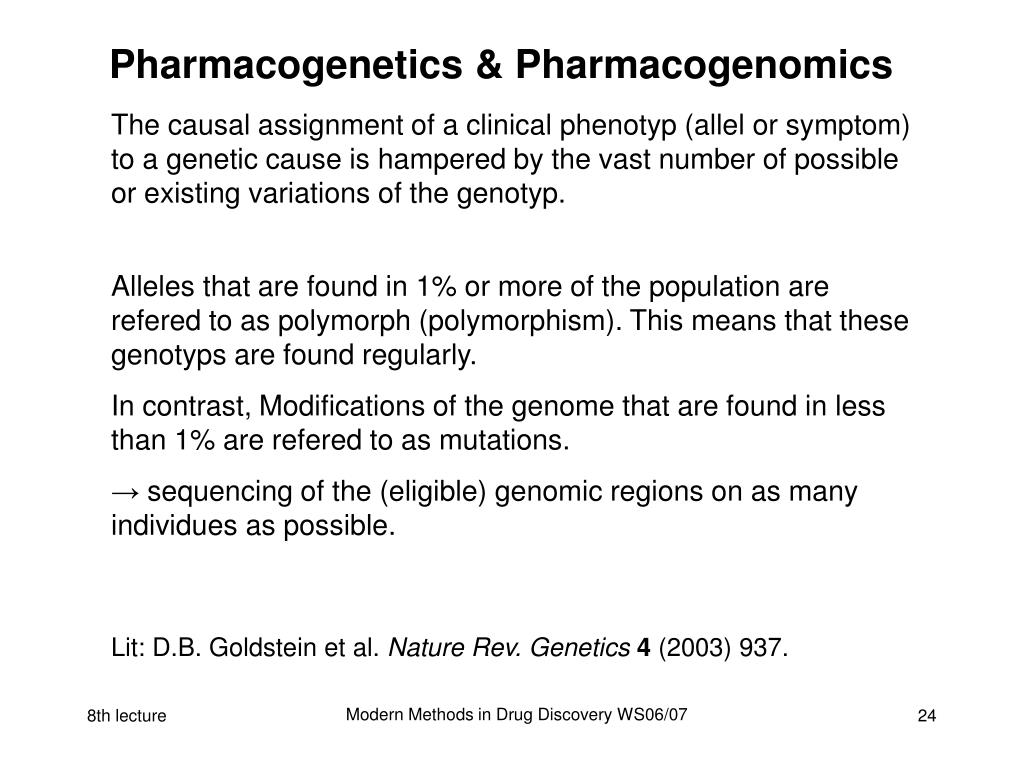

  24. Pharmacogenetics & Pharmacogenomics The causal assignment of a clinical phenotyp (allel or symptom) to a genetic cause is hampered by the vast number of possible or existing variations of the genotyp. Alleles that are found in 1% or more of the population are refered to as polymorph (polymorphism). This means that these genotyps are found regularly. In contrast, Modifications of the genome that are found in less than 1% are refered to as mutations. → sequencing of the (eligible) genomic regions on as many individues as possible. Lit: D.B. Goldstein et al. Nature Rev. Genetics4 (2003) 937. Modern Methods in Drug Discovery WS06/07

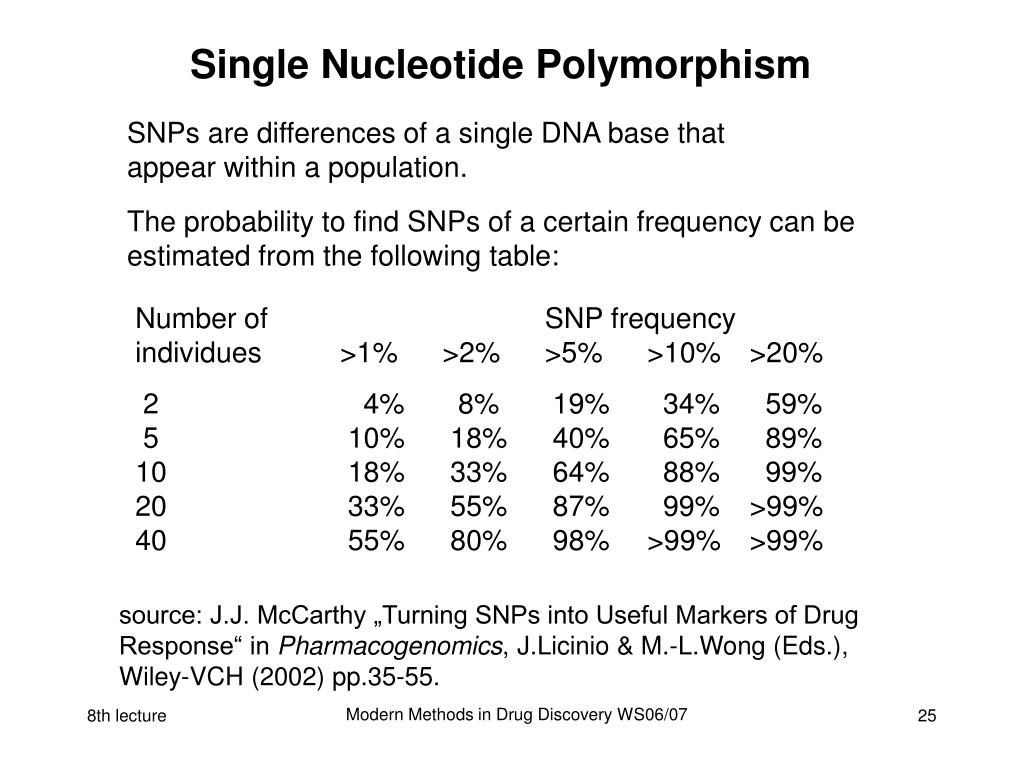

  25. Single Nucleotide Polymorphism SNPs are differences of a single DNA base that appear within a population. The probability to find SNPs of a certain frequency can be estimated from the following table: Number of SNP frequencyindividues >1% >2% >5% >10% >20% 2 4% 8% 19% 34% 59% 5 10% 18% 40% 65% 89%10 18% 33% 64% 88% 99%20 33% 55% 87% 99% >99%40 55% 80% 98% >99% >99% source: J.J. McCarthy „Turning SNPs into Useful Markers of Drug Response“ in Pharmacogenomics, J.Licinio & M.-L.Wong (Eds.), Wiley-VCH (2002) pp.35-55. Modern Methods in Drug Discovery WS06/07

  26. Multiple SNPs Even more complicated is the causal assignment of a reaction caused by a medication, if there are different SNPs that are independent from each other. In other words, if there is no conclusive hypothesis. This can make the size of genetic regions that have to be sequenced becoming too large to be doable. As examples of so-called valid biomarkers FDA has so far only precised the polymorphism of CYP2D6 (cytochrome P450) and of TPMT (thiopurine S-methyl-transferase). Both enzymes contribute decisively to the metabolic conversion of many drugs. More about the polymorphisms of CYP2D6 in lecture10 Lit. P.C.Sham et al. Am.J.Hum.Genet.66 (2000) 1616. R.Weinshilboum & L.Wang Nature Rev.Drug Discov.3 (2004) 739. Modern Methods in Drug Discovery WS06/07

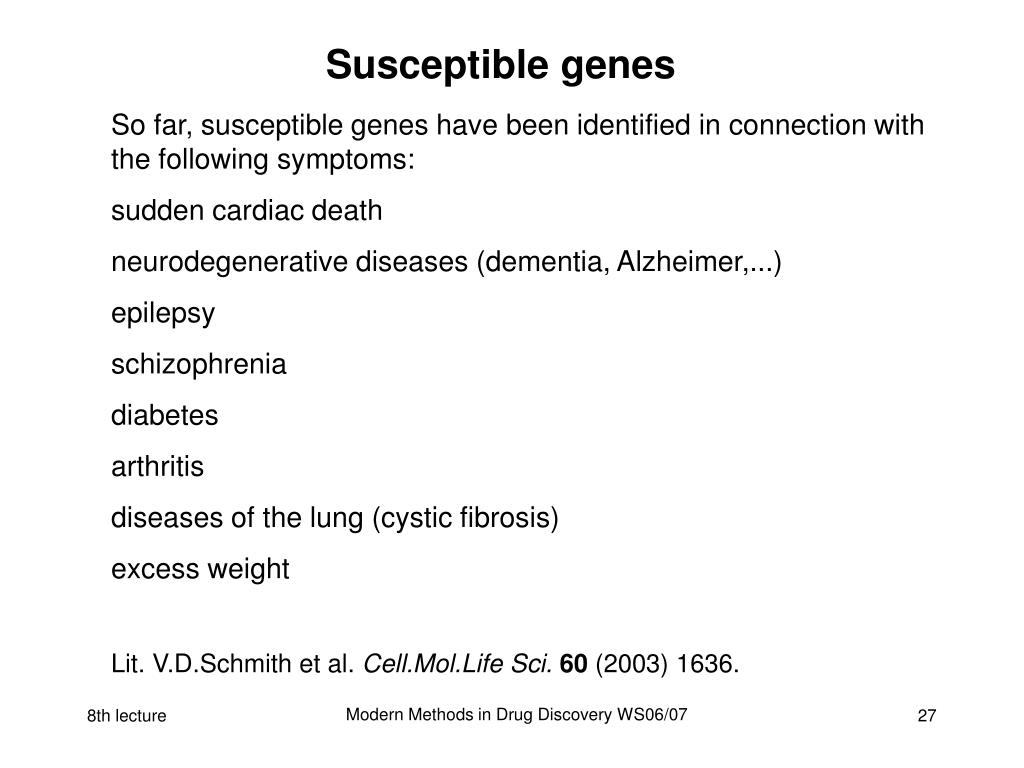

  27. Susceptible genes So far, susceptible genes have been identified in connection with the following symptoms: sudden cardiac death neurodegenerative diseases (dementia, Alzheimer,...) epilepsy schizophrenia diabetes arthritis diseases of the lung (cystic fibrosis) excess weight Lit. V.D.Schmith et al. Cell.Mol.Life Sci.60 (2003) 1636. Modern Methods in Drug Discovery WS06/07

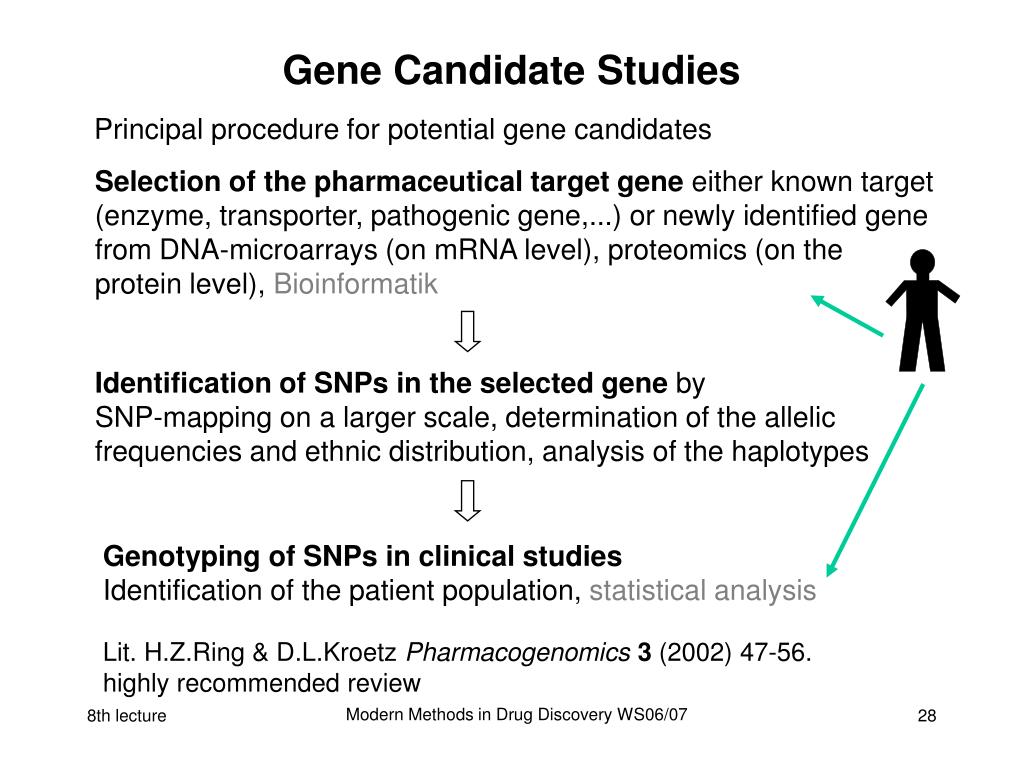

  28. Gene Candidate Studies Principal procedure for potential gene candidates Selection of the pharmaceutical target gene either known target (enzyme, transporter, pathogenic gene,...) or newly identified gene from DNA-microarrays (on mRNA level), proteomics (on the protein level), Bioinformatik Identification of SNPs in the selected gene bySNP-mapping on a larger scale, determination of the allelic frequencies and ethnic distribution, analysis of the haplotypes Genotyping of SNPs in clinical studiesIdentification of the patient population, statistical analysis Lit. H.Z.Ring & D.L.Kroetz Pharmacogenomics3 (2002) 47-56.highly recommended review Modern Methods in Drug Discovery WS06/07

  29. Why animal models ? • To verify the disease model in vivo • For in vivo screening Modern Methods in Drug Discovery WS06/07

  30. Model organisms Before mice and other mammals are used for in vivo screening, other model organisms are used that carry accoring orthologues genes. Larger number of genes being ortholog to humna Increasingly complex organisms Increasing expense for experimental setup literature : R. Knippers Molekulare Genetik 8. AuflageS. 498-503 Modellorganismen, Knockout Technologie Modern Methods in Drug Discovery WS06/07

  31. Performance of animal models Animal models are helpful to verify a disease model in vivo. 1. Comparison of the target in the animal and the human genome. 2. Generation of knockout mutants / transgenic animalsThe existance of an adequate animal model is practically always the prerequisite for further development to the clinical drug. Literature about transgenic mice: R. Knippers Molekulare Genetik 8. AuflageS. 522 Textbox Plus 18.2 Modern Methods in Drug Discovery WS06/07

  32. Why mus musculus as animal model ? (I) • For 99% of all mouse genes homologe or orthologues genes in human were identified. • Lit: Nature 420 (2002) number 6915 of 5.12.2002 Mouse Genome Sequencing Consortium ibid pp.520-562. Comparison of common elements in human and mouse chromosomes Modern Methods in Drug Discovery WS06/07

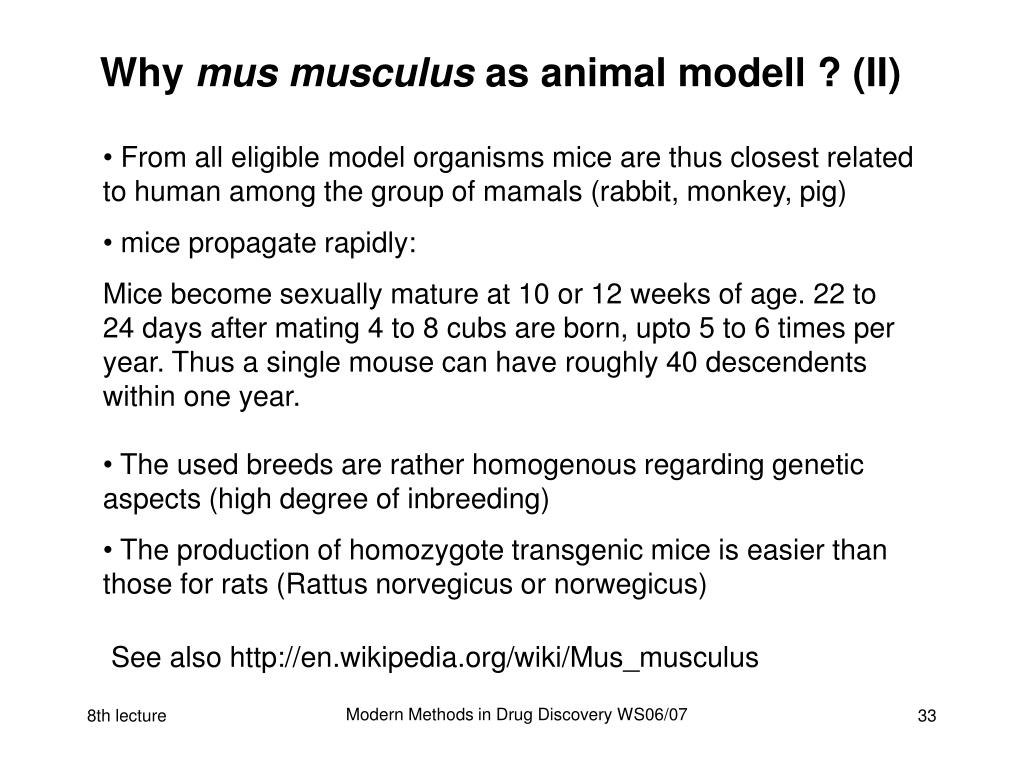

  33. Why mus musculus as animal modell ? (II) • From all eligible model organisms mice are thus closest related to human among the group of mamals (rabbit, monkey, pig) • mice propagate rapidly: • Mice become sexually mature at 10 or 12 weeks of age. 22 to 24 days after mating 4 to 8 cubs are born, upto 5 to 6 times per year. Thus a single mouse can have roughly 40 descendents within one year.• The used breeds are rather homogenous regarding genetic aspects (high degree of inbreeding) • • The production of homozygote transgenic mice is easier than those for rats (Rattus norvegicus or norwegicus) See also http://en.wikipedia.org/wiki/Mus_musculus Modern Methods in Drug Discovery WS06/07

  34. KO-mouse models(I) Importance of knockout mouse models in the pharmaceutical area: medical turnover number of number of category (2001 in Mio.US$) targets drugs immunology 20 000 8 15neurology/psychatry 19 000 6 13cardiology 13 000 6 13gastroenterology 12 000 2 6metabolisms 11 000 6 10onkology 7 000 4 8hematology 7 000 2 3 source: A.T.Sands Nature Biotech.21 (2003) 31 Modern Methods in Drug Discovery WS06/07

  35. KO-mouse models(II) Examples for the application of knockout mousemodels in successful drugs: targets drug mouse phenotyp shows: Proton pump lansoprazol neutral stomach pHhistamine H1-receptor famotidine repressed secretion of gastric acid ACE enalapril lower blood pressureAT1-receptor losartan dito COX2 celecoxib less inflammationCOX1 and COX2 diclofenac less pain Lit: B.P.Zambrowicz & A.T.Sands Nature Rev.Drug Disc.2 (2003) 38 Modern Methods in Drug Discovery WS06/07

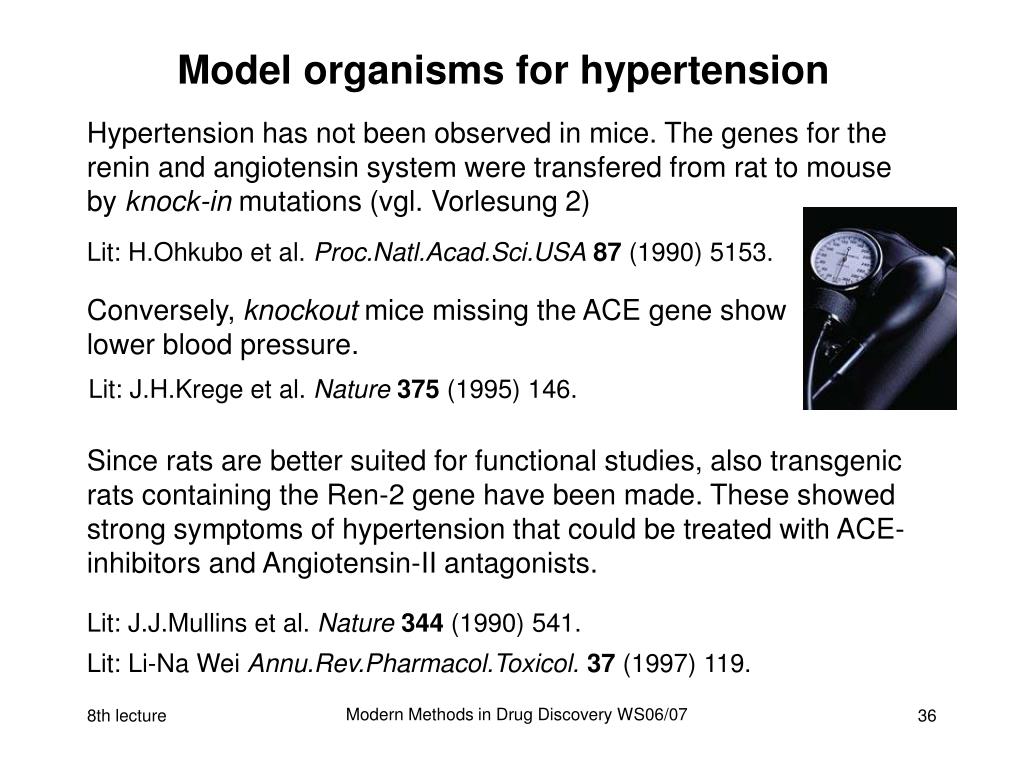

  36. Model organisms for hypertension Hypertension has not been observed in mice. The genes for the renin and angiotensin system were transfered from rat to mouse by knock-in mutations (vgl. Vorlesung 2) Lit: H.Ohkubo et al. Proc.Natl.Acad.Sci.USA87 (1990) 5153. Conversely, knockout mice missing the ACE gene showlower blood pressure. Lit: J.H.Krege et al. Nature375 (1995) 146. Since rats are better suited for functional studies, also transgenic rats containing the Ren-2 gene have been made. These showed strong symptoms of hypertension that could be treated with ACE-inhibitors and Angiotensin-II antagonists. Lit: J.J.Mullins et al. Nature344 (1990) 541. Lit: Li-Na Wei Annu.Rev.Pharmacol.Toxicol.37 (1997) 119. Modern Methods in Drug Discovery WS06/07

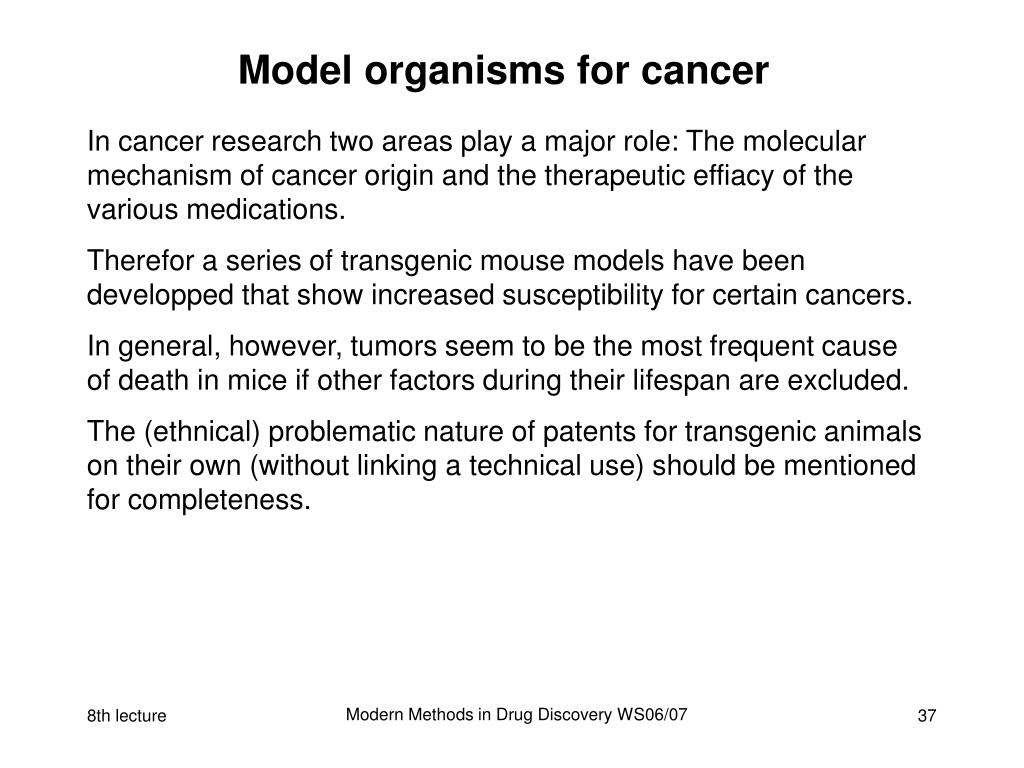

  37. Model organisms for cancer In cancer research two areas play a major role: The molecular mechanism of cancer origin and the therapeutic effiacy of the various medications. Therefor a series of transgenic mouse models have been developped that show increased susceptibility for certain cancers. In general, however, tumors seem to be the most frequent cause of death in mice if other factors during their lifespan are excluded. The (ethnical) problematic nature of patents for transgenic animals on their own (without linking a technical use) should be mentioned for completeness. Modern Methods in Drug Discovery WS06/07

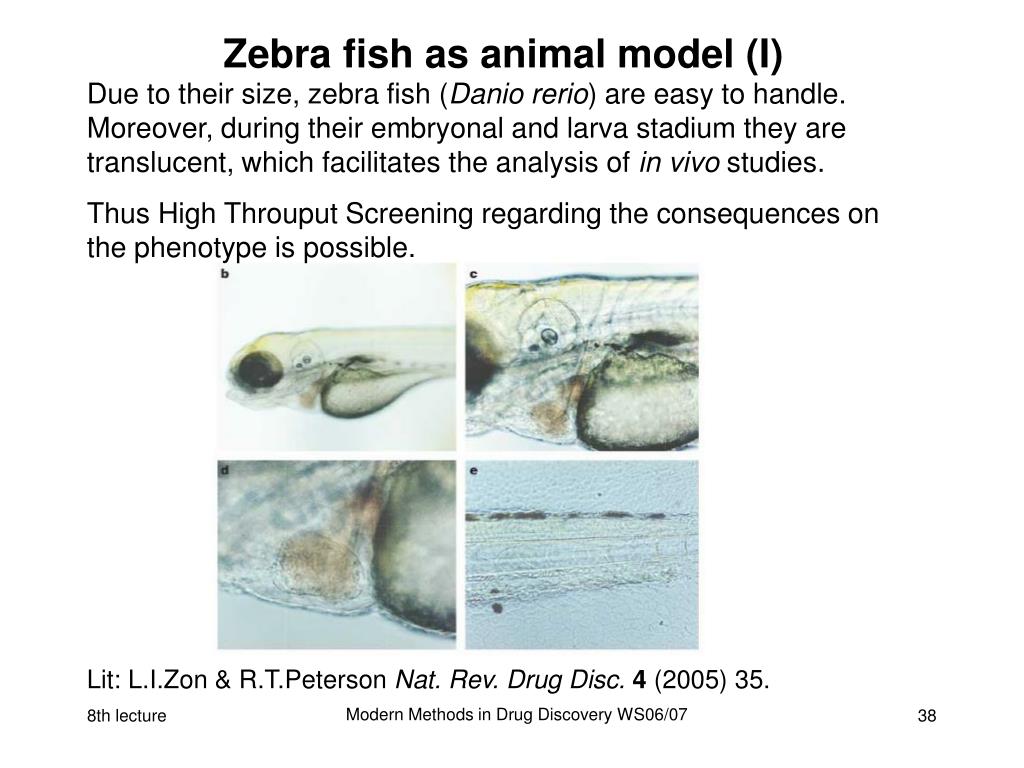

  38. Zebra fish as animal model (I) Due to their size, zebra fish (Danio rerio) are easy to handle. Moreover, during their embryonal and larva stadium they are translucent, which facilitates the analysis of in vivo studies. Thus High Throuput Screening regarding the consequences onthe phenotype is possible. Lit: L.I.Zon & R.T.Peterson Nat. Rev. Drug Disc.4 (2005) 35. Modern Methods in Drug Discovery WS06/07

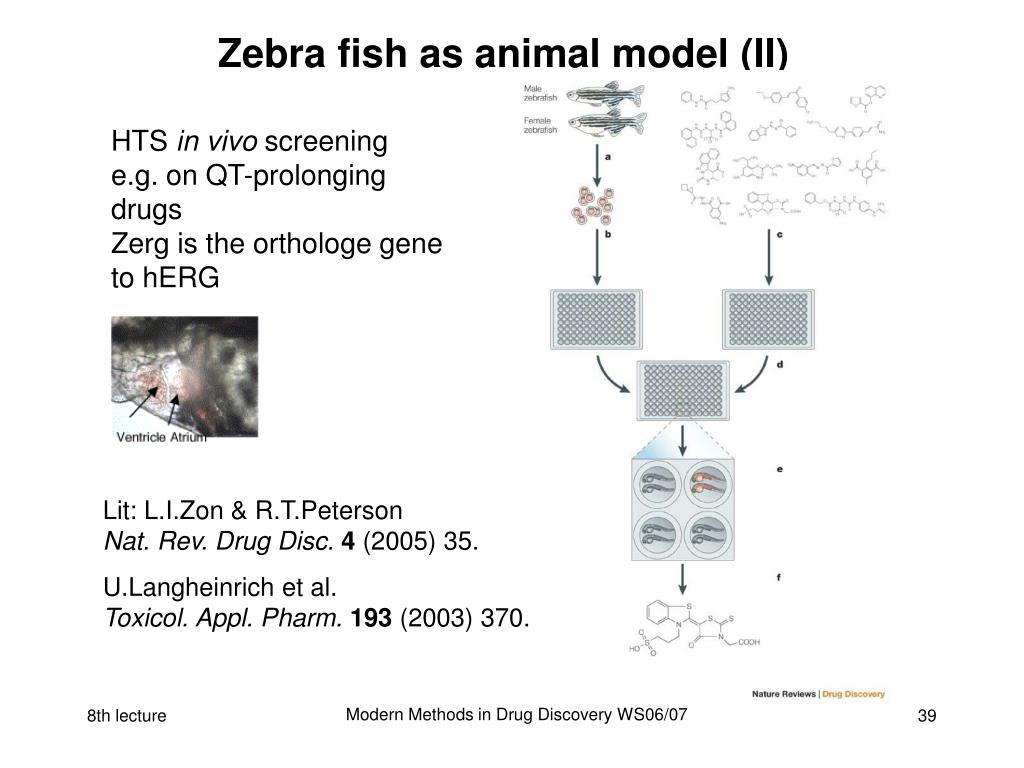

  39. Zebra fish as animal model (II) HTS in vivo screeninge.g. on QT-prolongingdrugsZerg is the orthologe geneto hERG Lit: L.I.Zon & R.T.PetersonNat. Rev. Drug Disc.4 (2005) 35. U.Langheinrich et al. Toxicol. Appl. Pharm.193 (2003) 370. Modern Methods in Drug Discovery WS06/07

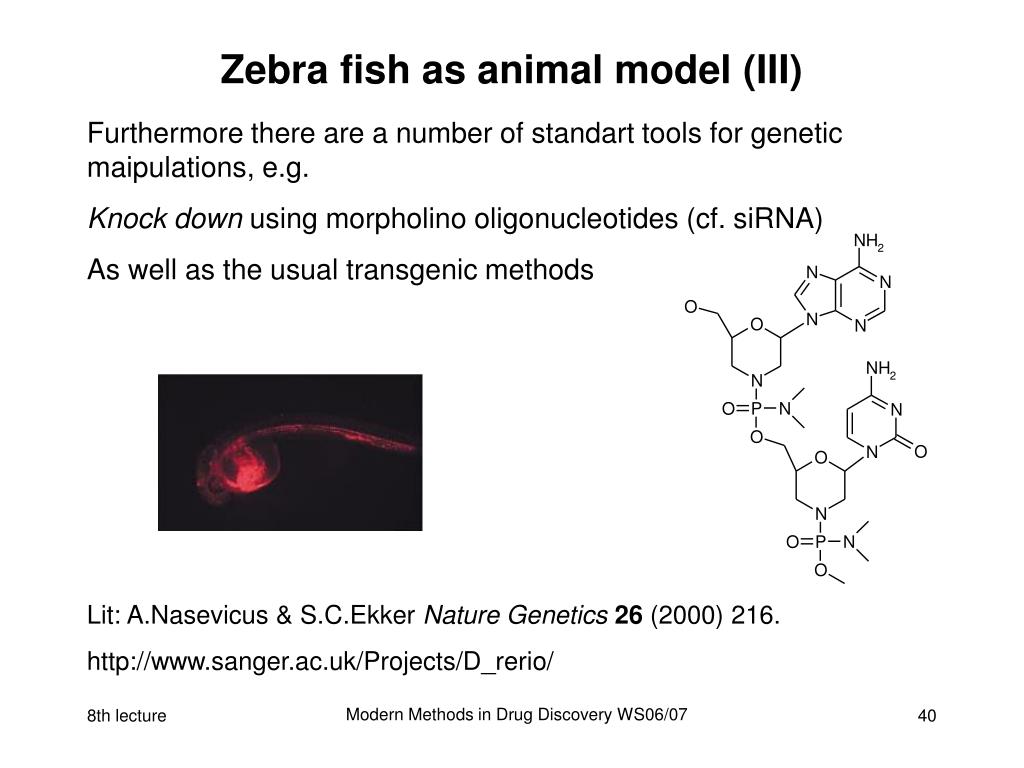

  40. Zebra fish as animal model (III) Furthermore there are a number of standart tools for genetic maipulations, e.g. Knock down using morpholino oligonucleotides (cf. siRNA) As well as the usual transgenic methods Lit: A.Nasevicus & S.C.Ekker Nature Genetics26 (2000) 216. http://www.sanger.ac.uk/Projects/D_rerio/ Modern Methods in Drug Discovery WS06/07

  41. Further animal models Higher mamals such as mouse, rat, rabbit, dog, and pig are frequently being used to test metabolic and toxic properties of chemical substances. Particularly the comparison of screening results of the metabolic conversions of drugs with those obtained from CYP P450 enzymes expressed in E. coli is of interest, in order to chose the most „suitable“ animal model. Transgenic mice will be the preferedanimal model in the future, not onlyfrom financial considerations. See also http://en.wikipedia.org/wiki/Model_organism Modern Methods in Drug Discovery WS06/07
