Real-time Datum Choose Wisely!!

Real-time Datum Choose Wisely!!. Match the correction source’s datum to store GPS positions without transformation (WGS84). “The Mantra” Every time you apply a correction you assume the geodetics of that base. What happens when we select the matching datum ?. GPS Receiver:

brinly
Download Presentation

Real-time Datum Choose Wisely!!

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

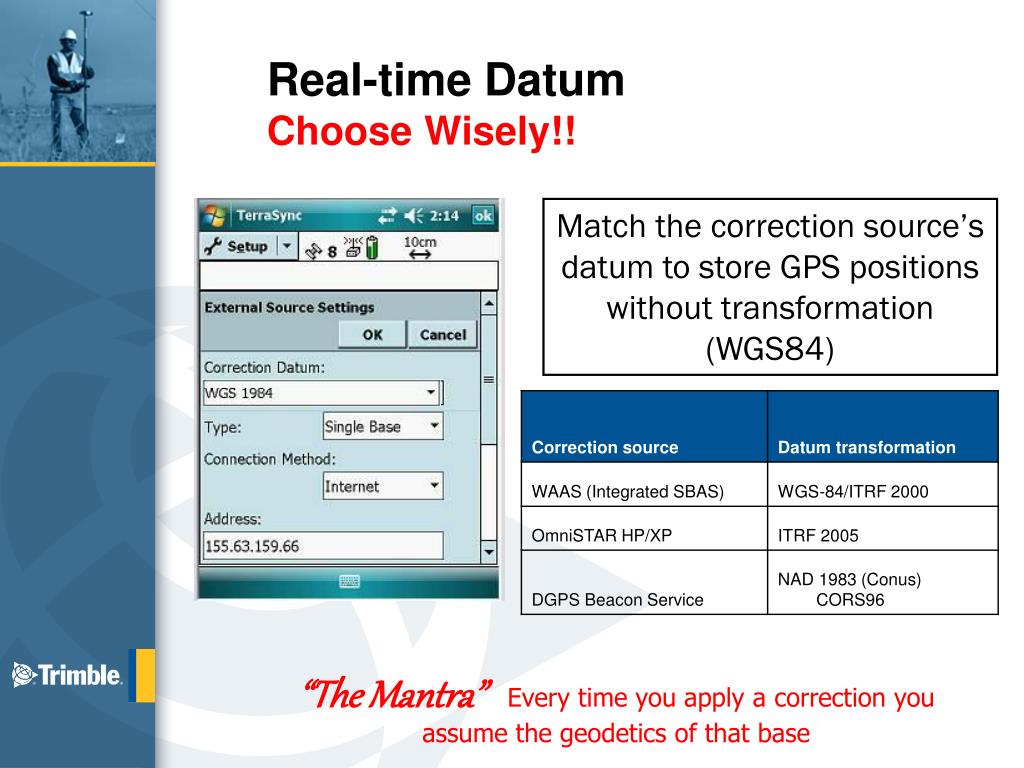

  1. Real-time DatumChoose Wisely!! Match the correction source’s datum to store GPS positions without transformation (WGS84) “The Mantra” Every time you apply a correction you assume the geodetics of that base

  2. What happens when we select the matching datum? GPS Receiver: GPS Position is WGS-84 GPS Location WGS84 Control/Existing Data NAD83 CORS 96 Real-time Single Base NAD83 CORS 96 corrections GPS data is now transformed to NAD83 CORS 96 NAD 83 CORS 96 CorrectionDatumconfigured in TS Display MISMATCH! Control = CORS 96 GPS Location = WGS84 CORS 96 Transformed back to WGS84 GIS DATA IS IN NAD83 CORS96!!! SSF File MISMATCH! Control = CORS 96 GPS Location = WGS84 Export to GIS Use NAD83 CORS 96 Transformation

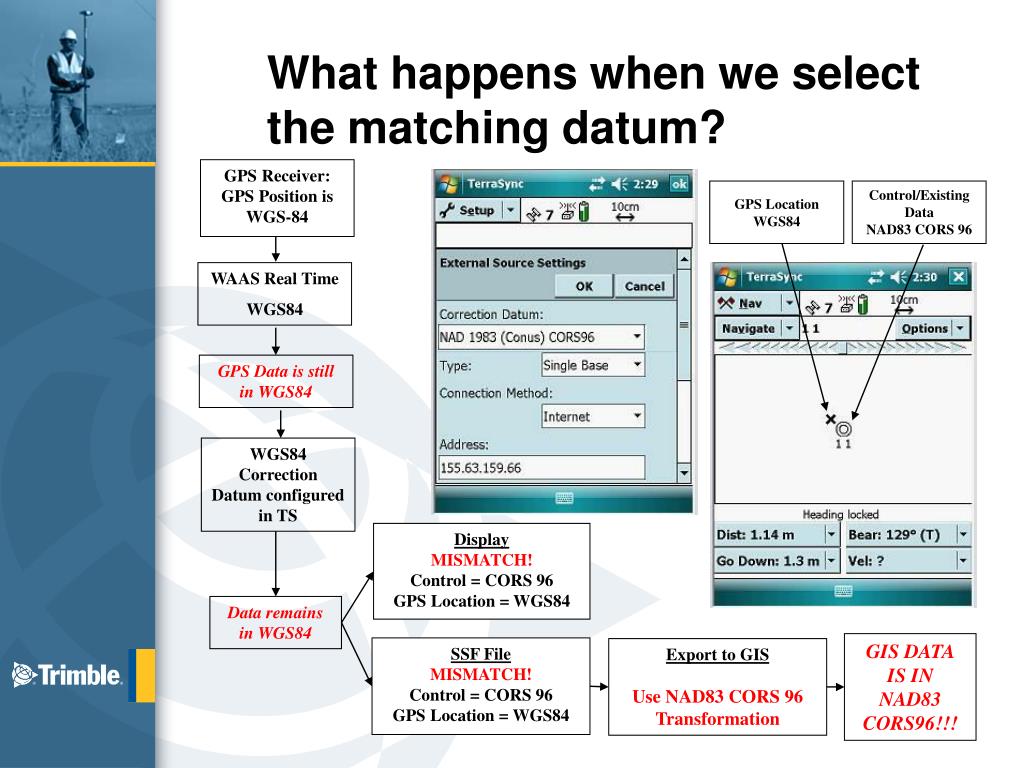

  3. What happens when we select the matching datum? GPS Receiver: GPS Position is WGS-84 GPS Location WGS84 Control/Existing Data NAD83 CORS 96 WAAS Real Time WGS84 GPS Data is still in WGS84 WGS84 Correction Datum configured in TS Display MISMATCH! Control = CORS 96 GPS Location = WGS84 Data remains in WGS84 GIS DATA IS IN NAD83 CORS96!!! SSF File MISMATCH! Control = CORS 96 GPS Location = WGS84 Export to GIS Use NAD83 CORS 96 Transformation

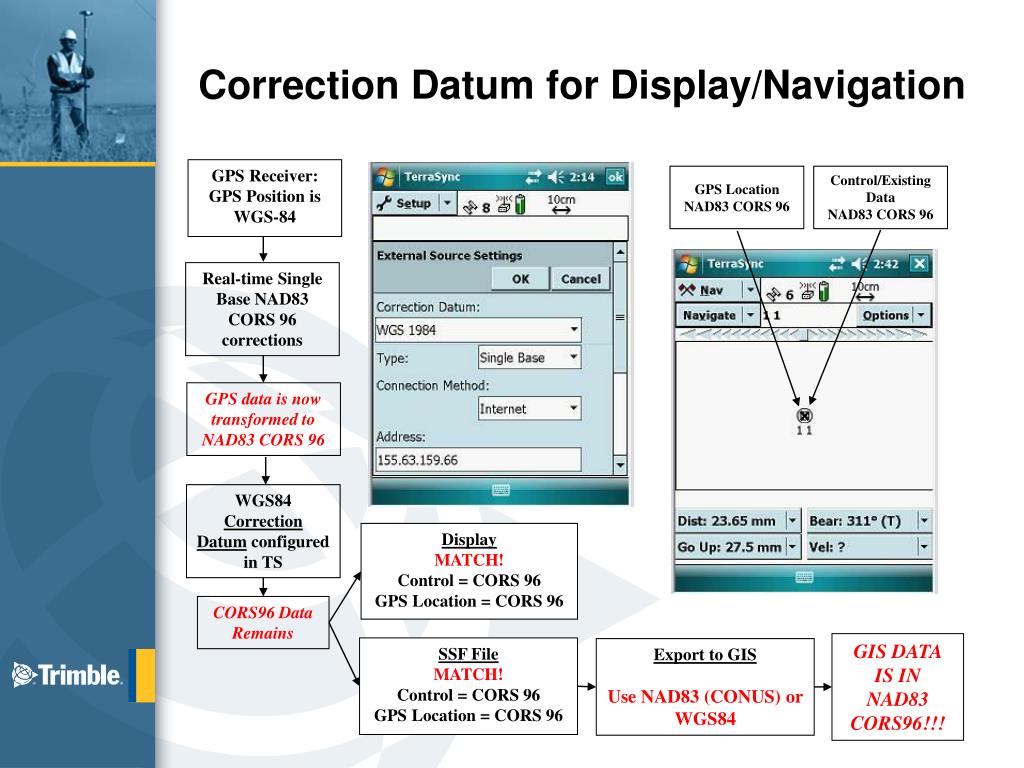

  4. Correction Datum for Display/Navigation GPS Receiver: GPS Position is WGS-84 GPS Location NAD83 CORS 96 Control/Existing Data NAD83 CORS 96 Real-time Single Base NAD83 CORS 96 corrections GPS data is now transformed to NAD83 CORS 96 WGS84 CorrectionDatumconfigured in TS Display MATCH! Control = CORS 96 GPS Location = CORS 96 CORS96 Data Remains GIS DATA IS IN NAD83 CORS96!!! SSF File MATCH! Control = CORS 96 GPS Location = CORS 96 Export to GIS Use NAD83 (CONUS) or WGS84
