Presentation Transcript

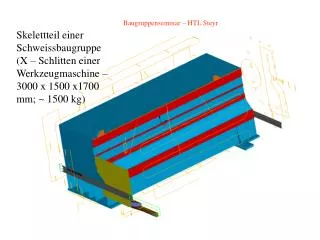

  1. Baugruppenseminar – HTL Steyr Skelettteil einer Schweissbaugruppe (X – Schlitten einer Werkzeugmaschine – 3000 x 1500 x1700 mm; ~ 1500 kg)

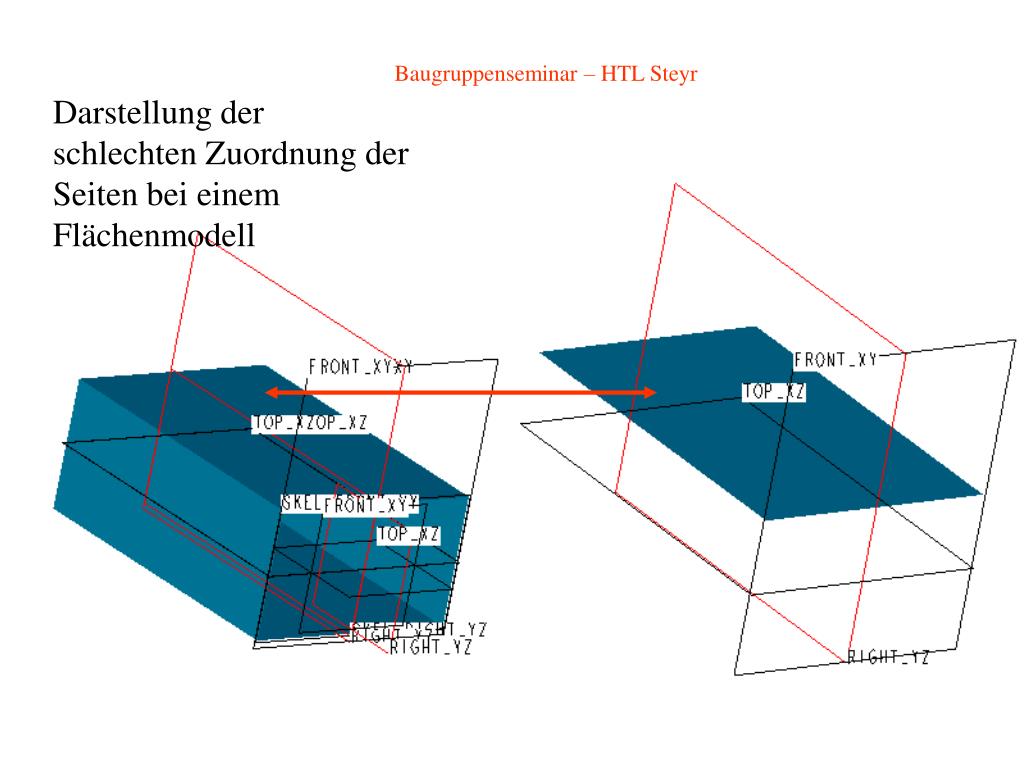

  2. Baugruppenseminar – HTL Steyr Darstellung der schlechten Zuordnung der Seiten bei einem Flächenmodell

  3. Baugruppenseminar – HTL Steyr Solid - Skelettteil

  4. Baugruppenseminar – HTL Steyr Erzeugen eines Bleches durch anbinden an die Kopiergeometrie Maße anKontur Ausgerichtet
