Presentation Transcript

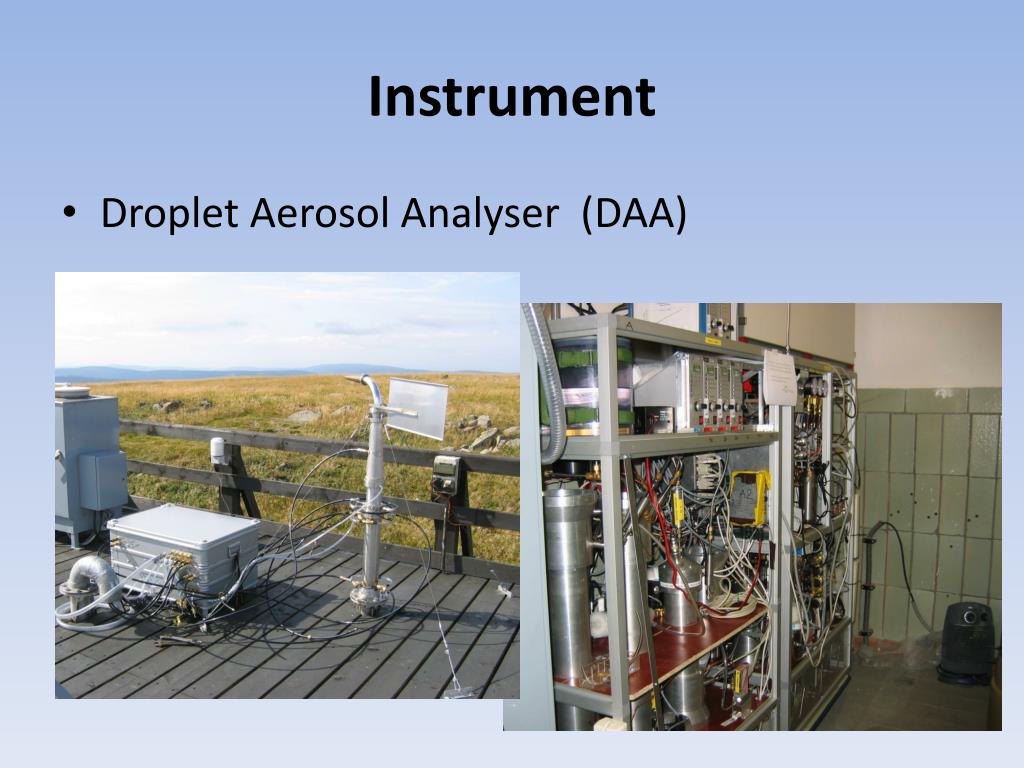

  1. Instrument • Droplet Aerosol Analyser (DAA)

  2. Droplet Aerosol Analyser (DAA) • Measures • Number size distribution of ambient cloud/fog droplets and interstitial particles at ambient conditions • Number size distribution of dry residual particles • The relation between ambient diameter and dry (residual) diameter on a single droplet/particle basis • 3-dimensional data set

  3. Examples of results 1 (Great Dun Fell, England, 1995)

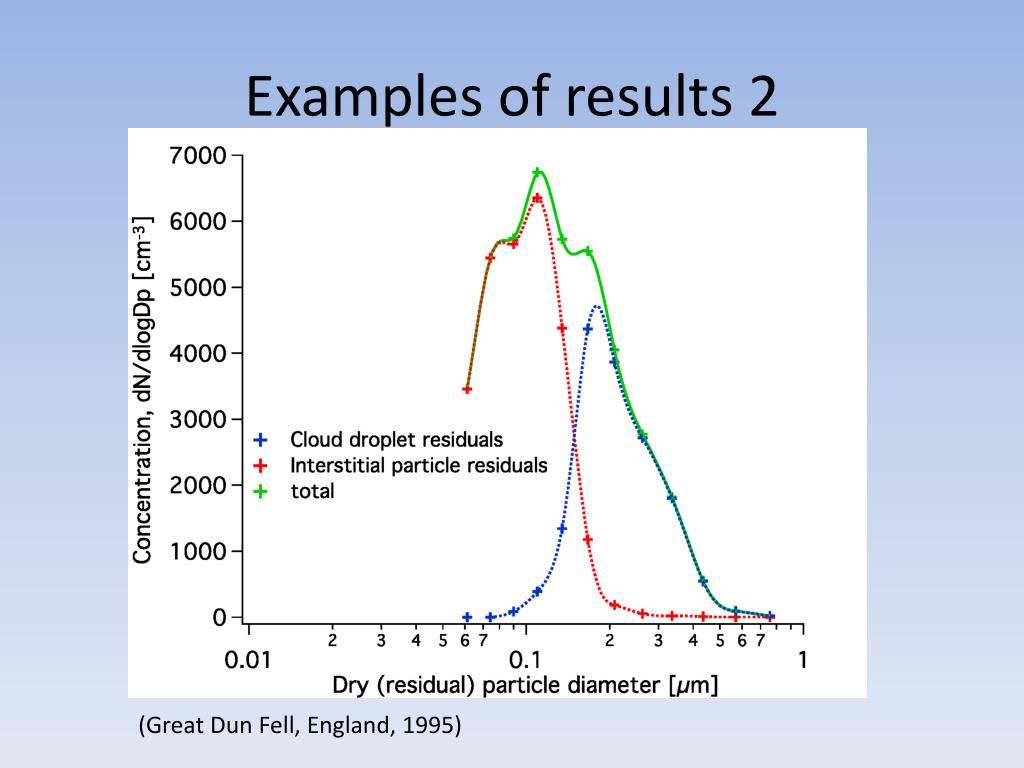

  4. Examples of results 2 (Great Dun Fell, England, 1995)

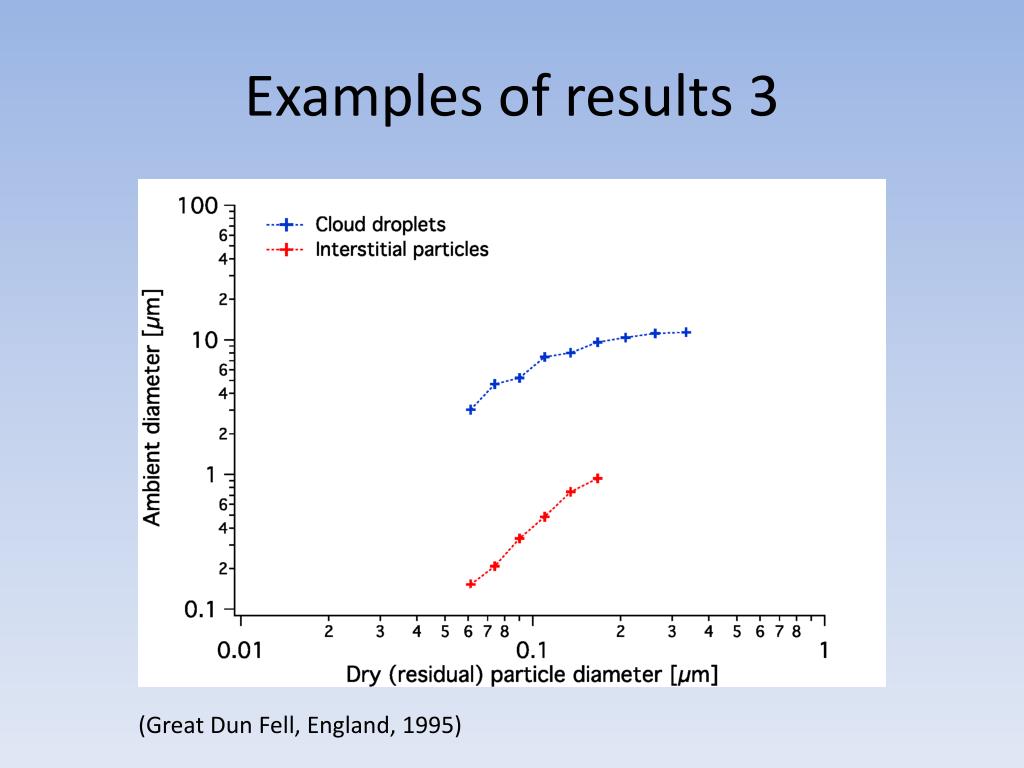

  5. Examples of results 3 (Great Dun Fell, England, 1995)

  6. The Droplet Aerosol AnalyserInvented by Bengt Martinsson Drawing by Maria Berghof
