  1. MODELLING TECHNIQUES FOR MAPPING IN FOREST INVENTORIESGretchen Moisen, Tracey FrescinoUS Forest Service, FIA Whining from the applications side of the fence

  2. Outline • Need for new info • Data • Models 4. Maps and applications 5. Now what

  3. Need for new information:Traditional reports • Inventory status and trends in forested ecosystems nationwide 1928 McSweeney-McNary Act 1978 Renewable Resources Act 1998 Farm Bill • Regional estimates of forest area, tree volume, growth and mortality

  4. Research to develop new products……… In addition to estimates of population totals……. • Make maps! Show how forest resources are distributed throughout the landscape • Use those maps: wildlife, fire, harvest…. • Automate data retrieval, visualization, and analysis tools • Build web-based delivery systems • Just do it

  5. QUESTIONS FIELD DATA DIGITAL DATA MODELS EVALUATION DELIVERY Need for new information:Development of an interdisciplinary system • Dialogue with users, define problems • Build data base, prepare data • Build and test models • Test products in real applications • Get it out and get feedback

  6. Outline • Need for new info • Data • Models 4. Maps and applications 5. Now what?

  7. DataSix Ecoregions • Regional diversity • Forested ecoregions • Within state bounds • Sample across all owners

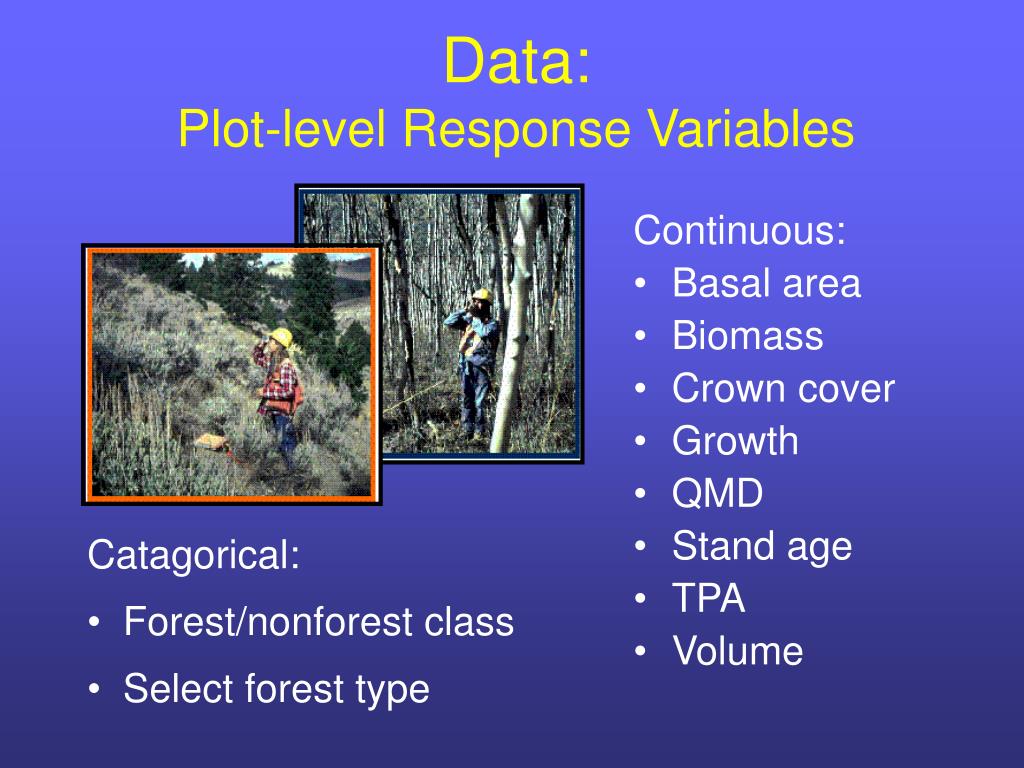

  8. Data:Plot-level Response Variables Continuous: • Basal area • Biomass • Crown cover • Growth • QMD • Stand age • TPA • Volume • Catagorical: • Forest/nonforest class • Select forest type

  9. Data:Sample plotsUT1 F: 821 NF: 533UT2 F: 829 NF: 491

  10. Data: Sample plots MT1 (F: 1277 NF: 294) MT2 (F: 1612 NF: 2108)

  11. Data:Sample plotsAZ1 F: 712 NF: 135

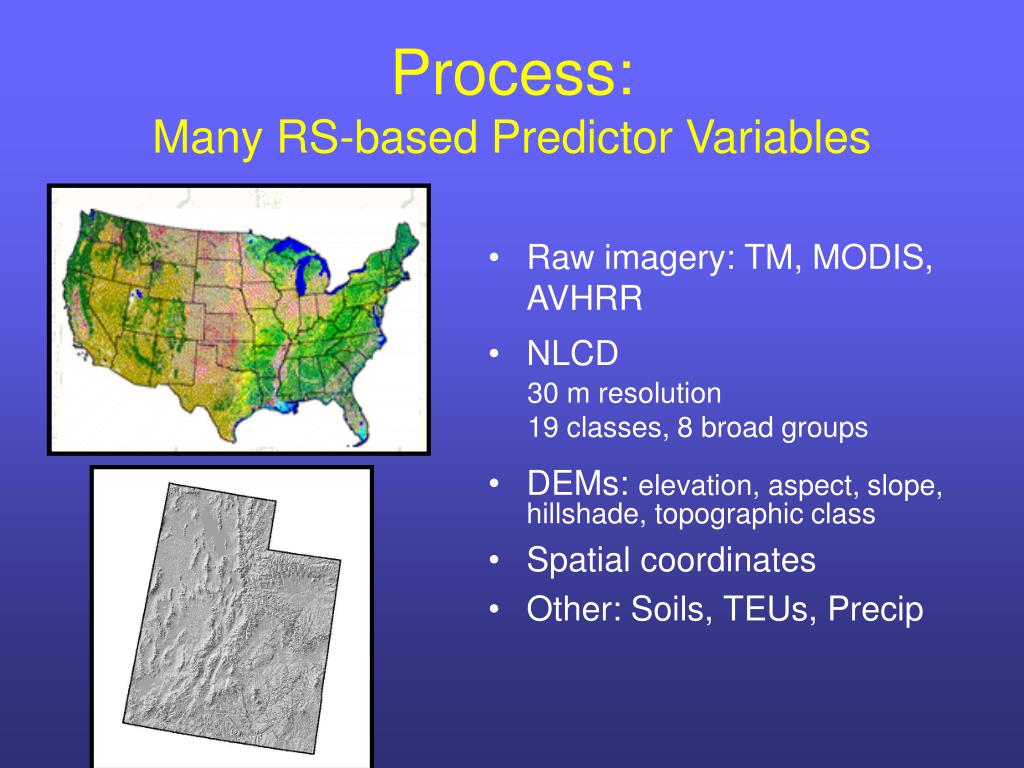

  12. Process:Many RS-based Predictor Variables • Raw imagery: TM, MODIS, AVHRR • NLCD 30 m resolution 19 classes, 8 broad groups • DEMs: elevation, aspect, slope, hillshade, topographic class • Spatial coordinates • Other: Soils, TEUs, Precip

  13. Outline • Need for new info • Data • Models 4. Maps and applications 5. Now what?

  14. Models:Establishing relationships with predictors • Extract data from each layer at each FIA location • Build a model for each FIA variable Example: Tree cover ~ f(Cover-type, Elev, Aspect, Slope)

  15. Models:Predicting over large areas Through the final model, use ………cover type ……….elevaton ……….aspect ……….slope to predict ……….crown cover over unsampled areas

  16. Models Response discrete x continuous x interactions Forest type Basal area Biomass Crown cover Growth QMD Age TPA Volume NLCD Soils Elevation Aspect Slope Hillshade X Y X,Y Elev, Asp, Slope NLCD(others)

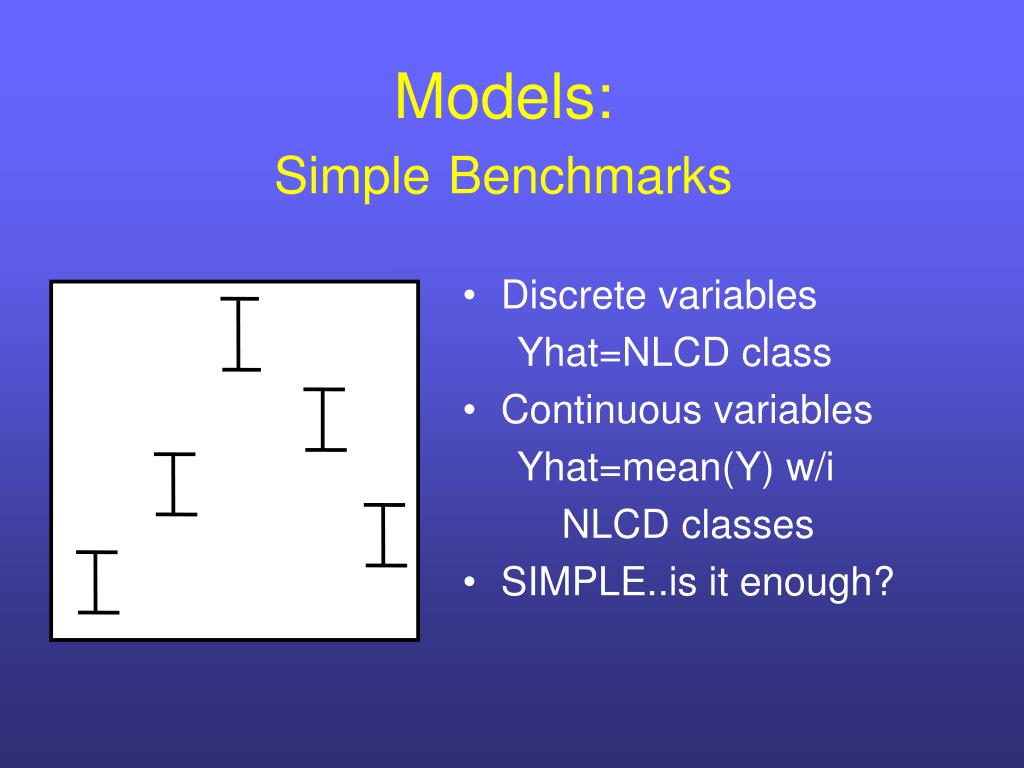

  17. Models:SimpleBenchmarks • Discrete variables Yhat=NLCD class • Continuous variables Yhat=mean(Y) w/i NLCD classes • SIMPLE..is it enough?

  18. Numerous model building tools….. GAM CART MARS ANN

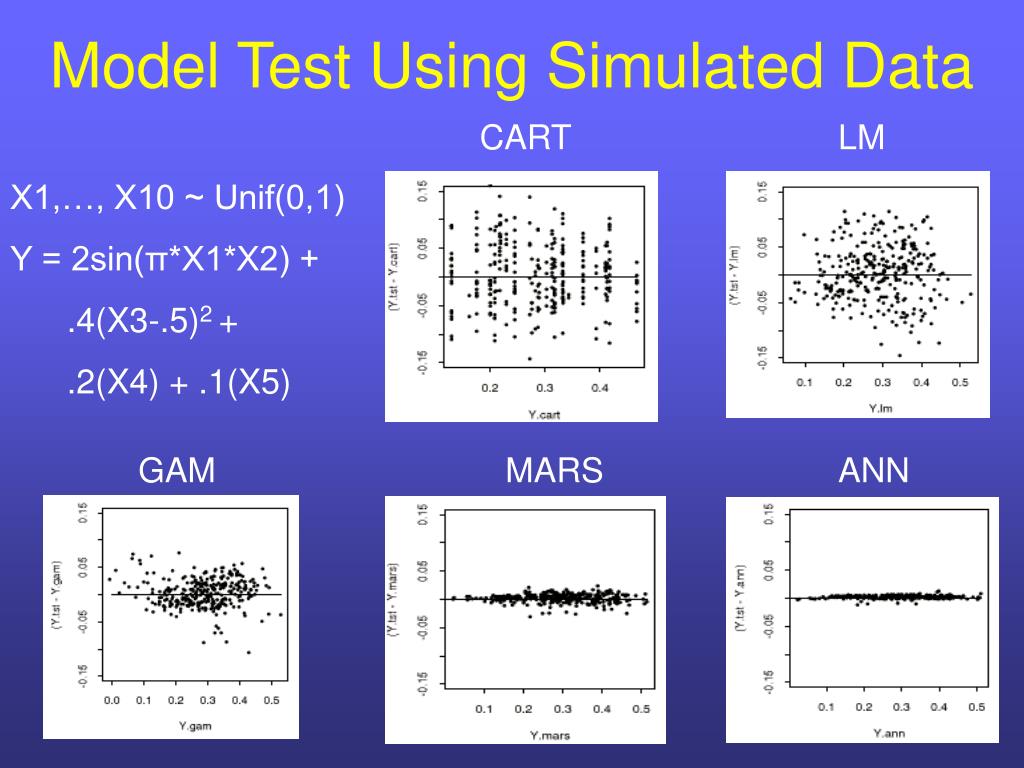

  19. Model Test Using Simulated Data CART LM X1,…, X10 ~ Unif(0,1) Y = 2sin(π*X1*X2) + .4(X3-.5)2 + .2(X4) + .1(X5) GAM MARS ANN

  20. Residual Plots: BIOTOT in UT2 NLCD CART GAM MARS ANN

  21. Overview of Analyses

  22. Evaluation criteria

  23. Outline • Need for new info • Data • Models 4. Maps and applications 5. Now what?

  24. Building maps: F/NF, BA, CRCOV, VOL, STAGE, QMD

  25. Fishlake Applications Build and test large-scale models predicting… - Presense of cavity nesting birds - Elk calving sites …using FIA-generated maps of habitat predictor variables Tom Edwards, Randy Schultz

  26. Applications:Web Delivery • JPEG preview • PDF map • Build a map • (Generate a map • based on • user-defined • criteria) • Tracey Frescino, • Frank Spirek Warning: These maps are prototypes under development. They are NOT final products http://www.fs.fed.us/rm/ogden/index.html ► Techniques Research

  27. Applications: Interactive Display Environment • Interactive tool for visualize, summarize, and query resource information • Tracey Frescino

  28. Outline • Need for new info • Data • Models 4. Maps and applications • Now what?

  29. QUESTIONS FIELD DATA DIGITAL DATA MODELS EVALUATION DELIVERY Future Work:Refining Interdisciplinary System • Continue dialogue • Refined retrieval system • New predictor variables • Streamlined modeling box • NFS test applications • Refined web-based delivery

  30. Future Work:New Applications • Prediction for new applications: assessment of resources lost to wildfire or I&D, extension to other wildlife species • Improved precision on population estimates • Improved analyses
