  1. Rick St. Denis – Glasgow University Higgs Vector Boson Fusion Production and Detection at the Tevatron

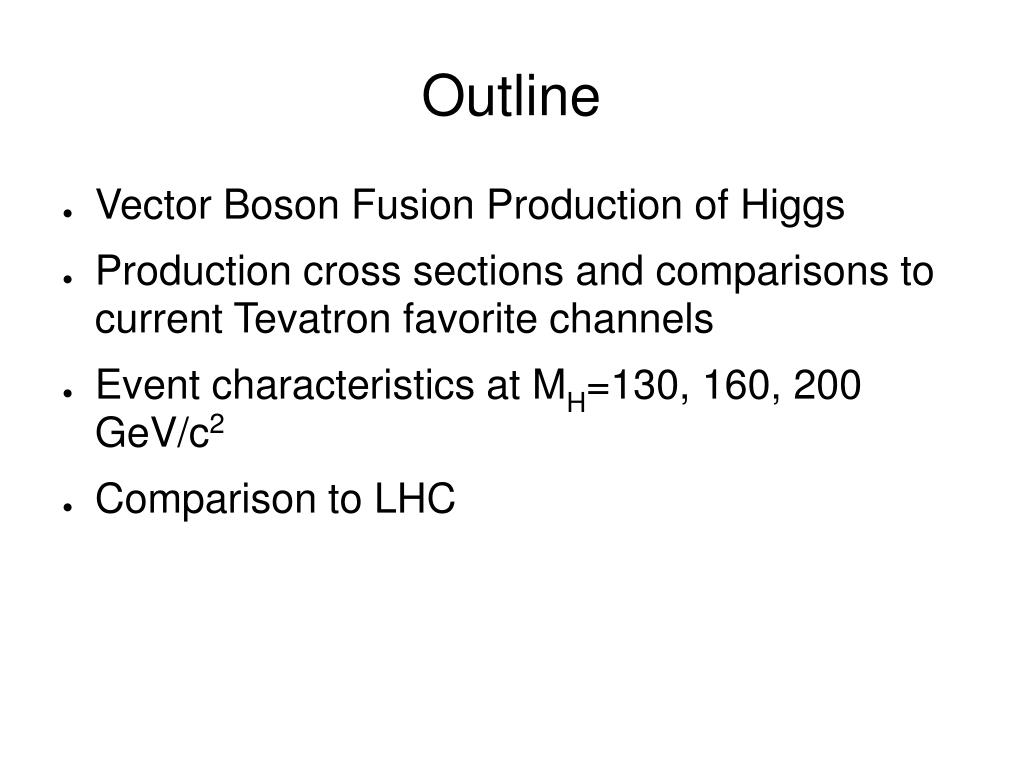

  2. Outline • Vector Boson Fusion Production of Higgs • Production cross sections and comparisons to current Tevatron favorite channels • Event characteristics at MH=130, 160, 200 GeV/c2 • Comparison to LHC

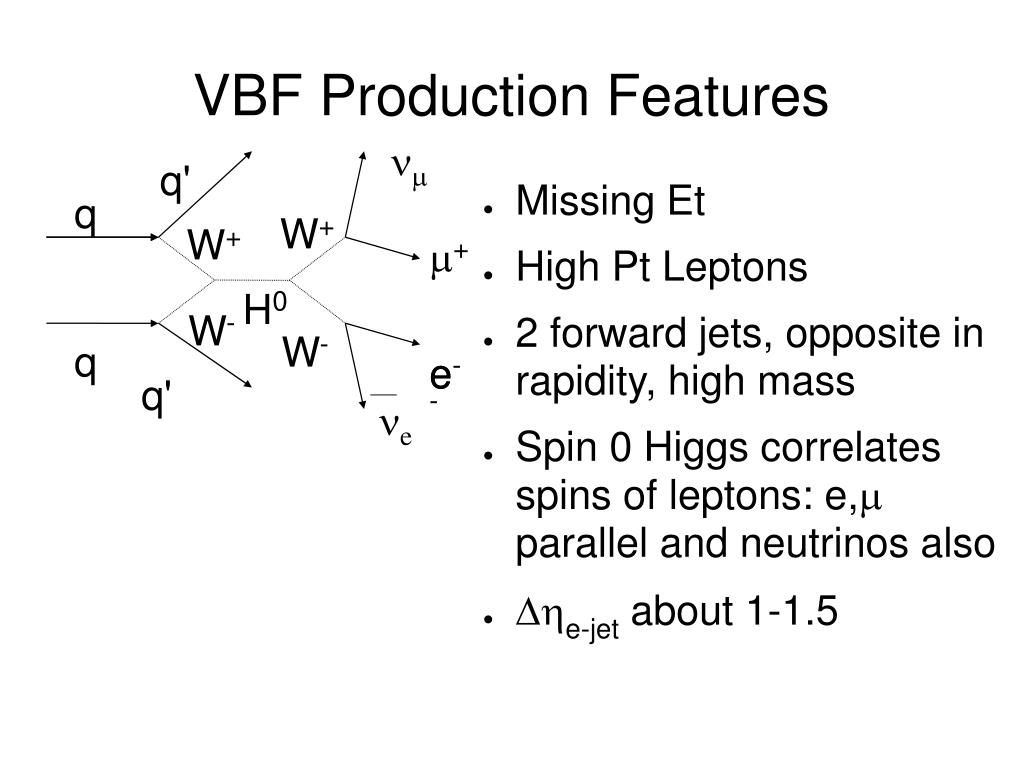

  3. nm q' q W+ W+ m+ H0 W- W- q e- e- q' ne VBF Production Features • Missing Et • High Pt Leptons • 2 forward jets, opposite in rapidity, high mass • Spin 0 Higgs correlates spins of leptons: e,mparallel and neutrinos also • Dhe-jet about 1-1.5

  4. Kraemer vs Pythia

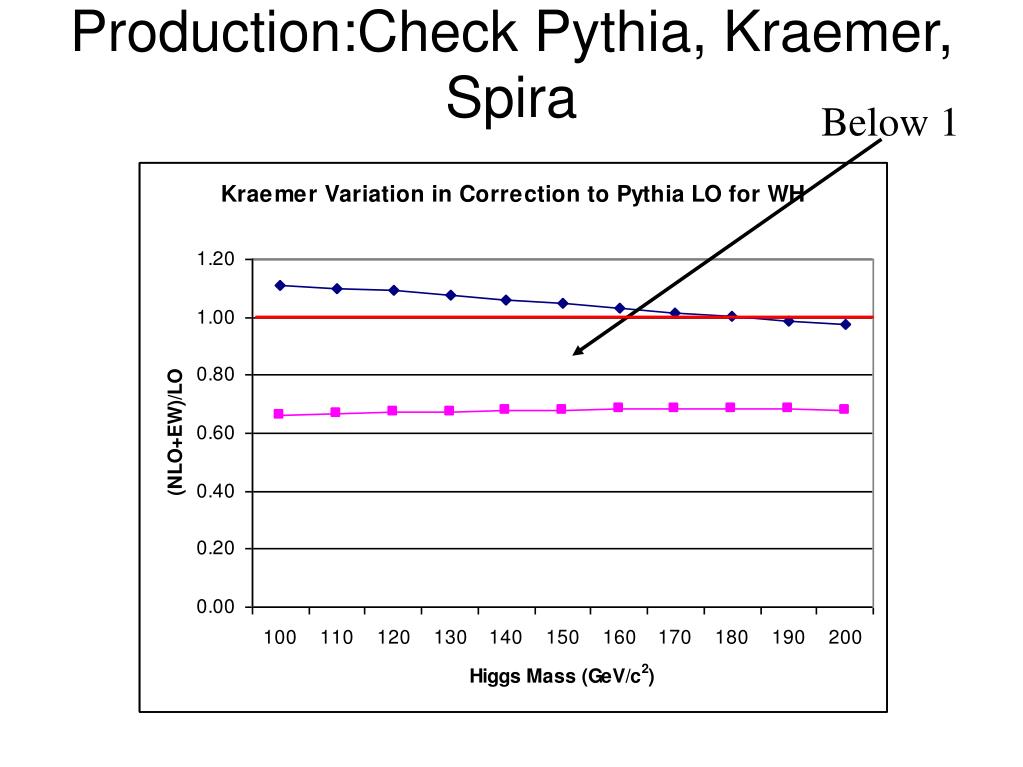

  5. Production:Check Pythia, Kraemer, Spira Below 1

  6. ZH corrections

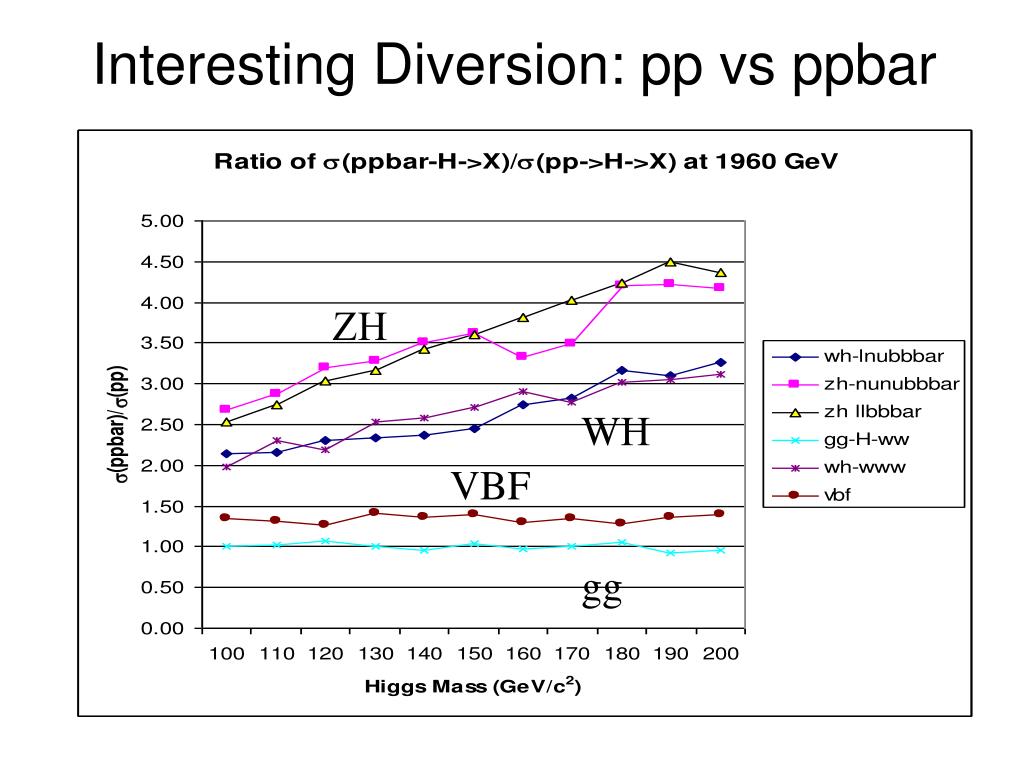

  7. Interesting Diversion: pp vs ppbar ZH WH VBF gg

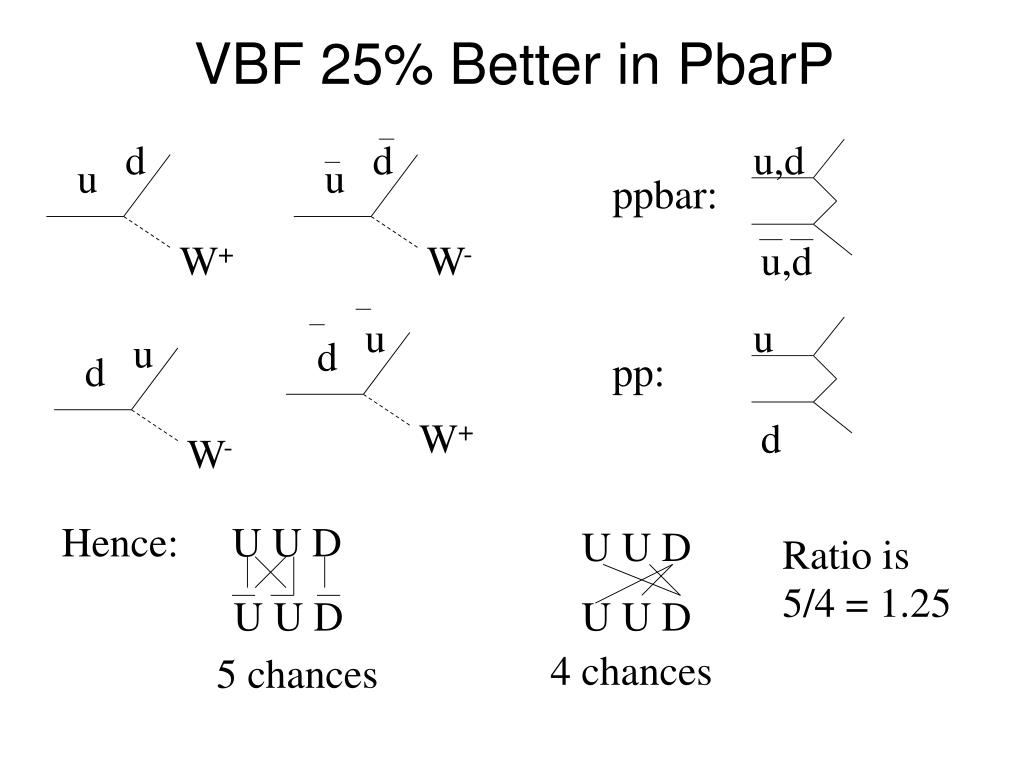

  8. d u u W+ W- u u d u d pp: W+ d W- u,d U U D U U D ppbar: U U D U U D u,d VBF 25% Better in PbarP d Hence: Ratio is 5/4 = 1.25 4 chances 5 chances

  9. Check of Higgs Branching Ratios B WW ZZ

  10. Check of Higgs BR: Pythia/Spira 20-25% differences

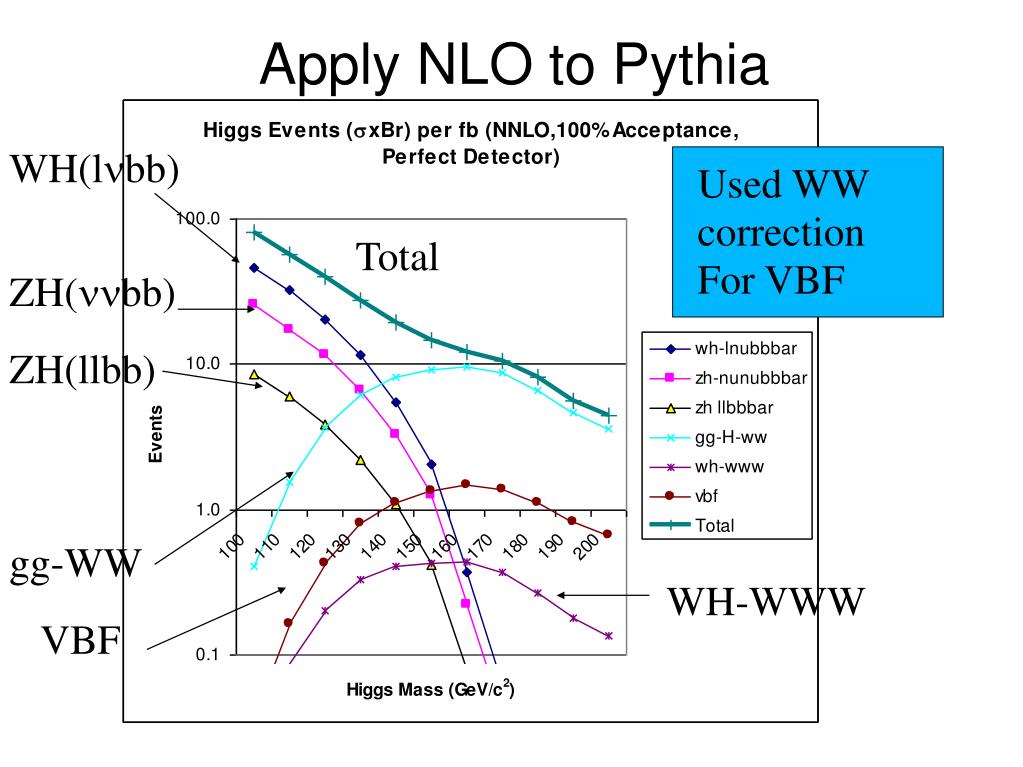

  11. Apply NLO to Pythia WH(lnbb) Used WW correction For VBF Total ZH(nnbb) ZH(llbb) gg-WW WH-WWW VBF

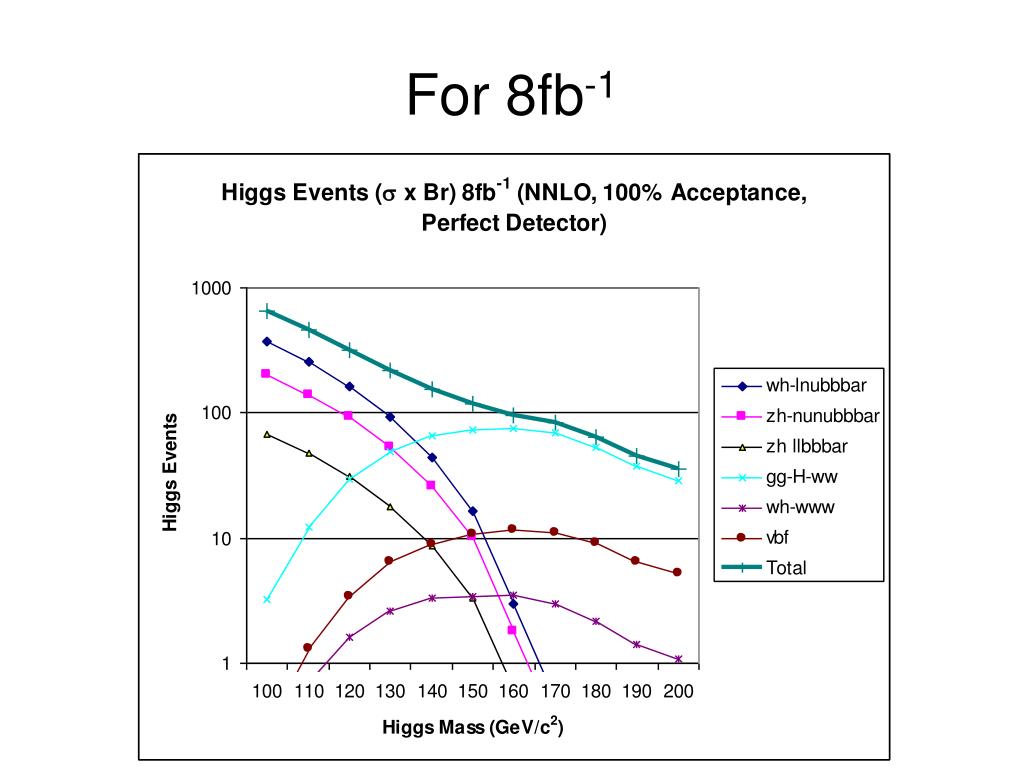

  12. For 8fb-1

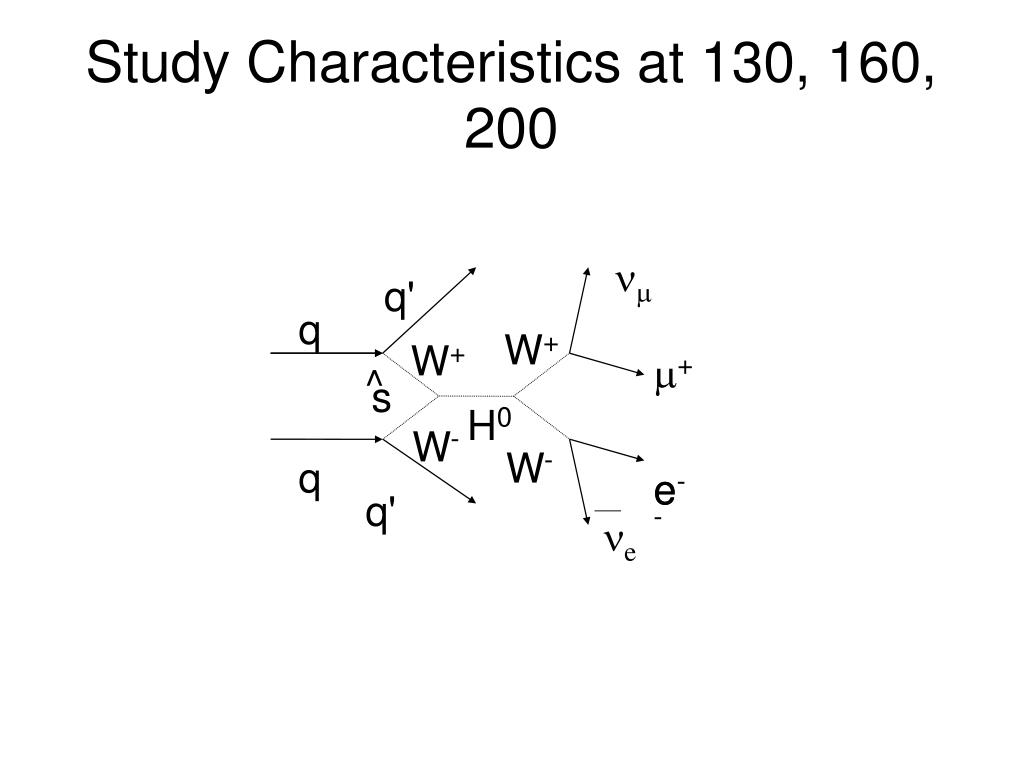

  13. nm q' ^ s q W+ W+ m+ H0 W- W- q e- e- q' ne Study Characteristics at 130, 160, 200

  14. Tev, MH=160 Pt, Rapidity of Leptons, Jets Pt Quark can be low Reasonably Triggerable Electron In CDF Quark Forward

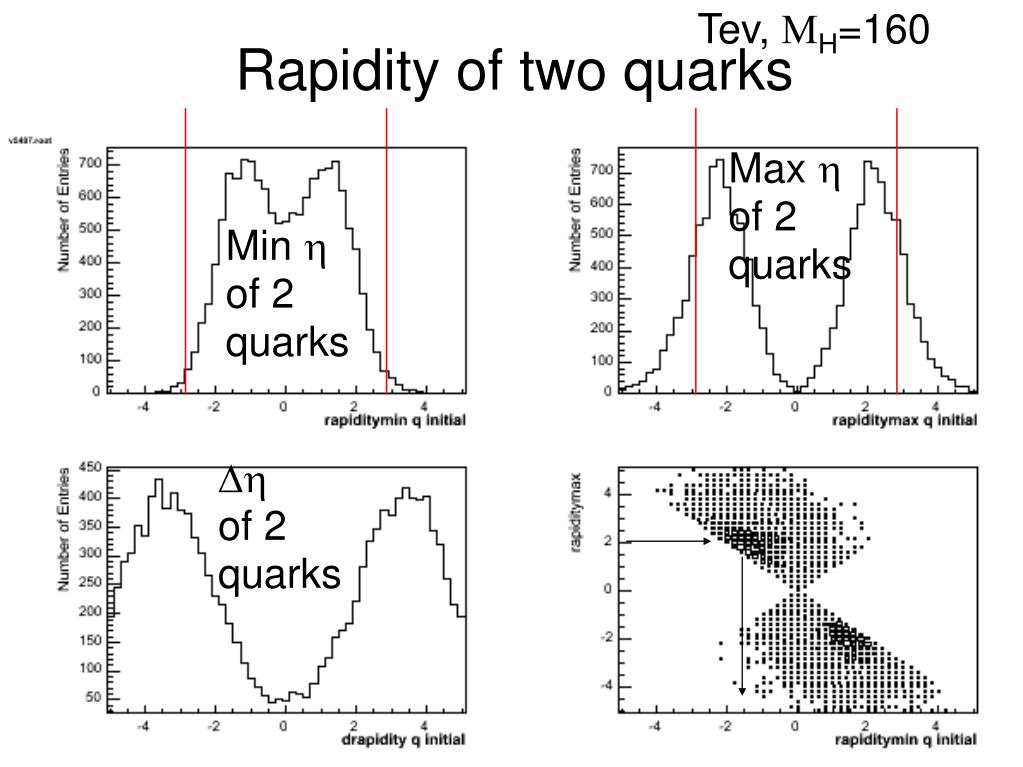

  15. Tev, MH=160 Rapidity of two quarks Max h of 2 quarks Min h of 2 quarks Dh of 2 quarks

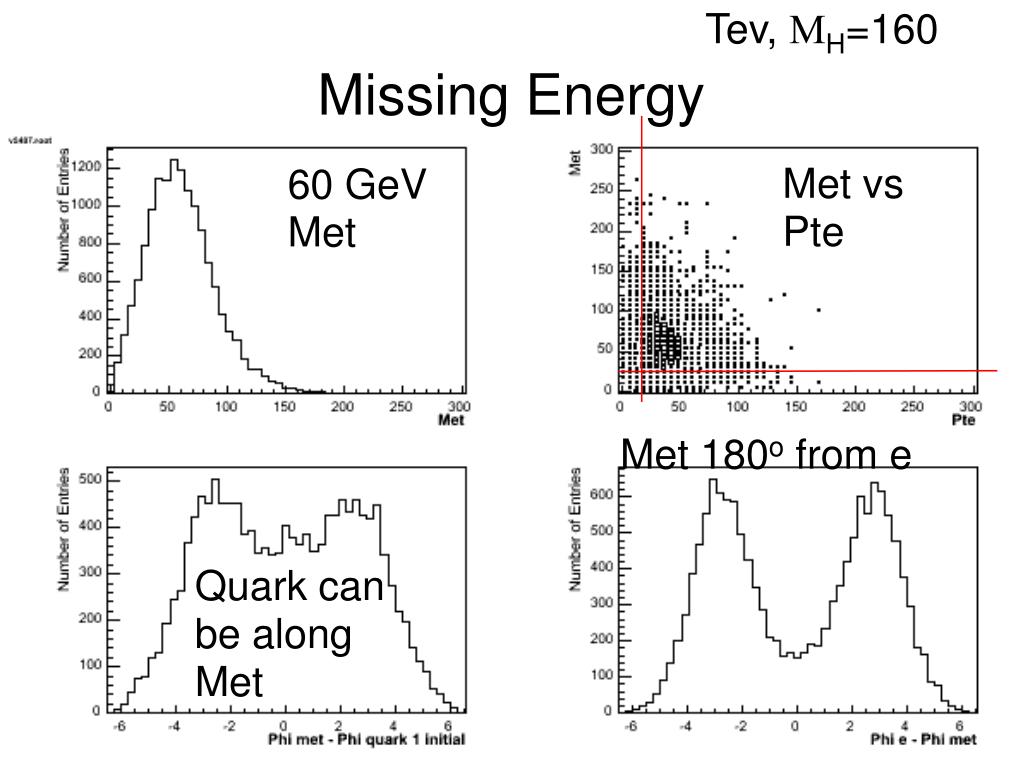

  16. Tev, MH=160 Missing Energy Met vs Pte 60 GeV Met Met 180o from e Quark can be along Met

  17. Tev, MH=160 Lepton Correlations:e-ne Df (e,ne) e,neanticorrelated in f

  18. Tev, MH=160 Lepton Correlations: e-m e,m correlated in y,phi and have high pt DR

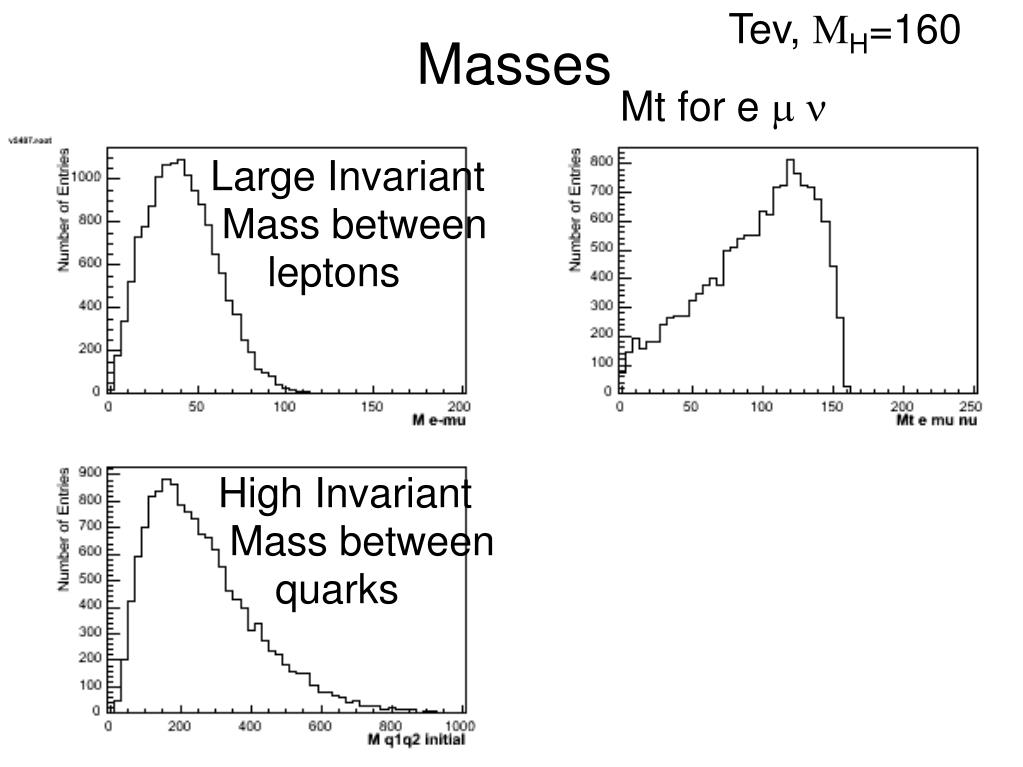

  19. Tev, MH=160 Masses Mt for e m n Large Invariant Mass between leptons High Invariant Mass between quarks

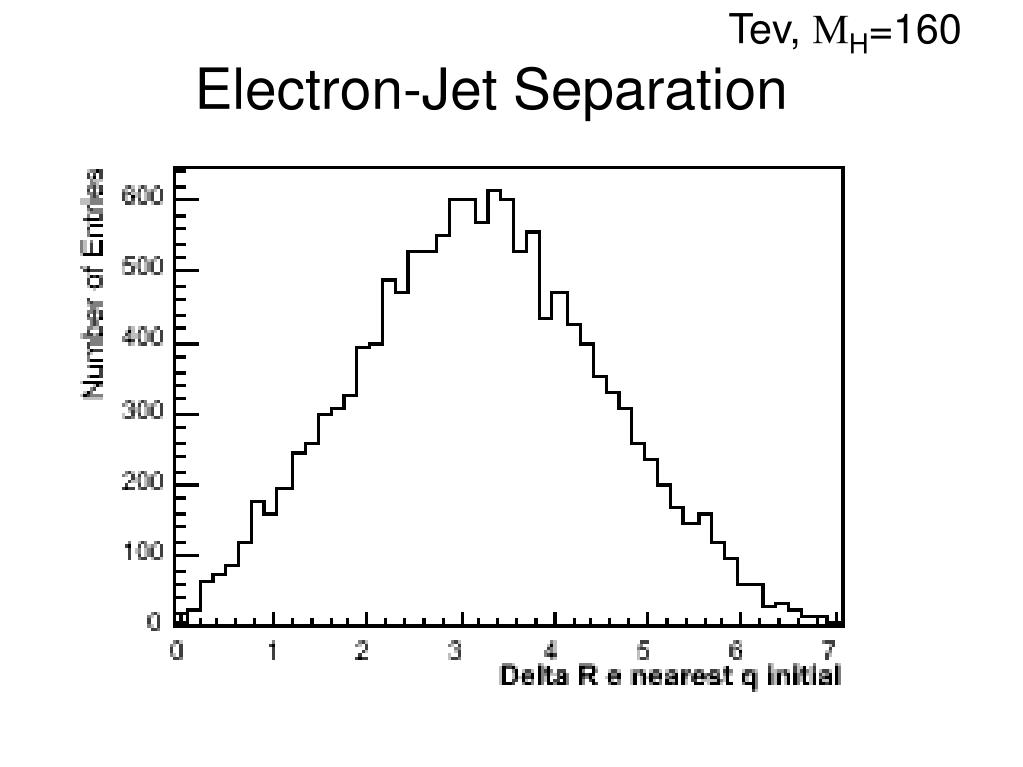

  20. Tev, MH=160 Electron-Jet Separation

  21. Mh=130 GeV/c2, Tevatron

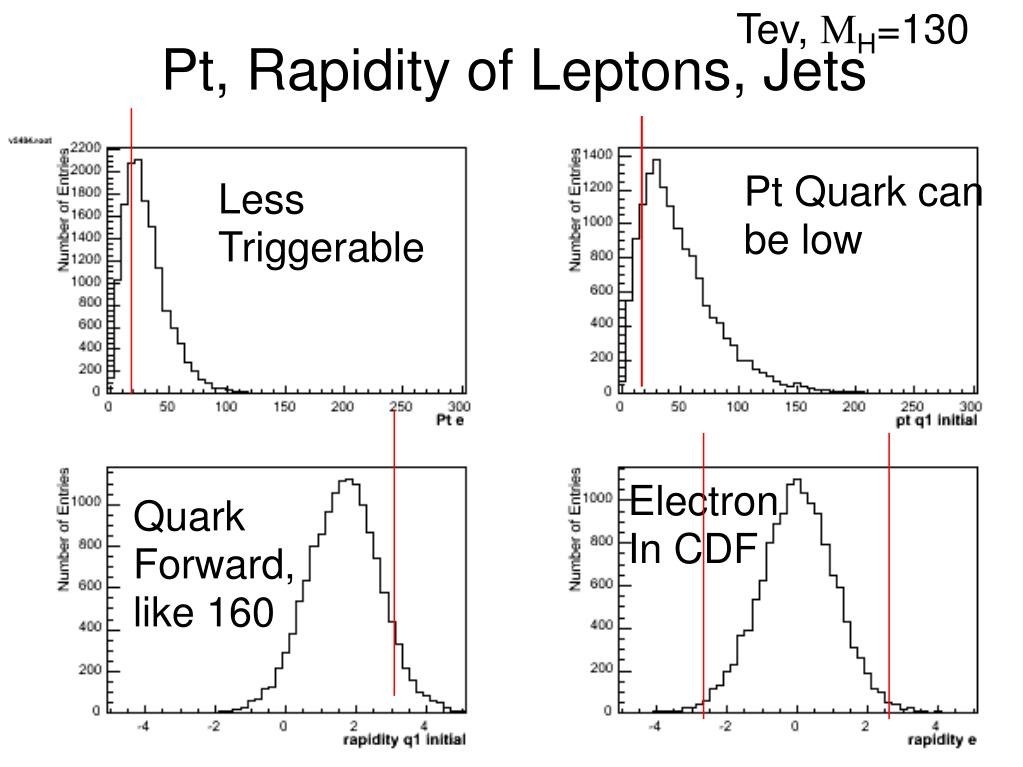

  22. Tev, MH=130 Pt, Rapidity of Leptons, Jets Pt Quark can be low Less Triggerable Electron In CDF Quark Forward, like 160

  23. Tev, MH=130 Rapidity of two quarks Max h of 2 quarks Min h of 2 quarks Dh of 2 quarks

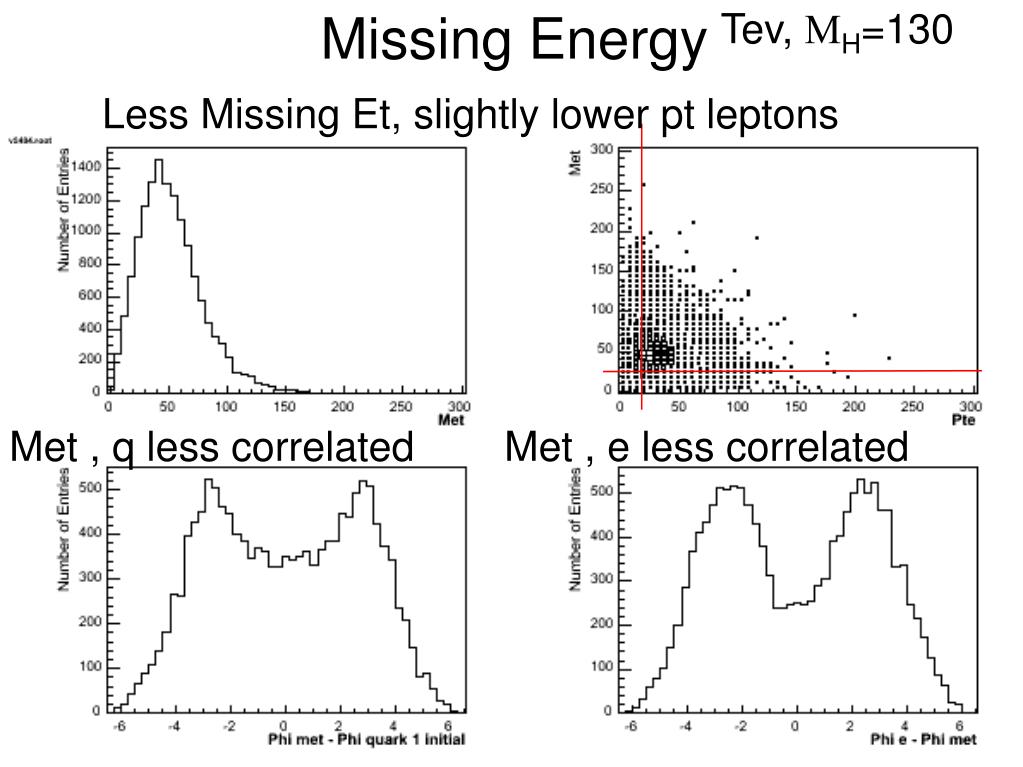

  24. Tev, MH=130 Missing Energy Less Missing Et, slightly lower pt leptons Met , q less correlated Met , e less correlated

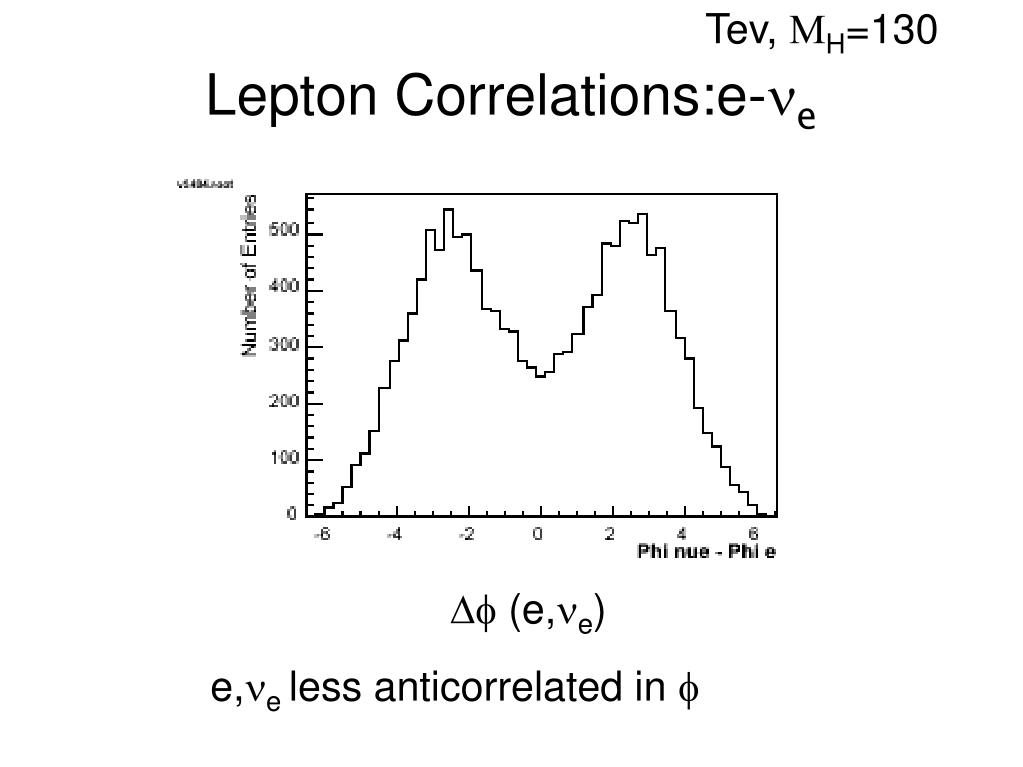

  25. Tev, MH=130 Lepton Correlations:e-ne Df (e,ne) e,ne less anticorrelated in f

  26. Tev, MH=130 Lepton Correlations e,m not as correlated DR

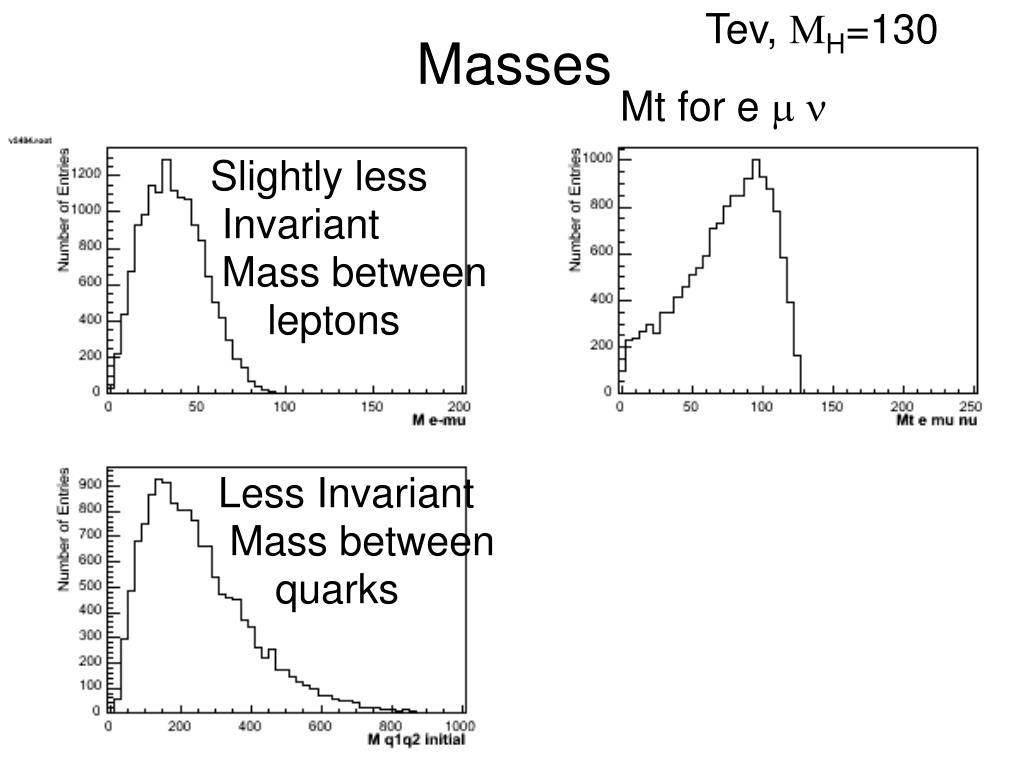

  27. Tev, MH=130 Masses Mt for e m n Slightly less Invariant Mass between leptons Less Invariant Mass between quarks

  28. Tev, MH=130 Electron-Jet Separation Same Separation

  29. Mh=200 GeV/c2, Tevatron

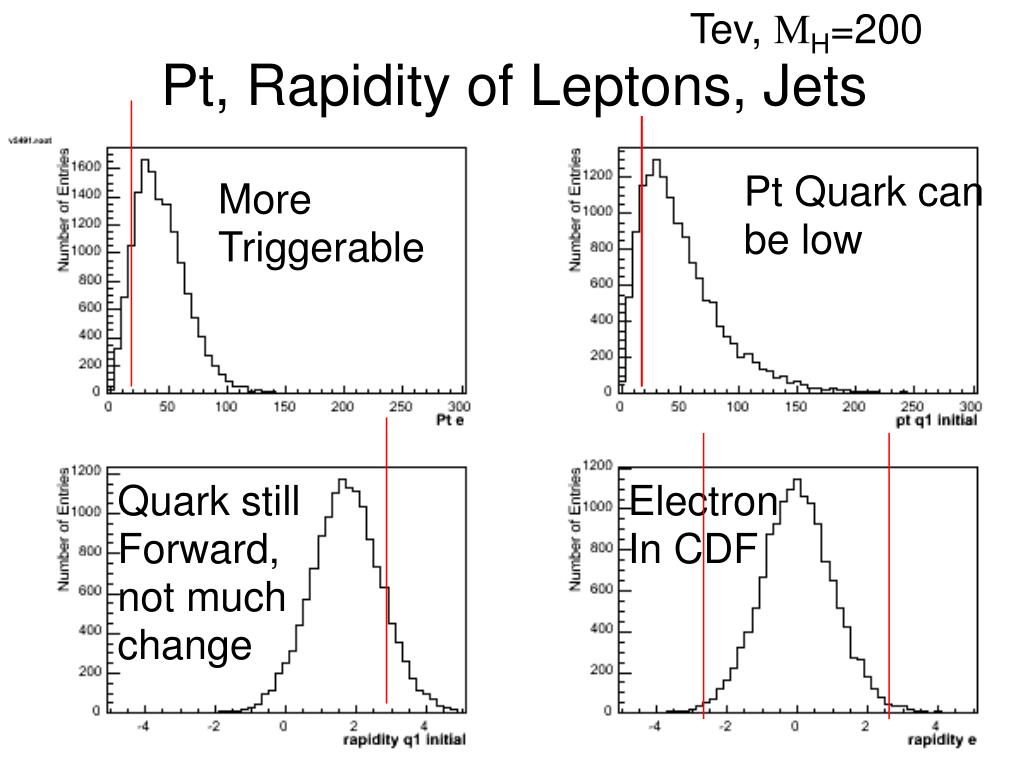

  30. Tev, MH=200 Pt, Rapidity of Leptons, Jets Pt Quark can be low More Triggerable Quark still Forward, not much change Electron In CDF

  31. Tev, MH=200 Rapidity of two quarks Max h of 2 quarks Min h of 2 quarks Not Much Change Dh of 2 quarks

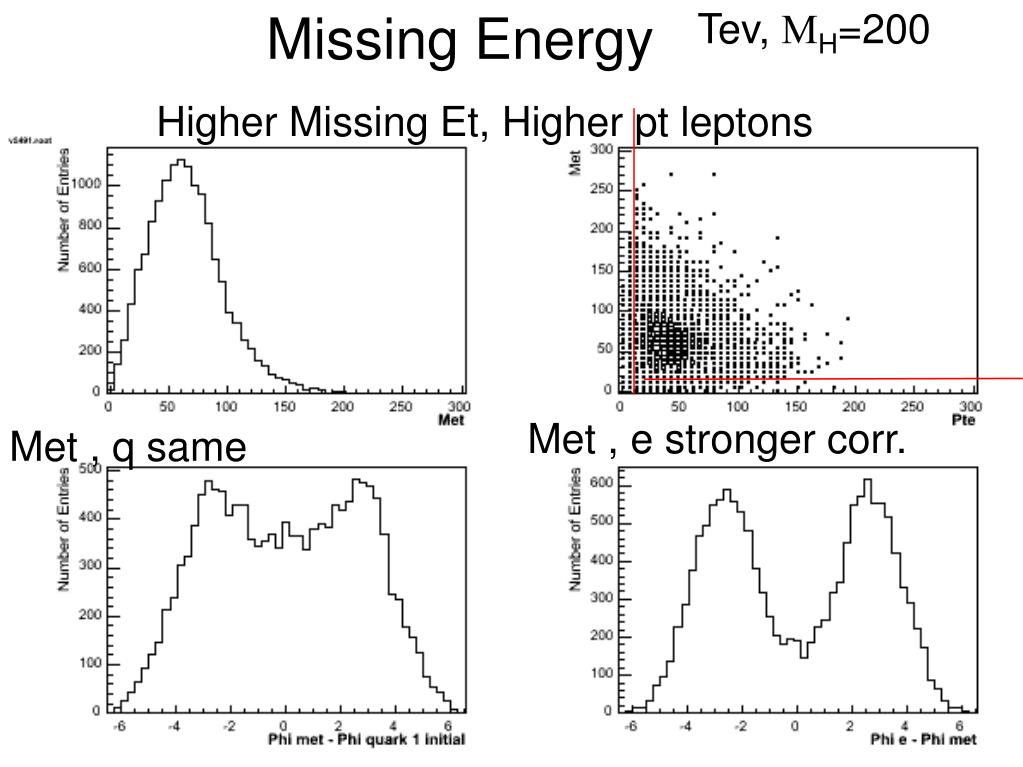

  32. Tev, MH=200 Missing Energy Higher Missing Et, Higher pt leptons Met , e stronger corr. Met , q same

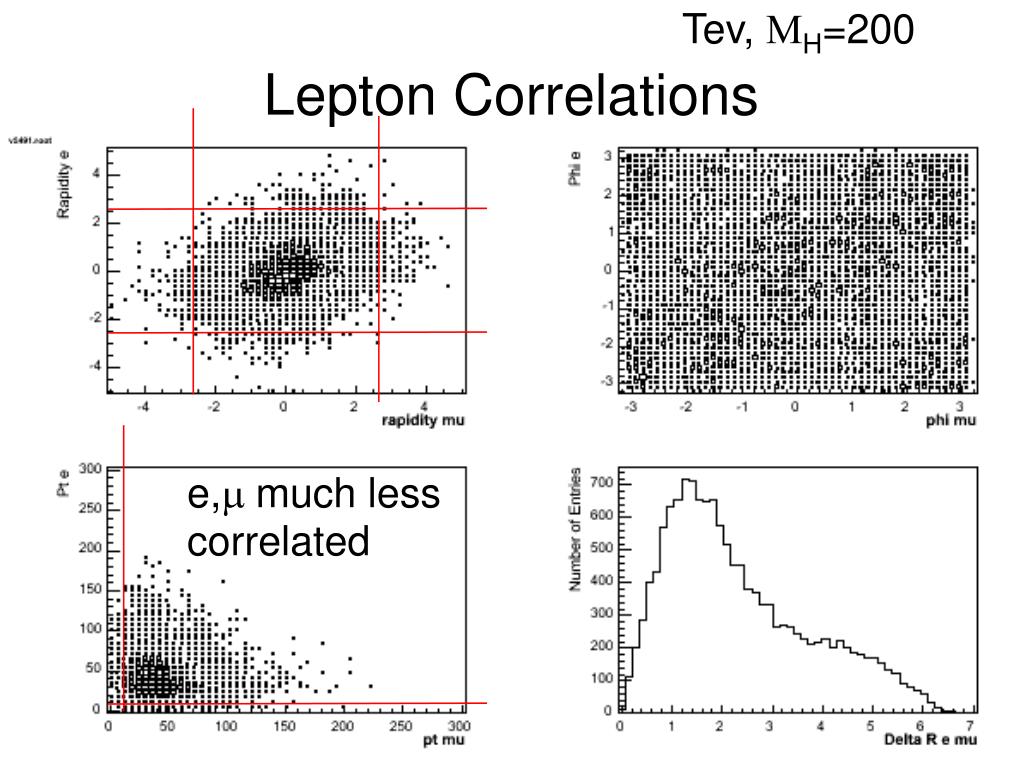

  33. Tev, MH=200 Lepton Correlations e,m much less correlated

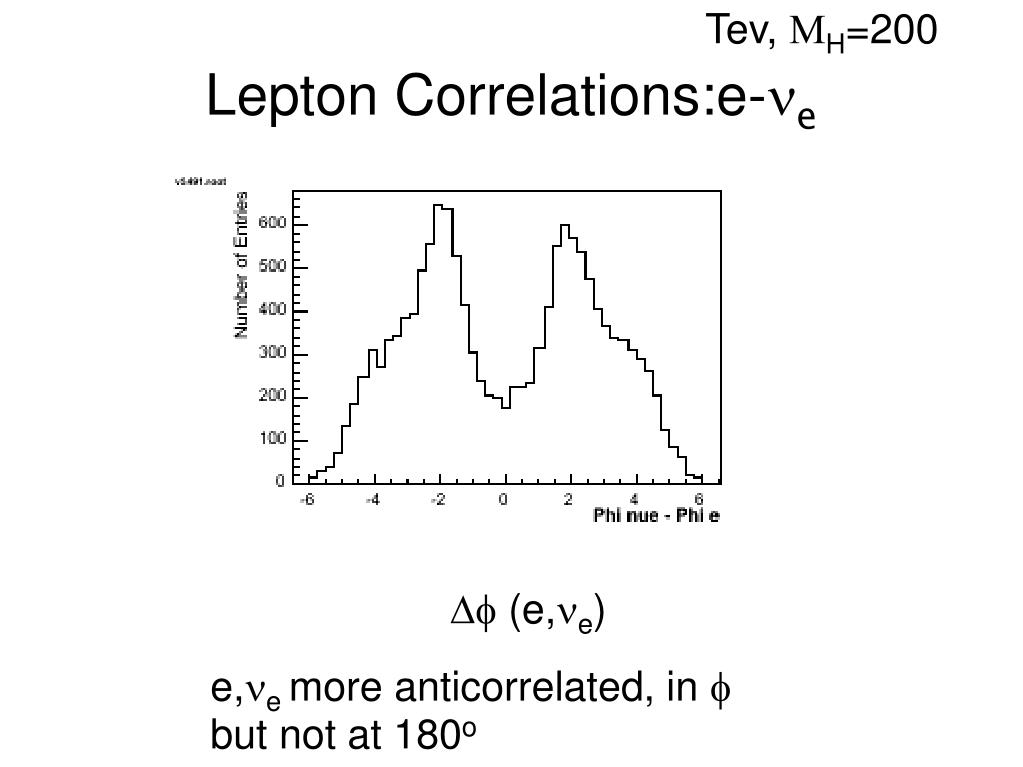

  34. Tev, MH=200 Lepton Correlations:e-ne Df (e,ne) e,ne more anticorrelated, in f but not at 180o

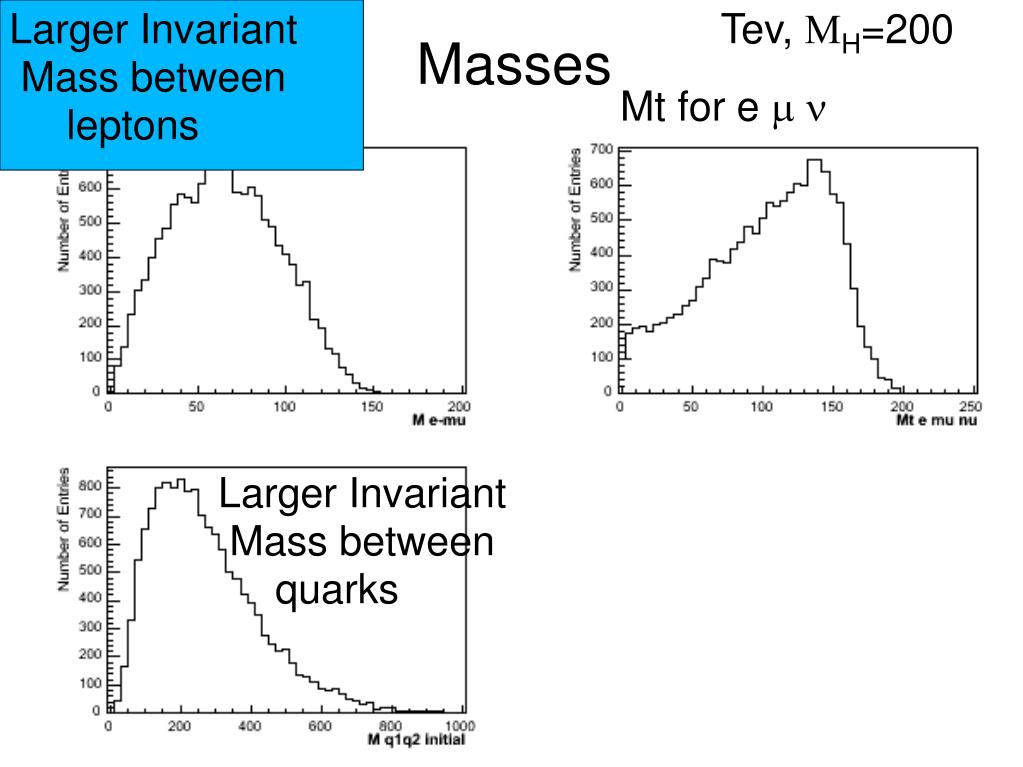

  35. Larger Invariant Mass between leptons Tev, MH=200 Masses Mt for e m n Larger Invariant Mass between quarks

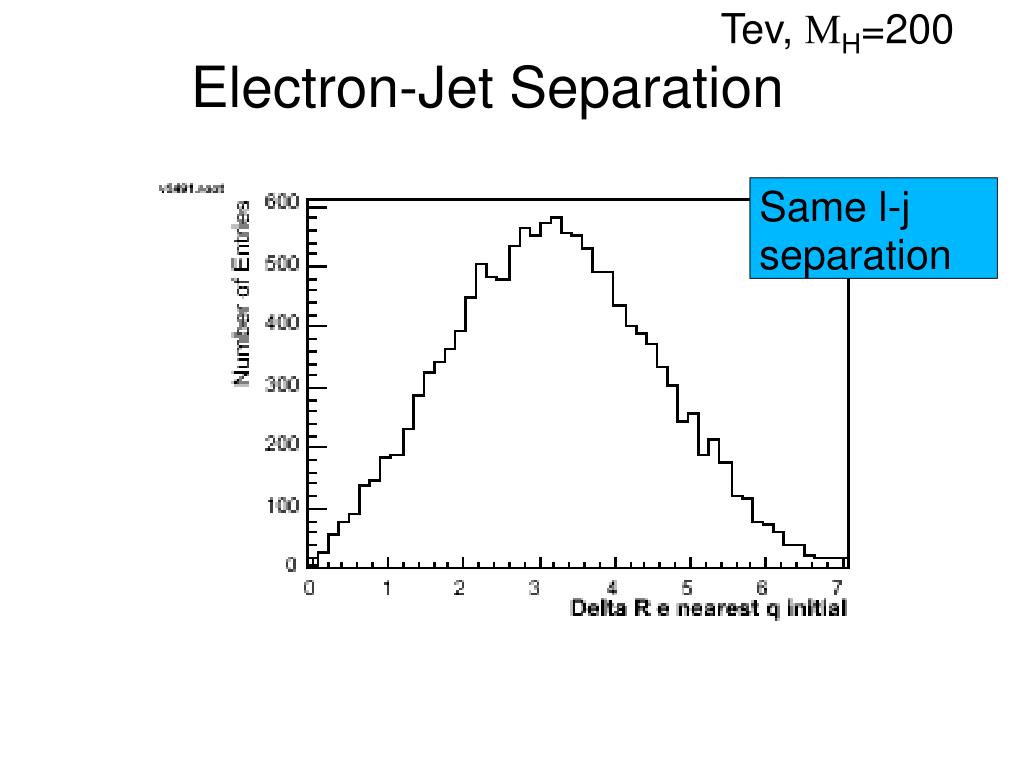

  36. Tev, MH=200 Electron-Jet Separation Same l-j separation

  37. Mh=160 GeV/c2, LHC

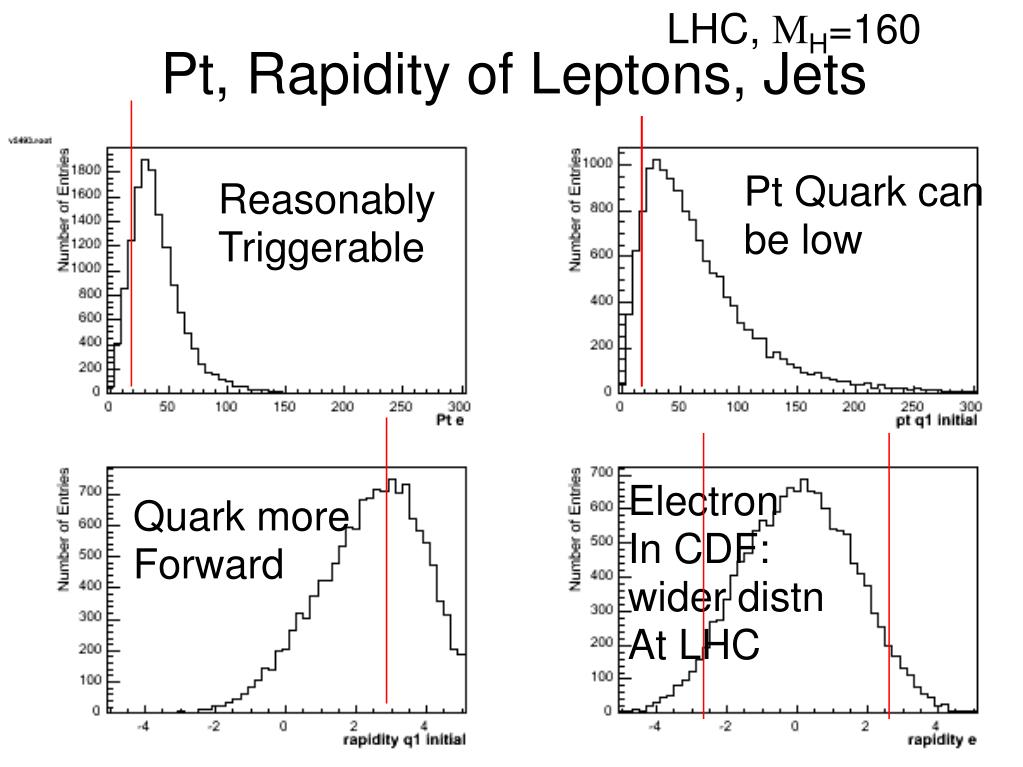

  38. LHC, MH=160 Pt, Rapidity of Leptons, Jets Pt Quark can be low Reasonably Triggerable Electron In CDF: wider distn At LHC Quark more Forward

  39. LHC, MH=160 Rapidity of two quarks Max h of 2 Quarks wider Min h – wider Dh of 2 Quarks wider

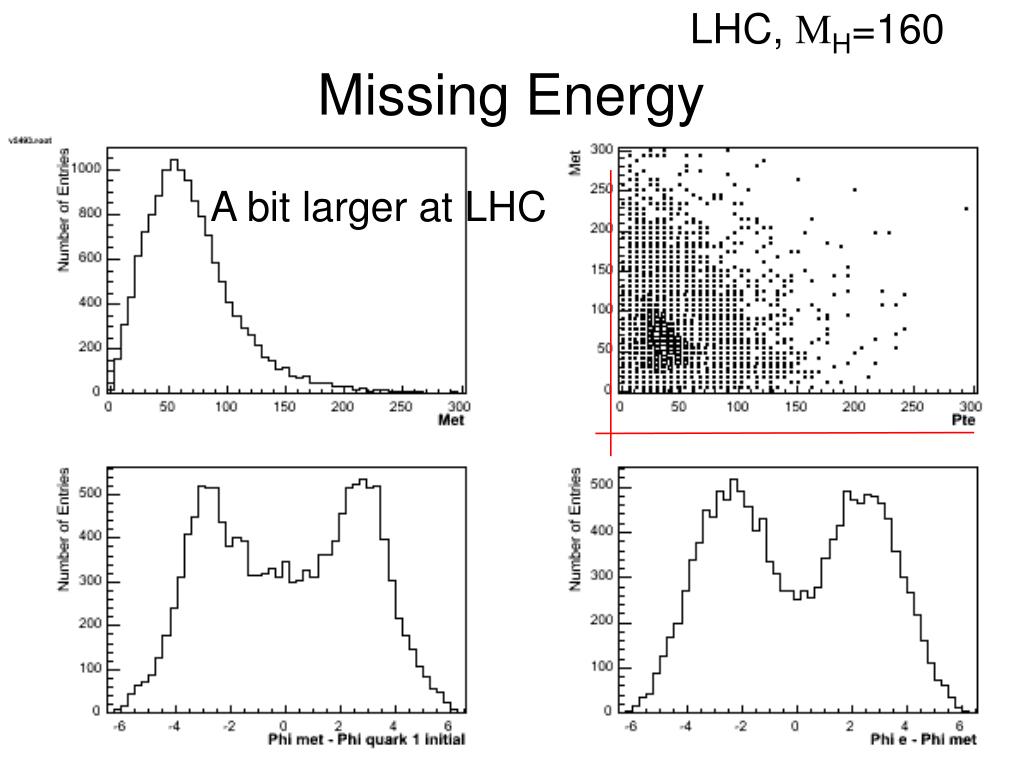

  40. LHC, MH=160 Missing Energy A bit larger at LHC

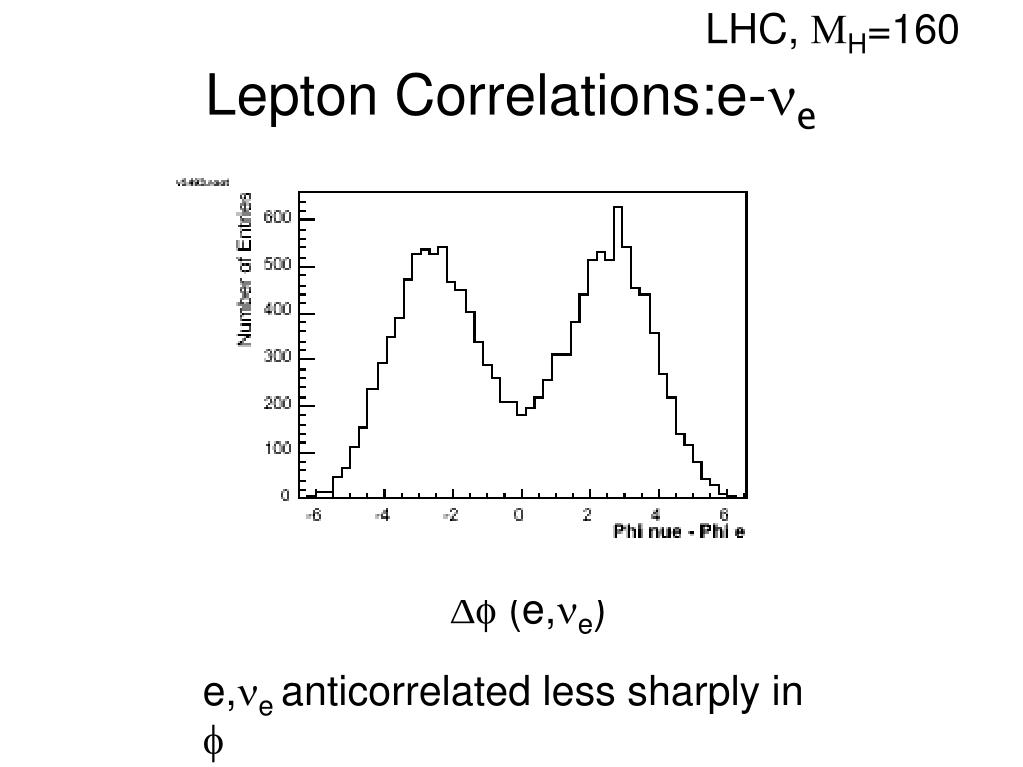

  41. LHC, MH=160 Lepton Correlations:e-ne Df (e,ne) e,ne anticorrelated less sharply in f

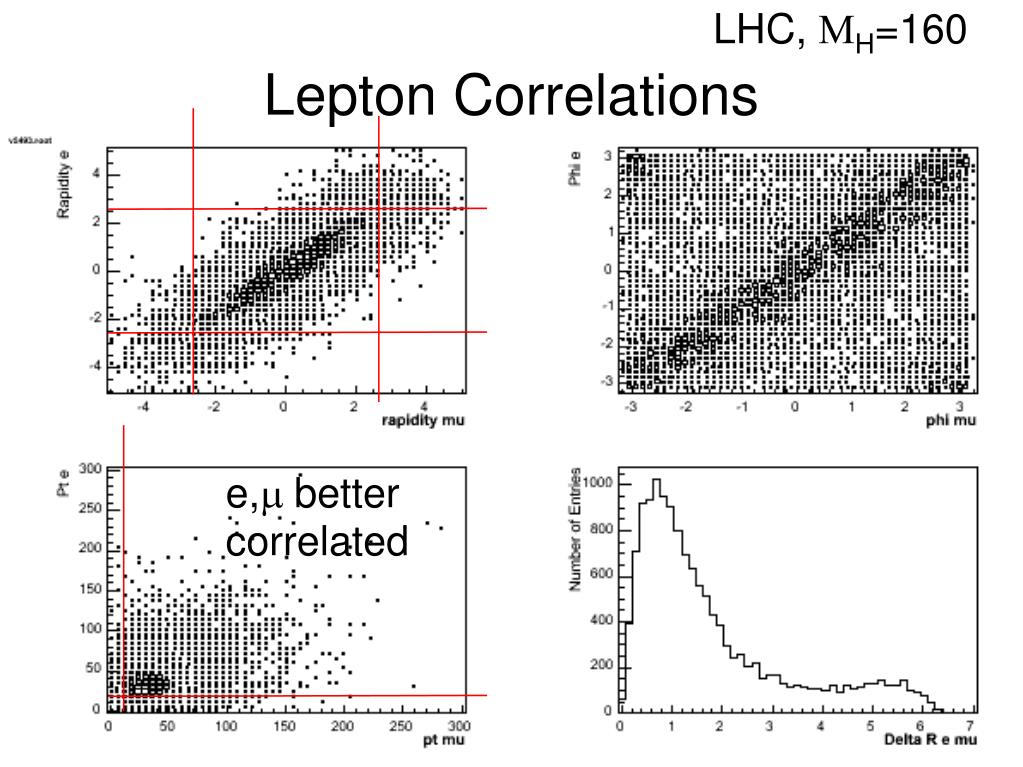

  42. LHC, MH=160 Lepton Correlations e,m better correlated

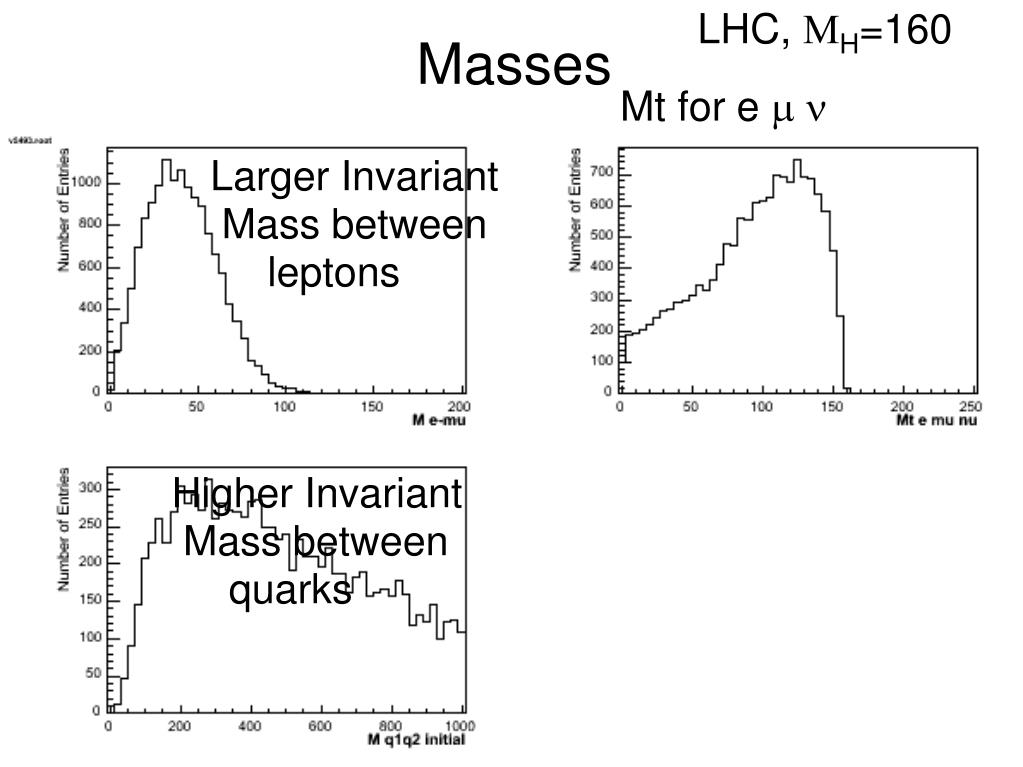

  43. LHC, MH=160 Masses Mt for e m n Larger Invariant Mass between leptons Higher Invariant Mass between quarks

  44. LHC, MH=160 Electron-Jet Separation Same l-j separation

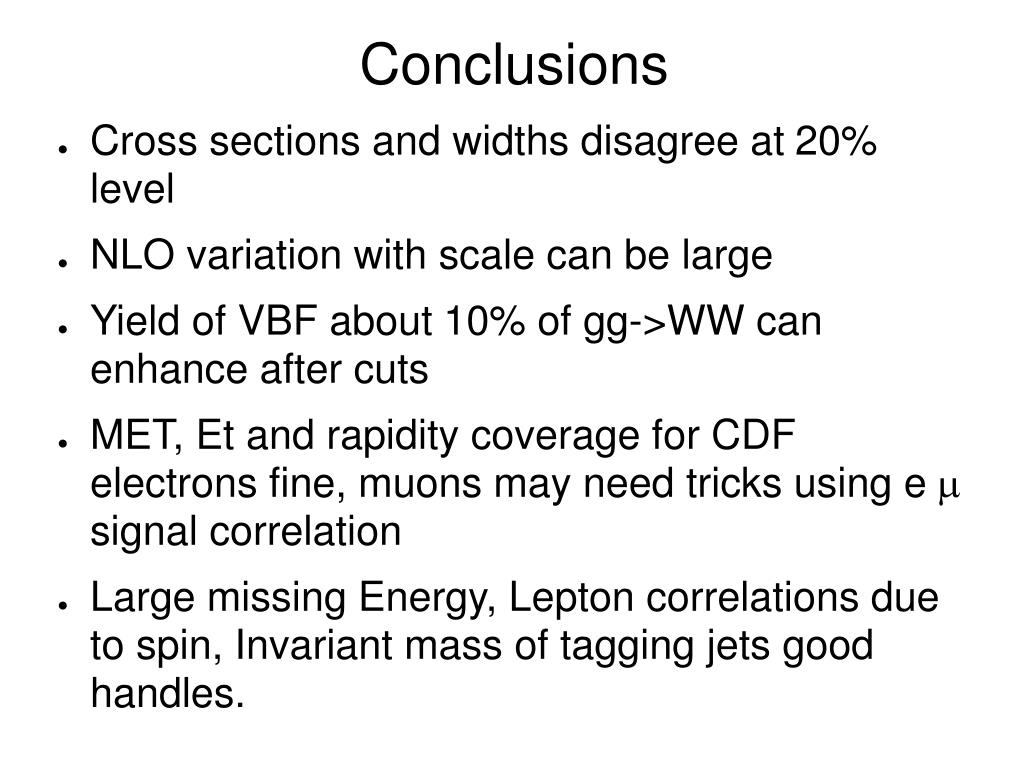

  45. Conclusions • Cross sections and widths disagree at 20% level • NLO variation with scale can be large • Yield of VBF about 10% of gg->WW can enhance after cuts • MET, Et and rapidity coverage for CDF electrons fine, muons may need tricks using e m signal correlation • Large missing Energy, Lepton correlations due to spin, Invariant mass of tagging jets good handles.

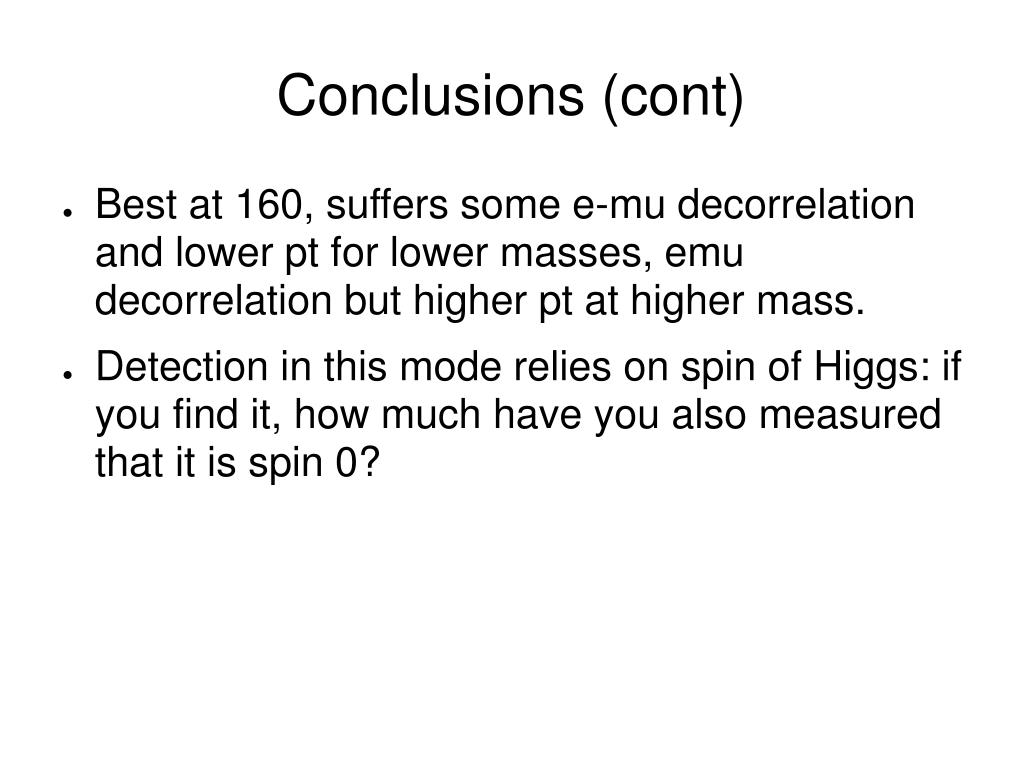

  46. Conclusions (cont) • Best at 160, suffers some e-mu decorrelation and lower pt for lower masses, emu decorrelation but higher pt at higher mass. • Detection in this mode relies on spin of Higgs: if you find it, how much have you also measured that it is spin 0?

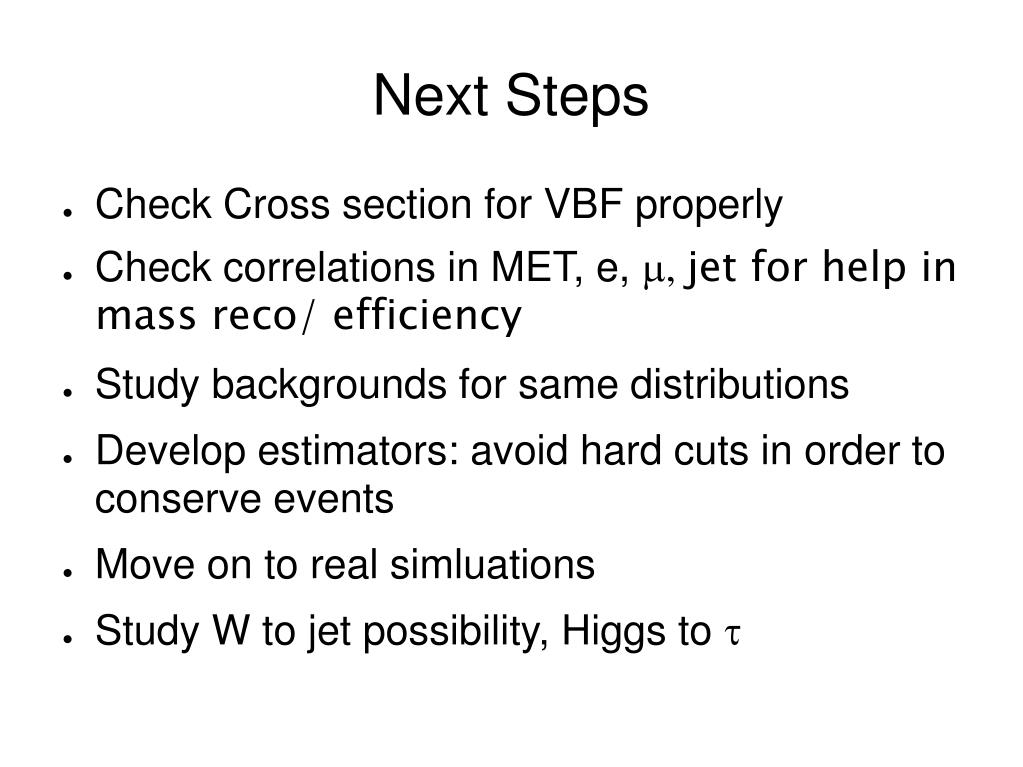

  47. Next Steps • Check Cross section for VBF properly • Check correlations in MET, e, m, jet for help in mass reco/ efficiency • Study backgrounds for same distributions • Develop estimators: avoid hard cuts in order to conserve events • Move on to real simluations • Study W to jet possibility, Higgs to t

  48. Spare Slides

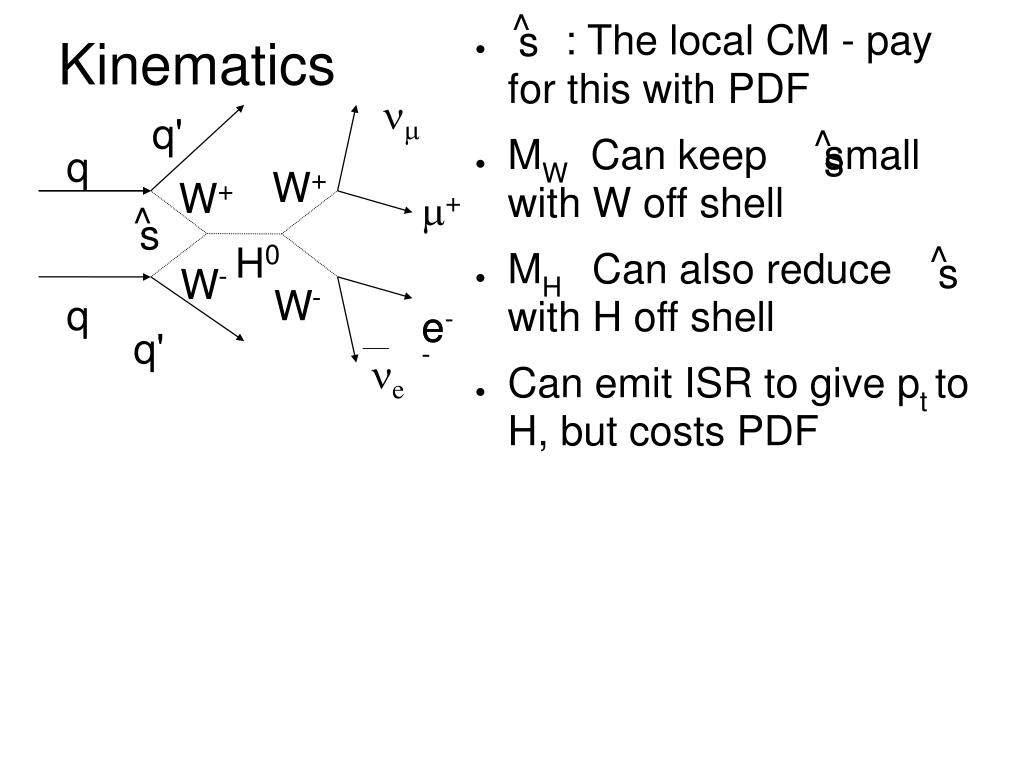

  49. nm q' ^ s q W+ W+ m+ H0 W- W- q e- e- q' ne ^ s ^ s ^ s Kinematics • : The local CM - pay for this with PDF • MW Can keep small with W off shell • MH Can also reduce with H off shell • Can emit ISR to give pt to H, but costs PDF

  50. nm q' q W+ W+ m+ H0 W- W- q e- e- q' ne Vector Boson fusion Production
