Classification of Siliciclastic Sedimentary Rocks

Classification of Siliciclastic Sedimentary Rocks. Why bother with sedimentary classification?. Particle size classification = energy of deposition Grain type classification = origin of sediment The Problem: Sedimentary rocks come in more “flavors” than any other type of rock.

butch
Download Presentation

Classification of Siliciclastic Sedimentary Rocks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Classification of Siliciclastic Sedimentary Rocks

  2. Why bother with sedimentary classification? Particle size classification = energy of deposition Grain type classification = origin of sediment The Problem: Sedimentary rocks come in more “flavors” than any other type of rock. How do you classify all of them? 1.5 mm FOV, PPL

  3. Sorting: Sorting is a measure of how similar grain sizes are within a sediment or rock and tells us about the relative strength of the current before it dropped (deposited) it cargo.

  4. Roundness: Angularity or roundness (antonym) is a measure of the distance of transportation (sort of)

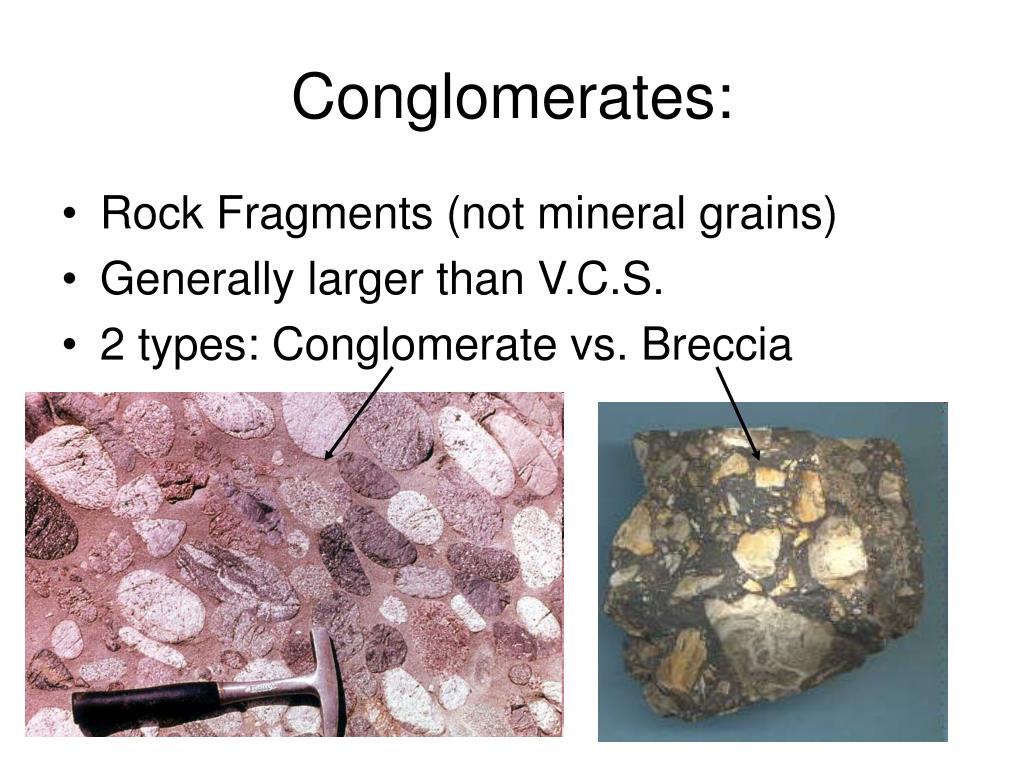

  5. Conglomerates: Rock Fragments (not mineral grains) Generally larger than V.C.S. 2 types: Conglomerate vs. Breccia

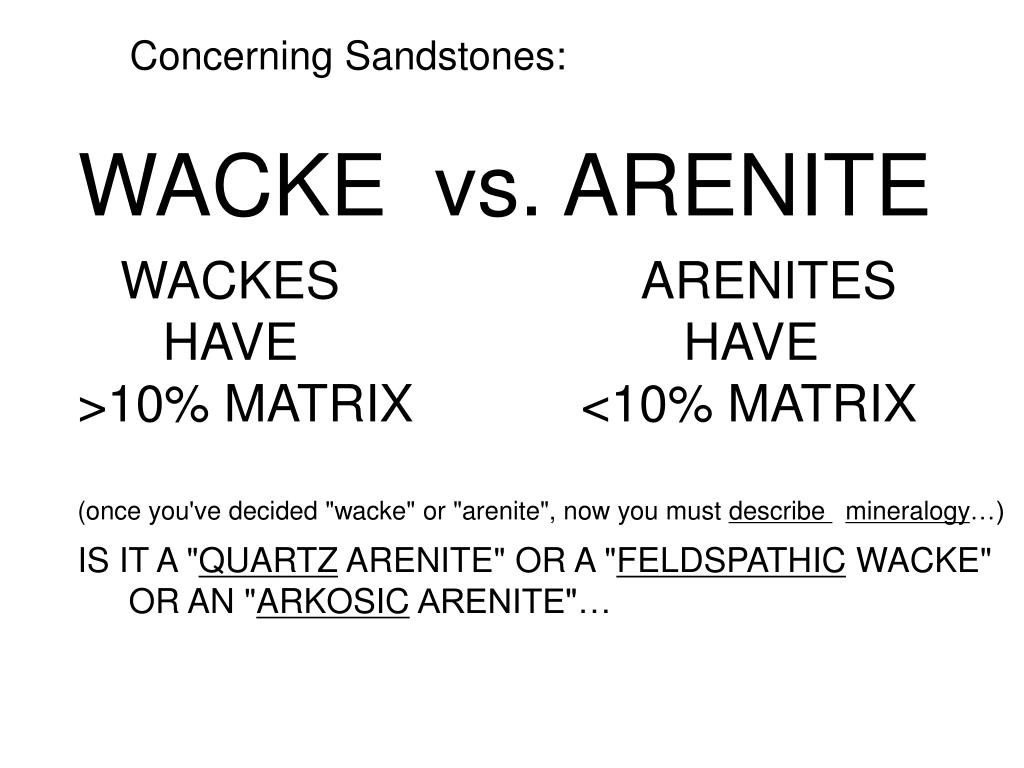

  6. Concerning Sandstones: WACKE vs. ARENITE WACKES ARENITES HAVE HAVE >10% MATRIX <10% MATRIX (once you've decided "wacke" or "arenite", now you must describe mineralogy…) IS IT A "QUARTZ ARENITE" OR A "FELDSPATHIC WACKE" OR AN "ARKOSIC ARENITE"…

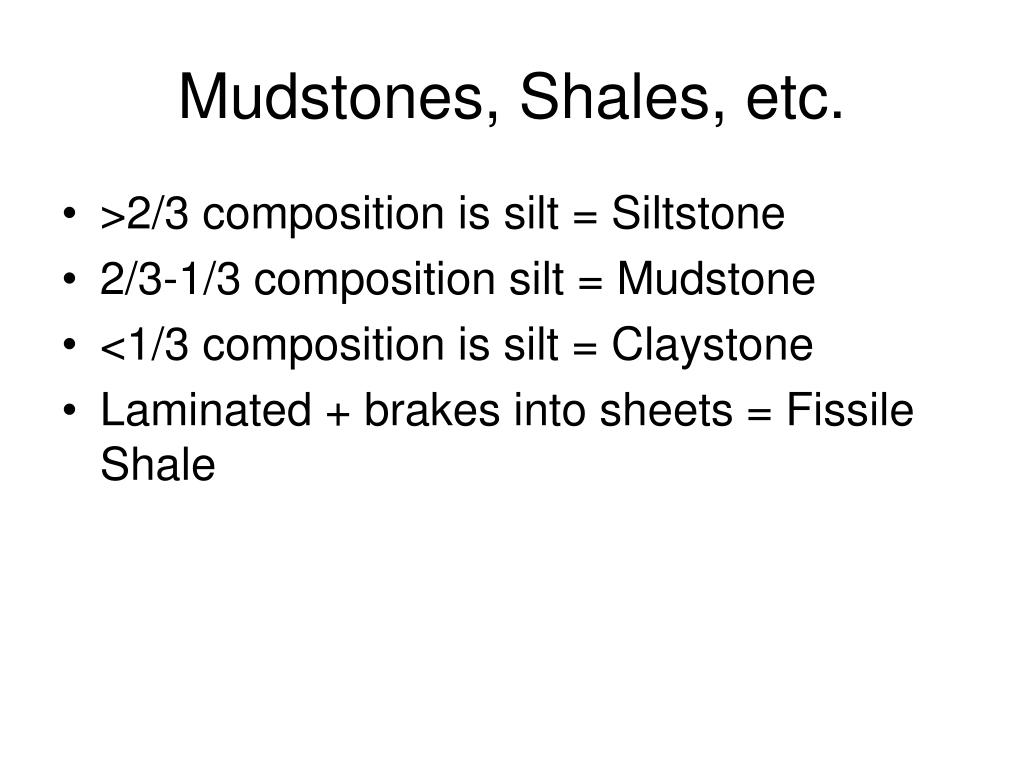

  7. Mudstones, Shales, etc. • >2/3 composition is silt = Siltstone • 2/3-1/3 composition silt = Mudstone • <1/3 composition is silt = Claystone • Laminated + brakes into sheets = Fissile Shale

  8. Diagensis = Diagnesis includes • (1) compaction = volume loss (mechanical squeezing) and is accompanied by dewatering (= water loss) (by chemical or physical means) • (2) changes in mineral composition (chemical process with heat and or fluids) • (3) cementation (physical) If a sediment eventually becomes a rock we say it is lithified.
