Today: Distributed Coordination

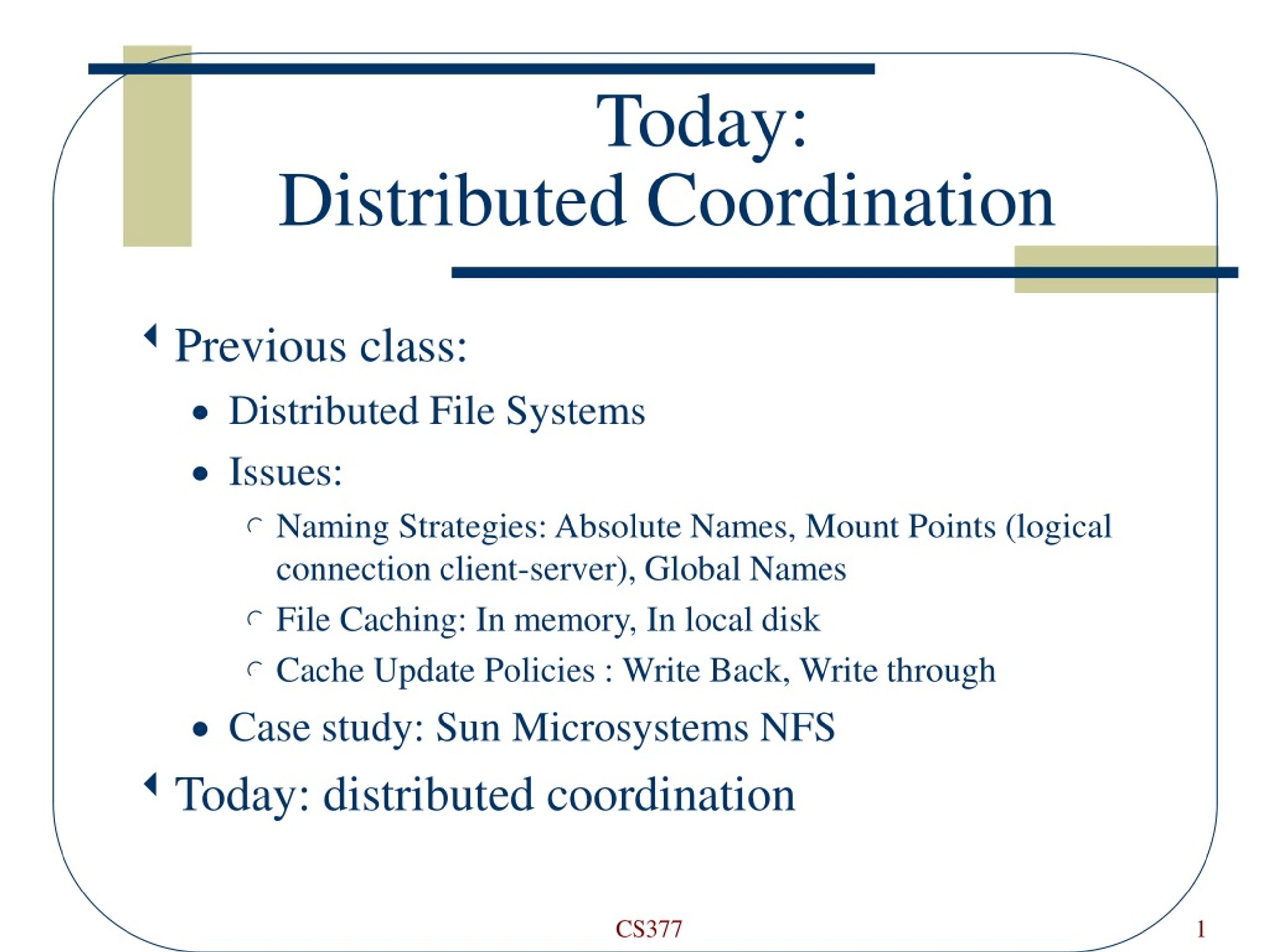

1. Today: Distributed Coordination • Previous class: • Distributed File Systems • Issues: • Naming Strategies: Absolute Names, Mount Points (logical connection client-server), Global Names • File Caching: In memory, In local disk • Cache Update Policies : Write Back, Write through • Case study: Sun Microsystems NFS • Today: distributed coordination CS377

2. What is distributed coordination? • In previous lectures we discussed various mechanisms to synchronize actions of processes in one machine • Mutual exclusion: Semaphores, locks, monitors • Ways of dealing with deadlocks: • ignoring it, • detecting it (let deadlock occur, detect them, and try to recover), • prevention (statically make deadlock structurally impossible), • Avoidance (avoid deadlock by allocating resources carefully) • These mechanisms have been centralized • Distributed coordination can be seen as generalization of these to distributed systems. CS377

3. Event Ordering • Being able to order events is important to synchronization , e.g., we need to be able to specify that a resource can only be used after it has been granted. • In a centralized system, it is possible to determine order of events • This because all processes share common clock and memory • In a distributed system there is no common clock • It is therefore sometimes impossible to tell which of two events occurred first. CS377

4. Event order: The Happened-Before Relation • Happened-Before denoted with arrow, e.g. A->B • If A and B are events in the same process, and A was executed before B, then A-> B • If A is the event sending a message and B is receiving a message, then A->B • If A->B and B->C, then A->C • If two events A and B are not related with -> relation then these events were executed concurrently • We don’t know which of these two events happened first CS377

5. Example:Space-time diagram three distributed processes p3 r3 q3 p2 q2 r2 p1 q1 r1 p0 q0 r0 CS377

6. Example cont. • Ordered events: • Are p0->q1; r0->q3; q2->r3; q0->p3 • And also p0->q3 (as p0->q1 AND q1->q3)… • Concurrent events: • q0 and p2 • r0 and q2 • p1 and q2 • Since neither affects the other it is NOT important to know CS377

7. Implementation of Event Ordering • We would need either a COMMON CLOCK or PERFECTLY SYNCHRONIZED CLOCKS to determine event ordering in distributed systems • Not available/possible unfortunately! • How can we define the happened-before relationship WITHOUT physical clocks in distributed systems? CS377

8. Implementation of Event Ordering • We define a logical clock, LCi, for each process Pi. • We associate a timestamp with each event • We advance the logical clocks when sending messages to account for slower logical clocks, i.e., if A send to B and B’s clock is less that A’s timestamp, we advance LC(B) to LC(A) + 1; • Now we can meet global-ordering requirement: if A->B then A’s timestamp < B’s timestamp. CS377

9. Mutual Exclusion • How can we provide mutual exclusion across distributed processes? • 1. Centralized approach • We have one of the processes as coordinator • To enter a critical section each process sends Request and waits for a Reply message. If there is a process in the critical section the coordinator queues the request. • To leave the critical section we must send a Release message CS377

10. Centralized approach for mutual exclusion • Advantages: • Relatively small overhead • Ensures mutual exclusion • If scheduling is fair no starvation occurs • Disadvantages: • Coordinator can fail • A new coordinator must be ELECTED • Once the new coordinator is elected it must poll all the processes to reconstruct the request queue. CS377

11. Fully Distributed approach for mutual exclusion • Far more complicated solution • When a process Pi wants to enter its critical section, it generates a new timestamp TS, and sends a message Request(Pi,TS) to all processes. • A process can enter the critical section if receives Reply messages from all other processes. • Process Pj may not reply directly • Because is already in its critical section • Because it wants to enter its critical section, it checks TS and if his is smaller, the Reply is deferred CS377

12. Fully Distributed Approach • Advantages: • mutual exclusion ensured • Starvation free (scheduled based on Timestamp) • Deadlock free • Disadvantages • All processes must know each other • If one process fails system collapses. Need continuous monitoring of the state of all processes to detect when one process fails. • Suitable for small number of processes CS377

13. Token-Passing approach to mutual exclusion • A token (is a special type of message) circulates among all processes • Processes logically organized in a ring • If a process does not need to enter a critical section it passes the token to its neighbor • Advantage: in highly loaded system only one message may be enough, starvation free … • Disadvantage: if a process fails a new logical ring must be established, in system with low contention (no process wants to enter its critical section) the amount of messages per a critical section entry can be very large. CS377

14. Deadlock handlingwith deadlock prevention • Deadlock avoidance not practical- require information about resource usage ahead of time that is rarely available. • Deadlock prevention • Can use the local algorithms with modifications • For example, we can use the resource-ordering (ensuring that resources are accessed in order) technique but first we need to define a global ordering among resources. • New techniques are using time-stamp ordering: • The wait-die scheme • Non-preemptive technique • If TS of Pi is smaller than TS of Pj, the resource Pi is requesting is hold by Pj, then Pi can wait for resource. Otherwise Pi must be rolled back (restarted). • The wound-wait scheme • Preemptive • The opposite of wait-die: Pi waits if its TS is larger than Pj’s, otherwise Pj is rolled back and the resource is preempted from Pj. CS377

15. Deadlock handling withdeadlock detection • The deadlock-prevention may preempt resources even if no deadlock has occurred! • Deadlock detection is based on so called wait-for graphs • A wait-for graph shows resource allocation state • A cycle in the wait-for graph represents deadlock P4 P1 P2 P2 P5 P3 P3 Site B Site A CS377

16. Global wait-for graphs • To show that there is NO DEADLOCK it is not enough to show that there is no cycle locally • We need to construct the global wait-for graph • It is the union of all local graphs. P1 P4 P2 P5 P3 CS377

17. How to construct this global wait-for graph? • Centralized approach: • The graph is maintained in ONE process: the deadlock-detection coordinator • Since there is communication delay in the system we have two types of graphs: • Real wait-for graph // real but unknown state of the system • Constructed wait-for graph // approximation generated by the coordinator during the execution of its algorithm • When is the wait-for graph constructed? • 1.Whenever a new local edge inserted/removed a message is sent • 2. Periodically maintained • 3. Whenever the coordinator invokes the cycle-detector algorithm • What happens if a cycle is detected? • The coordinator selects a victim and notifies all processes CS377

18. Centralized approach deadlock detection • False cycles may exist in the constructed global wait-for graph (because messages arrive in some order and delays contribute to edges added that form cycles; if a removed edge message arrives after another add edge message) • There is a centralized deadlock detection algorithm based on Option 3 that guarantees that it detects all deadlocks and no false deadlocks are detected. CS377

19. Summary • Event ordering in distributed systems • Various approaches for Mutual Exclusion in distributed systems • Centralized approach • Toke based approach • Fully distributed • Deadlock prevention and detection • Global wait-for graph CS377
