  1. Changing Earth’s Surface

  2. 8.1 Weathering Changing Earth's Surface • Weathering • The process that breaks down and changes rocks that are exposed at Earth’s surface • Erosion • Moving weathered material from one place to another • Deposition • Sediment is laid down at a new location 2

  3. 2.1 Landforms Shaping the Earth with Water • Most erosion is done by water. • Rivers, ocean currents, and ice (p. 334, 342) 1

  4. Rivers

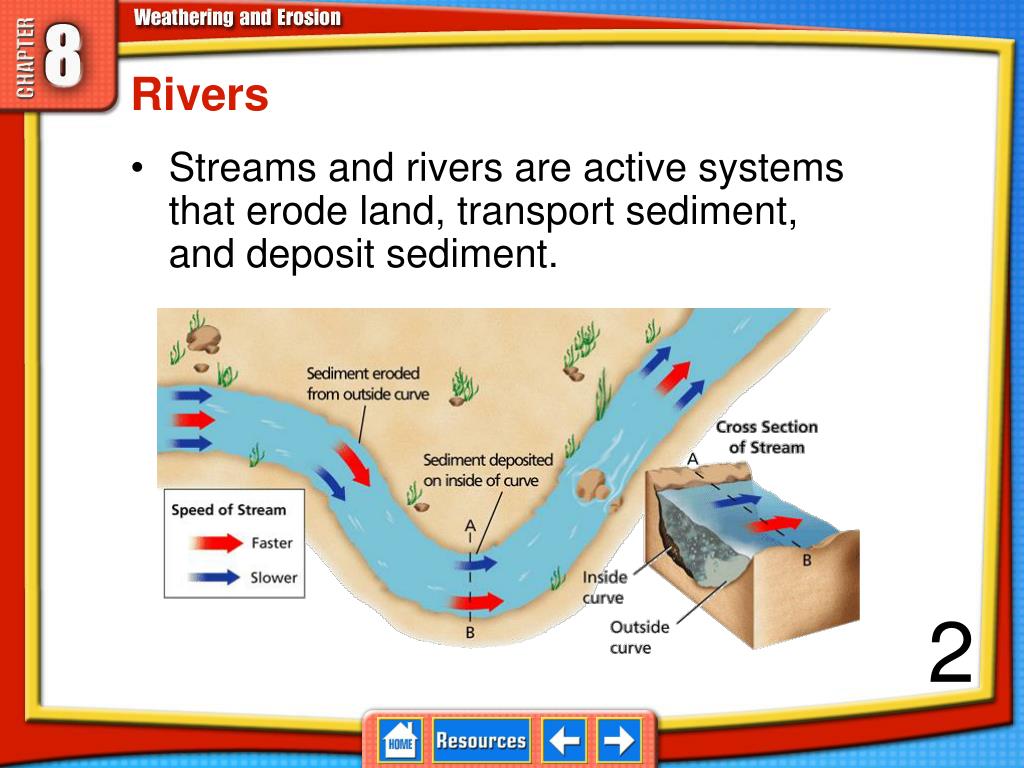

  5. Rivers • Streams and rivers are active systems that erode land, transport sediment, and deposit sediment. 2

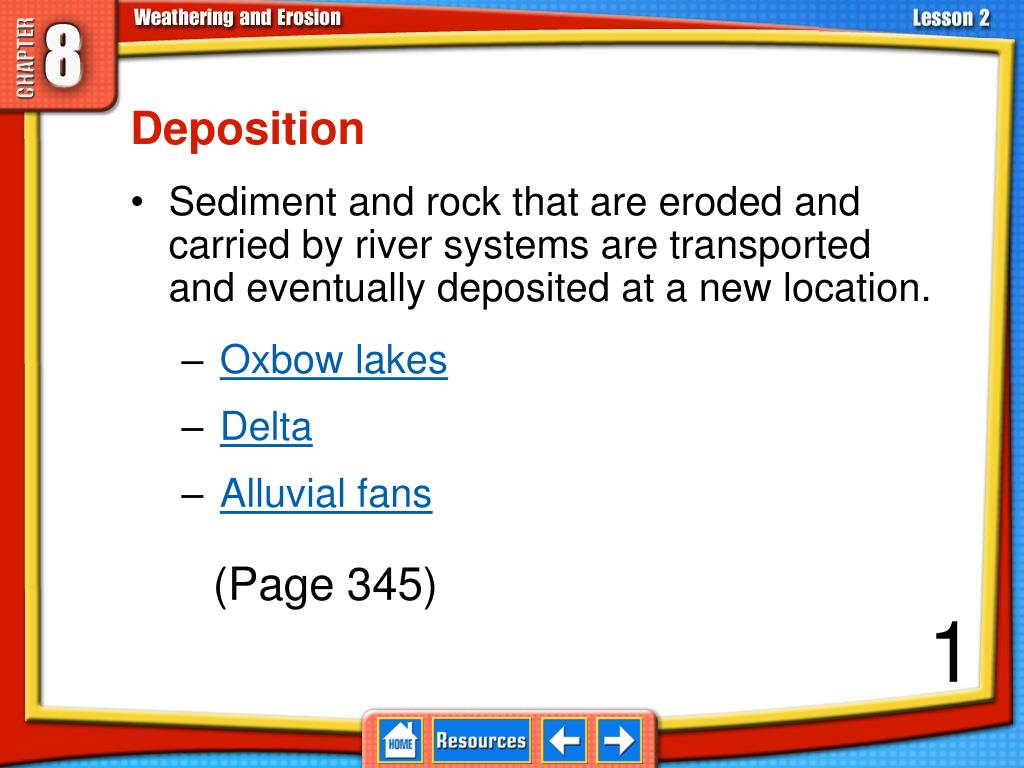

  6. 8.2 Erosion and Deposition Deposition • Sediment and rock that are eroded and carried by river systems are transported and eventually deposited at a new location. • Oxbow lakes • Delta • Alluvial fans (Page 345) 1

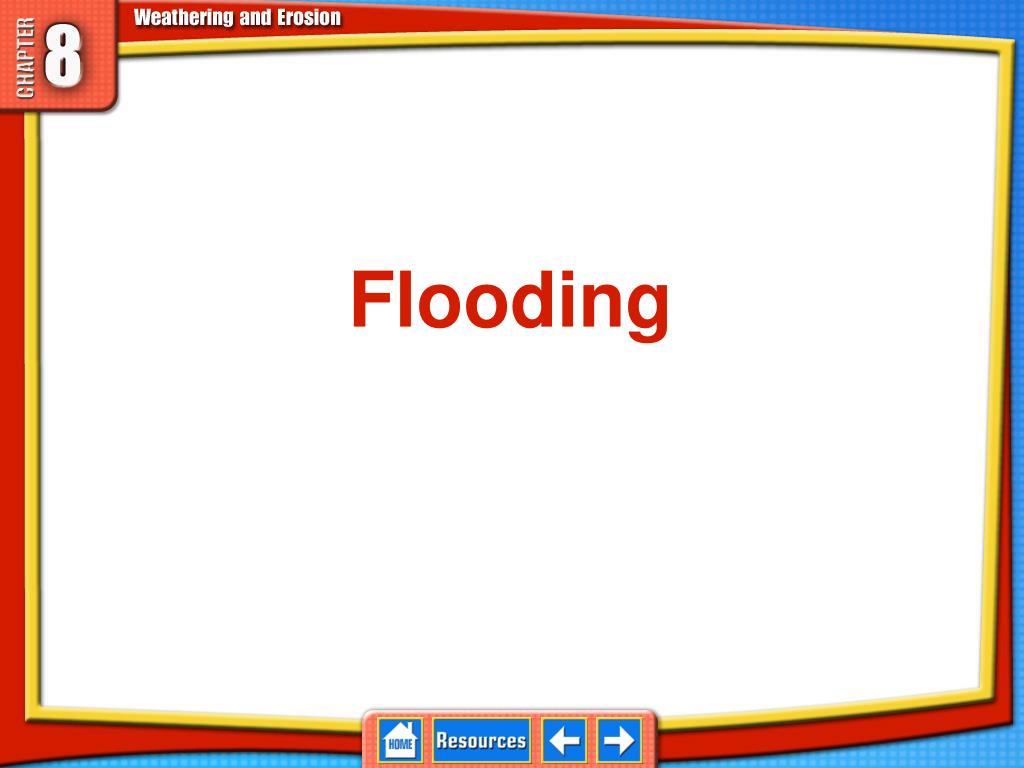

  7. Flooding

  8. 8.2 Erosion and Deposition Flood • When the water level in a river rises above the usual height and overflows its banks • Floodplain: a wide, flat valley located along the sides of rivers and streams 2

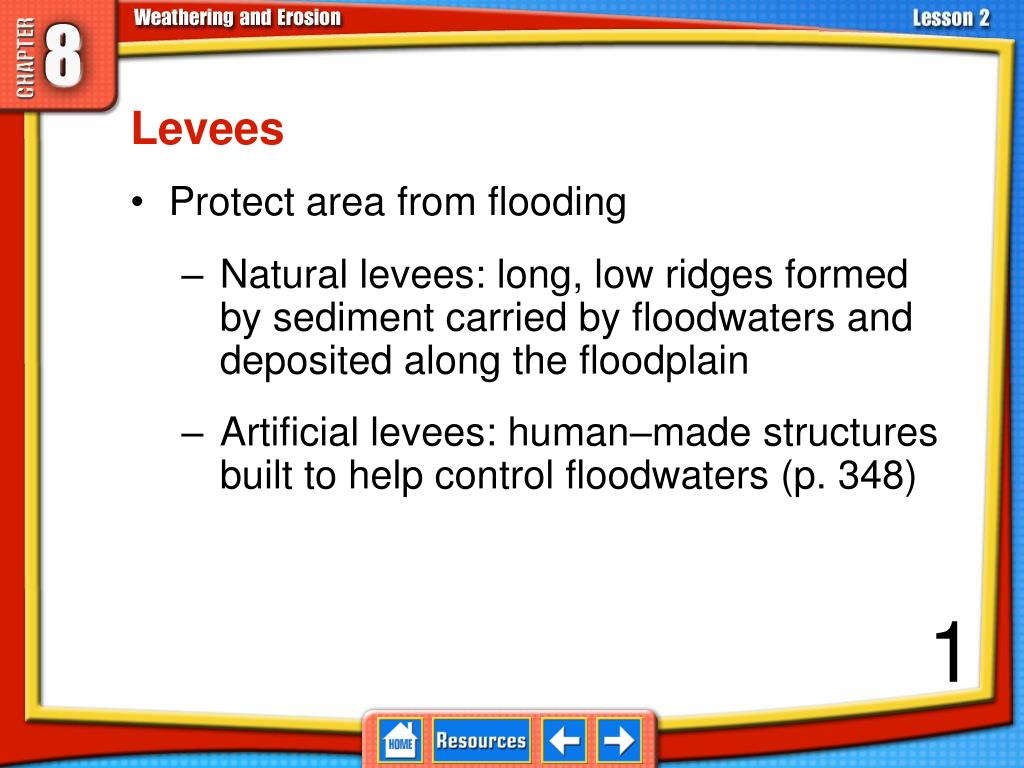

  9. 8.2 Erosion and Deposition Levees • Protect area from flooding • Natural levees: long, low ridges formed by sediment carried by floodwaters and deposited along the floodplain • Artificial levees: human–made structures built to help control floodwaters (p. 348) 1

  10. Beaches

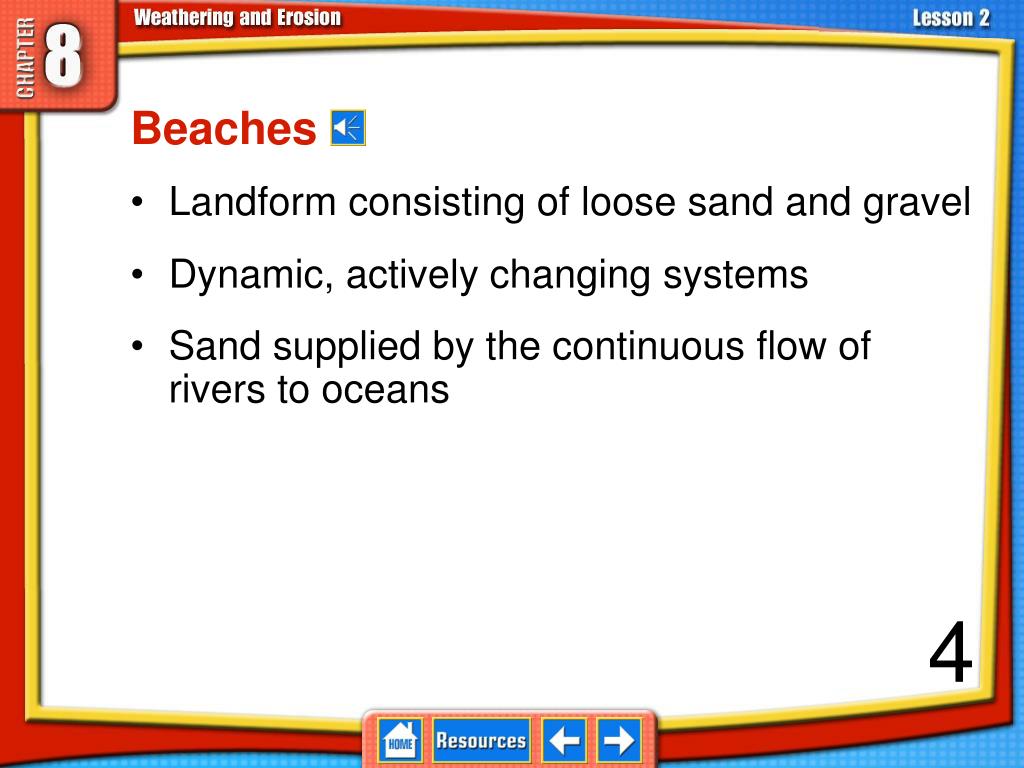

  11. 8.2 Erosion and Deposition Beaches • Landform consisting of loose sand and gravel • Dynamic, actively changing systems • Sand supplied by the continuous flow of rivers to oceans 4

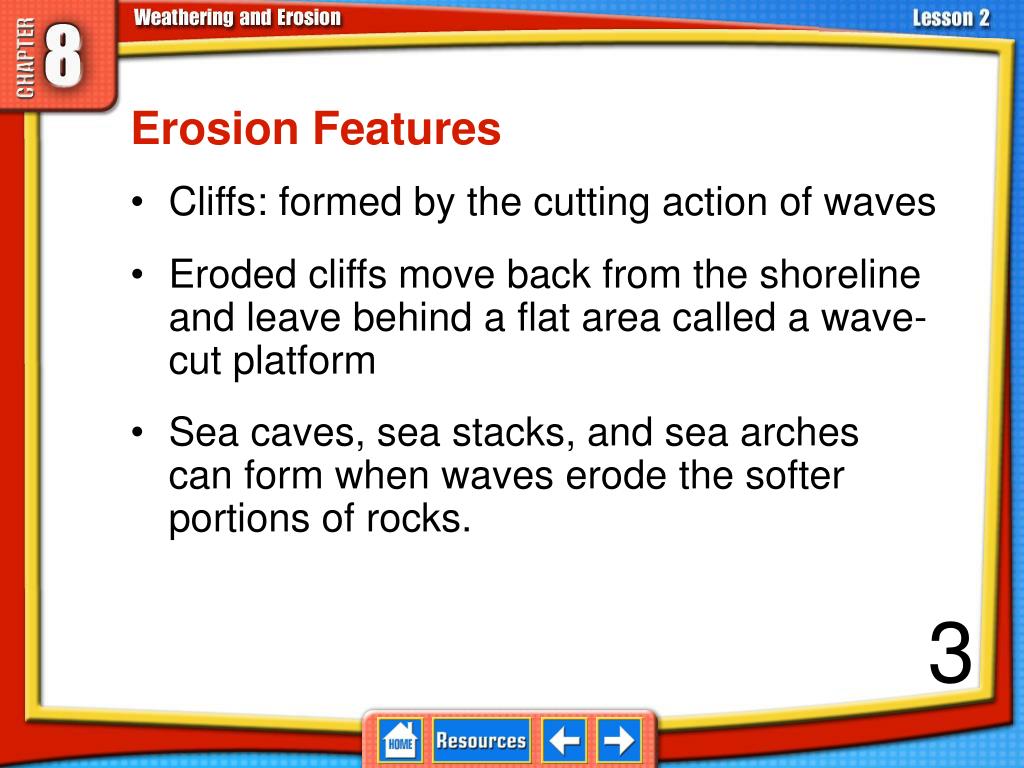

  12. 8.2 Erosion and Deposition Erosion Features • Cliffs: formed by the cutting action of waves • Eroded cliffs move back from the shoreline and leave behind a flat area called a wave-cut platform • Sea caves, sea stacks, and sea arches can form when waves erode the softer portions of rocks. 3

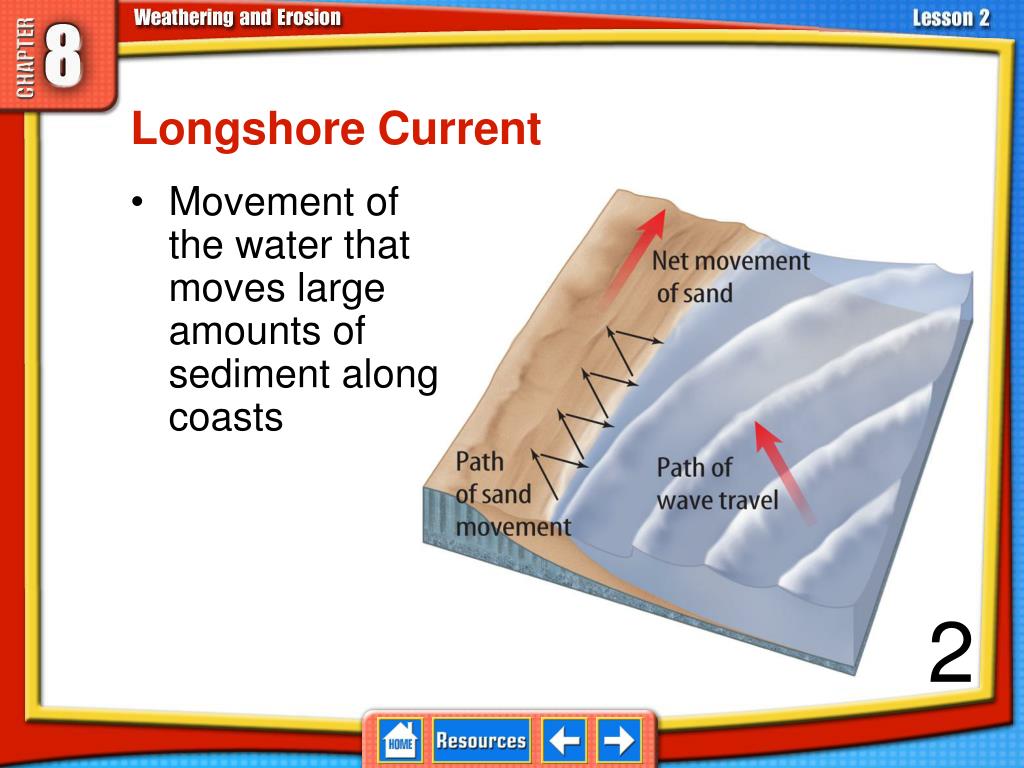

  13. 8.2 Erosion and Deposition Longshore Current • Movement of the water that moves large amounts of sediment along coasts 2

  14. 8.2 Erosion and Deposition Erosion Prevention • Shoreline armoring: retaining walls, harbor channels, and groins • Changes natural shoreline processes but is necessary to prevent collapse of cliffs or the complete destruction of a beach. (p. 349) 1

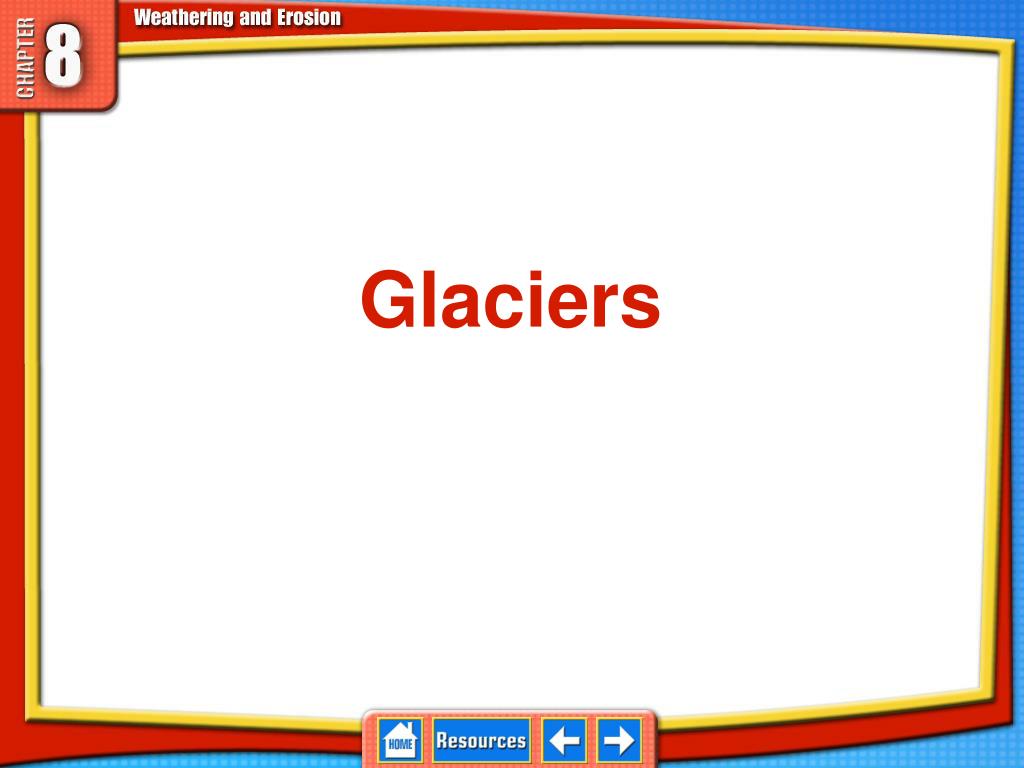

  15. Glaciers

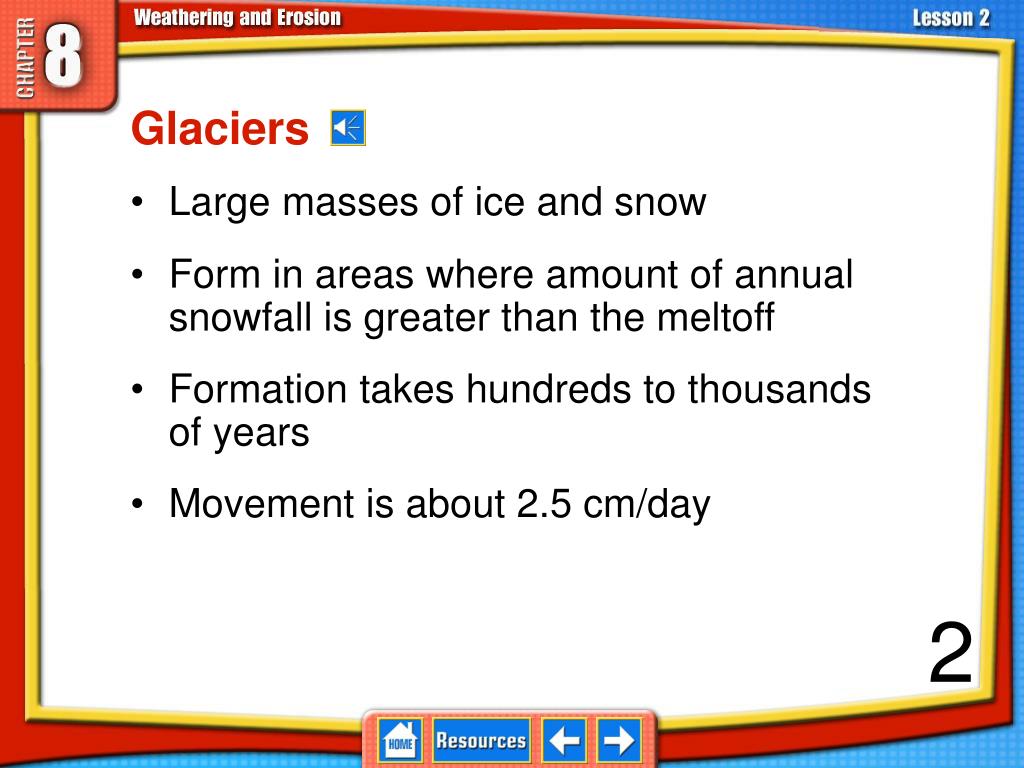

  16. 8.2 Erosion and Deposition Glaciers • Large masses of ice and snow • Form in areas where amount of annual snowfall is greater than the meltoff • Formation takes hundreds to thousands of years • Movement is about 2.5 cm/day 2

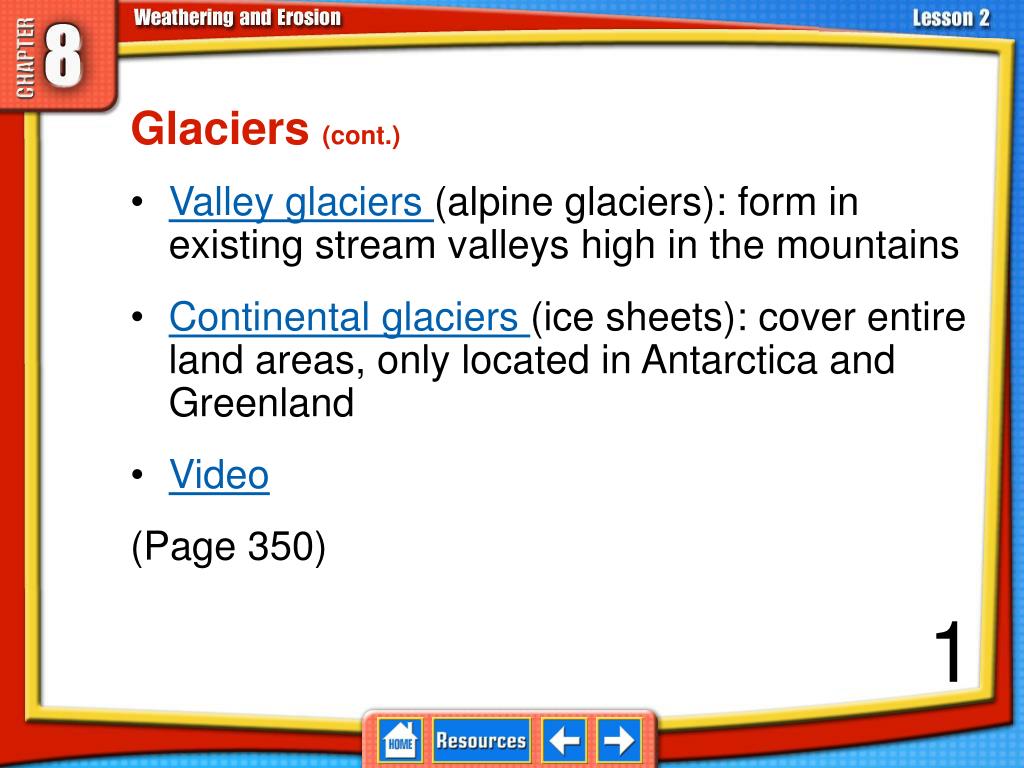

  17. 8.2 Erosion and Deposition Glaciers (cont.) • Valley glaciers (alpine glaciers): form in existing stream valleys high in the mountains • Continental glaciers (ice sheets): cover entire land areas, only located in Antarctica and Greenland • Video (Page 350) 1

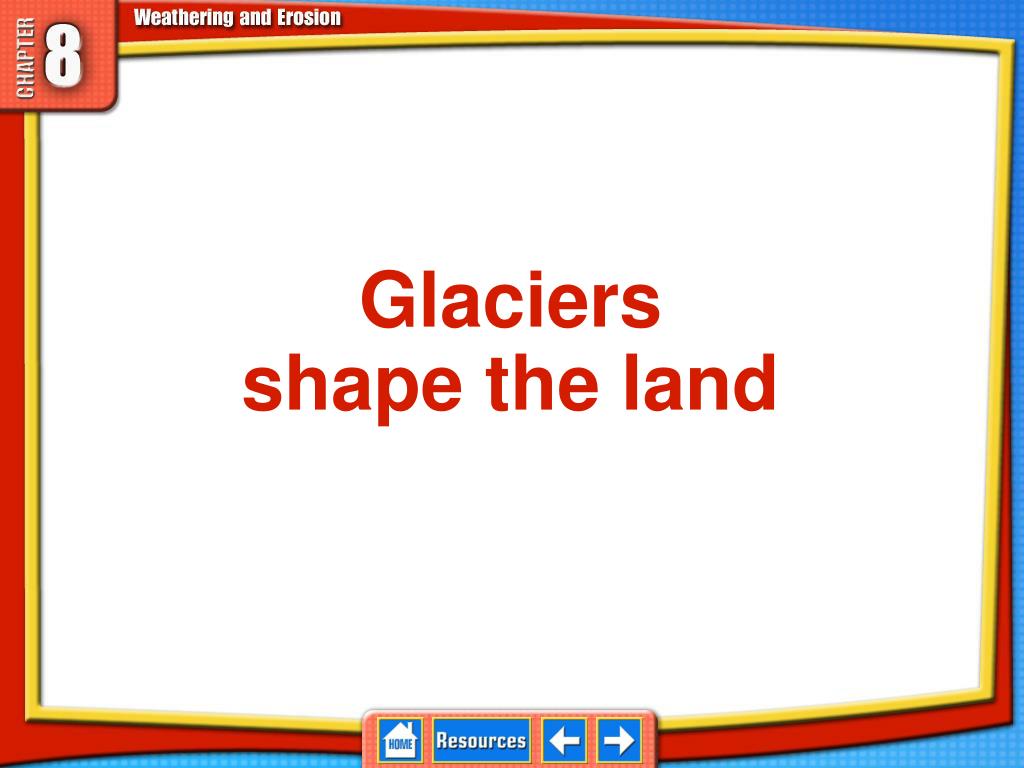

  18. Glaciers shape the land

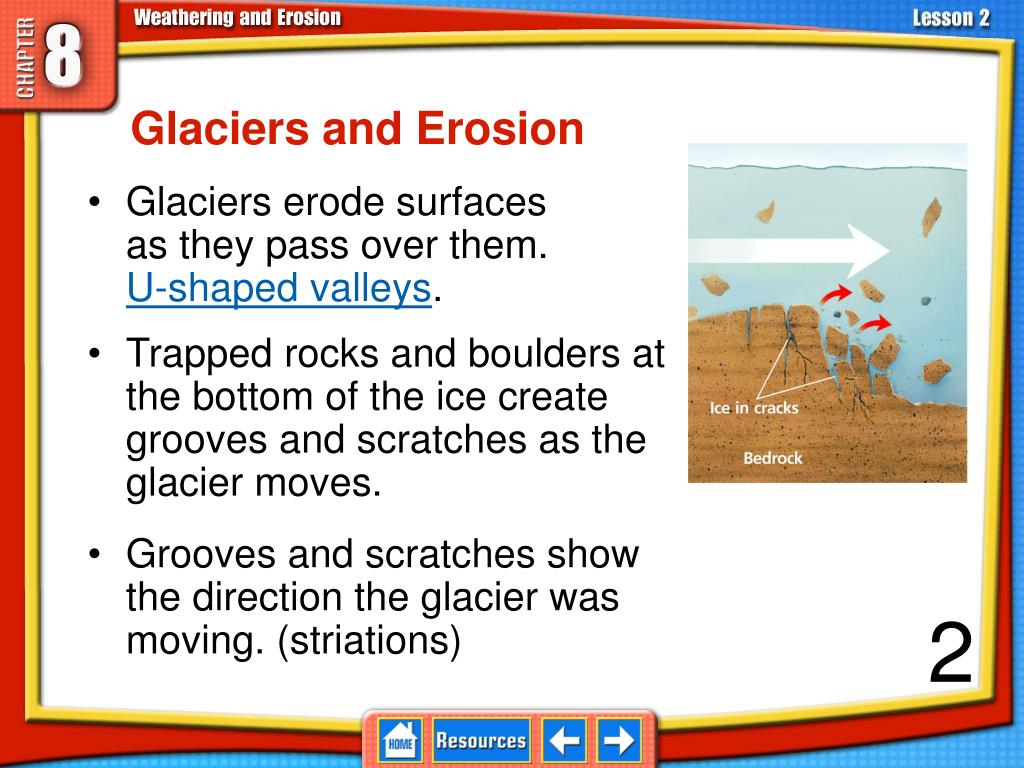

  19. 8.2 Erosion and Deposition Glaciers and Erosion • Glaciers erode surfaces as they pass over them. U-shaped valleys. • Trapped rocks and boulders at the bottom of the ice create grooves and scratches as the glacier moves. • Grooves and scratches show the direction the glacier was moving. (striations) 2

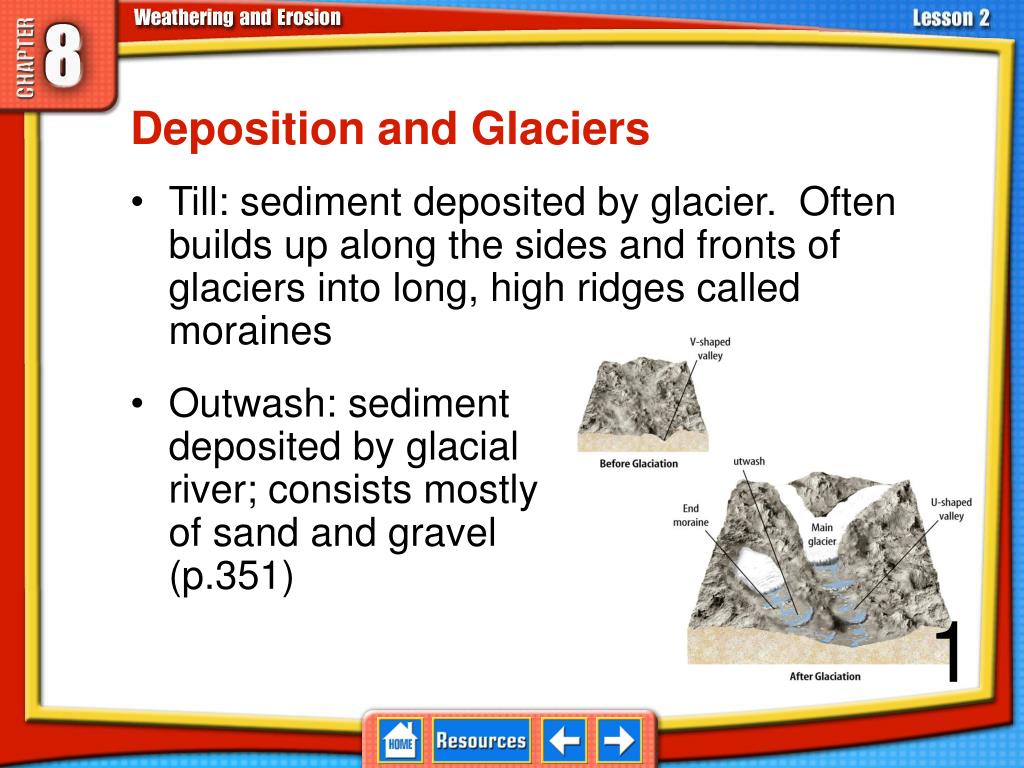

  20. 8.2 Erosion and Deposition Deposition and Glaciers • Till: sediment deposited by glacier. Often builds up along the sides and fronts of glaciers into long, high ridges called moraines • Outwash: sediment deposited by glacial river; consists mostly of sand and gravel (p.351) 1

  21. MassWasting

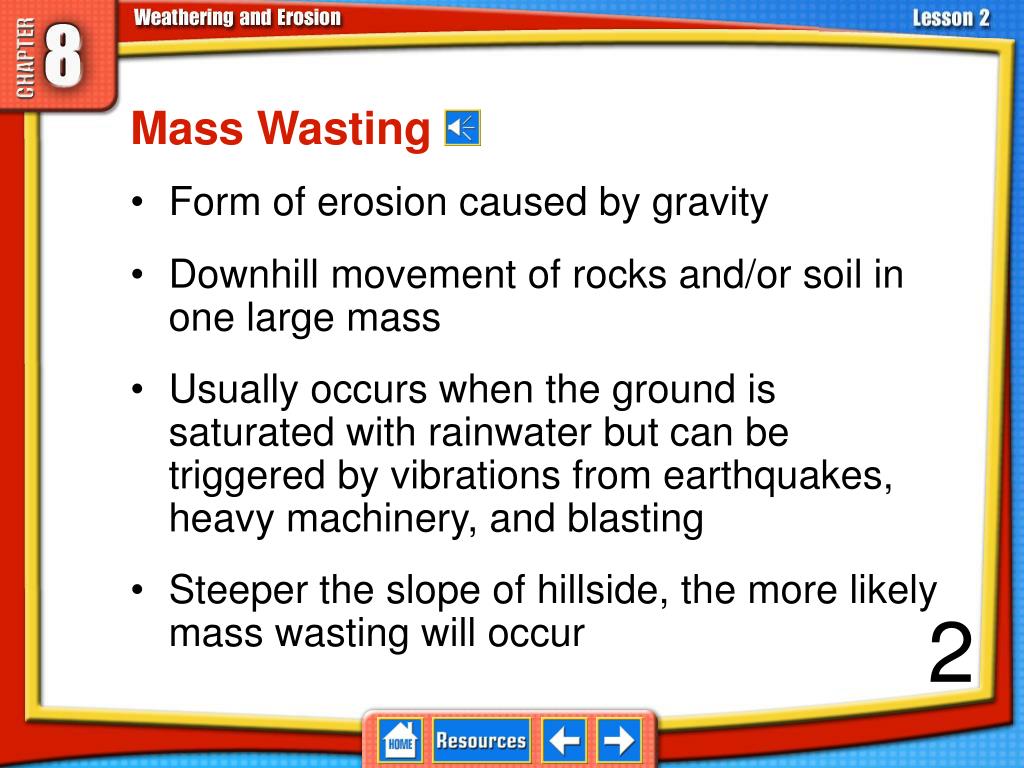

  22. 8.2 Erosion and Deposition Mass Wasting • Form of erosion caused by gravity • Downhill movement of rocks and/or soil in one large mass • Usually occurs when the ground is saturated with rainwater but can be triggered by vibrations from earthquakes, heavy machinery, and blasting • Steeper the slope of hillside, the more likely mass wasting will occur 2

  23. 8.2 Erosion and Deposition Mass Wasting (cont.) • Landslides:rapid, gravity-caused events that move soil, loose rock, and boulders • Mudslides: mixtures of soaked soil and rock • Rock falls: loosened rock falling from steep cliffs • Slumps: a block of rock and overlying soil slide down as one large mass • Creep: sediment moves slowly downhill • (p.343) 1

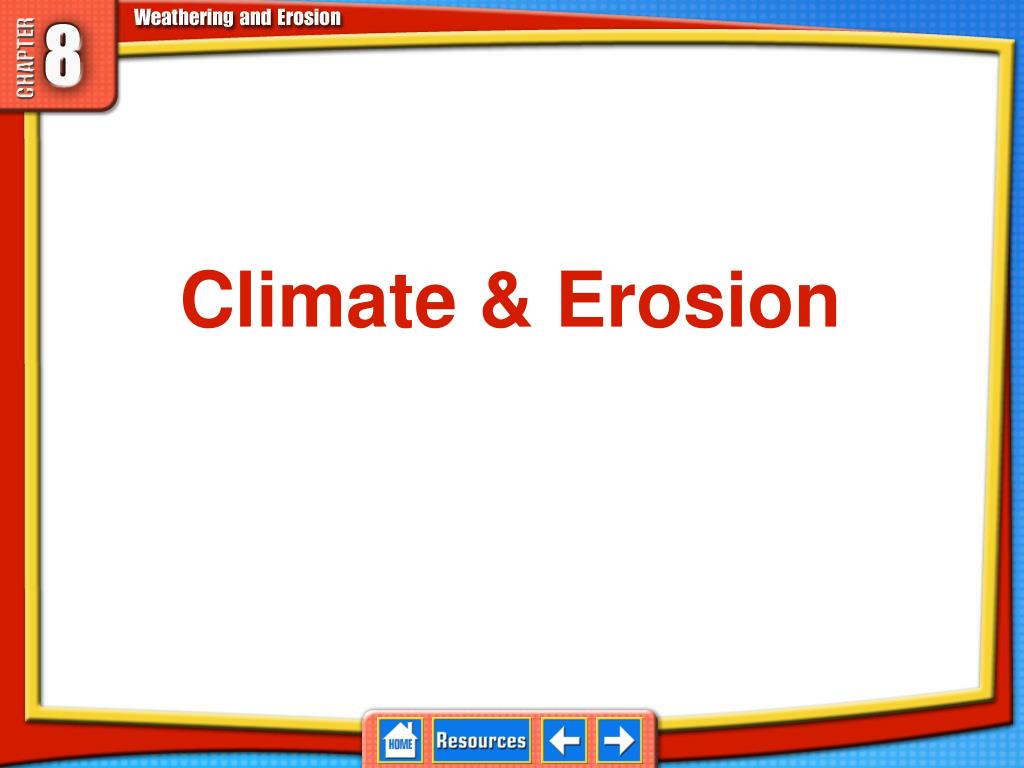

  24. Climate & Erosion

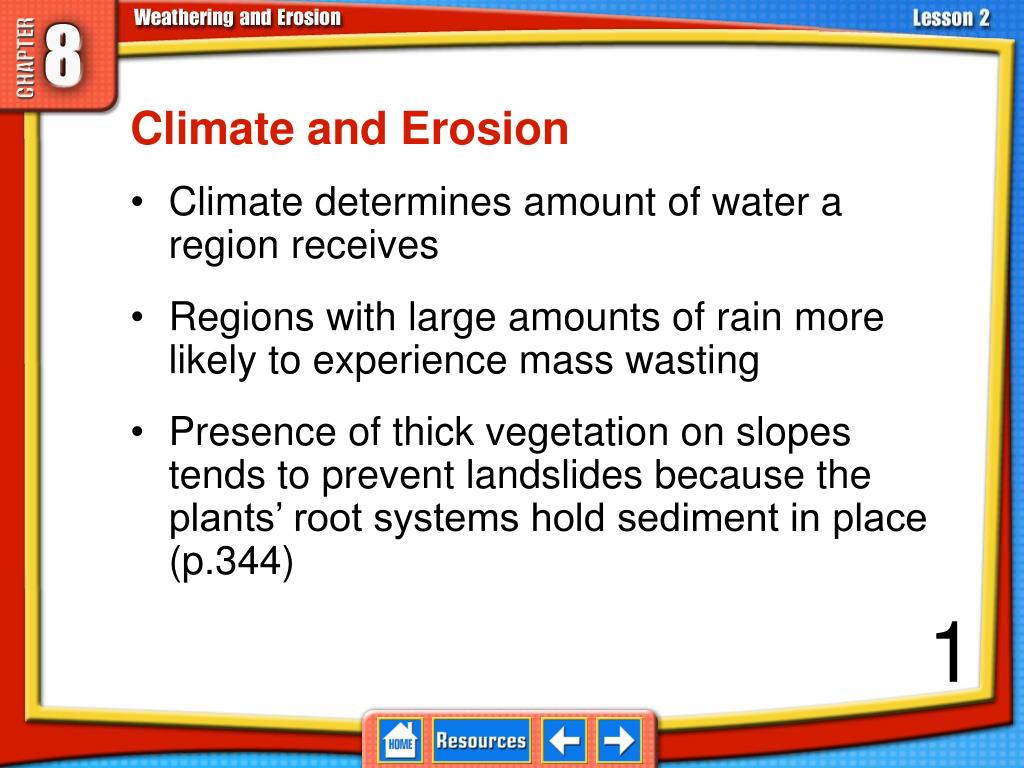

  25. 8.2 Erosion and Deposition Climate and Erosion • Climate determines amount of water a region receives • Regions with large amounts of rain more likely to experience mass wasting • Presence of thick vegetation on slopes tends to prevent landslides because the plants’ root systems hold sediment in place (p.344) 1
