  1. CHAPTER 12: FILE SYSTEM IMPLEMENTATION • File System Structure • File System Implementation • Directory Implementation • Allocation Methods • Free-Space Management • Efficiency and Performance • Recovery • Log-Structured File Systems • NFS

  2. FILE-SYSTEM STRUCTURE • Disks provide the bulk of secondary storage on which a file system is maintained • can be written in place • Sequential access and direct access • I/O in blocks not in bytes • File system allows the data on disks to be stored, located, and retrieved easily • To define how the FS should look to the user • To create algorithms and data structures to map the logical FS onto the physical secondary-storage devices.

  3. File-System Structure: Layered file system

  4. File-System Structure: Layered file system • I/O control • consists of device drivers and interrupt handlers to transfer information between the main memory and the disk system. • Input: retrieve drive 1, cylinder 73, track 2, sector 10 • Output: low-level, hardware-specific instructions that are used by the hardware controller • Basic file system • issues generic commands to the appropriate device driver to read and write physical blocks on the disk • Input: retrieve block 123 • Output: retrieve drive 1, cylinder 73, track 2, sector 10

  5. File-System Structure: Layered file system • The file-organization module • knows about the files and their logical blocks, as well as physical blocks. • To translate a file’s logical block addresses to its physical block addresses. • Each file’s logical block addresses are numbered from 0 (or 1) through N. • Each file’s physical block addresses are different, are unique within a partition. • Free-space manager: • Tracks unallocated blocks • And provides these blocks when requested.

  6. File-System Structure: Layered file system • The logical file system • manages metadata information (metadata v.s. actual data) • To manage the directory structure • To manage the file structures via FCB (file control blocks) • Contains information such as ownership, permissions, location of the file contents • Responsible for protection and security.

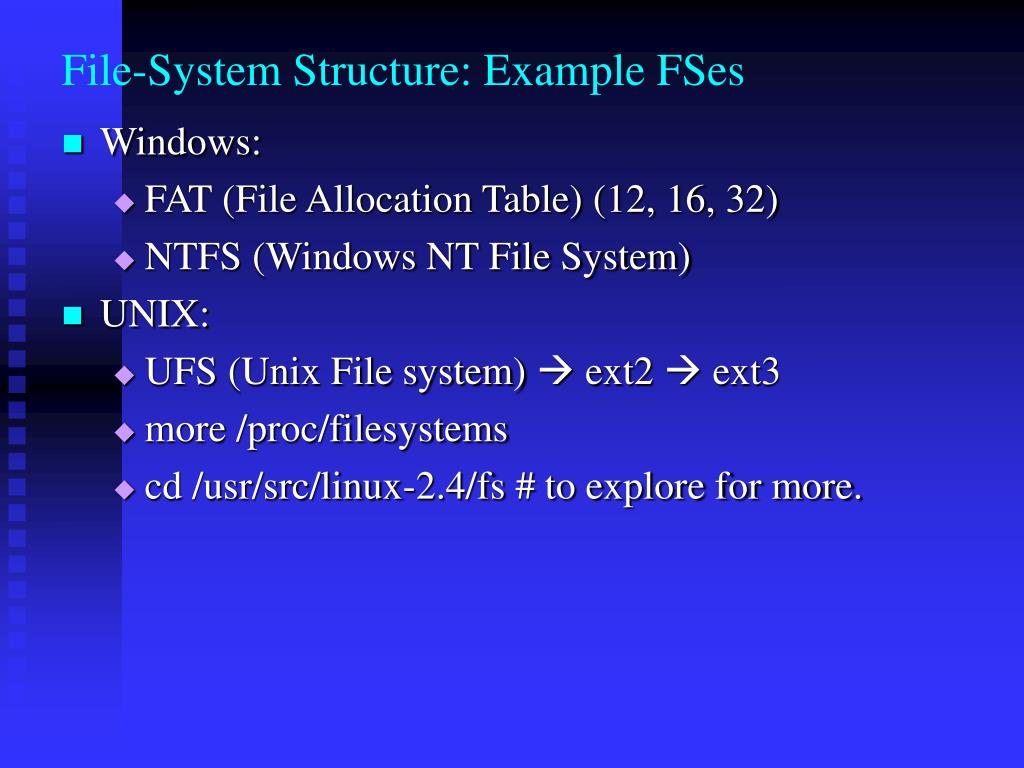

  7. File-System Structure: Example FSes • Windows: • FAT (File Allocation Table) (12, 16, 32) • NTFS (Windows NT File System) • UNIX: • UFS (Unix File system)  ext2  ext3 • more /proc/filesystems • cd /usr/src/linux-2.4/fs # to explore for more.

  8. FILE-SYSTEM IMPLEMENTATION • Overview: Data structures for implementing a FS • On-disk structures • In-memory structures • Partitions and mounting • VFS

  9. File-System Implementation: Overview • On-Disk structures • Boot control block (boot block, partition boot sector) • Used to boot an OS from that partition. • Partition control block (super block, Master File Table) • Block numbers, block size, free-block count, free-block pointers, free FCB count and FCB pointers • Directory structure used to organized the files • Linear list / hash tables • FCB (inode, vnode, Master File Table record) • File permissions, ownership, size, location of the data blocks

  10. File-System Implementation: Overview • In-memory structures used for both file-system management and performance improvement via caching • In-memory partition table containing information about each mounted partition. • In-memory directory structures containing the directory information of recently accessed directories. • System-wide open-file table containing a copy of the FCB of each open file as well as other information. • Per-process open file-tables containing a pointer to the appropriate entry in the system-wide open-file table, as well as other information.

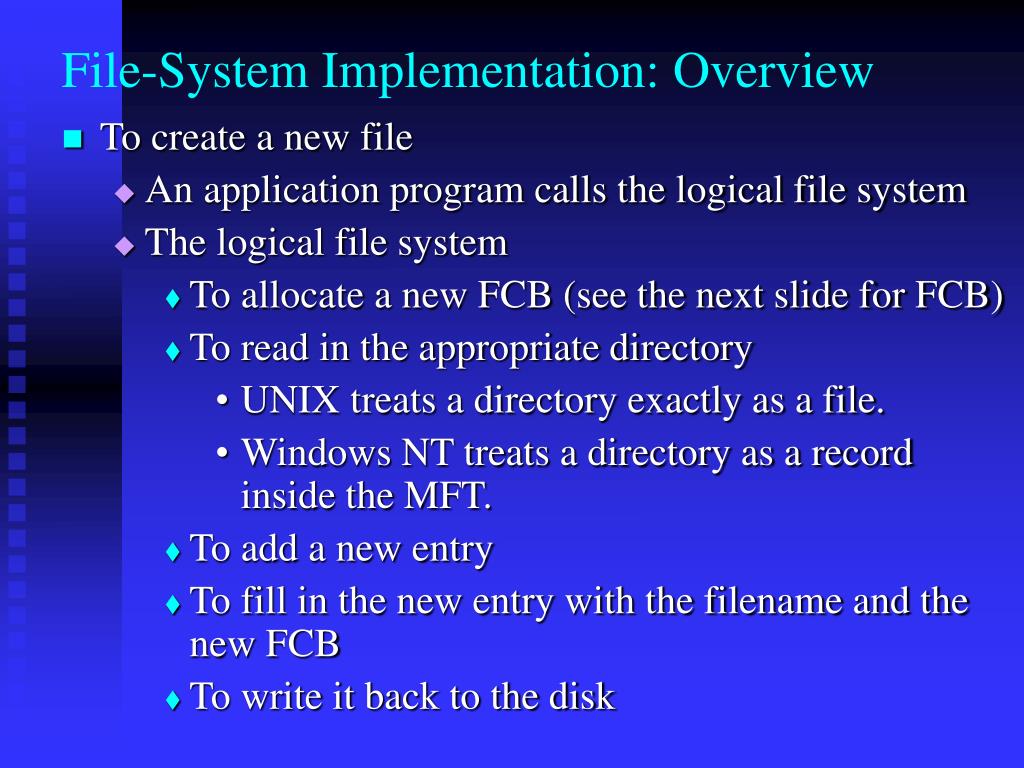

  11. File-System Implementation: Overview • To create a new file • An application program calls the logical file system • The logical file system • To allocate a new FCB (see the next slide for FCB) • To read in the appropriate directory • UNIX treats a directory exactly as a file. • Windows NT treats a directory as a record inside the MFT. • To add a new entry • To fill in the new entry with the filename and the new FCB • To write it back to the disk

  12. File-System Implementation: Overview: FCB

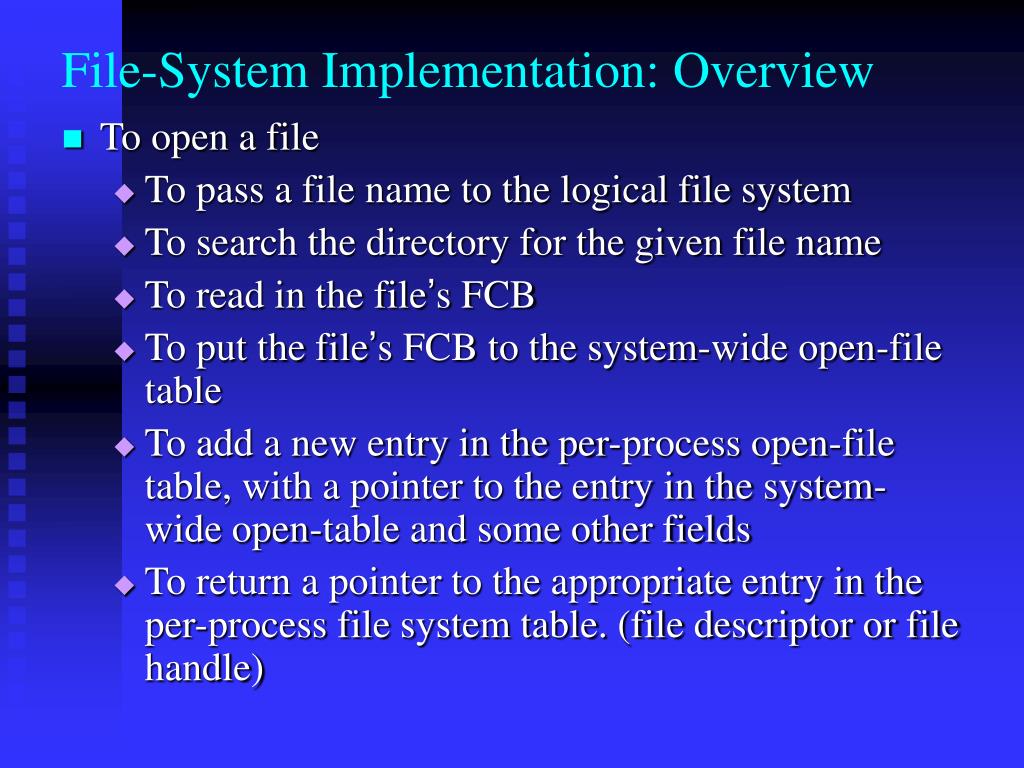

  13. File-System Implementation: Overview • To open a file • To pass a file name to the logical file system • To search the directory for the given file name • To read in the file’s FCB • To put the file’s FCB to the system-wide open-file table • To add a new entry in the per-process open-file table, with a pointer to the entry in the system-wide open-table and some other fields • To return a pointer to the appropriate entry in the per-process file system table. (file descriptor or file handle)

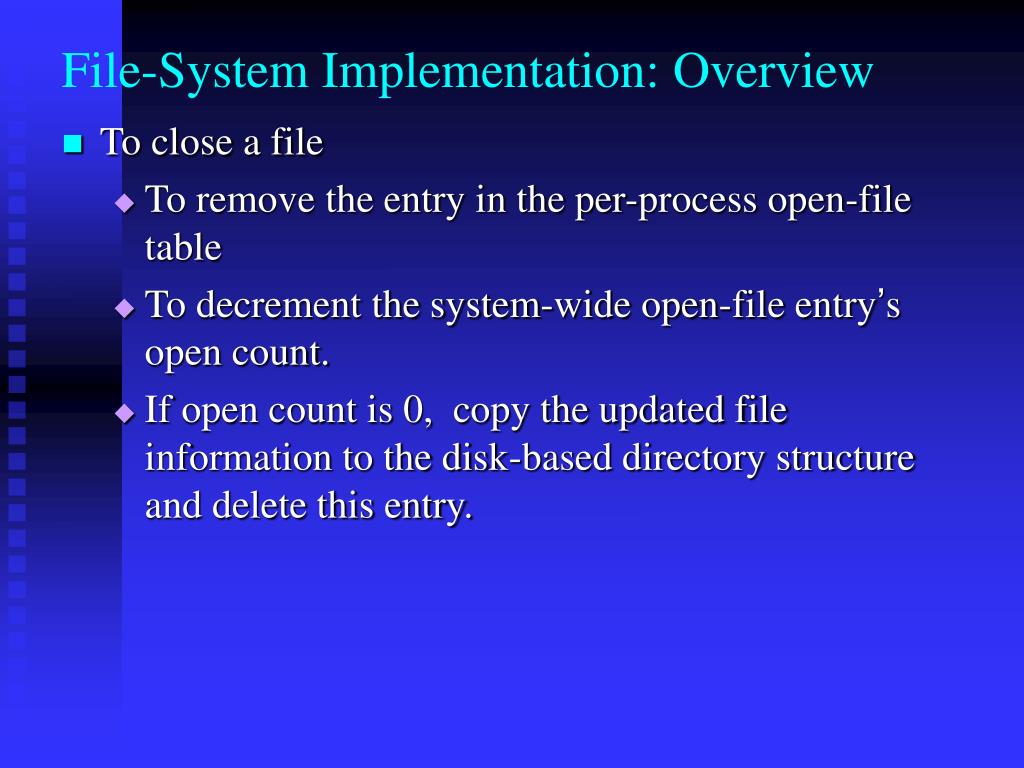

  14. File-System Implementation: Overview • To close a file • To remove the entry in the per-process open-file table • To decrement the system-wide open-file entry’s open count. • If open count is 0, copy the updated file information to the disk-based directory structure and delete this entry.

  15. File-System Implementation: Overview

  16. File-System Implementation: Overview • To use the file system as interface to other system aspects, such as networking. • To use caches to speed up the file operations • BSD UNIX • To use the file system for other purpose such as networking interface.

  17. File-System Implementation: partitions and mounting • Partitions vs disks • A disk can be sliced into multiple partitions • A partition can span multiple disks • Partitions can either be “raw” or “cooked” • Raw partition: • No file system • swap space, database • Cooked partition: • Has file system • Boot block can be used for selective booting. • Super block

  18. File-System Implementation:partitions and mounting • To mount a partition before using its FS • Manual mounting vs automatic mounting • How to mount a partition • To read in the super block via its device driver • To verify its consistency • To repair it if necessary (fsck) • To add an entry in the in-memory mount table structure. • How to mount a partition for Windows • To mount at boot • To mount manually

  19. File-System Implementation:partitions and mounting • How to mount a partition for UNIX • To mount a partition at a directory • To add a entry at the mount-table • To let one field of the mount-table entry point to the super block of the FS on that device • To set a flag in the in-memory copy of the inode for that directory, indicating this directory is a mount point • To set a field in the in-memory copy of the inode for that directory point to an entry in the mount table, indicating which device is mounted there.

  20. File-System Implementation: VFS • How to support multiple FSes？ • How to integrate many Fses into a directory structure? • How to seamlessly move among various FSes?  • To write directory and file routines for each types. • To use VFS (VFS uses oo techniques to simplify, organize, and modularize the implementation) • Contributed by SUN Microsystems.

  21. File-System Implementation: VFS • Top layer: file-system interface • Open, read, write, and close and file descriptors • The middle layer: VFS • To separate FS generic operations from their implementation by defining a clean VFS interface • The VFS is based on a file-representation, called a vnode, that contains a numerical designator for a network-wide unique file. (UNIX inodes are unique within only a single file system) • The bottom layer • Various FS implementation • Ext3 • NFS

  22. File-System Implementation: VFS

  23. DIRECTORY IMPLEMENTATION Linear list • To use a linear list of file names with pointers to the data blocks. • To find a file • To require a linear search. • To create a file • To search the directory to make sure no existing file has the same file name. • To add a new entry at the end of the directory. • To delete a file • To search the directory for the file. • To remove the entry. • To free the space allocated to this file.

  24. Directory Implementation Linear list • To reuse a directory entry • To mark the entry as used. • To attach it to a list of free directory entries. • To decrease the length of the directory. • Discussion: • Simple to program, time-consuming to execute • The searching is expensive • Binary search • To keep it sorted list • To use B-tree

  25. Directory Implementation Hash Table • To use a linear list to store the directory entries and to use a hash table to quickly find out the directory entry given a file name. • No collisions allowed (Each hash entry has a single value) • Use a hash function to map file name to a hash value. • Hash function should be dynamically changed. • Fastest. • Collisions allowed (Each hash entry has a list of multiple values) • Use a hash function to map file name to a hash value and use this value to index the hash table and then search the list to find out the directory entry. • Faster.

  26. ALLOCATION METHODS • An allocation method refers to how disk blocks are allocated for files: • Contiguous allocation • Linked allocation • Indexed allocation

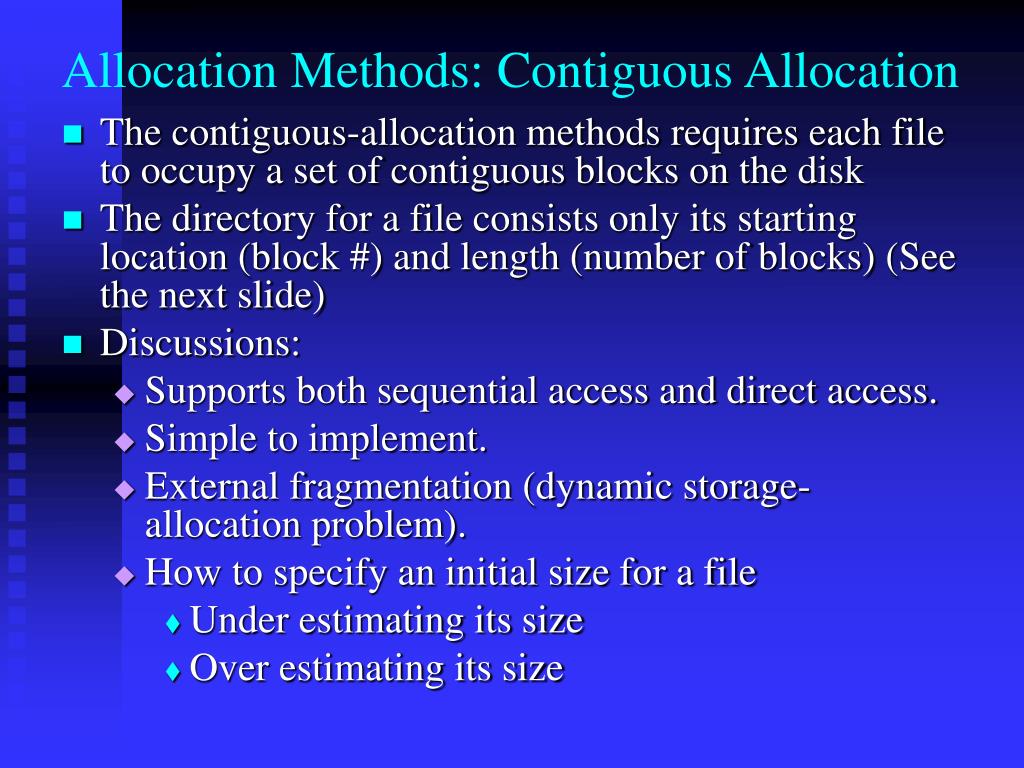

  27. Allocation Methods: Contiguous Allocation • The contiguous-allocation methods requires each file to occupy a set of contiguous blocks on the disk • The directory for a file consists only its starting location (block #) and length (number of blocks) (See the next slide) • Discussions: • Supports both sequential access and direct access. • Simple to implement. • External fragmentation (dynamic storage-allocation problem). • How to specify an initial size for a file • Under estimating its size • Over estimating its size

  28. Allocation Methods: Contiguous Allocation

  29. Allocation Methods: Contiguous Allocation • Extent-based file system • Extent-based file systems allocate disk blocks in extents. • An extent is a contiguous block of disks. Extents are allocated for file allocation. A file consists of one or more extents. • Many newer file systems (I.e. Veritas File System) use a modified contiguous allocation scheme. • Contiguous allocation can be combined with other allocation methods. • Contiguous allocation for small files • Other allocations for large files.

  30. block = pointer Allocation Methods: Linked Allocation • With linked allocation, • Each file is a linked list of disk blocks; • The disk blocks may be scattered anywhere on the disk. • The directory contains a pointer to the first and last blocks of the file. (See the next slide) • Disk block • An example linked file (see the next slide)

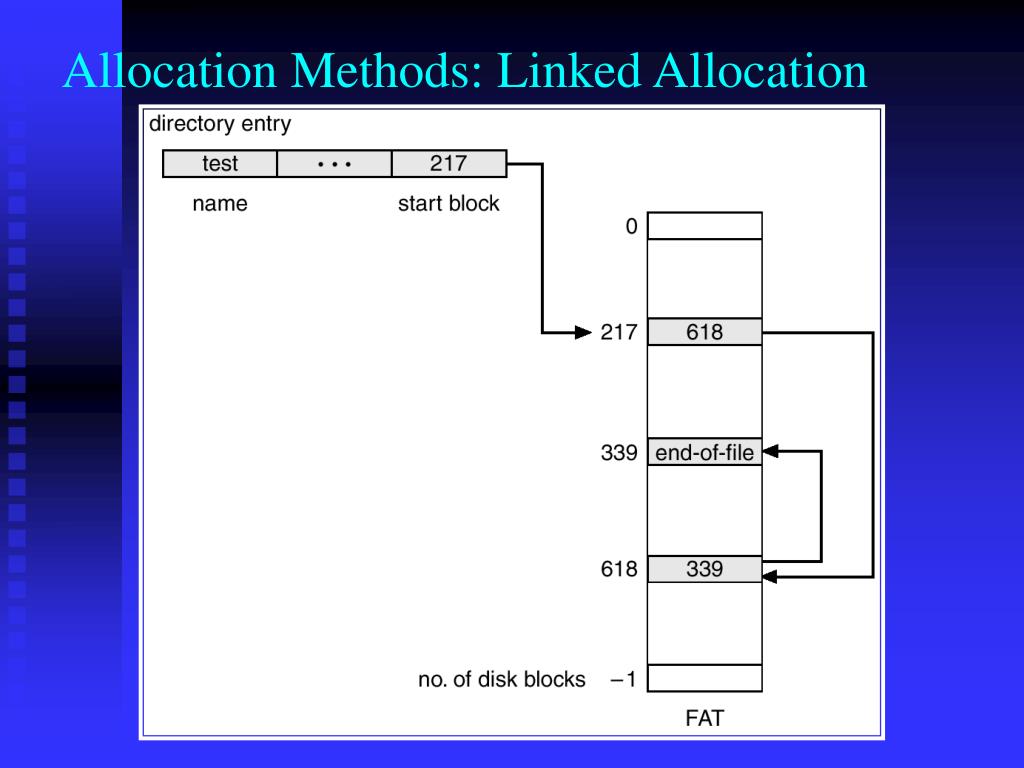

  31. Allocation Methods: Linked Allocation

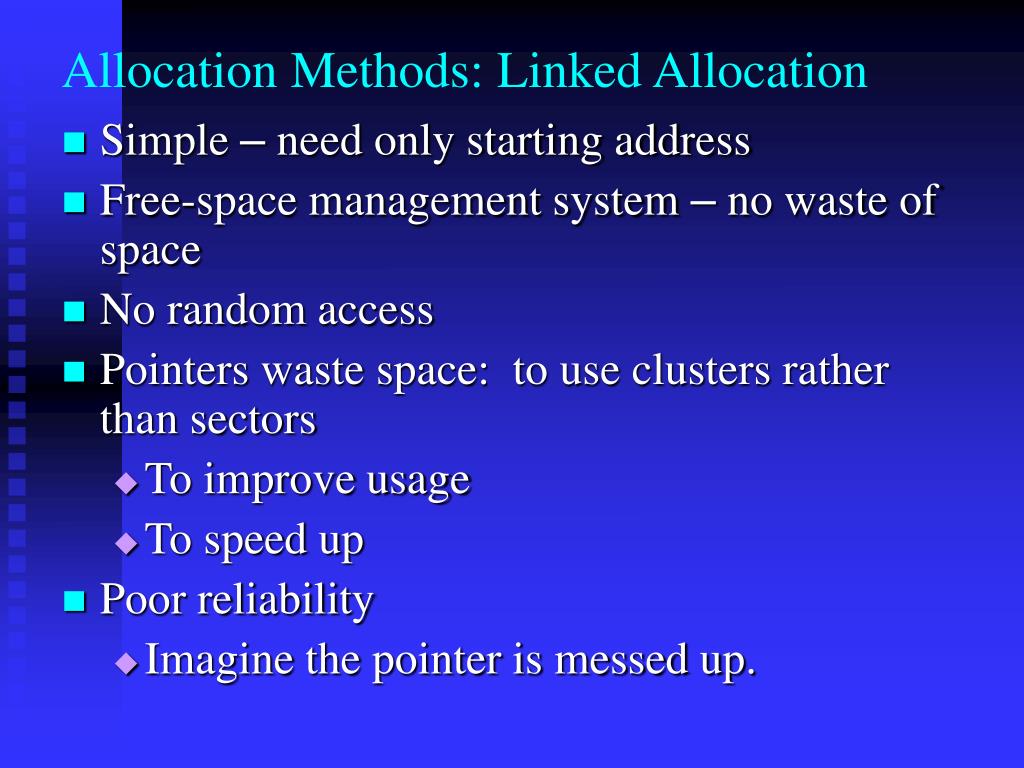

  32. Allocation Methods: Linked Allocation • Simple – need only starting address • Free-space management system – no waste of space • No random access • Pointers waste space: to use clusters rather than sectors • To improve usage • To speed up • Poor reliability • Imagine the pointer is messed up.

  33. Allocation Methods: Linked Allocation • FAT FS • FAT (File Allocation Table) duplicated • Supports direct access • Cached • Poor disk utilization

  34. Allocation Methods: Linked Allocation

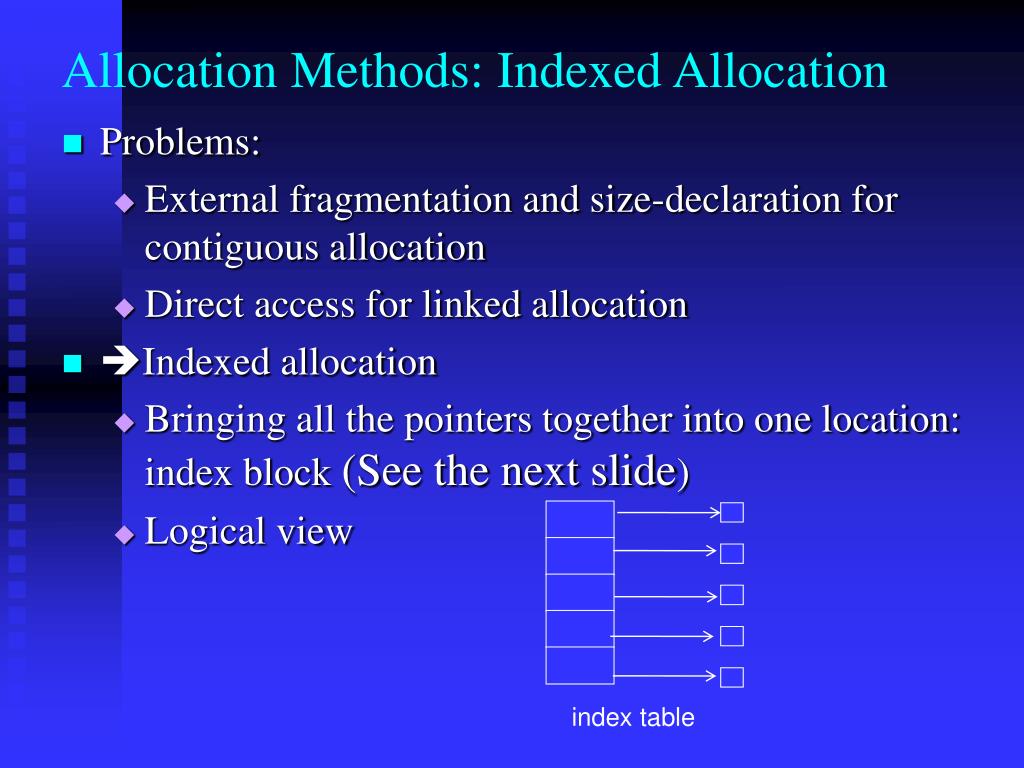

  35. Allocation Methods: Indexed Allocation • Problems: • External fragmentation and size-declaration for contiguous allocation • Direct access for linked allocation • Indexed allocation • Bringing all the pointers together into one location: index block (See the next slide) • Logical view index table

  36. Allocation Methods: Indexed Allocation

  37. Allocation Methods: Indexed Allocation • Need index block • Access methods: sequential access and direct access. • Mapping from logical to physical in a file of maximum size of 256K words (or 1024KB) and block size of 512 words. We need only 1 block for index table. (512x2KB=1024KB) • Index blocks waste space • How large should the index block be? • Linked scheme • Multilevel index • Combined scheme

  38. Allocation Methods: Indexed Allocation • Linked scheme • For a small file, one index block • For a large file, more index blocks can be linked together. • Multilevel index • 1-level index block: 1024*4KB • 2-level index block: 1024x1024*4KB • 3-level index block: 1024x1024*1024*4KB • (similar to paging)

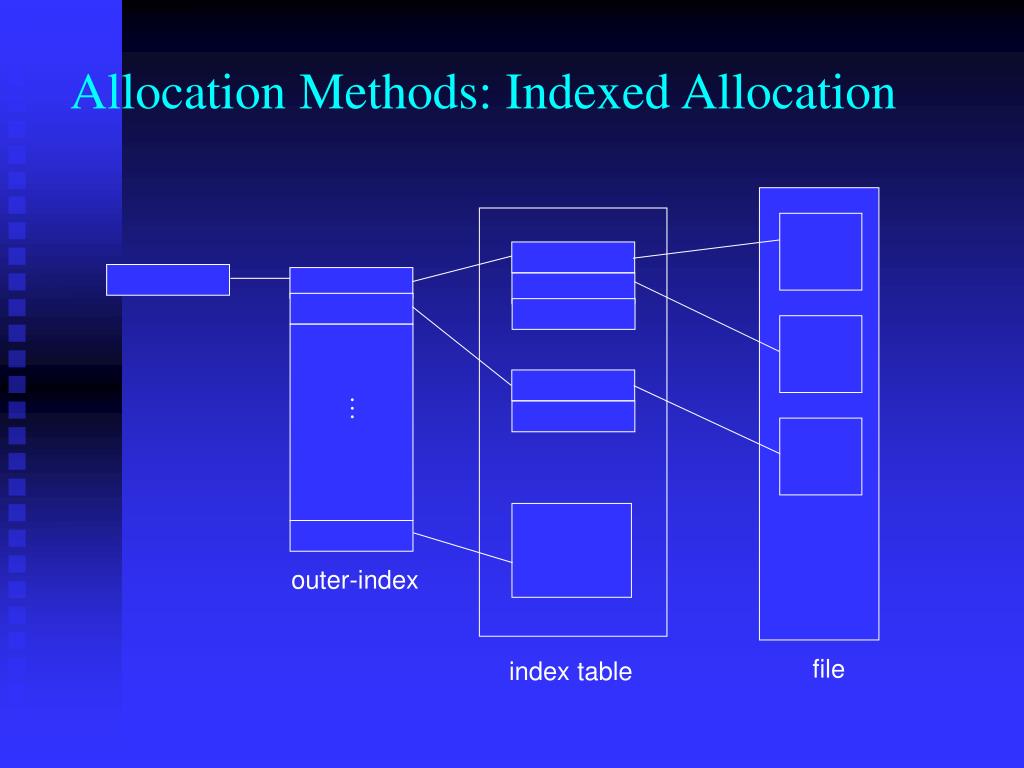

  39. Allocation Methods: Indexed Allocation  outer-index file index table

  40. Allocation Methods: Indexed Allocation • Combined scheme • 12 for direct pointers • 1 single-indirect block • 1 double-indirect block • 1 triple-indirect block

  41. Allocation Methods: Indexed Allocation

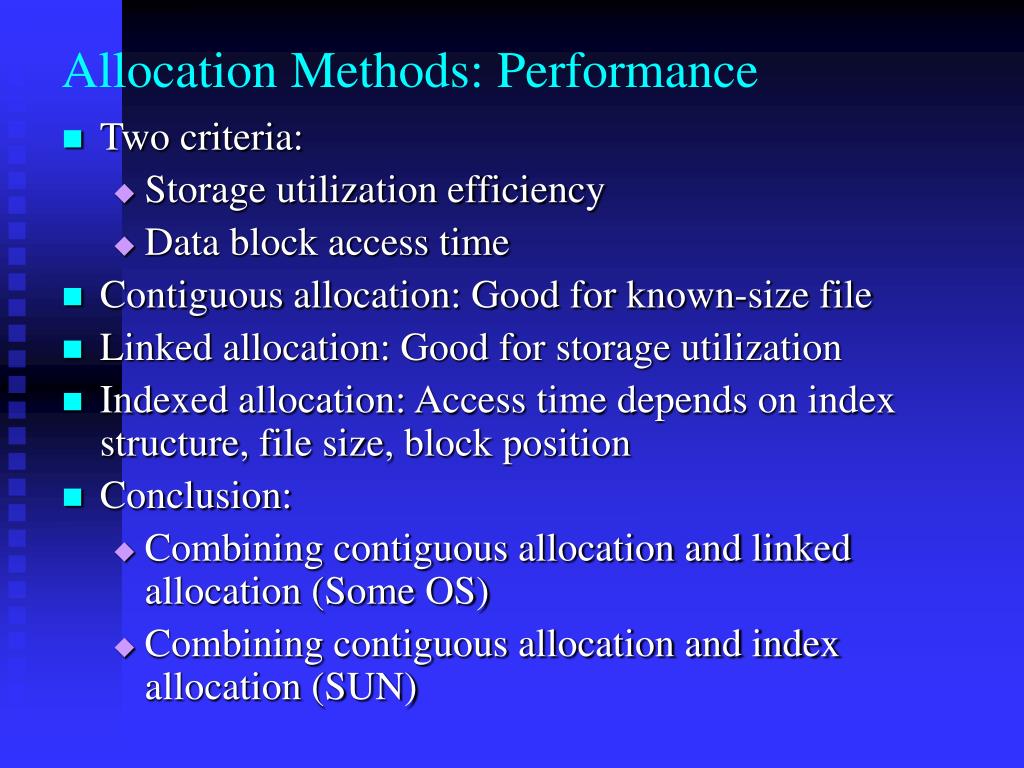

  42. Allocation Methods: Performance • Two criteria: • Storage utilization efficiency • Data block access time • Contiguous allocation: Good for known-size file • Linked allocation: Good for storage utilization • Indexed allocation: Access time depends on index structure, file size, block position • Conclusion: • Combining contiguous allocation and linked allocation (Some OS) • Combining contiguous allocation and index allocation (SUN)

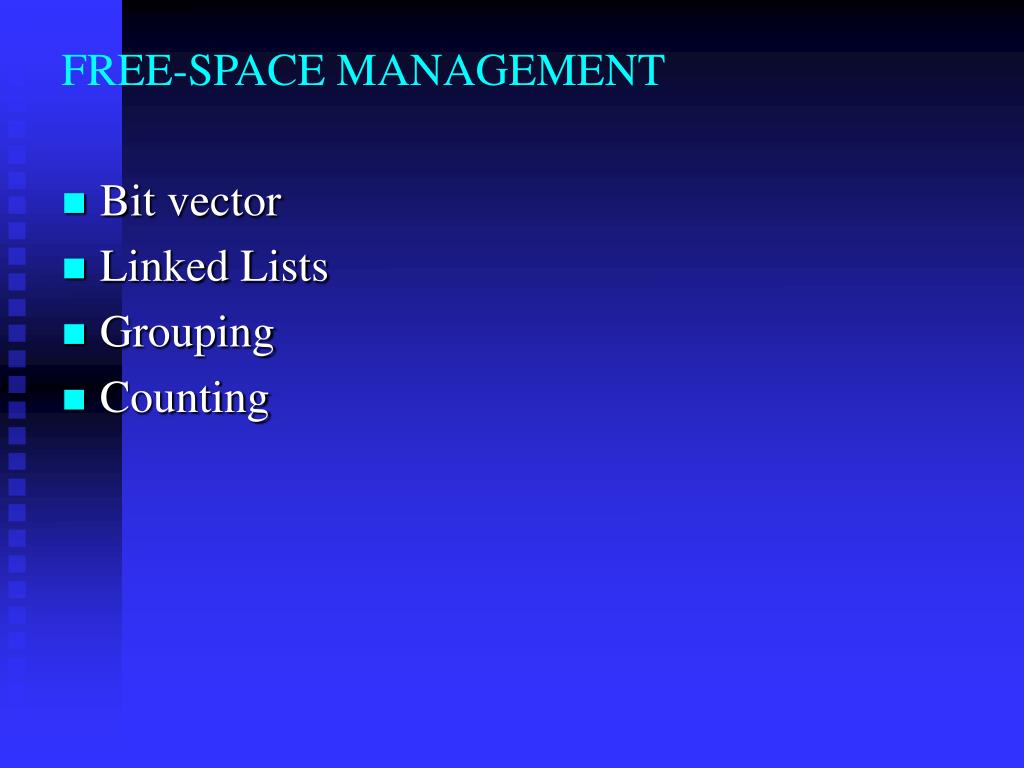

  43. FREE-SPACE MANAGEMENT • Bit vector • Linked Lists • Grouping • Counting

  44. Free-Space Management: Bit vector • The free-space list is implemented as a bit map or bit vector. Each block is represented by 1 bit. • If the block is free, the bit is 1; • if the block is allocated, the bit is 0. • An example • 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 • 0 0 1 1 1 1 0 0 1 1 1 1 1 1 0 0

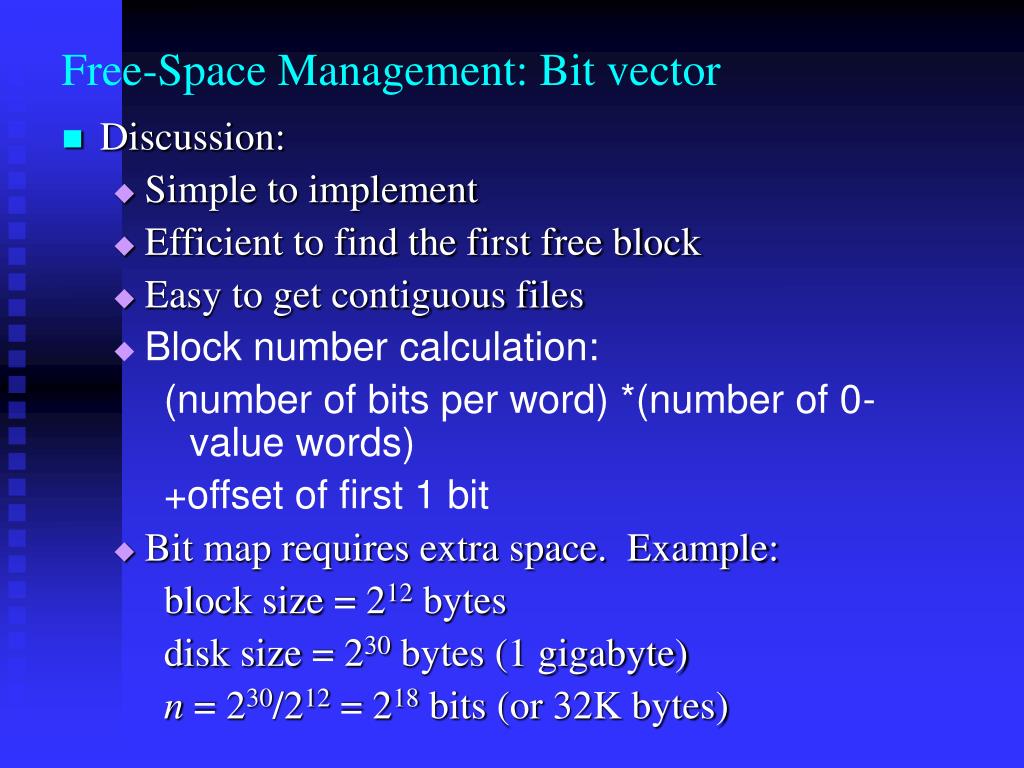

  45. Free-Space Management: Bit vector • Discussion: • Simple to implement • Efficient to find the first free block • Easy to get contiguous files • Block number calculation: (number of bits per word) *(number of 0-value words) +offset of first 1 bit • Bit map requires extra space. Example: block size = 212 bytes disk size = 230 bytes (1 gigabyte) n = 230/212 = 218 bits (or 32K bytes)

  46. Free-Space Management: Linked Lists • Linked list (free list) • Cannot get contiguous space easily • No waste of space

  47. Free-Space Management: Others • Grouping • To linked blocks to store the addresses • To group n-1 addresses into an address block • To use the last address in an address block to point to next address block. • Easier to find a large number of free blocks. • Counting • Every entry is a pair of (starting address, contiguous block number) rather than just a address • The total list is smaller.

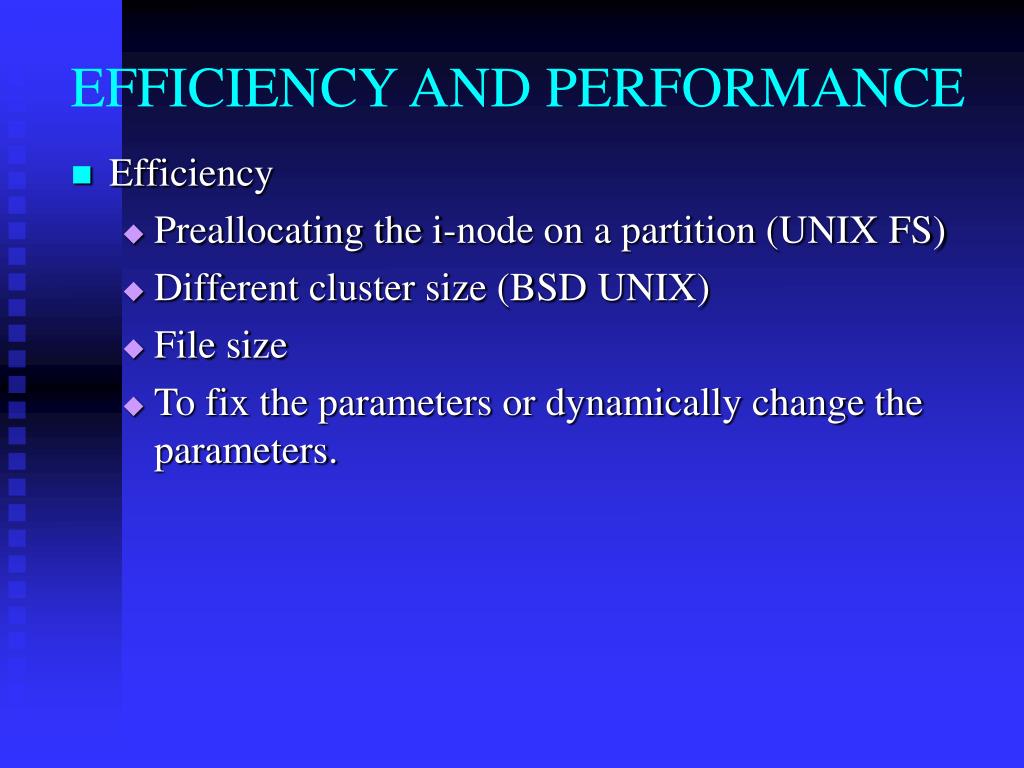

  48. EFFICIENCY AND PERFORMANCE • Efficiency • Preallocating the i-node on a partition (UNIX FS) • Different cluster size (BSD UNIX) • File size • To fix the parameters or dynamically change the parameters.

  49. Efficiency and Performance • Page Cache • I/O Without a Unified Buffer Cache • I/O Using a Unified Buffer Cache • Reads/Writes • Synchronous reads (initially) /Aynchronous reads (later on) • Aynchronous writes (normally) / Synchronous write/Aynchronous (sometimes) • RAM Disks vs OS caching.

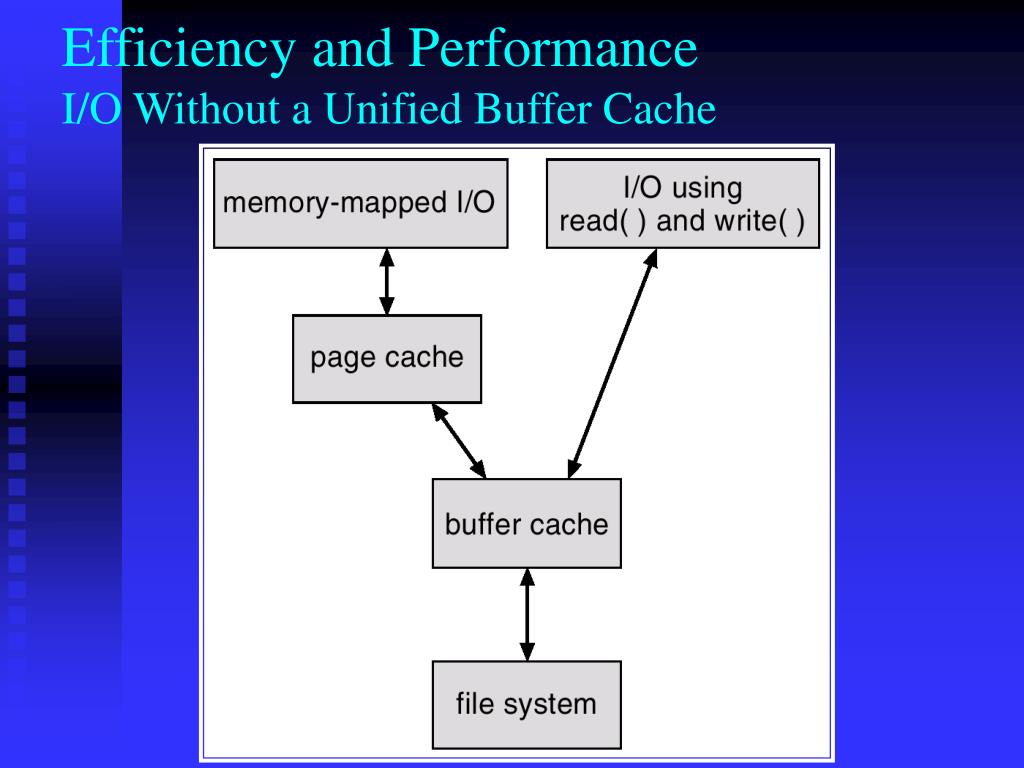

  50. Efficiency and PerformanceI/O Without a Unified Buffer Cache
