  1. CS 445 / 645Introduction to Computer Graphics Lecture 10 Camera Models

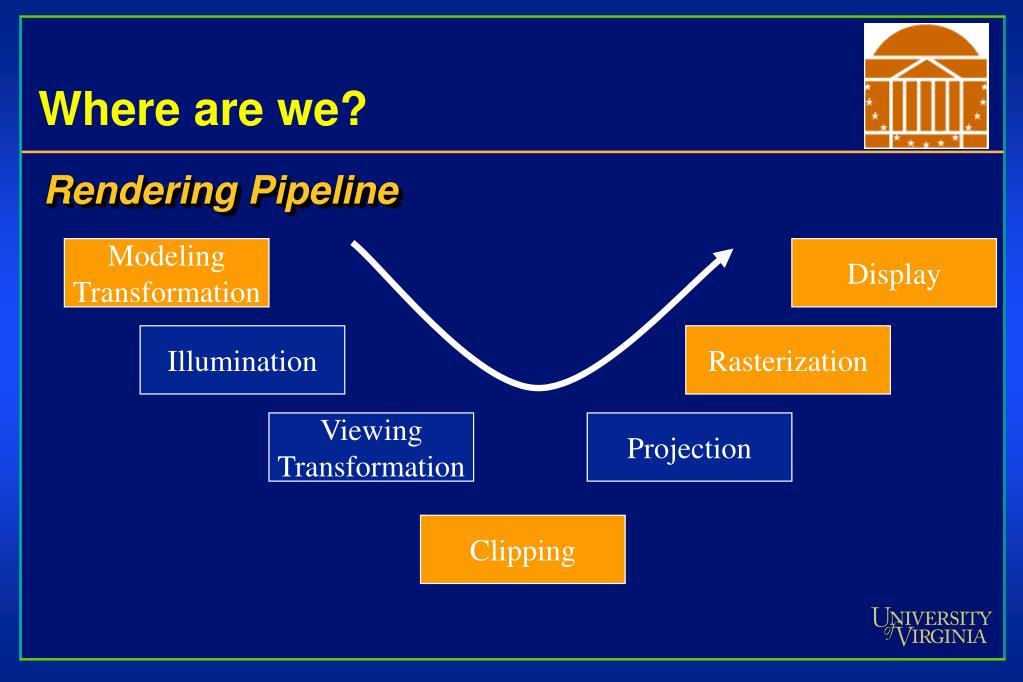

  2. Where are we? • Rendering Pipeline ModelingTransformation Display Illumination Rasterization ViewingTransformation Projection Clipping

  3. Pinhole Camera • Ingredients • Box • Film • Hole Punch • Results • Pictures! www.kodak.com www.debevec.org www.pinhole.org

  4. Pinhole Camera • Non-zero sized hole Multiple rays of projection Pinhole Film Plane

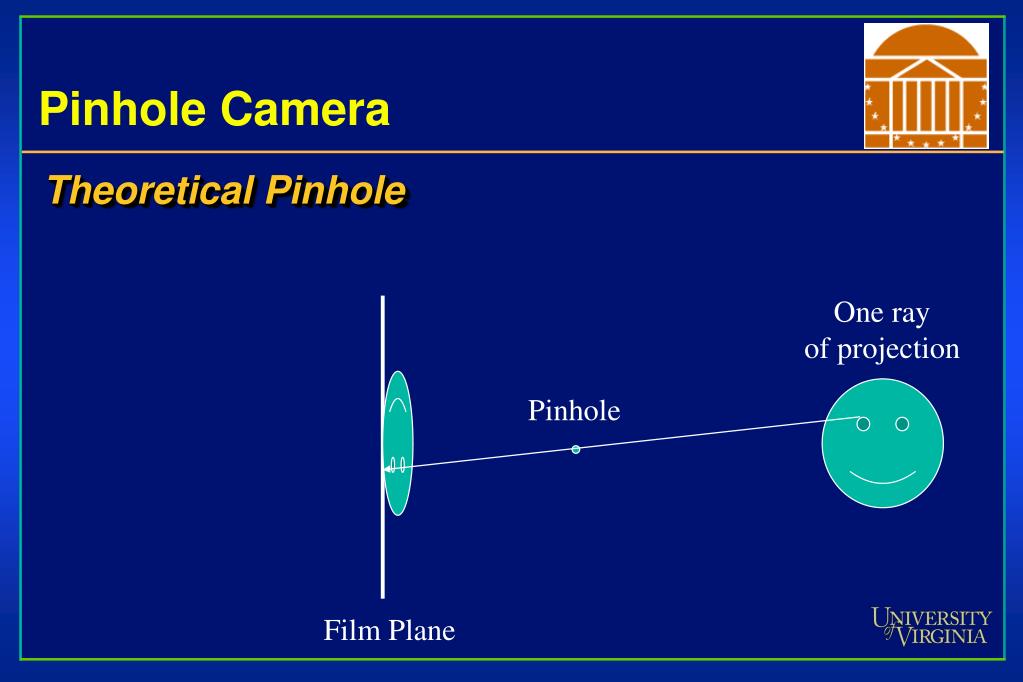

  5. Pinhole Camera • Theoretical Pinhole One ray of projection Pinhole Film Plane

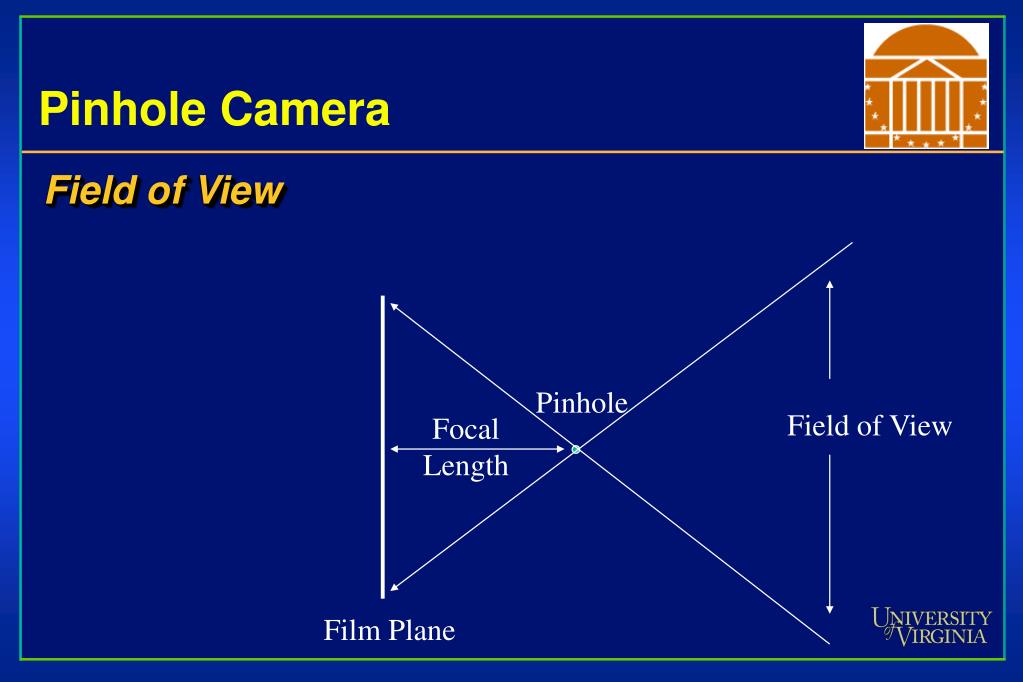

  6. Pinhole Camera • Field of View Pinhole Field of View FocalLength Film Plane

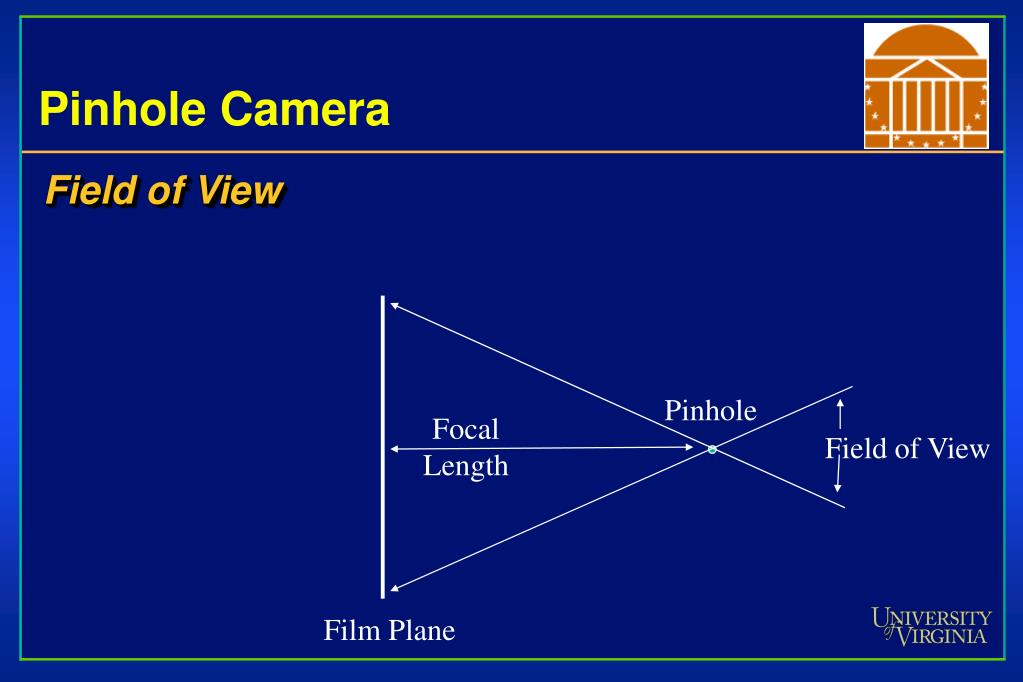

  7. Pinhole Camera • Field of View Pinhole FocalLength Field of View Film Plane

  8. Moving the Film Plane • Varying distance to film plane • What does this do? Pinhole d1 Field of View d2 Film Plane

  9. Adding a Lens • Pinhole camera has small aperture (lens opening) • It’s hard to get enough light to expose the film • Lens permits larger apertures • Lens permits changing distance to film plane without actually moving the film plane

  10. Computer Graphic Camera • We use • Center of Projection (COP) • Projection Plane COP Projection Plane

  11. Moving the COP • Perspective vs. Orthographic Views Perspective When COP at infinity, Orthographic View

  12. Multi-point Perspective • One-point Perpective • One Vanishing Point • Two-point Perspective • Two Vanishing Points http://www.sanford-artedventures.com/create/tech_2pt_perspective.html

  13. Perspective Projection • Our camera must model perspective

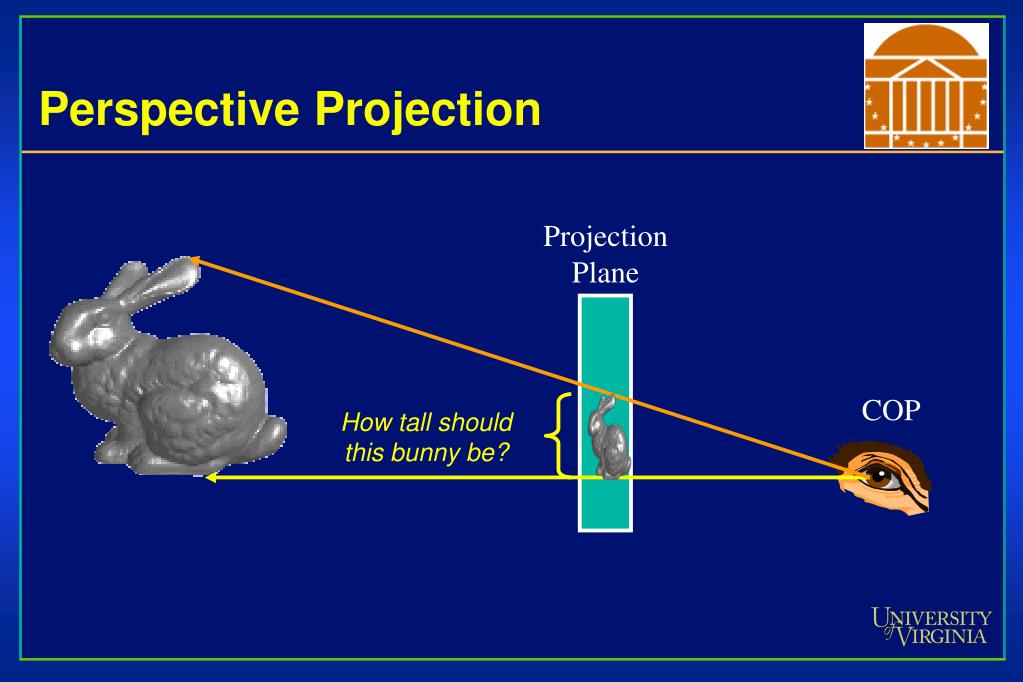

  14. How tall shouldthis bunny be? Perspective Projection ProjectionPlane COP

  15. Perspective Projection • The geometry of the situation is that of similar triangles. View from above: • What is x’ ? Viewplane X P (x, y, z) x’ = ? (0,0,0) Z d

  16. Perspective Projection • Desired result for a point [x, y, z, 1]T projected onto the view plane: • What could a matrix look like to do this?

  17. A Perspective Projection Matrix • Answer:

  18. A Perspective Projection Matrix • Example: • Or, in 3-D coordinates:

  19. Homogeneous Coordinates • The role of w in (x, y, z, w) • All 3-D points are described with a four vector • All 3-D tranformations are represented with 4x4 matrix • When projected to screen coordinates (rasterization) • x, y, and z are divided by point’s w value • This allows us to perform perspective foreshortening while preserving the reversibility of the mapping • We can retrieve x, y, and z by multiplying by w

  20. Perspective Projection • Perspective projection matrix is not affine • Parallel lines not preserved • Perspective projection is irreversible • Many 3-D points can be mapped to same (x, y, d) on the projection plane • No way to retrieve the unique z values

  21. Orthographic Camera Projection • Camera’s back plane parallel to lens • Infinite focal length • No perspective convergence

  22. Pipeline Modelview Projection PerspectiveDivision Clip Rasterize

  23. OpenGL Pipeline • Projection matrix is stored in GL_PROJECTION stack • This controls ‘type’ of camera • All vertices are multiplied by this matrix • GL_MODELVIEW controls camera location • All vertices are multiplied by this matrix

  24. Making GL_PROJECTION • glFrustum – for perspective projections • xmin • xmax • ymin • ymax • near • far • Camera looks along –z • min/max need not be symmetric about any axis • near and far planes are parallel to plane z=0

  25. Making GL_PROJECTION • gluPerspective – for perspective projections • fovy • aspect • near • far • fovy is the angle between top and bottom of viewing volume • aspect is ratio of width over height • This volume is symmetrical • View plane is parallel to camera

  26. Making GL_PROJECTION • glOrtho – for orthographic projections • left • right • bottom • top • near • far • (left, bottom) and (right, top) define dimensions of projection plane • near and far used to clip

  27. Making GL_PROJECTION • It’s like any other matrix • These OpenGL commands just build a matrix for you • You could build the matrix yourself • You can multiply the GL_PROJECTION matrix by any affine transformation you wish • Not typically needed

More Related
