T5 Disassembly Instructions – Step by Step Guide

T5 Disassembly Instructions – Step by Step Guide. 1. Unscrew the hand-out & remove. 2. Remove the engine assembly from the body of the cleaner. 3. Remove the thrust washer. Disassembly: Removing the Diaphragm. Disassembly: Removing the Hose.

caia
Download Presentation

T5 Disassembly Instructions – Step by Step Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

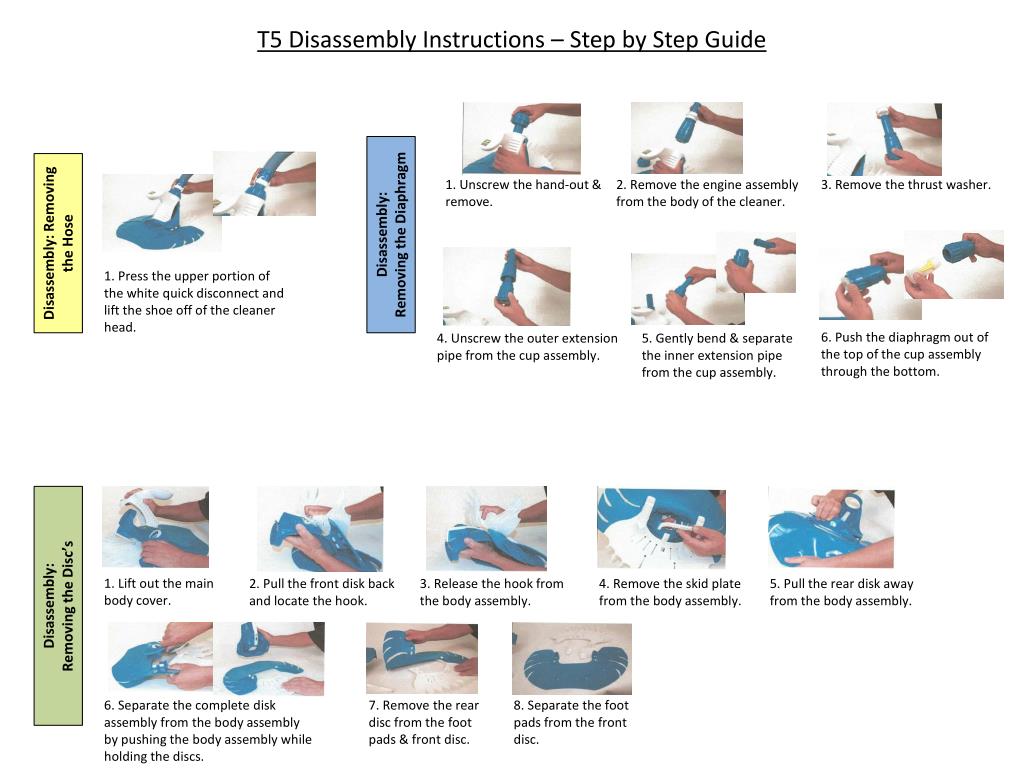

  1. T5 Disassembly Instructions – Step by Step Guide 1. Unscrew the hand-out & remove. 2. Remove the engine assembly from the body of the cleaner. 3. Remove the thrust washer. Disassembly: Removing the Diaphragm Disassembly: Removing the Hose 1. Press the upper portion of the white quick disconnect and lift the shoe off of the cleaner head. 4. Unscrew the outer extension pipe from the cup assembly. 5. Gently bend & separate the inner extension pipe from the cup assembly. 6. Push the diaphragm out of the top of the cup assembly through the bottom. 1. Lift out the main body cover. 2. Pull the front disk back and locate the hook. 3. Release the hook from the body assembly. 4. Remove the skid plate from the body assembly. 5. Pull the rear disk away from the body assembly. Disassembly: Removing the Disc’s 6. Separate the complete disk assembly from the body assembly by pushing the body assembly while holding the discs. 7. Remove the rear disc from the foot pads & front disc. 8. Separate the foot pads from the front disc.
