3- from lat. Aspect(or norma lateralis)

3- from lat. Aspect(or norma lateralis). Now we are descriping lateral view of skull or norma lateralis * This is temporal fossa is bounded by temporal line above and zygomatic arch from below.

caitir
Download Presentation

3- from lat. Aspect(or norma lateralis)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

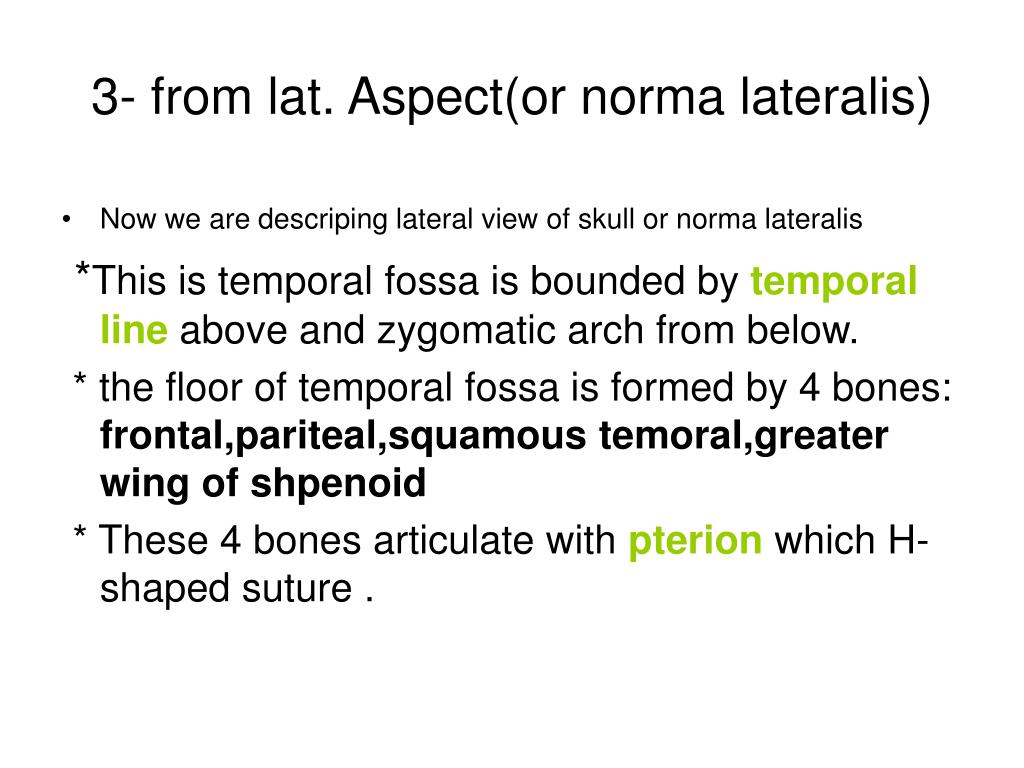

  1. 3- from lat. Aspect(or norma lateralis) • Now we are descriping lateral view of skull or norma lateralis *This is temporal fossa is bounded by temporal line above and zygomatic arch from below. * the floor of temporal fossa is formed by 4 bones: frontal,pariteal,squamous temoral,greater wing of shpenoid * These 4 bones articulate with pterion which H-shaped suture .

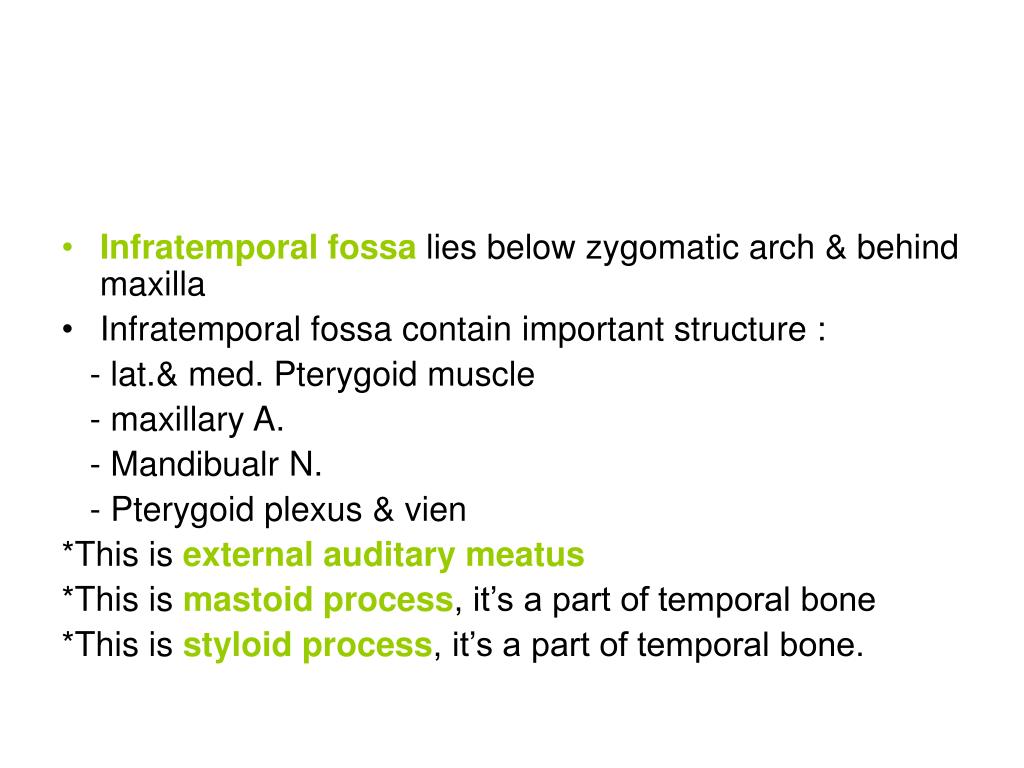

  2. Infratemporal fossa lies below zygomatic arch & behind maxilla • Infratemporal fossa contain important structure : - lat.& med. Pterygoid muscle - maxillary A. - Mandibualr N. - Pterygoid plexus & vien *This is external auditary meatus *This is mastoid process, it’s a part of temporal bone *This is styloid process, it’s a part of temporal bone.

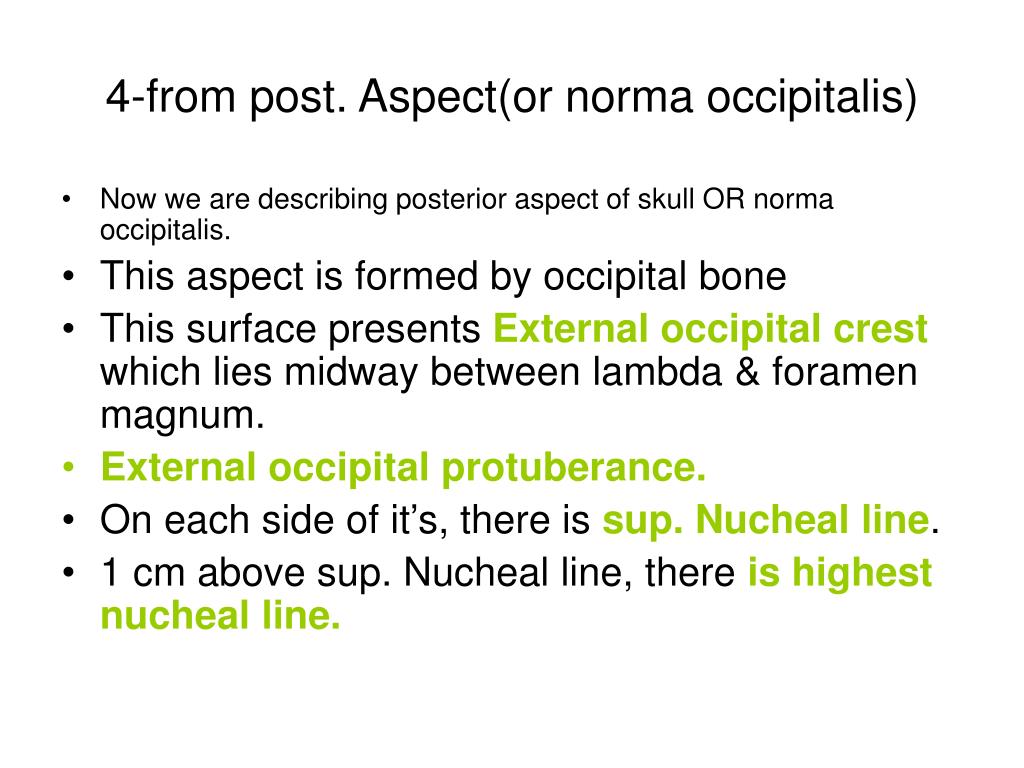

  3. 4-from post. Aspect(or norma occipitalis) • Now we are describing posterior aspect of skull OR norma occipitalis. • This aspect is formed by occipital bone • This surface presents External occipital crest which lies midway between lambda & foramen magnum. • External occipital protuberance. • On each side of it’s, there is sup. Nucheal line. • 1 cm above sup. Nucheal line, there is highest nucheal line.

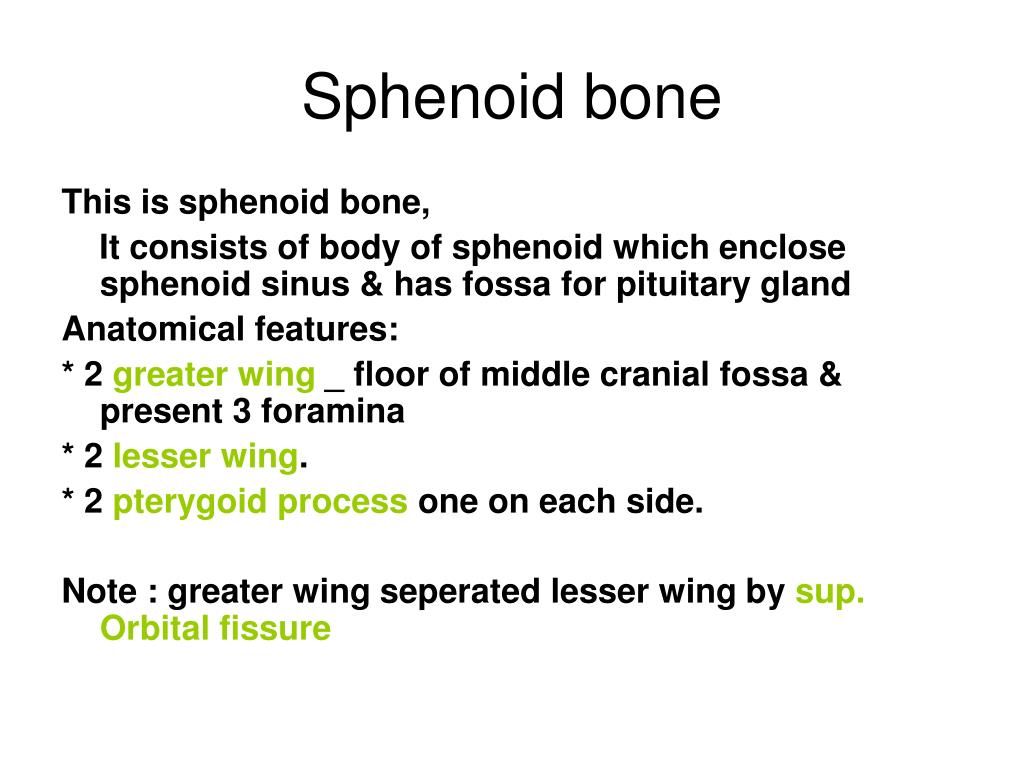

  4. Sphenoid bone This is sphenoid bone, It consists of body of sphenoid which enclose sphenoid sinus & has fossa for pituitary gland Anatomical features: * 2 greater wing _ floor of middle cranial fossa & present 3 foramina * 2 lesser wing. * 2 pterygoid process one on each side. Note : greater wing seperated lesser wing by sup. Orbital fissure
