  1. Adapting Passive Ideas Passive Case: From our Sonar Target Strength describes the fraction of energy reflecting back from the target

  2. Reverberation Noise Reflections from non-target objects is greater that noise. Reverberation limited

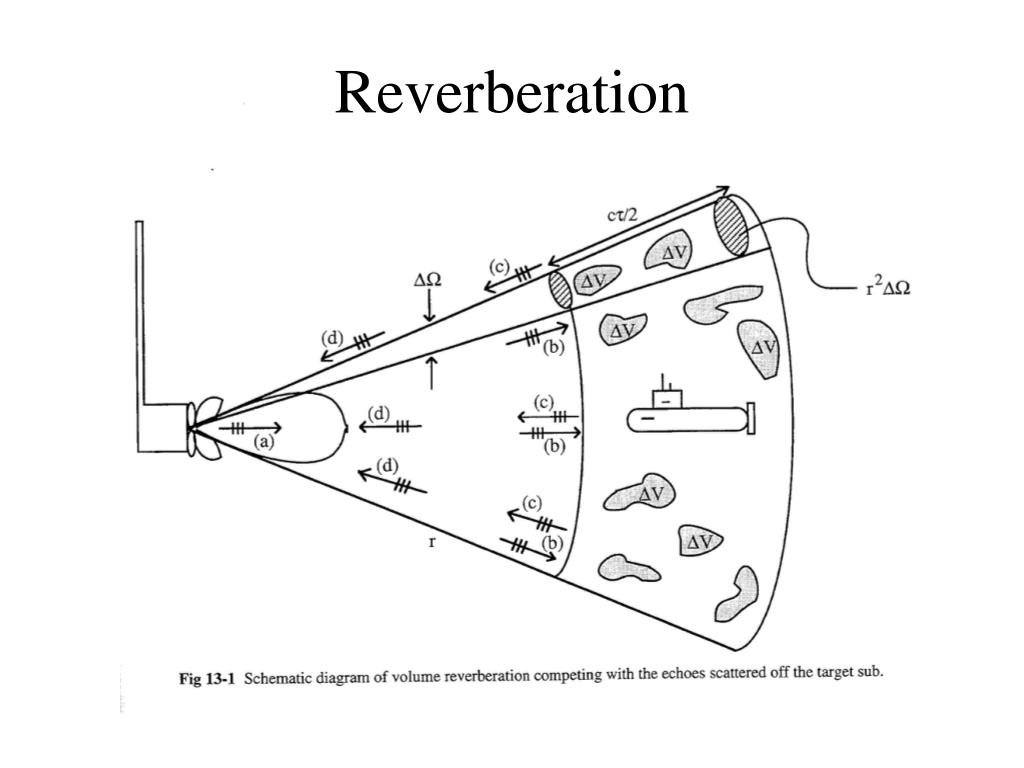

  3. Reverberation

  4. Volume Reverberation Surface Reverberation Sources of Reverberation Backscatter • Fish and smaller biological marine organisms • Entrapped air bubbles • Microthermal structure • Velocity microstructure • Variations in the characteristic impedance of the medium (e.g. dust and dirt) • Surface – air-water interface • Ocean bottom

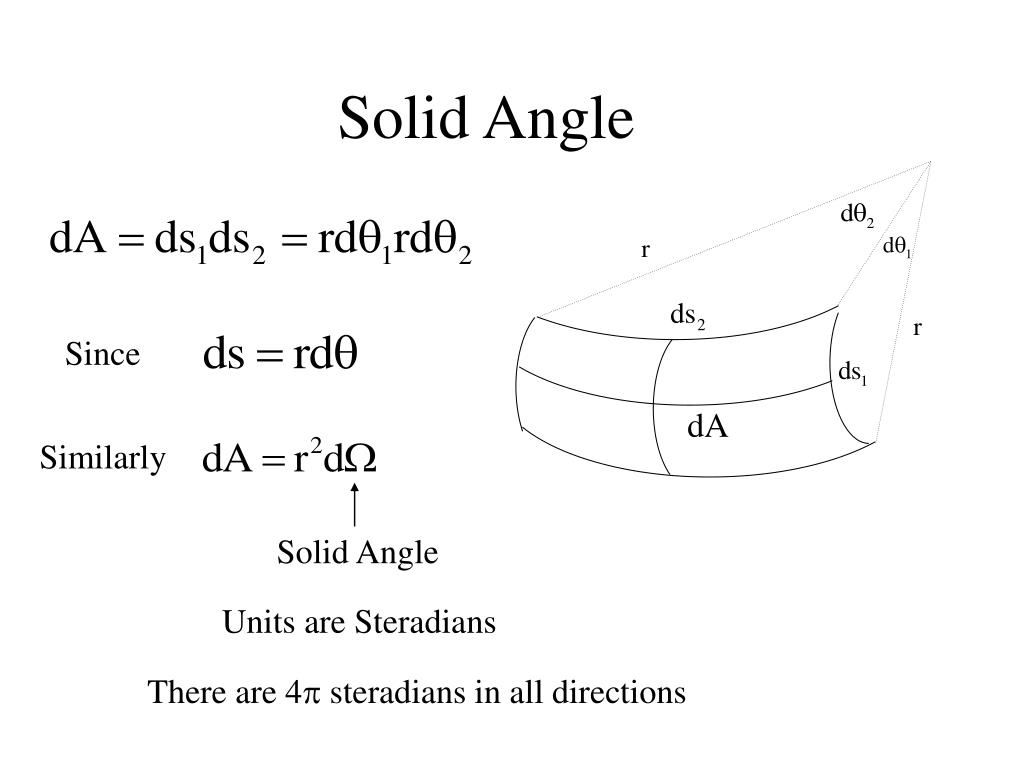

  5. Solid Angle r r Since dA Similarly Solid Angle Units are Steradians There are 4p steradians in all directions

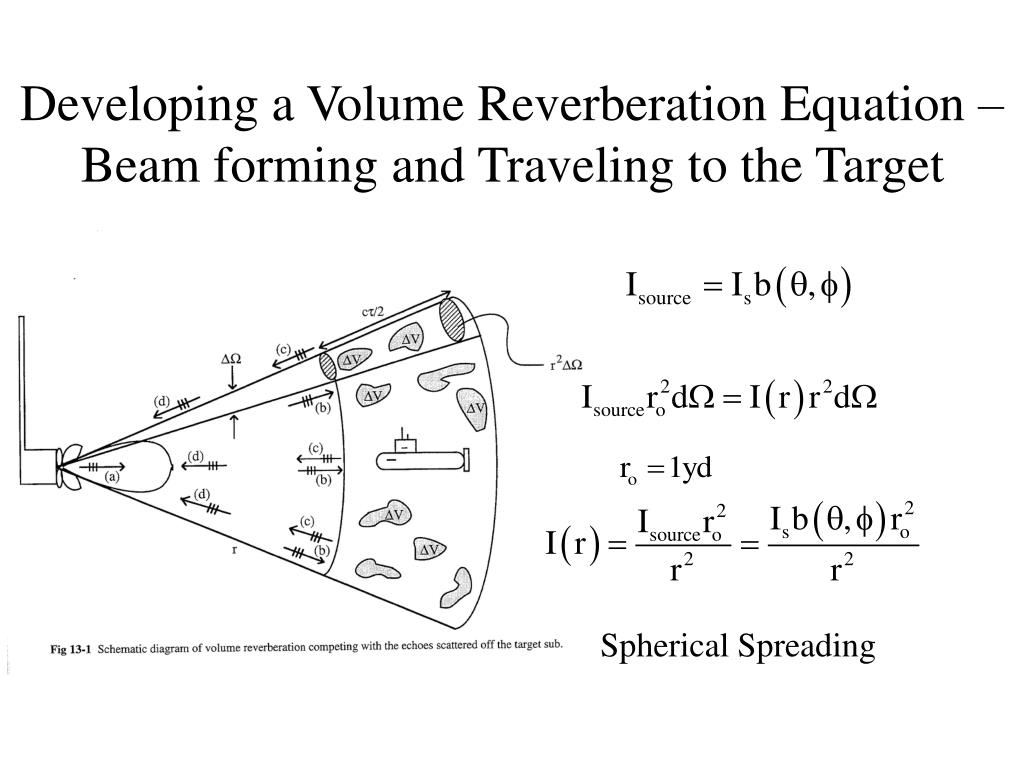

  6. Developing a Volume Reverberation Equation – Beam forming and Traveling to the Target Spherical Spreading

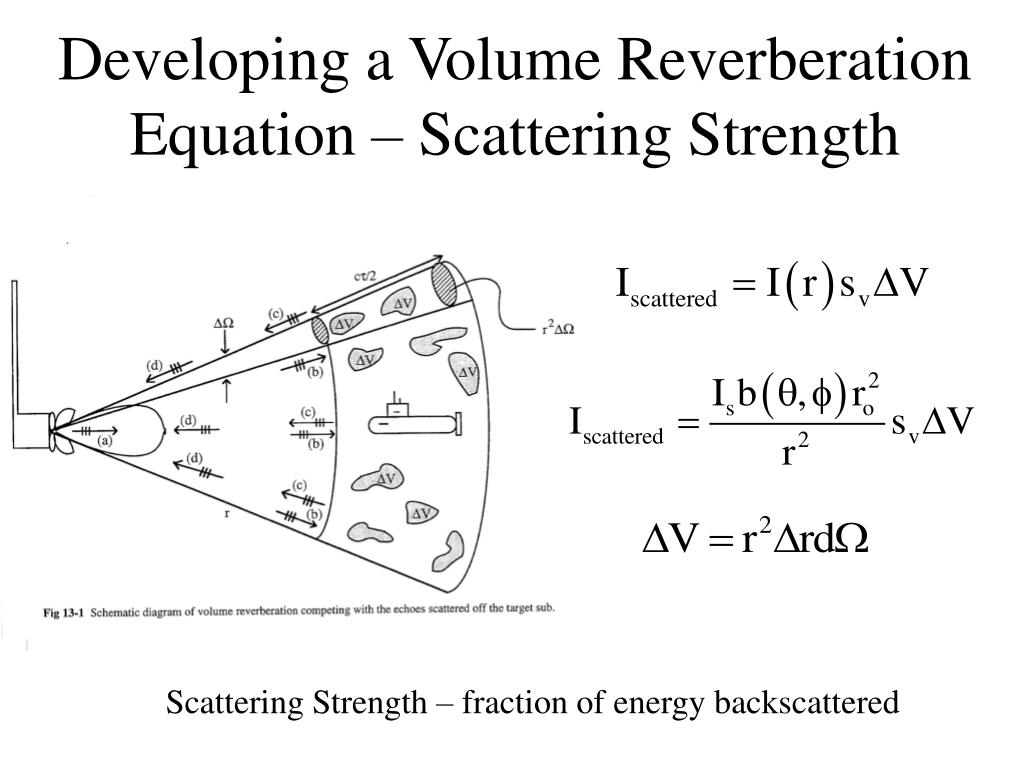

  7. Developing a Volume Reverberation Equation – Scattering Strength Scattering Strength – fraction of energy backscattered

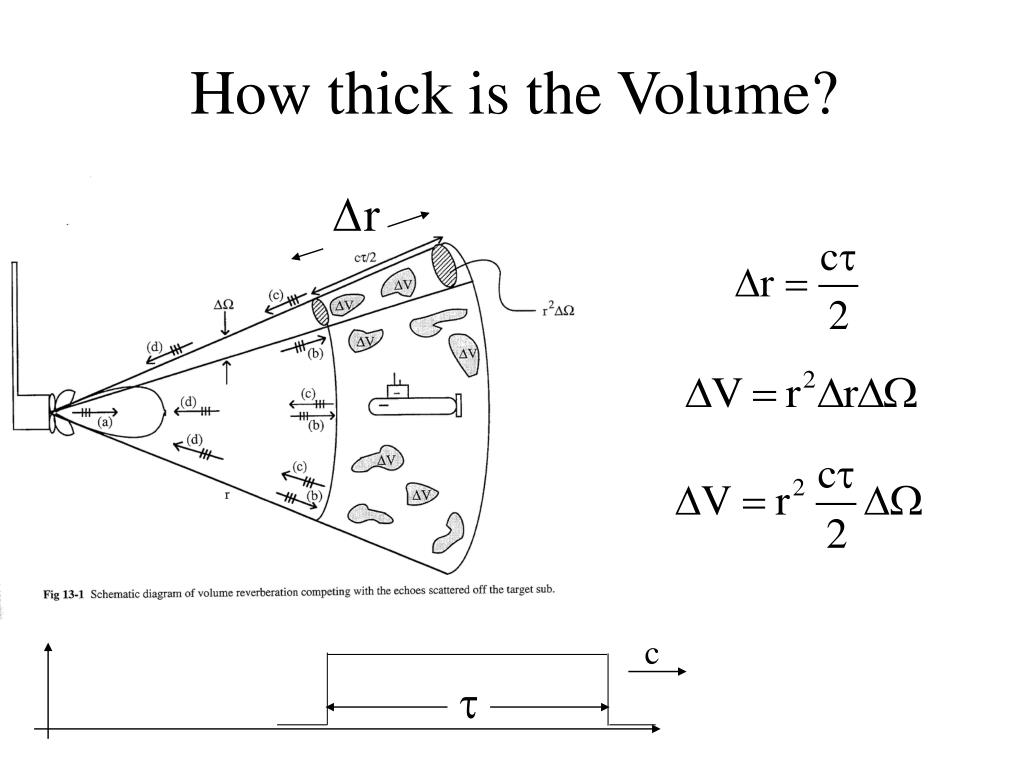

  8. How thick is the Volume? c

  9. Developing a Volume Reverberation Equation – Scattering Strength c

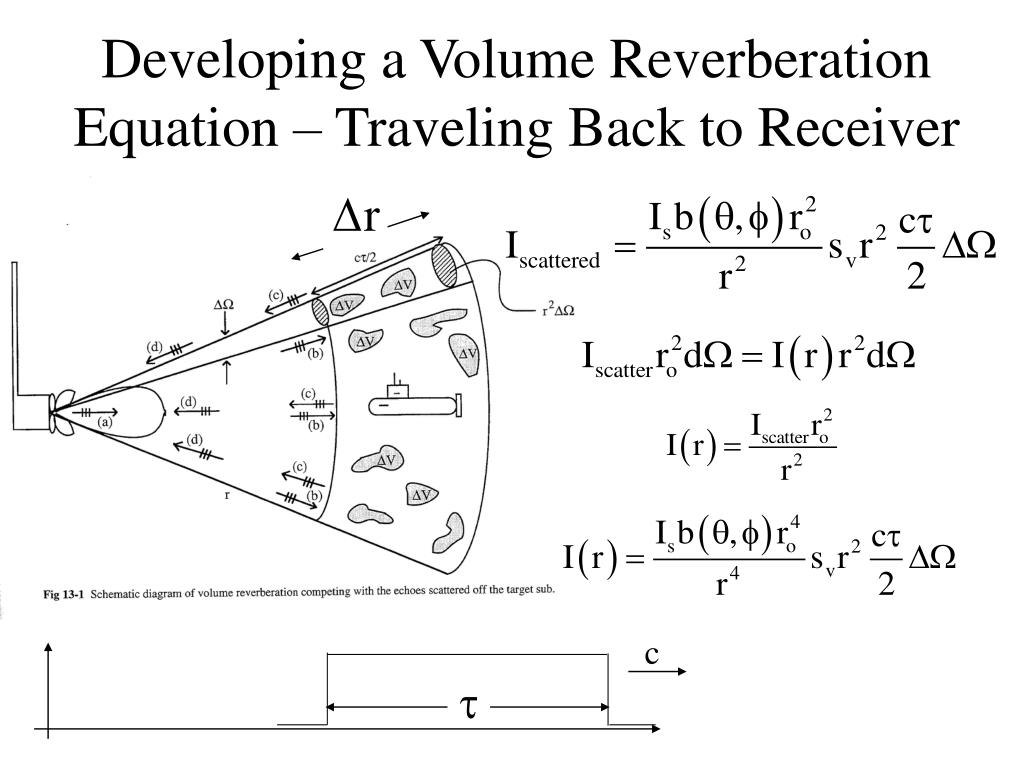

  10. Developing a Volume Reverberation Equation – Traveling Back to Receiver c

  11. Developing a Volume Reverberation Equation – Receiver Beam Pattern c

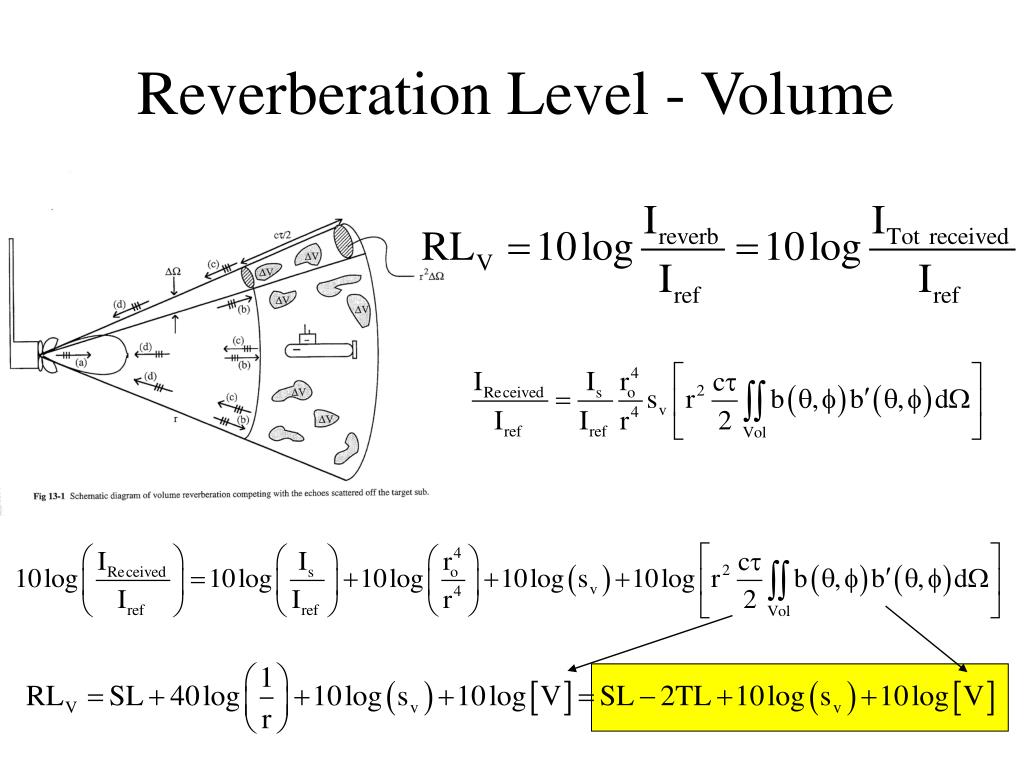

  12. Reverberation Level - Volume

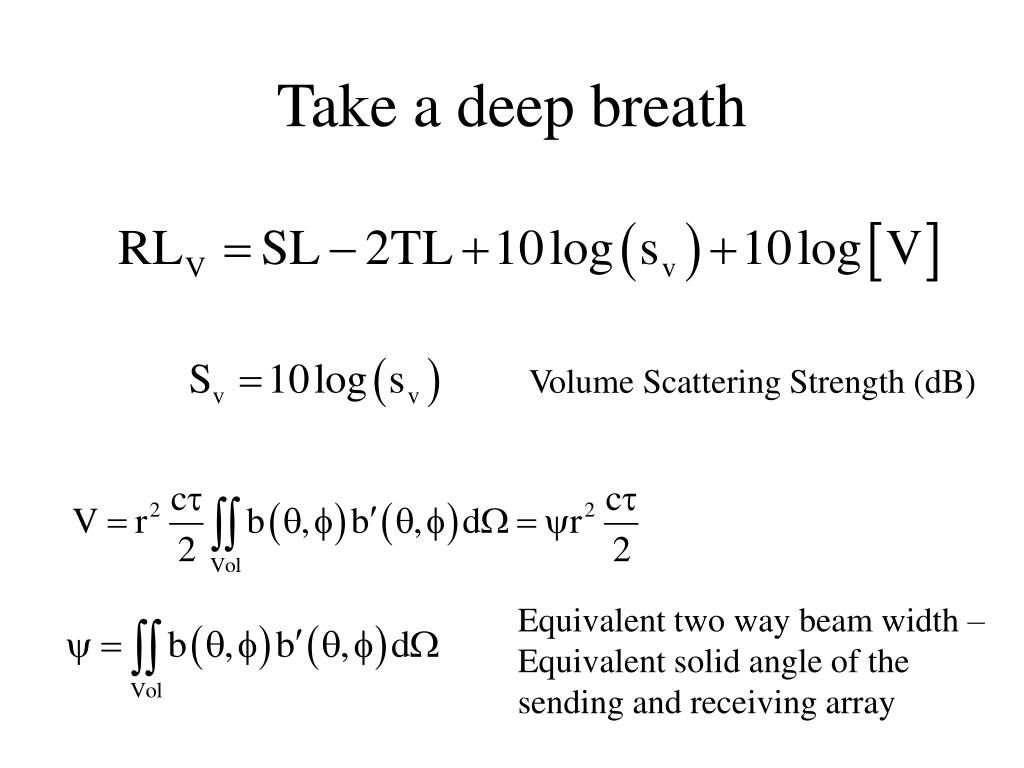

  13. Take a deep breath Volume Scattering Strength (dB) Equivalent two way beam width – Equivalent solid angle of the sending and receiving array

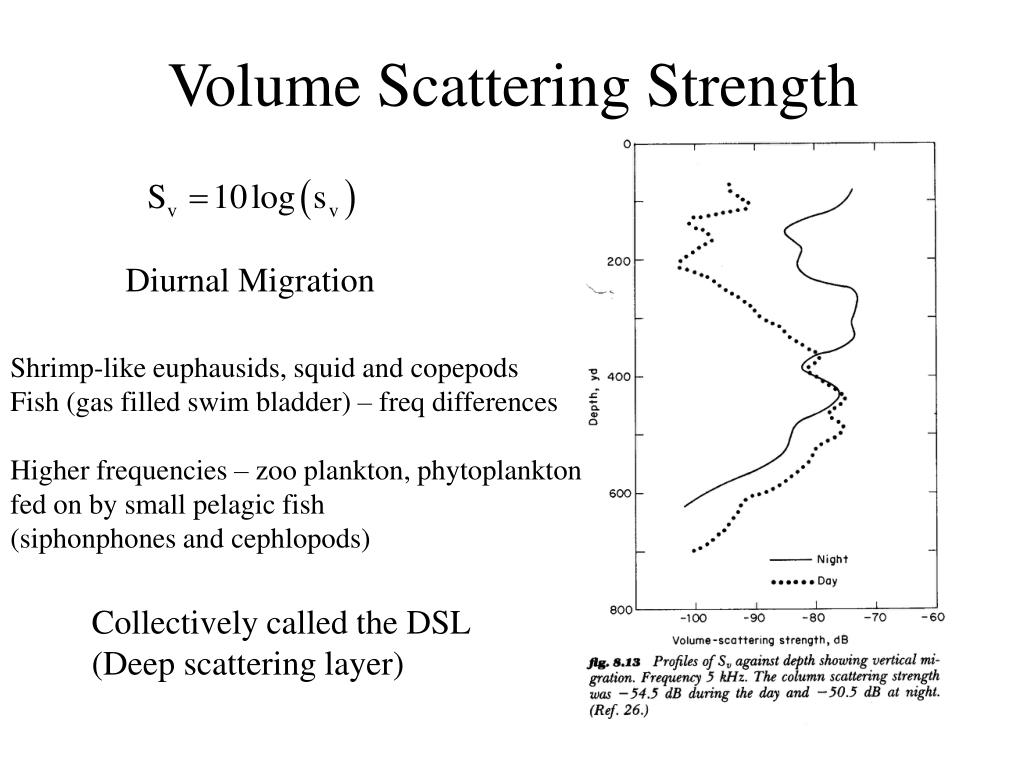

  14. Volume Scattering Strength Diurnal Migration Shrimp-like euphausids, squid and copepods Fish (gas filled swim bladder) – freq differences Higher frequencies – zoo plankton, phytoplankton fed on by small pelagic fish (siphonphones and cephlopods) Collectively called the DSL (Deep scattering layer)

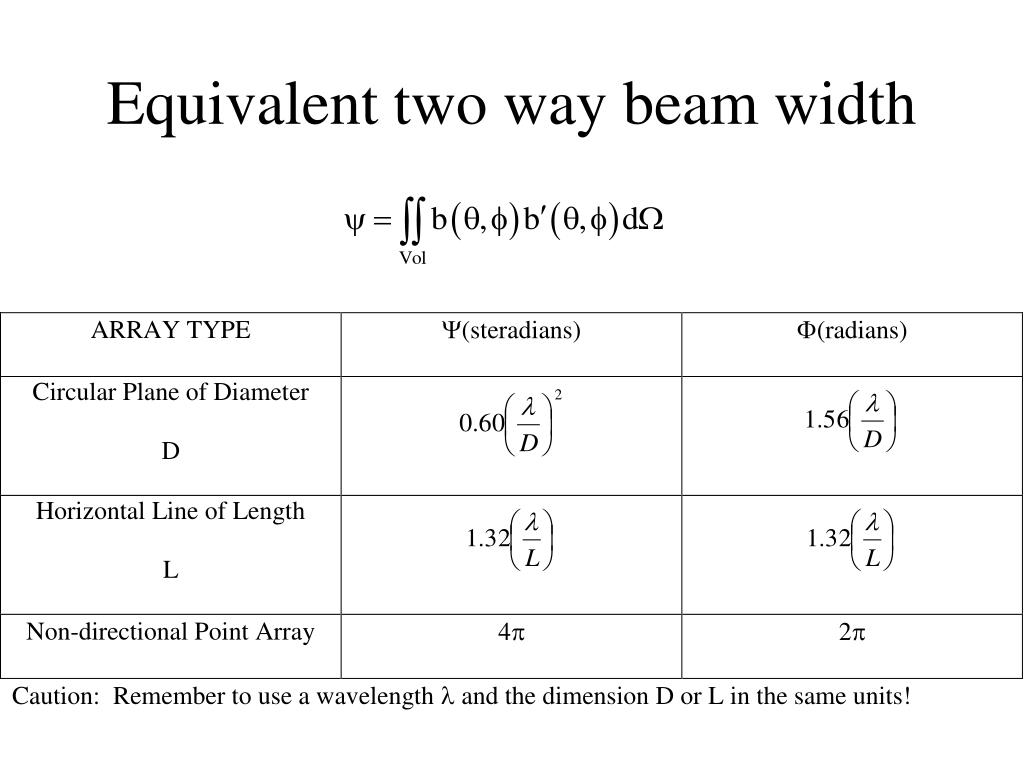

  15. Equivalent two way beam width
