The Turning Effect of Forces

The Turning Effect of Forces. You should be able to: state what the centre of gravity of an object is. describe a simple experiment to determine the centre of gravity of an object. define and apply the moment of force.

carlos-wolf
Download Presentation

The Turning Effect of Forces

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

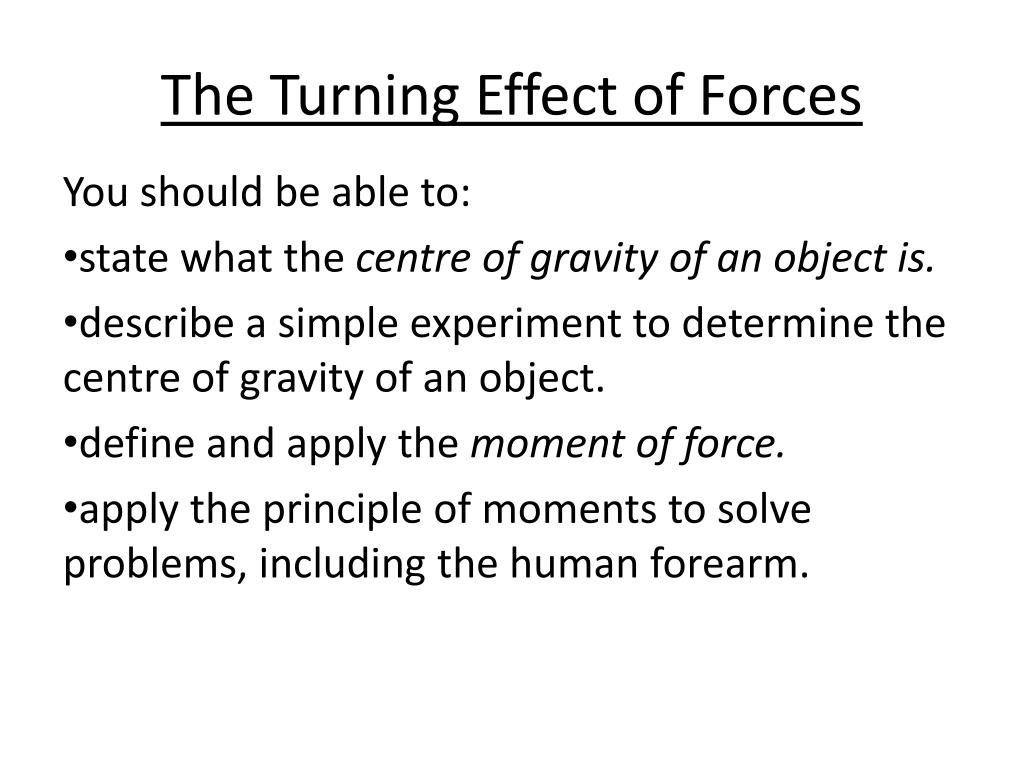

  1. The Turning Effect of Forces You should be able to: state what the centre of gravity of an object is. describe a simple experiment to determine the centre of gravity of an object. define and apply the moment of force. apply the principle of moments to solve problems, including the human forearm.

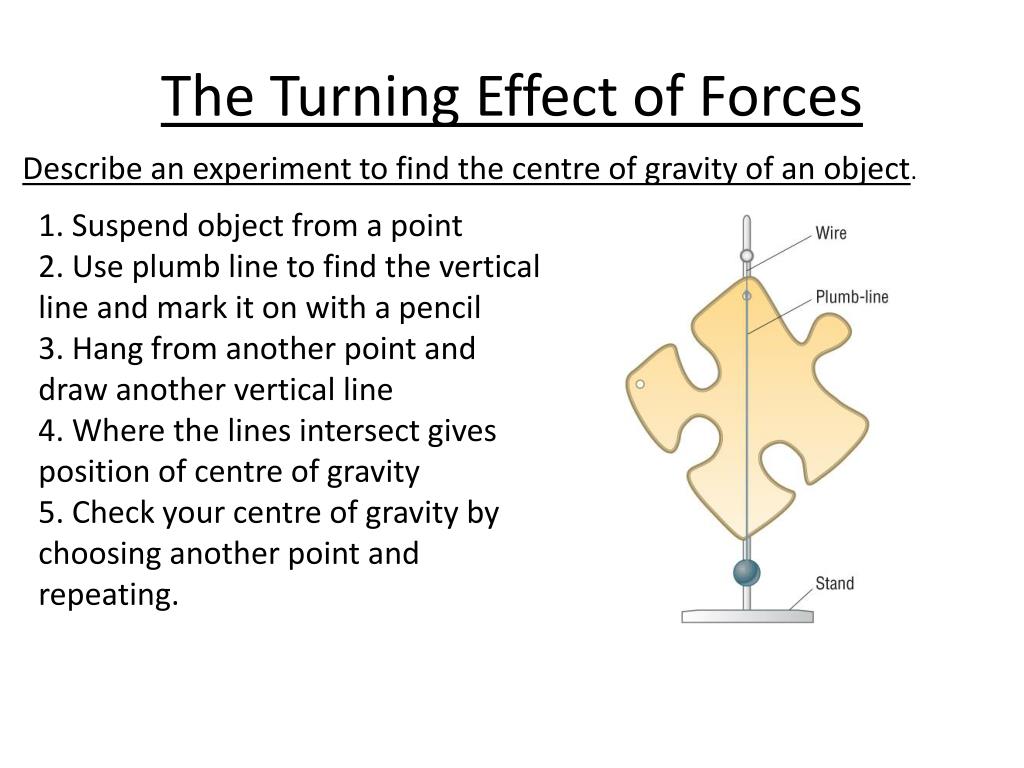

  2. The Turning Effect of Forces Describe an experiment to find the centre of gravity of an object. 1. Suspend object from a point 2. Use plumb line to find the vertical line and mark it on with a pencil 3. Hang from another point and draw another vertical line 4. Where the lines intersect gives position of centre of gravity 5. Check your centre of gravity by choosing another point and repeating.

  3. The Turning Effect of Forces Centre of Gravity – the point where the weight of an object can be considered to act.

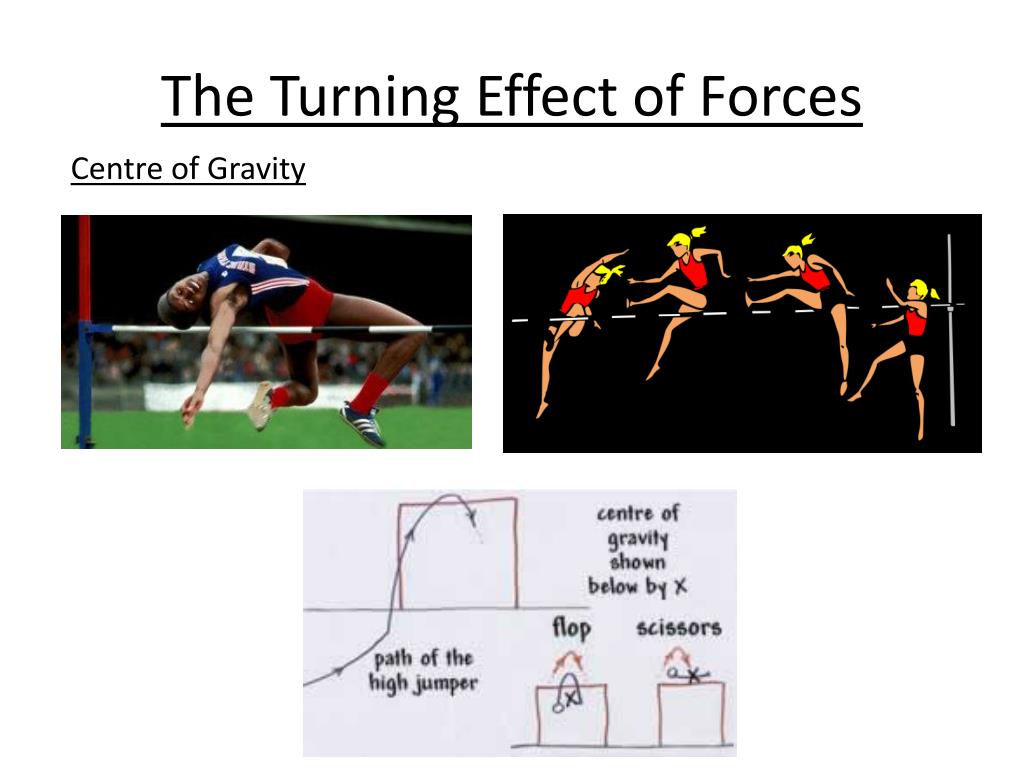

  4. The Turning Effect of Forces Centre of Gravity

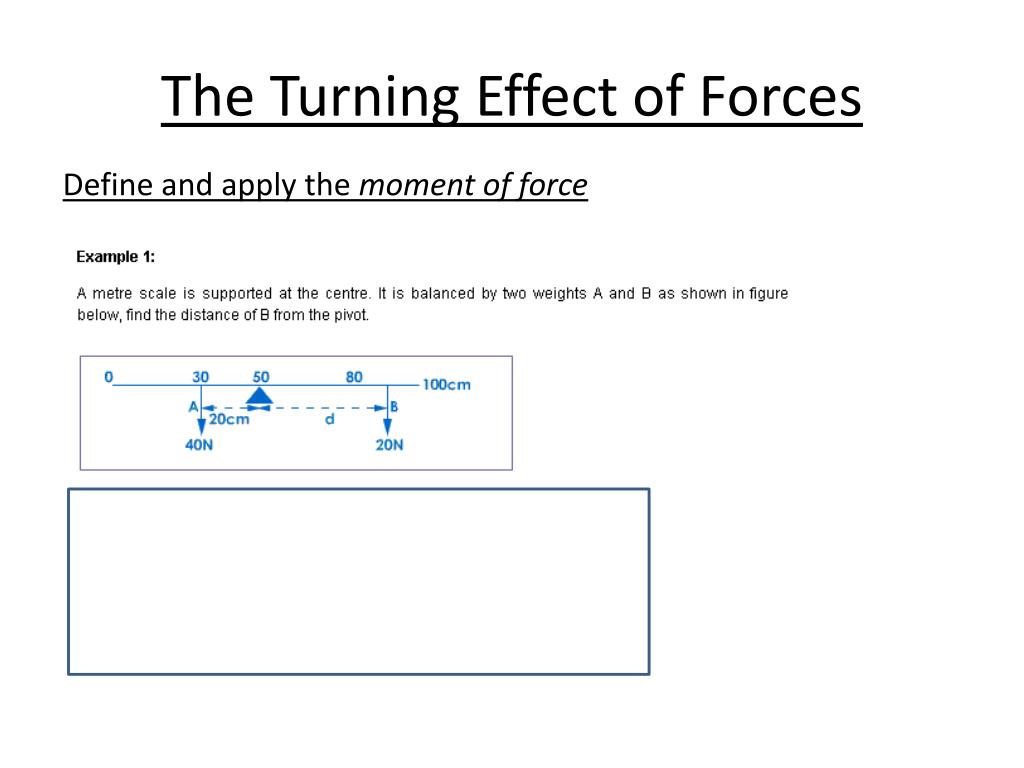

  5. The Turning Effect of Forces Define and apply the moment of force

  6. The Turning Effect of Forces Define and apply the moment of force

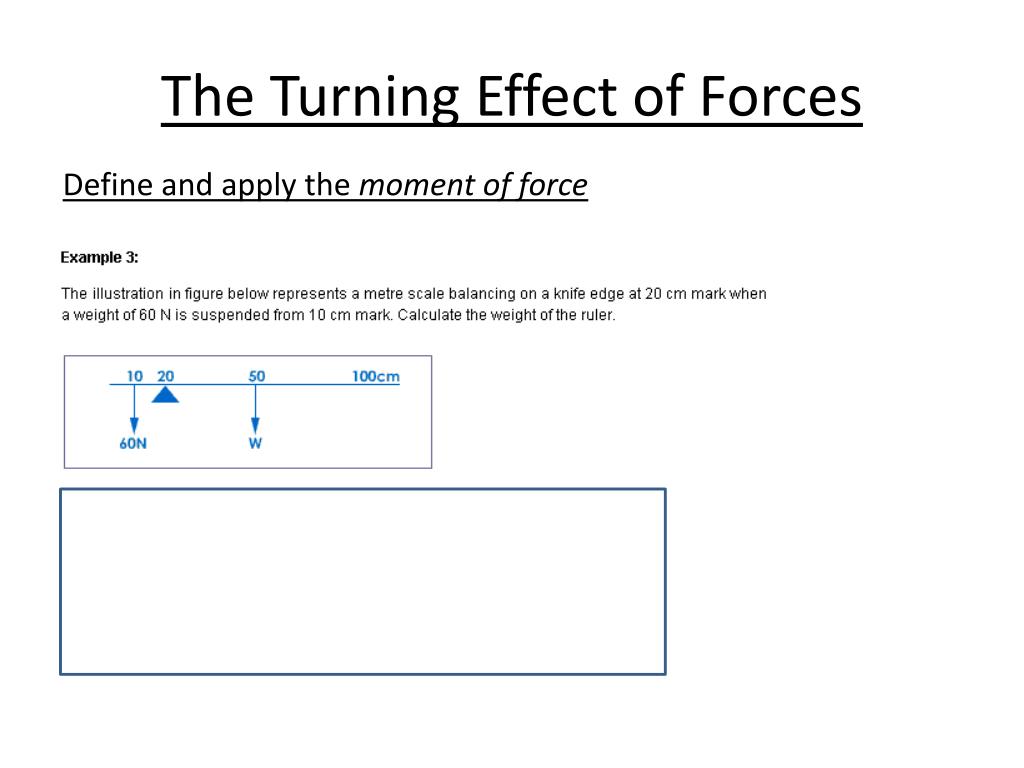

  7. The Turning Effect of Forces Define and apply the moment of force

  8. The Turning Effect of Forces Define and apply the moment of force

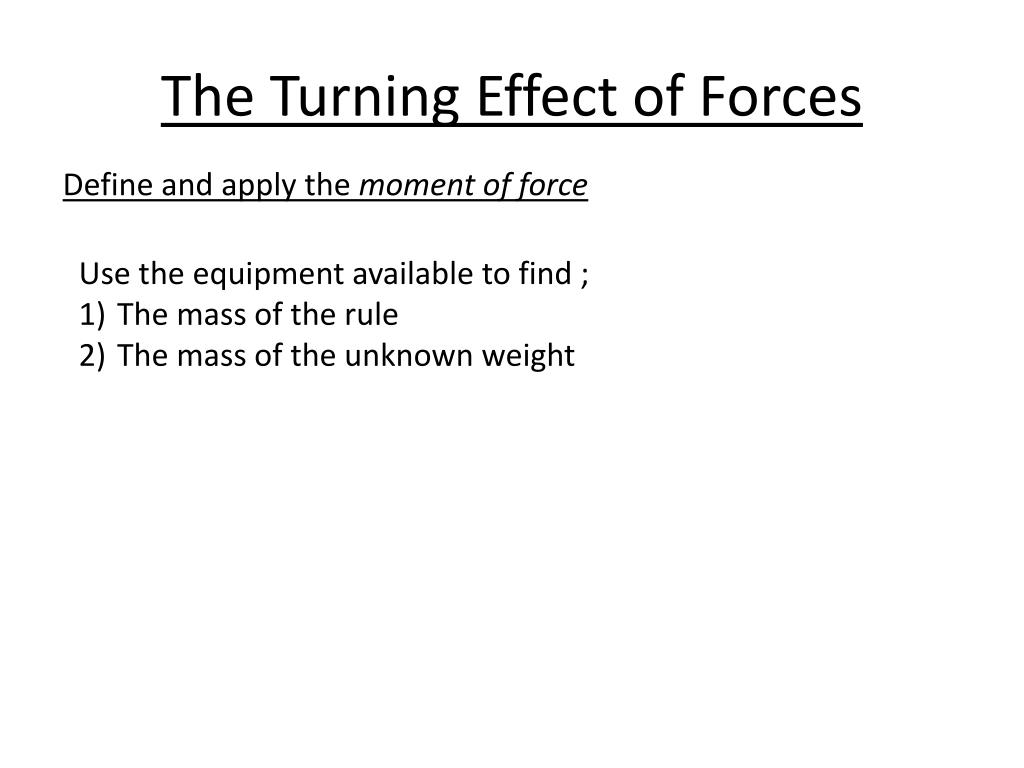

  9. The Turning Effect of Forces Define and apply the moment of force • Use the equipment available to find ; • The mass of the rule • The mass of the unknown weight

  10. The Turning Effect of Forces Define and apply the moment of force

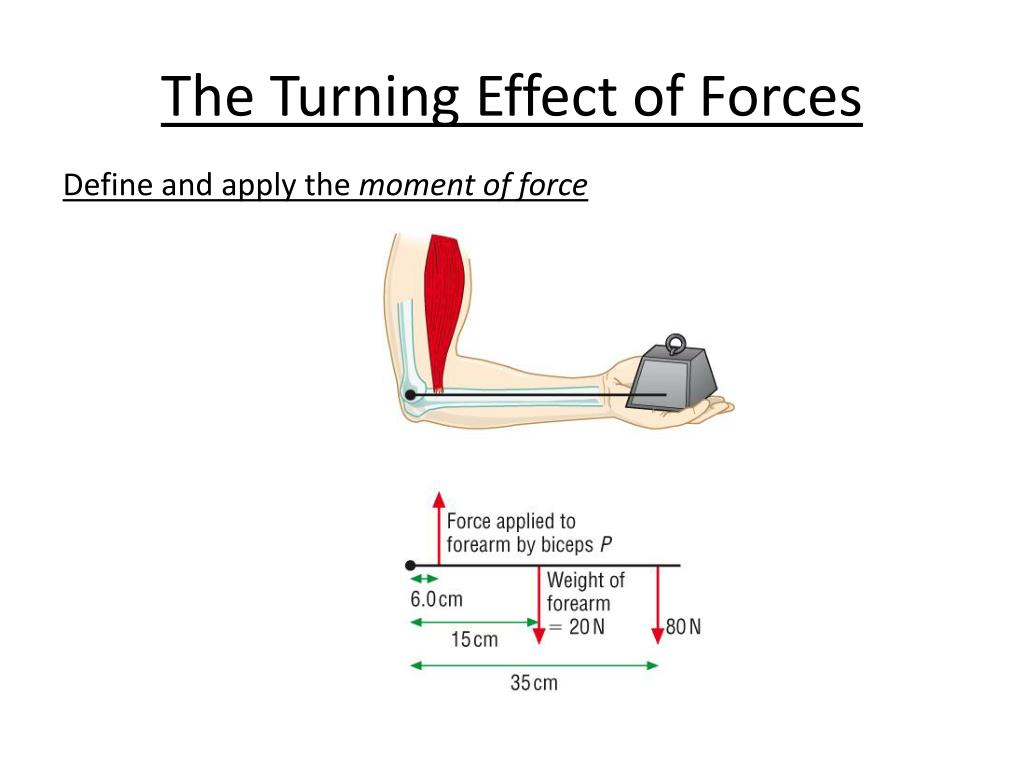

  11. The Turning Effect of Forces Define and apply the moment of force

  12. The Turning Effect of Forces Define and apply the moment of force

  13. The Turning Effect of Forces You should be able to: define and apply the torque of a couple explain that both the net force and net moment on an object in equilibrium is zero apply the principle of moments to solve problems where the perpendicular force has to be calculated.

  14. The Turning Effect of Forces Couple

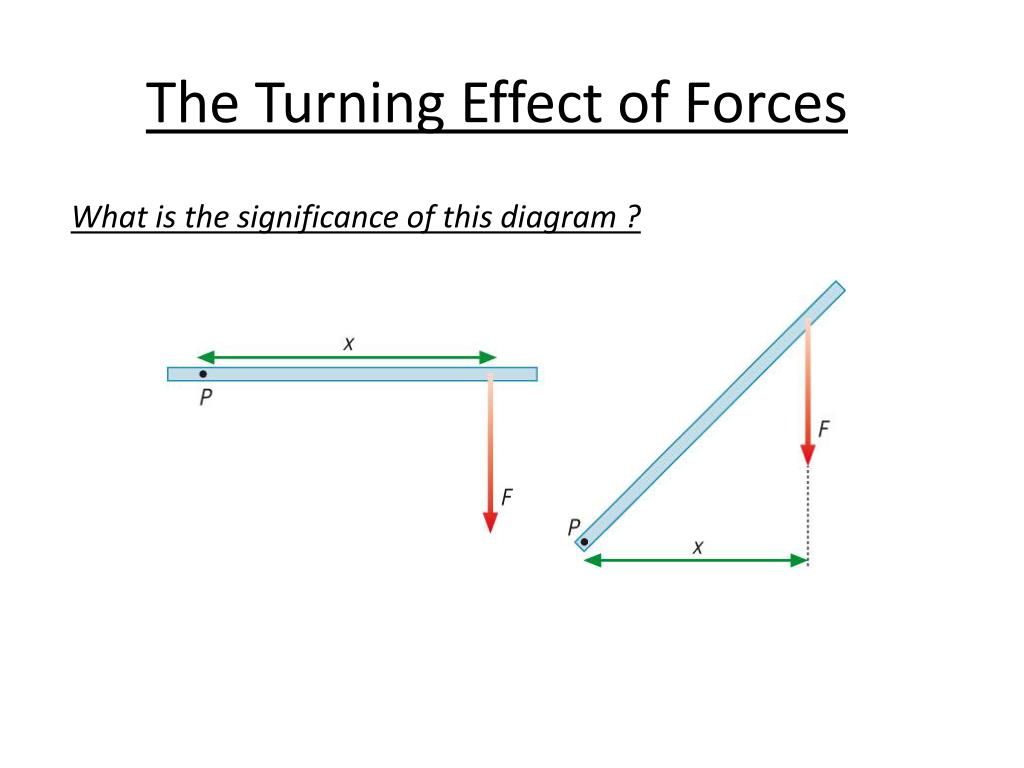

  15. The Turning Effect of Forces What is the significance of this diagram ?

  16. 5 m 3 m 60o 70 kg W The Turning Effect of Forces What is the counterweight (W) required to balance the light crane arm shown in diagram ?

  17. T 70o 1.5 m 3 m 20 N The Turning Effect of Forces What is the tension (T) in the cable shown in diagram ?

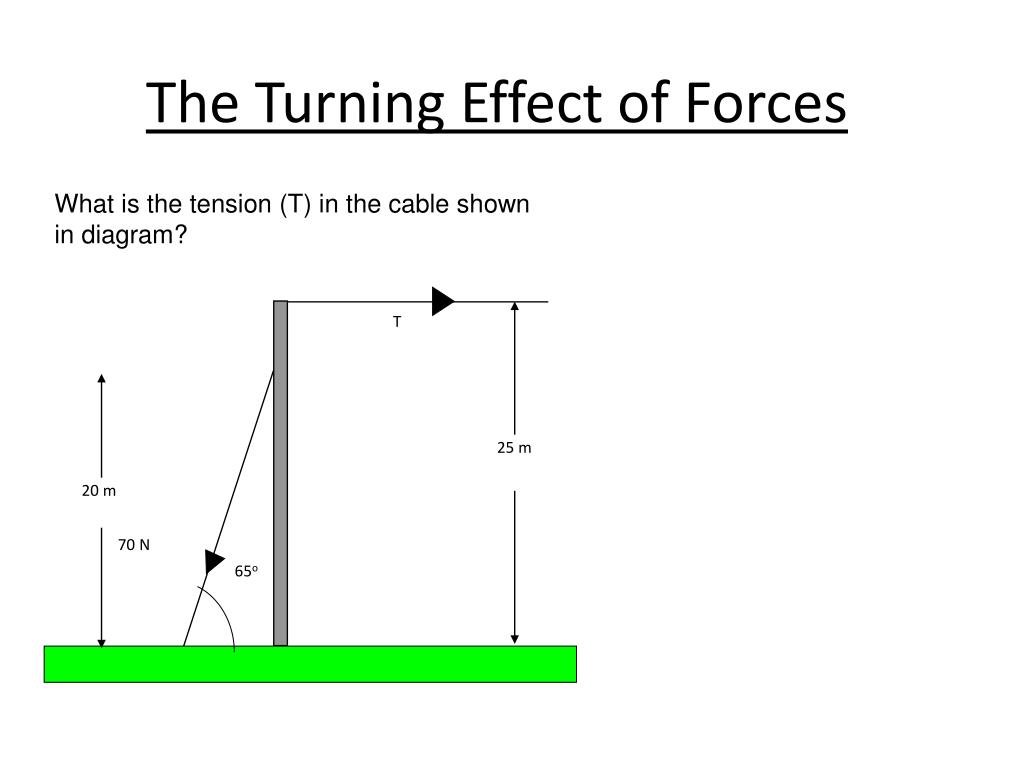

  18. T 25 m 20 m 70 N 65o The Turning Effect of Forces What is the tension (T) in the cable shown in diagram?

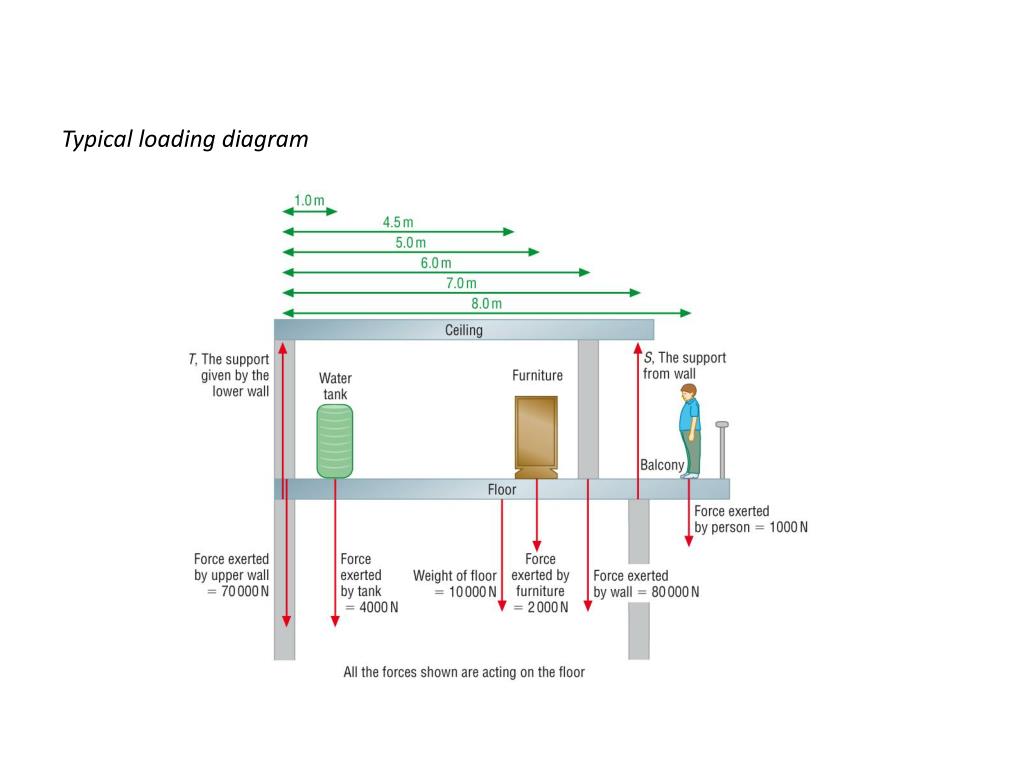

  19. Typical loading diagram
