Binary Molecular Compounds

Binary Molecular Compounds. Binary Molecular Compounds. Binary molecular compounds are composed of two different nonmetals examples: CO, SO 2 , N 2 H 4 , P 4 Cl 10 These compounds are named by using a prefix to indicate the number of atoms of each element present (see table in notebook ).

carolina-lucus
Download Presentation

Binary Molecular Compounds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

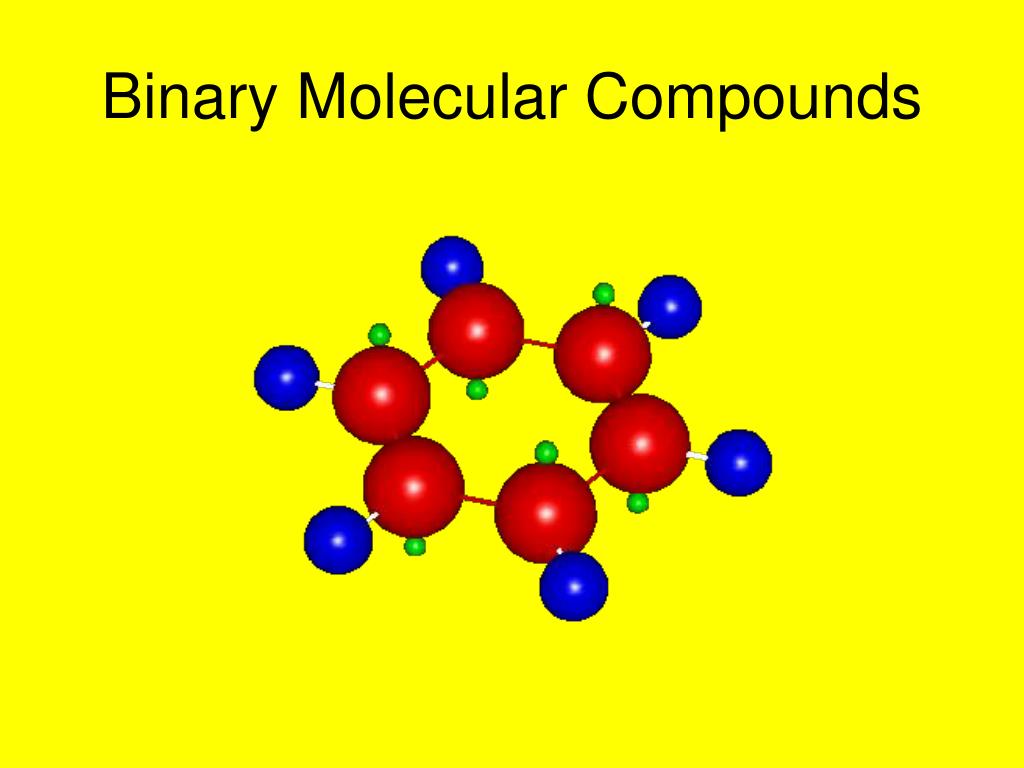

  1. Binary Molecular Compounds

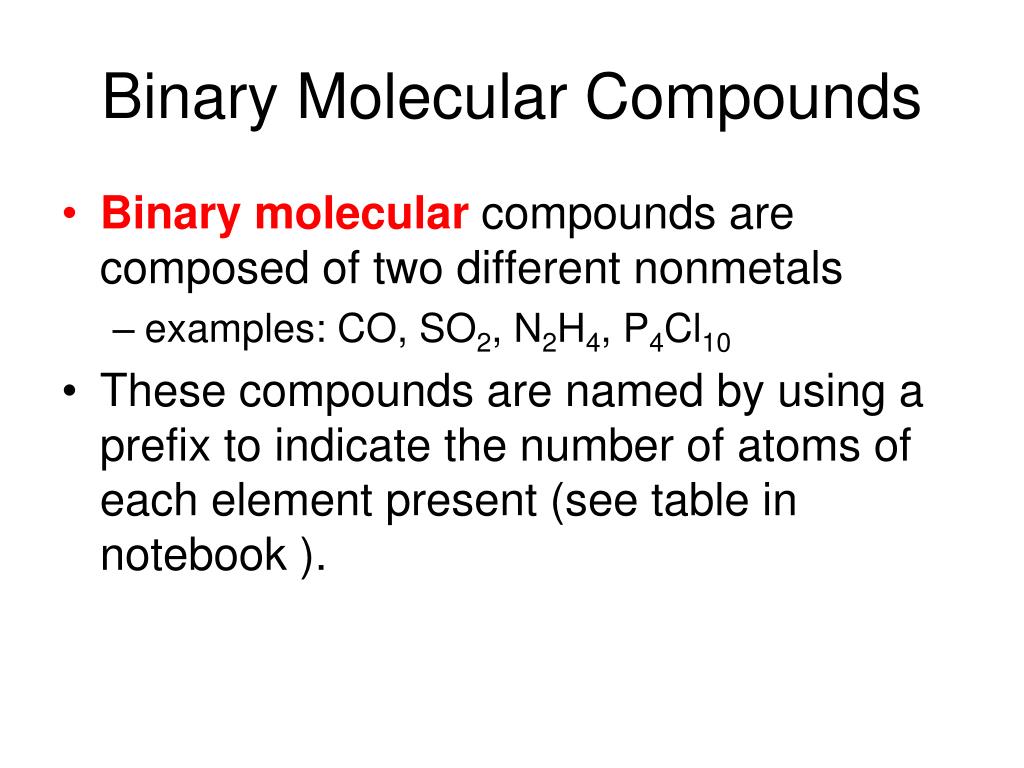

  2. Binary Molecular Compounds • Binary molecular compounds are composed of two different nonmetals • examples: CO, SO2, N2H4, P4Cl10 • These compounds are named by using a prefix to indicate the number of atoms of each element present (see table in notebook ).

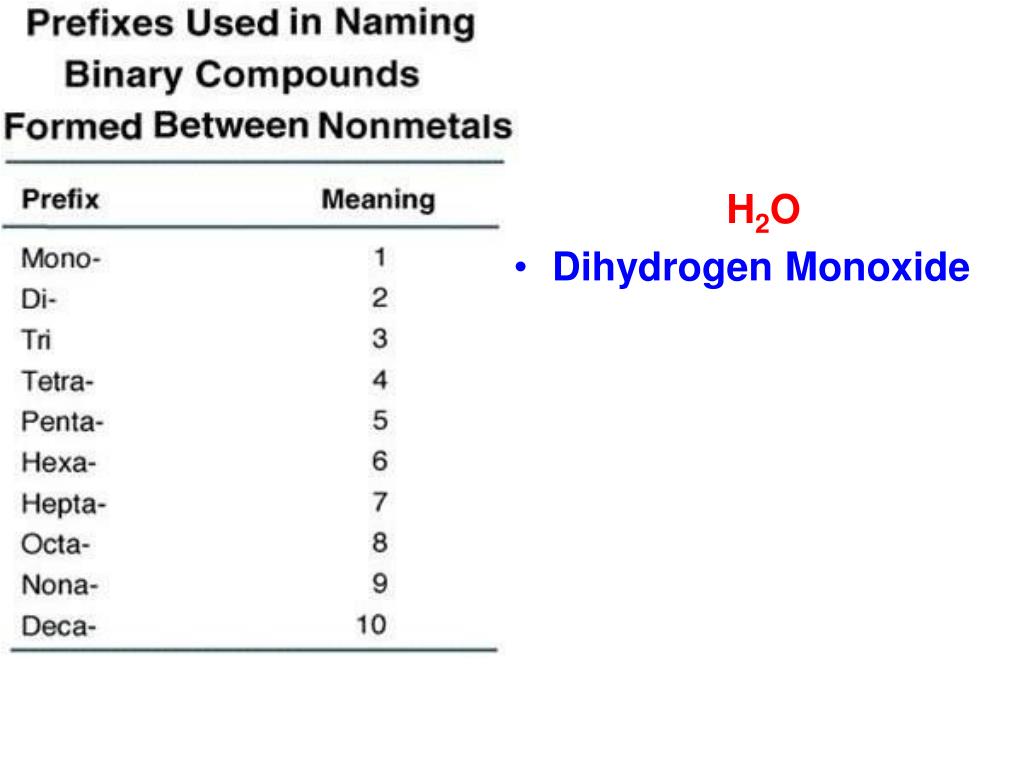

  3. H2O Dihydrogen Monoxide

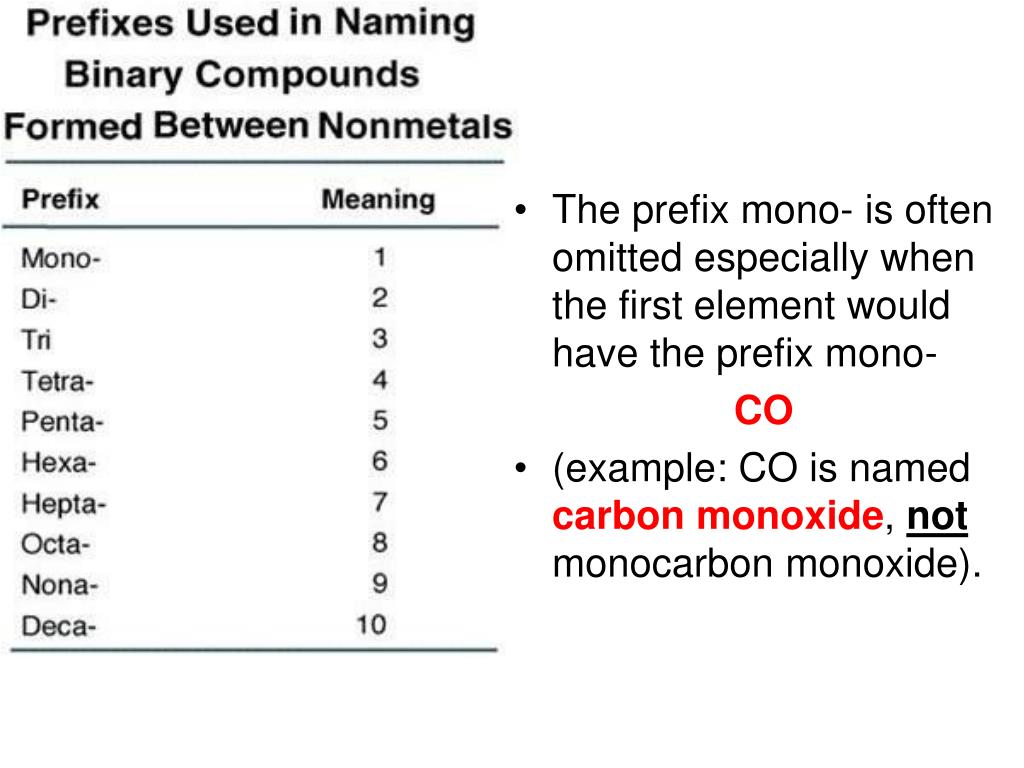

  4. The prefix mono- is often omitted especially when the first element would have the prefix mono- CO (example: CO is named carbon monoxide, not monocarbon monoxide).

  5. NF3 is nitrogen trifluoride N2O4 is dinitrogen tetroxide (Note: dropped an 'a') P4S10 is tetraphosphorous decasulfide Name the following compounds: NF3 N2O4 P4S10

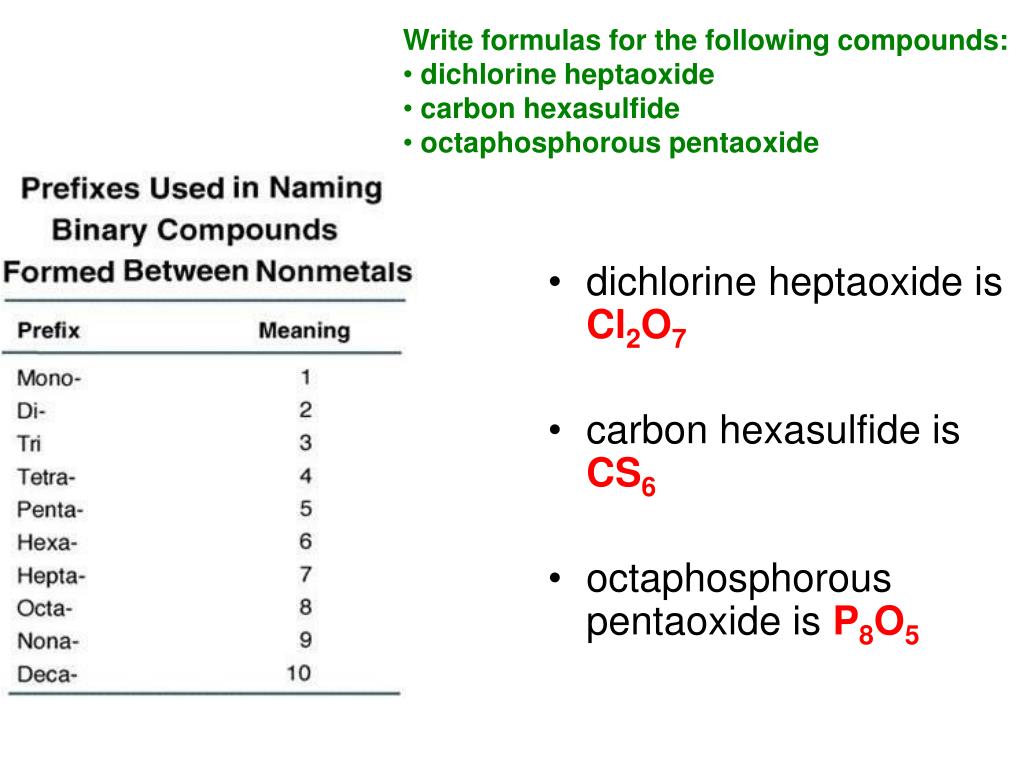

  6. dichlorine heptaoxide is Cl2O7 carbon hexasulfide is CS6 octaphosphorous pentaoxide is P8O5 • Write formulas for the following compounds: • dichlorine heptaoxide • carbon hexasulfide • octaphosphorous pentaoxide

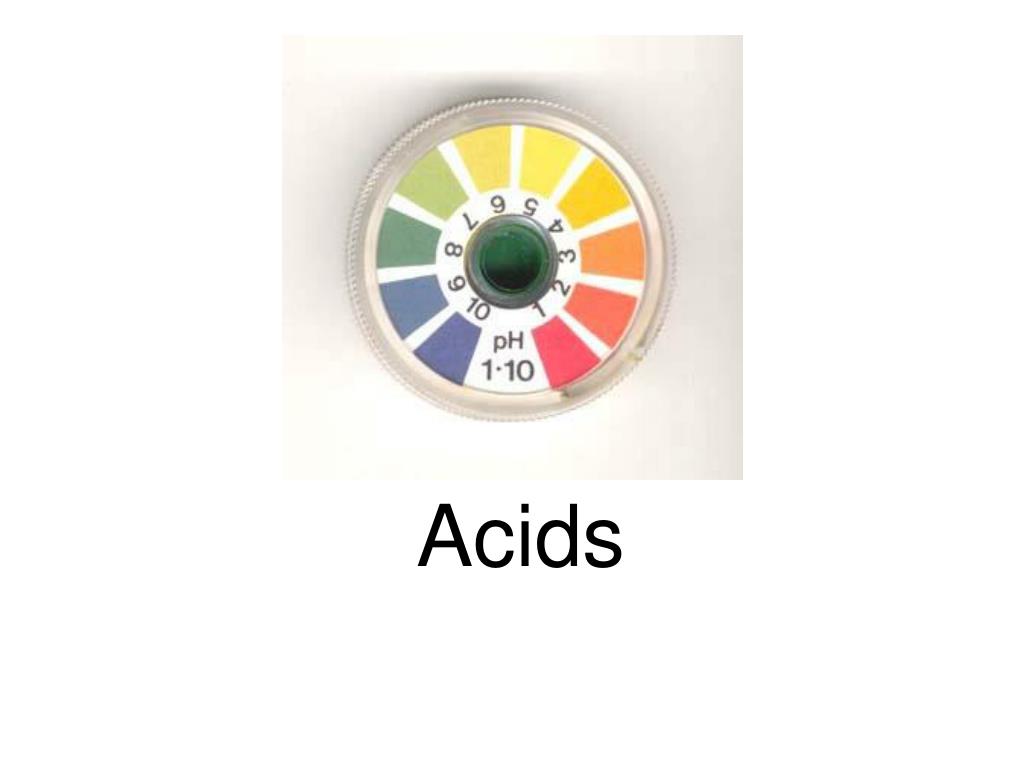

  7. Acids

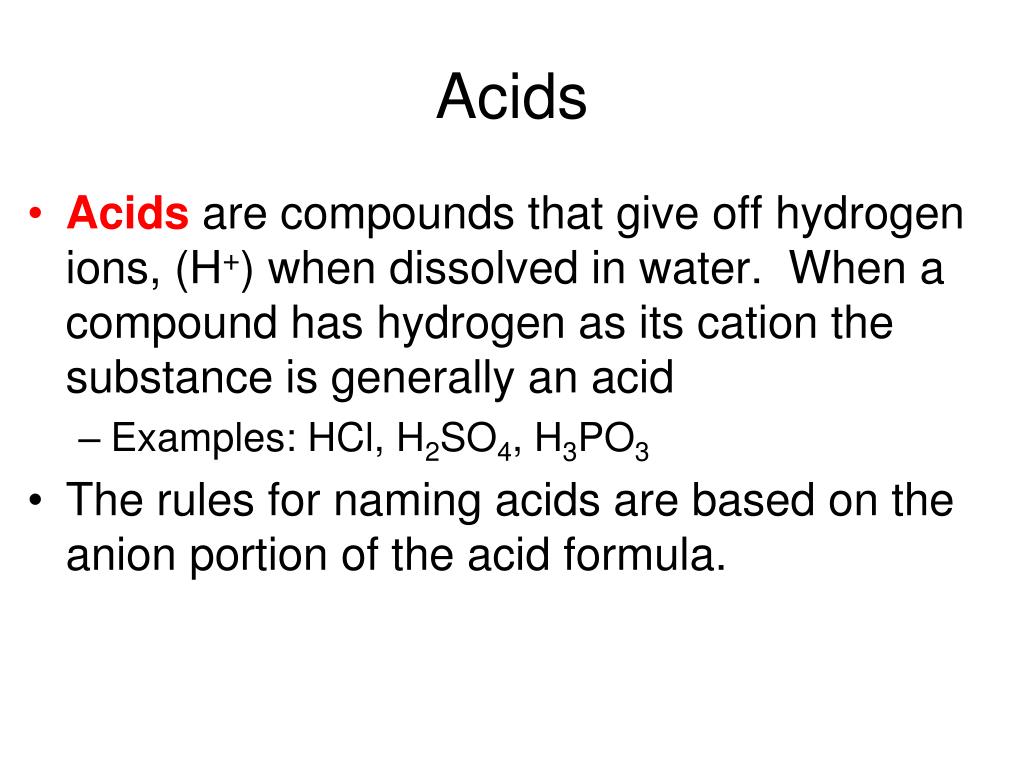

  8. Acids • Acids are compounds that give off hydrogen ions, (H+) when dissolved in water. When a compound has hydrogen as its cation the substance is generally an acid • Examples: HCl, H2SO4, H3PO3 • The rules for naming acids are based on the anion portion of the acid formula.

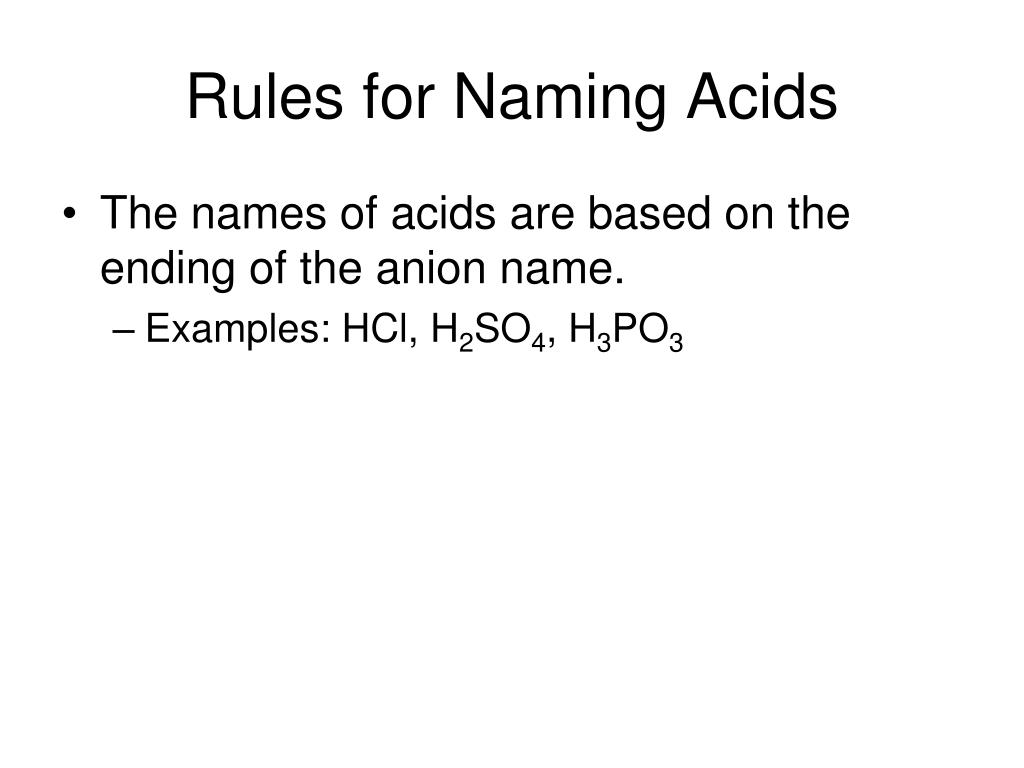

  9. Rules for Naming Acids • The names of acids are based on the ending of the anion name. • Examples: HCl, H2SO4, H3PO3

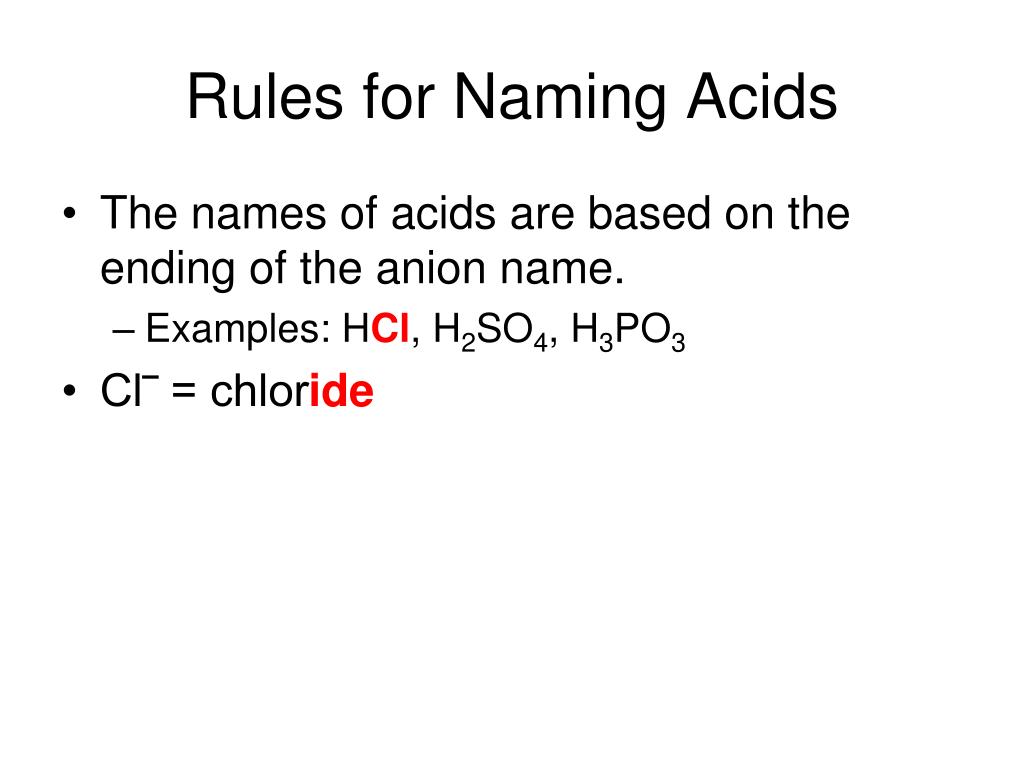

  10. Rules for Naming Acids • The names of acids are based on the ending of the anion name. • Examples: HCl, H2SO4, H3PO3 • Cl‾ = chloride

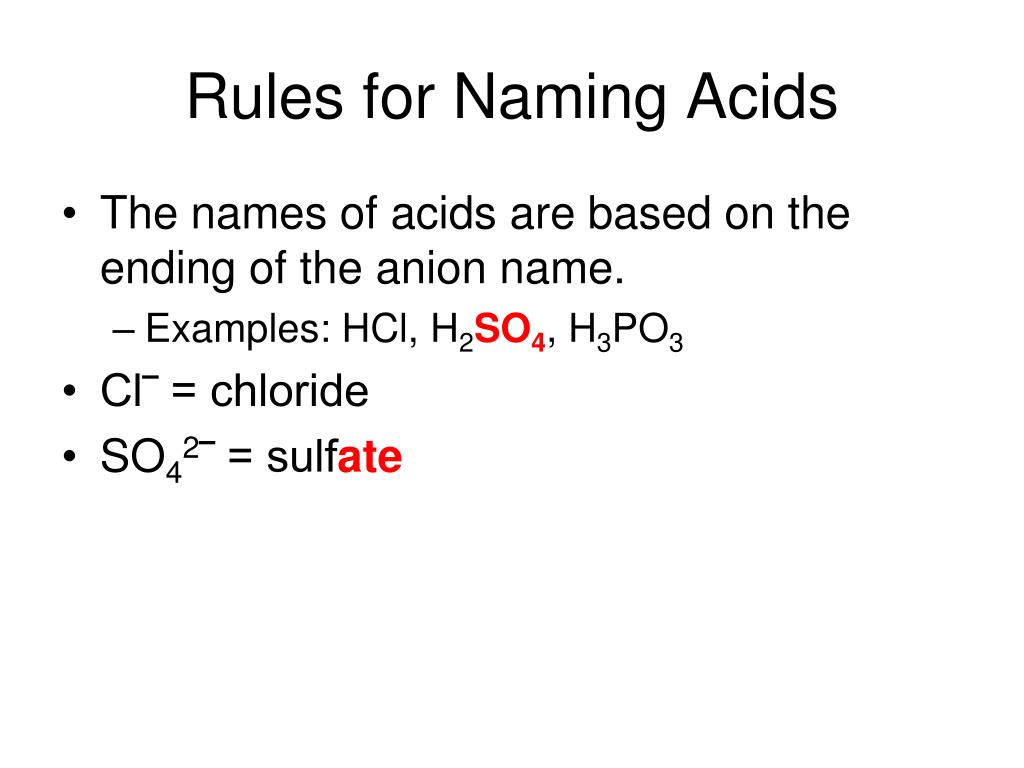

  11. Rules for Naming Acids • The names of acids are based on the ending of the anion name. • Examples: HCl, H2SO4, H3PO3 • Cl‾ = chloride • SO42‾ = sulfate

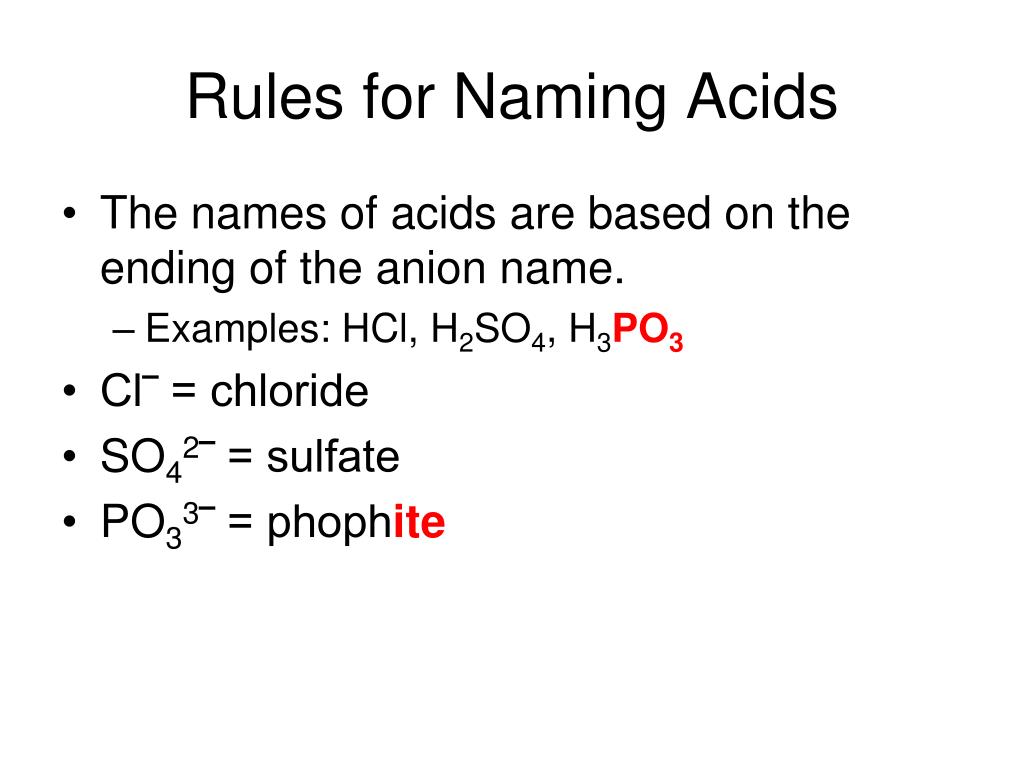

  12. Rules for Naming Acids • The names of acids are based on the ending of the anion name. • Examples: HCl, H2SO4, H3PO3 • Cl‾ = chloride • SO42‾ = sulfate • PO33‾ = phophite

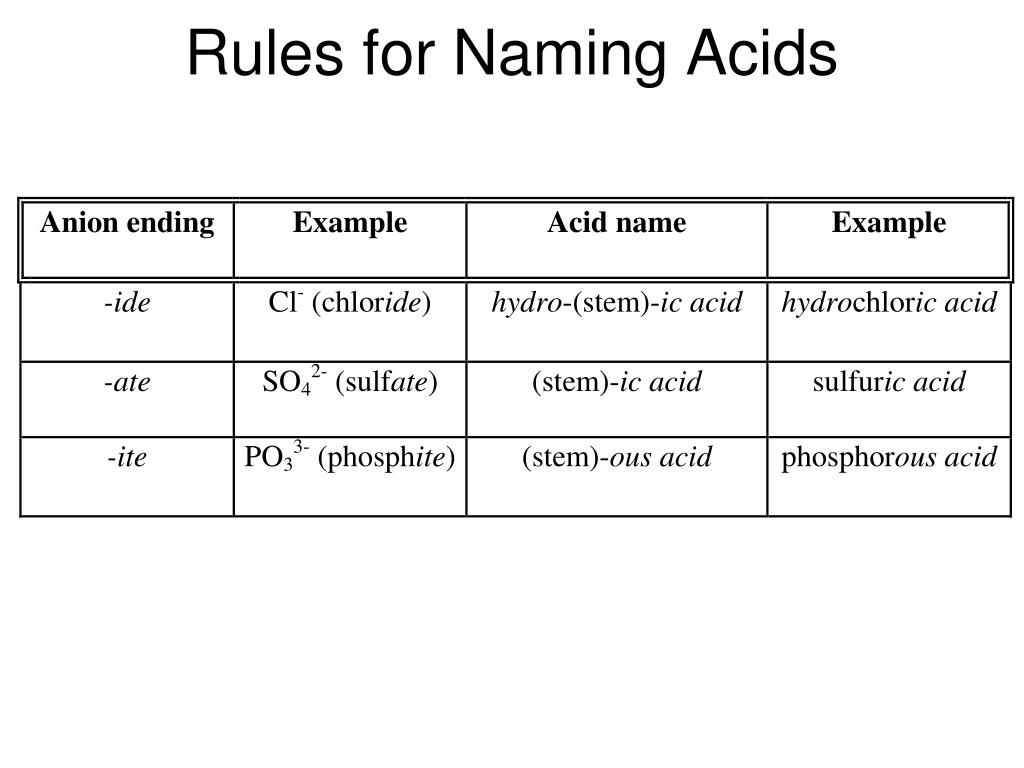

  13. Rules for Naming Acids

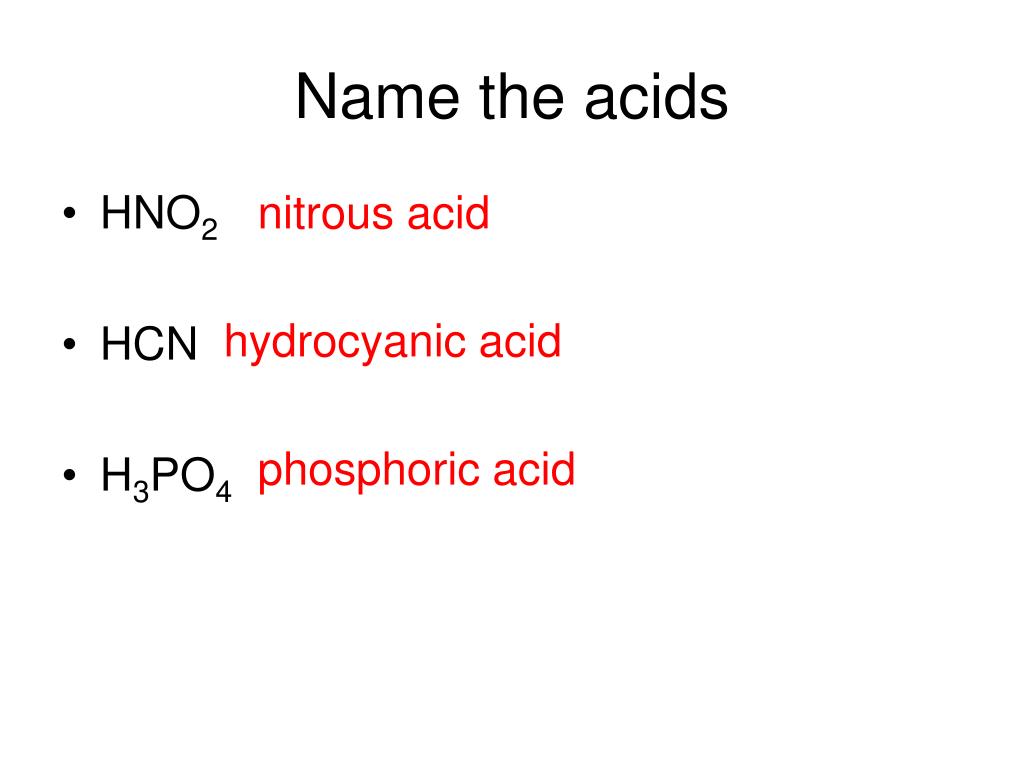

  14. Name the acids • HNO2 • HCN • H3PO4 nitrous acid hydrocyanic acid phosphoric acid

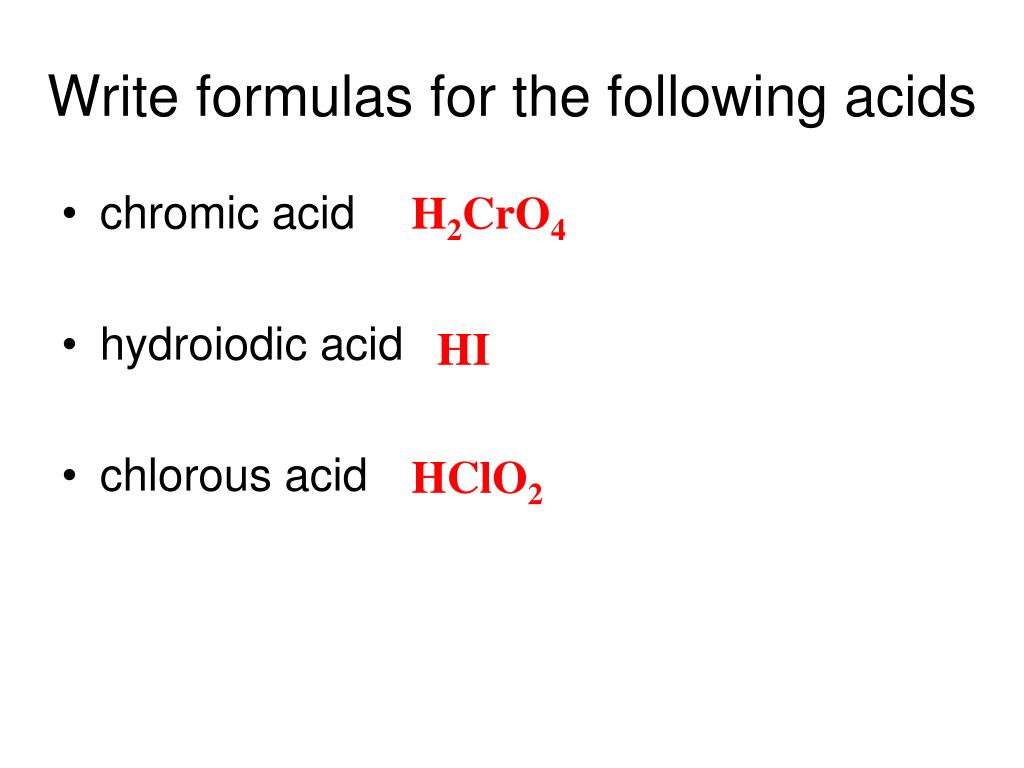

  15. Write formulas for the following acids • chromic acid • hydroiodic acid • chlorous acid H2CrO4 HI HClO2

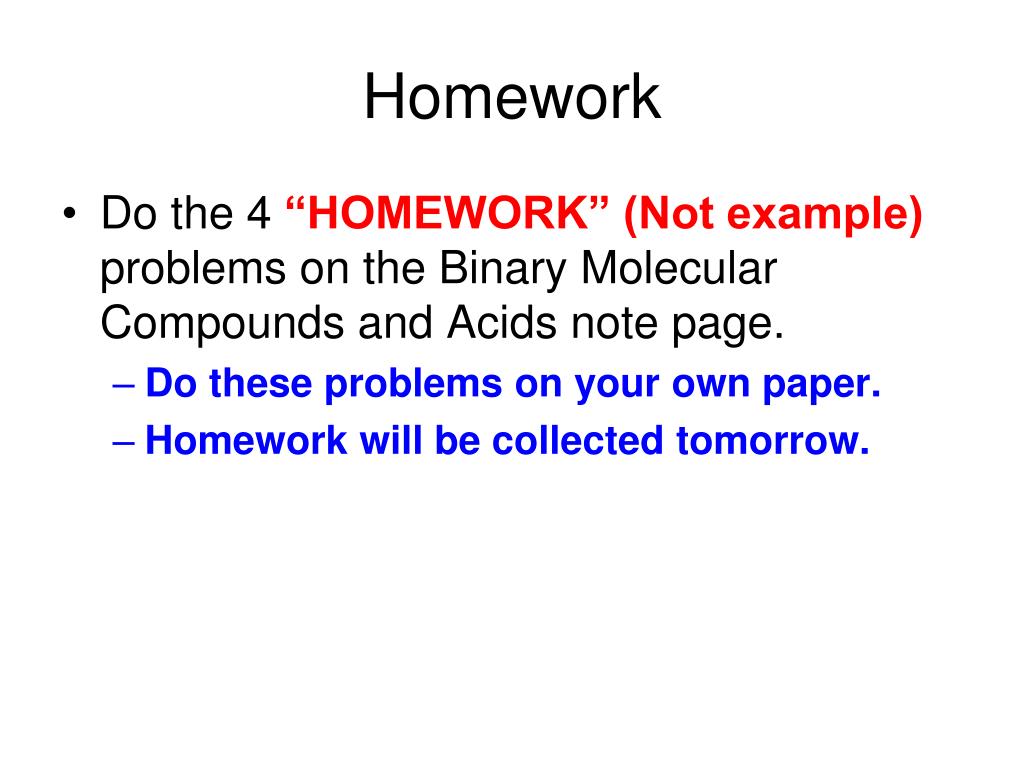

  16. Homework • Do the 4 “HOMEWORK” (Not example) problems on the Binary Molecular Compounds and Acids note page. • Do these problems on your own paper. • Homework will be collected tomorrow.
