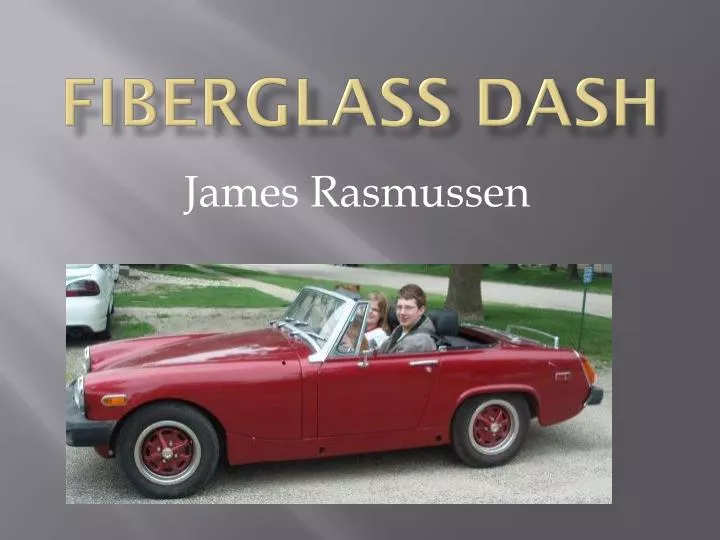

  1. Fiberglass Dash James Rasmussen

  2. Background • Original dash was made from sheet metal, foam, and vinyl • Was too heavy for its purpose • Didn’t offer standard gauge sizes • Didn’t offer any knee room • Wasn’t originally fitted with a stereo • The dash made the electronics on the car hard to work on due to the original removal method of the dash piece

  3. Design goals • Lighten and stiffen the component through the use of composites • Add a single DIN slot • Shorten the dash for more knee room • Incorporate hard points into the core so clamping forces can be applied to the mounts.

  4. Designing the dash • The original dash was measured at critical locations to ensure the top edge and steering column fit correctly • Gauge holes were added in key locations so the strength of the dash was not compromised. • The single DIN slot was placed ergonomically with the front face away from the core to help keep the weight on the core. • Foam models were CNC routered and checked for fitment on the car

  5. Manufacturing the Mold • Once the dash model was correct, a female mold was created in Solidworks, tool paths were created in Mastercam, and a mold was routered out of polyurethane foam • The mold was then coated with resin and sprayed the a polyester primer. • The primer was wet sanded, buffed, and coated with release.

  6. Layup • 7725 modified twill weave fiberglass was used • Conforms nicely around complex surfaces • Strength calculations determined only two layers were needed on each side of the core • Wet layup was used • Thought the resin would set too fast for a RTM • Dry fibers wouldn’t stay in place if bagging was attempted • Complex female mold used a stretch vacuum bag to help reduce wrinkles and make bagging easier

  7. Assembly • Skins and core were CNC routered so layup and assembly time would be reduced • Material was removed from the core to allow aluminum inserts • All four parts were bonded together with a glass bead and resin mix • Edges of the outside skin were trimmed

  8. Testing • Dashes were subjected to a three point bending test • 30 pounds was applied to the part of the fiberglass dash with the least amount of cross-sectional area • Ten pounds was applied to the original dash • The fiberglass dash deflected only .1 inches • The original deflected .1 inches

  9. Final Product • Composite dash was considerably lighter • Improved stiffness • Ergonomic controls • New mounting style eases installation Fiberglass dash Original dash

  10. Possible Design and Manufacturing Changes • A lighter fiberglass or carbon fiber would be used • Aramid paper or aluminum honeycomb would be used instead of blue foam • Molds would have even more draft • Molds would have been sanded to a finer grit and a different release agent would be used • Plastic hard points would be used
