  1. ENCODE Pseudogene CallSummary Mark Gerstein 2005,10.27 11:00 EDT (Draft for G&T call on 2005,10.28 10:00 EDT)

  2. Pseudogene group Core people:Jennifer Harrow <jla1@sanger.ac.uk>, WEI Chia-Lin <weicl@gis.a-star.edu.sg>, Adam Frankish <af2@sanger.ac.uk>, "Dike, Sujit" <Sujit_Dike@affymetrix.com>, Robert Baertsch <baertsch@SOE.UCSC.EDU>, fdenoeud@imim.es, Deyou Zheng <zhengdy@csb.yale.edu>, Yontao Lu <ytlu@SOE.UCSC.EDU> Alexandre.Reymond@medecine.unige.ch, ytlu@SOE.UCSC.EDU Others: "Hoyem, Tara L" <Tara.Hoyem@pnl.gov>, Roderic Guigo Serra <rguigo@imim.es>, "'Gingeras, Tom'“ Tom_Gingeras@affymetrix.com>, thomas.royce@yale.edu, Suganthi Balasubramanian suganthi@csb.yale.edu 6 Calls: Sept. 15, 22; Oct. 6, 13, 20, 27

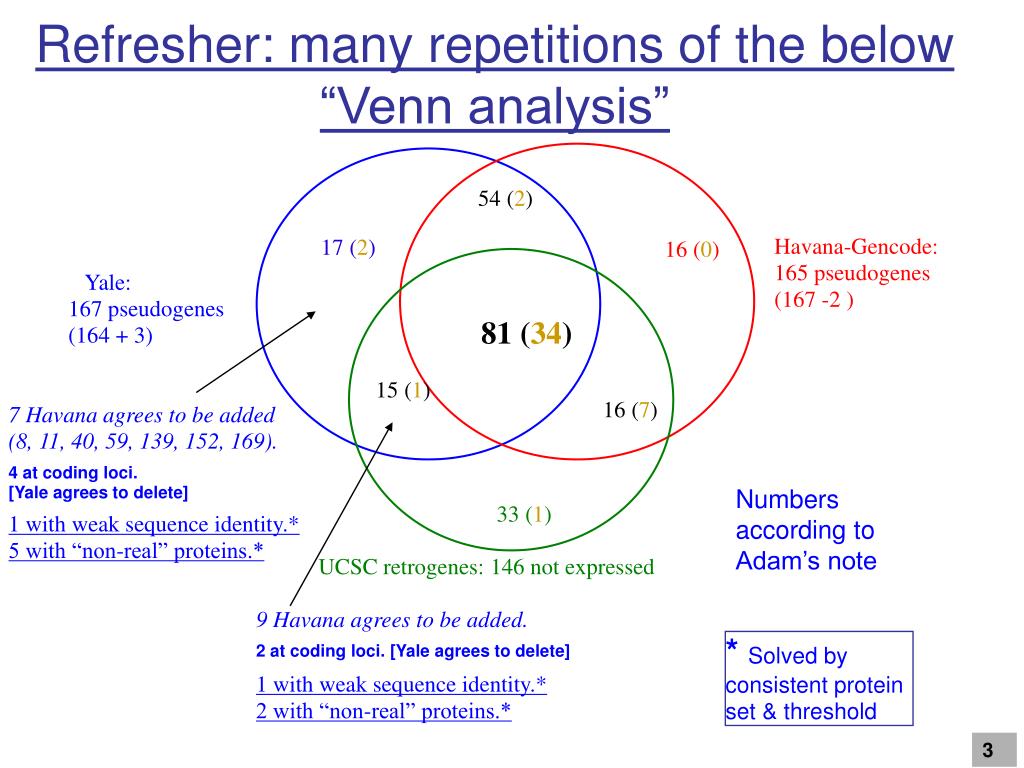

  3. Refresher: many repetitions of the below “Venn analysis” 54 (2) Havana-Gencode:165 pseudogenes (167 -2 ) 17 (2) 16 (0) Yale: 167 pseudogenes (164 + 3) 81 (34) 15 (1) 16 (7) 7 Havana agrees to be added (8, 11, 40, 59, 139, 152, 169). 4 at coding loci. [Yale agrees to delete] 1 with weak sequence identity.* 5 with “non-real” proteins.* Numbers according to Adam’s note 33 (1) UCSC retrogenes: 146 not expressed 9 Havana agrees to be added. 2 at coding loci. [Yale agrees to delete] 1 with weak sequence identity.* 2 with “non-real” proteins.* * Solved by consistent protein set & threshold

  4. A proposal for qualified union with a uniform criteria for boundaries • Identify a “good” set of human proteins – HAVANA set? • Remove pseudogenes (from all 4 groups) overlapping with current GENCODE exons (does GENCODE have an updated version?). • Create an union of the remaining pseudogenes. • Find the “best” matching proteins for each pseudogene, remove entries without a BLAST hit (e-value cutoff issue?). • Realign each pseudogene to its parent protein to produce a uniform alignment and to define the start and end coordinates. • Apply a threshold to sequence identity and coverage? (No.) • Classify pseudogenes into processed and non-processed (how?) Overall 222 pseudogenes Application of above receipe gives 198 Consensus Intersection set of above is 81 (proc) + 49 (non-proc) on browser + encode wiki + http://pseudogene.org/ENCODE From Deyou Z. + Robert B.

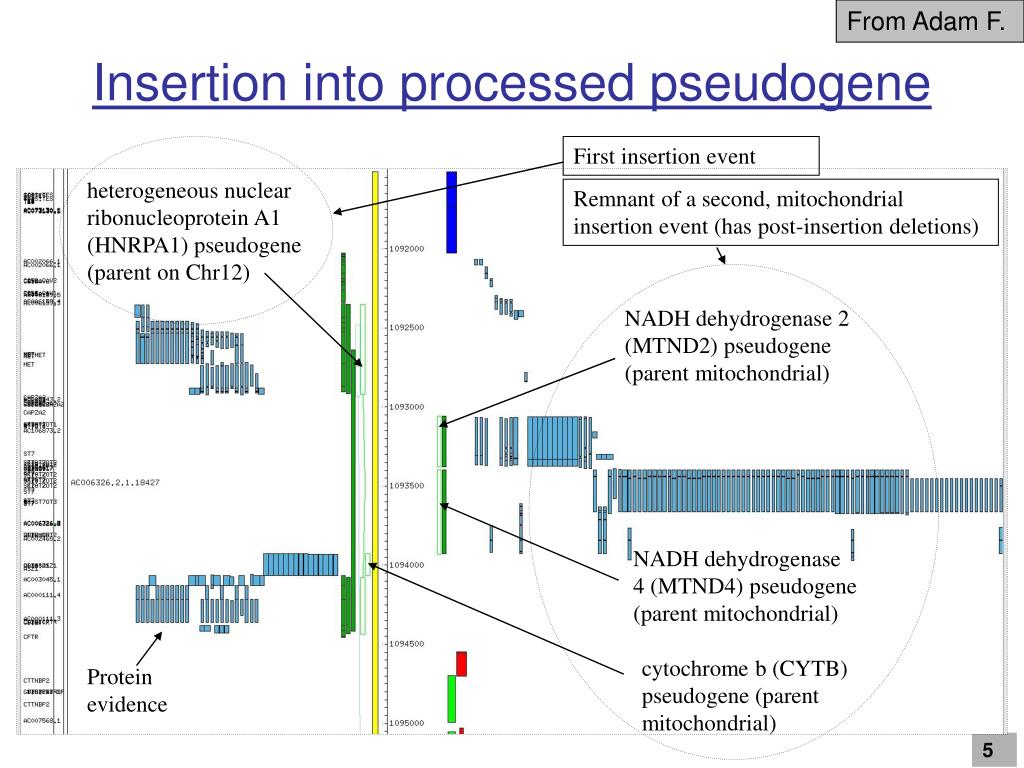

  5. From Adam F. Insertion into processed pseudogene First insertion event heterogeneous nuclear ribonucleoprotein A1 (HNRPA1) pseudogene (parent on Chr12) Remnant of a second, mitochondrial insertion event (has post-insertion deletions) NADH dehydrogenase 2 (MTND2) pseudogene (parent mitochondrial) NADH dehydrogenase 4 (MTND4) pseudogene (parent mitochondrial) cytochrome b (CYTB) pseudogene (parent mitochondrial) Protein evidence

  6. From Adam F. Rearranged exon order in unprocessed pseudogene Dot plot protein evidence vs genome adaptor-related protein complex 1, beta 1 subunit (AP1B1) pseudogenes Protein evidence Exon 6 Exon 3 Splice sites same as parent gene Following duplication of the AP1B1 locus rearrangements/duplications have produced two unprocessed pseudogenes corresponding to exons 6 and 3 of the parent gene

  7. From Adam F. Rearrangement of processed pseudogene mRNA dot plot pseudogene similar to part of ribosomal protein L3 (RPL3) Following insertion, one end of the RPL3 pseudogene has been flipped onto the opposite strand (with some loss of internal sequence) Protein dot plot

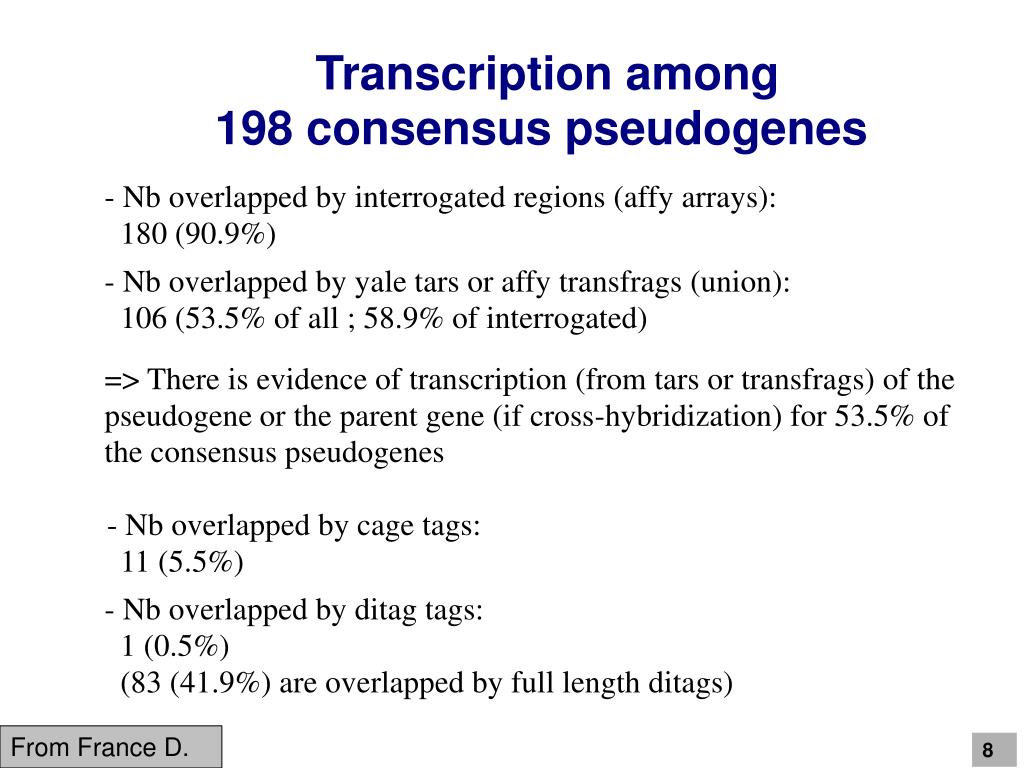

  8. Transcription among 198 consensus pseudogenes - Nb overlapped by interrogated regions (affy arrays): 180 (90.9%) - Nb overlapped by yale tars or affy transfrags (union): 106 (53.5% of all ; 58.9% of interrogated)=> There is evidence of transcription (from tars or transfrags) of the pseudogene or the parent gene (if cross-hybridization) for 53.5% of the consensus pseudogenes - Nb overlapped by cage tags: 11 (5.5%) - Nb overlapped by ditag tags: 1 (0.5%) (83 (41.9%) are overlapped by full length ditags) From France D.

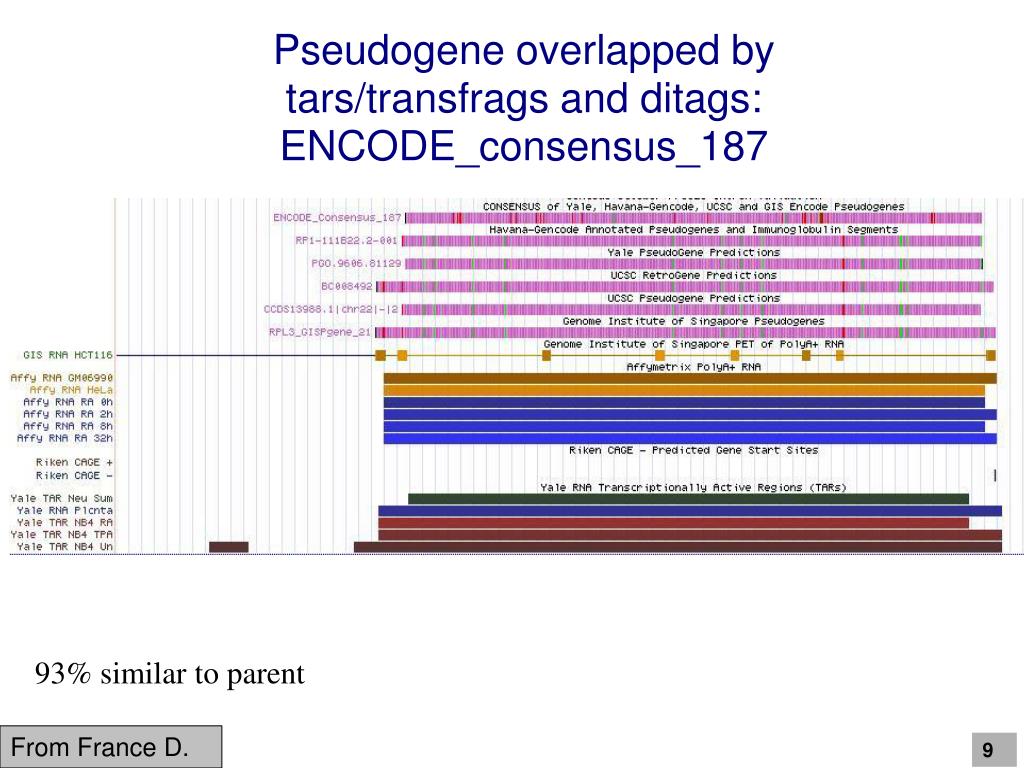

  9. Pseudogene overlapped by tars/transfrags and ditags: ENCODE_consensus_187 93% similar to parent From France D.

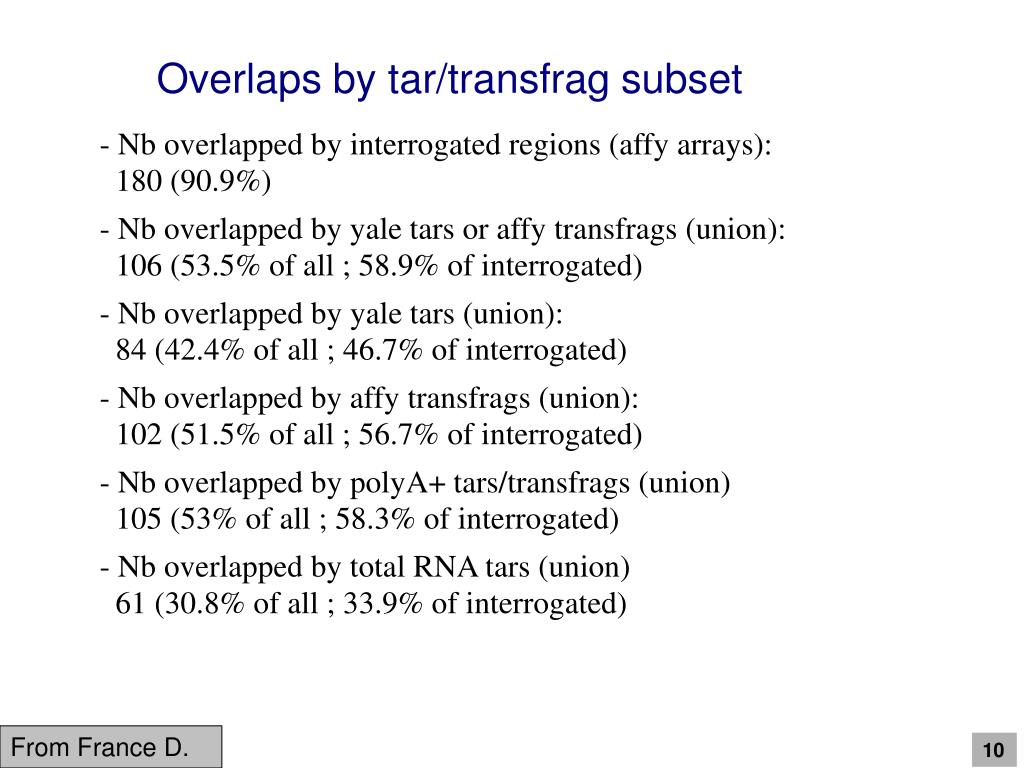

  10. Overlaps by tar/transfrag subset - Nb overlapped by interrogated regions (affy arrays): 180 (90.9%) - Nb overlapped by yale tars or affy transfrags (union): 106 (53.5% of all ; 58.9% of interrogated) - Nb overlapped by yale tars (union): 84 (42.4% of all ; 46.7% of interrogated) - Nb overlapped by affy transfrags (union): 102 (51.5% of all ; 56.7% of interrogated) - Nb overlapped by polyA+ tars/transfrags (union) 105 (53% of all ; 58.3% of interrogated) - Nb overlapped by total RNA tars (union) 61 (30.8% of all ; 33.9% of interrogated) From France D.

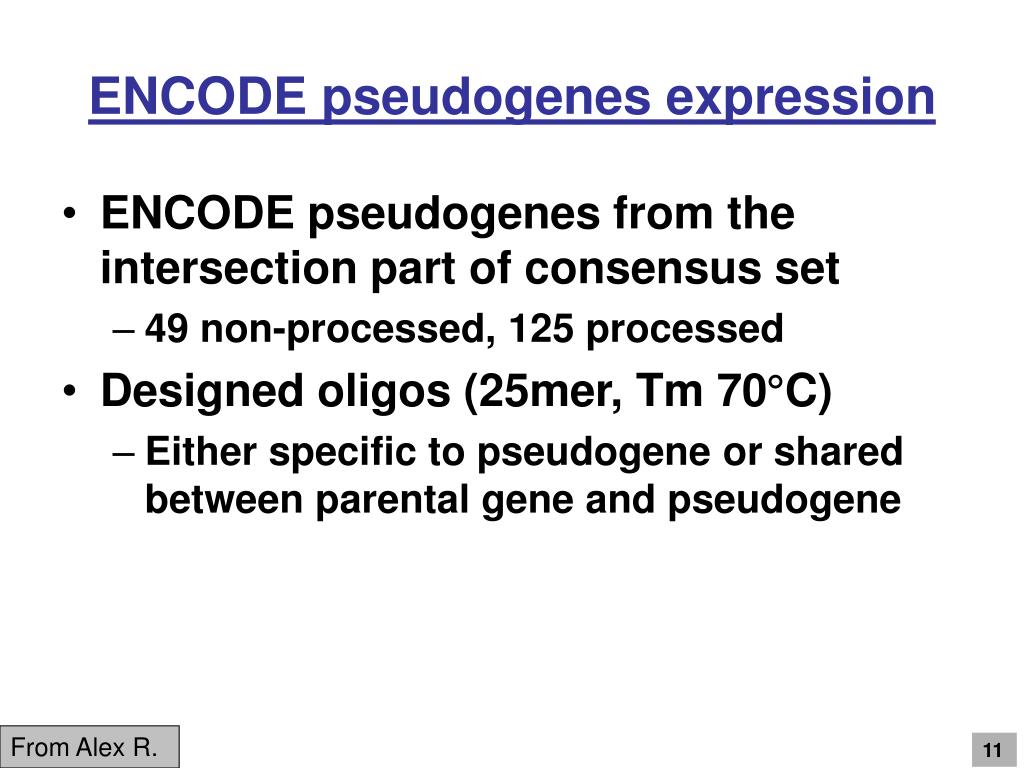

  11. ENCODE pseudogenes expression • ENCODE pseudogenes from the intersection part of consensus set • 49 non-processed, 125 processed • Designed oligos (25mer, Tm 70°C) • Either specific to pseudogene or shared between parental gene and pseudogene From Alex R.

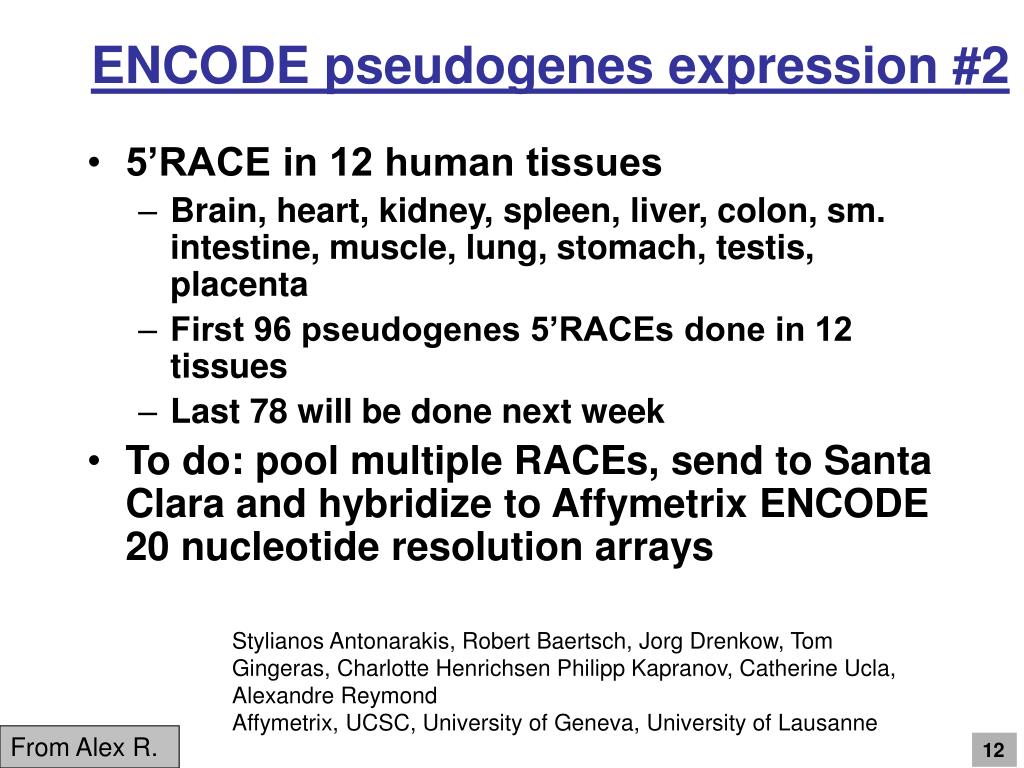

  12. ENCODE pseudogenes expression #2 • 5’RACE in 12 human tissues • Brain, heart, kidney, spleen, liver, colon, sm. intestine, muscle, lung, stomach, testis, placenta • First 96 pseudogenes 5’RACEs done in 12 tissues • Last 78 will be done next week • To do: pool multiple RACEs, send to Santa Clara and hybridize to Affymetrix ENCODE 20 nucleotide resolution arrays Stylianos Antonarakis, Robert Baertsch, Jorg Drenkow, Tom Gingeras, Charlotte Henrichsen Philipp Kapranov, Catherine Ucla, Alexandre Reymond Affymetrix, UCSC, University of Geneva, University of Lausanne From Alex R.

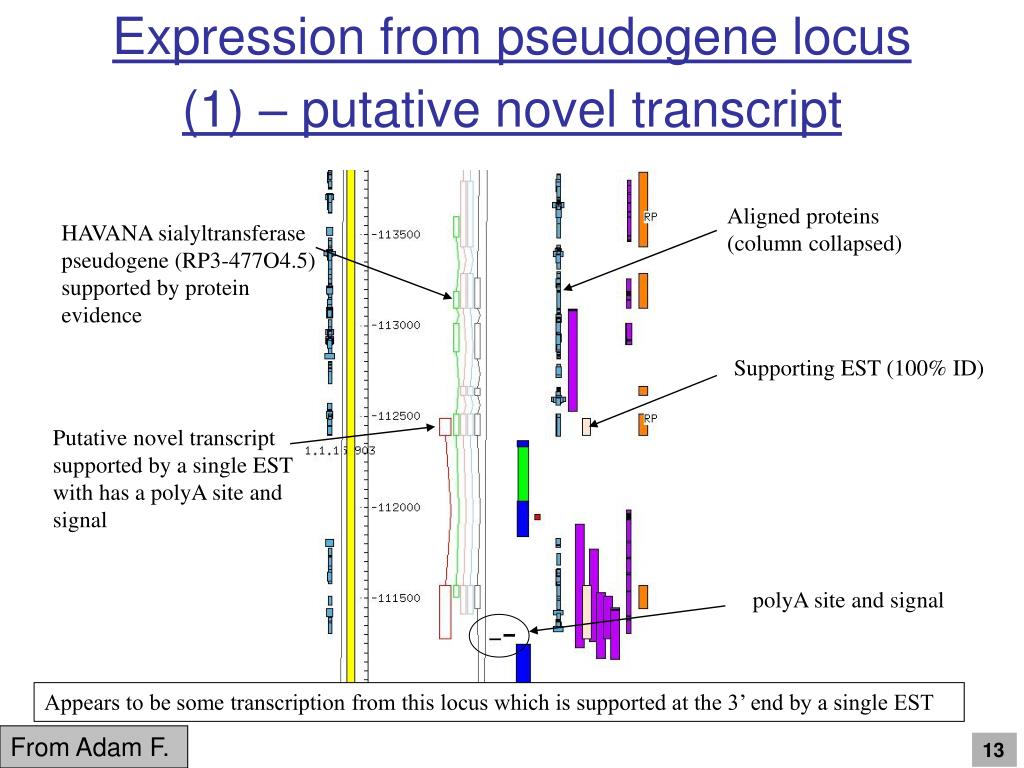

  13. Expression from pseudogene locus (1) – putative novel transcript Aligned proteins (column collapsed) HAVANA sialyltransferase pseudogene (RP3-477O4.5) supported by protein evidence Supporting EST (100% ID) Putative novel transcript supported by a single EST with has a polyA site and signal polyA site and signal Appears to be some transcription from this locus which is supported at the 3’ end by a single EST From Adam F.

  14. Expression from pseudogene locus (2) – 5’ UTR of known gene From Adam F. LILR pseudogene Frameshift Upstream pseudogene corresponds to exons 1-3 of LILR family genes, 3’ exons have been lost. EST evidence supports expression from the pseudogene locus extending to known gene LILRA3. LILRA3

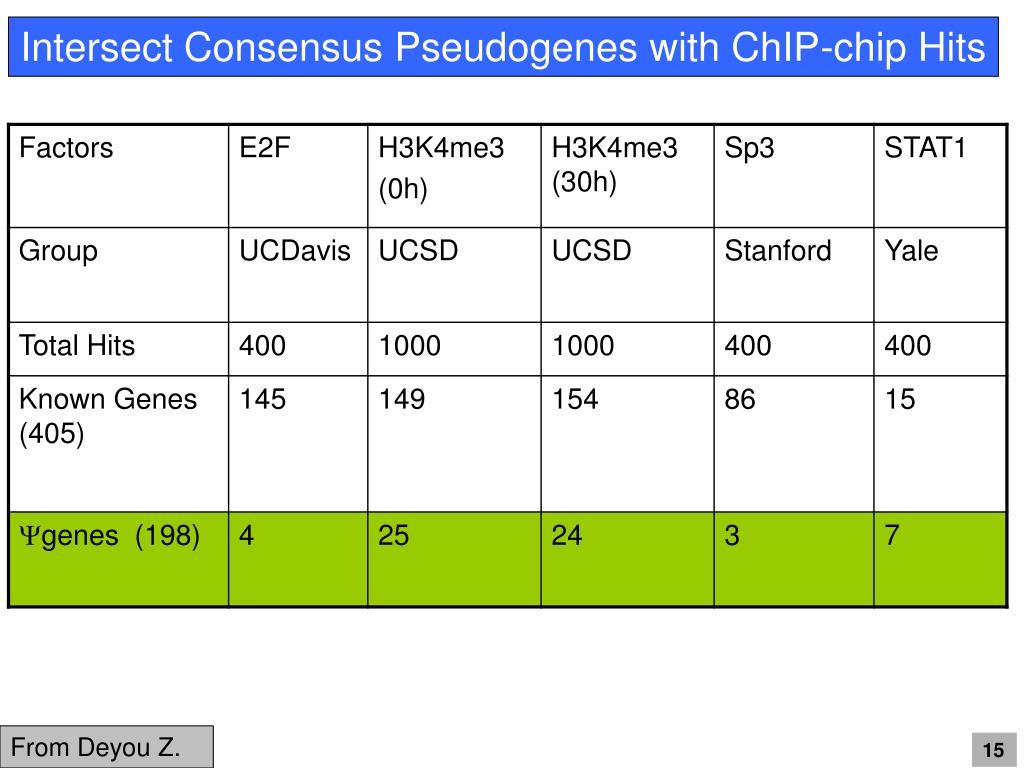

  15. Intersect Consensus Pseudogenes with ChIP-chip Hits From Deyou Z.

  16. Consensus Pseudogenes with ≥2 ChIP-chip Hits Has Trans-criptional Evidence (intersects Gencode transcript) From Deyou Z.

  17. Example Pseudogene with Binding Hits (#177) From Deyou Z.
