  1. CC e+p Analysis Status Robert Ciesielski (DESY) • Introduction • Event selection • Control plots • Summary and Outlook High-Q2 Group Meeting 30/05/2007

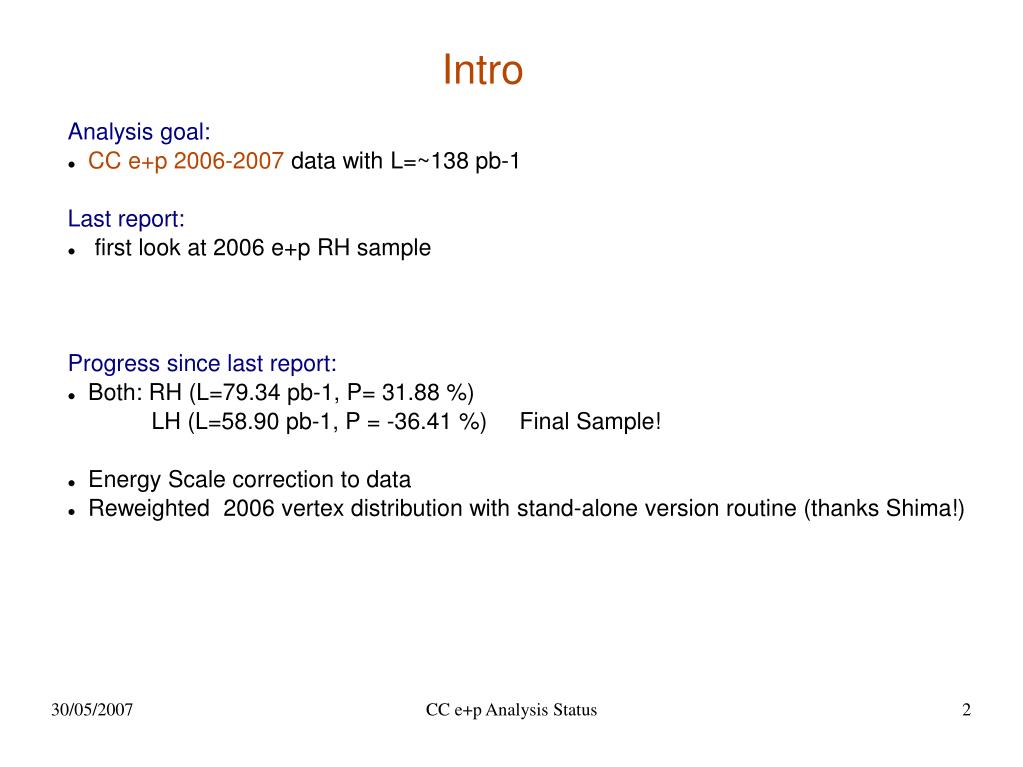

  2. Intro • Analysis goal: • CC e+p 2006-2007 data with L=~138 pb-1 • Last report: • first look at 2006 e+p RH sample • Progress since last report: • Both: RH (L=79.34 pb-1, P= 31.88 %) • LH (L=58.90 pb-1, P = -36.41 %) Final Sample! • Energy Scale correction to data • Reweighted 2006 vertex distribution with stand-alone version routine (thanks Shima!) CC e+p Analysis Status

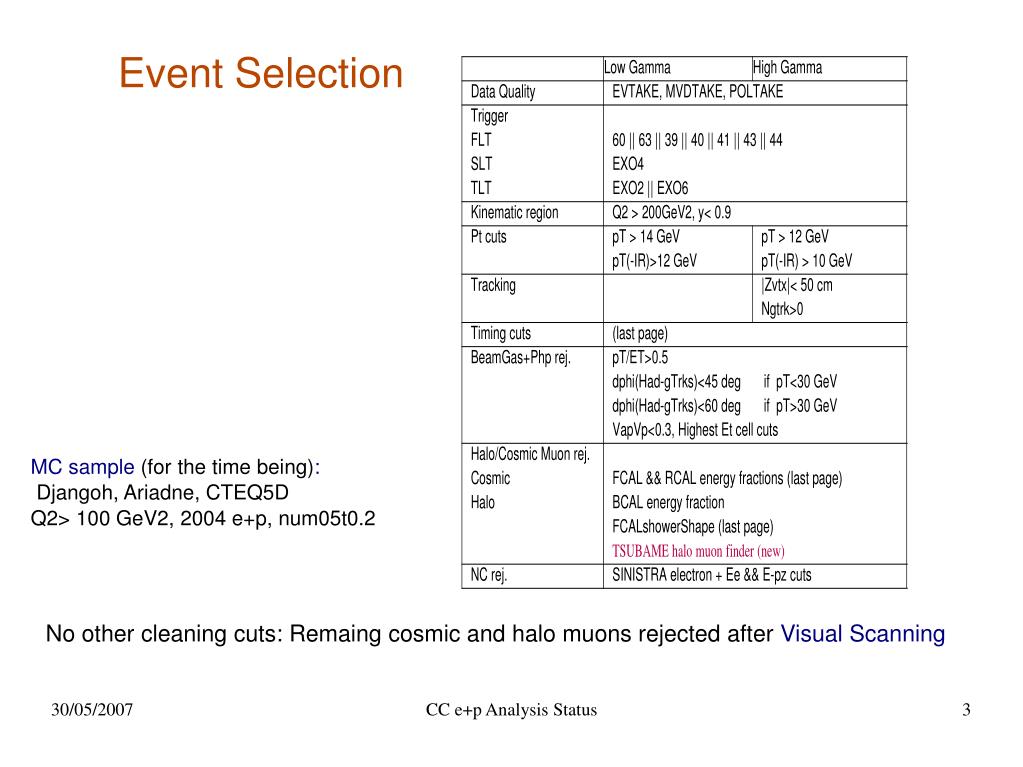

  3. Event Selection MC sample (for the time being): Djangoh, Ariadne, CTEQ5D Q2> 100 GeV2, 2004 e+p, num05t0.2 No other cleaning cuts: Remaing cosmic and halo muons rejected after Visual Scanning CC e+p Analysis Status

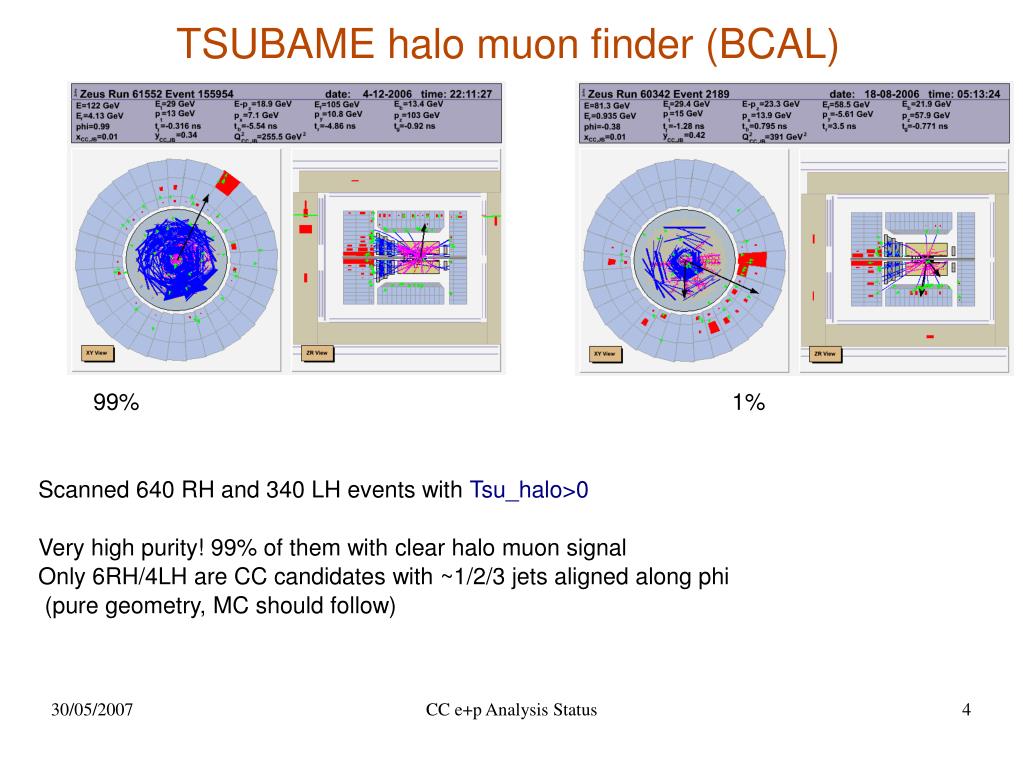

  4. TSUBAME halo muon finder (BCAL) 99% 1% Scanned 640 RH and 340 LH events with Tsu_halo>0 Very high purity! 99% of them with clear halo muon signal Only 6RH/4LH are CC candidates with ~1/2/3 jets aligned along phi (pure geometry, MC should follow) CC e+p Analysis Status

  5. Event Scanning (reject cosmic/halo) CC e+p Analysis Status

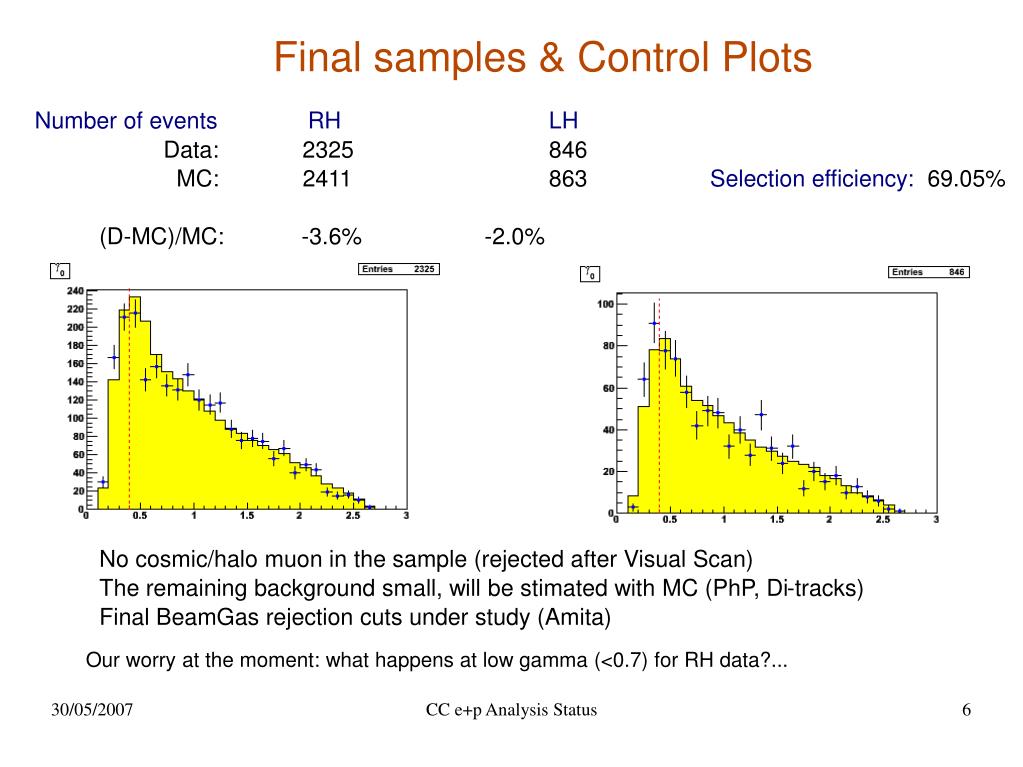

  6. Final samples & Control Plots Number of events RH LH Data: 2325 846 MC: 2411 863 Selection efficiency: 69.05% (D-MC)/MC: -3.6% -2.0% No cosmic/halo muon in the sample (rejected after Visual Scan) The remaining background small, will be stimated with MC (PhP, Di-tracks) Final BeamGas rejection cuts under study (Amita) Our worry at the moment: what happens at low gamma (<0.7) for RH data?... CC e+p Analysis Status

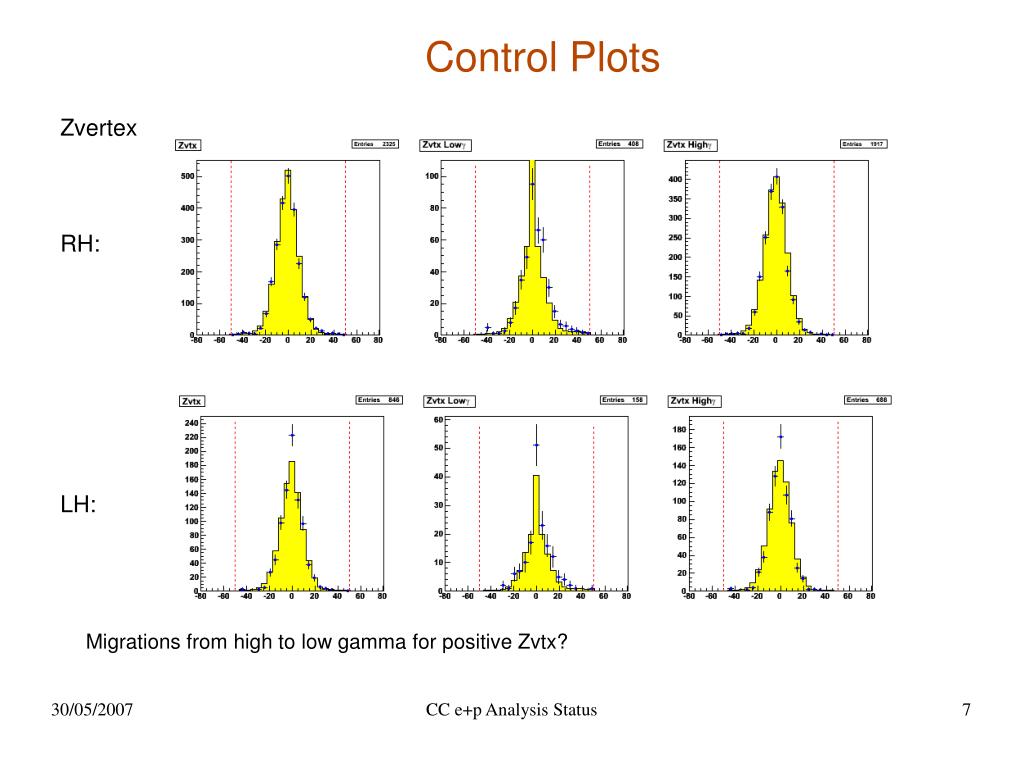

  7. Control Plots Zvertex RH: LH: Migrations from high to low gamma for positive Zvtx? CC e+p Analysis Status

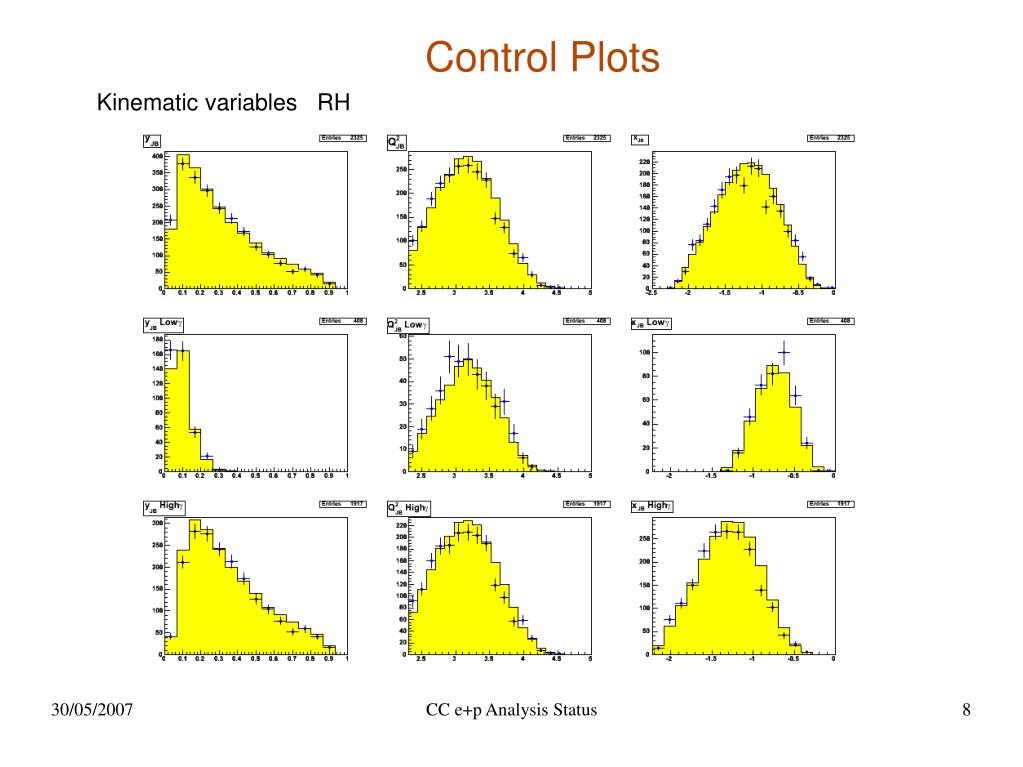

  8. Control Plots Kinematic variables RH CC e+p Analysis Status

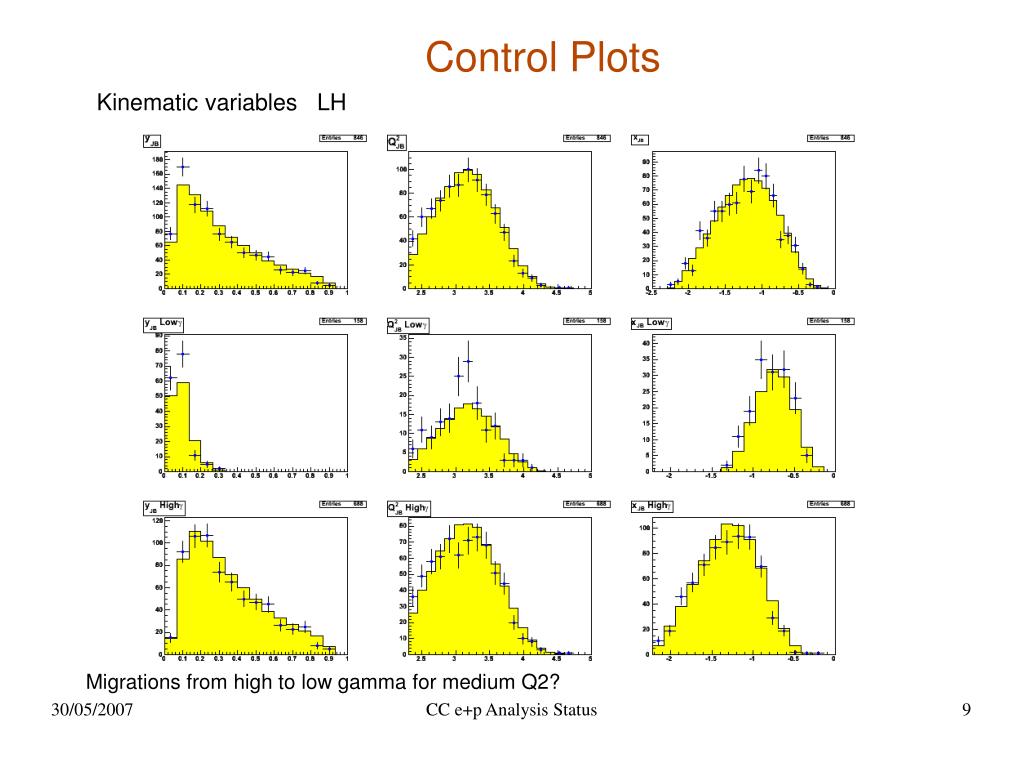

  9. Control Plots Kinematic variables LH Migrations from high to low gamma for medium Q2? CC e+p Analysis Status

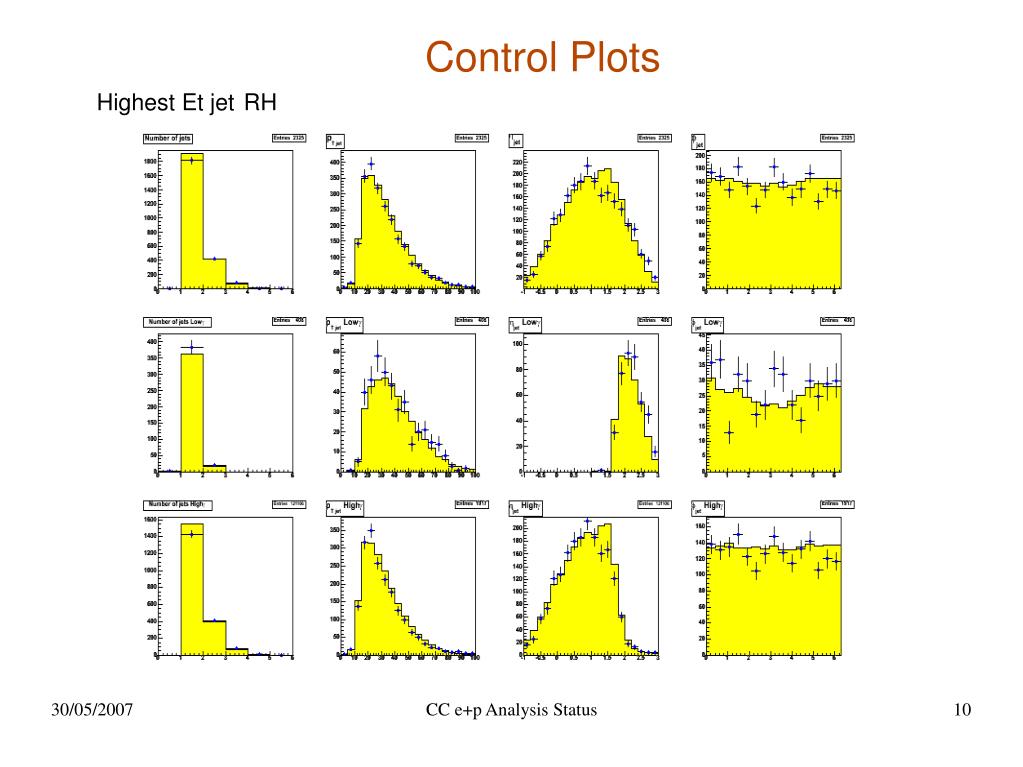

  10. Control Plots Highest Et jet RH CC e+p Analysis Status

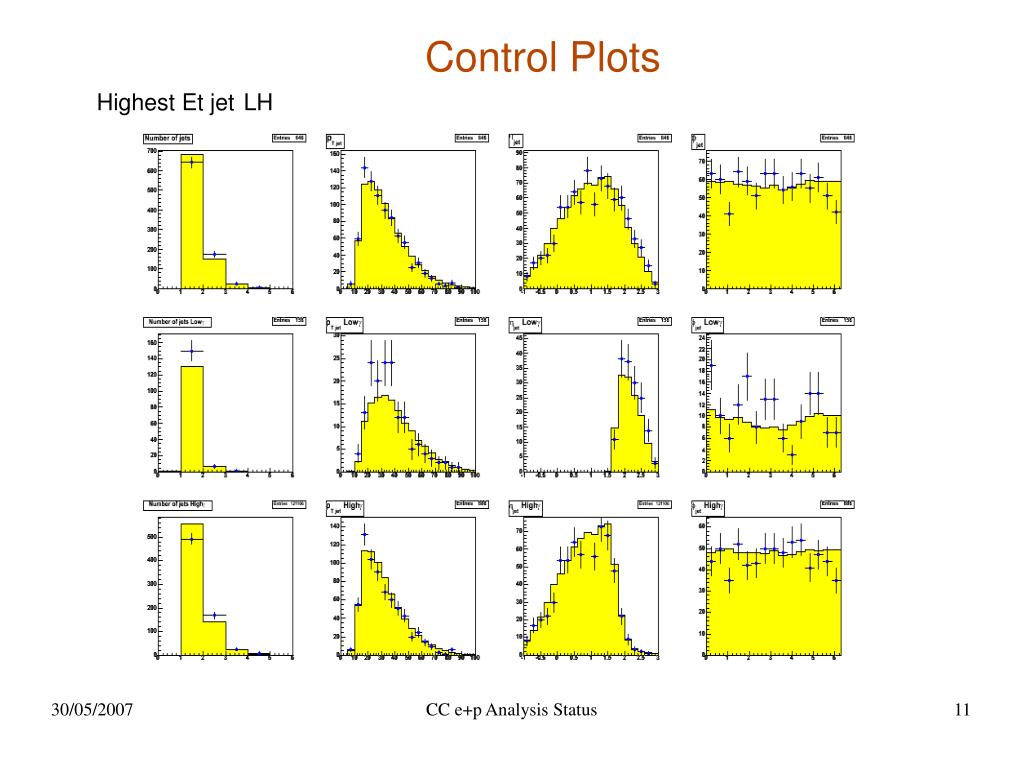

  11. Control Plots Highest Et jet LH CC e+p Analysis Status

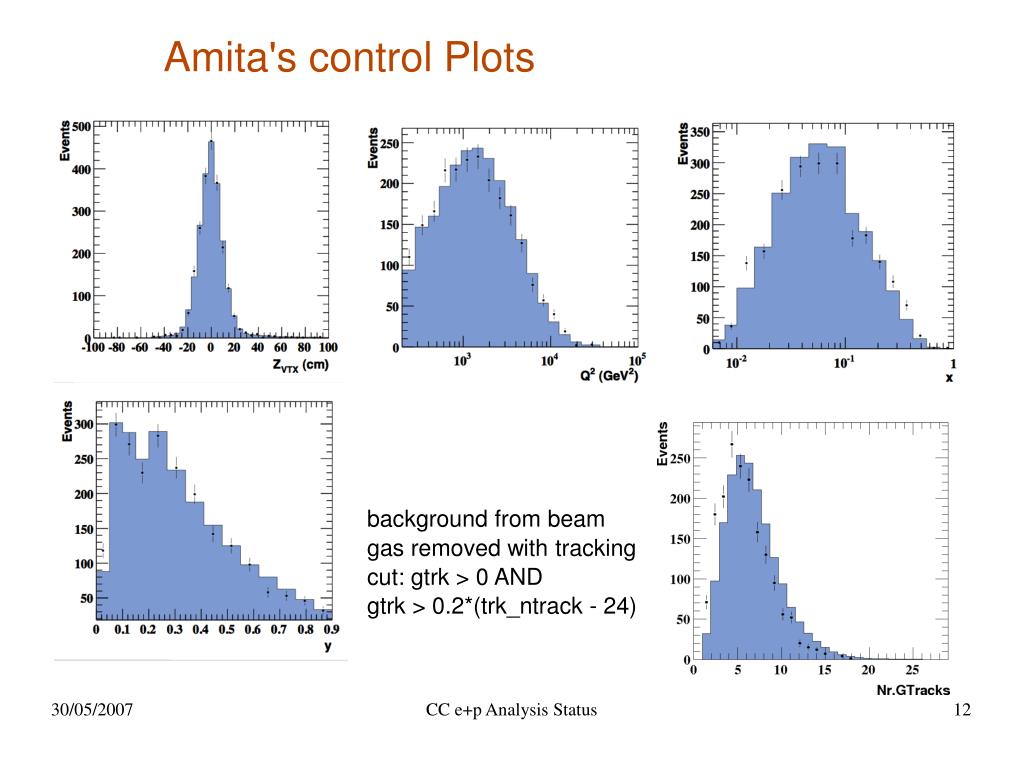

  12. Amita's control Plots background from beam gas removed with tracking cut: gtrk > 0 AND gtrk > 0.2*(trk_ntrack - 24) CC e+p Analysis Status

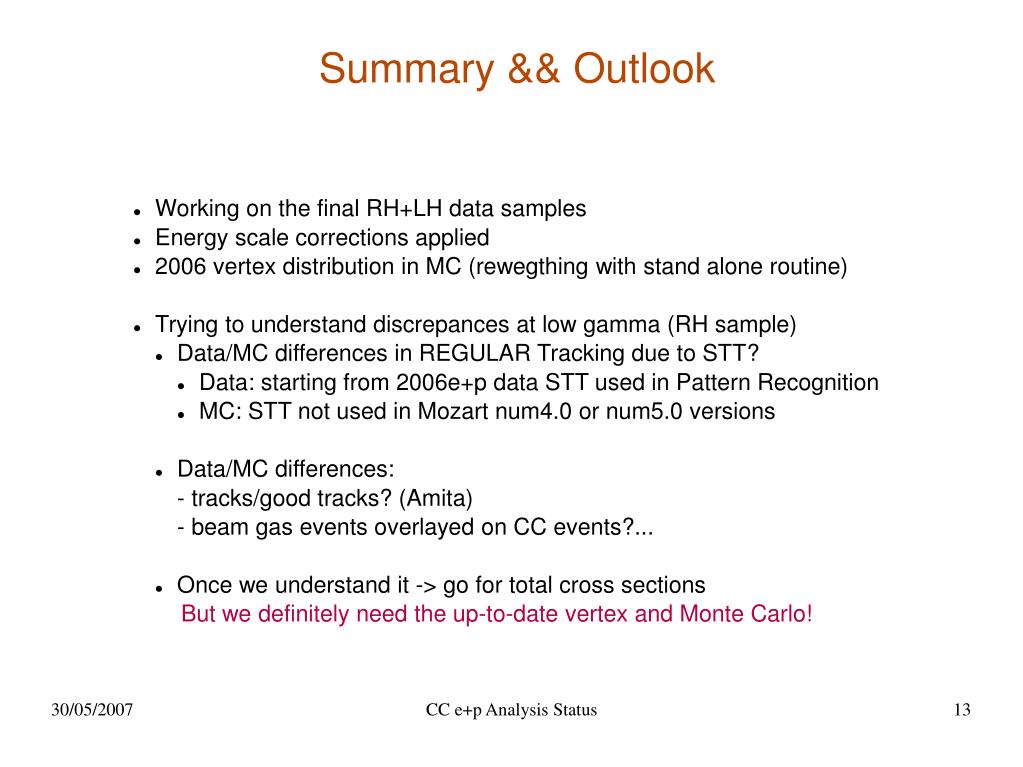

  13. Summary && Outlook • Working on the final RH+LH data samples • Energy scale corrections applied • 2006 vertex distribution in MC (rewegthing with stand alone routine) • Trying to understand discrepances at low gamma (RH sample) • Data/MC differences in REGULAR Tracking due to STT? • Data: starting from 2006e+p data STT used in Pattern Recognition • MC: STT not used in Mozart num4.0 or num5.0 versions • Data/MC differences: • - tracks/good tracks? (Amita) • - beam gas events overlayed on CC events?... • Once we understand it -> go for total cross sections • But we definitely need the up-to-date vertex and Monte Carlo! CC e+p Analysis Status

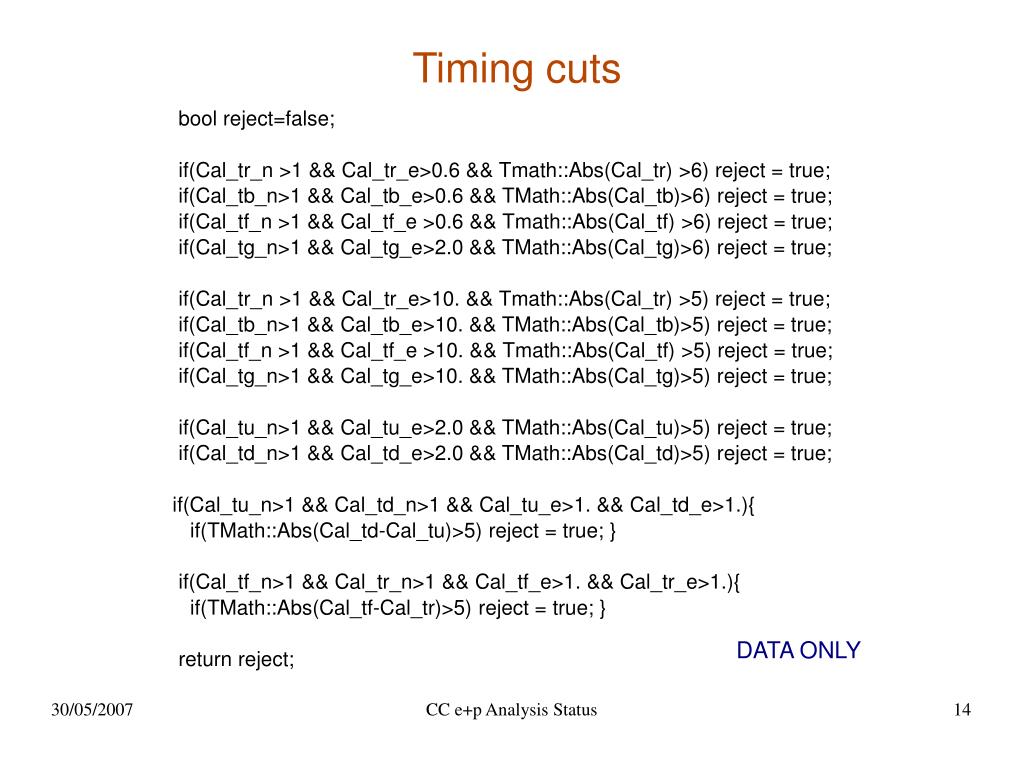

  14. Timing cuts bool reject=false; if(Cal_tr_n >1 && Cal_tr_e>0.6 && Tmath::Abs(Cal_tr) >6) reject = true; if(Cal_tb_n>1 && Cal_tb_e>0.6 && TMath::Abs(Cal_tb)>6) reject = true; if(Cal_tf_n >1 && Cal_tf_e >0.6 && Tmath::Abs(Cal_tf) >6) reject = true; if(Cal_tg_n>1 && Cal_tg_e>2.0 && TMath::Abs(Cal_tg)>6) reject = true; if(Cal_tr_n >1 && Cal_tr_e>10. && Tmath::Abs(Cal_tr) >5) reject = true; if(Cal_tb_n>1 && Cal_tb_e>10. && TMath::Abs(Cal_tb)>5) reject = true; if(Cal_tf_n >1 && Cal_tf_e >10. && Tmath::Abs(Cal_tf) >5) reject = true; if(Cal_tg_n>1 && Cal_tg_e>10. && TMath::Abs(Cal_tg)>5) reject = true; if(Cal_tu_n>1 && Cal_tu_e>2.0 && TMath::Abs(Cal_tu)>5) reject = true; if(Cal_td_n>1 && Cal_td_e>2.0 && TMath::Abs(Cal_td)>5) reject = true; if(Cal_tu_n>1 && Cal_td_n>1 && Cal_tu_e>1. && Cal_td_e>1.){ if(TMath::Abs(Cal_td-Cal_tu)>5) reject = true; } if(Cal_tf_n>1 && Cal_tr_n>1 && Cal_tf_e>1. && Cal_tr_e>1.){ if(TMath::Abs(Cal_tf-Cal_tr)>5) reject = true; } return reject; DATA ONLY CC e+p Analysis Status

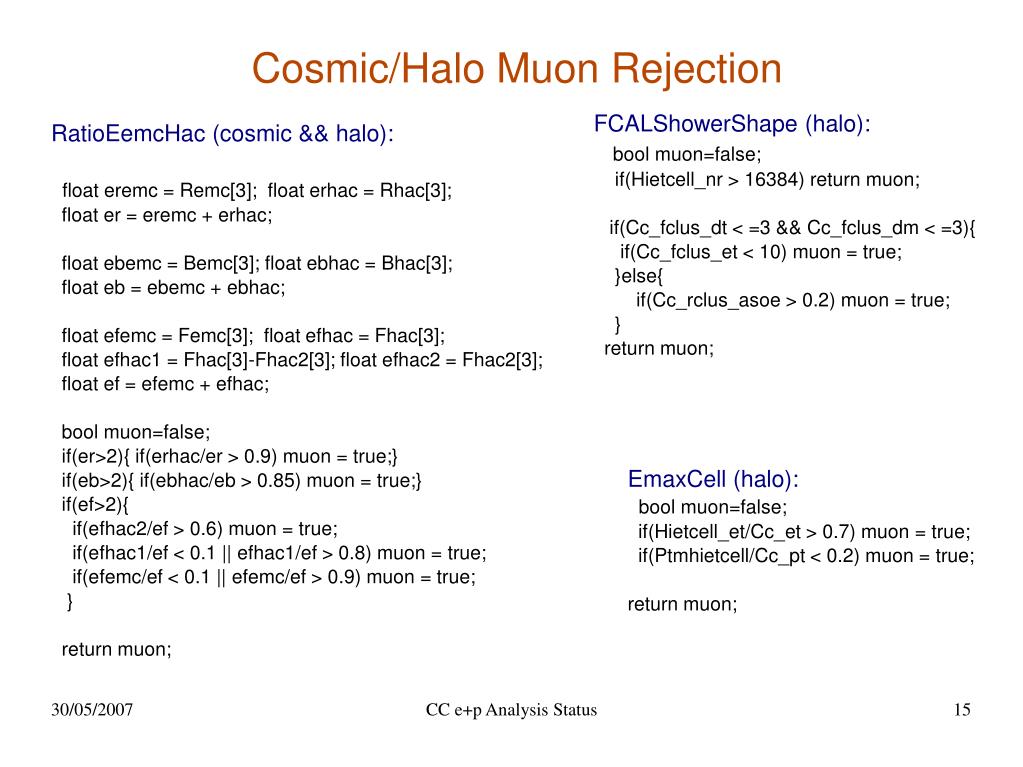

  15. Cosmic/Halo Muon Rejection FCALShowerShape (halo): bool muon=false; if(Hietcell_nr > 16384) return muon; if(Cc_fclus_dt < =3 && Cc_fclus_dm < =3){ if(Cc_fclus_et < 10) muon = true; }else{ if(Cc_rclus_asoe > 0.2) muon = true; } return muon; RatioEemcHac (cosmic && halo): float eremc = Remc[3]; float erhac = Rhac[3]; float er = eremc + erhac; float ebemc = Bemc[3]; float ebhac = Bhac[3]; float eb = ebemc + ebhac; float efemc = Femc[3]; float efhac = Fhac[3]; float efhac1 = Fhac[3]-Fhac2[3]; float efhac2 = Fhac2[3]; float ef = efemc + efhac; bool muon=false; if(er>2){ if(erhac/er > 0.9) muon = true;} if(eb>2){ if(ebhac/eb > 0.85) muon = true;} if(ef>2){ if(efhac2/ef > 0.6) muon = true; if(efhac1/ef < 0.1 || efhac1/ef > 0.8) muon = true; if(efemc/ef < 0.1 || efemc/ef > 0.9) muon = true; } return muon; EmaxCell (halo): bool muon=false; if(Hietcell_et/Cc_et > 0.7) muon = true; if(Ptmhietcell/Cc_pt < 0.2) muon = true; return muon; CC e+p Analysis Status
