Understanding Longitude & Latitude

1. Understanding Longitude & Latitude

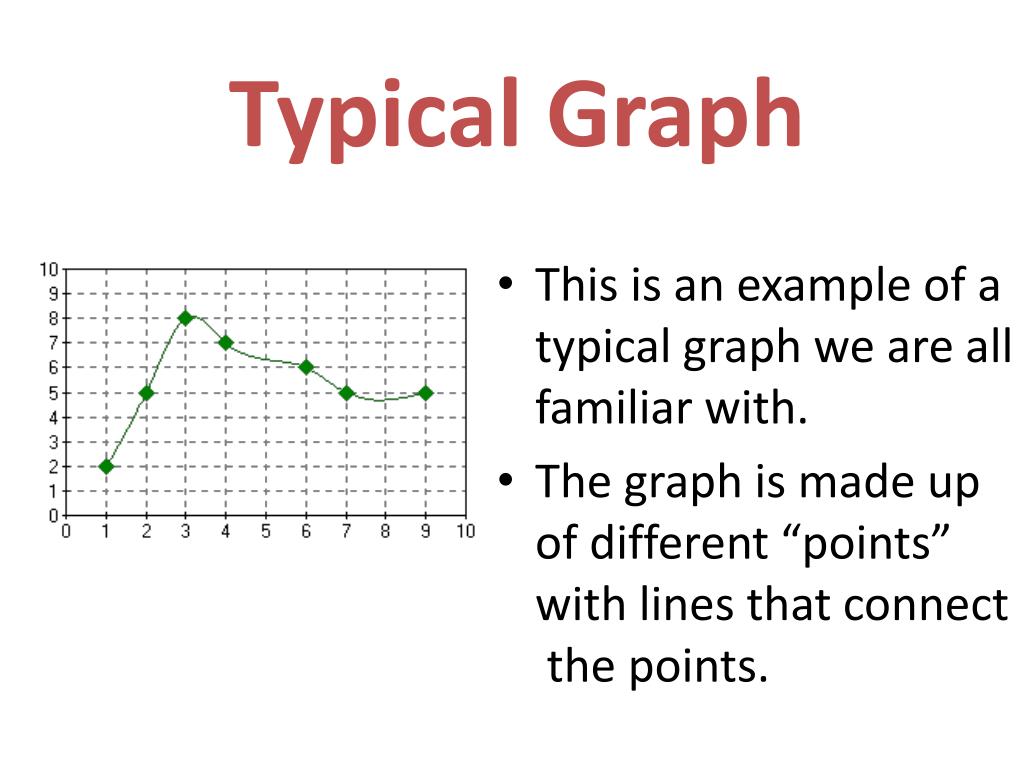

2. Typical Graph • This is an example of a typical graph we are all familiar with. • The graph is made up of different “points” with lines that connect the points.

3. Typical Graph Y axis • Each point has two values: • The “X” value that runs along thehorizontal “X” axis. • The “Y” value that runs along the vertical “Y” axis X axis

4. Typical Graph • X value is always stated first • Followed by the Y value • The “origin” is the point wherethe 2 axes intersect with a value of (0,0) Y (3,8) (9,5) X (0,0)

5. Typical Graph • A point can also have negative (-) values • Negative X values are to the left of the origin (0,0) • Negative Y values are below the origin Y (-X,+Y) (+X,+Y) (0,0) X (-X,-Y) (+X,-Y)

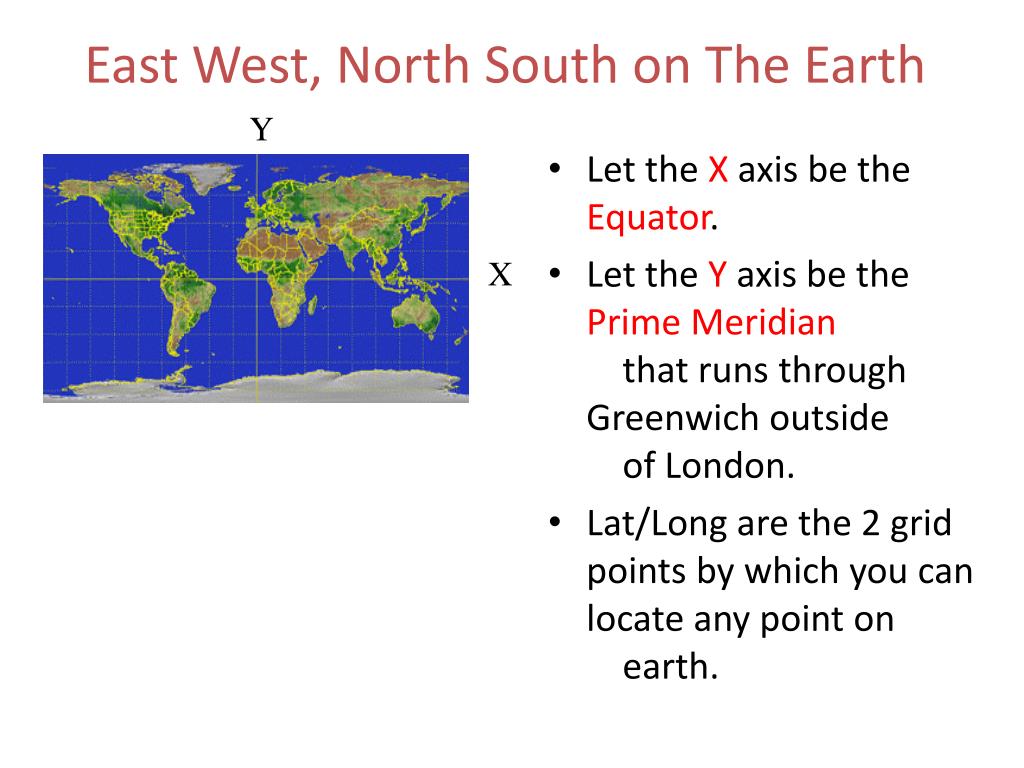

6. East West, North South on The Earth Y • Let the X axis be the Equator. • Let the Y axis be the Prime Meridian that runs through Greenwich outside of London. • Lat/Long are the 2 grid points bywhich you can locate any point on earth. X

7. East West, North South on the Earth N • Let each of the four quarters then be designated by North or South and East or West. W E S

8. East West, North South on the Earth • The N tells us we’re north of the Equator. The S tells us we’re south of the Equator. • The E tells us that we’re east of the Prime Meridian. The W tells us that we’re west of the Prime Meridian. (N, W) (N, E) (S, W) (S, E)

9. East West, North South on the Earth • That means all points in North America will have a North latitude and a West longitude because it is North of the Equator and West of the Prime Meridian. (N, W) Prime Meridian

10. East West, North South on the Earth • What would be the latitude and longitude directions in Australia? ? Prime Meridian If you said South and East , you’re right!

11. Latitude Memory Hint: “Like the rungs of a ladder”

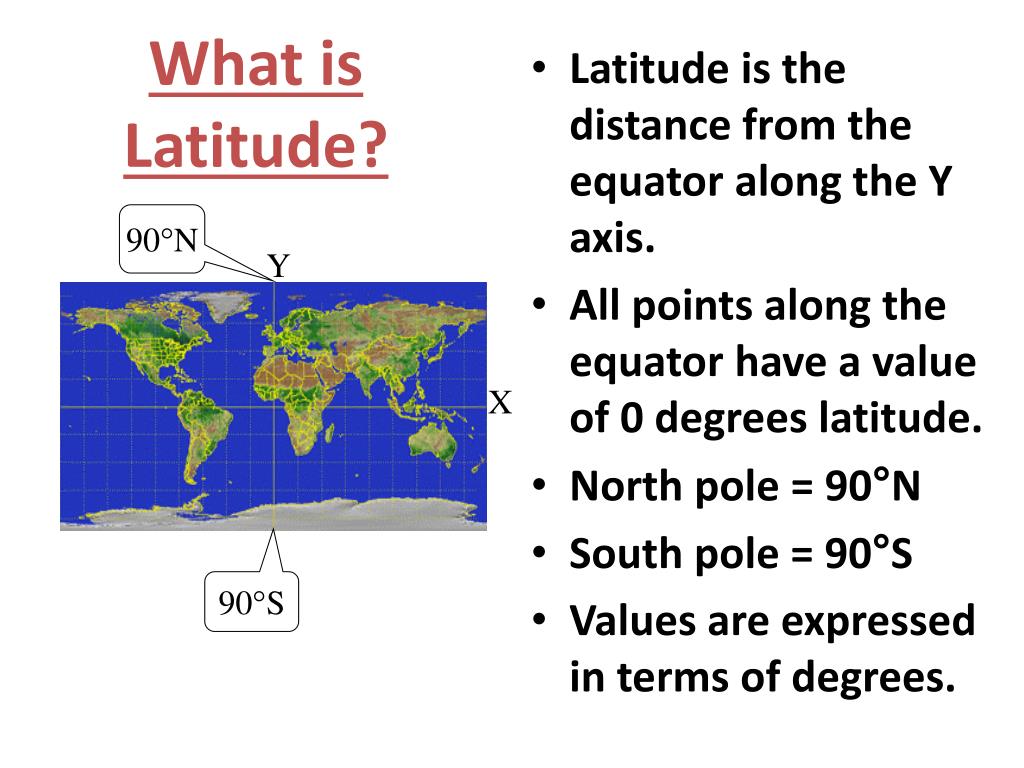

12. What is Latitude? • Latitude is the distance from the equator along the Y axis. • All points along the equator have a value of 0 degrees latitude. • North pole = 90°N • South pole = 90°S • Values are expressed in terms of degrees. 90°N Y X 90°S

13. What is Latitude?Continued… • Each degree of latitude is divided into 60 minutes. • Each minute is divided into 60 seconds. 90°N Y X 90°S ***This is also true of longitude.

14. What is Latitude? Continued… • For Example: • 37°, 02’,51’’N • This is close to the latitude where you live. 90°N Y X 90°S

15. Longitude Memory Hint: Think of “long” pants legs.

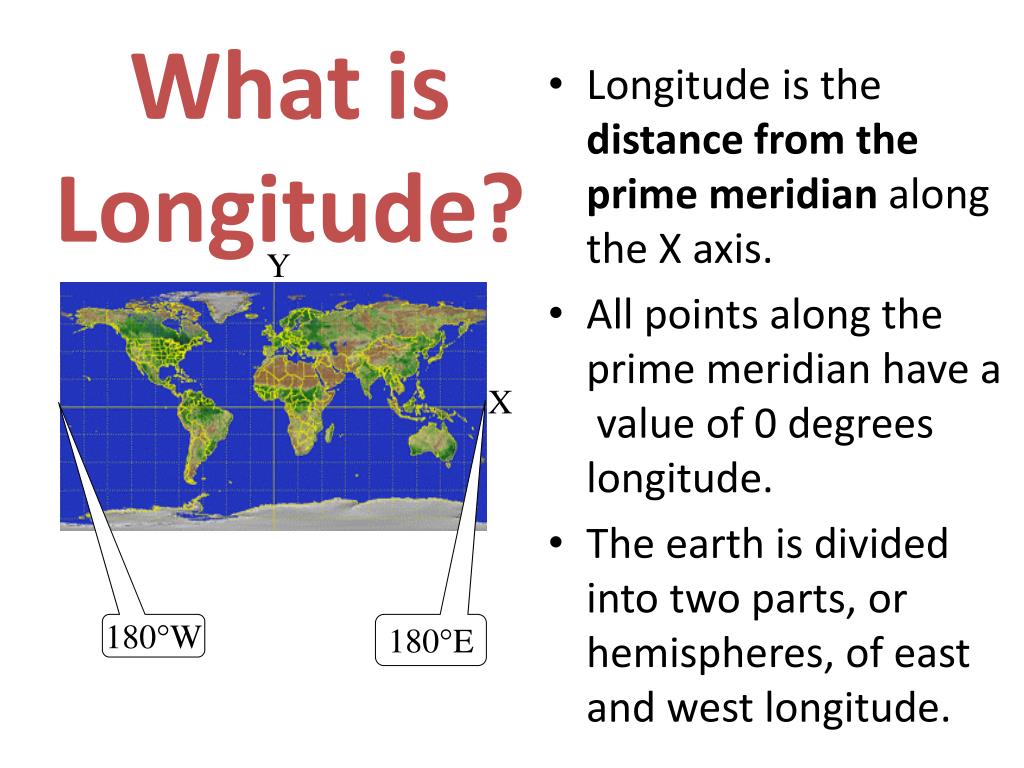

16. What is Longitude? • Longitude is the distance from the prime meridian along the X axis. • All points along the prime meridian have avalue of 0 degrees longitude. • The earth is divided into two parts, or hemispheres, of east and west longitude. Y X 180°W 180°E

17. What is Longitude?Continued… • The earth is divided into 360 equal slices (meridians) • 180 west and 180 east of the prime meridian Y X 180°W 180°E

18. So Where is (0,0)? • The origin point (0,0) is where the equator intersects the prime meridian. • (0,0) is off the western coast of Africa in the Atlantic Ocean.

20. B A C D

21. See if you can find those same latitude/longitude locations on a map!

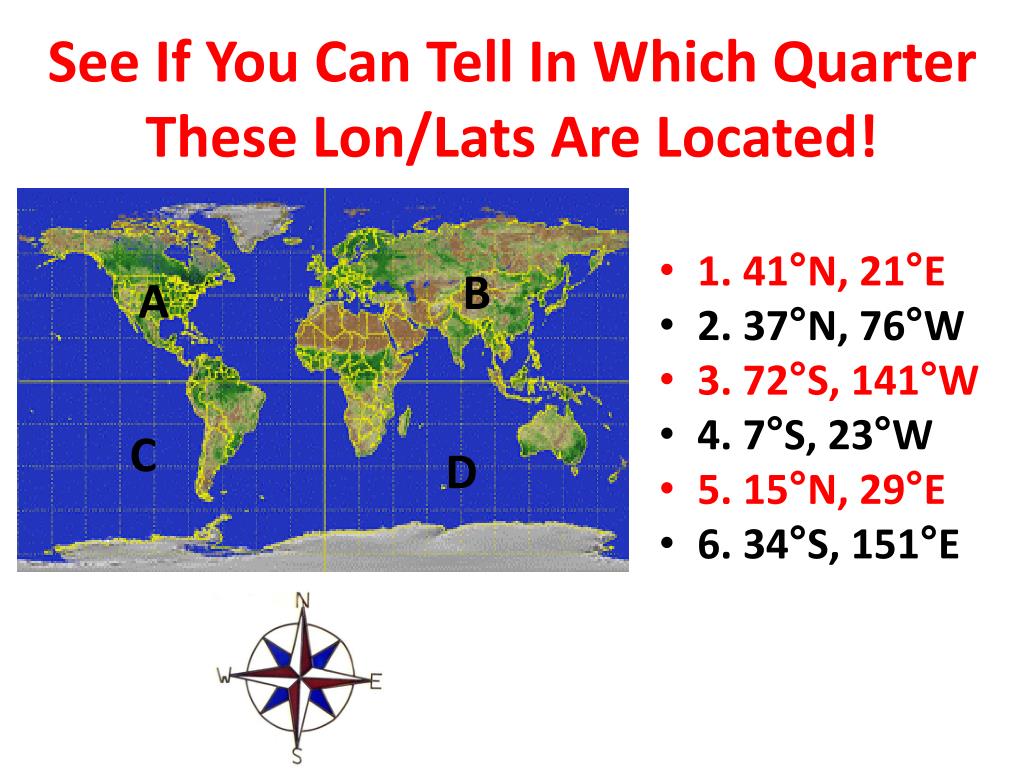

22. See If You Can Tell In Which Quarter These Lon/Lats Are Located! • 1. 41°N, 21°E • 2. 37°N, 76°W • 3. 72°S, 141°W • 4. 7°S, 23°W • 5. 15°N, 29°E • 6. 34°S, 151°E B A C D

23. Let's See How You Did! • 1. B • 2. A • 3. C • 4. C • 5. B • 6. D

24. In Summary!

25. East is the direction of rotation of the Earth Latitude: (90oN to 90oS) Longitude: (180oE to 180oW) Prime Meridian 0o Longitude Tropic of Cancer Latitude 23½o North 21st June 66½o 90oE 60oE 30oW 30oE 60oW 90oW 23½o 90o 22nd Sept 20th March North Pole Equator Latitude 0o 23½o 900 22nd December Tropic of Capricorn Latitude 23½o South Longitude 90o West Longitude 90oEast Longitude 60o West Longitude 60o East Longitude 30o West Longitude 30o East South Pole Positioning on the Earth’s Surface Latitude and Longitude together enable the fixing of position on the Earth’s surface.

26. Now you’re ready to find some locations on a map!
