  1. Musical Carpet ENSC 440 project

  2. Team Danny Jiang Anthony Tsang Payam Norouzi Anton Ayzikovsky Software Division: Hardware Department:

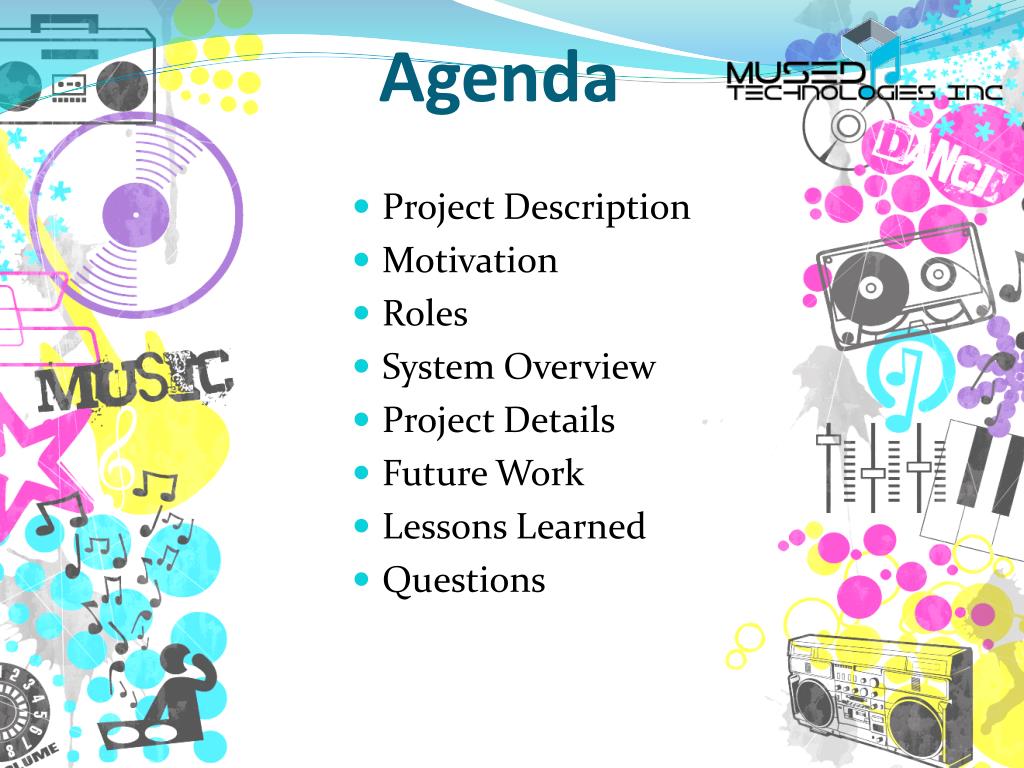

  3. Agenda • Project Description • Motivation • Roles • System Overview • Project Details • Future Work • Lessons Learned • Questions

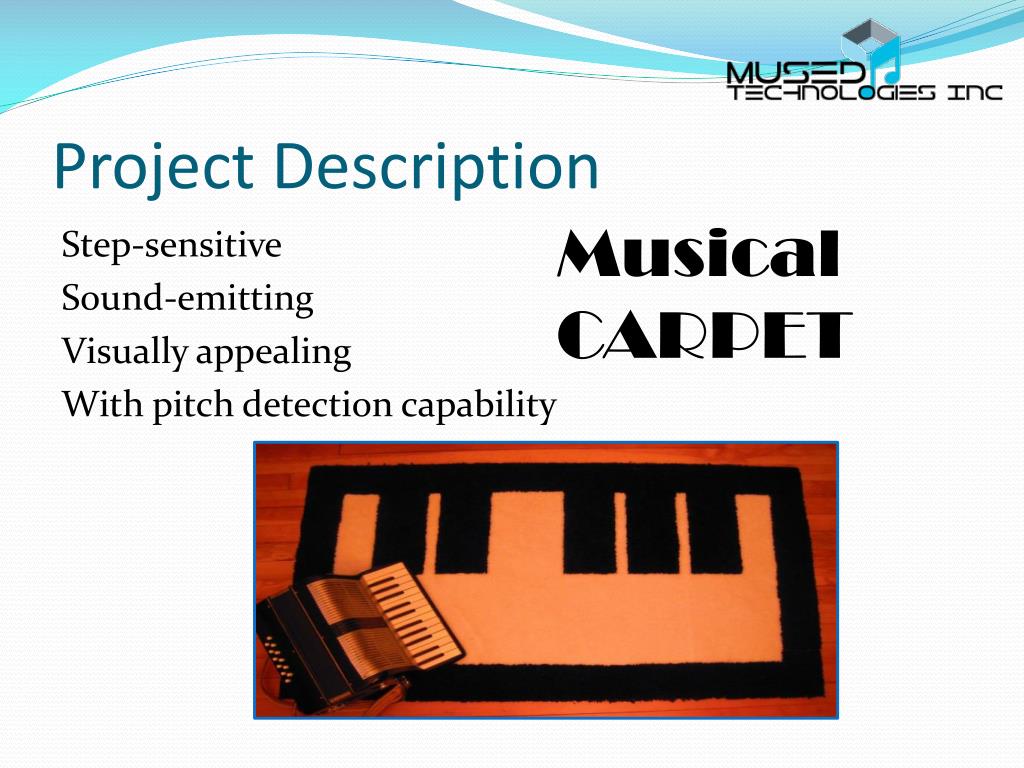

  4. Project Description Musical CARPET Step-sensitive Sound-emitting Visually appealing With pitch detection capability

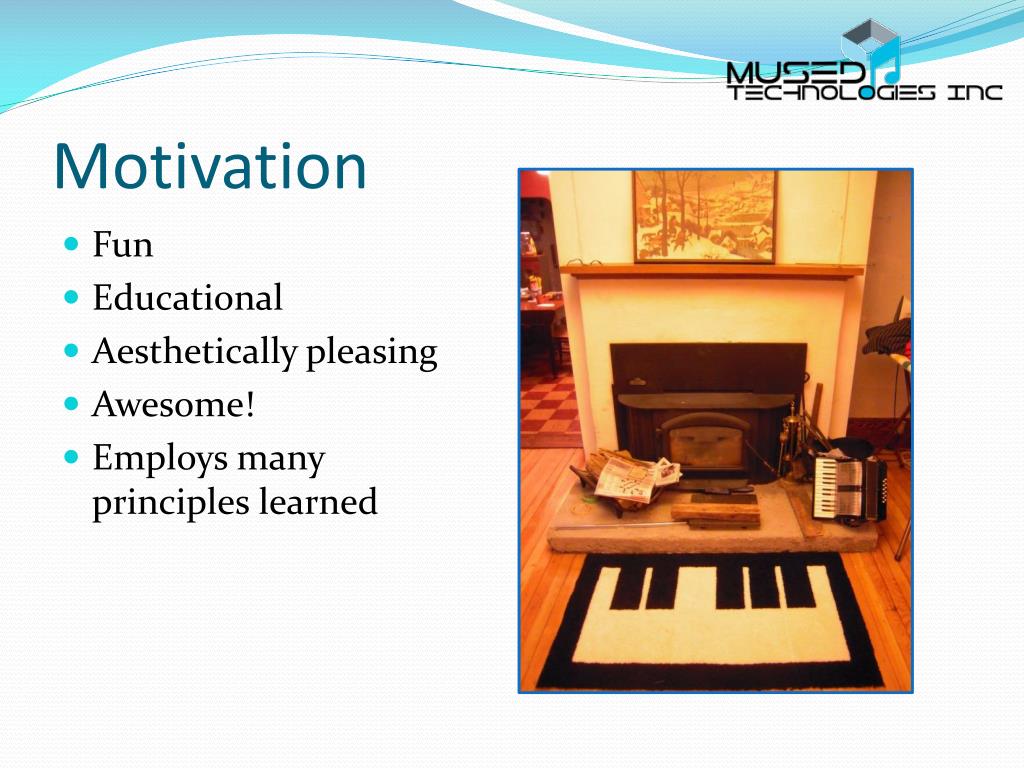

  5. Motivation • Fun • Educational • Aesthetically pleasing • Awesome! • Employs many principles learned

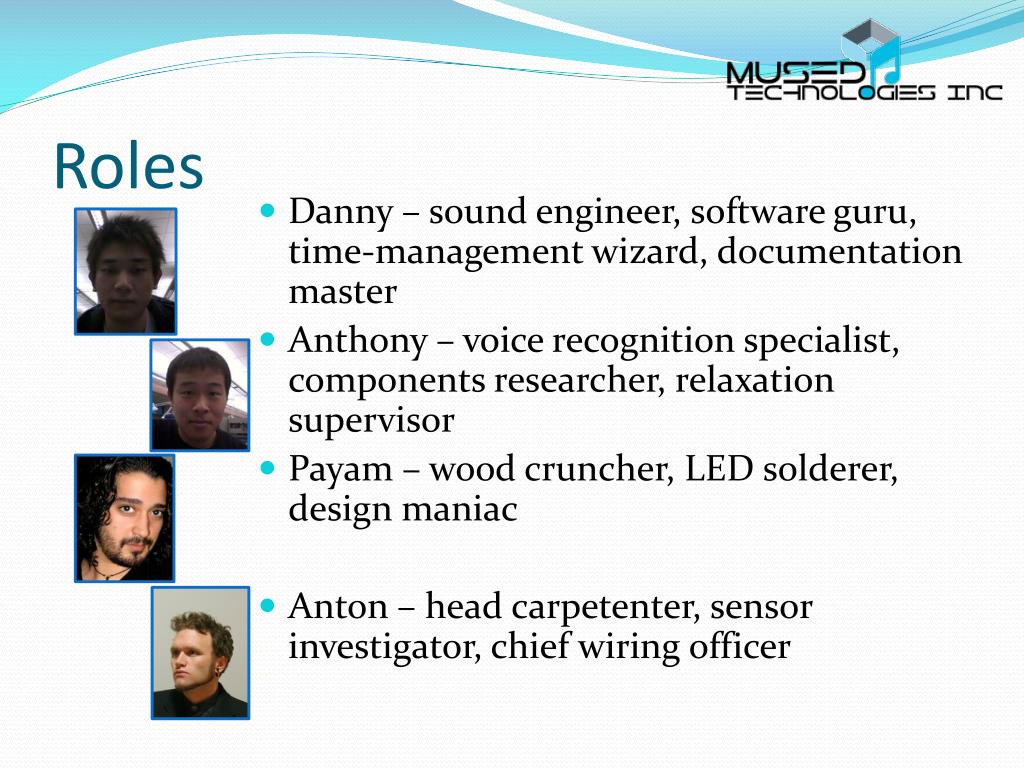

  6. Roles • Danny – sound engineer, software guru, time-management wizard, documentation master • Anthony – voice recognition specialist, components researcher, relaxation supervisor • Payam – wood cruncher, LED solderer, design maniac • Anton – head carpetenter, sensor investigator, chief wiring officer

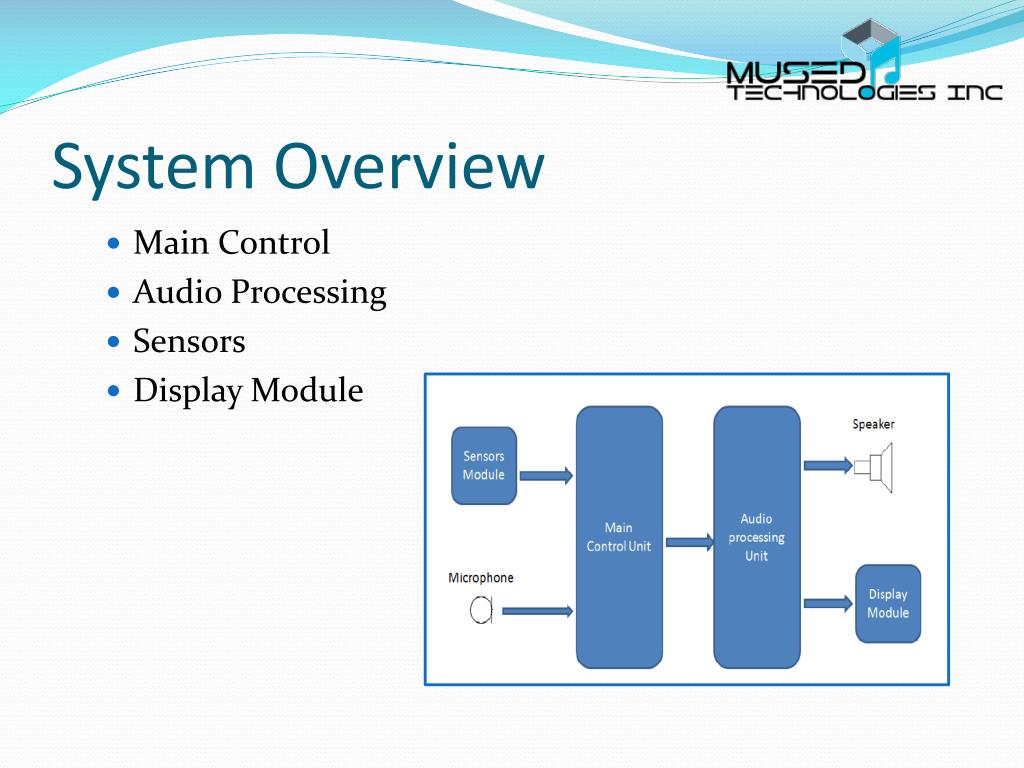

  7. System Overview • Main Control • Audio Processing • Sensors • Display Module

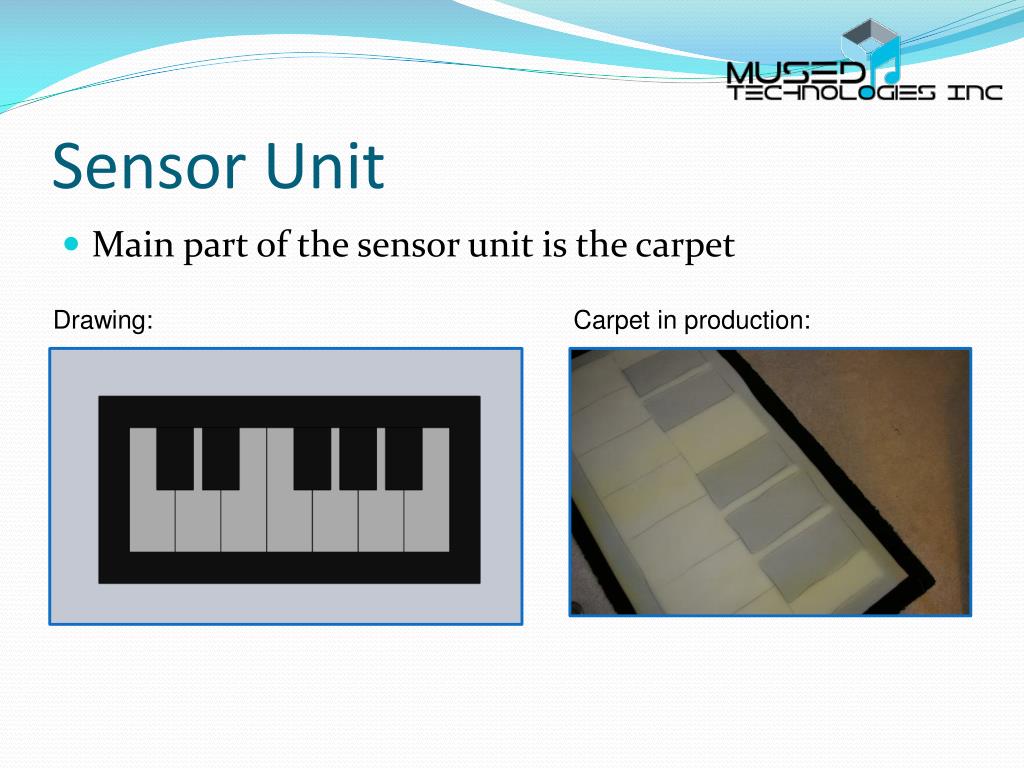

  8. Sensor Unit • Main part of the sensor unit is the carpet Drawing: Carpet in production:

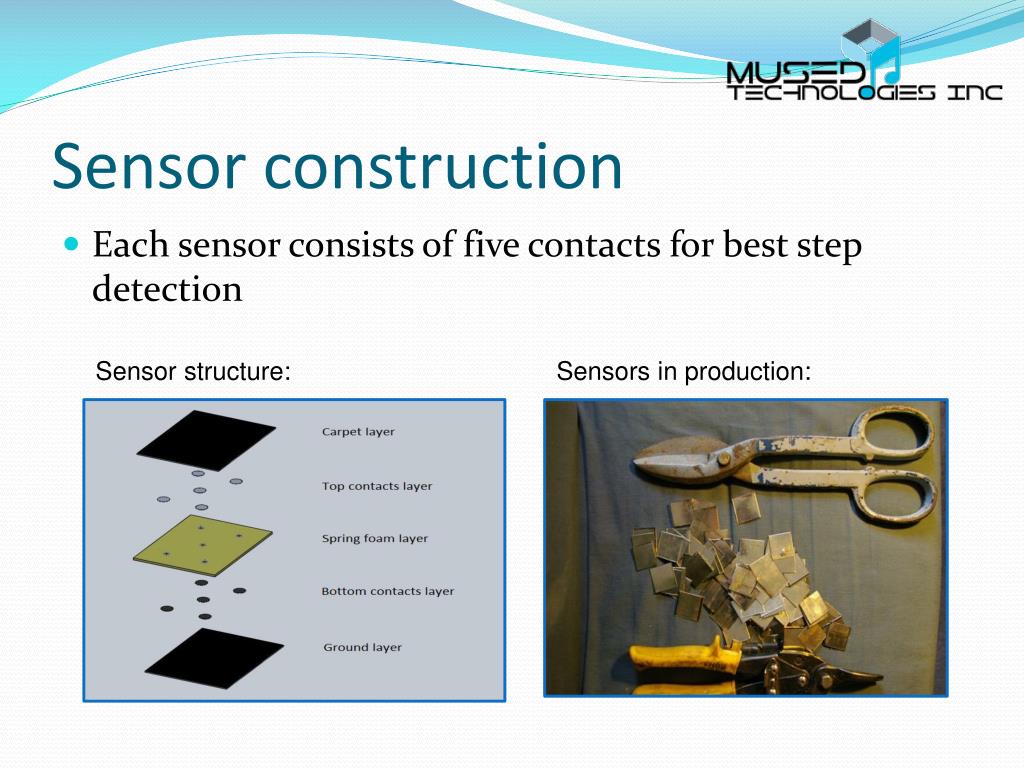

  9. Sensor construction • Each sensor consists of five contacts for best step detection Sensor structure: Sensors in production:

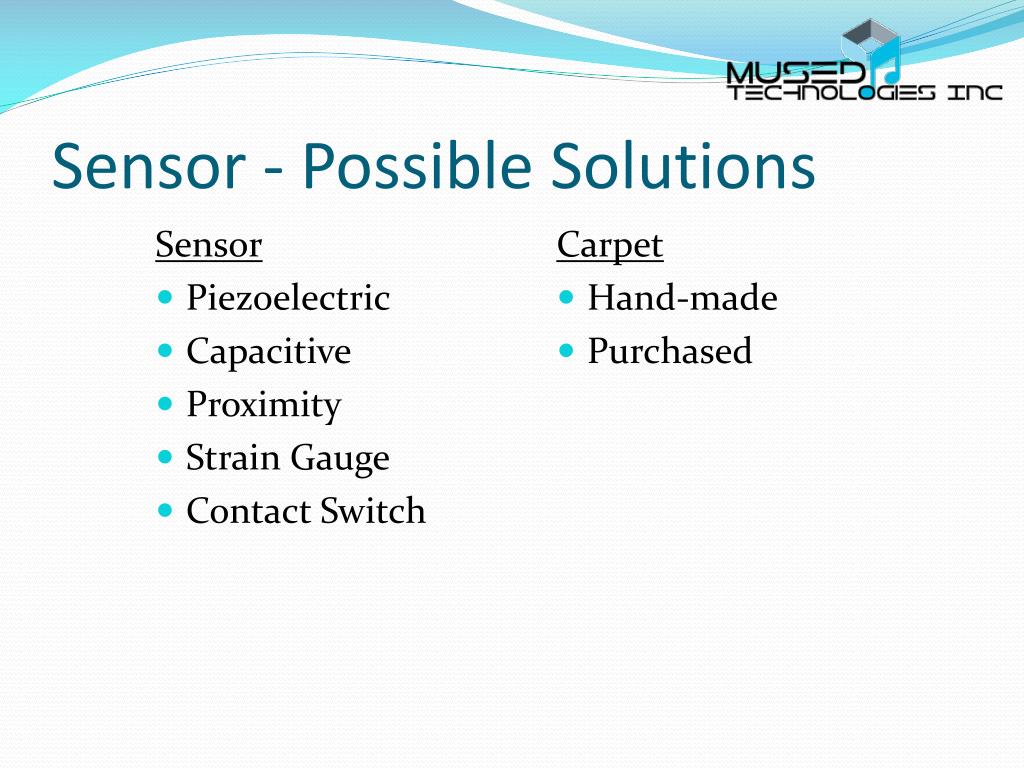

  10. Sensor - Possible Solutions Sensor • Piezoelectric • Capacitive • Proximity • Strain Gauge • Contact Switch Carpet • Hand-made • Purchased

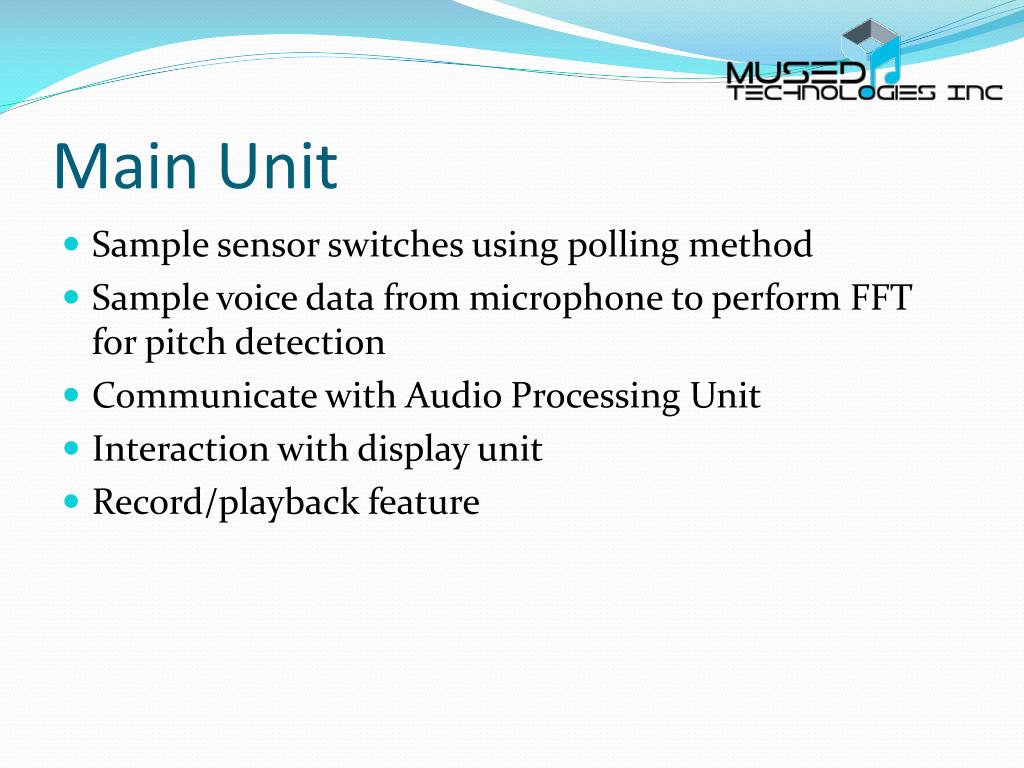

  11. Main Unit • Sample sensor switches using polling method • Sample voice data from microphone to perform FFT for pitch detection • Communicate with Audio Processing Unit • Interaction with display unit • Record/playback feature

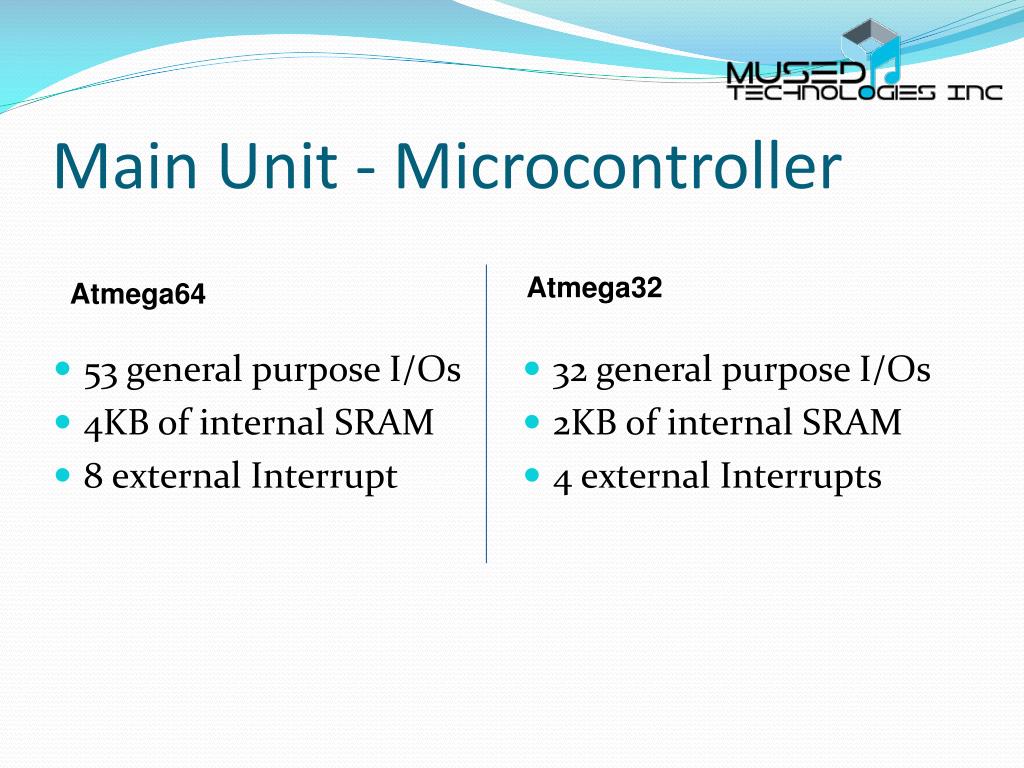

  12. Main Unit - Microcontroller • 32 general purpose I/Os • 2KB of internal SRAM • 4 external Interrupts Atmega32 Atmega64 • 53 general purpose I/Os • 4KB of internal SRAM • 8 external Interrupt

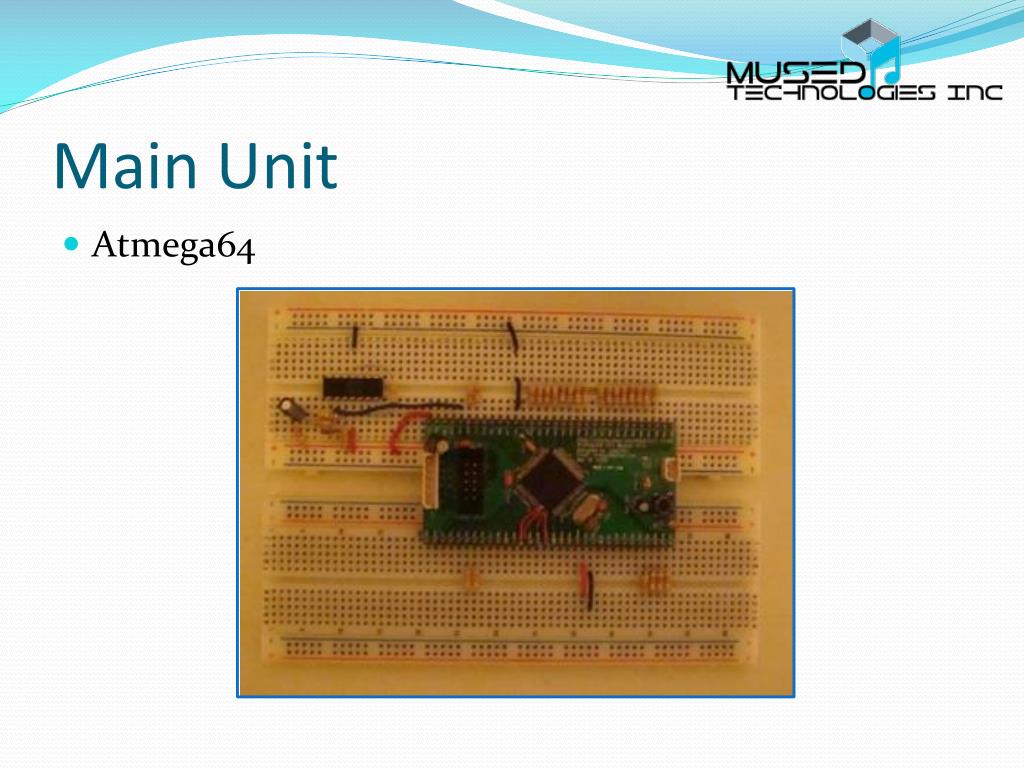

  13. Main Unit • Atmega64

  14. Audio Unit • Play sound samples from SD card • Able to generate multiple tones at the same time • Able to drive an 8 ohms speaker without external power

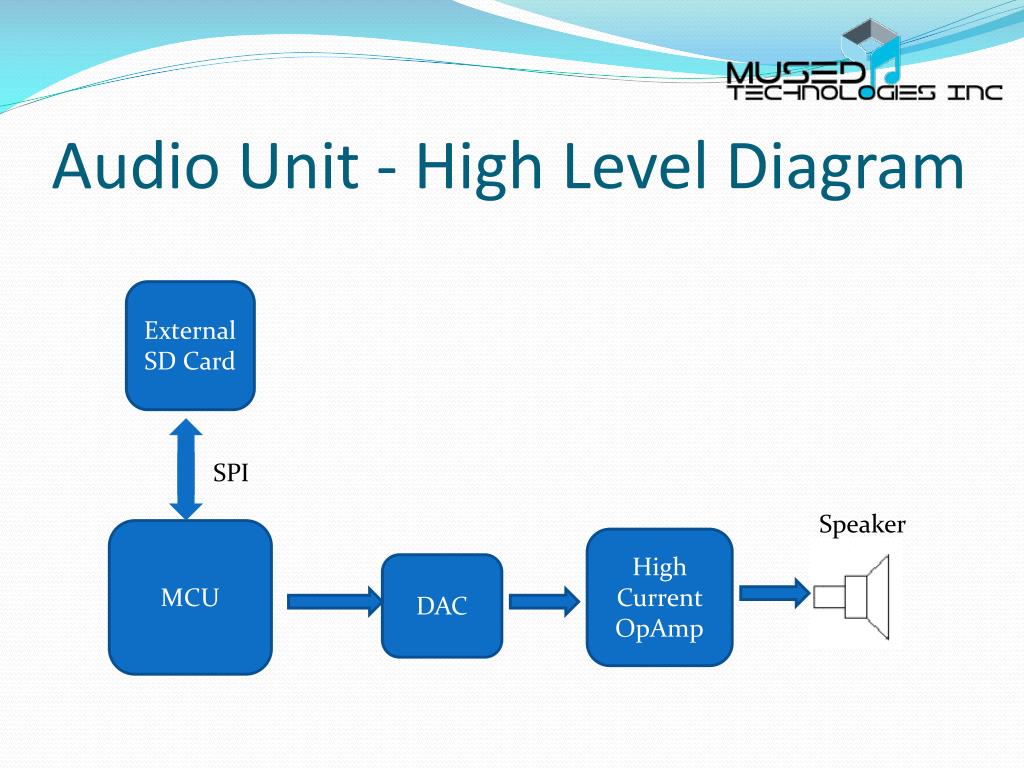

  15. Audio Unit - High Level Diagram External SD Card SPI Speaker MCU High Current OpAmp DAC

  16. Audio Unit – Current state and Limitation Current State: • Two channels Limitation: • Small capacity of internal SRAM • Access speed to SD card • When many channels are playing at the same time, adding all samples together will lead to saturation

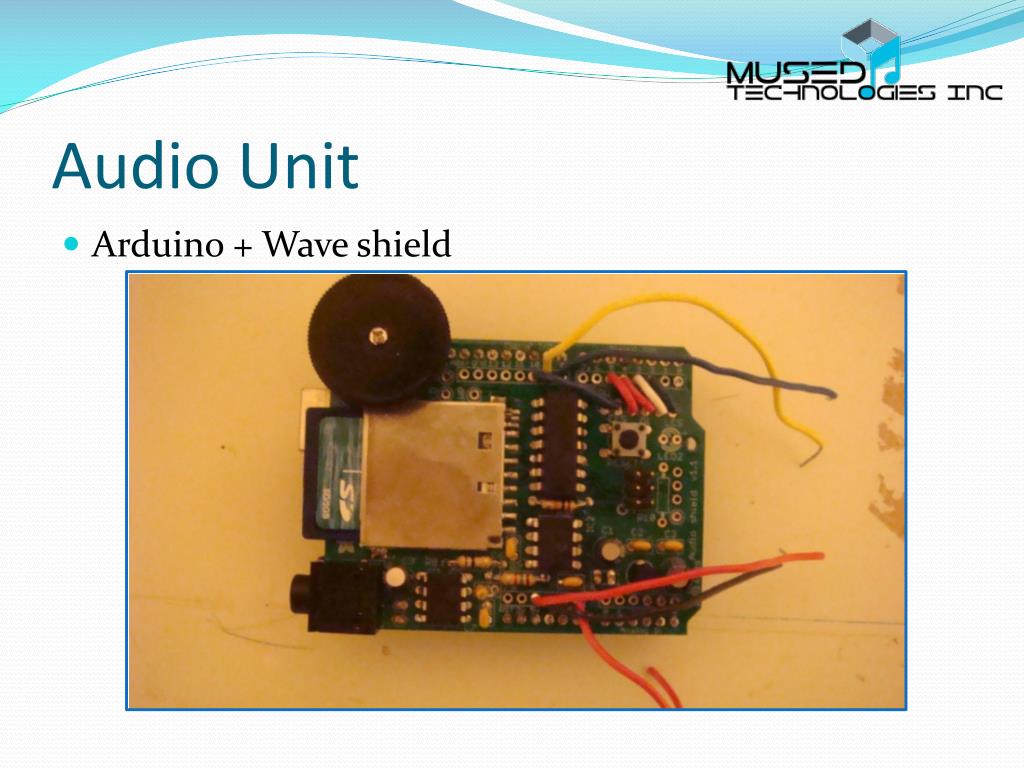

  17. Audio Unit • Arduino + Wave shield

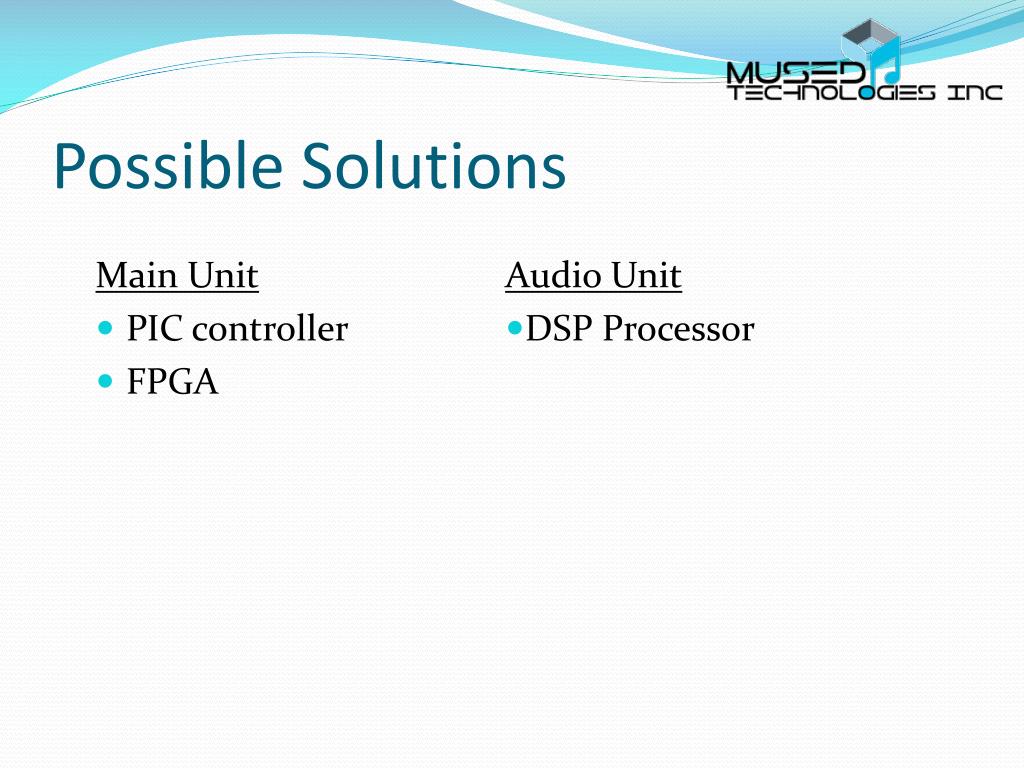

  18. Possible Solutions Main Unit • PIC controller • FPGA • Audio Unit • DSP Processor

  19. Pitch Detection • Sampling rate of 4KHz • Conversion to frequency domain with FFT • Compares fundamental frequencies • Component frequency ratio algorithm

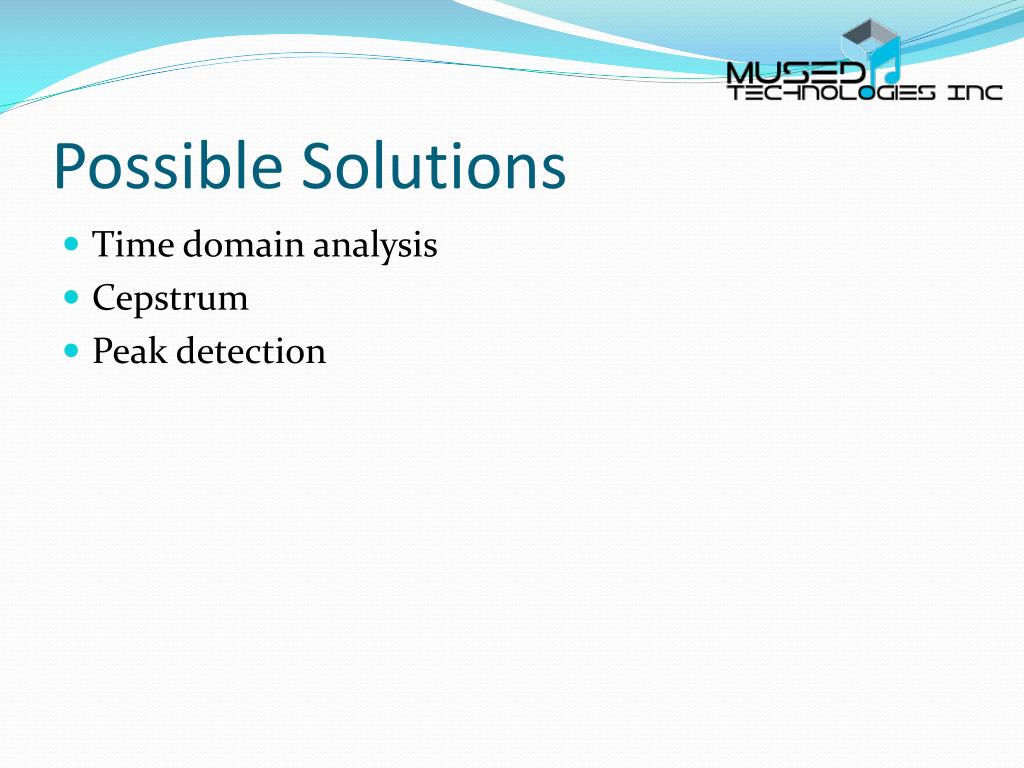

  20. Possible Solutions • Time domain analysis • Cepstrum • Peak detection

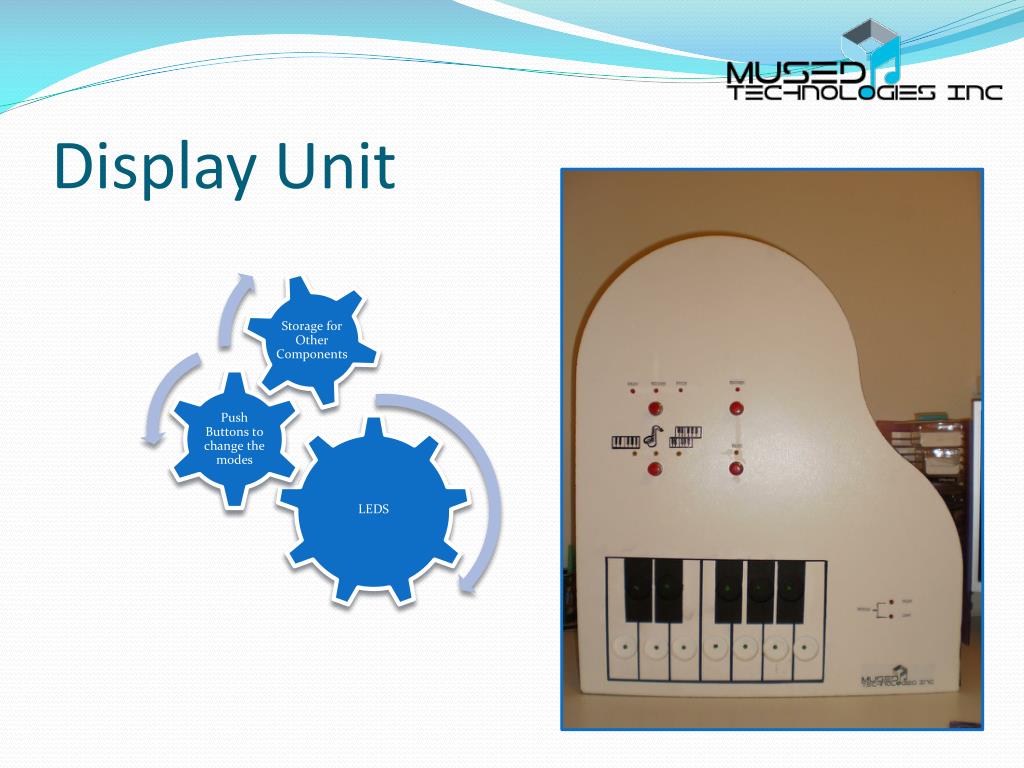

  21. Display Unit

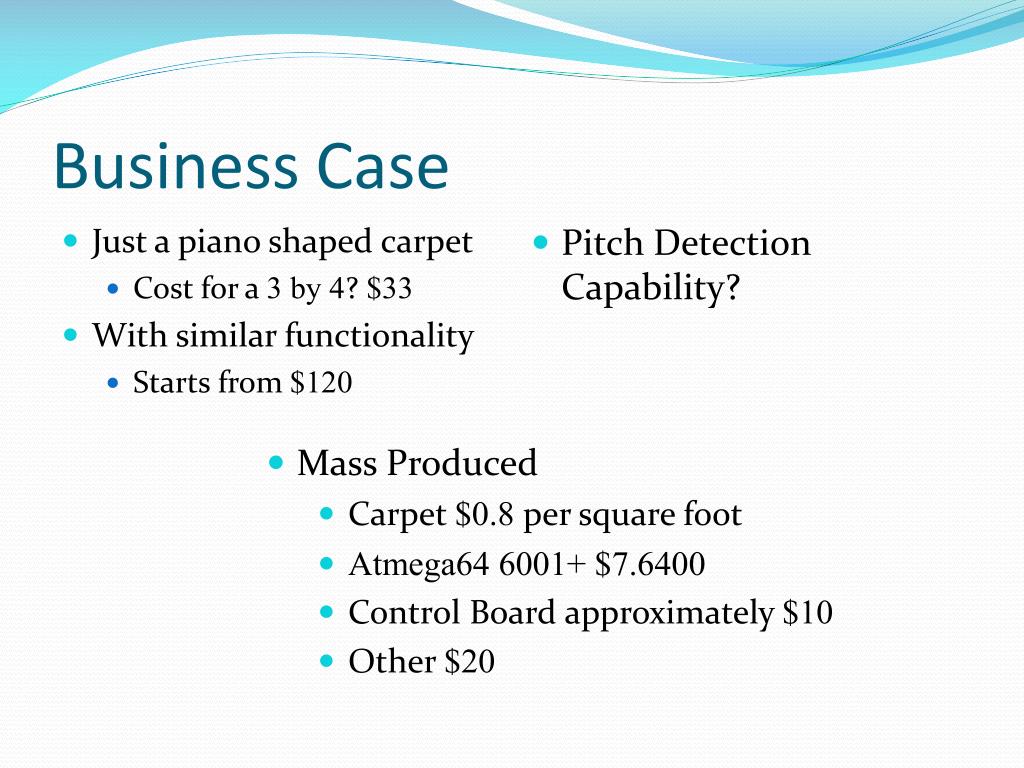

  22. Business Case • Just a piano shaped carpet • Cost for a 3 by 4? $33 • With similar functionality • Starts from $120 • Pitch Detection Capability? • Mass Produced • Carpet $0.8 per square foot • Atmega64 6001+ $7.6400 • Control Board approximately $10 • Other $20

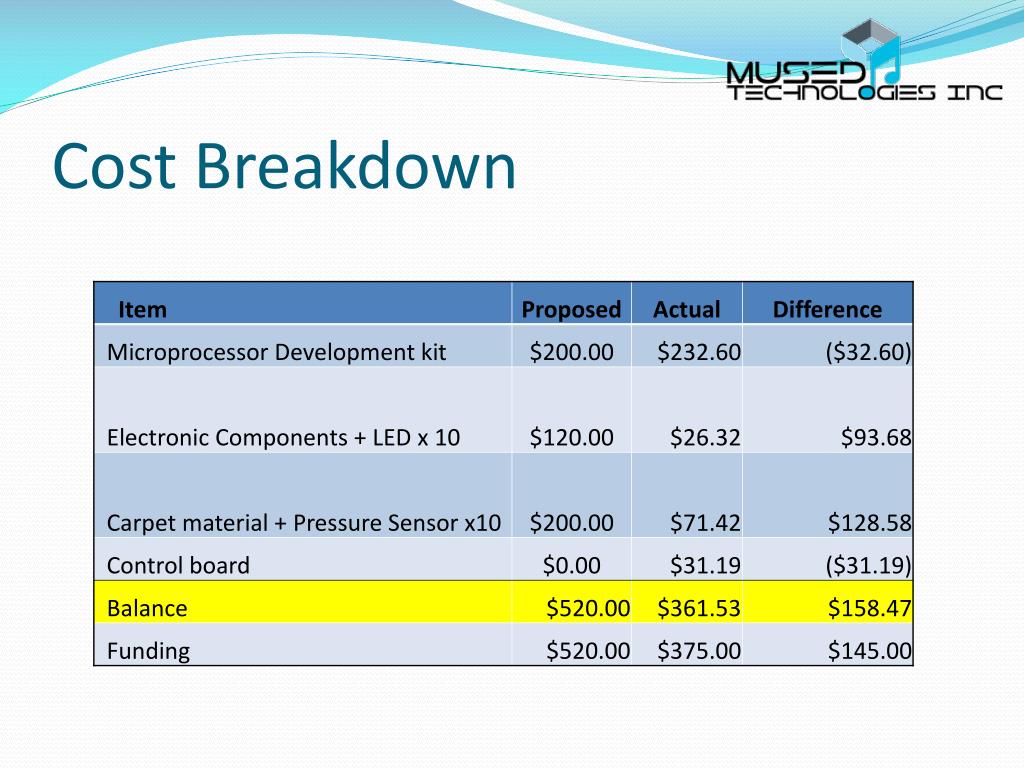

  23. Cost Breakdown

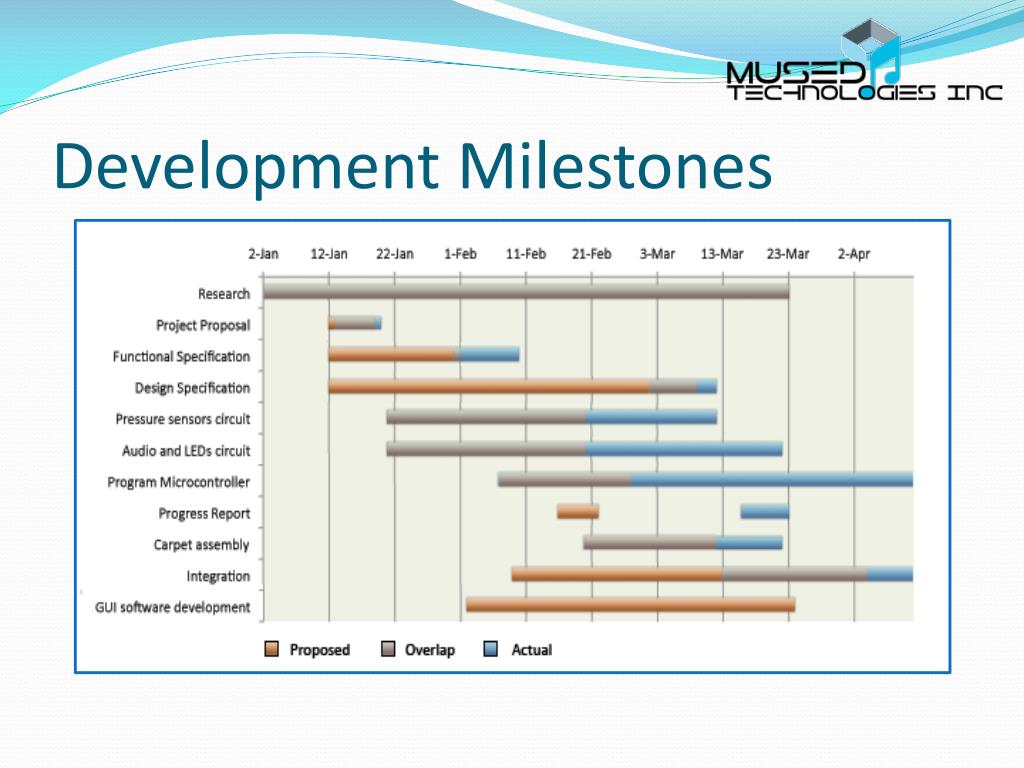

  24. Development Milestones

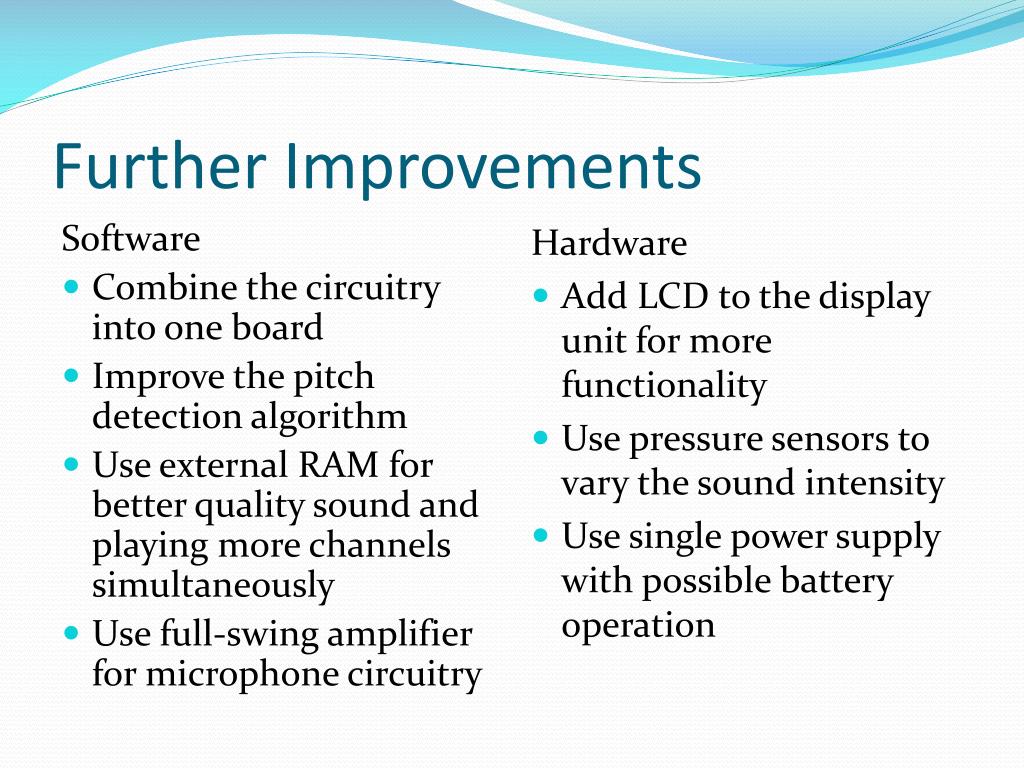

  25. Further Improvements Software • Combine the circuitry into one board • Improve the pitch detection algorithm • Use external RAM for better quality sound and playing more channels simultaneously • Use full-swing amplifier for microphone circuitry Hardware • Add LCD to the display unit for more functionality • Use pressure sensors to vary the sound intensity • Use single power supply with possible battery operation

  26. Lessons Learned • Technical • Audio/Signal processing • Communication protocols • Hardware design • Non-Technical • Teamwork • Conflict Resolution • Project Management

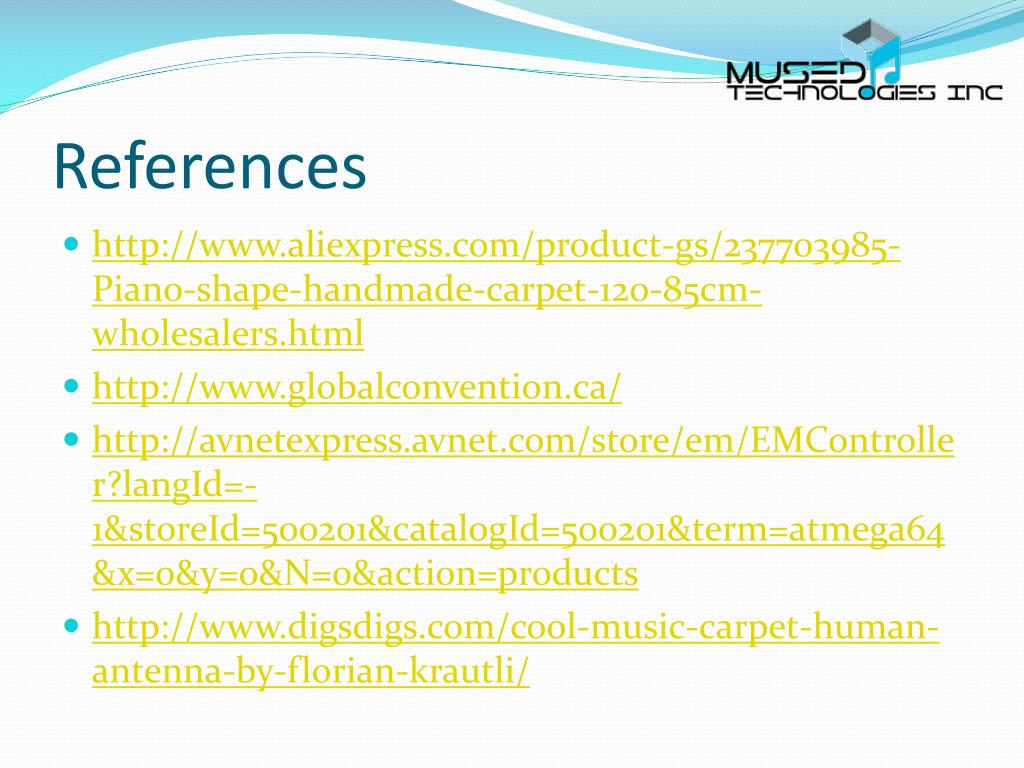

  27. References • http://www.aliexpress.com/product-gs/237703985-Piano-shape-handmade-carpet-120-85cm-wholesalers.html • http://www.globalconvention.ca/ • http://avnetexpress.avnet.com/store/em/EMController?langId=-1&storeId=500201&catalogId=500201&term=atmega64&x=0&y=0&N=0&action=products • http://www.digsdigs.com/cool-music-carpet-human-antenna-by-florian-krautli/

  28. Questions
