Multi-Dimensional Arrays. Rectangular & Jagged Plus: More 1D traversal. Array Recall. Creating a 2D array of doubles: double[][] grid = new double[3][4]; 3 rows: indices 0 to 2, 4 columns: indices 0 to 3 grid : reference to entire array grid[0] : reference to 1 st row
E N D

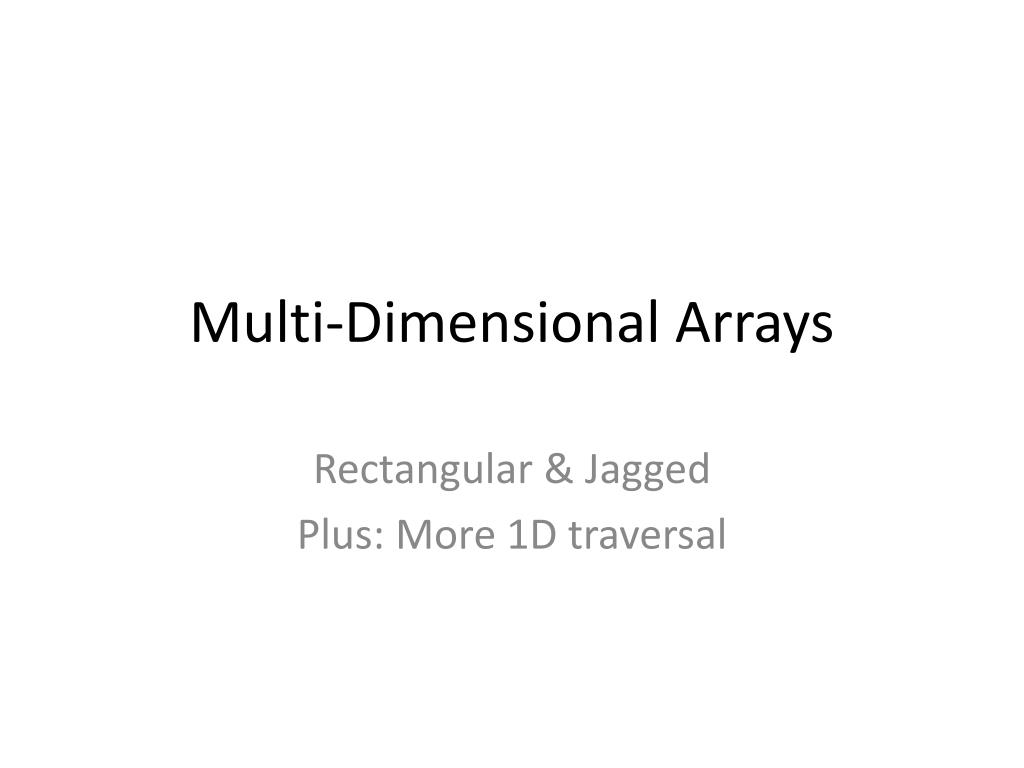

Multi-Dimensional Arrays Rectangular & Jagged Plus: More 1D traversal
ArrayRecall • Creating a 2D array of doubles: • double[][] grid = new double[3][4]; • 3 rows: indices 0 to 2, 4 columns: indices 0 to 3 • grid: reference to entire array • grid[0]: reference to 1st row • grid[0][2]: third element in first row • all entries initialized to 0.0 • 1D array of Point objects: • Point[] points = new Point[3]; • points[0] = new Point(2, 5); • points[1] = new Point(0, 0); • points[2] = new Point(4, 7);
Printing 2D Arrays • Arrays.toString()does not work well for 2D • Produces a String representation of each element, but for a 2D array, each element is an array. • Use Arrays.deepToString() instead: double[][] grid = new double[3][4]; grid[0][1] = 5; grid[2][3] = 7; System.out.println(Arrays.deepToString(grid)); Output: [[0.0, 5.0, 0.0, 0.0], [0.0, 0.0, 0.0, 0.0], [0.0, 0.0, 0.0, 7.0]]
Jagged Arrays Multi-dimensional Arrays: Number of elements in a row can vary int[][] arr = new int[3][]; arr[0] = new int[2]; // 2 columns in row 0 arr[1] = new int[4]; // 4 columns in row 1 arr[2] = new int[3]; // 3 columns in row 2 To print this array: for(inti = 0; i < arr.length; i++) { // print row i for(int j = 0; j < arr[i].length; j++) System.out.print(arr[i][j] + “\t”); System.out.println(); }

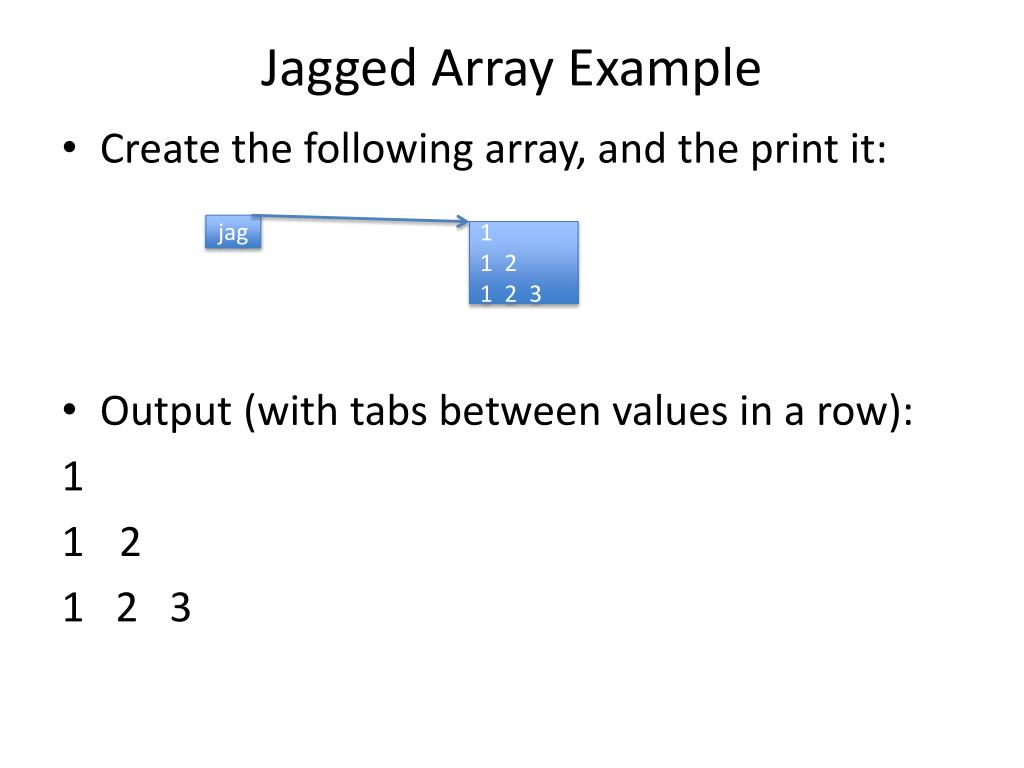

Jagged Array Example • Create the following array, and the print it: • Output (with tabs between values in a row): 1 • 2 1 2 3 jag 1 1 2 1 2 3

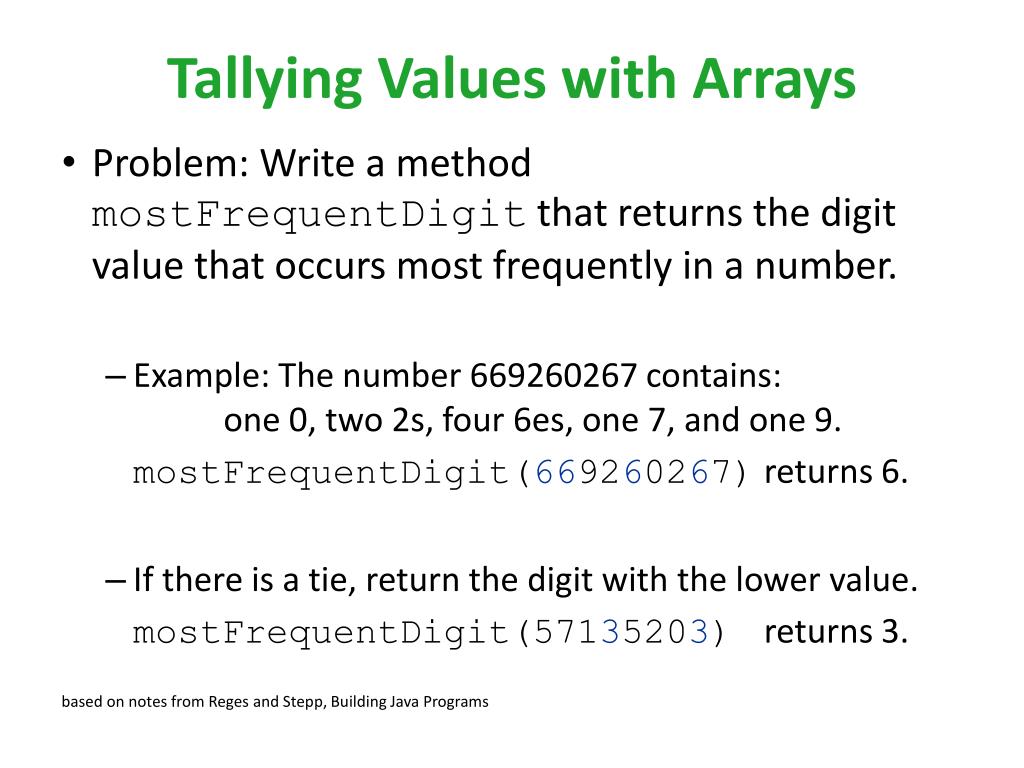

Tallying Values with Arrays • Problem: Write a method mostFrequentDigit that returns the digit value that occurs most frequently in a number. • Example: The number 669260267 contains: one 0, two 2s, four 6es, one 7, and one 9. mostFrequentDigit(669260267) returns 6. • If there is a tie, return the digit with the lower value. mostFrequentDigit(57135203) returns 3. based on notes from Reges and Stepp, Building Java Programs
Multi-Counter Problem • We could declare 10 counter variables ... int counter0, counter1, counter2, counter3, counter4, counter5, counter6, counter7, counter8, counter9; • But a better solution is to use an array of size 10. • The element at index i will store the counter for digit value i. • Example for 669260267: • How do we build such an array? And how does it help? based on notes from Reges and Stepp, Building Java Programs
An Array of Tallies // assume n = 669260267 int[] counts = new int[10]; while (n > 0) { // pluck off a digit and add to proper counter int digit = n % 10; counts[digit]++; n = n / 10; } based on notes from Reges and Stepp, Building Java Programs
Tally Solution // Returns the digit value that occurs most frequently in n. // Breaks ties by choosing the smaller value. public static intmostFrequentDigit(int n) { int[] counts = new int[10]; while (n > 0) { int digit = n % 10; // pluck off a digit and tally it counts[digit]++; n = n / 10; } // find the most frequently occurring digit intbestIndex = 0; for (inti = 1; i < counts.length; i++) { if (counts[i] > counts[bestIndex]) { bestIndex = i; } } return bestIndex; } based on notes from Reges and Stepp, Building Java Programs
Array Histogram Question • Given a file of integer exam scores, such as: 82 66 79 63 83 Write a program that will print a histogram of stars indicating the number of students who earned each unique exam score. 85: ***** 86: ************ 87: *** 88: * 91: **** based on notes from Reges and Stepp, Building JavaPrograms
Array Histogram // Reads a file of test scores and shows a histogram of score distribution. import java.io.*; import java.util.*; public class Histogram { public static void main(String[] args) throws FileNotFoundException { Scanner input = new Scanner(new File("midterm.txt")); int[] counts = new int[101];// counters of test scores 0 - 100 while (input.hasNextInt()) { // read file into counts array int score = input.nextInt(); counts[score]++;// if score is 87, then counts[87]++ } for (inti = 0; i < counts.length; i++) { // print star histogram if (counts[i] > 0) { System.out.print(i + ": "); for (int j = 0; j < counts[i]; j++) { System.out.print("*"); } System.out.println(); } } } } based on notes from Reges and Stepp, Building Java Programs

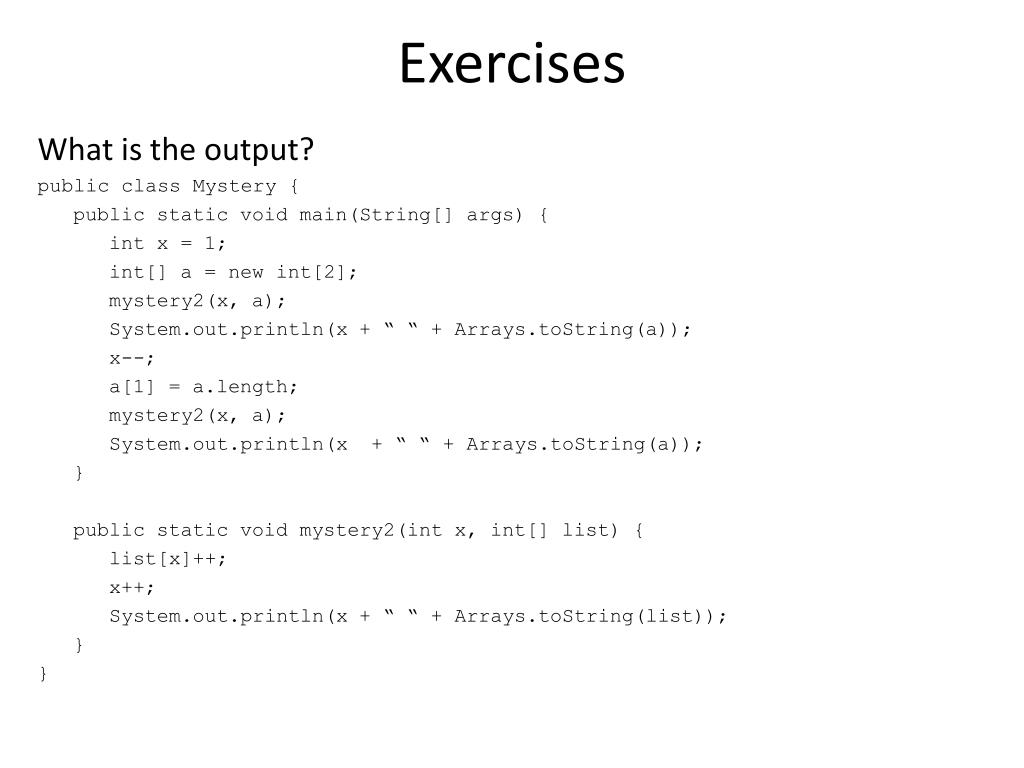

Exercises What is the output? public class Mystery { public static void main(String[] args) { int x = 1; int[] a = new int[2]; mystery2(x, a); System.out.println(x + “ “ + Arrays.toString(a)); x--; a[1] = a.length; mystery2(x, a); System.out.println(x + “ “ + Arrays.toString(a)); } public static void mystery2(int x, int[] list) { list[x]++; x++; System.out.println(x + “ “ + Arrays.toString(list)); } }

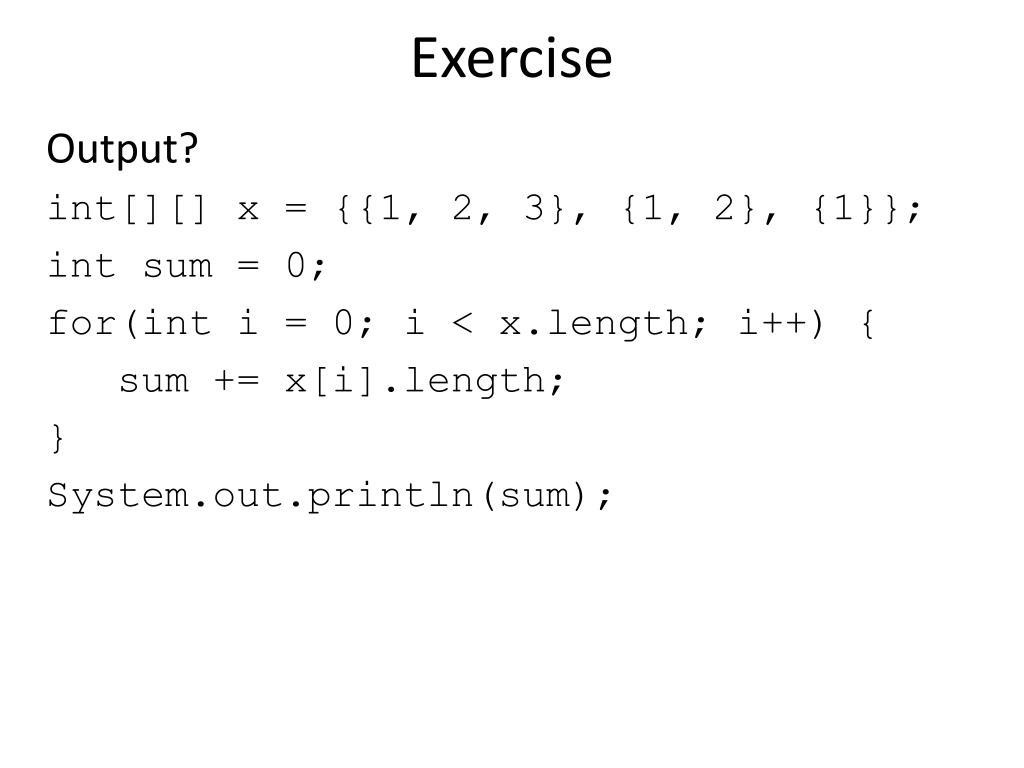

Exercise Output? int[][] x = {{1, 2, 3}, {1, 2}, {1}}; int sum = 0; for(inti = 0; i < x.length; i++) { sum += x[i].length; } System.out.println(sum);
