EE579T Network Security 10: An Overview of SNMP

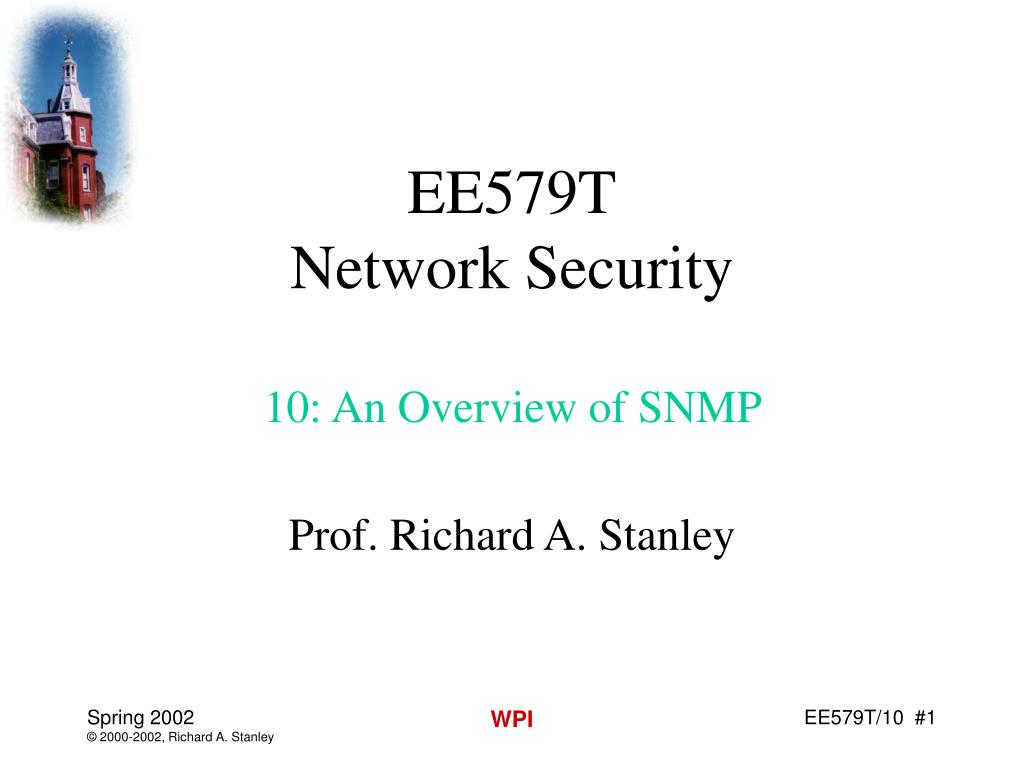

1. EE579TNetwork Security10: An Overview of SNMP Prof. Richard A. Stanley WPI

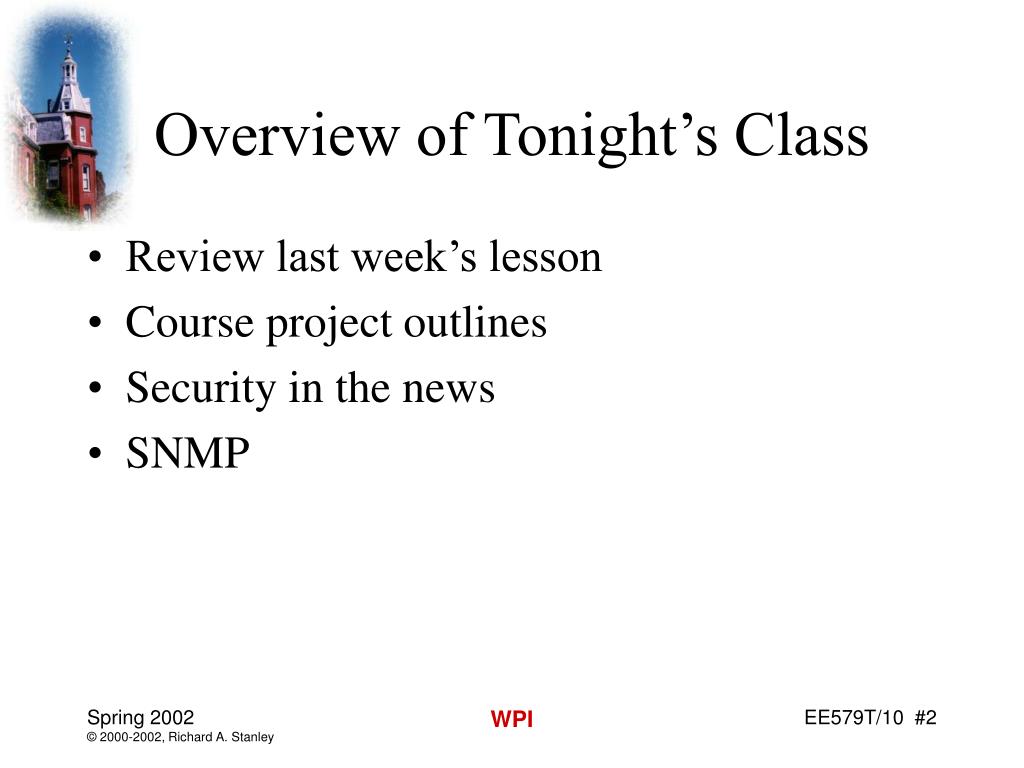

2. Overview of Tonight’s Class • Review last week’s lesson • Course project outlines • Security in the news • SNMP WPI

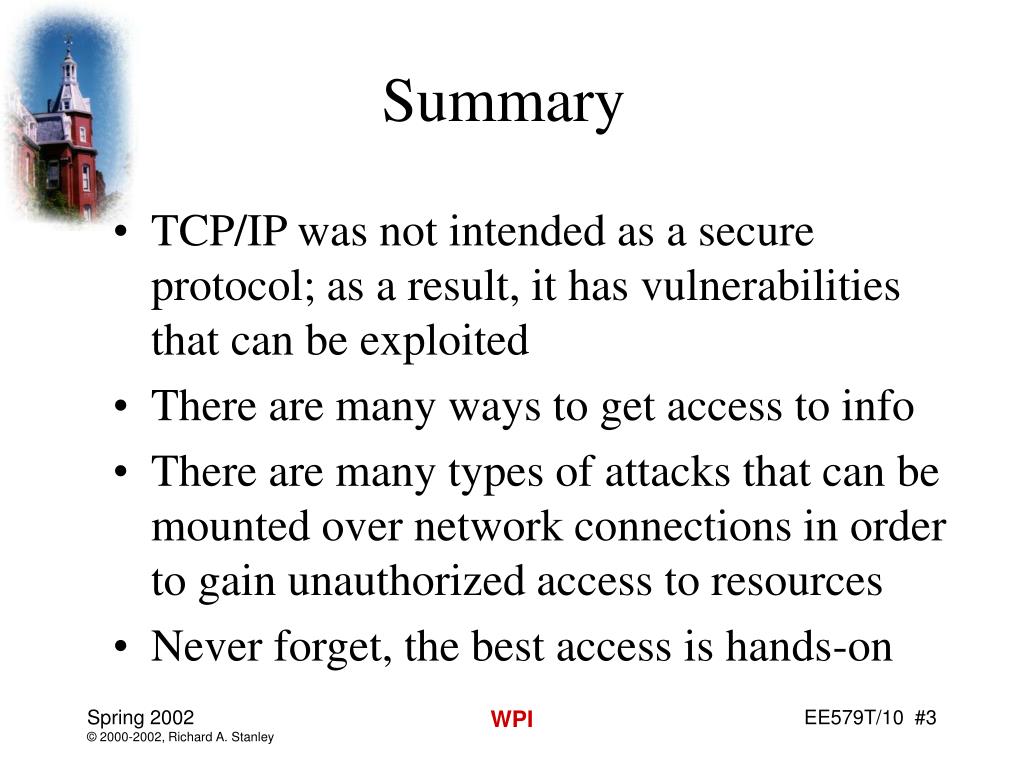

3. Summary • TCP/IP was not intended as a secure protocol; as a result, it has vulnerabilities that can be exploited • There are many ways to get access to info • There are many types of attacks that can be mounted over network connections in order to gain unauthorized access to resources • Never forget, the best access is hands-on WPI

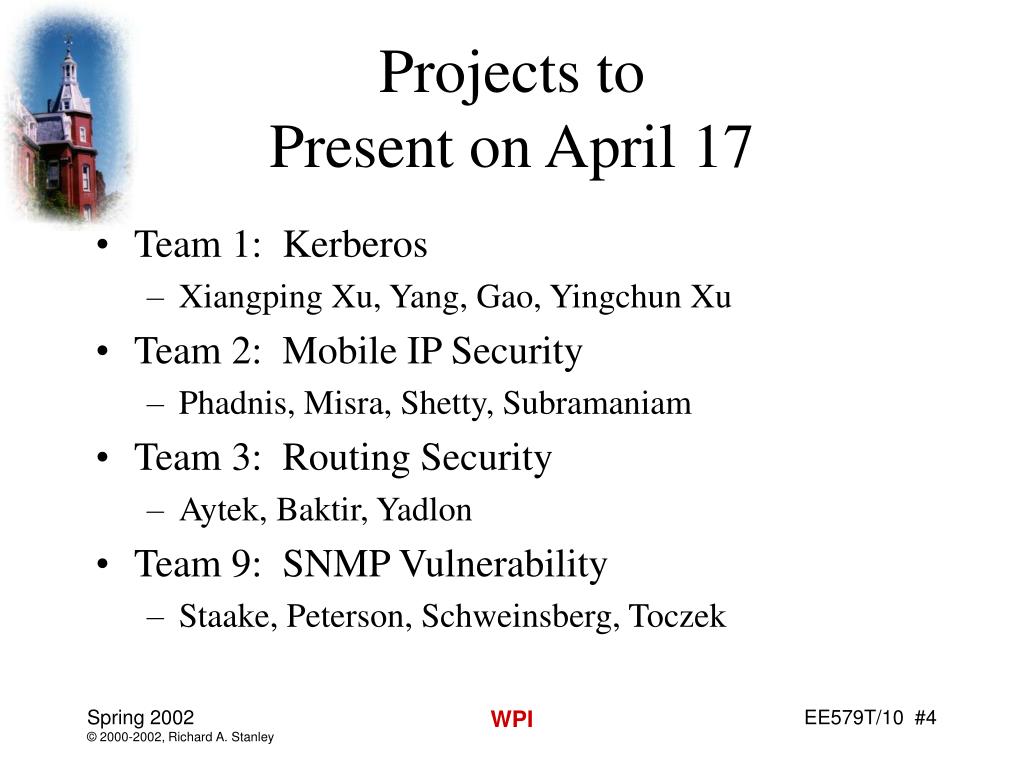

4. Projects to Present on April 17 • Team 1: Kerberos • Xiangping Xu, Yang, Gao, Yingchun Xu • Team 2: Mobile IP Security • Phadnis, Misra, Shetty, Subramaniam • Team 3: Routing Security • Aytek, Baktir, Yadlon • Team 9: SNMP Vulnerability • Staake, Peterson, Schweinsberg, Toczek WPI

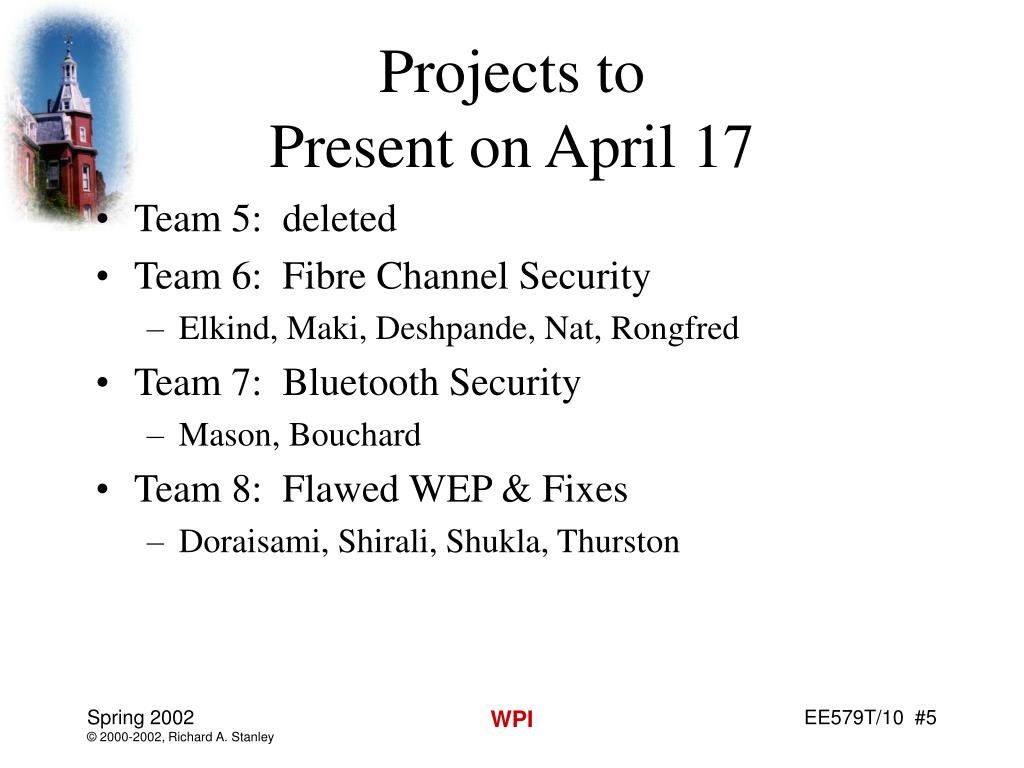

5. Projects to Present on April 17 • Team 5: deleted • Team 6: Fibre Channel Security • Elkind, Maki, Deshpande, Nat, Rongfred • Team 7: Bluetooth Security • Mason, Bouchard • Team 8: Flawed WEP & Fixes • Doraisami, Shirali, Shukla, Thurston WPI

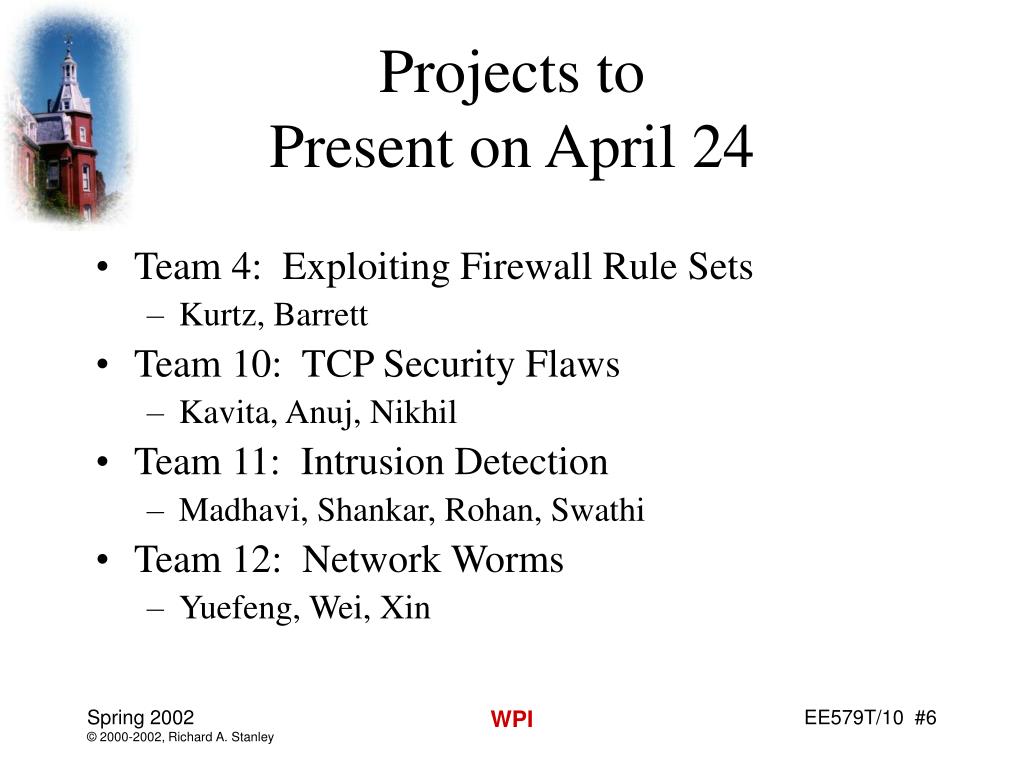

6. Projects to Present on April 24 • Team 4: Exploiting Firewall Rule Sets • Kurtz, Barrett • Team 10: TCP Security Flaws • Kavita, Anuj, Nikhil • Team 11: Intrusion Detection • Madhavi, Shankar, Rohan, Swathi • Team 12: Network Worms • Yuefeng, Wei, Xin WPI

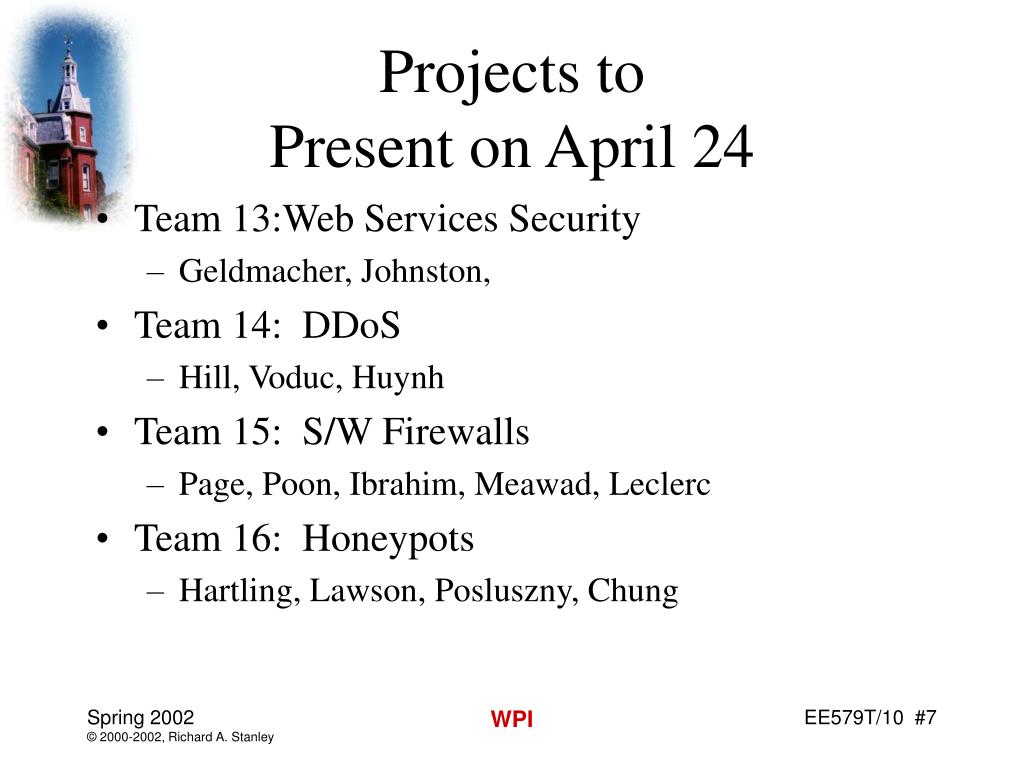

7. Projects to Present on April 24 • Team 13:Web Services Security • Geldmacher, Johnston, • Team 14: DDoS • Hill, Voduc, Huynh • Team 15: S/W Firewalls • Page, Poon, Ibrahim, Meawad, Leclerc • Team 16: Honeypots • Hartling, Lawson, Posluszny, Chung WPI

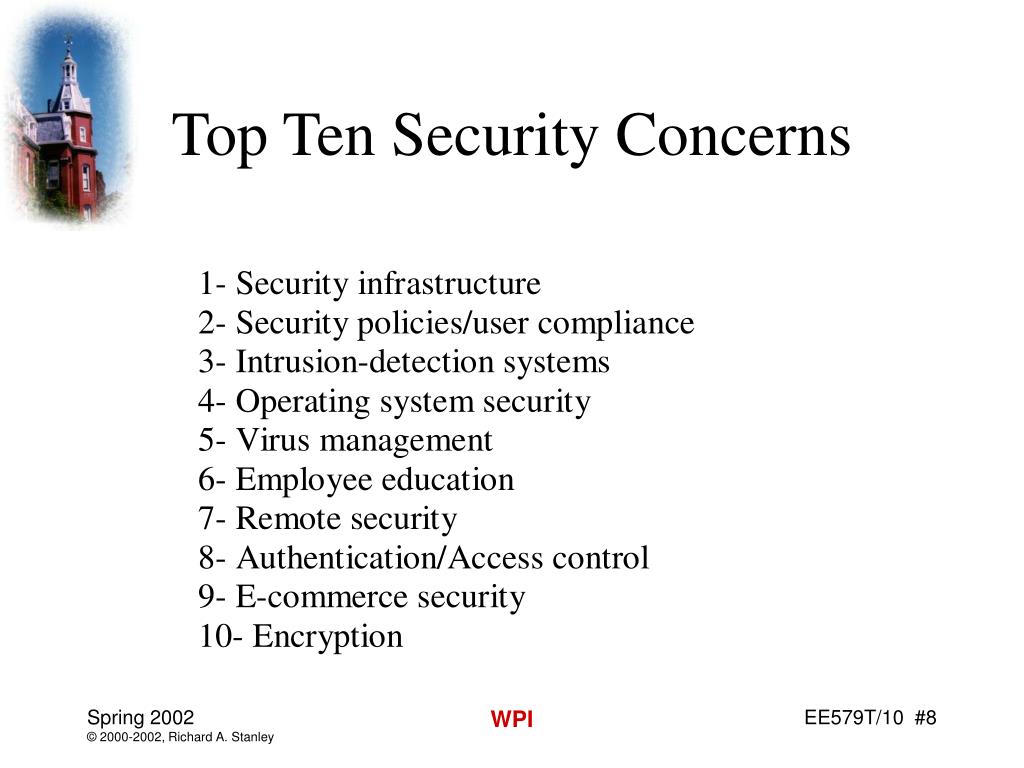

8. Top Ten Security Concerns WPI

9. Crypto Security--Again • Bugtraq reports 1024-bit RSA encryption should be “considered compromised” • Estimates factoring can be done for <$1B • What uses a key stronger than 1024 bits? • So, are SSL, S/MIME, all toast? • What about risk management? • Is what you have worth $1B to someone? • If so, do they have the $1B to spend on it? WPI

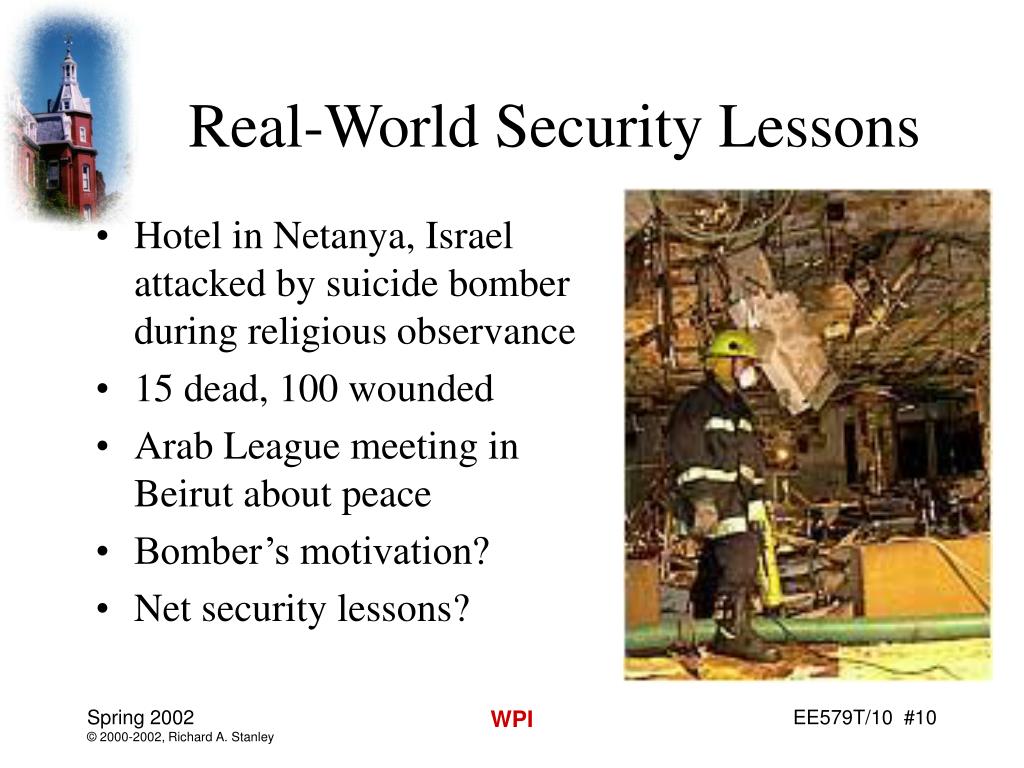

10. Real-World Security Lessons • Hotel in Netanya, Israel attacked by suicide bomber during religious observance • 15 dead, 100 wounded • Arab League meeting in Beirut about peace • Bomber’s motivation? • Net security lessons? WPI

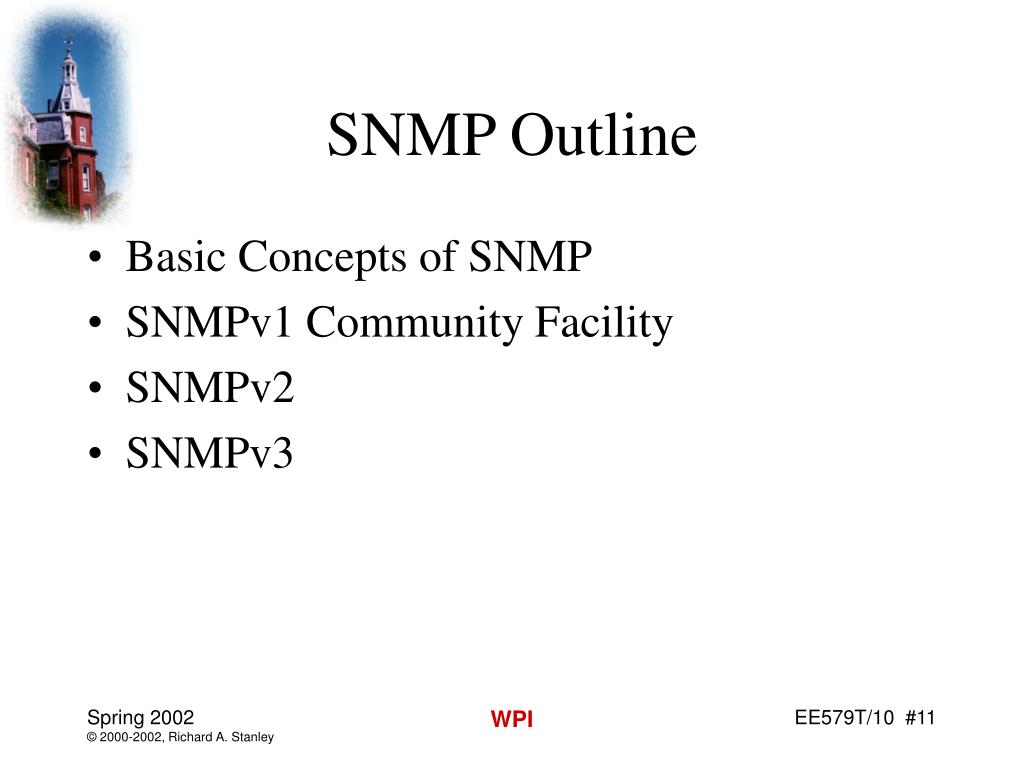

11. SNMP Outline • Basic Concepts of SNMP • SNMPv1 Community Facility • SNMPv2 • SNMPv3 WPI

12. Why SNMP? • To provide a simple means of managing objects across a network • These objects need not be network elements • The objects need not support SNMP (although it makes things easier if they do!) • “Management” can be tailored to mean what we need it to mean • First introduced in 1988 WPI

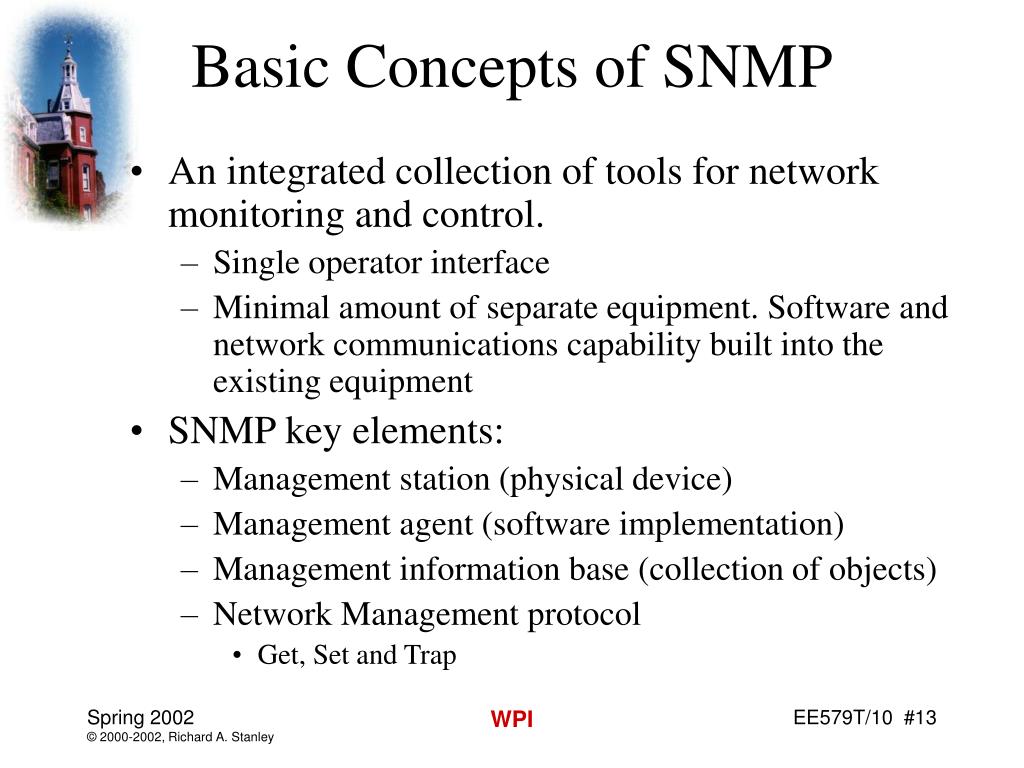

13. Basic Concepts of SNMP • An integrated collection of tools for network monitoring and control. • Single operator interface • Minimal amount of separate equipment. Software and network communications capability built into the existing equipment • SNMP key elements: • Management station (physical device) • Management agent (software implementation) • Management information base (collection of objects) • Network Management protocol • Get, Set and Trap WPI

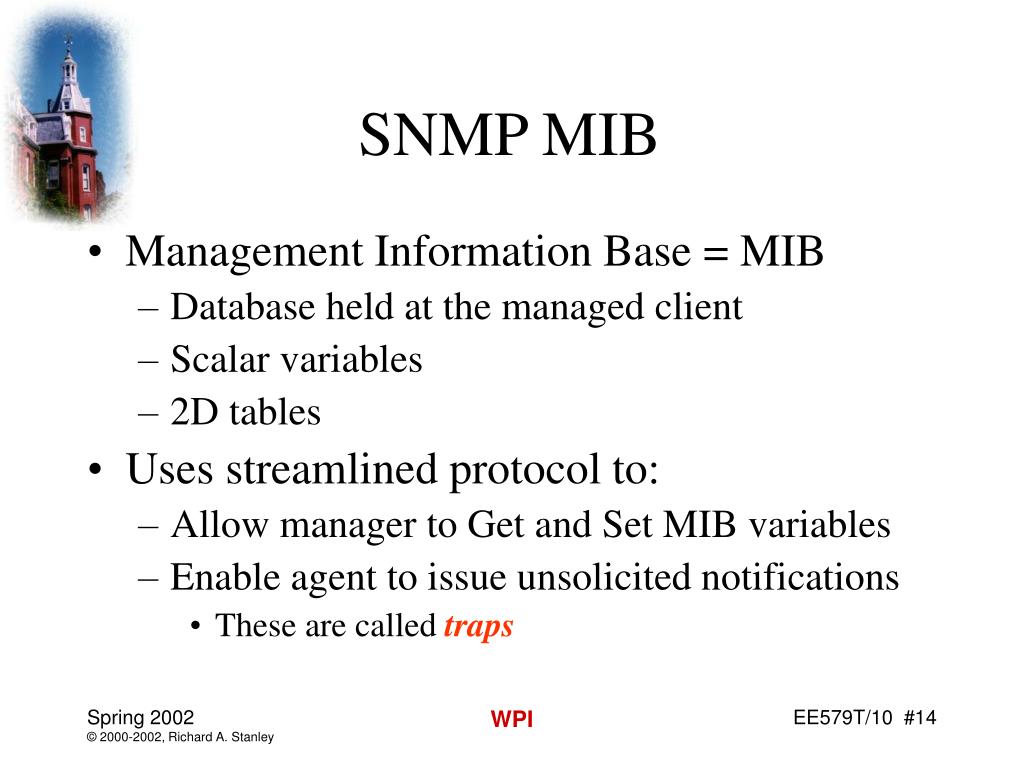

14. SNMP MIB • Management Information Base = MIB • Database held at the managed client • Scalar variables • 2D tables • Uses streamlined protocol to: • Allow manager to Get and Set MIB variables • Enable agent to issue unsolicited notifications • These are called traps WPI

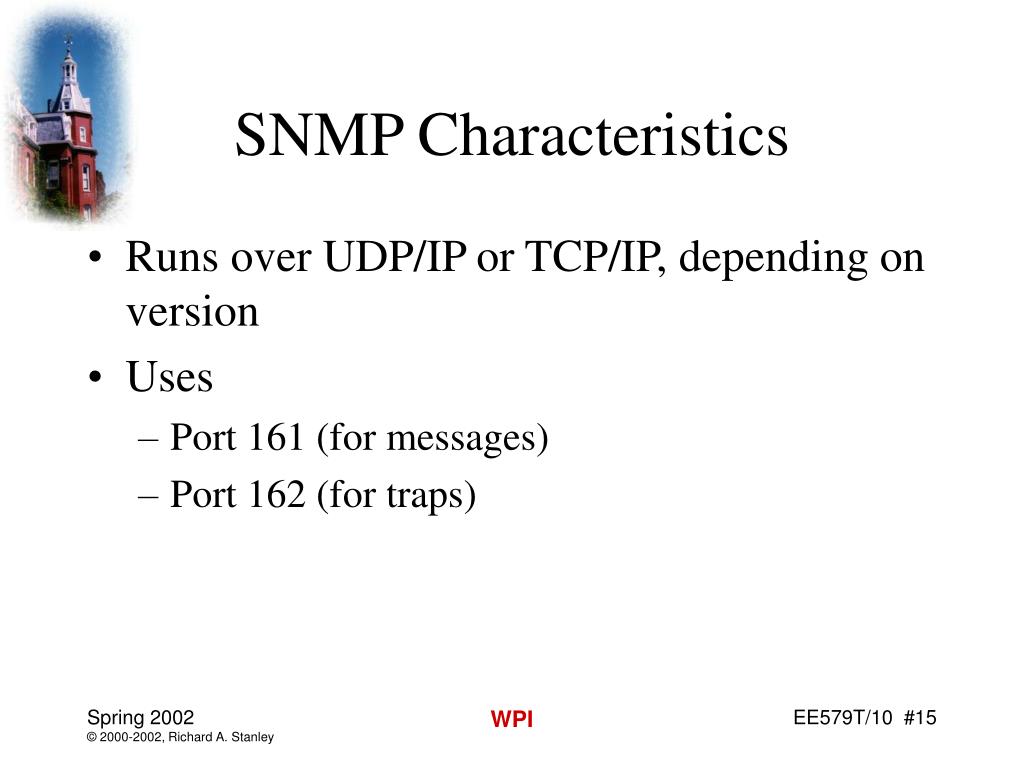

15. SNMP Characteristics • Runs over UDP/IP or TCP/IP, depending on version • Uses • Port 161 (for messages) • Port 162 (for traps) WPI

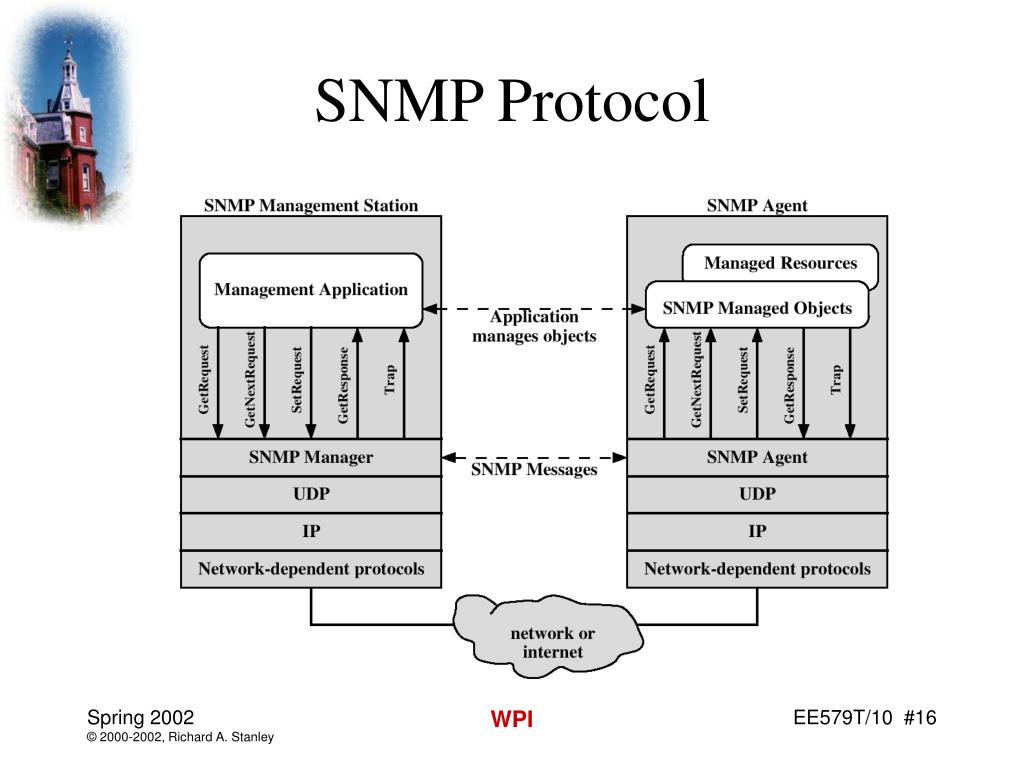

16. SNMP Protocol WPI

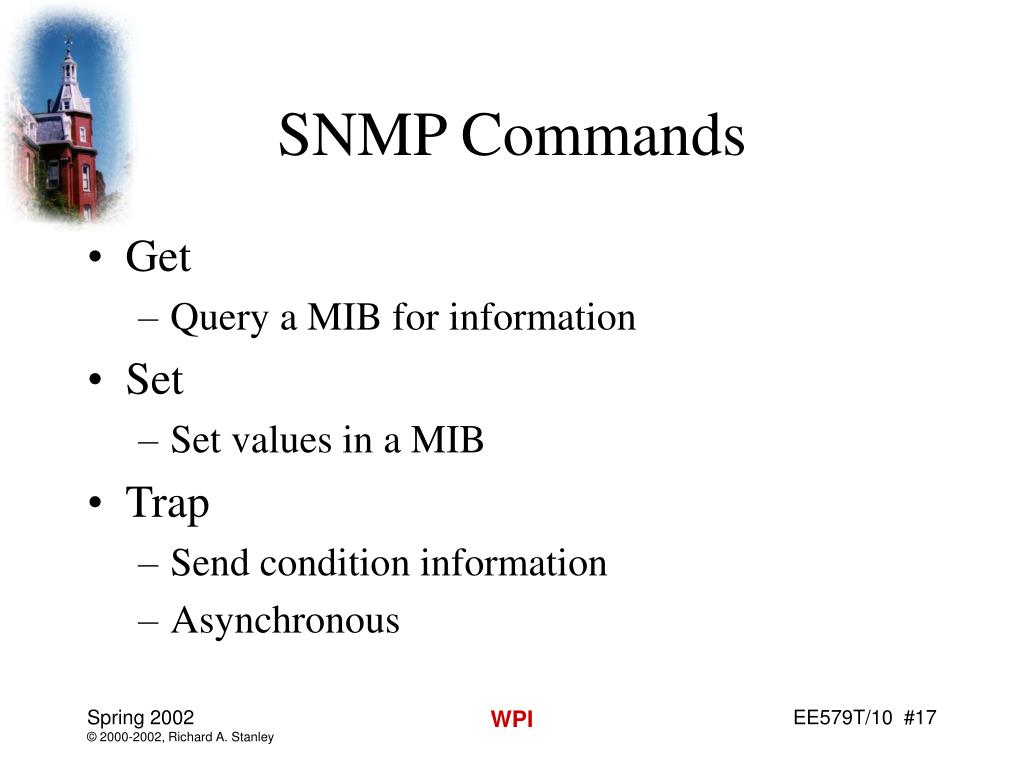

17. SNMP Commands • Get • Query a MIB for information • Set • Set values in a MIB • Trap • Send condition information • Asynchronous WPI

18. SNMP Proxies • SNMPv1 supports UDP over IP • Period! • There are lots of clients out there that need to be managed that don’t speak UDP • Proxies bridge the gap • Provide translation of client management language to SNMP • Interfaces to SNMP for the client WPI

19. Proxy Configuration WPI

20. SNMPv2 • Allows use of TCP/IP, and others • Provides additional management features • Distributed network management • Single-server hierarchical networks get overloaded • Functional enhancements • GetBulk – retrieve block of data at once • Inform – intra-management station communications of events and/or conditions • Removes atomicity from the Get command WPI

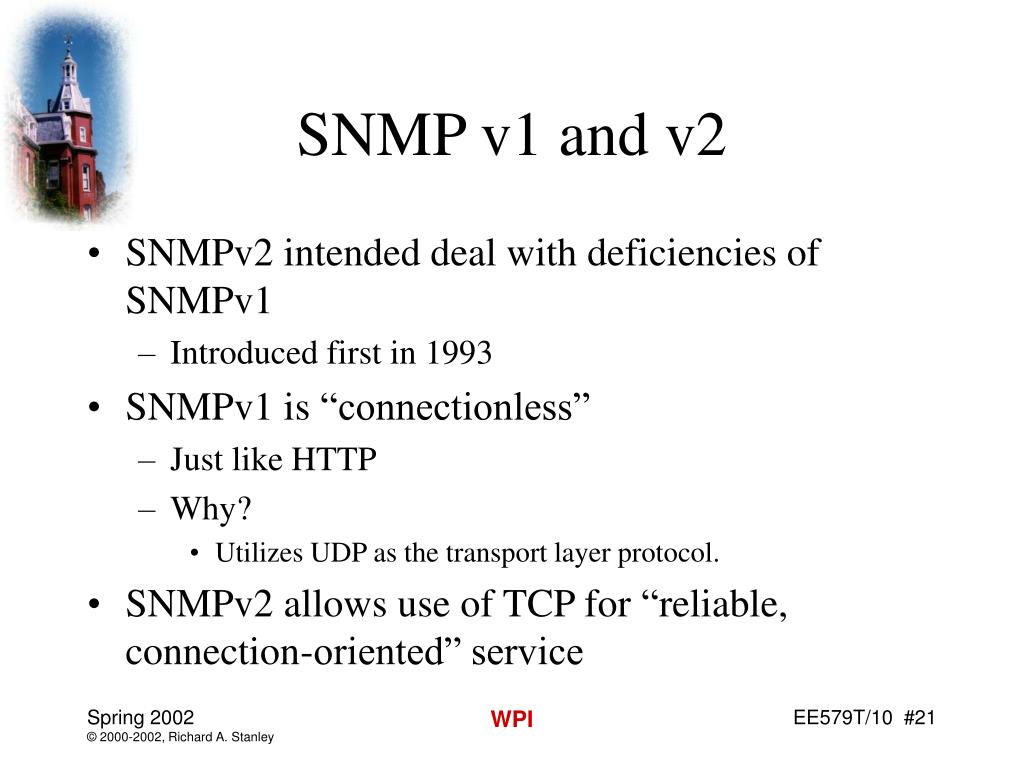

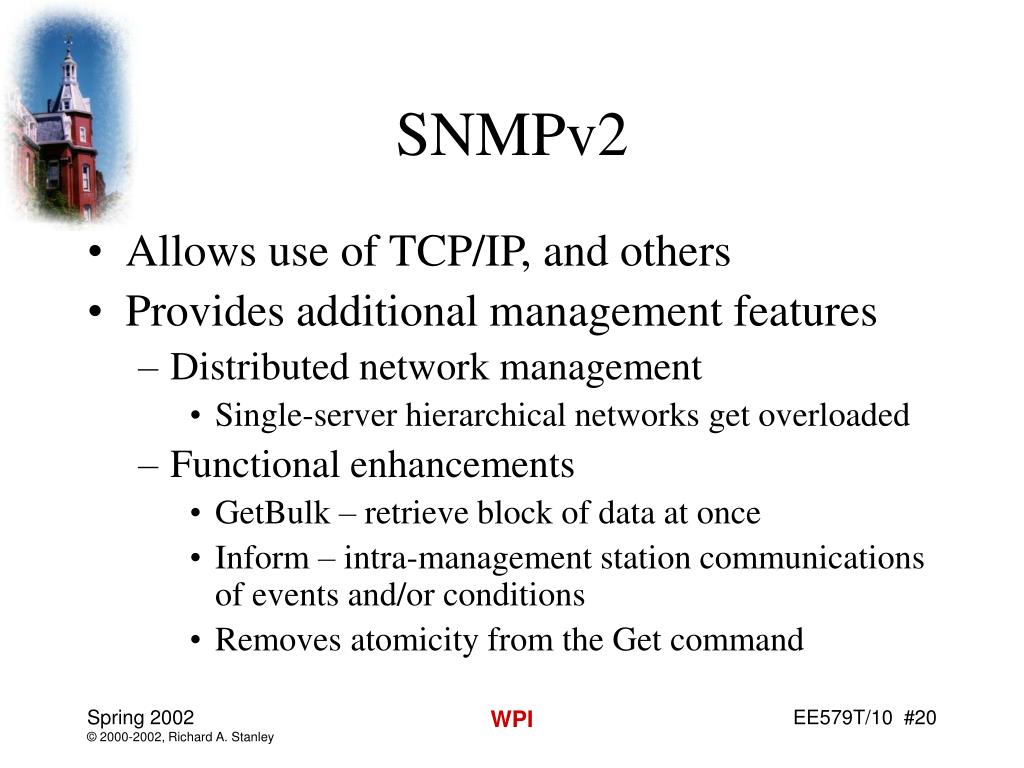

21. SNMP v1 and v2 • SNMPv2 intended deal with deficiencies of SNMPv1 • Introduced first in 1993 • SNMPv1 is “connectionless” • Just like HTTP • Why? • Utilizes UDP as the transport layer protocol. • SNMPv2 allows use of TCP for “reliable, connection-oriented” service WPI

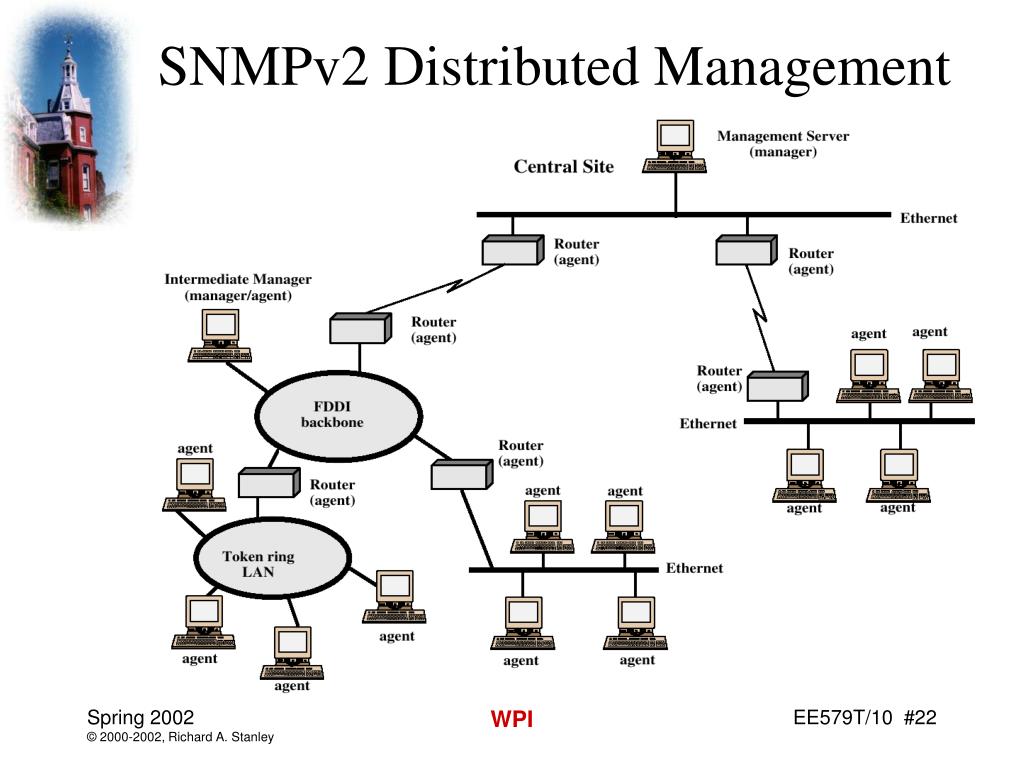

22. SNMPv2 Distributed Management WPI

23. SNMPv1 vs. SNMPv2 WPI

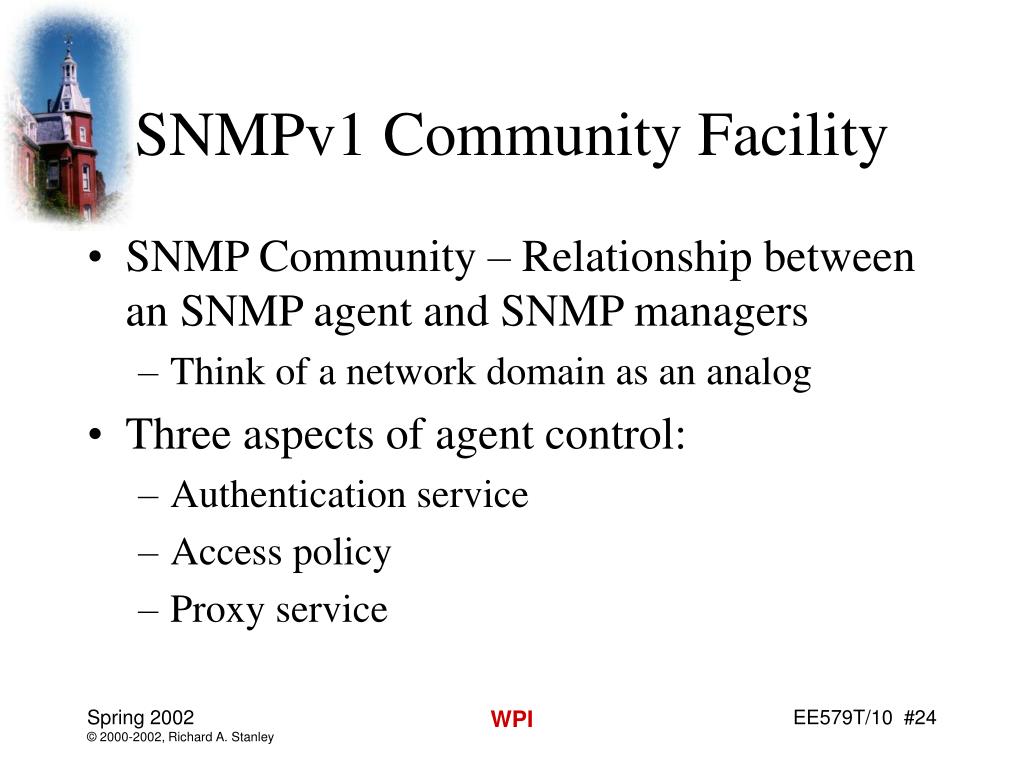

24. SNMPv1 Community Facility • SNMP Community – Relationship between an SNMP agent and SNMP managers • Think of a network domain as an analog • Three aspects of agent control: • Authentication service • Access policy • Proxy service WPI

25. SNMPv1 Administrative Concepts WPI

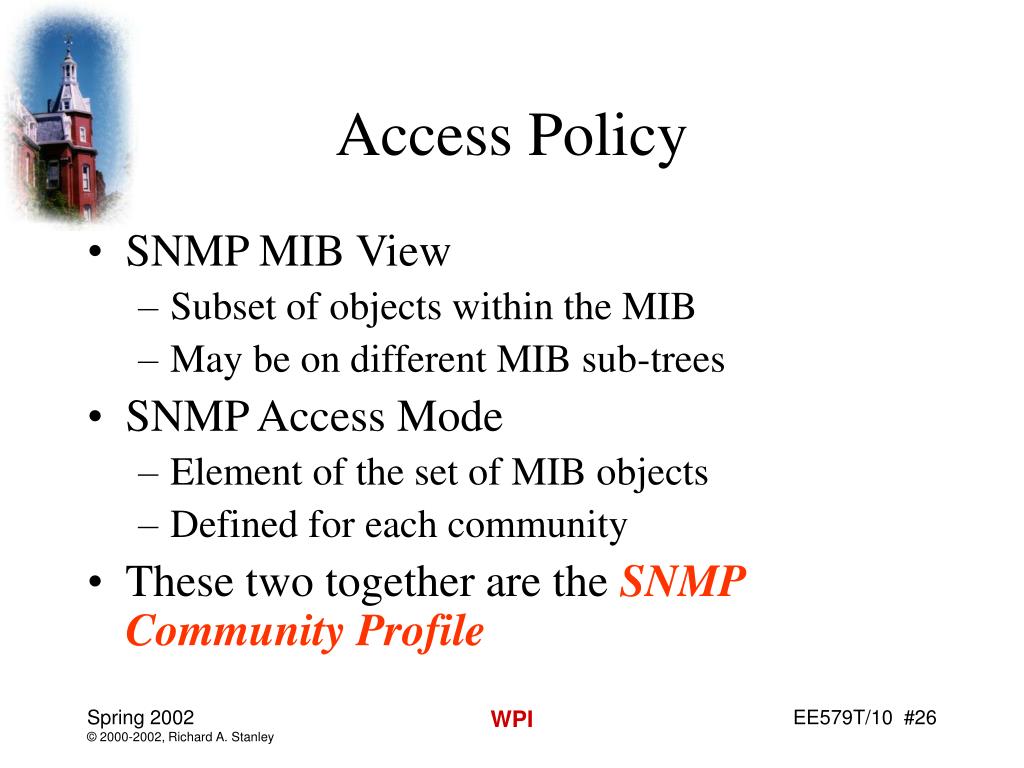

26. Access Policy • SNMP MIB View • Subset of objects within the MIB • May be on different MIB sub-trees • SNMP Access Mode • Element of the set of MIB objects • Defined for each community • These two together are the SNMP Community Profile WPI

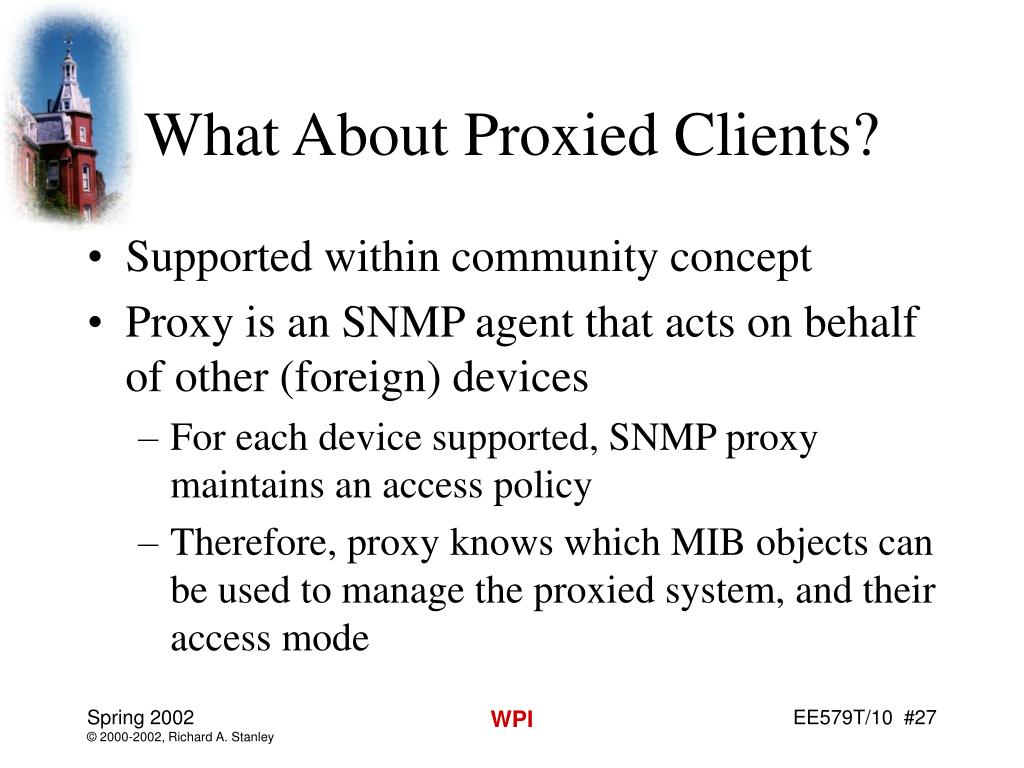

27. What About Proxied Clients? • Supported within community concept • Proxy is an SNMP agent that acts on behalf of other (foreign) devices • For each device supported, SNMP proxy maintains an access policy • Therefore, proxy knows which MIB objects can be used to manage the proxied system, and their access mode WPI

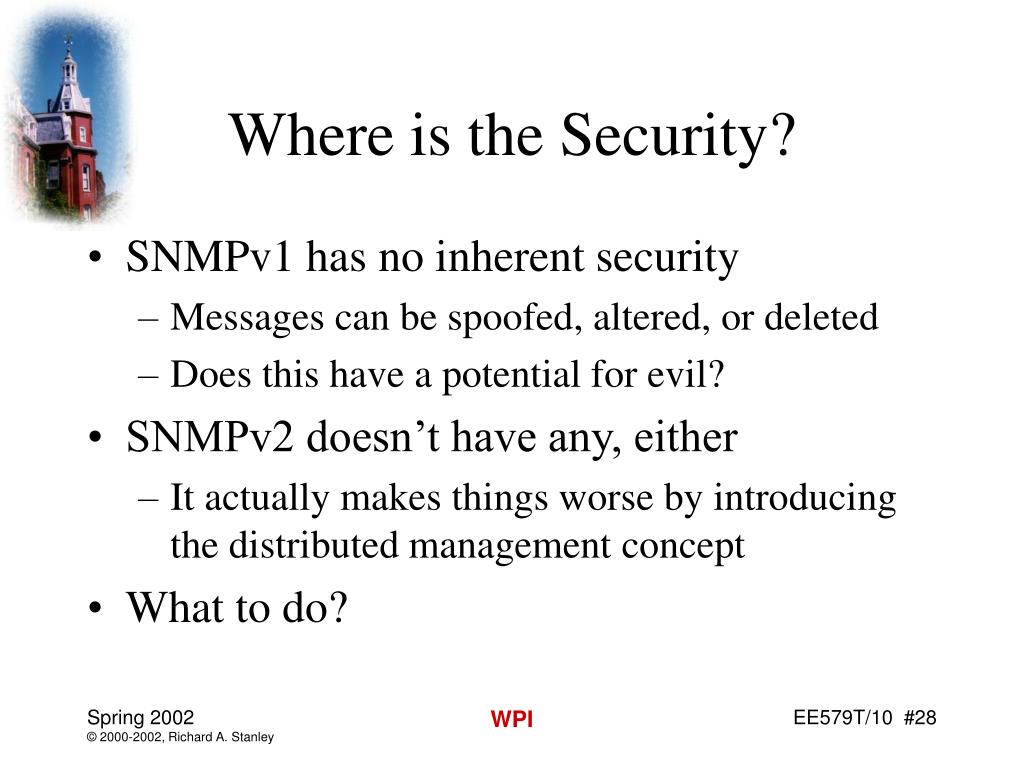

28. Where is the Security? • SNMPv1 has no inherent security • Messages can be spoofed, altered, or deleted • Does this have a potential for evil? • SNMPv2 doesn’t have any, either • It actually makes things worse by introducing the distributed management concept • What to do? WPI

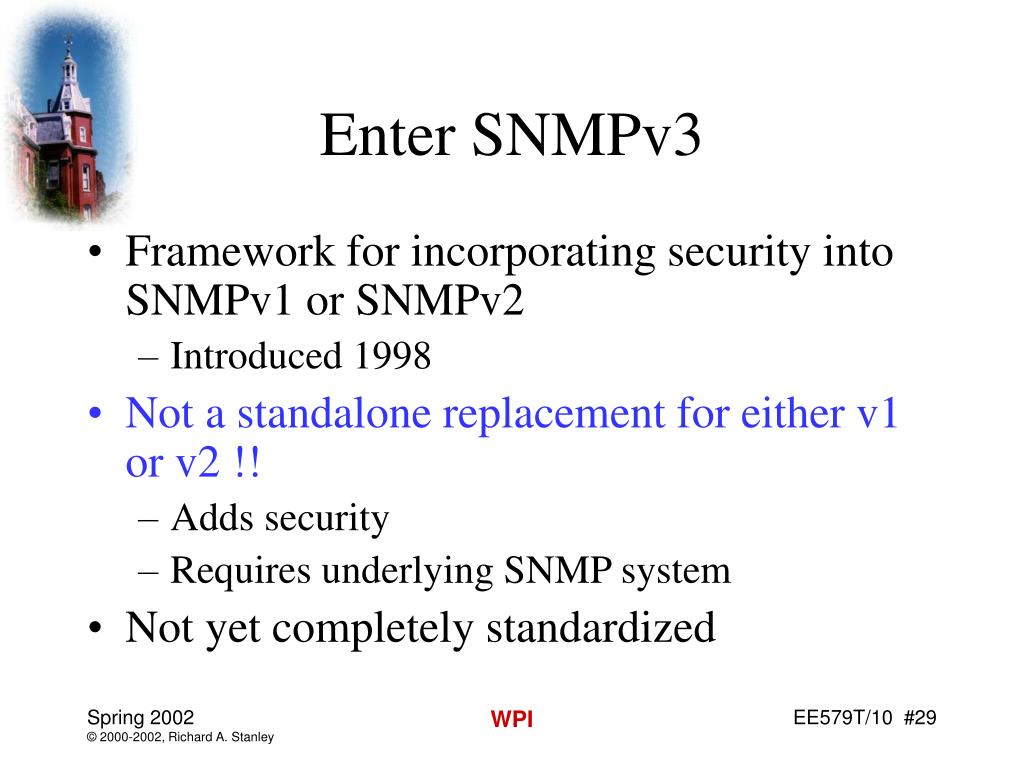

29. Enter SNMPv3 • Framework for incorporating security into SNMPv1 or SNMPv2 • Introduced 1998 • Not a standalone replacement for either v1 or v2!! • Adds security • Requires underlying SNMP system • Not yet completely standardized WPI

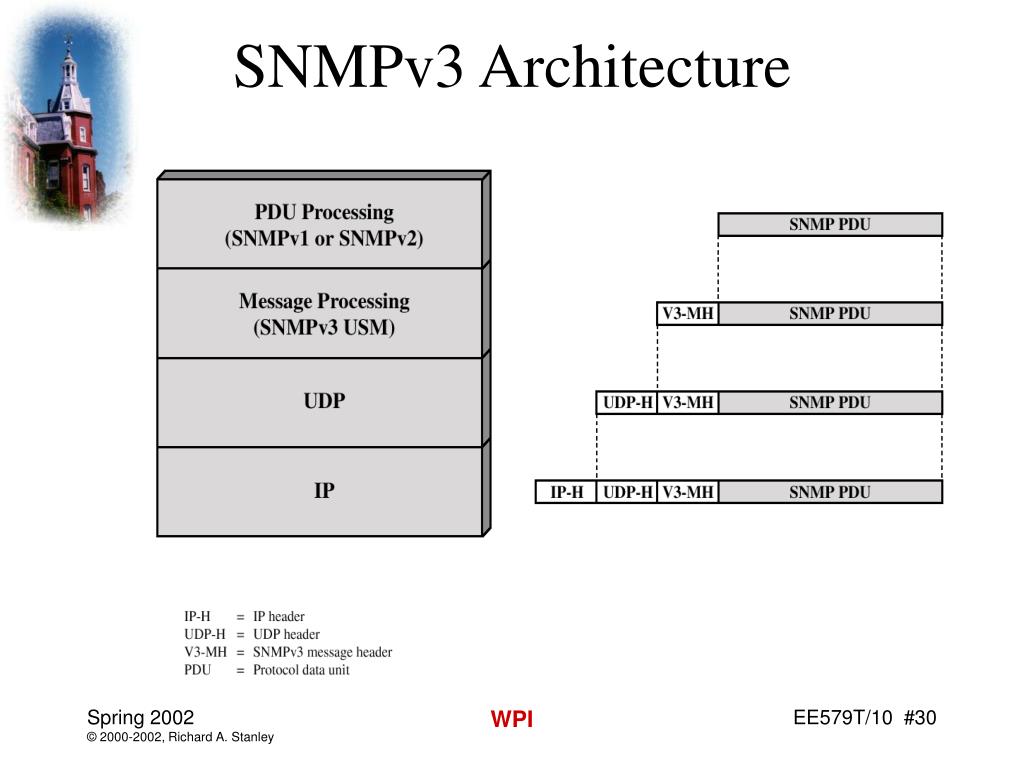

30. SNMPv3 Architecture WPI

31. Traditional SNMP Manager WPI

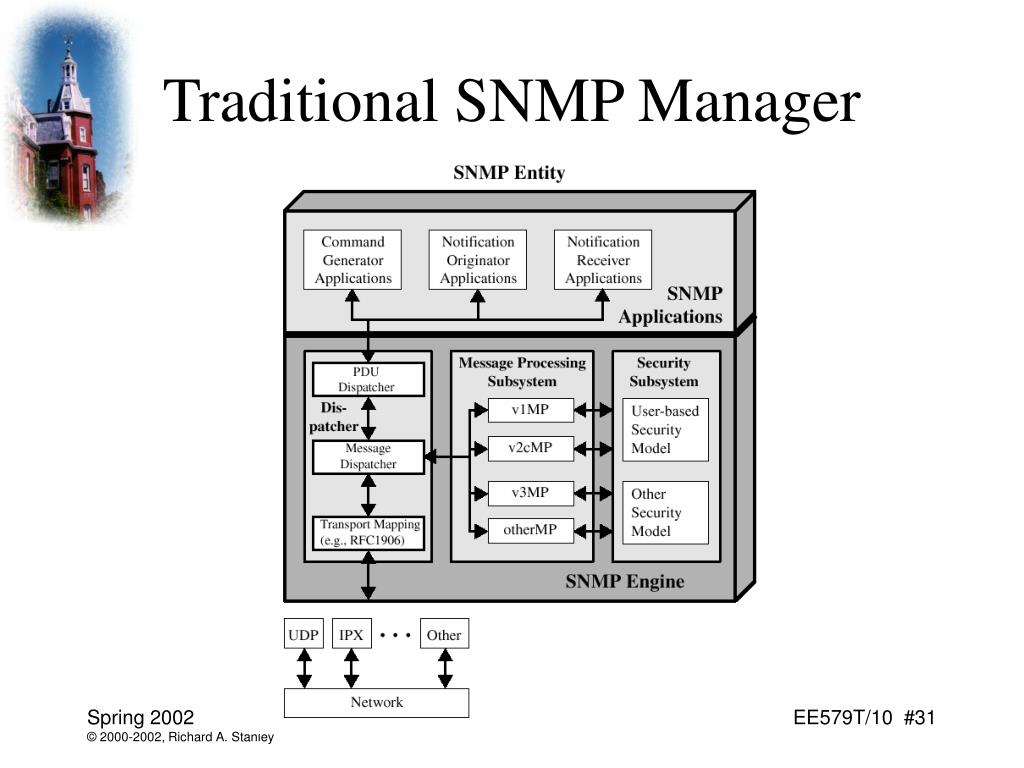

32. Traditional SNMP Agent WPI

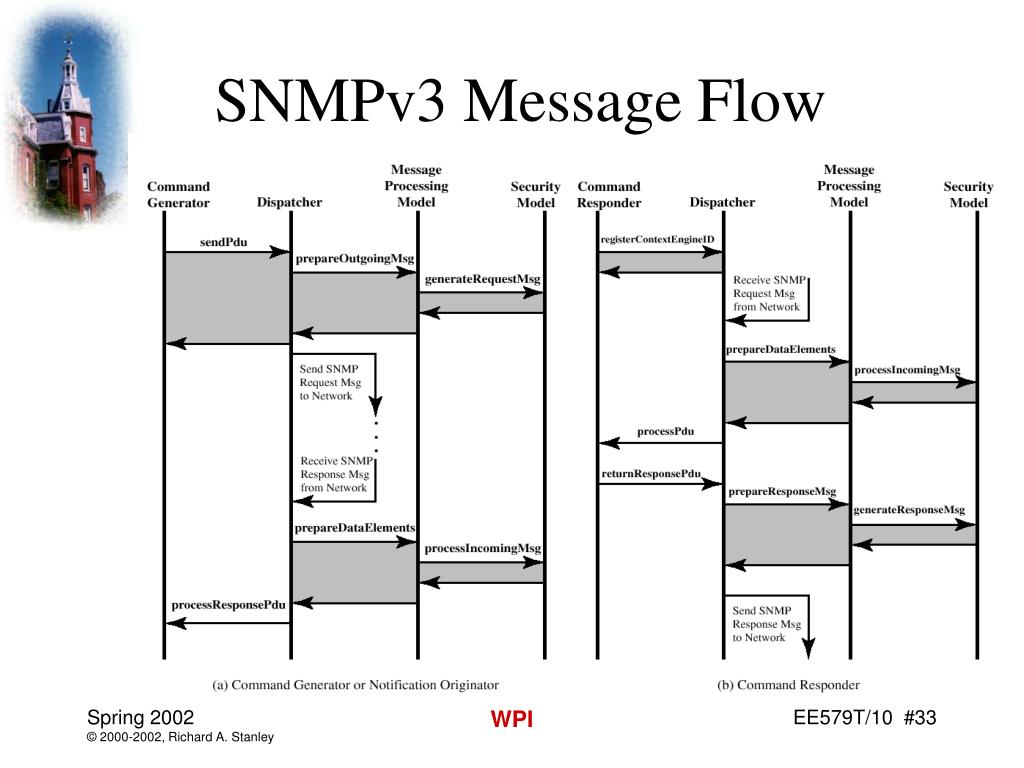

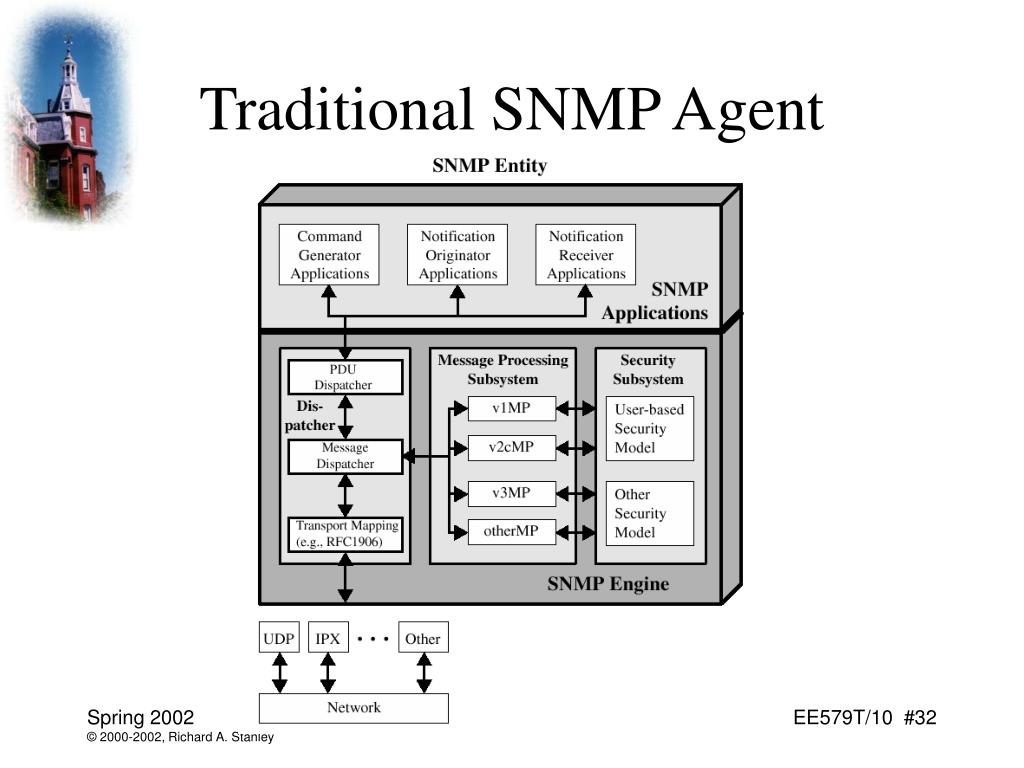

33. SNMPv3 Message Flow WPI

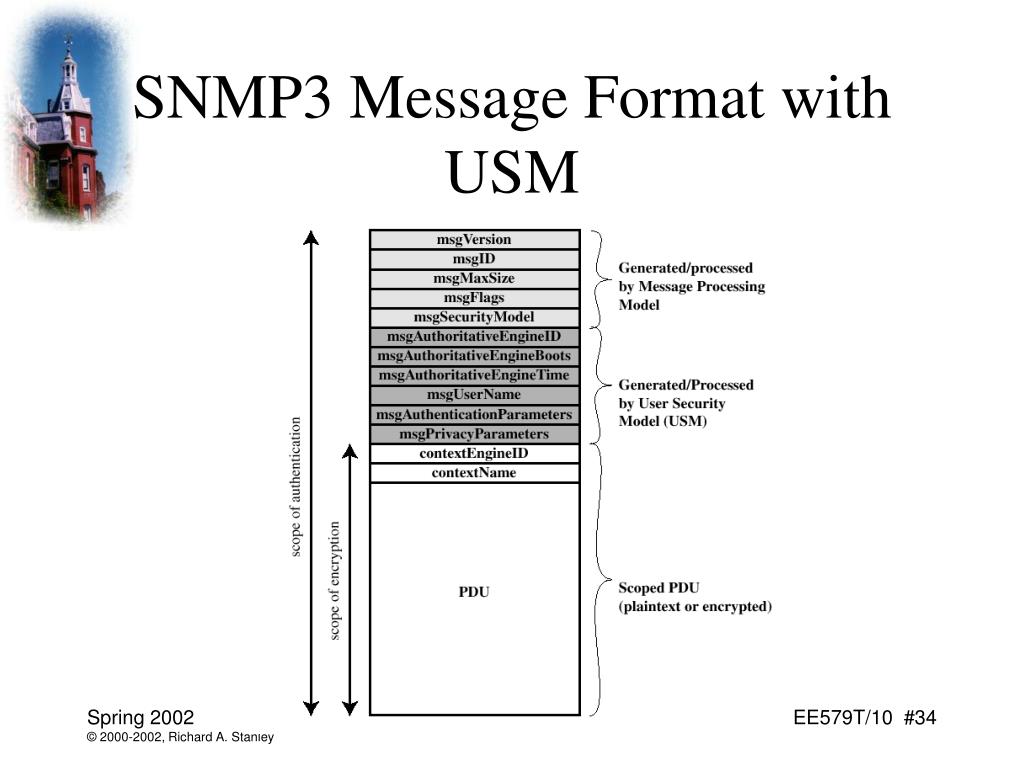

34. SNMP3 Message Format with USM WPI

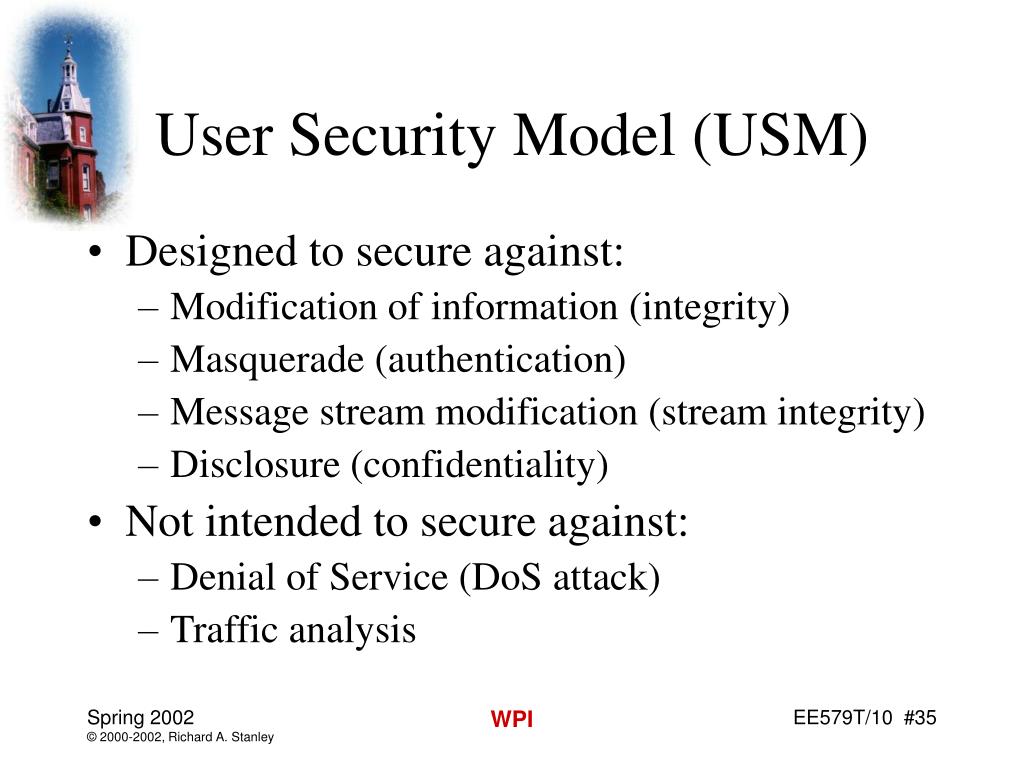

35. User Security Model (USM) • Designed to secure against: • Modification of information (integrity) • Masquerade (authentication) • Message stream modification (stream integrity) • Disclosure (confidentiality) • Not intended to secure against: • Denial of Service (DoS attack) • Traffic analysis WPI

36. In Theory… • DoS attacks may look like network failure (imagine that!) • DoS should be dealt with by an overall network security capability, not one embedded in a protocol • Traffic analysis no problem, as management traffic highly predictable anyway • What do you think? WPI

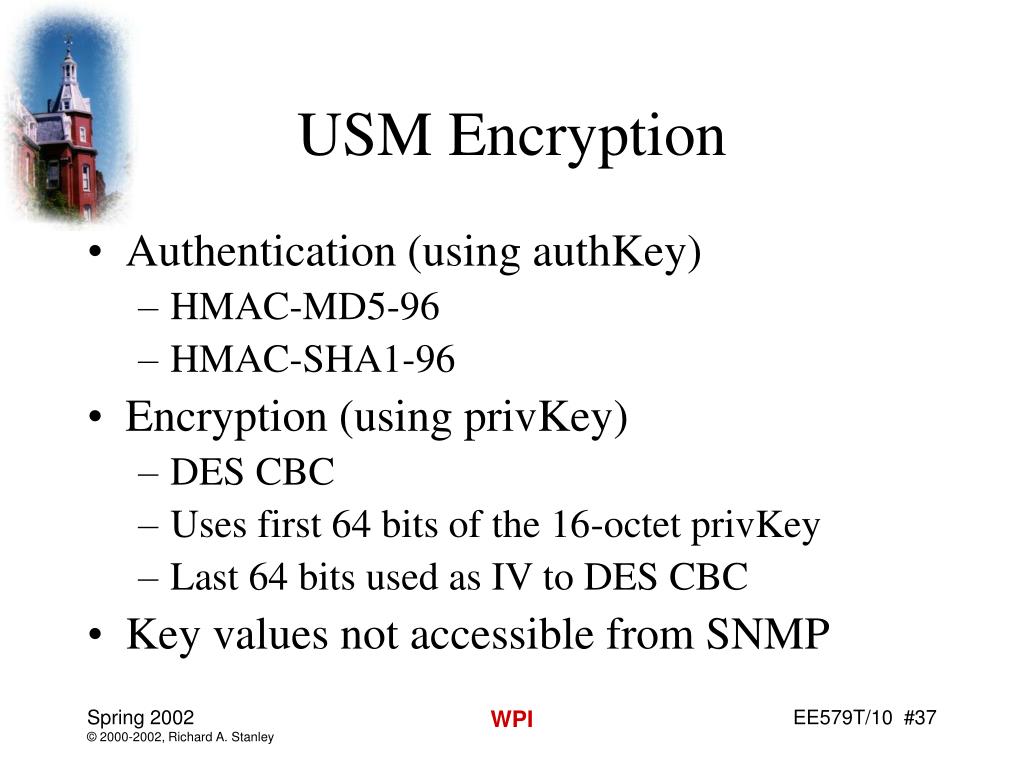

37. USM Encryption • Authentication (using authKey) • HMAC-MD5-96 • HMAC-SHA1-96 • Encryption (using privKey) • DES CBC • Uses first 64 bits of the 16-octet privKey • Last 64 bits used as IV to DES CBC • Key values not accessible from SNMP WPI

38. Authoritative Engine • SNMP messages with payloads that expect a response (Get…, Set, Inform) • Receiver of message is authoritative • SNMP messages with payload that does not expect response (Trap, Response, Report) • Sender is authoritative • So what? WPI

39. Key Localization • Allows single user to own keys stored in multiple engines • Key localized to each authoritative engine using hash functions • Avoids problem of a single key being stored in many places • Greatly slows brute force attack WPI

40. Key Localization Process WPI

41. Timeliness • Determined by a clock kept at the authoritative engine • When authoritative engine sends a message, it includes the current clock value • Nonauthoritative agent synchronizes on clock value • When nonauthoritative engine sends a message, it includes the estimated destination clock value • These procedures allow assessing message timeliness • Why do we care? WPI

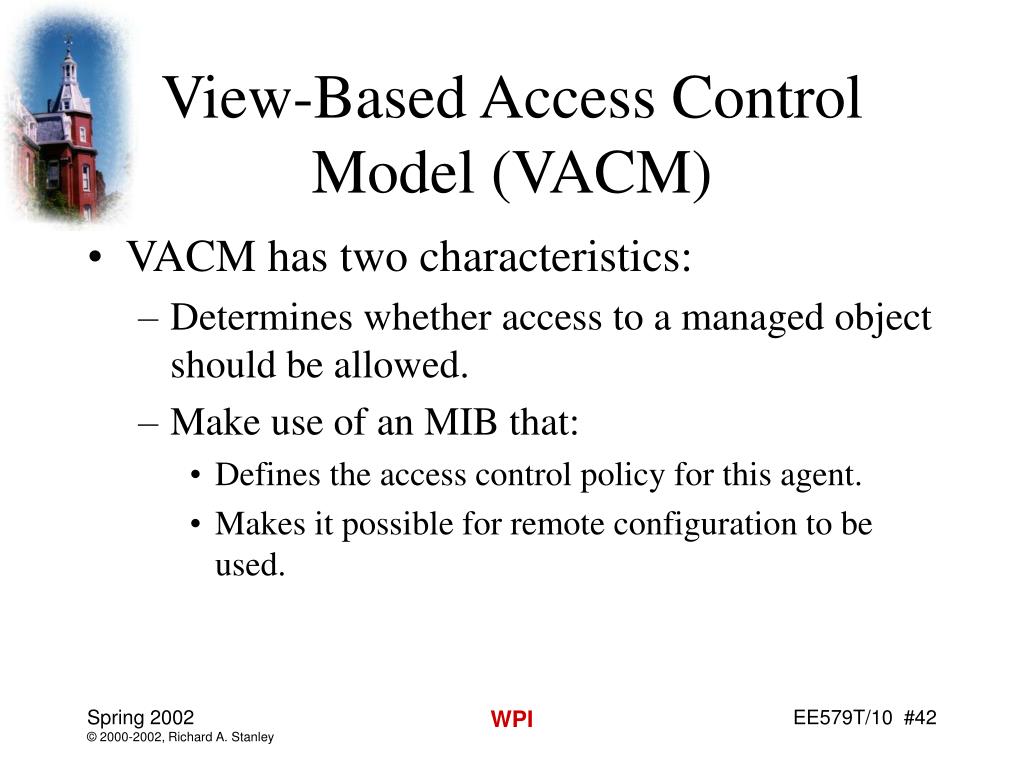

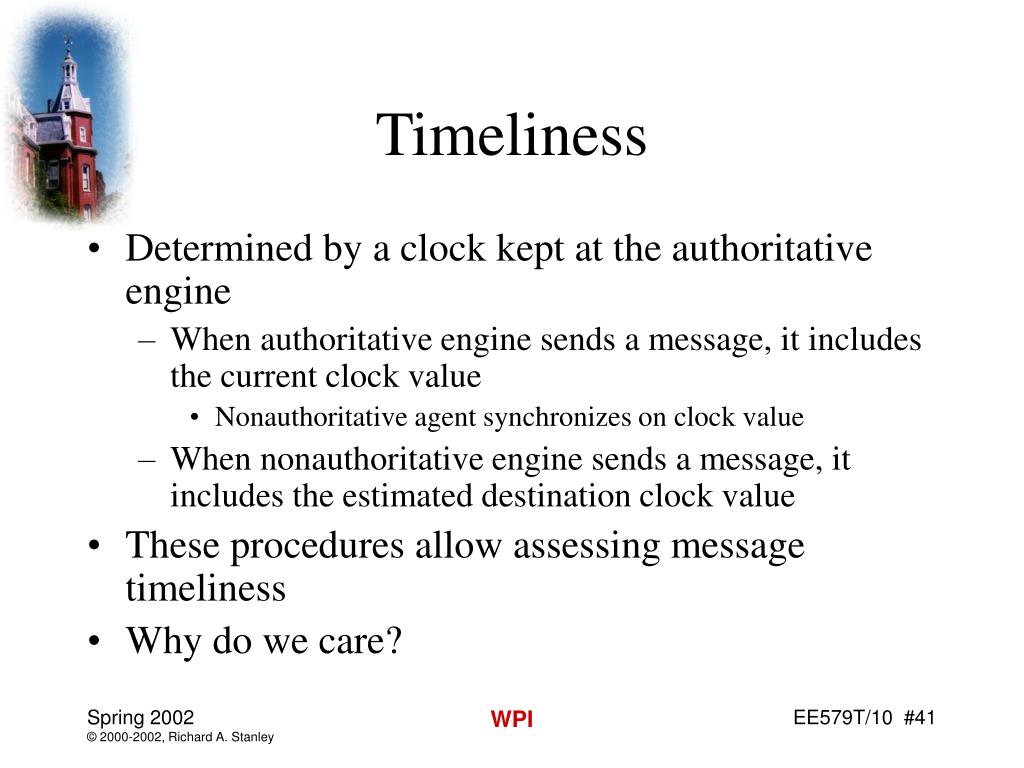

42. View-Based Access Control Model (VACM) • VACM has two characteristics: • Determines whether access to a managed object should be allowed. • Make use of an MIB that: • Defines the access control policy for this agent. • Makes it possible for remote configuration to be used. WPI

43. Access Control Logic in VACM WPI

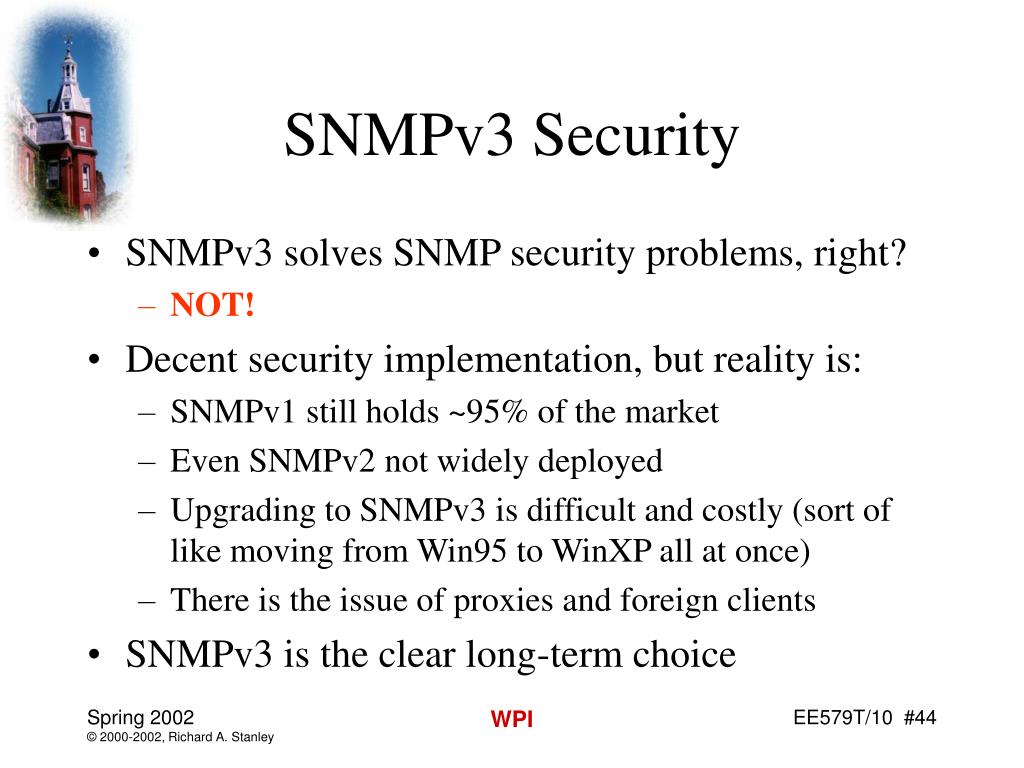

44. SNMPv3 Security • SNMPv3 solves SNMP security problems, right? • NOT! • Decent security implementation, but reality is: • SNMPv1 still holds ~95% of the market • Even SNMPv2 not widely deployed • Upgrading to SNMPv3 is difficult and costly (sort of like moving from Win95 to WinXP all at once) • There is the issue of proxies and foreign clients • SNMPv3 is the clear long-term choice WPI

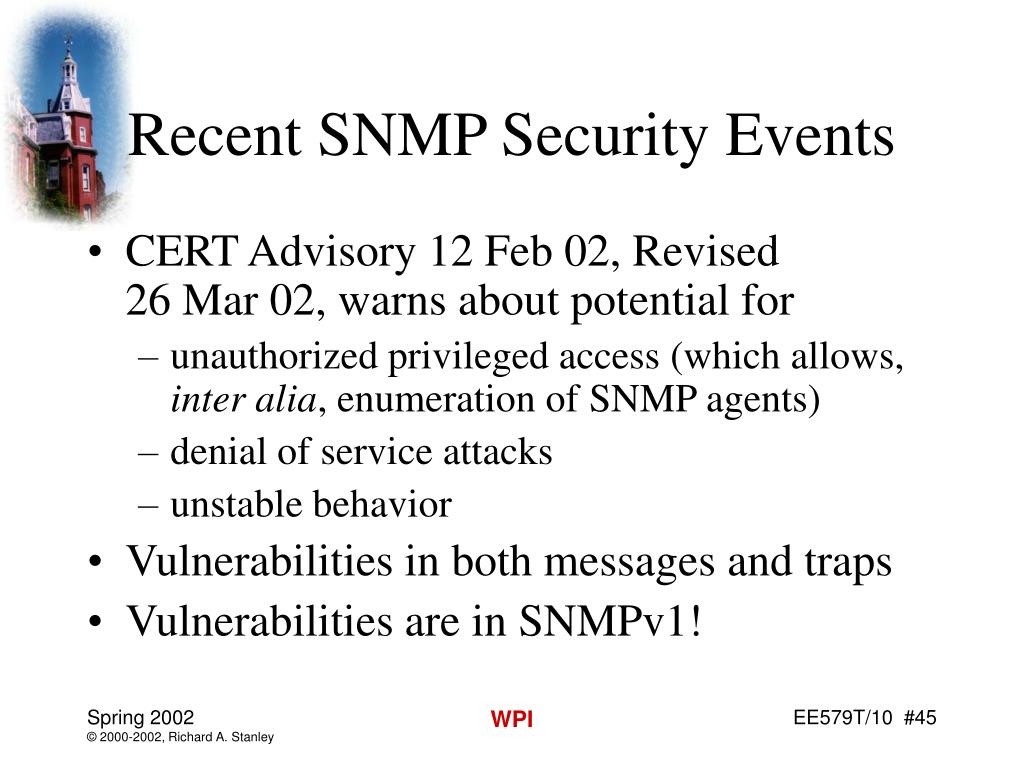

45. Recent SNMP Security Events • CERT Advisory 12 Feb 02, Revised 26Mar02, warns about potential for • unauthorized privileged access (which allows, inter alia, enumeration of SNMP agents) • denial of service attacks • unstable behavior • Vulnerabilities in both messages and traps • Vulnerabilities are in SNMPv1! WPI

46. This is Not New News! • After this class, are you surprised? • These vulnerabilities have been in SNMP since Day One • Only now, with an increased emphasis on security, are they getting the attention they deserve • Officially, the vulnerabilities have not been exploited. Unofficially, they have. WPI

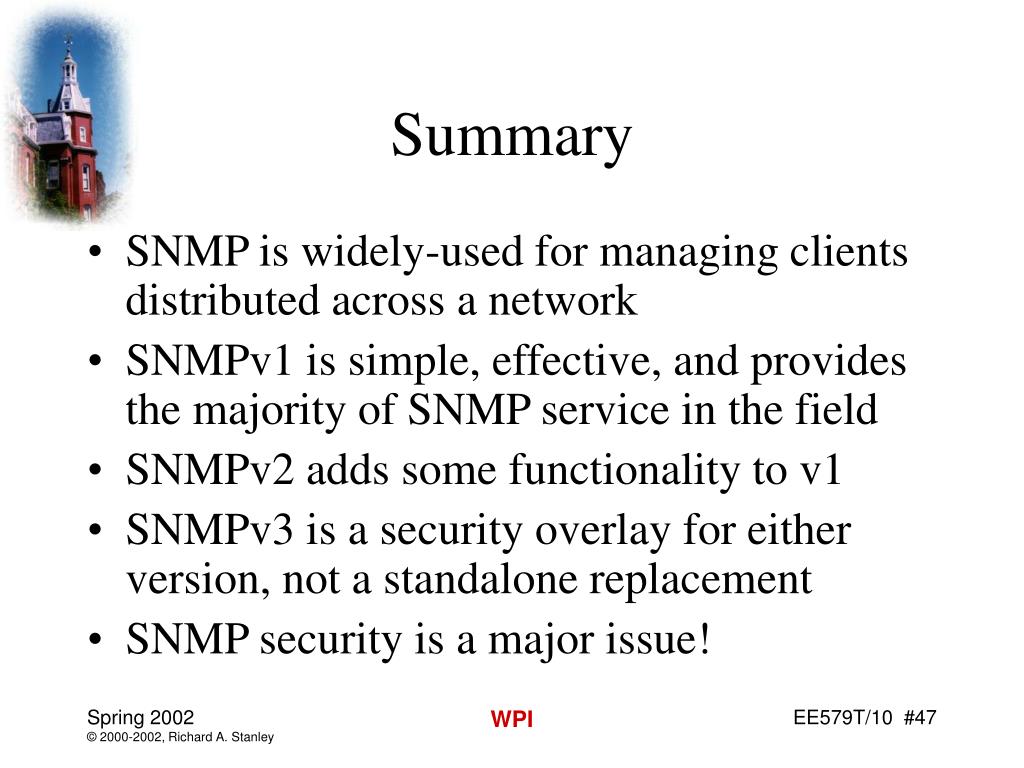

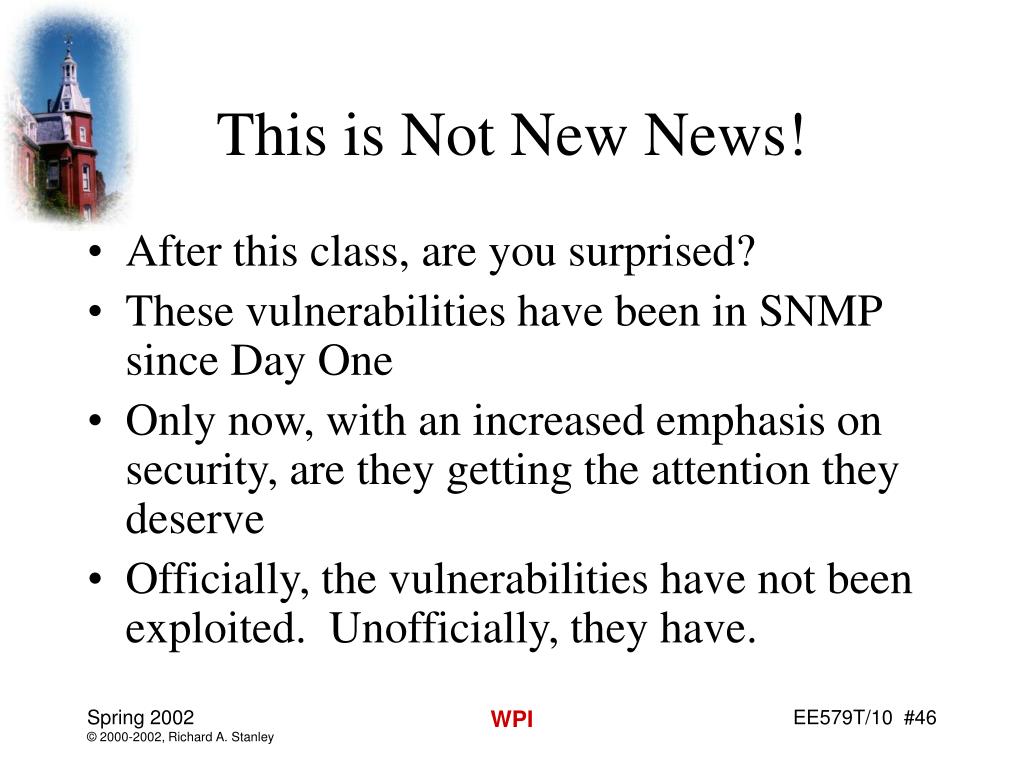

47. Summary • SNMP is widely-used for managing clients distributed across a network • SNMPv1 is simple, effective, and provides the majority of SNMP service in the field • SNMPv2 adds some functionality to v1 • SNMPv3 is a security overlay for either version, not a standalone replacement • SNMP security is a major issue! WPI

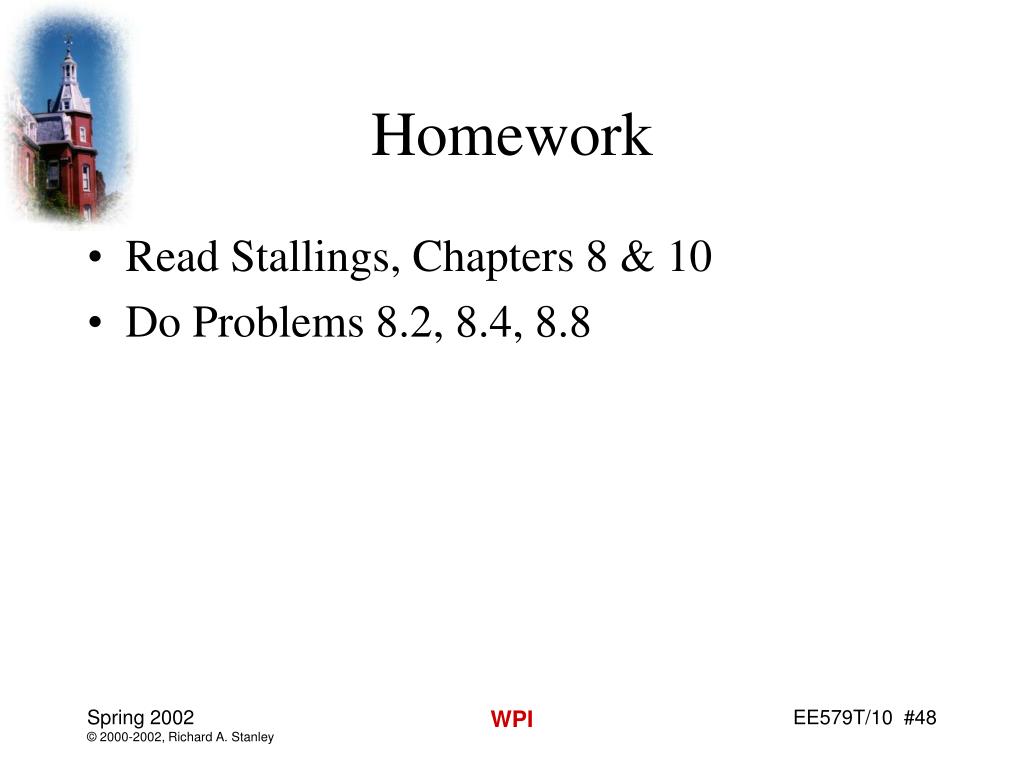

48. Homework • Read Stallings, Chapters 8 & 10 • Do Problems 8.2, 8.4, 8.8 WPI
