Pulmonary Stents And Hemoptysis

Pulmonary Stents And Hemoptysis. Scott Farquharson M.D. Dec 9 th 2010 With thanks to Dr. Alain Tremblay and Dr. David Jungen. Case - 57 Y/O woman with Hemoptysis. Rockyview Hospital 00: 12 – EMS patch 57 y/o female with gross hemoptysis, has endobronchial stent and “difficult airway”

chas
Download Presentation

Pulmonary Stents And Hemoptysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Pulmonary Stents And Hemoptysis Scott Farquharson M.D. Dec 9th 2010 With thanks to Dr. Alain Tremblay and Dr. David Jungen

  2. Case - 57 Y/O woman with Hemoptysis • Rockyview Hospital • 00: 12 – EMS patch • 57 y/o female with gross hemoptysis, has endobronchial stent and “difficult airway” • Awake, alert, sats 98% on NRB, other vitals OK • How would you prepare?

  3. Preparation for difficult airway • Code room • RT, Nursing • Prepare for awake intubation • DAM cart, Glidescope • Topical Lidocaine • Ketamine • Big Bertha • Notify other Ed physician re possible triple set up

  4. Who is aware that there is an Interventional Pulmonologist on call?

  5. Objectives of Talk • Review indications for calling Interventional Pulmonologist • Discuss pulmonary stent use and complications that could be seen in the ED • Discuss airway management of life threatening hemoptysis in the ED

  6. Case • 00:29 – Pt arrives • T 35.9, P 150, BP 189/90, RR 40, Sats 96% NRB • Drying blood in mouth, on face, hands and front of clothing. No active hemoptysis. • Stridor • Able to speak 1-2 words at a time • Indrawing

  7. History - EMS • Oral Ca 2002 with curative resection and subsequent reconstruction • Lung Ca 2006 in remission post chemo/radiation – radiation scarring of lungs • Has stent in L mainstem bronchus • Had balloon bronchoplasty of R mainstem 5 days ago • R1 as no active cancer

  8. Stent Card

  9. IPM • IPM – Interventional Pulmonary Medicine • Only 3 MDs in call group • Practice out of FMC but will go to other sites for unstable patients • All things bronchoscopic

  10. Indications for calling IPM • Pulmonary Stent patients with respiratory difficulty or stent obstruction • Pleural catheter patients • Blocked catheters • Respiratory difficulty • Subglotic airway obstruction • CA • FB • Massive or life threatening hemoptysis

  11. Pulmonary Stents • Extrinsic compression • Malacia • Barrier effect • Intrinsic tumor growth • Tracheo-esophageal fistula • Support Effect

  12. Malignant Tracheoesophageal Fistula • Double Stenting C-H Marquette

  13. Endobronchial Stents Dumon Interventional bronchoscopy. ProgRespir Res. Basel, Karger, 2000, vol 30, pp 171-186 • 2 basic types • Silicone • Non radio opaque • Metal • Radio opaque • Stent card • Type of stent • Placement site • IPM number Ultraflex Dumon Y Rüsch Y

  14. Stents – Complications • Tumor growth causing obstruction

  15. Stents – Complications Granulation tissue obstructing stent

  16. Stents – Complications • Secretions blocking stent

  17. Stents – Complications • Stent migration causing obstruction

  18. Stents - Complications • Hemoptysis • Stent erosion • Underlying lesion could cause hemoptysis • Infection

  19. Stents – Complications • Intubation • OK with mainstem stents or more distal stents • Fiberoptic intubation preferred with tracheal stents • IPM will be needed to clear any stent obstruction • Discuss with on call Pulmonary if Pt stable not in respiratory distress

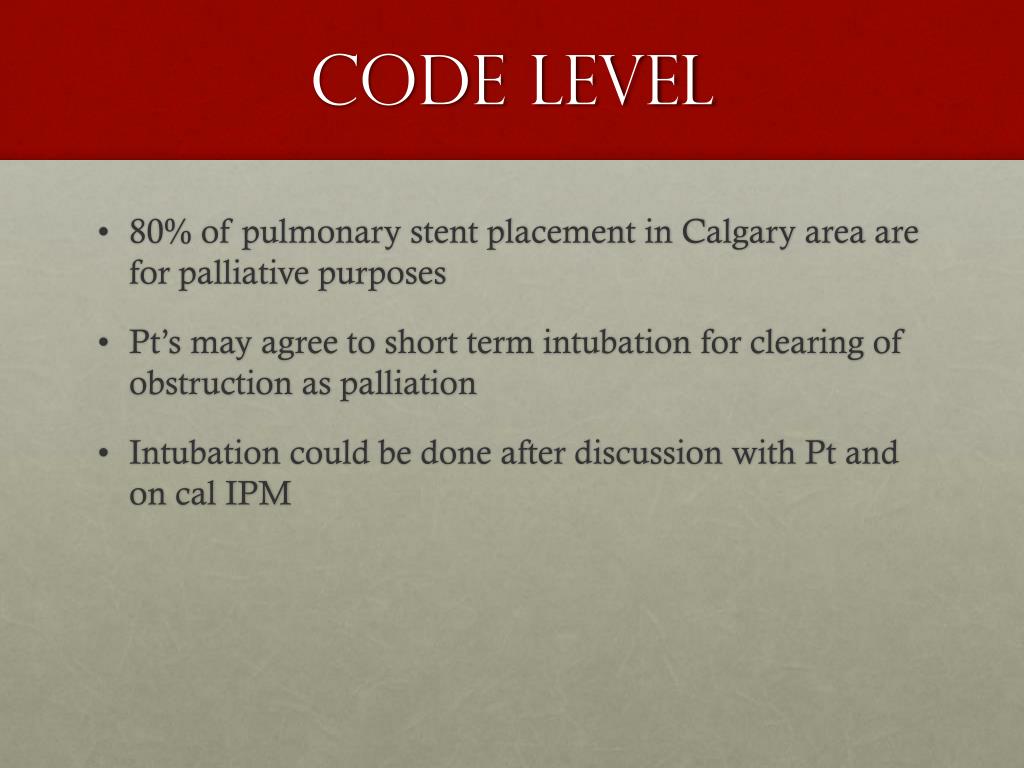

  20. Code Level • 80% of pulmonary stent placement in Calgary area are for palliative purposes • Pt’s may agree to short term intubation for clearing of obstruction as palliation • Intubation could be done after discussion with Pt and on cal IPM

  21. Case • 00:58 • Pt had been given Nebulized EPI with slight improvement • Able to speak short sentences, agrees to intubation • VBG – pH 7.29, Hgb 135

  22. Physical Exam • P 117, RR 38, BP 150/75, Sats 100% NRB • Still some insp. stridor • OP – dried blood, anatomy distorted, restricted mouth opening, no active hemoptysis • Chest – diffuse harsh wheezes and upper air way stridor, indrawing • Abd – soft with peg tube

  23. Chest X-ray

  24. Case • 01:02 • Discussed case with ICU attending and Fellow • Plan – intubate with urgent bronchoscopy • Triple set up – Dr. Harji present • Nebulized and topical Lidocaine • Ketamine titrated

  25. Case • 00:16 – 01:33 • Attempt X 3 Dr. Farquharson awake intubation • Glidescope – unable to visualize epiglottis • Direct laryngoscopy with bougie – unable to pass bougie • Fiberoptic scope – airway visualized unable to pass 7.5 tube • Attempt X 1 Dr. Harji awake intubation • Fiberoptic intubating stylet – airway visualized unable to pass 6.5 tube

  26. Case • 01:33 – 02:12 • Anesthesia paged • Airway attempt X 2 Dr. Soska, Dr. Topher (Anesthesia) • Glide scope • Bougie • Requested fiber optic scope – taken by RT to be cleaned!! • Airway attempt X 1 Dr. Harji • FIS with 40 mg Succ – unable to see cords • Attempt X 1 Dr. Soska – Success !!! • Lightwand and 40 cc of Succ – 6.0 tube passes

  27. Case • 02:23 • Called back to Code room as Pt increasingly difficult to bag • Poor BS bilaterally • Nothing with suctioning • Tube pulled back 1-2 cm with no change • Port CXR done • No hemoptysis noted

  28. CXR

  29. Case • 02:32 - 02:48 • Sats drop to 59% • PEA arrest • Tube pulled, Bagged, CPR started • Very difficult to bag • Return of circulation with atropine, epi • Sats in 40s • Anesthesia called back • Crich done by Dr. Harji while pt being bagged

  30. Case • 02:49 – 03:25 • Only able to ventilate pt by occluding mouth and nose, bagging very difficult • Now apparent there is a distal obstruction • Sats 50-75 then drop to 35% • 2nd PEA arrest • Responds to Epi • IV ventolin started • Stomach decompressed through PEG tube

  31. Case • 03:26 – 04:11 • bagging slightly easier, mouth and nose still have to be occluded • Sats to 91% • Dr. Tremblay arrives (called by ICU) • Bronchoscopy reveals clots obstructing both mainstem bronchi • 7.0 ET tube placed, crich removed • Clots cleared with bronchoscope • Pt now easy to bag – taken to ICU

  32. Massive Hemoptysis • Greater than 600 cc of blood in 24 hrs • Not very useful definition in ED setting (although Pt’s regularly stay more than 24hrs) • Gross hemoptysis • Gross hemoptysis with respiratory distress • Gross hemoptysis with respiratory distress and hemodynamic instability

  33. Massive Hemoptysis • Literature reports a Mortality of 25-65% with massive hemoptysis 1 • Majority die of respiratory failure from blood contaminating upper airways and alveoli 2 • 2 sources of bleeding in lungs possible • Pulmonary circulation • Bronchial circulation • Majority from bronchial circulation 3

  34. Massive Hemoptysis • Causes tend to be unilateral 4 • Trauma • Cancer • Intervention • infection • Systemic illness rarely a cause of massive hemoptysis 5

  35. Management Strategy • Localize the bleeding • Advanced airway management • Simple intubation may not be enough to protect uncontaminated lung from blood • Early mobilization of other specialties to control bleeding • Anesthesia • IPM • Interventional radiology - Embolization • Thoracic Surgery

  36. Airway Management • Selective ventilation of one lung • No special equipment • Protects 1 lung • Can only ventilate one lung • If R lung intubated will occlude RUL • No tamponade • Have to reposition tube to use FB

  37. Selective Lung Ventilation

  38. Airway Management • Double Lumen ET Tube • Can ventilate each lung independently • Most commonly placed • Can be placed blind • Provides protection of non bleeding lung • No direct tamponade • Allows only small FB • Sizes French • 35-37 women • 39-41 men

  39. Double Lumen ET Tube

  40. Airway Management- Bronchial Blockers • Fogarty Catheter • Passed beside ET tube • Placed with FB • Allows large FB • Can place in lobar bronchi • Balloon can migrate or leak

  41. Fogarty Catheter

  42. Airway Management- Bronchial Blockers • Univent tube • Combined ET tube and bronchial blocker • Can ventilate while placing blocker • Large diameter tube > 8.0 • Blocker placed with FB or blind • Allows large FB • Can place in lobar bronchi • Tube can migrate or leak

  43. Univent Tube

  44. Airway Management- Bronchial Blockers • Arndt wire guided endobronchial blocker • Can be added to regular ET tube • Multiport adapter allows for simultaneous ventilation, bronchoscopy and Blocker placement • Can place in lobar bronchi • Tube can migrate or leak

  45. Airway Management • All methods are temporizing • Definitive hemostasis • FB • Embolization by Interventional Radiology • Thoracic Surgery • High failure rate in inexperienced hands

  46. Case • Next 48 hrs • Pt showed evidence of anoxic brain injury • Seized • Had 2nd massive pulmonary bleed • Family decided no further interventions • Died
